EXRX580 2048SP4G - Graphic card ASUS - Free user manual and instructions

Product Type	Graphics Card
Brand	ASUS
Model	EXRX580 2048SP4G
Graphics Chipset	AMD Radeon RX 580 2048SP
Video Memory	4 GB GDDR5
Interface	PCI Express 3.0 x16
Maximum Resolution	7680 x 4320 (via DisplayPort)
Connectors	1x HDMI 2.0, 3x DisplayPort 1.4, 1x DVI-D
Recommended Power Supply	500 W
Power Connector	1 x 8-pin PCIe
Dimensions	240 x 130 x 40 mm
Weight	600 g
Cooling	Dual fan with Axial-tech technology
Features	Supports DirectX 12, OpenGL 4.6, AMD FreeSync
Included Software	ASUS GPU Tweak II
Warranty	2 years
Maintenance	Clean fans and heatsink with compressed air
Safety	Do not open the casing, use an adequate power supply
Spare Parts	Replacement fans available

Frequently Asked Questions - EXRX580 2048SP4G ASUS

How to install the graphics card driver?

Download the latest driver from the AMD website or use the provided CD. Run the installation program and follow the on-screen instructions. Restart your computer after installation.

How to use the ASUS GPU Tweak II software?

Double-click on the GPU Tweak II icon on the desktop. You can switch between Simple Mode for quick monitoring and Professional Mode for advanced settings like overclocking.

What to do if the screen remains black after installation?

Check that the 8-pin power connector is properly plugged in and that the monitor is connected to a port on the graphics card. Try starting in Safe Mode and uninstall the previous driver.

How to overclock the graphics card?

Use the Professional Mode of GPU Tweak II. Gradually increase the GPU and memory frequency, then test stability with a benchmark. Monitor temperatures to avoid overheating.

What is the required power supply wattage?

ASUS recommends a power supply of at least 500 W with an 8-pin PCIe connector for stable operation.

How to clean the graphics card?

Turn off the computer and unplug the power cable. Use compressed air to blow dust from the fans and heatsink. Avoid any contact with electronic components.

Is the graphics card compatible with Windows 10?

Yes, it is compatible with Windows 10/8.1/7 in 32 and 64-bit versions. Appropriate drivers are available on the AMD website.

How to update the VBIOS?

Use the Live Update function of GPU Tweak II. Make sure you are connected to the Internet. Select the update option and follow the instructions. An incorrect update may damage the card.

What to do in case of overheating?

Check that the fans are spinning properly and that airflow in the case is sufficient. Reduce the graphics load or undervolt via GPU Tweak II. If it persists, clean the dust.

How to contact ASUS support?

Go to the ASUS website in the Support section. You can find your country's phone number, send an email, or use live chat. Have the card's serial number ready.

USER MANUAL EXRX580 2048SP4G ASUS

ASUS GPU Tweak II User Manual

Q10790

First Edition

August 2015

Contents

English. 3

繁體中文 14

简体中文 25

Francais 36

日本語 47

Italiano 58

Pycckn 69

Čestina. 80

Nederlands 91

Elambdaeta 102

Portugues. 113

Polski 124

Espanol 135

YKpaHcbKa 146

Deutsch 157

Knowing GPU Tweak II

ASUS GPU Tweak II utility allows you to monitor and tweak the settings of your ASUS graphics card for optimal performance. It has two user interfaces, the Simple Mode and Professional Mode, that allow you to quickly monitor your preset and customized profiles, boost the GPU settings for your game-changing enjoyment, or do some advanced tweaking on the GPU settings for optimal performance.

ASUS GPU Tweak II includes these ASUS-exclusive preset power-saving and gaming profiles:

OC Mode

Silent Mode

Gaming Mode

My Profile

System requirements

AMD 7000 Series GPU or higher
NVIDIA 600 Series GPU or higher
32-/64-bit Microsoft*Windows 10/8/8.1/7

Installing GPU Tweak II

1. Ensure that you have installed the ASUS graphics card and its driver. Refer to the ASUS graphics card user manual for details on installing its driver.
2. Locate the ASUS GPU TweakII driver folder and double-click the setup.exe file to start the installation.
3. Follow the onscreen instructions to finish the installation.

Launching GPU Tweak II

Double-click the GPU Tweak icon h the desktop.
- Click Start > All Programs > ASUS > GPU Tweak II to launch the program.

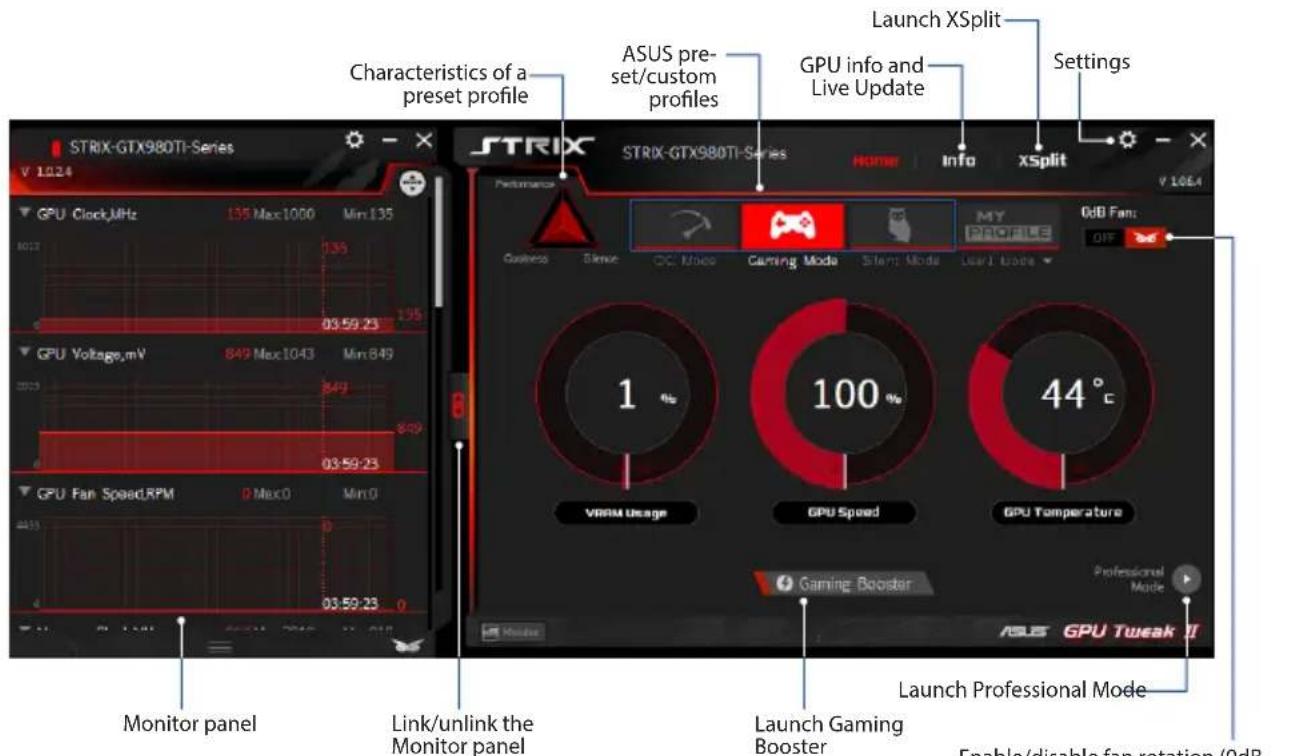

Simple Mode

Simple Mode provides you with a quick way to monitor your GPU settings in real-time, and tweak some system settings via Gaming Booster for your game-changing enjoyment.

Enable/disable fan rotation (0dB Fan)* * Appears only on an ASUS Graphics card with 0dB Fan function.

Gaming Booster

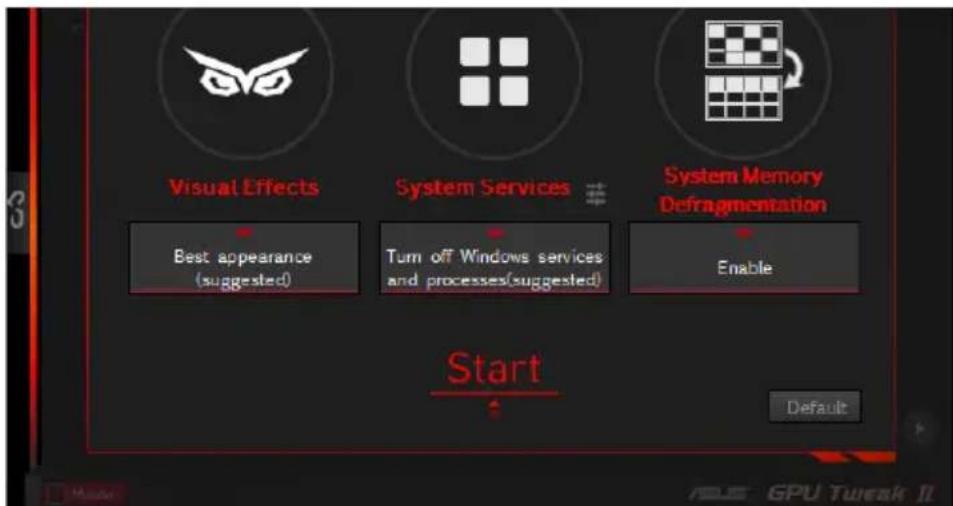

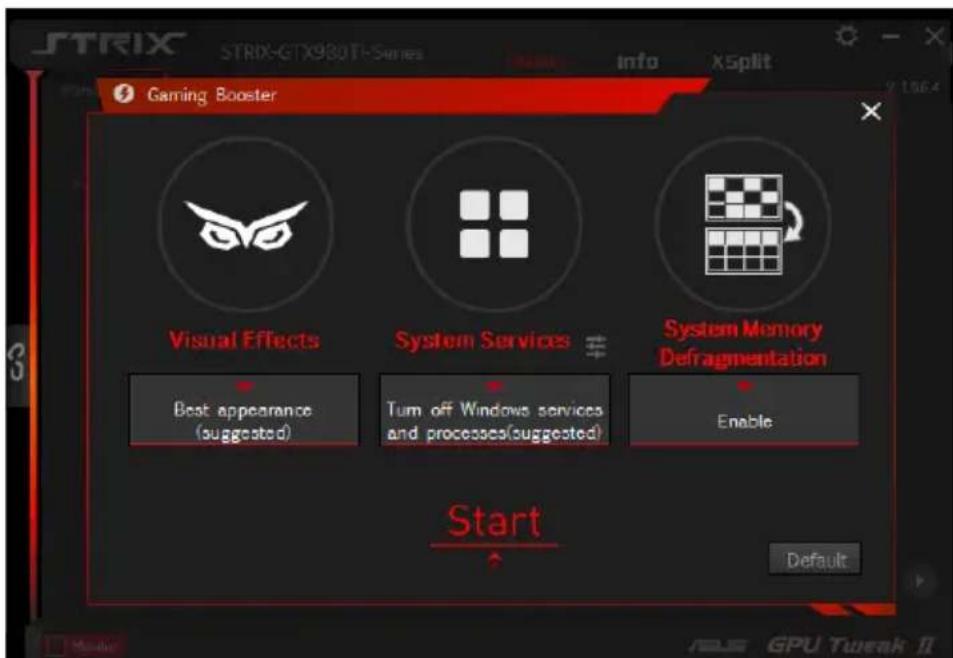

Get that game-changing performance edge with Gaming Booster, which helps optimize your system for a seamless and faster game play in your computer games.

Gaming Booster offers you these three (3) functions:

Visual Effects: Lets you turn off the Windows® visual effects to intensify the processor performance.
System Services: Lets you to automatically or manually turn off Windows® services or processes.

• System Services setting: Lets you to manually choose the services or processes that you want to stop.

• System Memory defragmentation: Lets you rearrange and clean your system memory without closing any processes.

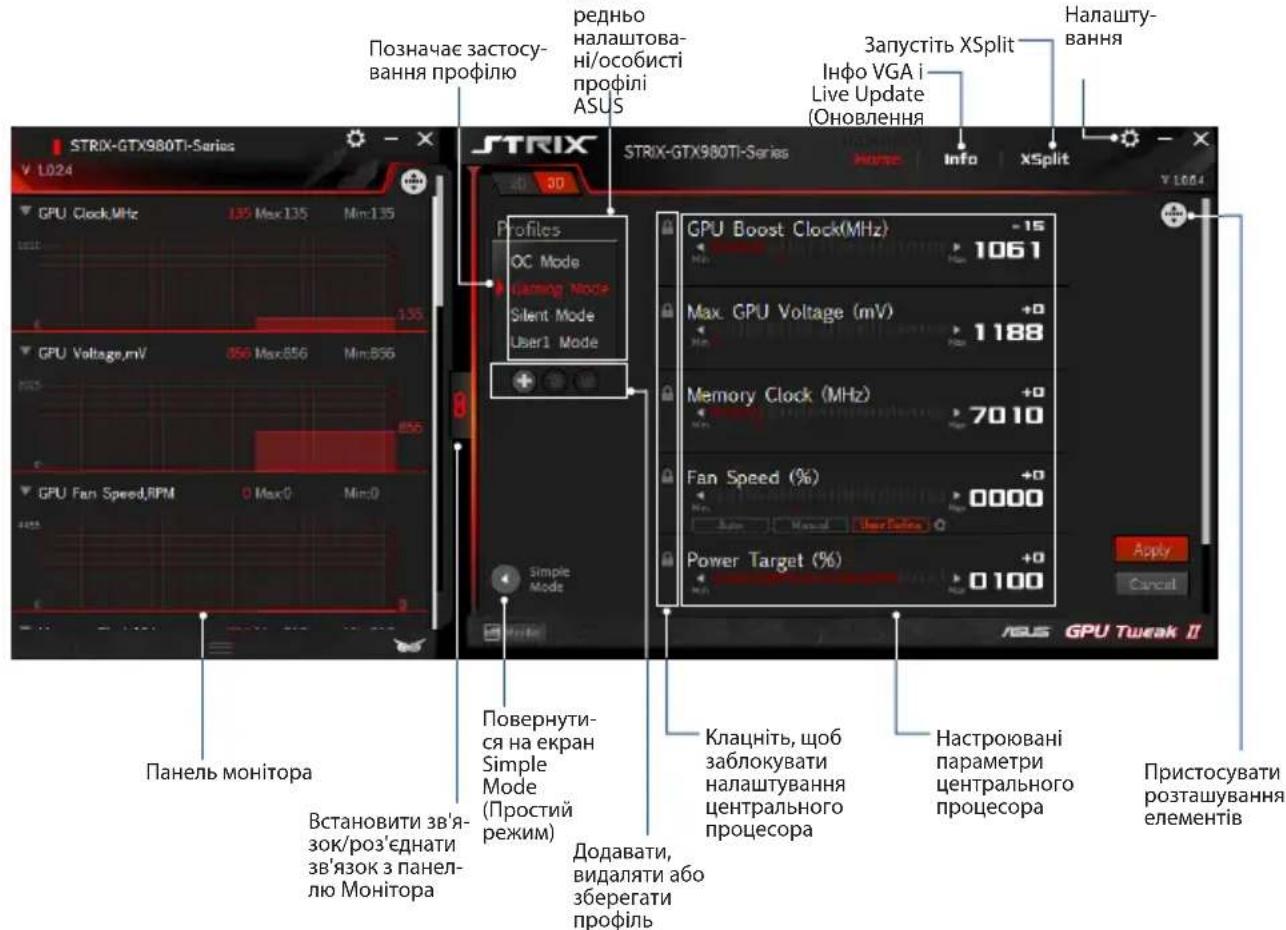

Professional Mode

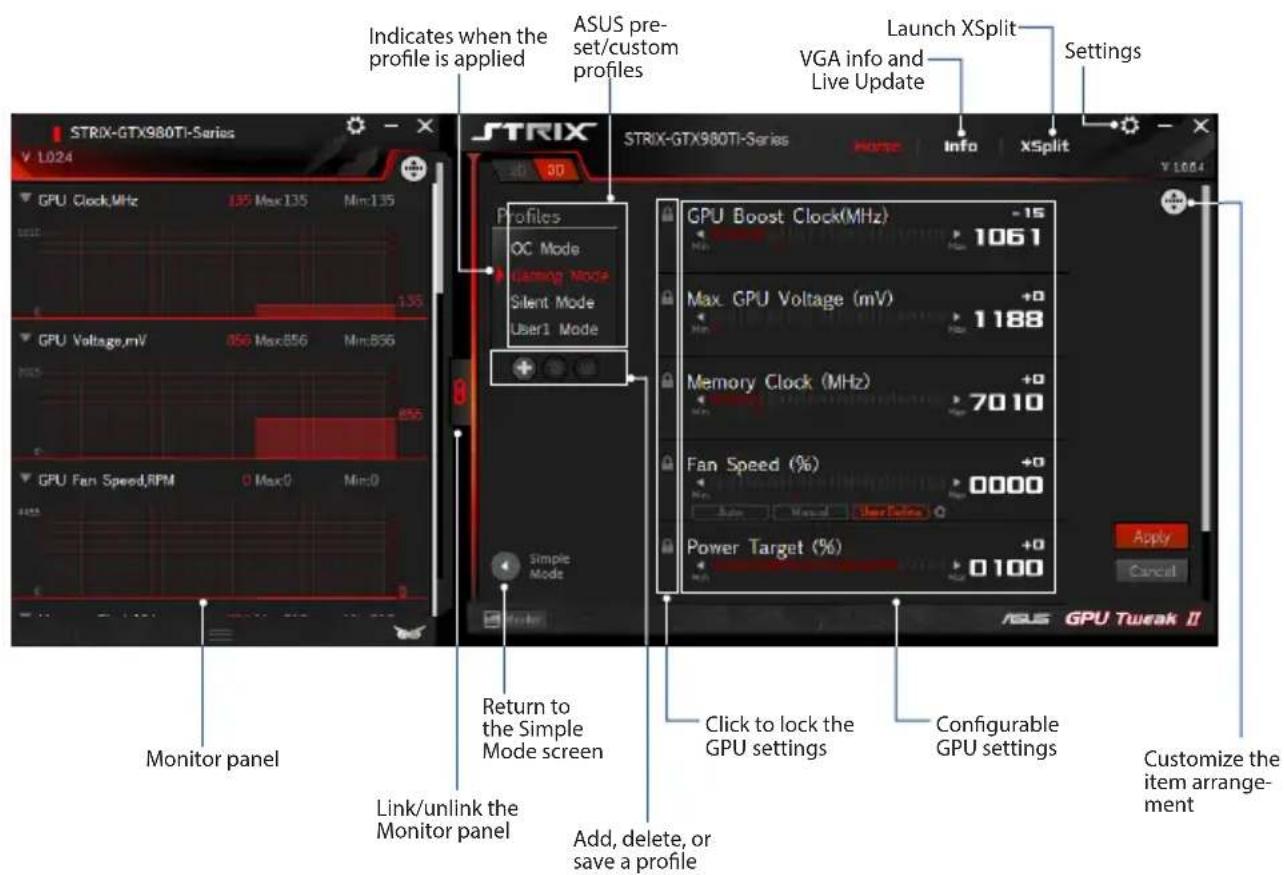

Configure the GPU settings like a pro, and get the optimal performance from your ASUS Graphics card.

Configuring a profile

1. Select the profile that you want to configure.
2. Select the GPU setting, then key in your preferred value.
3. When done, click Apply

Adding a profile

1. Click + then assign the profile name.
2. Set your preferred values.
3. When done, click save the profile.

Applying a profile

• Select the profile, then click Apply to apply the profile.

Deleting a profile

• Select the profile, then click to delete the profile.

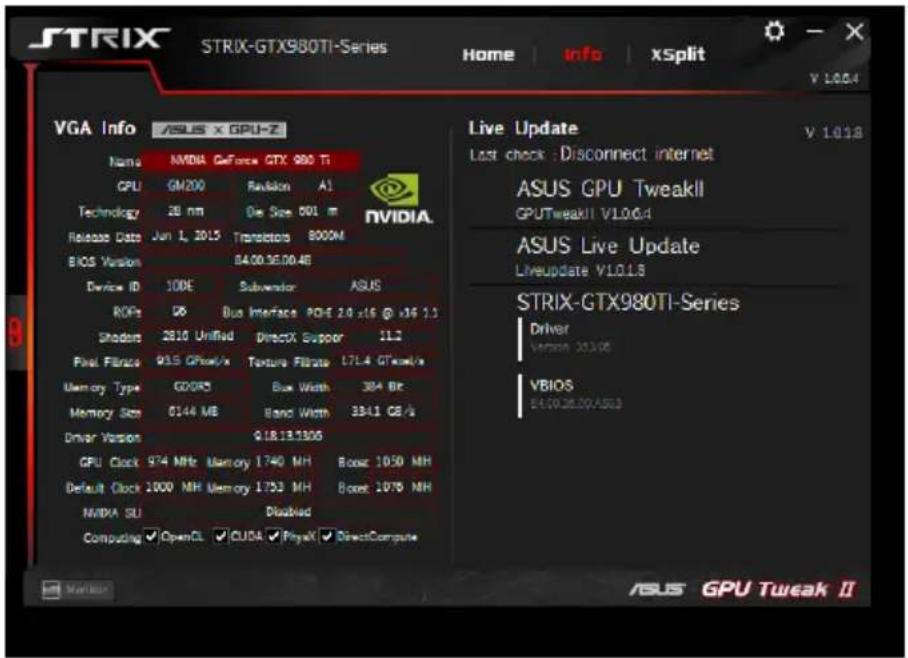

Getting the VGA info and Live Update

The Info screen provides you with information and live updates about your ASUS VGA card.

NOTE: Ensure that your computer is connected to the Internet to get the Live Update.

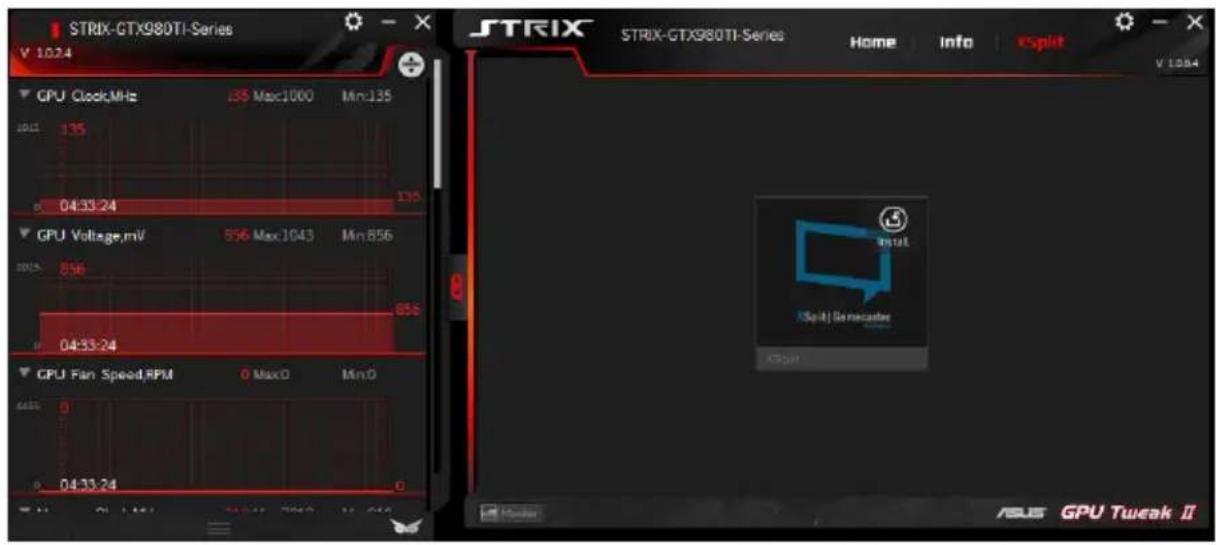

Launching XSplit

Install and launch XSplit Gamecaster from GPU Tweak II.

Using the Settings screen

The Settings screen allows you to configure the GPU Tweak II settings such as Main, Tuning Settings, Live Update, and Keyboard Shortcuts.

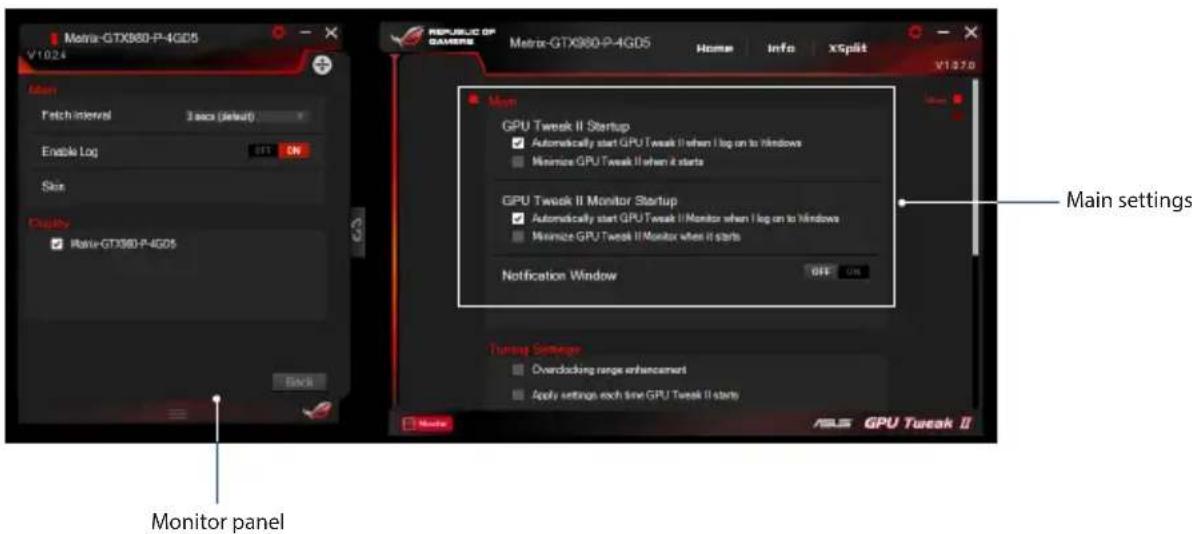

Main

From the Main settings, you can select any of these options on launching GPU Tweak II:

• Automatically launch GPU Tweak II or its Monitor panel on Windows® startup.
• Minimize GPU Tweak II or its Monitor panel once launched.
• Turn the notification window on/off.

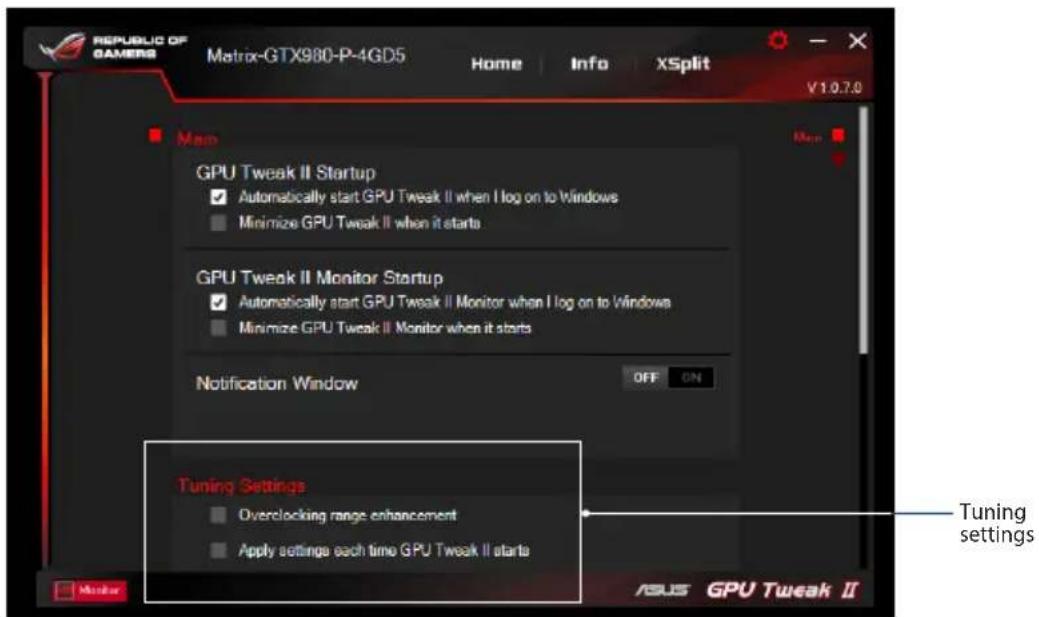

Tuning Settings

From the Tuning Settings, you can select any of these options on applying the GPU Tweak II settings:

• Enhance the overclocking range.
• Apply the settings on GPU Tweak startup.

Live Update

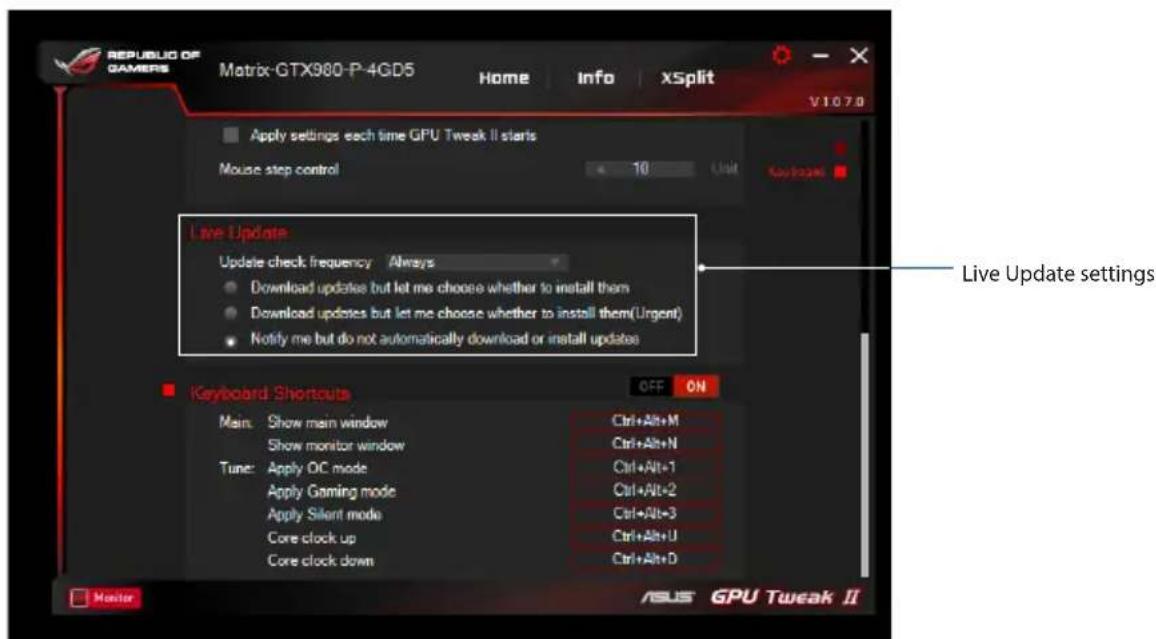

Receive notifications on the latest VBIOS and driver updates from Live Update. Configure and select the following Live Update options:

• Set the Update check frequency as to when you want to receive the Live Update.

• Select any of the Live Update options:

• Download updates but let me choose whether to install them: Select this option to automatically download updates, and decide whether to manually install them.

• Download important updates but let me choose whether to install them: Select this option to automatically download critical updates, and decide whether to manually install them.
• Notify me but do not automatically download or install updates: Select this option to receive notifications only, and decide whether to manually download and install the updates.

Keyboard Shortcuts

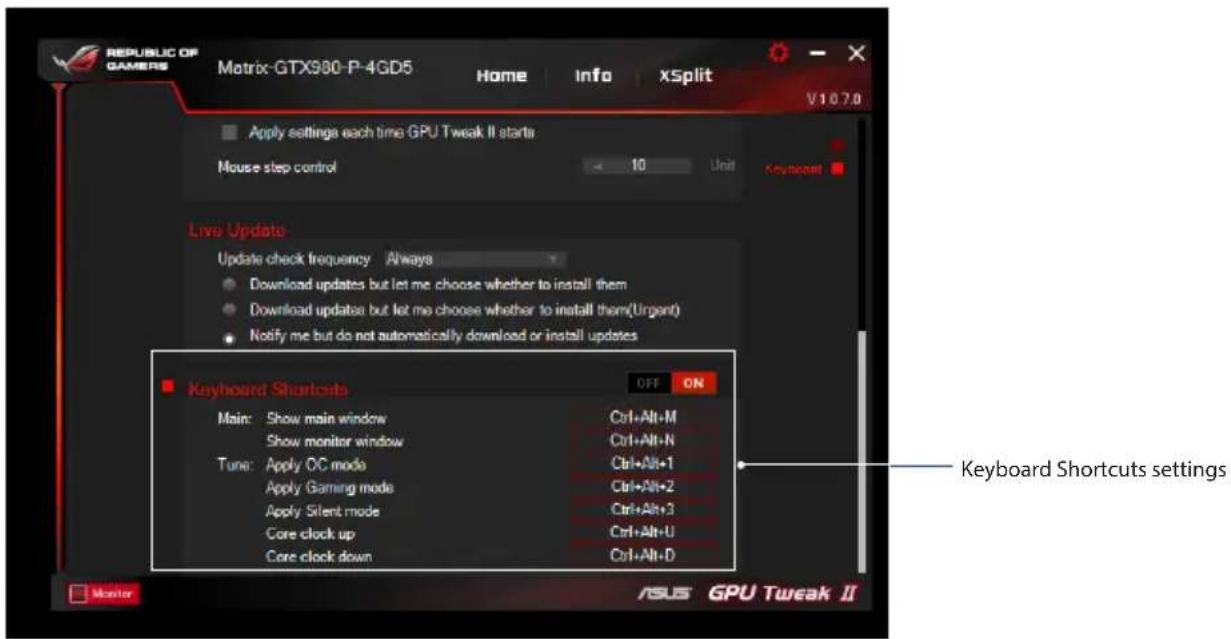

Turn on/off the Keyboard Shortcuts to quickly show the main screen or apply some quick adjustments.

了解GPU Tweak II

Gaming Mode (Tryb Gier)

My Profile (Moj profil)

Wymagania systemowe

• HanauTyBaHnry System Services (CnCTemHi cnyx6n): Hadae moXJIbIcTb Bn6paTu cnyx6y a6o npOec, kI BV 6aKaTe 3ynHHTN.

System Memory defragmentation (Дeф parmentaia cnCTemhoi nam'ari): Hadae moKJIbICTb nepenoprkyBaTI i ouHCTHTn CNCTemHy nam'ATb, He 3akpnuBauOuN JODEN pOuec.

Professional Mode (Pexim PpocecioHaBn)

KoHphiIpyuTe hanaStyBaHHa CEHTpaIbHOrO npouecopa, kCe po6ntb faxibeCb, iOTpmaTte onTImaJIbHi po6Oci xapaKTepnCTNK dIra rpaqHoi KapTu ASUS.

KoHphiirypaizipnophiio

1. Bn6epitb npoipj, jkn 6axaTe KOHigpyBaTn.
2. Bn6epitb HanaaTbVaHHIeHTpaIbHoro npoecopa i BBeIb 6aXaHe 3NaueHHA.
3. BnkoHabu, KnaCHi Apply

Iodabanhny npophiio

1. Knaunit a notim npn3NaTe Ha3By npofoiio.
2. BctaHObitb 6axaHl 3NaueHHJ.
3. BnkoHaBun, HATNCHT 06 36epertn npoipnb.

3actocybaHH npophiIO

Bn6epitb npoipnb, a notim klaunihb Aap 3actocybaTn npoipnb.

Budanen npoipio

Bn6epitb npoipnb, a notim knaunHtB 06 BndaHn npoipnb.

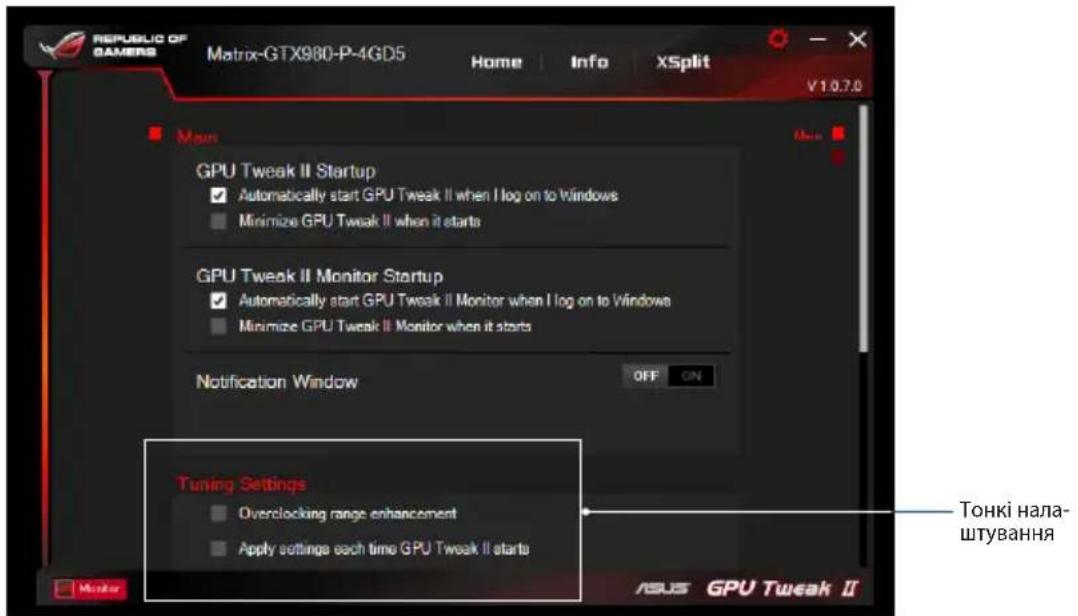

Y Tuning Settings (ToHki HanaStyBaHHa) MoXHa Bn6paTn 6yIb-3x Oni3acTocyBaHHa GPU Tweak II:

36inbwnTn diaanaoh npnckopeHHraOHHHka.
3actocyBaTN HalauByaHHn iD vac 3anycky GPU Tweak.

OHOBnEHHHaXnBO

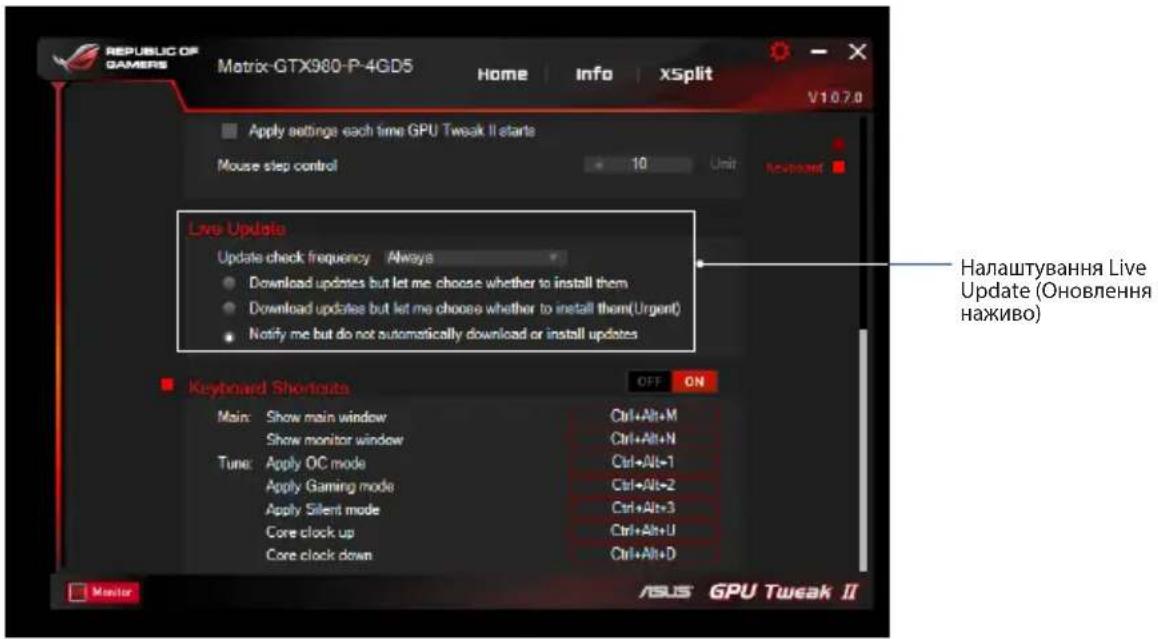

OtpmByaTn cnoiueHn npo haihoi VBIOS i OHOBeHn IpaBepa Bi Live Update (OHOBeHn HaxuBO).KohphiIpyBaTn IB6paTn HacTynni onui Live Update (OHOBeHn HaxuBO);

BCTaHObUTn Update check frequency (Yactota nepeBipKn OHOBneHb) Ha cactOTy, 3Якою Bn 6aJkaTe OTPmByBaTn Live Update (OHOBHeHnHaXnBO).
Bn6epitb 6ydb-ky3 onuii Live Update (OHOBHeHHaXnBO), 06:

3aBAHTaxNTn OHOBneHn, ane Do3BOJNTm MeHi Bn6bnpaTn, nn IHCTaIIOBaTn ix: NocTaBte zuo onuio Ha aBTOMaTnue He 3aBAHTaxKeHHn OHOBneHn i npabo BnpiSyBaTn, nn IHCTaIIOBaTn ix BpyHy.
3aBaHTaXNTu BaXnUBi OHOBnEHn, aIe Do3BOJNTu MeHbN6upaTu, uHCTaIOBAtuix: IocTaBte CuO Oniu Ho Ha aBTOMaTnUHe 3aBaHTaXeHHa KpUTnUHO BaXnBux OHOBnEh b I Do3Bil BnpiuYBaTu, uHCTaJIbOBaTu ix BpyHy.
CnoBiuataHmehi,ane He 3aBaHTaxyBaTu H e iHCTaIIOBaTu OHOBneHHA BTOMaTHUHO:IOCTaBTe IIO ONuHO Ha OTpIMaHHa I nuE CNOiueHb i Do3BIn BnpiuYBaTu, YN 3aBaHTaxyBaTu Ta IHCTaIIOBaTu OHOBHeHHBpyHy.

Ярпкkn knabiatypn

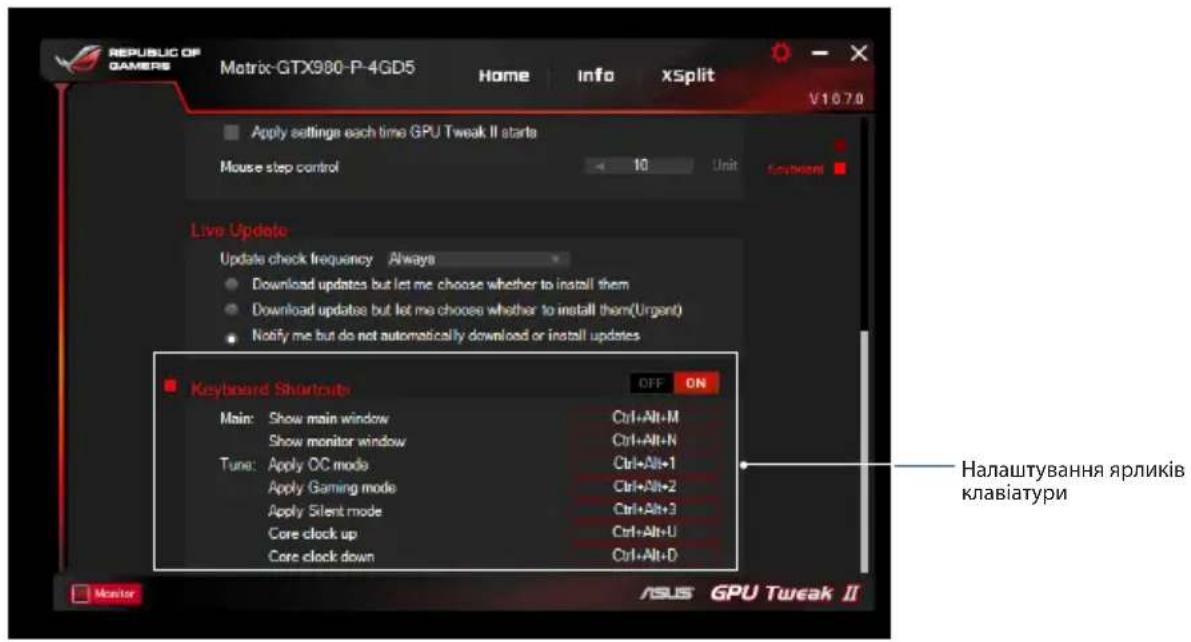

YbIMKHyTN/BmMKHyTN RaPnKn KnaBiaTypn, 06 WbNko Noka3yBtAn rOJOBHn eKpaH i WbNko BHOCTN neBHi KopeKTnBn.
