GTX650TI1GD5SP - Graphic card ASUS - Free user manual and instructions

Product Type	Graphics Card
Brand	ASUS
Model	GTX650TI1GD5SP
Graphics Processor	NVIDIA GeForce GTX 650 Ti
Video Memory	1 GB GDDR5
Interface	PCI Express 3.0 x16
Video Outputs	1 x DVI-D, 1 x DVI-I, 1 x HDMI, 1 x VGA
Dimensions (approx.)	200 x 112 x 40 mm
Weight (approx.)	500 g
Required Power Supply	400 W minimum power supply with a 6-pin PCIe connector
Main Features	GPU Tweak II (OC, Silent, Gaming), Gaming Booster, real-time monitoring, overclocking
Included Software	ASUS GPU Tweak II, drivers
Supported Operating Systems	Windows 10/8/8.1/7 32/64 bit
Maintenance and Cleaning	Regular dusting with compressed air. Avoid moisture.
Safety	Do not open the casing. Handle with care. Properly connect the power supply.
Spare Parts and Repairability	Sealed product. No spare parts available. Repair by authorized service.
General Information	Manual available in 15 languages. Support for predefined OC, Silent, and Gaming profiles.

Frequently Asked Questions - GTX650TI1GD5SP ASUS

How to install the GTX650TI1GD5SP graphics card?

Insert the card into the PCIe x16 slot on your motherboard, connect the 6-pin power connector, then install the drivers from the provided CD or the ASUS website.

What profiles are available in GPU Tweak II?

GPU Tweak II offers three predefined profiles: OC Mode (maximum performance), Silent Mode (silent), and Gaming Mode (balanced). You can also create a custom profile.

How to use the Gaming Booster?

Gaming Booster optimizes in-game performance. It allows disabling Windows visual effects, stopping unnecessary services, and defragmenting system memory.

What power supply is recommended for this card?

A power supply of at least 400 W with a 6-pin PCIe connector is recommended for stable operation.

How to update the driver and VBIOS?

Use the Live Update function of GPU Tweak II. Ensure you are connected to the Internet, then configure the check frequency and choose to install updates automatically or manually.

Can I overclock the card with GPU Tweak II?

Yes, in Professional mode, you can adjust GPU and memory frequencies. Use the 'Increase overclocking range' option in the tuning settings for higher values.

Which operating systems are supported?

Windows 10, 8, 8.1, and 7, 32 and 64 bit versions.

What to do if the computer does not detect the card?

Check that the card is properly inserted in the PCIe slot, that the power supply is connected, and that the monitor is connected to a functional output. Reinstall the drivers.

How to clean the graphics card?

Turn off the computer, disconnect the card, and use compressed air to remove dust. Avoid any liquid.

Is the card under warranty?

Yes, ASUS offers a standard warranty. Check the ASUS website for details. Do not attempt to repair it yourself, as this will void the warranty.

USER MANUAL GTX650TI1GD5SP ASUS

ASUS GPU Tweak II User Manual

Q10790

First Edition

August 2015

Contents

English. 3

繁體中文 14

简体中文 25

Francais 36

日本語 47

Italiano 58

Pycckn 69

Čestina. 80

Nederlands 91

Elambdaeta 102

Portugues. 113

Polski 124

Espanol 135

YKpaHcbKa 146

Deutsch 157

Knowing GPU Tweak II

ASUS GPU Tweak II utility allows you to monitor and tweak the settings of your ASUS graphics card for optimal performance. It has two user interfaces, the Simple Mode and Professional Mode, that allow you to quickly monitor your preset and customized profiles, boost the GPU settings for your game-changing enjoyment, or do some advanced tweaking on the GPU settings for optimal performance.

ASUS GPU Tweak II includes these ASUS-exclusive preset power-saving and gaming profiles:

OC Mode

Silent Mode

Gaming Mode

My Profile

System requirements

AMD 7000 Series GPU or higher
NVIDIA 600 Series GPU or higher
32-/64-bit Microsoft*Windows 10/8/8.1/7

Installing GPU Tweak II

1. Ensure that you have installed the ASUS graphics card and its driver. Refer to the ASUS graphics card user manual for details on installing its driver.
2. Locate the ASUS GPU TweakII driver folder and double-click the setup.exe file to start the installation.
3. Follow the onscreen instructions to finish the installation.

Launching GPU Tweak II

Double-click the GPU Tweak icon on the desktop.
- Click Start > All Programs > ASUS > GPU Tweak II to launch the program.

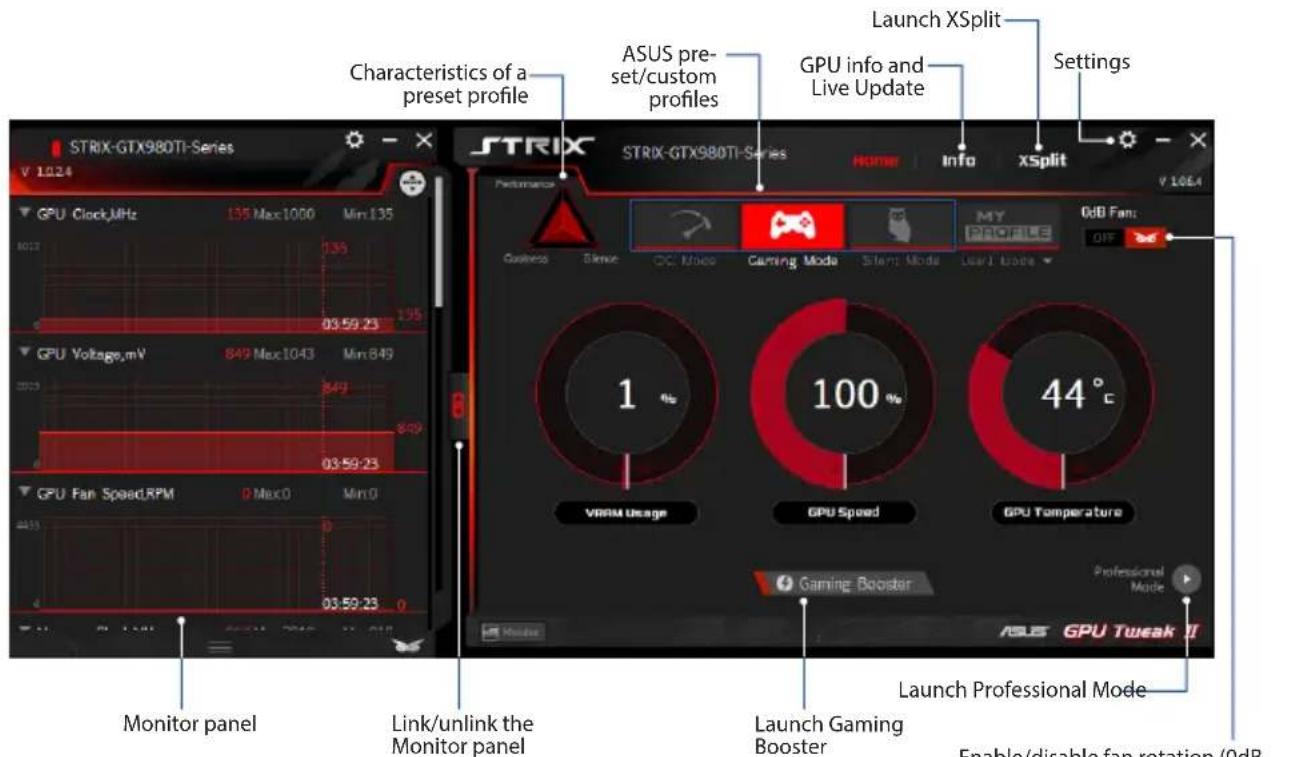

Simple Mode

Simple Mode provides you with a quick way to monitor your GPU settings in real-time, and tweak some system settings via Gaming Booster for your game-changing enjoyment.

Enable/disable fan rotation (0dB Fan)* * Appears only on an ASUS Graphics card with 0dB Fan function.

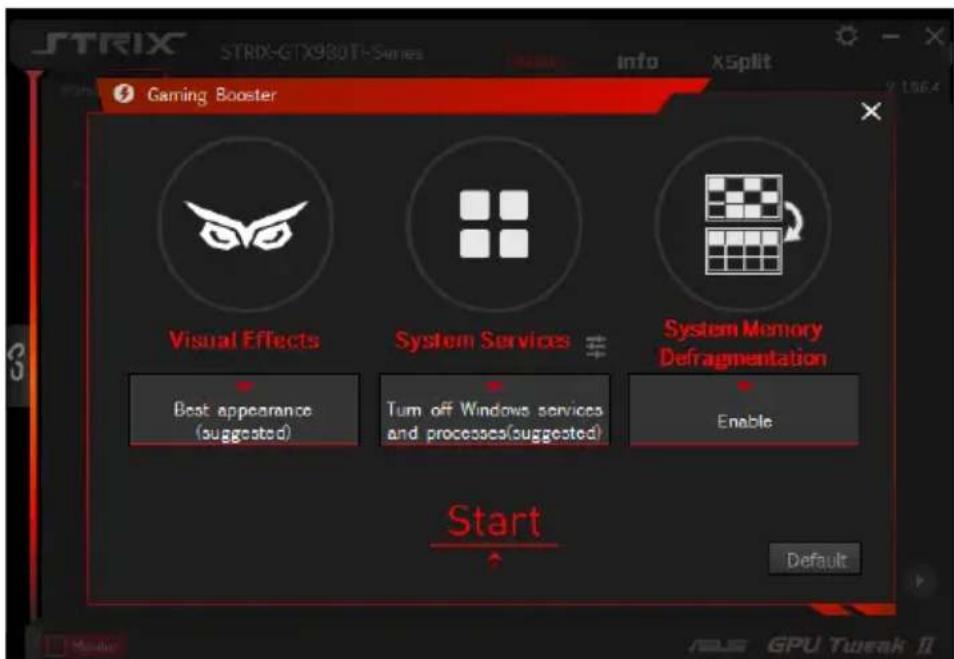

Gaming Booster

Get that game-changing performance edge with Gaming Booster, which helps optimize your system for a seamless and faster game play in your computer games.

Gaming Booster offers you these three (3) functions:

Visual Effects: Lets you turn off the Windows® visual effects to intensify the processor performance.
System Services: Lets you to automatically or manually turn off Windows® services or processes.

• System Services setting: Lets you to manually choose the services or processes that you want to stop.

• System Memory defragmentation: Lets you rearrange and clean your system memory without closing any processes.

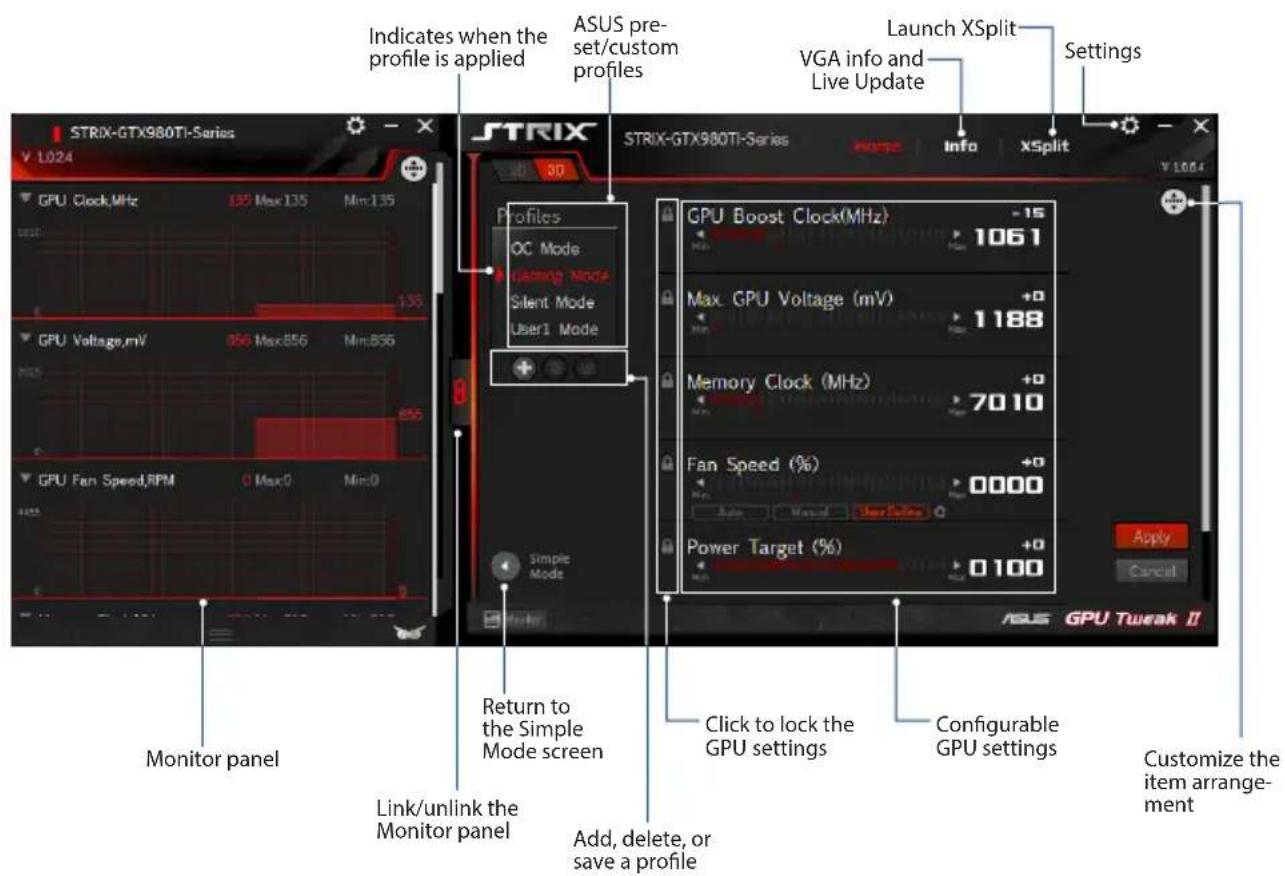

Professional Mode

Configure the GPU settings like a pro, and get the optimal performance from your ASUS Graphics card.

Configuring a profile

1. Select the profile that you want to configure.
2. Select the GPU setting, then key in your preferred value.
3. When done, click Apply

Adding a profile

1. Click + then assign the profile name.
2. Set your preferred values.
3. When done, click save the profile.

Applying a profile

• Select the profile, then click Apply to apply the profile.

Deleting a profile

• Select the profile, then click to delete the profile.

Getting the VGA info and Live Update

The Info screen provides you with information and live updates about your ASUS VGA card.

NOTE: Ensure that your computer is connected to the Internet to get the Live Update.

Launching XSplit

Install and launch XSplit Gamecaster from GPU Tweak II.

Using the Settings screen

The Settings screen allows you to configure the GPU Tweak II settings such as Main, Tuning Settings, Live Update, and Keyboard Shortcuts.

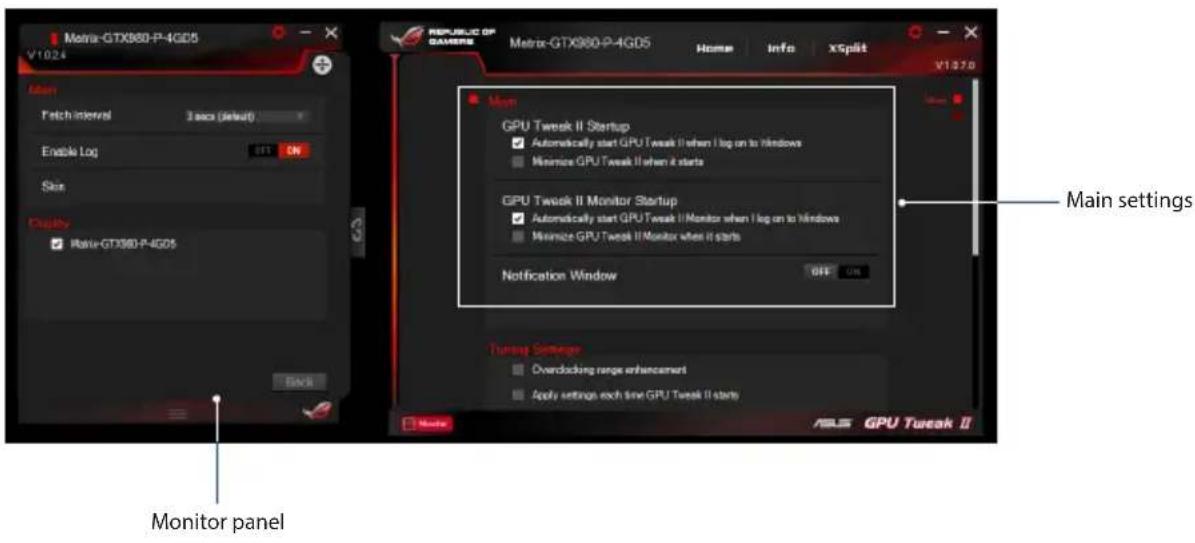

Main

From the Main settings, you can select any of these options on launching GPU Tweak II:

• Automatically launch GPU Tweak II or its Monitor panel on Windows® startup.
• Minimize GPU Tweak II or its Monitor panel once launched.
• Turn the notification window on/off.

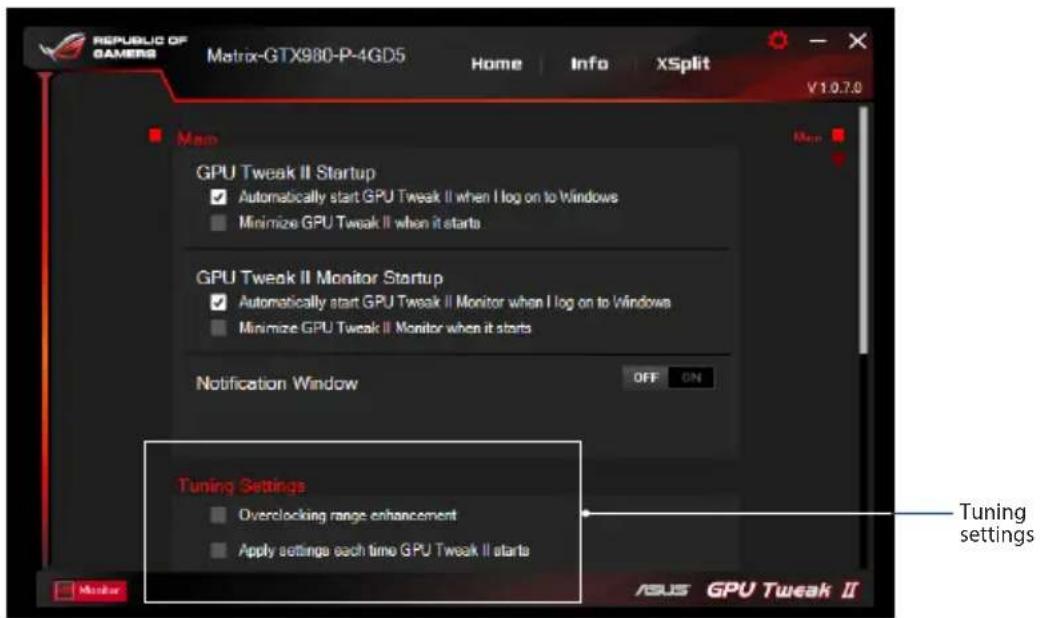

Tuning Settings

From the Tuning Settings, you can select any of these options on applying the GPU Tweak II settings:

• Enhance the overclocking range.
• Apply the settings on GPU Tweak startup.

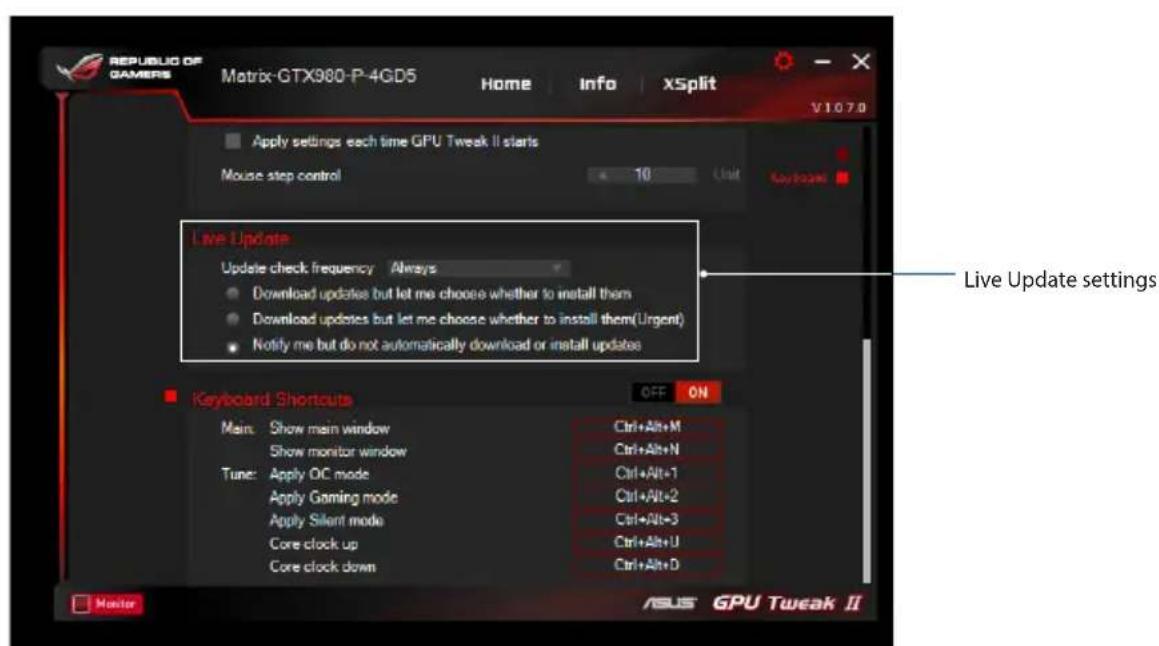

Live Update

Receive notifications on the latest VBOS and driver updates from Live Update. Configure and select the following Live Update options:

• Set the Update check frequency as to when you want to receive the Live Update.

• Select any of the Live Update options:

• Download updates but let me choose whether to install them: Select this option to automatically download updates, and decide whether to manually install them.

• Download important updates but let me choose whether to install them: Select this option to automatically download critical updates, and decide whether to manually install them.
• Notify me but do not automatically download or install updates: Select this option to receive notifications only, and decide whether to manually download and install the updates.

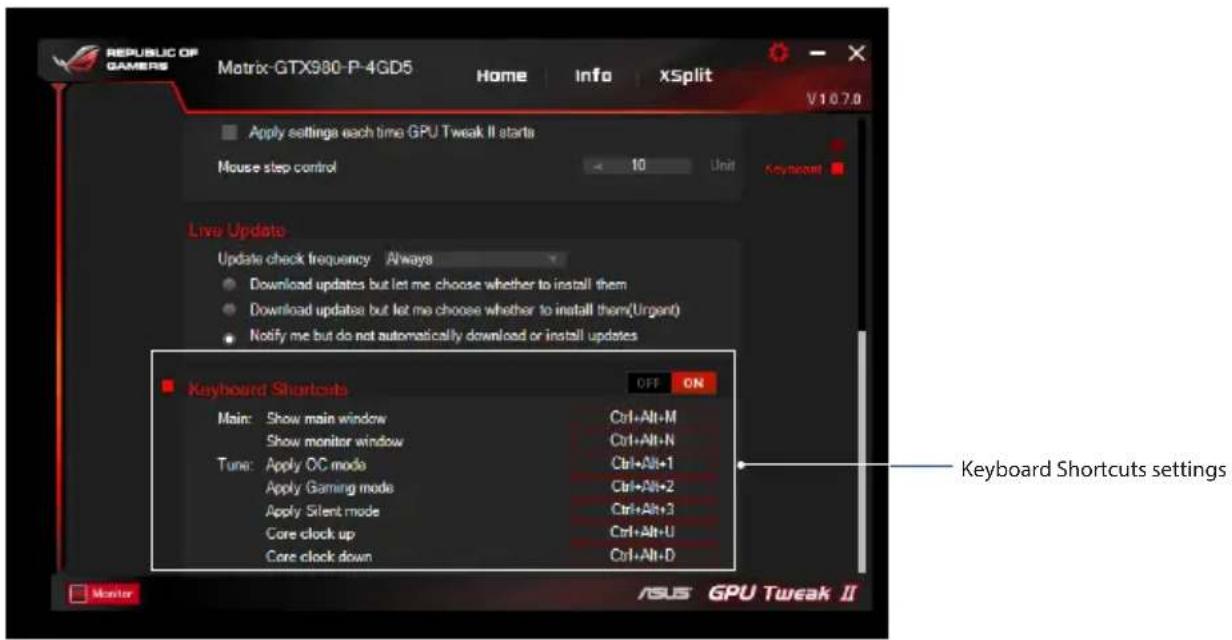

Keyboard Shortcuts

Turn on/off the Keyboard Shortcuts to quickly show the main screen or apply some quick adjustments.

了解GPU Tweak II

Gaming Mode (Tryb Gier)

My Profile (Moj profil)

Wymagania systemowe

Ekpan Settings (HanauTyBaHHa) Hadae MOxNtBicTb KOHphiRpyBaTu npaMeTp n GPU Tweak II, taki k Main (ToNoBHe), Tuning Settings (ToHKi HanauTyBaHHa), Live Update (OnOBnHnHaXnBO) i Keyboard Shortcuts (ApnnKn KnaiaTypn).

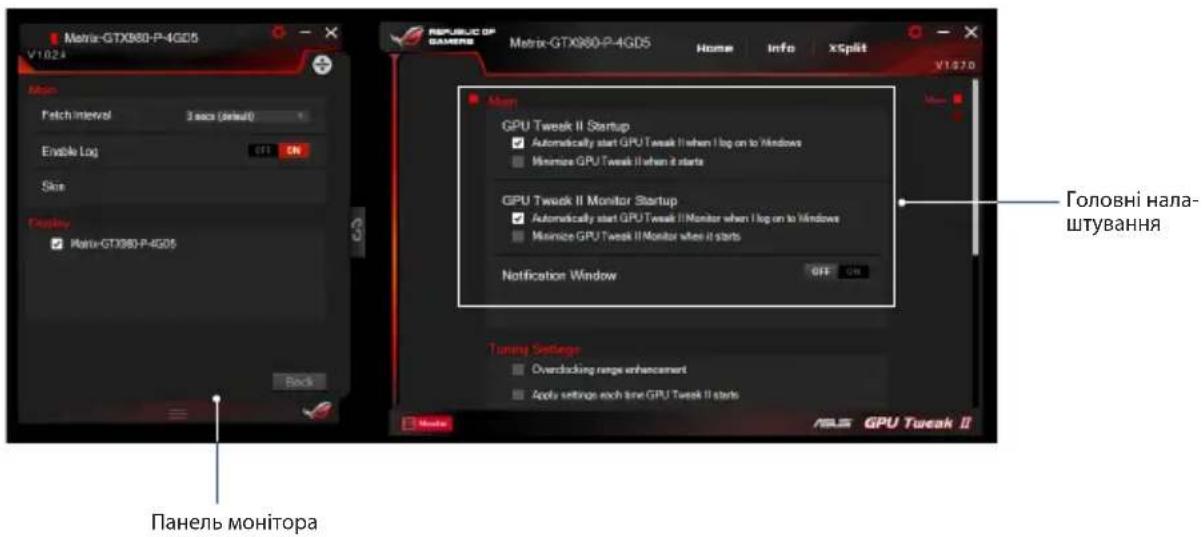

TOnOBHe

Y haataTybaHHax Main (TolOBHe) MoXHa Bn6paTn 6yDb-aki 3 uX onui 3ayncy GPU Tweak II:

• ABTomatnuho 3anyctntn GPU Tweak II a6o ii Monitor panel (Pahelb Monitopa) niD yac 3anycky Windows
• Minimizybatn Bxe 3anyueneHi GPU Tweak II a6o ii Monitor panel (Panael MOHITopa).
  BmKatn/BmMkTu BIKHO NOBIOMneHb.

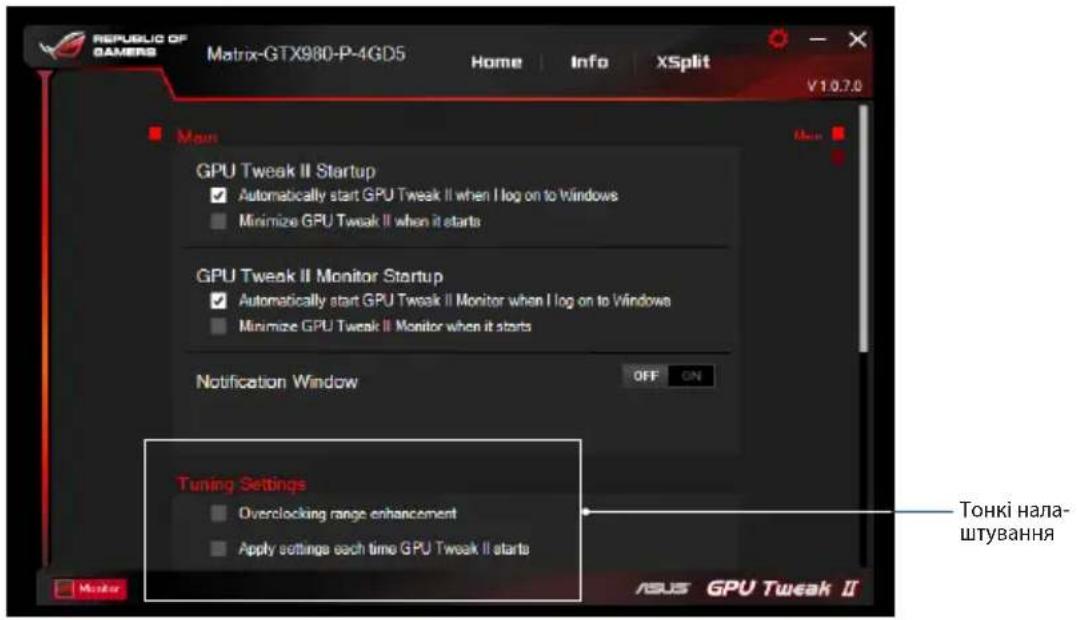

Tohki HanaawtyBaHHa

Y Tuning Settings (ToHki HanaStyBaHHa) MoXHa Bn6paTn 6yIb-3x Oni3acTocyBaHHa GPU Tweak II:

36inbwnTn diaanaoh npnckopeHHraOHHHka.
3actocyBaTN HalauByaHHn iD vac 3anycky GPU Tweak.

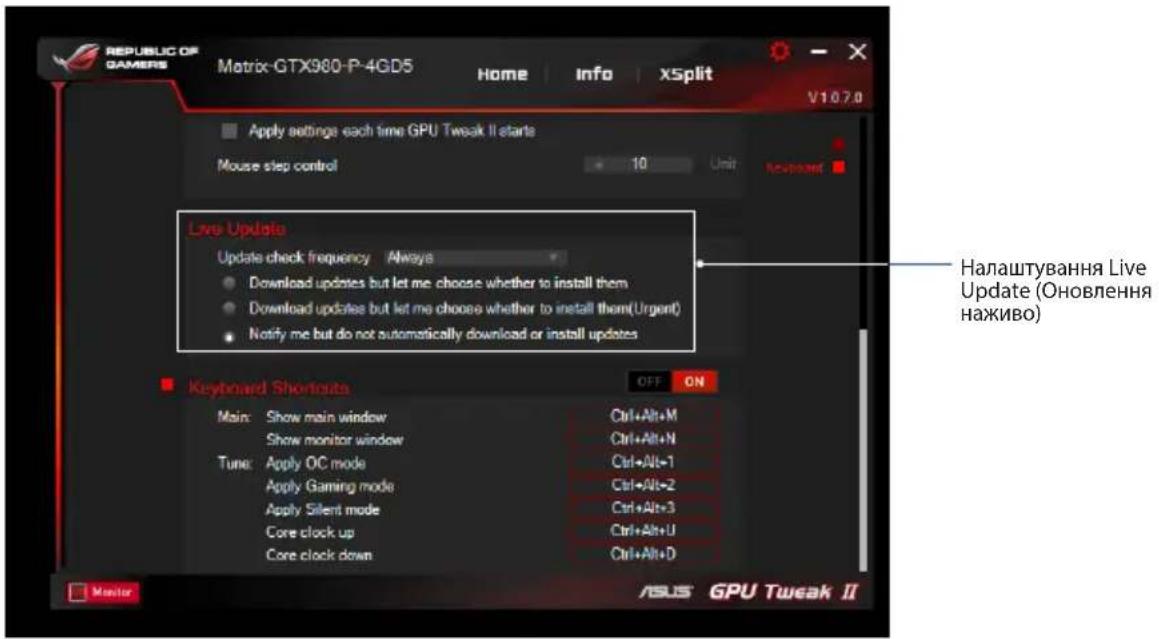

OHOBnEHHHaXnBO

OtpmByaTn cnoiueHn npo haihoi VBios i OHOBenHn IpaBepa Bi Live Update (OHOBENHn HaxuBO).KohphiRpyBaTn IB6paTn HacTynni onui Live Update (OHOBENHn HaxuBO);

BCTaHObUTn Update check frequency (Yactota nepeBipKn OHOBneHb) Ha cactOTy, 3Якою Bn 6aJkaTe OTPmByBatn Live Update (OHOBHeHnHaXnBO).
Bn6epitb 6ydb-ky3 onuii Live Update (OHOBHeHHaXnBO), 06:

3aBAHTaxNTn OHOBneHn, ane 03BOJNTm MeHi Bn6bpatn, nn HCTanIOBaTn ix: NocTaBte zu onuio Ha aBTOMATUHe 3aBAHTaxKeHHn OHOBneHn i npabo BpiIswyBaTn, nn IHCTanIOBaTn ix BpyHy.
3aBaHTaXNTu BaXnUBi OHOBnEHn, aIe Do3BOJNTu MeHbN6upaTu, uHCTaIOBAtuix: IocTaBte CuO Oniu Ho Ha aBTOMaTnUHe 3aBaHTaXeHHa KpUTnUHO BaXnBux OHOBnEh b I Do3Bil BnpiuYBaTu, uHCTaJIbOBaTu ix BpyHy.
CnoBiuataHmehi,ane He 3aBaHTaxyBaTu H e iHCTaIIOBaTu OHOBneHHA BTOMaTHUHO:IOCTaBTe IIO ONuHO Ha OTpIMaHHa I nuE CNOiueHb i Do3BIn BnpiuYBaTu, YN 3aBaHTaxyBaTu Ta IHCTaIIOBaTu OHOBHeHHBpyHy.

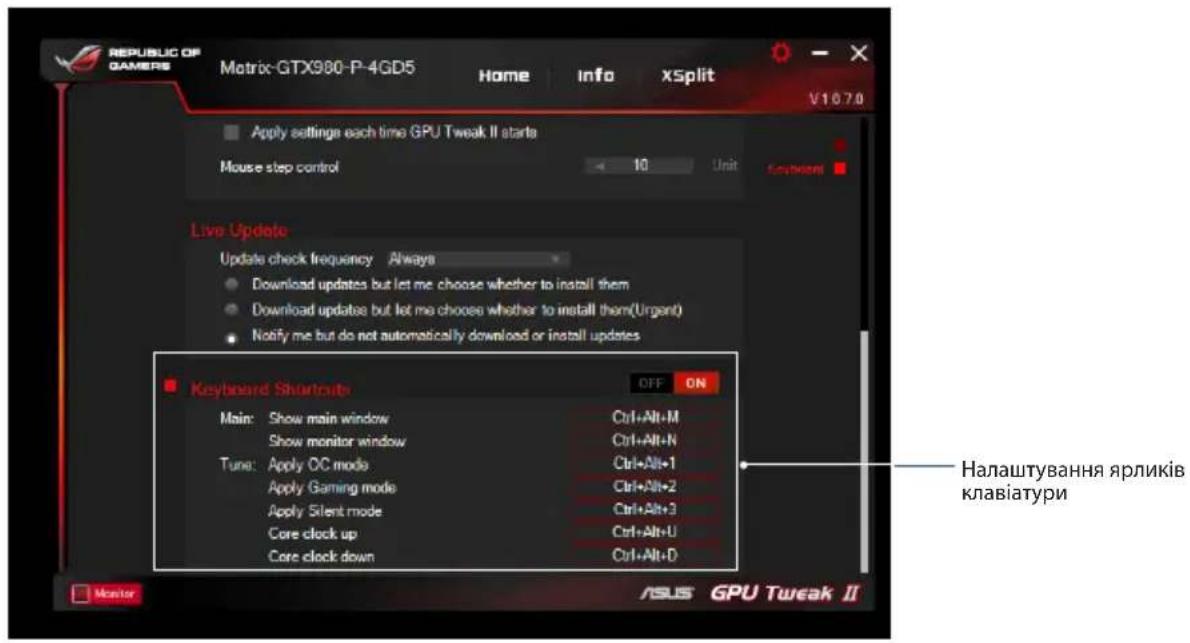

Ярпкkn knabiatypn

YbIMKHyTN/BmMKHyTN RaPnKn KnaBiaTypn, 06 WbNko Noka3yBtAn rOJOBHn eKpaH i WbNko BHOCTN neBHi KopeKTnBn.
