USER MANUAL X710 OLYMPUS

Shooting Tips 10
Shooting Button and Playback Button 10
Shooting Mode Buttons 11
Shooting Mode 12
Self-Timer 12
Exposure Compensation Mode. 13
Macro Mode 13
Flash Modes. 14
Power Save Feature 14

MENUS AND SETTINGS 15

Menu. 15
Erase All Pictures 15
Select a Language 16
Monitor Symbols & Icons. 17
7.95.10.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.

CONNECTING THE CAMERA 19

Playback on a TV 19
Direct Printing (PictBridge) 20

OLYMPUS Master SOFTWARE 21

SPECIFICATIONS 22

SAFETY PRECAUTIONS 24

• Before using your camera, read this manual carefully to ensure correct use.
• We recommend that you take test shots to get accustomed to your camera before taking important photographs.
• Please observe the safety precautions at the end of this manual.
• The images of the LCD screen and illustrations of the camera used in this manual may differ from the actual product. For this manual, all of the images are based on the FE-110/X-705 model.

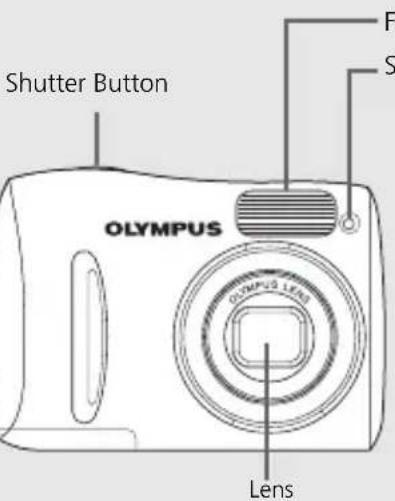

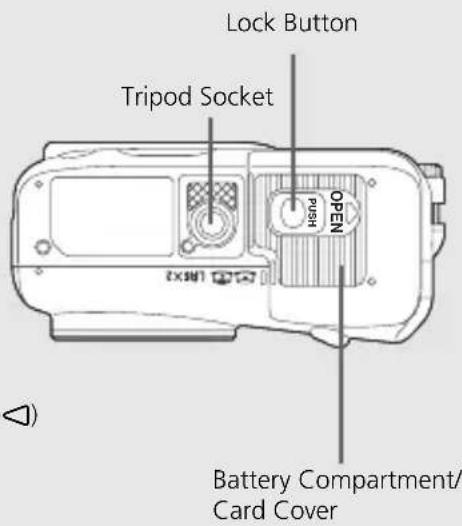

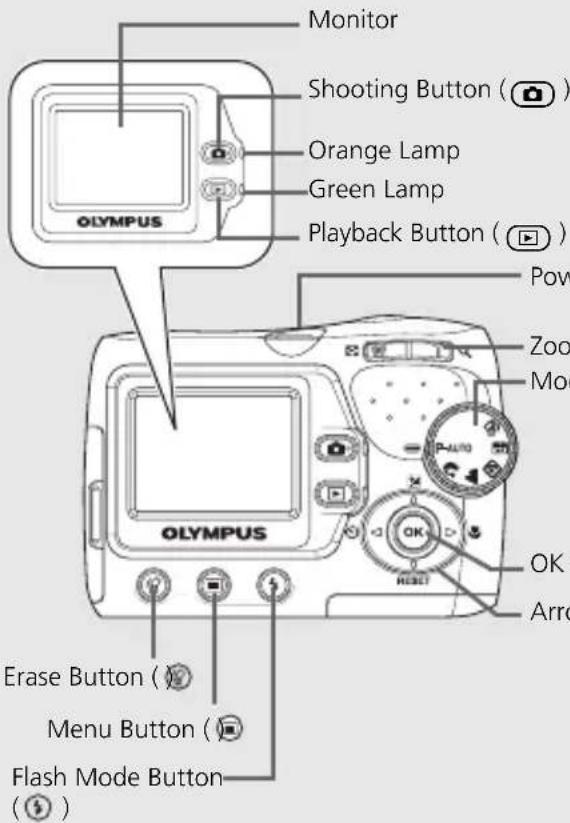

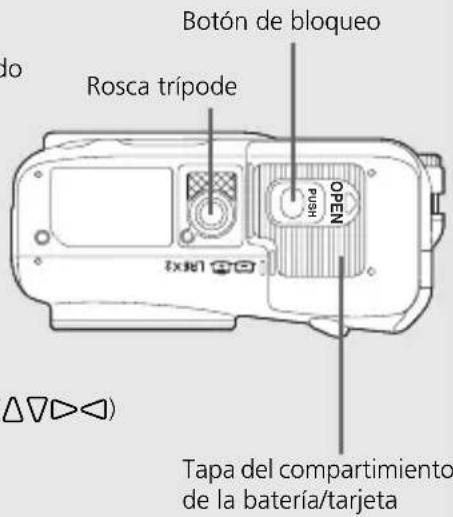

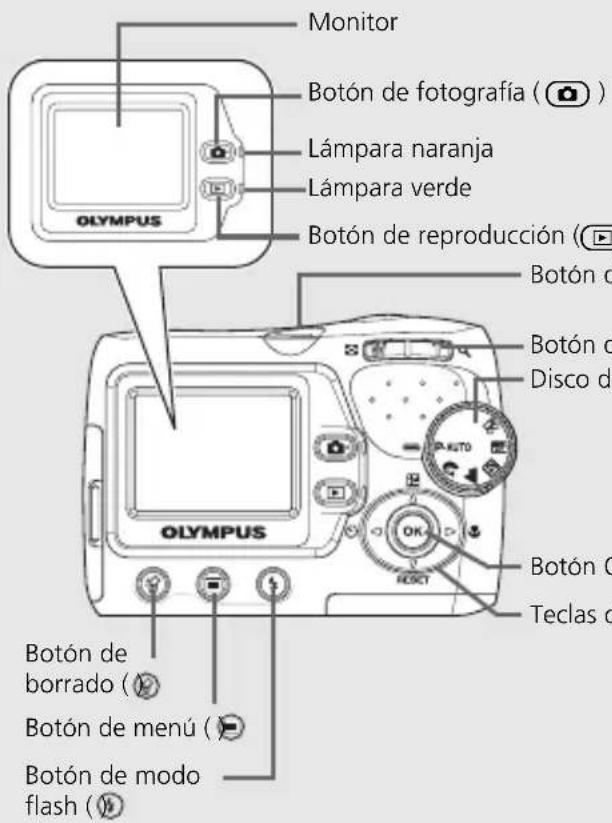

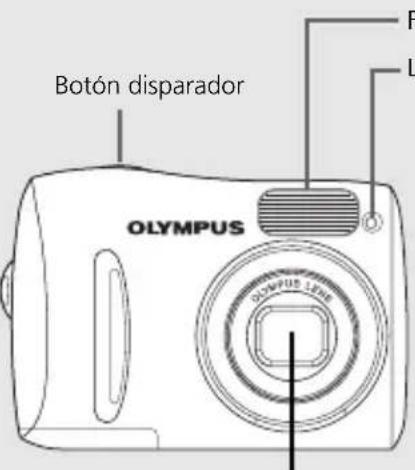

CAMERA DIAGRAM

Strap Eyelet

Flash
Self-Timer Lamp

Connector Cover
VIDEO OUT Jack
USB Connector
DC-IN Jack

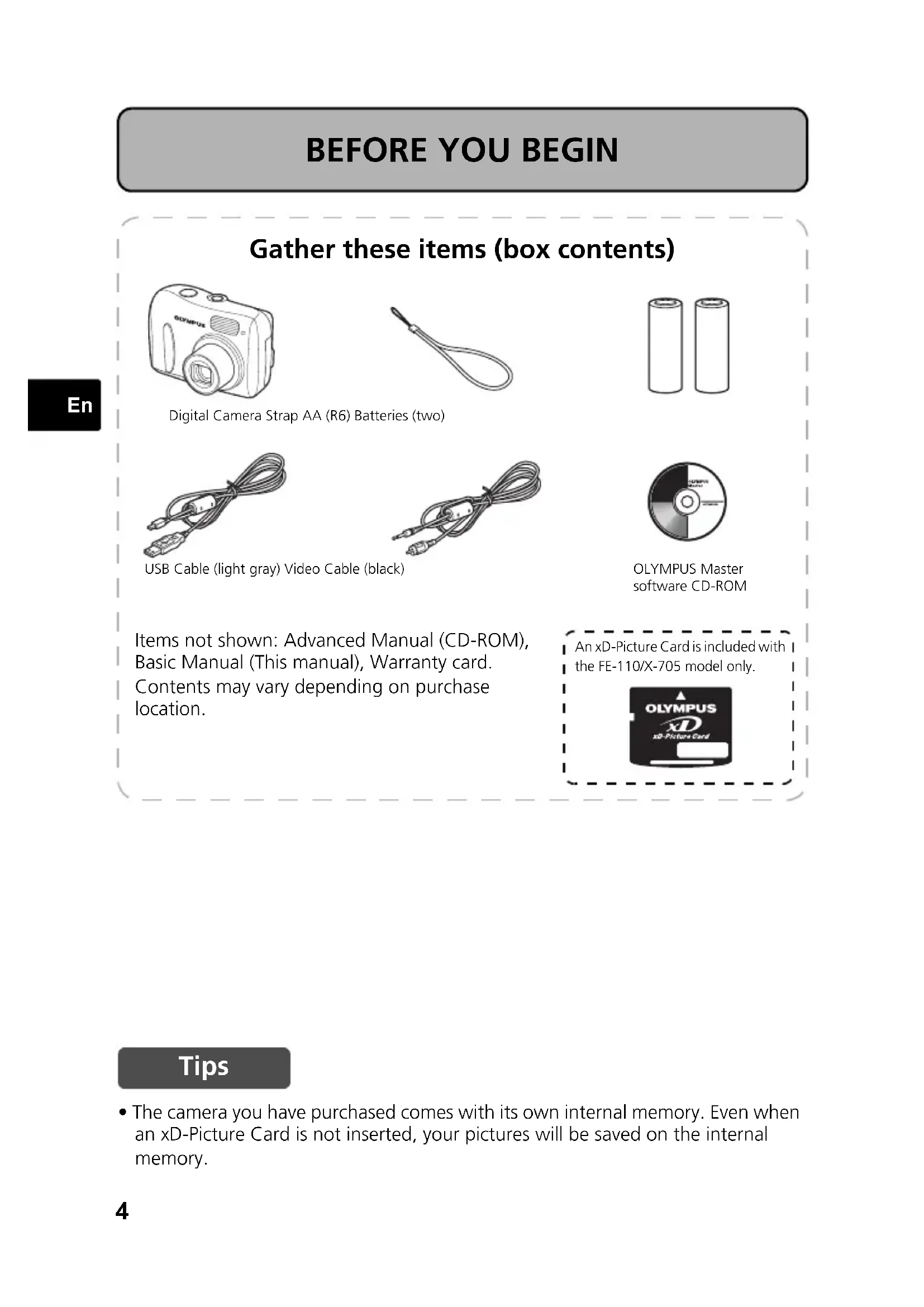

BEFORE YOU BEGIN

Gather these items (box contents)

Digital Camera Strap AA (R6) Batteries (two)

USB Cable (light gray) Video Cable (black)
OLYMPUS Master software CD-ROM

Items not shown: Advanced Manual (CD-ROM), Basic Manual (This manual), Warranty card. Contents may vary depending on purchase location.

An xD-Picture Card is included with the FE-110/X-705 model only.

Tips

• The camera you have purchased comes with its own internal memory. Even when an xD-Picture Card is not inserted, your pictures will be saved on the internal memory.

1 GETTING STARTED

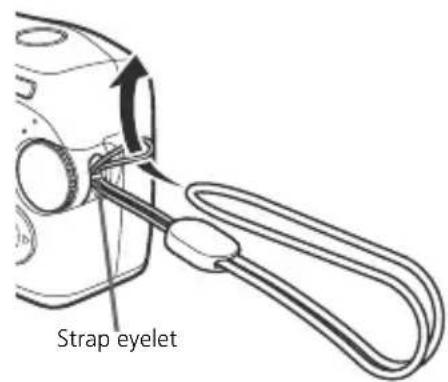

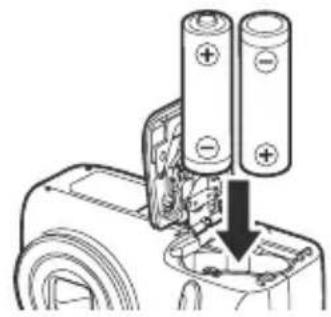

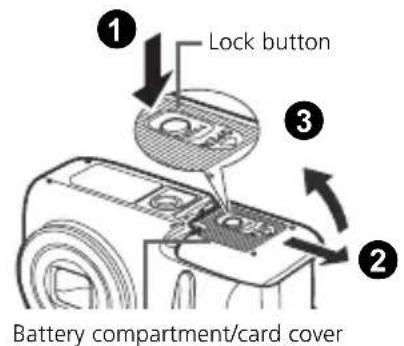

a. Attach the strap b. Insert the batteries

• Pull the strap tight so that it does not come loose.

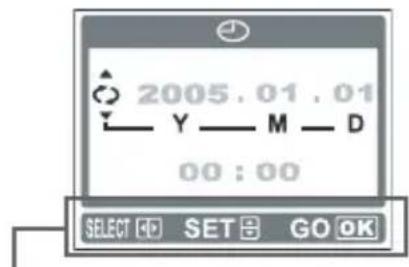

c. Set the date and time

1 Turn the mode dial to P-AUTO and press the power switch to turn the camera on.
Press to display the menu screen.

Press / to set an item. Press / to select the next field.

Operation guide

2 TAKE A PICTURE

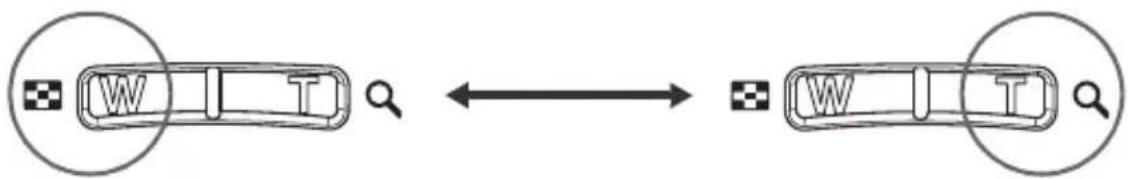

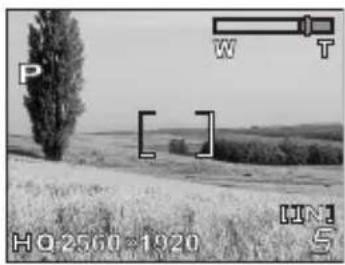

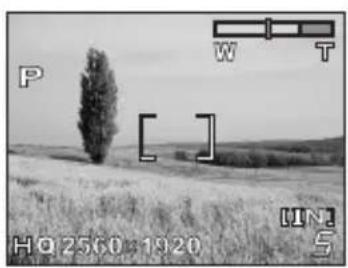

a. Zoom

Zoom Out: Zoom In:

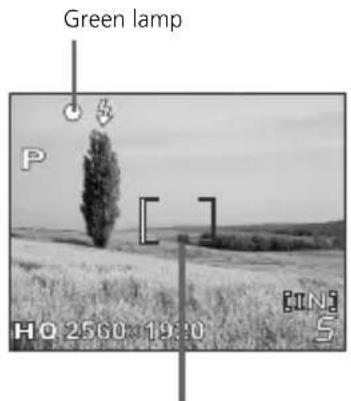

b. Focus

Using the monitor, place the AF target mark over your subject.

(Pressed Halfway)
Shutter Button

c. Take the picture

Press the shutter button completely to take the picture.

(Pressed Completely)
Shutter Button
AF target mark

Press and hold the shutter button halfway to lock the focus.

• The green lamp indicates the focus is locked.

3

REVIEW OR ERASE A PICTURE

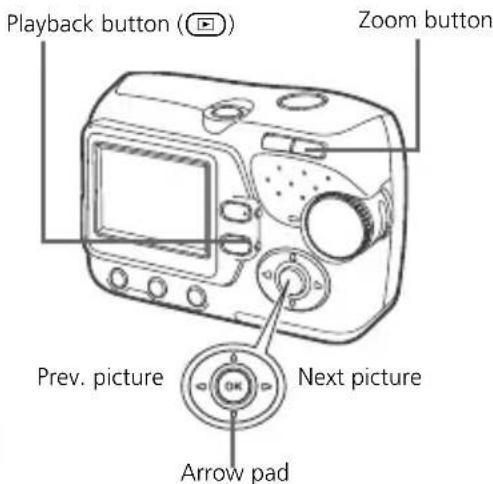

a. Press b. Take a closer look

The last picture taken will be displayed.

• Press T (Q) to enlarge the image.
• Press W (☑) to return to normal.
• Press or to scroll around.

Press to return to shooting mode.

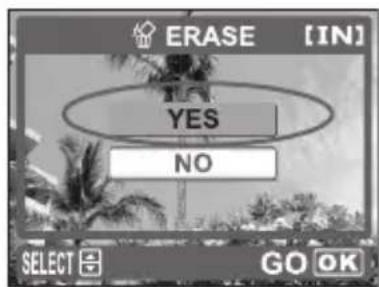

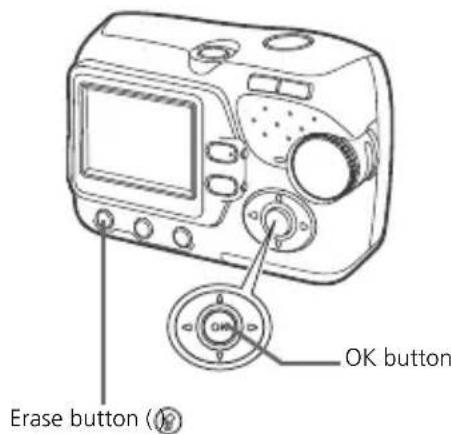

c. To erase a picture

1 Display the picture you want to erase.

Press

3 Select [YES], and press OK.

The picture is permanently erased.

4 TRANSFER IMAGES

a. Install the software

Insert the OLYMPUS Master CD-ROM.
2Windows: Click the "OLYMPUS Master" button.

Macintosh: Double-click the "Installer" icon.

3 Simply follow the on-screen instructions.

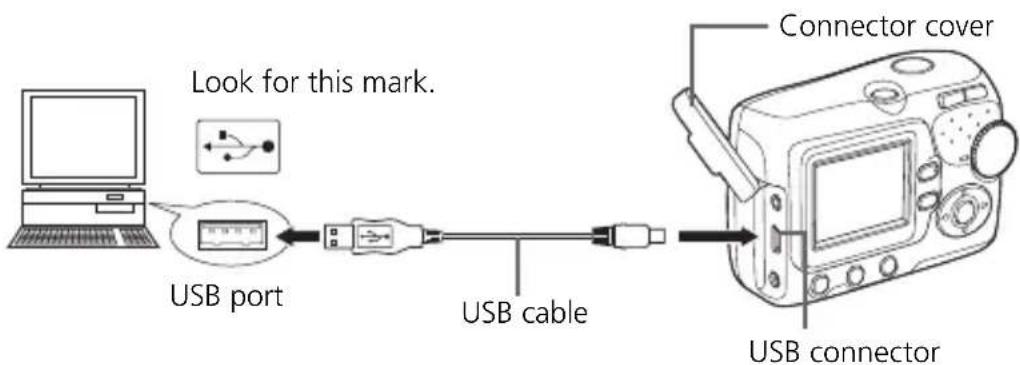

b. Connect the camera to the computer

Connect the camera and computer using the USB cable (included).

• The monitor will turn on automatically.

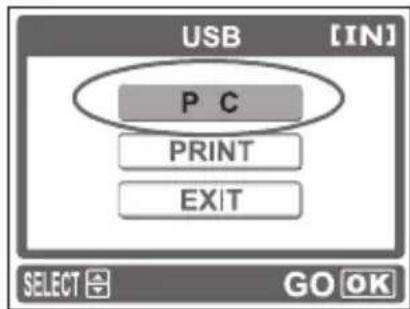

2 Select [PC] on the monitor, and press OK.

• Your PC will now recognize your camera as a removable storage drive.

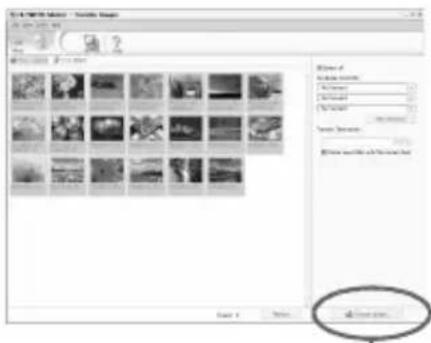

c. Transfer images to the computer

With the camera now connected, open OLYMPUS Master.
The [Transfer Images] window is displayed.
2 Select the images you want to transfer, and click the [Transfer Images] button.

[Transfer Images] window
[Transfer Images] button

If the [Transfer Images] window is not displayed automatically:

a. Click the "Transfer Images" icon on the OLYMPUS Master main menu.
b. Click the "From Camera" icon.

Tips

• For more detailed information regarding camera setup and usage, please refer to the camera's "Advanced Manual" provided on CD-ROM.
• For information on how to use other features of OLYMPUS Master software not mentioned above, open "Help" in the OLYMPUS Master software, or read the reference manual (PDF format).

BASIC OPERATION

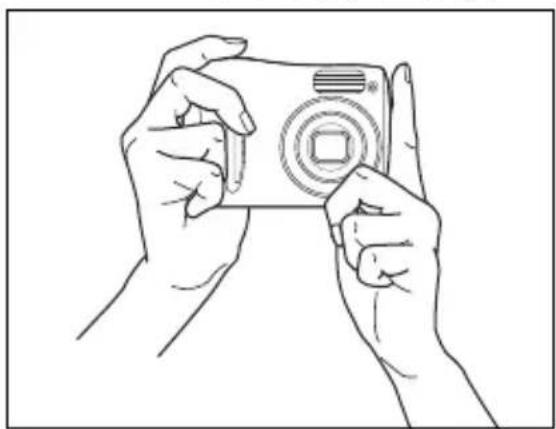

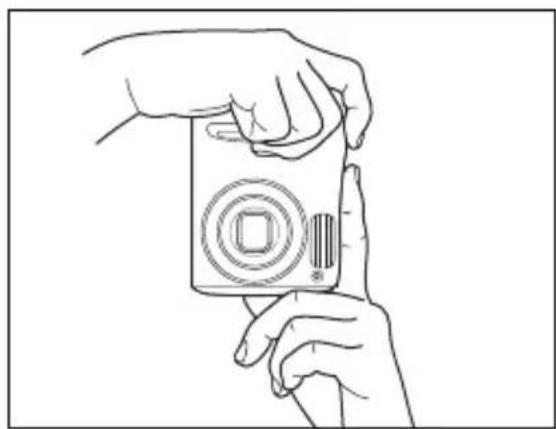

Shooting Tips

Pictures may appear blurred as the result of moving the camera while the shutter button is being pressed.

To prevent the camera from moving, hold the camera firmly with both hands while keeping your elbows at your sides. Keep your fingers and the strap away from the lens and flash.

Horizontal grip Vertical grip

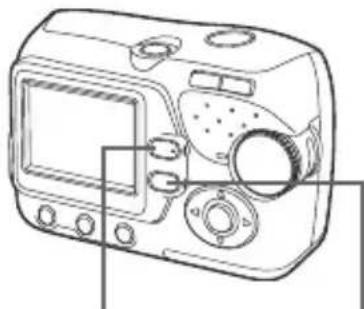

Shooting Button and Playback Button

When taking pictures or making shooting settings, select shooting mode by pressing

When displaying, editing or deleting pictures you have taken, select playback mode by pressing l .

button (Shooting mode)

button (Playback mode)

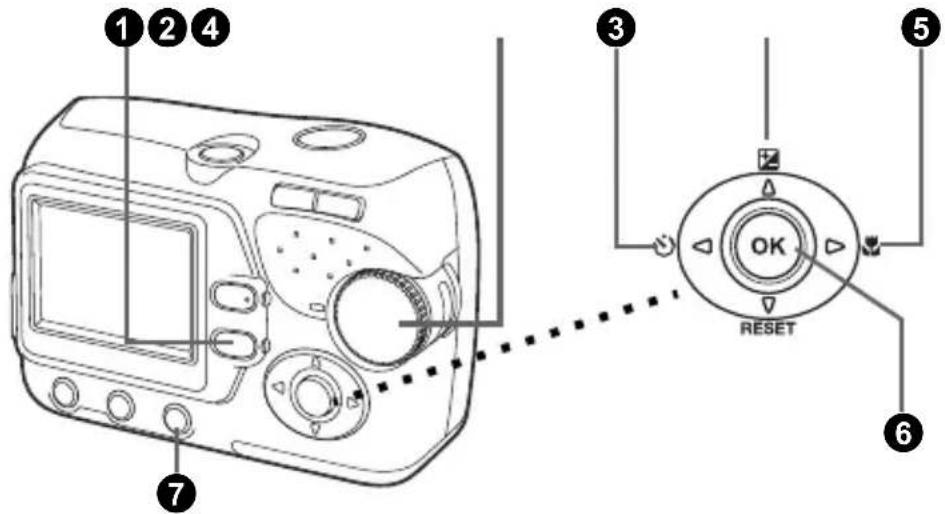

Shooting Mode Buttons

While in shooting mode, use these buttons for quick access to some of the more commonly used features.

En

1 button (Playback Mode)

The camera switches to playback mode.

Mode dial

In addition to the default (Pmode, there are other modes that have optimal settings for their purpose and shooting conditions.

3 button (Self-timer)

Select the self-timer to delay the shot approximately 12 seconds from when the shutter button is pressed.

4 button (Exposure Compensation)

Use this setting to overexpose (+) or underexpose (-) a picture.

5 button (Macro Mode)

Use macro or super macro mode when taking close-up pictures such as of a flower.

6 OK button

Press to confirm settings.

7 button (Flash Mode)

Select from 4 flash modes - Auto, (Red-eye reduction), (Fill-in flash), or (Flash off).

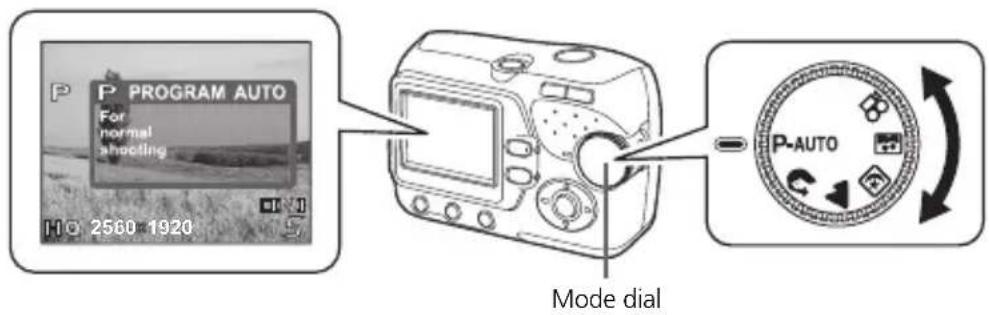

Shooting Mode

Turn the mode dial to select a shooting mode. As you turn the mode dial, the description for each mode is displayed on the monitor.

• P-AUTO PROGRAM AUTO

PORTRAIT

LANDSCAPE

NIGHTSCENE

SELF PORTRAIT

MOVIE

Self-Timer

Press (O).

The self-timer settings screen is displayed.

Press to select [ON], and press OK.

• You can also set by pressing (O) repeatedly.

Press the shutter button fully to take the picture.

• The self-timer lamp lights for approximately 10 seconds after the shutter button is pressed, then starts blinking.

After blinking for approximately 2 seconds, the picture is taken.

Self-timer lamp

Exposure Compensation Mode

1 Press (图).

• The setting screen for the exposure compensation is displayed.

Press to select the exposure compensation value, and press OK.

• Select a ([+] value to brighten the image or a ([-]) value to darken the image.

Take the picture.

Macro Mode

This mode lets you take pictures as close as 20 cm/8 in. to your subject (When the zoom is set to the widest setting).

Use this mode to take pictures as close as 2 cm/0.8 in. to your subject. The position of the zoom is fixed automatically and cannot be changed.

• The setting screen for the macro shooting is displayed.

Press to select macro mode, and press OK.

• You can also set by pressing (repeatedly.

3Take the picture.

Flash Modes

Press flash mode button ( )

• Flash setting screen is displayed.

Press to select the flash mode, and press OK.

• You can also set by pressing repeatedly.

3 Press the shutter button halfway.

• In conditions where the flash will fire, lights (flash standby).

Press the shutter button completely to take the picture. Flash working range:

W (max.): Approx. 0.2 m to 3.8 m (0.7 ft. to 12.5 ft.)

T (max.): Approx. 0.5 m to 2.2 m (1.6 ft. to 7.2 ft.)

Icon Flash	Mode Description
No indication	Auto flash The flash	fires automatically in low light or backlight conditions.
	Red-eye reduction flash	The red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash.
	Fill-in flash The flash	fires regardless of the available light.
	off The flash does	not fire even in low light conditions.

Power Save Feature

• To save battery power, the camera automatically enters to the sleep mode and stops operating if not used for 30 seconds. The monitor switches off automatically. Press the shutter button, or to turn the monitor on. You can select the length of time after which the camera automatically enters to the sleep mode.
• If the camera is not operated for 30 minutes after the camera enters sleep mode, it automatically retracts the lens and turns off. To resume operation, turn on the power again.

MENUS AND SETTINGS

Menu

Press to display the camera's menu on the monitor.
Use the arrow pad and to navigate and select menu items.

En

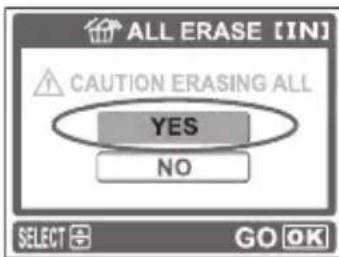

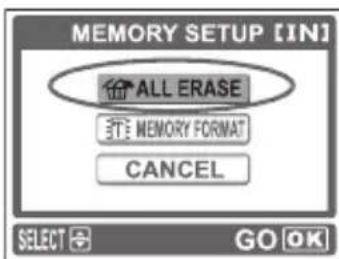

Erase All Pictures

In the playback mode, select [MEMORY SETUP] from the menu, and press OK.
When a card is inserted into the camera, [CARD SETUP] is displayed.
Press to select [ALL ERASE], and press OK.

Press to select [YES], and press OK. All the pictures are erased.

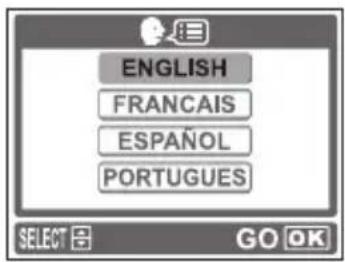

Select a Language

You can select a language for on-screen display. Available languages vary depending on the area where you purchased this camera.

Press

The menu screen is displayed.

Press

to select

The selected item is displayed in yellow.

Press or

Press to select a language, and press OK.

Menu screen

Monitor Symbols & Icons

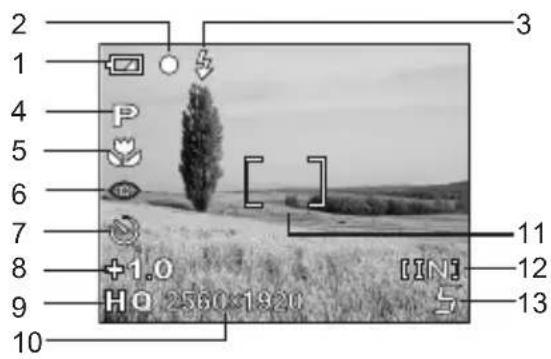

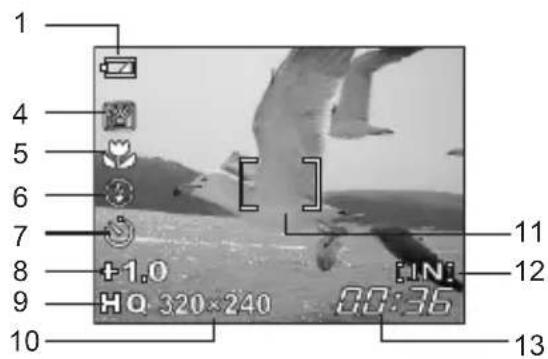

Monitor - Shooting Mode

MovieStill picture

	Items Indications
1	Battery check	=full power, =low power
2	G r e n l a m p Åö=Auto Foucus	Lock
3	Flash standby Camera movement warning/ Flash charge	(Lit) (Blinks)
4	Shooting mode	P, Q, R, S, T, U
5	Macro mode Super macro mode	S
6	F l a s h m o d e	∅, ⇊, ⇔
7	Self-timer	◎
8	Exposure compensation -2.0 – +2.0
9	Record mode SHQ, HQ, SQ1, SQ2
10	Image size •FE-110/X-705	2560×1920, 1600×1200, 640×480, 320×240, 160×120
		•FE-100/X-710 2272×1704, 1600×1200, 640×480, 320×240, 160×120
11	AF target mark [ ]
12	Current memory [IN] (internal memory),	[xD] (card)
13	Number of storable still pictures Remaining recording time	5 00:36

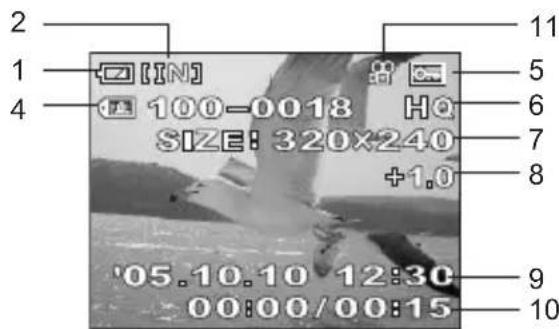

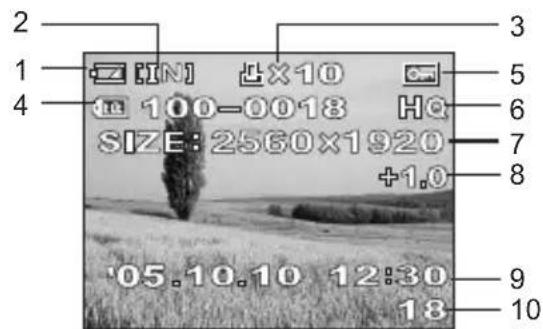

Monitor -Playback mode

Still picture

Movie

	Items Indications
1	Battery check	=full power, =low power
2	Current memory [IN] (internal memory), [xD] (card)
3	Print reservation/Number of prints ×10
4	File number 100-0018
5	Protect
6	Record mode SHQ, HQ, SQ1, SQ2
7	I m a g e s i z e •FE-110/X-705	2560×1920, 1600×1200, 640×480, 320×240, 160×120
		•FE-100/X-710 2272×1704, 1600×1200, 640×480, 320×240, 160×120
8	Exposure compensation -2.0 - +2.0
9	Date and time '05.10.10 12:30
10	Number of frames Elapsed time/total recording time (movie)	18 00:00/0015
11	Movie

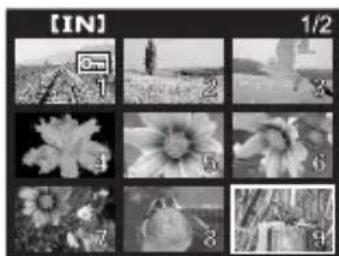

Thumbsail (Index) Display

This function lets you show several pictures at the same time on the monitor when you reviewing pictures.

Press the zoom button toward W ( ) to switch to the thumbnail (index) display.

• Use the arrow pad to select the picture and press OK to display a single-frame.
• Press T (Q) on the zoom button to return to single-frame playback.

Index display

CONNECTING THE CAMERA

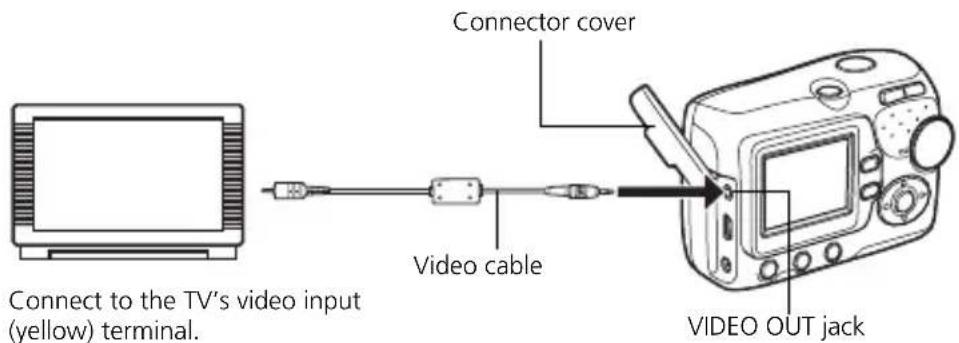

Playback on a TV

Use the video cable provided with the camera to playback recorded images on your TV. Both still pictures and movies can be played back.

Make sure that the TV and camera are turned off. Connect the VIDEO OUT jack on the camera to the video input terminal on the TV using the video cable.

En

Turn the TV on and set it to the video input mode.

• For details of switching to video input, refer to your TV's instruction manual.

3 Press the power switch to turn the camera on, and press

The last picture taken is displayed on the TV. Use the arrow pad to select the picture you want to display.

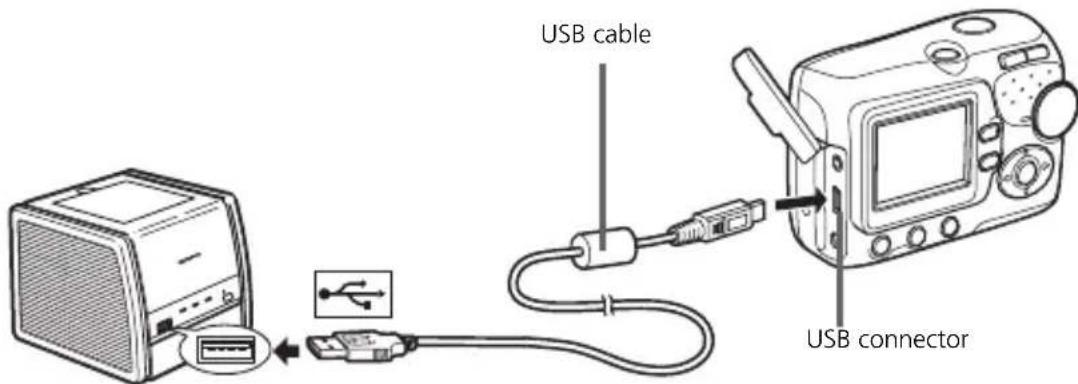

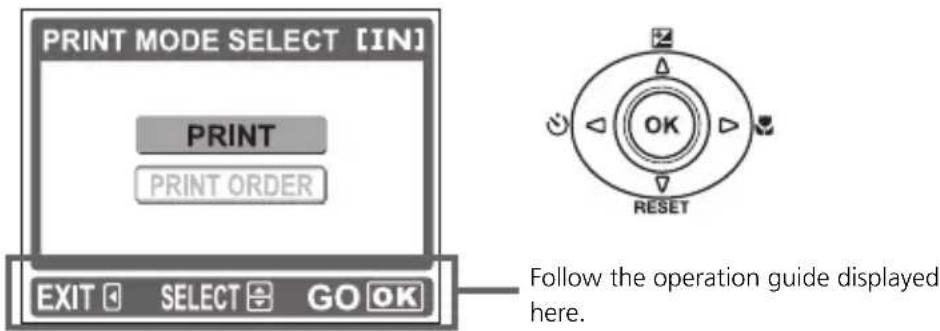

Direct Printing (PictBridge)

Using the provided USB cable, you may connect your camera directly to a PictBridge compatible printer such as the Olympus P-11 to make prints.

Connect one end of the provided USB cable into the camera's USB connector and the other end into the printer's USB connector.

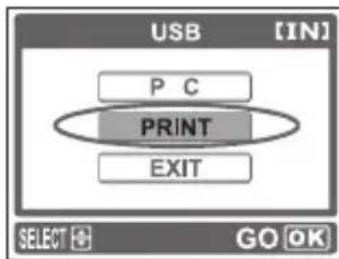

Press to select [PRINT], and press OK.

• While the camera is connected to a printer, the green lamp on the camera remains on.
• ONE MOMENT is displayed and the camera and printer are connected. The PRINT MODE SELECT screen is displayed on the monitor.

Use the arrow pad to select pictures and make prints.

OLYMPUS Master SOFTWARE

OLYMPUS Master Software: Use this software to download pictures from the camera, view, organize, retouch, e-mail and print your digital pictures and movies and more! This CD also contains the complete software reference manual in Adobe Acrobat (PDF) format.

System Requirements

OS Windows 98SE	Me/2000 Professional/XP or Mac OS X (10.2 or later)
CPU Pentium III 500MHz/Power PC G3, or faster
RAM 128MB or more (256MB or more recommended)
Hard Disk 300MB or more free space
Connection USB port
Monitor	1024 x 768 pixels resolution or more with a minimum of 65,536 (Windows) / 32,000 (Macintosh) colors

For the latest support information, visit the Olympus website (http://www.olympus.com/digital)

Upgrade (OLYMPUS Master Plus)

In addition to the functions in OLYMPUS Master, the OLYMPUS Master Plus features movie editing, album printing, contact sheet printing, HTML album, free stitch panorama, CD/DVD writing functions, and a lot more, allowing you to greatly expand your digital photograph capabilities.

You need to have OLYMPUS Master installed in a computer with an internet connection.

User Registration

Register your camera when you install OLYMPUS Master to activate your warranty, receive notifications of software and camera firmware updates, and more.

SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying)

Recording system

Still picture : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable standards

: Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge

Movie : QuickTime Motion JPEG support

Memory: Internal memory, xD-Picture Card (16 MB - 1 GB)

No. of storable pictures When an internal memory is used.

FE-110/X-705 FE-100/	X-710
7 frames (SH:2560 × 1920)	9 frames (SH:2272 × 1704)
22 frames (HQ:2560 × 1920)	28 frames (HQ:2272 × 1704)
42 frames (SQ1:1600 × 1200)	42 frames (SQ1:1600 × 1200)
160 frames (SQ2:640 × 480)	160 frames (SQ2:640 × 480)

• When using a 16MB xD-Picture Card is used.

FE-110/X-705 FE-100/	X-710
4 frames (SH:2560 × 1920)	5 frames (SH:2272 × 1704)
12 frames (HQ:2560 × 1920)	16 frames (HQ:2272 × 1704)
24 frames (SQ1:1600 × 1200)	24 frames (SQ1:1600 × 1200)
91 frames (SQ2:640 × 480) 91	frames (SQ2:640 × 480)

No. of effective pixels : 5,000,000 pixels (FE-110/X-705)

4,000,000 pixels (FE-100/X-710)

Image pickup device : 1/2.5" CCD solid-state image pickup,

5,360,000 pixels (gross) (FE-110/X-705),

4,230,000 pixels (gross) (FE-100/X-710)

Lens : Olympus lens 6.2 mm to 17.4 mm, f3.0 to 5.0

(equivalent to 38mm to 106mm lens on 35mm camera)

Photometric system

: Center-weighted metering

Shutter speed

: 1 to 1/2000 sec. (NIGHT SCENE mode: 2 sec)

Shooting range

: 0.5 m (1.6 ft.) to (W), 0.9 m (3.0 ft.) to (T) (normal)

0.2 m (0.7 ft.) to 0.5m (1.6 ft.) (W), 0.5 m (1.6 ft.) to 0.9 m (3.0 ft.(T) (macro mode)

Monitor

: 1.5" TFT color LCD display, 130,000 pixels

Outer connector

: DC-IN jack, USB connector (mini-B),VIDEO OUT jack

Automatic calendar system : 2005 up to 2099

Operating environment

Temperature: 0^ to 40^ (32^ to 104^) (operation)/-20°C to 60°C

(-4^ to 140^) (storage)

Humidity: 30% to 90% (operation)/ 10% to 90% (storage)

Power supply : Two AA (R6) Oxyride batteries, two alkaline batteries

or two NiMH batteries/Olympus AC adapter (optional)

Dimensions: 87.5mm (W) × 62.5mm (H) × 38.5mm (D) (3.4× 2.5× 1.5

in.)

excluding protrusions

Weight : 140 g (4.9 oz) without battery and card

xD-Picture Card

Memory type : NAND flash EEP-ROM

Operating environment

Temperature: 0^ to 55^ (32^ to 131^) (operation)/

-20°C to 65°C (-4°F to 149°F) (storage)

Humidity : 95% or lower

Power:3V(3.3V)

Dimensions

: 20× 25× 1.7mm (0.8^ × 1.0^ × 0.1^ )

Design and specifications subject to change without notice.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

DANGER

If the product is used without observing the information given under this symbol, serious injury or death may result.

WARNING

If the product is used without observing the information given under this symbol, injury or death may result.

CAUTION

If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING!

TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections.

Location — To avoid damage to the product mount the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the product label.

Lightning — If a lightning storm occurs while using an AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the product.

Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

• Do not use the camera near flammable or explosive gases.

• Do not use the flash on people (infants, small children, etc.) at close range.

• You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary loss of vision.

• Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.
• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera.

• Do not look at the sun or strong lights with the camera.

• Do not use or store the camera in dusty or humid places.
• Do not cover the flash with a hand while firing.

CAUTION

• Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

• Never remove the batteries with bare hands, which may cause a fire or burn your hands.

• Never hold or operate the camera with wet hands.

• Do not leave the camera in places where it may be subject to extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire.

• Handle the camera with care to avoid getting a low-temperature burn.

• When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

- Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects - and cause serious damage.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• Use only the Olympus brand NiMH batteries and fitting charger.
• Never heat or incinerate batteries.
• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.
• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.
• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc.
• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.
• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

• Keep batteries dry at all times.
• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.
• Never mix batteries (old and new batteries, charged and uncharged batteries, batteries of different manufacture or capacity, etc.).
• Never attempt to charge alkaline, lithium or CR-V3 lithium battery packs.
• Insert the battery carefully as described in the operating instructions.
• Do not use batteries if their body is not covered by the insulating sheet or if the sheet is torn, as this may cause fluid leaks, fire, or injury.

CAUTION

• Do not remove batteries immediately after using the camera. Batteries may become hot during prolonged use.

• Always unload the battery from the camera before storing the camera for a long period.

• The following AA (R6) batteries cannot be used.

Batteries whose bodies are only partially or not at all covered by an insulating sheet.

Batteries whose terminals are raised, but not covered by an insulating sheet.

Batteries whose terminals are flat and not completely covered by an insulating sheet. (Such batteries cannot be used even if the terminals are partially covered.)

• If NiMH batteries are not charged within the specified time, stop charging them and do not use them.
• Do not use a battery if it is cracked or broken.
• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.
• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.
• Never subject batteries to strong shocks or continuous vibration.

For customers in North and South America

For customers in USA

Declaration of Conformity Model Number:FE-110/X-705,FE-100/X-710

Trade Name : OLYMPUS

Responsible Party : OLYMPUS IMAGING AMERICA INC.

Address: Two Corporate Center Drive, P.O. Box 9058, Melville, NY 11747-9058 U.S.A.

Telephone Number: 1-631-844-5000

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference.

(2)This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer Inc.
• xD-Picture Card™ is a trademark.
• All other company and product names are registered trademarks and/or trademarks of their respective owners.
• The standards for camera file systems referred to in this manual are the "Design Rule for Camera File System/DCF" standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

Table des matieres

ILLUSTRATION DE L'APPAREIL PHOTO 31

AVANT DE COMMENCER 32

POUR DEMARRER 33

Étape 1 POUR DÉMARRER. 33
Étape 2 PRISE DE VUE 34
Etape 3 CONSULTATION OU EFFACEMENT D'UNE PHOTO 35
Etape 4 TRANSFERT D'IMAGES 36

FONCTIONNEMENT DE BASE 38

4 TRANSFERT D'IMAGES

DIAGRAMA DE LA CÁMARA

Enganche para correa

Objetivo
Flash
LED del disparador automatico

Tapa del conector
TomaVIDEO OUT
Conector USB
Jack DC-IN

ANTES DE COMENZAR

DIAGRAMA DA CÁMARA. 87

ANTES DE COMEÇAR. 88

INICIAÇÃO 89

Passo 1 INICIAÇÃO 89
Passo 2 FOTOGRAFAR 90
Passo 3 REVER OU APAGAR UMA FOTOGRAFIA. 91
Passo 4 TRANSFERIR IMAGENS 92

Apagar todas as imagens

Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

Two Corporate Center Drive, P.O. Box 9058, Melville, NY 11747-9058, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm

(Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympus.com/digital

OLYMPUS IMAGING EUROPA GMBH

Premises: Wendenstrasse 14-18, 20097 Hamburg, Germany

Tel: [phone] / Fax: [phone]

Goods delivery: Bredowstrasse 20, 22113 Hamburg, Germany

Letters: Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com

or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

• Please note some (mobile) phone services/provider do not permit access or request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)
