Product type	Graphics card
Brand	ASUS
Model	GT6101GD3L
Included software	Graphics driver, ASUS GPU Tweak, ASUS APRP, ASUS Streaming
Installation media	Support CD
Supported operating systems	Windows 8.1 / 8 / 7 / Vista (32 and 64 bits)
Manual format	PDF, 322 pages
Available languages	French, English, German, Spanish, Italian, etc.
Manual publication date	September 2014
Reference number	F9733
Safety precautions	Disconnect power before adding peripherals; avoid dust, moisture and extreme temperatures
Driver installation	Insert the CD, run UI.exe, follow the instructions
Optimization utility	ASUS GPU Tweak: monitoring and optimization of GPU parameters
Streaming function	ASUS Streaming: allows video streaming
Power connector compatibility	Auxiliary power connector required (check according to model)
Troubleshooting	Troubleshooting guide included in the manual (no display, poor color balance, distorted image)

Frequently Asked Questions - GT6101GD3L ASUS

How to install the graphics driver for the ASUS GT6101GD3L card?

Insert the support CD into your optical drive. If auto-run is enabled, the main menu appears. Otherwise, launch the file UI.exe from the CD. From the menu, click Install, then select Display Driver and click Install again. After installation, restart your computer.

What to do if the screen remains black after installing the card?

Check that the card is properly inserted into its slot, that the monitor cable is correctly connected, and that the auxiliary power of the card is plugged in. Make sure your power supply is sufficient for the system. Refer to the troubleshooting guide in the manual for more details.

How to uninstall the graphics driver?

Under Windows, go to Start > Control Panel > Programs > Programs and Features. Select the ASUS graphics driver and click Uninstall. Then restart the computer.

What is the purpose of the ASUS GPU Tweak utility?

ASUS GPU Tweak allows you to monitor and optimize the settings of your graphics card, such as GPU frequency, voltage, and fan speed, to improve performance or reduce noise.

How to install ASUS GPU Tweak?

Insert the support CD, launch UI.exe, click Install, select ASUS GPU Tweak and click Install. Follow the on-screen instructions.

Which operating systems are supported?

The graphics card supports Windows 8.1, Windows 8, Windows 7 and Windows Vista in 32 and 64 bit versions.

What to do if the screen colors are poorly balanced?

Check the video cable connection, monitor settings, and resolution in display properties. Reinstall the graphics driver if necessary. Make sure no other graphics card driver is installed.

Can I overclock my ASUS GT6101GD3L card?

Yes, the ASUS GPU Tweak utility allows adjusting the GPU and memory frequency. However, overclocking can increase temperature and reduce stability. Restore default settings if issues occur.

How to clean my graphics card?

Disconnect the power, remove the card from the slot. Use a soft, dry cloth to remove dust. Avoid liquid or abrasive products. Check that the fan spins freely.

Where to find the complete manual for the card?

The manual is available for free in PDF format at notice-facile.com. You can download it or request a translation into your language via the form on the site.

USER MANUAL GT6101GD3L ASUS

Drivers and Utilities

Installation Guide

Index

English. 1

Traditional Chinese 22

Simplified Chinese 42

Czech 62

Dutch 82

French 102

German 122

Greek 142

Italian 162

Japanese 183

Korean 203

Polish 223

Portuguese 243

Spanish 263

Ukrainian 283

Croatian 303

E9733

Third Edition

September 2014

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents

Notices. 4 Safety information 5 About this guide 6

1. Support CD information 7
2. VGA drivers 8

2.1 Installing the VGA driver 8 2.2 Uninstalling the VGA driver 9

1. ASUS GPU Tweak utility 10

3.1 Installing ASUS GPU Tweak 10 3.2 Uninstalling ASUS GPU Tweak 11

1. ASUSAPRP 12

4.1 Installing ASUS APRP 12 4.2 Uninstalling ASUS APRP 13

1. ASUS Streaming 14

5.1 Installing ASUS Streaming 14 5.2 Uninstalling ASUS Streaming 15

1. Other information 16

6.1 Browse the Support CD 16 6.2 Contact Information 16 6.3 Viewing the Read Me file 17

Appendix: Basic troubleshooting 18

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at the ASUS REACH website at http://green.asus.com/english/REACH.htm.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety information

Electrical safety

• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing devices on your motherboard, carefully read all the manuals that came with the package.
• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and extreme temperature. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Useful tips and additional information for completing a task.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS Websites

The ASUS websites worldwide provide updated information on ASUS hardware and software products. The ASUS websites are listed in the ASUS Contact Information on the inside front cover of this installation guide.

2. Optional Documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

1. Support CD information

The support CD contains the drivers and utilities for your VGA card. Click the icons on the support CD's main menu to install software, obtain ASUS contact information, browse CD contents, or view the Read Me file.

• The screens in this manual are for reference only and may not exactly match what you see on your screen.
• The device driver and utility in the support CD apply only to specific ASUS VGA card models.
• You may need administrator rights to install the drivers and utilities. See your Windows® 8.1 / 8 / 7 / Vista documentation for details.
• The contents of the support CD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

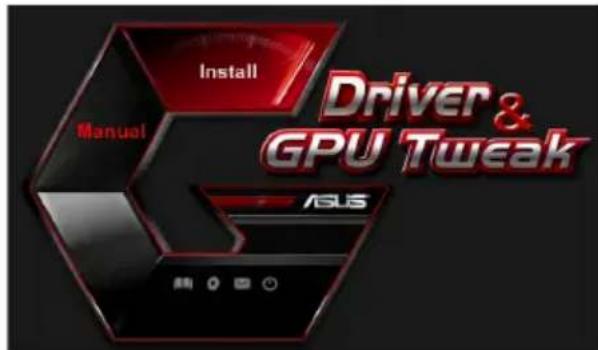

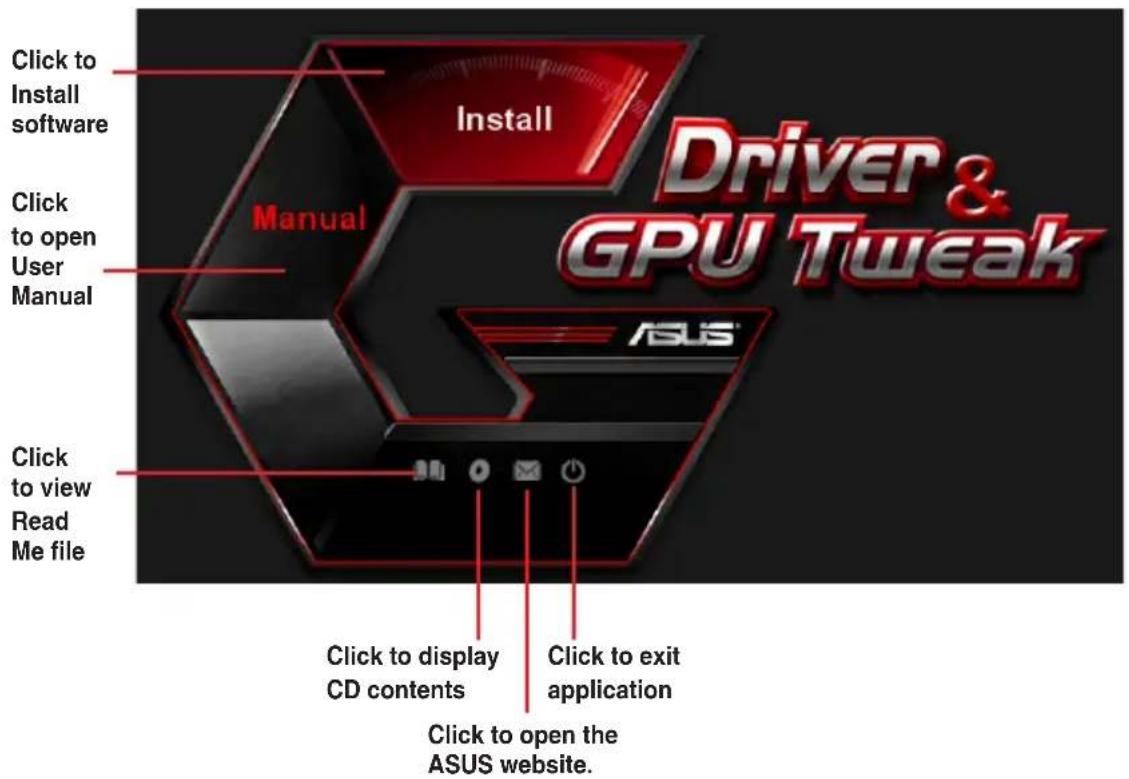

Insert the CD into your computer's optical drive. If Autorun is enabled, the Main Menu launches automatically.

If Autorun is NOT enabled on your computer, browse the contents of the support CD to locate the file UI.exe. Double-click UI.exe to run the support CD installation program.

2. VGA drivers

The VGA driver is the software program that makes the device work with your operating system. After physically installing your graphics card, use any of the recommended methods in this section to install, update, or remove the VGA driver.

If you are replacing an old graphics card with a new ASUS graphics card, uninstall the old display driver from your system.

2.1 Installing the VGA driver

2.1.1 Installing the VGA Drivers in Windows Vista and Windows® 8.1 / 8 / 7 (32/64 bit)

To install the VGA driver in Windows® 8.1 / 8 / 7 / Vista:

1. Insert the support CD into your optical drive.

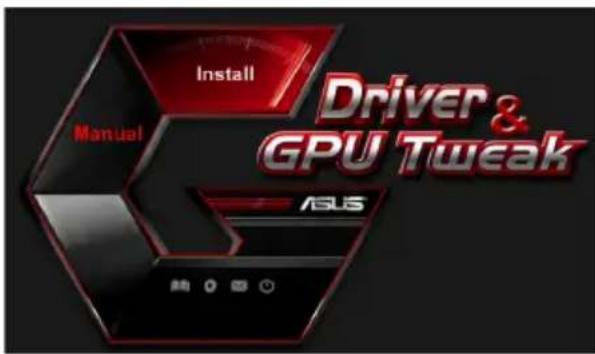

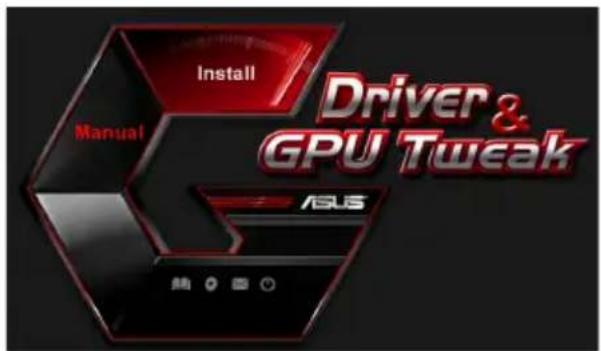

2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.
3. From the main menu, click Install.

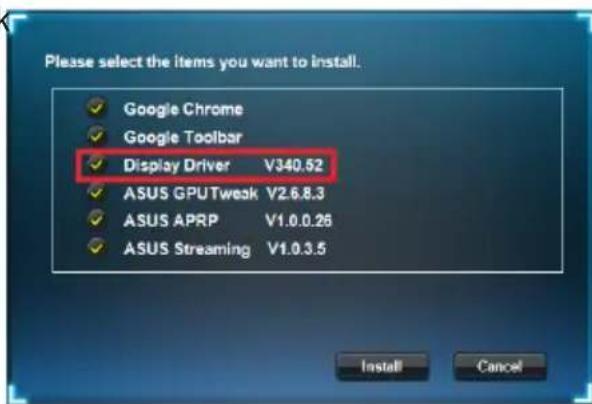

4. Select Display Driver and click the Install button.

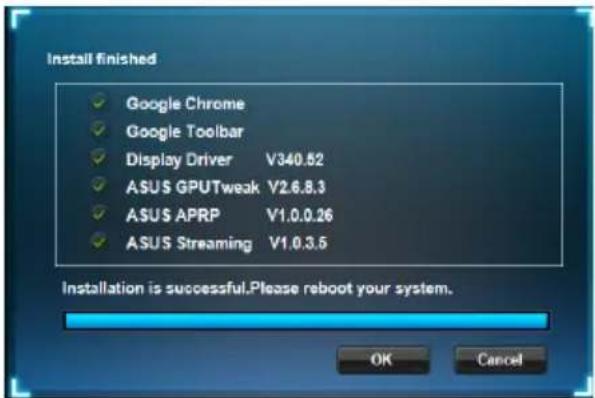

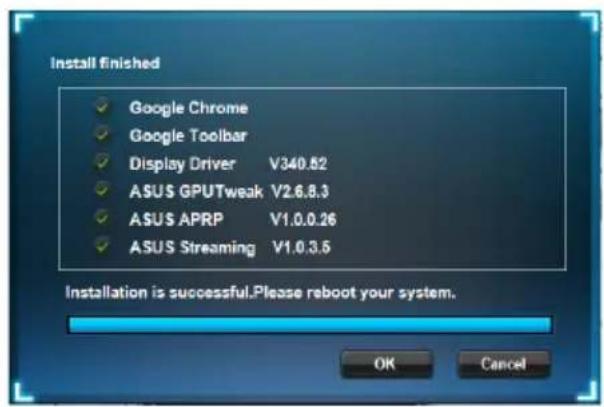

1. Once installation is complete, click OK to reboot the system.

2.2 Uninstalling the VGA driver

2.2.1 Uninstalling VGA drivers in Windows 8.1 / 8 / 7 / Vista

To remove the VGA driver in Windows 8.1 / 8 / 7 / Vista:

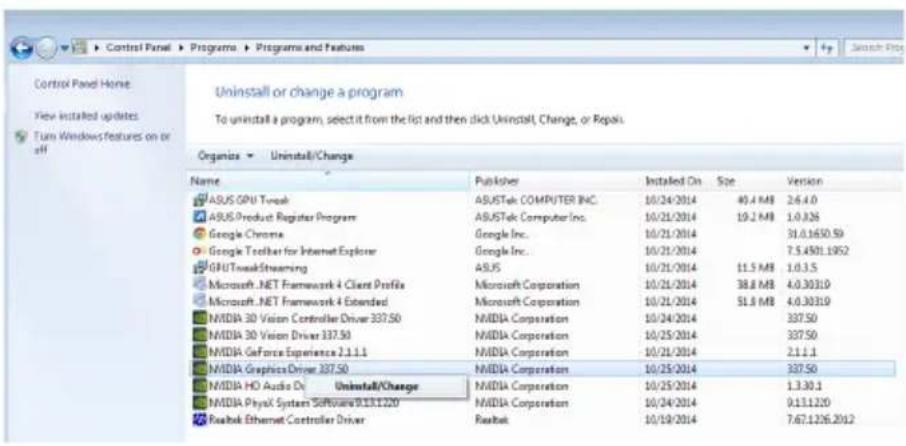

• Click Start > Control Panel > Programs > Programs and Features, select graphics driver. Click Uninstall.

3. ASUS GPU Tweak utility

ASUS GPU Tweak utility allows you to monitor and optimize the settings of your ASUS Graphics card.

3.1 Installing ASUS GPU Tweak

3.1.1 Installing ASUS GPU Tweak in Windows Vista and Windows 8.1 / 8 / 7 (32/64 bit)

To install ASUS GPU Tweak:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

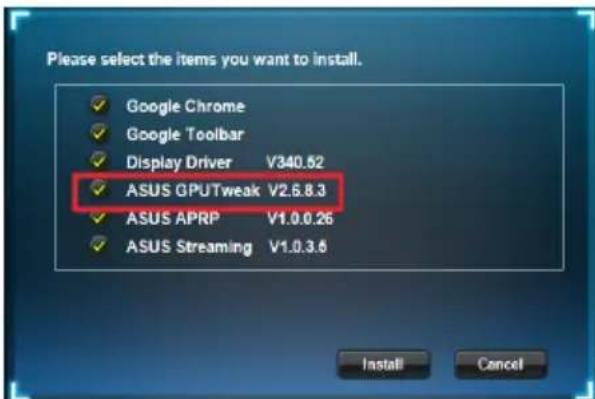

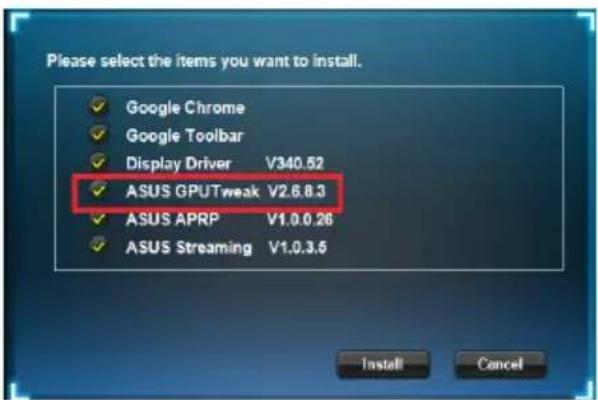

1. From the main menu, click Install. Select ASUS GPU Tweak and click the Install button.

1. Once installation is complete, click OK.

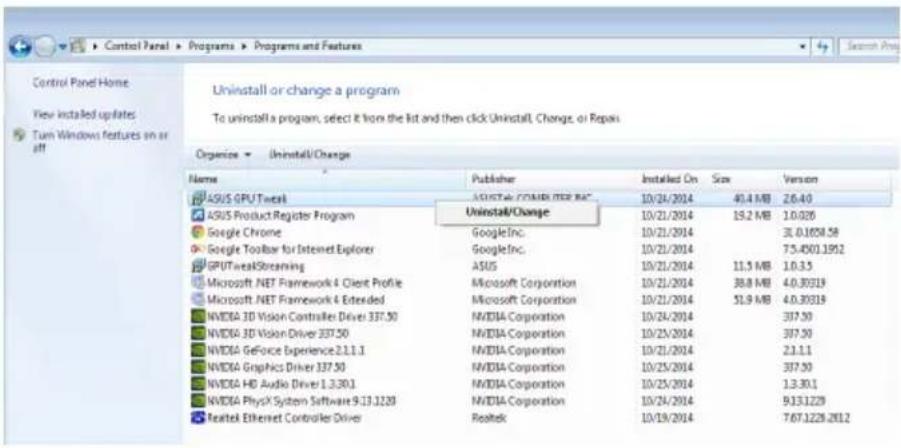

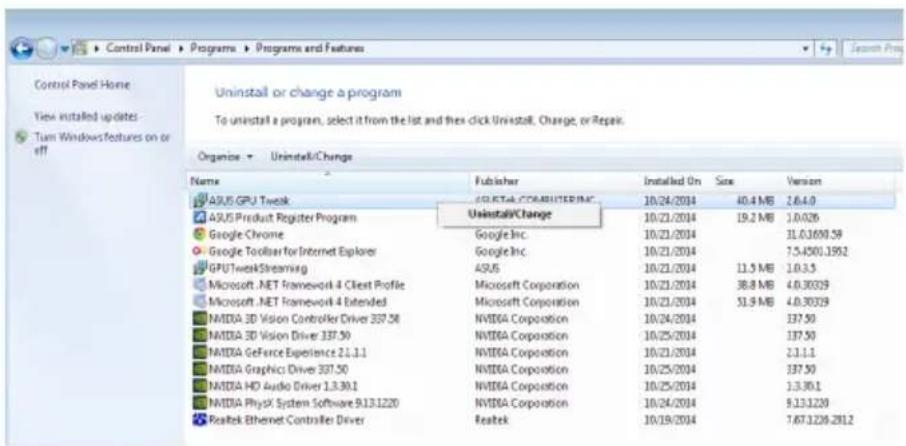

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing ASUS GPU Tweak in Windows 8.1/8/7/Vista

To remove ASUS GPU Tweak in Windows® 8.1 / 8 / 7 / Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS GPU Tweak. Click Uninstall.

4. ASUS APRP

4.1 Installing ASUS APRP

4.1.1 Installing ASUS APRP in Windows /8/7 (32/64 bit)

Vista and Windows 8.1

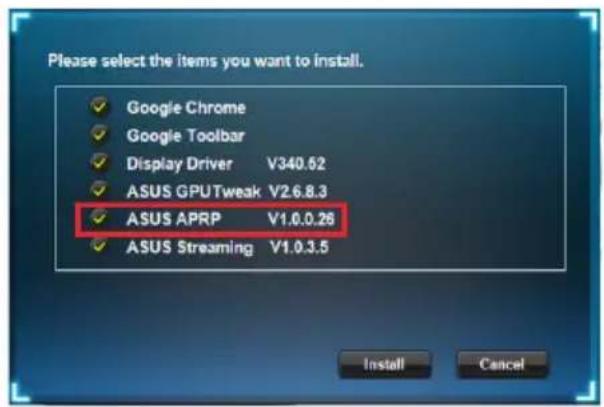

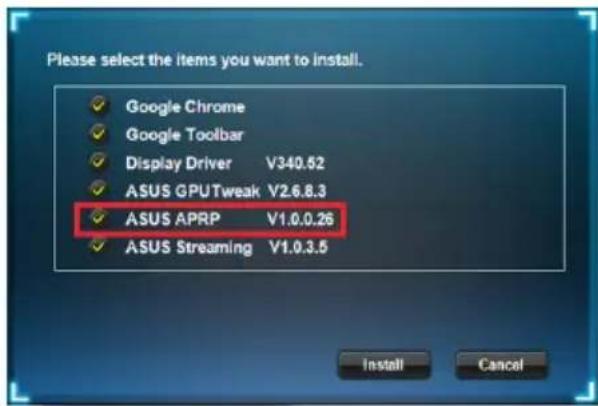

To install ASUS APRP:

1. Insert the support CD into your optical drive.

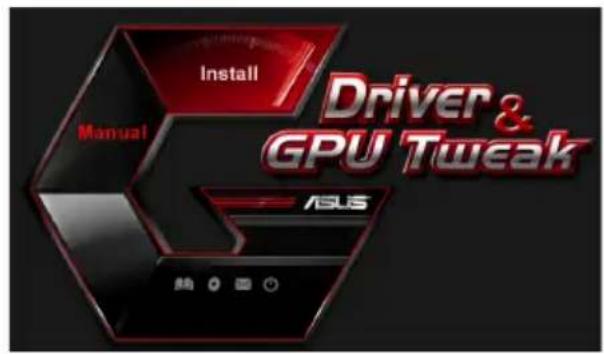

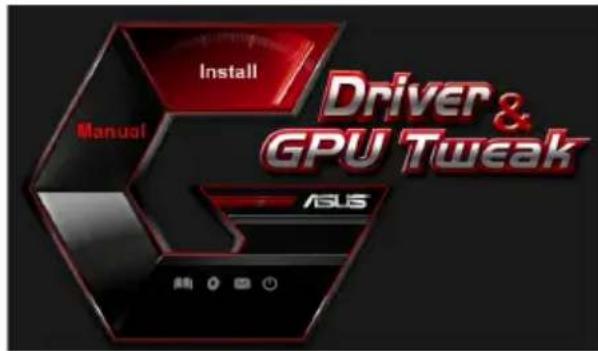

2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Install.

Select ASUS GPU Tweak and click the Install button.

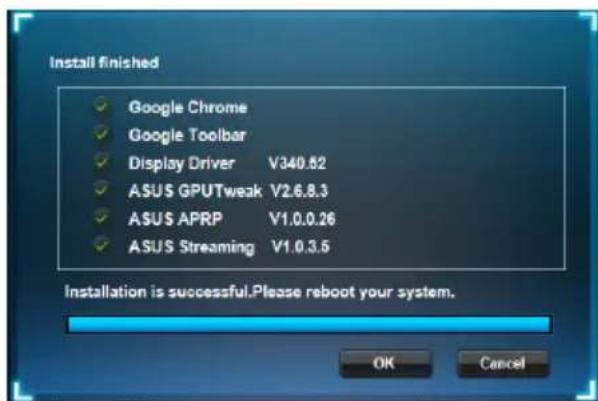

1. Once installation is complete, click OK.

4.2 Uninstalling ASUS APRP

4.2.1 Removing ASUS APRP in Windows 8.1/8/7/Vista

To remove ASUS APRP in Windows® 8.1 / 8 / 7 / Vista:

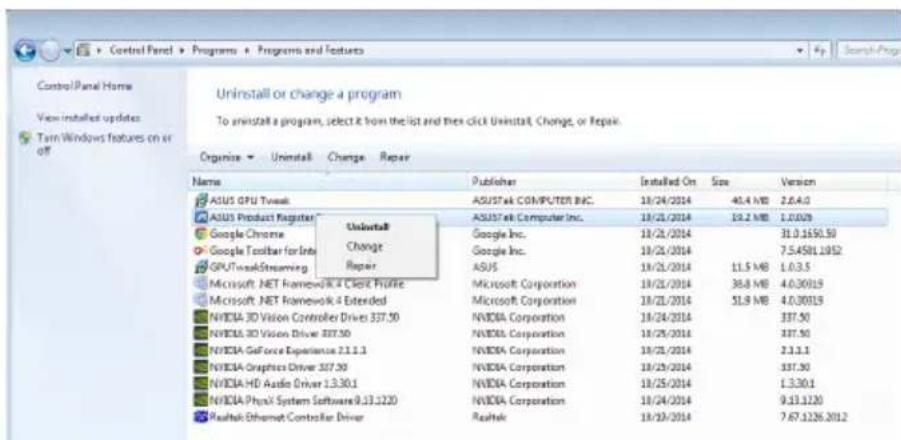

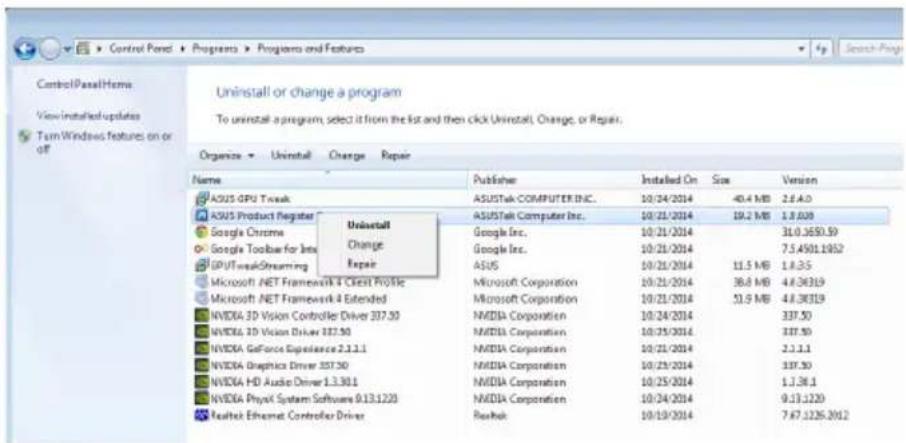

• Click Start > Control Panel > Programs > Programs and Features, select ASUS APRP. Click Uninstall.

5. ASUS Streaming

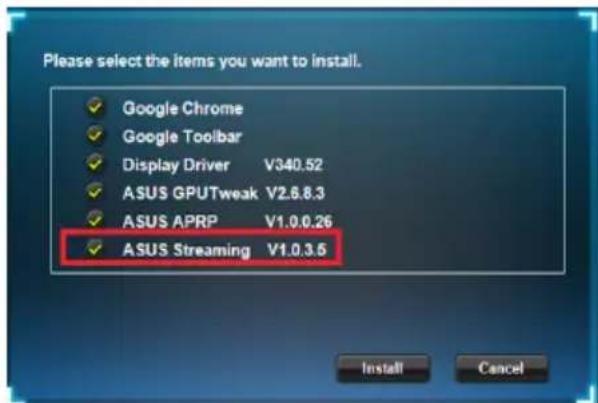

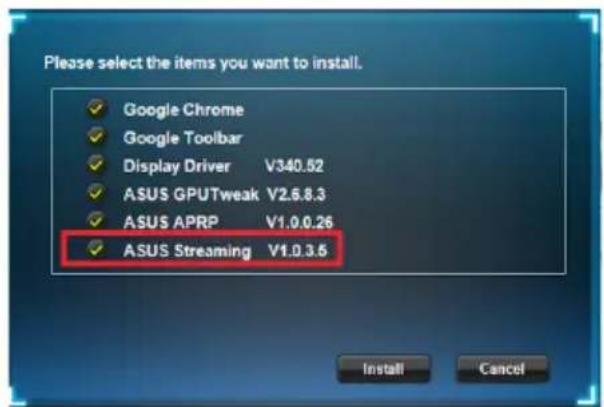

5.1 Installing ASUS Streaming

5.1.1 Installing ASUS Streaming in Windows® 8.1 / 8 / 7 (32/64 bit)

Vista and

To install ASUS Streaming:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.
3. From the main menu, click Install.

Select ASUS GPU Tweak and click the Install button.

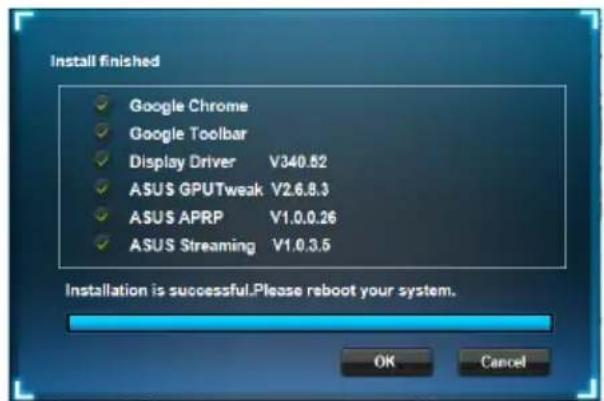

1. Once installation is complete, click OK.

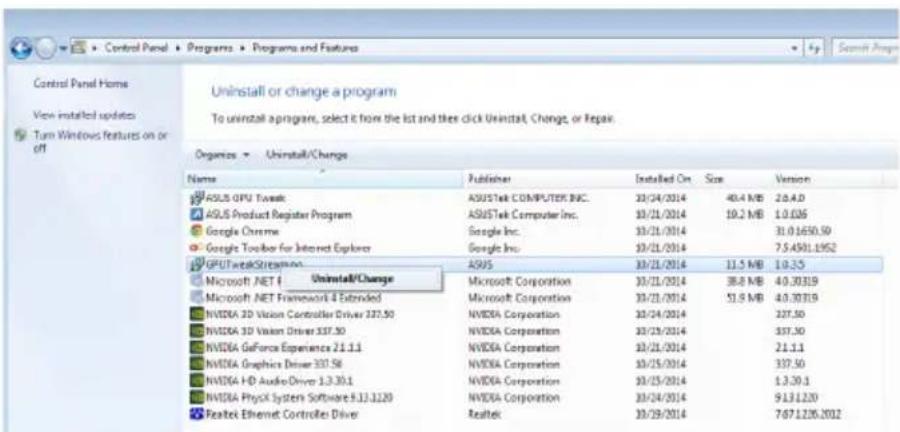

5.2 Uninstalling ASUS Streaming

5.2.1 Removing ASUS Streaming in Windows 8.1/8/7/Vista

To remove ASUS Streaming in Windows® 8.1 / 8 / 7 / Vista:

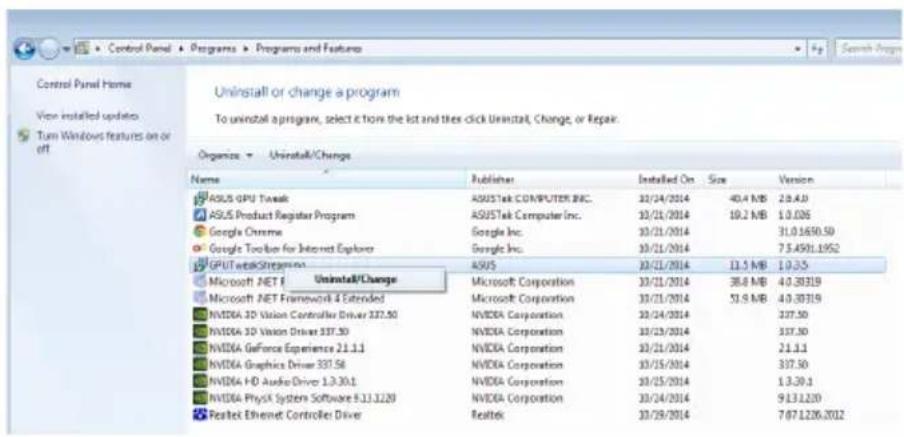

• Click Start > Control Panel > Programs > Programs and Features, select GPU Tweak Streaming. Click Uninstall.

6. Other information

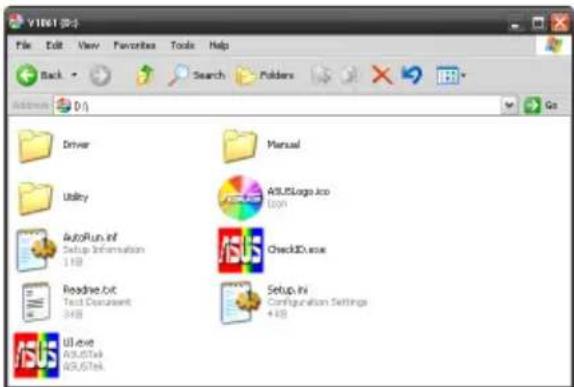

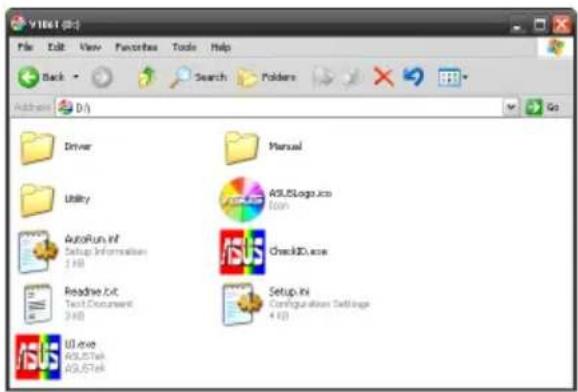

6.1 Browse the Support CD

To browse the support CD:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

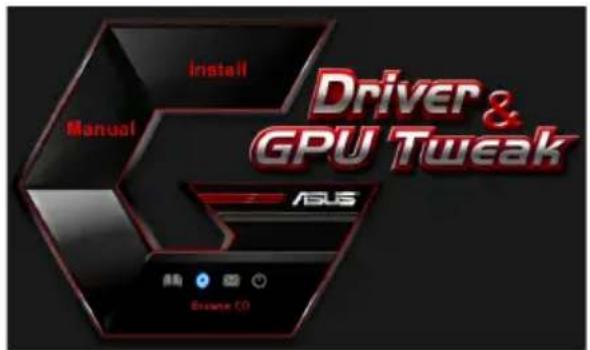

1. From the main menu, click Browse CD to view the contents of the CD.

6.2 Contact Information

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically.

If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Contact Us to open the ASUS website for additional information.

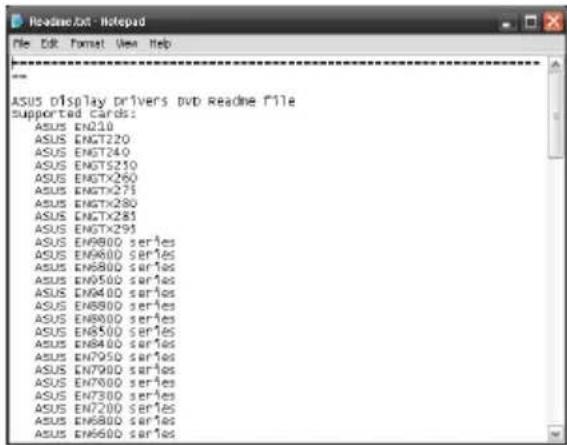

6.3 Viewing the Read Me file

To view the readme file:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

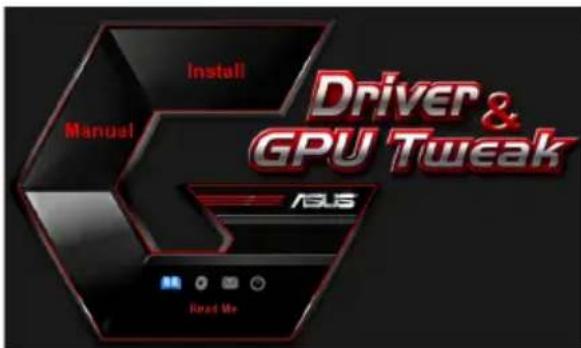

1. From the main menu, click Read Me to display the Readme text file.

Appendix: Basic troubleshooting

If you encounter any of the following scenarios after installing your graphics card, try performing one of the possible solutions before calling for technical support.

Problem No display after the card is installed

Cause Your card might not be properly installed. Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your monitor might not be properly connected. Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Cause Your graphics card is not supported by your motherboard. Solution Check the technical documentation that came with your motherboard and check the required specifications for your graphics card (e.g. AGP voltage requirement).

Cause The graphics card's auxiliary power is not connected. Solution Make sure that the auxiliary power cables are properly connected with the power supply unit.

Cause Insufficient power supply. Solution Make sure that your power supply unit can provide the minimum power requirement to your system.

Cause Incorrect motherboard hardware system settings (e.g. system control panel connections). Solutions • Make sure that the system control panel cables are connected properly (e.g. power switch, reset). • Make sure that your CPU, CPU fan and/or memory DIMMs are in good working condition and are connected properly.

Problem Wrong color balance

Cause Your card might not be properly installed. Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your video controls might not be properly set. Solution • Manually configure your video controls to your desired settings. • Configure your graphics card display resolution in Dis-play properties.

Cause There may be unsupported graphics card drivers installed in your system. Conflicts may occur with graphics card drivers from different vendors. Solution • Remove any unused graphics card drivers installed on your system. • Install the graphics card driver from the support CD that came with your graphics card package.

Cause The graphics card's auxiliary power is not connected. Solution Make sure that the auxiliary power cables are properly connected to the power supply unit.

Cause If your monitor comes with BNC connectors, the port connections may be incorrect. Solution Make sure that all BNC connectors are connected properly to its corresponding port.

Cause Your monitor software settings might be incorrect. Solution Configure your monitor to supported display settings.

Cause Your monitor might not be properly connected. Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Problem The screen image is garbled

Cause Your monitor cannot support the selected display setting. Solution Make sure that your monitor can support your desired display setting. Refer to the technical documentation that came with your monitor.

Cause Your graphics card cannot support the desired system setting. Solution Make sure that your graphics card can support your desired display setting. See the specifications table that came with this graphics card package.

Cause Some graphics driver files might be corrupt. Solution Remove your current graphics drivers and reinstall the graphics drivers from the support CD.

Cause Poor heat dissipation inside the chassis. Solution Make sure that the chassis fan, CPU, and heatsink with fan, and/or the graphics card GPU fan are working properly.

Cause GPU or VGA memory overclocked beyond optimal working conditions. Solutions Restore default frequency settings of GPU and VGA memory.

Other problems that you might encounter can be related to other parts or accessories (e.g., motherboard, power supply unit, LCD/CRT) of your system.

ASUS

Graphics Card

Driver and Utilities

Installation Guide

T9733

Third Edition

Released September 2014

Copyright © 2014 ASUSTeK Computer Inc. All rights reserved.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Copyright © 2014 ASUSTeK Computer, Inc.

FCC (Federal Communications Commission) Declaration

Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

REACH (original)

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://green.asus.com/ english/REACH.htm.

Macrovision Corporation Product Notice (original)

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety precautions

Electrical handling

This man has a lot of experience.

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents

1. Click Install to install ASUS GPU Tweak.

Select ASUS GPU Tweak and click Install.

1. When the installation is complete, click OK.

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing ASUS GPU Tweak in Windows 8.1/8/7/Vista

To uninstall ASUS GPU Tweak in Windows 8.1/8/7/Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS GPU Tweak. Click Uninstall.

4. ASUS APRP

4.1 Installing ASUS APRP

4.1.1 Installing ASUS APRP in Windows Vista/Windows 8.1/8/7 (32/64-bit)

To install ASUS APRP:

1. Insert the CD into the optical drive. 2. If autorun is enabled, the main menu appears automatically.

If autorun is disabled, run UI.exe from the root menu on the CD.

1. In the main menu, click Install.

Select ASUS APRP and click Install.

1. When installation is complete, click OK.

4.2 Uninstalling ASUS APRP

4.2.1 Uninstalling ASUS APRP in Windows 8.1/8/7/Vista

To uninstall ASUS APRP in Windows 8.1/8/7/Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS APRP. Click Uninstall.

5. ASUS Streaming

5.1 Installing ASUS Streaming

5.1.1 Installing ASUS Streaming on Windows Vista / Windows 8.1/8/7 (32/64 bit)

To install ASUS Streaming:

1. Insert the CD into the optical drive.
2. If autorun is enabled, the main menu appears automatically.

If autorun is disabled, run UI.exe from the root menu of the CD.

1. In the main menu, click Install.

Select ASUS Streaming and click the Install button.

1. When the installation is complete, click OK.

5.2 Uninstalling ASUS Streaming

5.2.1 Uninstalling ASUS Streaming on Windows 8.1/8/7/Vista

To uninstall ASUS Streaming on Windows® 8.1 / 8 / 7 / Vista:

• Click Start > Control Panel > Programs > Programs and Features, select ASUS Streaming, and click Uninstall.

6. Additional information

If autorun is not enabled, run Setup.exe from the root directory of the support CD.

1. In the main menu, click Browse CD to view the contents of the CD.

6.2 Contact Information

1. Insert the support CD into the optical drive. 2. If autorun is enabled, the ASUS VGA driver installation screen will appear automatically.

If autorun is not enabled, run Setup.exe from the root directory of the support CD.

1. In the main menu, click Contact Us to go to the ASUS website and learn more.

6.3 Read Me

To view the Read Me file:

1. Insert the support CD into the optical drive.
2. If autorun is enabled, the ASUS VGA driver installation screen will appear automatically.

If autorun is not enabled, run Setup.exe from the root directory of the support CD.

1. In the main menu, click Read Me.

The following window will appear on the screen.

Appendix. Troubleshooting

If problems occur after installing the graphics card driver, try one of the following operations before contacting technical support.

Copyright © 2014 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYORIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUsION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents
