Product type Cordless hammer drill/screwdriver
Brand Black & Decker
Model BDK148
Rated voltage 14.4 V
No-load speed 0-450 / 0-1500 rpm (2 speeds)
Maximum torque 14 / 35 Nm

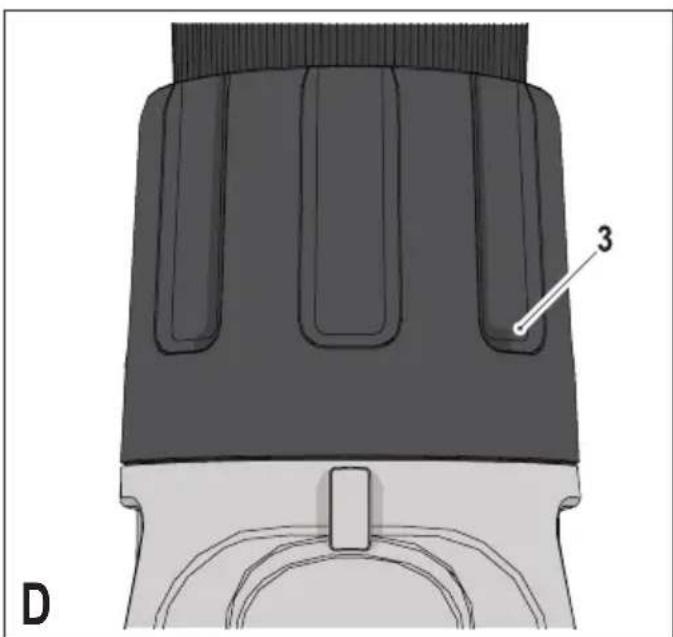

Chuck capacity 10 mm (keyless)
Drilling capacity (steel) 10 mm
Drilling capacity (wood) 25 mm
Drilling capacity (masonry) 10 mm
Approximate weight 1.5 kg (with battery)
Dimensions (L × W × H) Approximately 250 × 70 × 200 mm
Battery type Li-Ion, 1.1 / 1.3 / 1.5 Ah
Charger 905998** (type 1), 230 V, output 18 V, 1 A
Main functions Drilling, screwdriving, hammer drilling
Dual speed Yes (1st for screwdriving/steel, 2nd for drilling other materials)
Variable speed Yes (by trigger pressure)
Reversible rotation direction Yes (right/left with center lock)
Clutch Yes, 15 positions + drilling + hammer
Maintenance Regularly clean the ventilation slots with a soft brush; clean the housing with a damp cloth; do not use solvents.
Safety Double insulation, lock-off switch, hearing and eye protection recommended
Spare parts and repairability Repair by authorized Black & Decker service center; use of original parts
Use Household use only
Warranty 2 years (except professional use, misuse, etc.)

Frequently Asked Questions - BDK148 BLACK & DECKER

How to install and remove the battery of the BDK148 hammer drill?
To install the battery, align it with the housing on the tool and push until it clicks. To remove it, press the release button on the battery while pulling it out. Make sure the tool is off before any manipulation.
What type of battery does the Black & Decker BDK148 use?
The BDK148 uses a 14.4 V Li-Ion battery, available in capacities of 1.1 Ah, 1.3 Ah or 1.5 Ah. Use only batteries recommended by the manufacturer (type BL1114, BL1314, BL1514).
How to charge the battery of the BDK148?

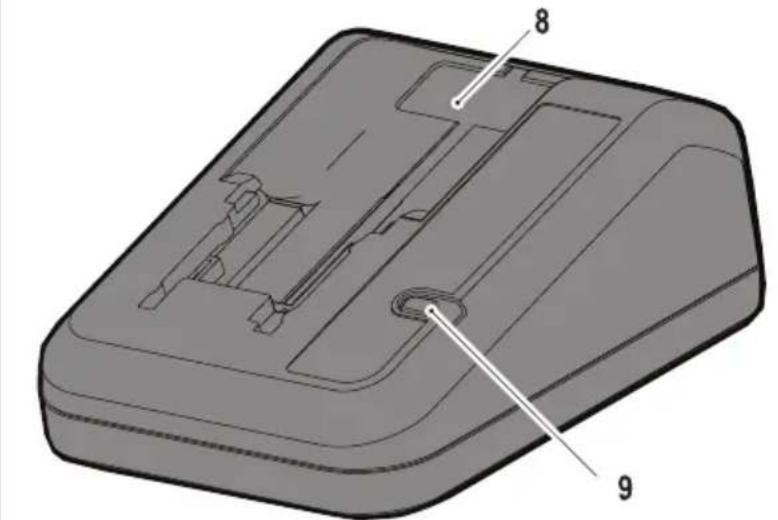

Insert the battery into the provided charger (model 905998**). Plug the charger into a mains outlet. The LED flashes during charging and becomes steady when charging is complete. Charging takes about 1h30. Do not charge at a temperature below 10 °C or above 40 °C.
Can I drill concrete with the BDK148?
Yes, the BDK148 can drill into light masonry. To do so, set the selector ring to the hammer symbol (T) and set the speed selector to second gear (forward position). Use a suitable masonry bit.
How to adjust the torque for screwdriving?
Turn the torque adjustment ring to select one of the 15 positions. Start with a low torque, tighten a test screw. If the clutch clicks before achieving the desired result, gradually increase the setting until you find the correct torque.
What is the difference between the two speeds of the BDK148?
First speed (selector in rear position) is ideal for screwdriving and drilling steel, offering high torque. Second speed (selector in forward position) is designed for drilling wood, plastic and masonry, with higher speed.
How to reverse the rotation direction?
Use the right/left rotation selector located above the switch. Push it to the left for clockwise rotation (drilling, tightening), to the right for counterclockwise (unscrewing). The center position locks the tool.
What safety accessories are recommended?
Always wear eye protection and, for hammer drilling, hearing protection. Also use gloves and a dust mask if necessary. Keep the work area clean and well lit.
How to maintain my BDK148 hammer drill?
Before any maintenance, remove the battery. Regularly clean the ventilation slots with a soft brush. Wipe the housing with a damp cloth; do not use abrasive or solvent-based products. Open the chuck from time to time to remove dust.
What to do if the battery does not charge?
Check that the ambient temperature is between 10 °C and 40 °C. Make sure the battery is properly inserted into the charger. If the LED does not light up, try another outlet. If the problem persists, contact an authorized Black & Decker repair center.
