Product type	Network cable tester
Brand	Cablexpert
Model	NCT1
Usage	Continuity test and identification of RJ-45 and RG-58 cables
Power supply	9V battery (not included)
Dimensions	Approximately 10 x 6 x 2.5 cm
Weight	Approximately 150 g (without battery)
Material	ABS plastic
Main functions	Continuity test, crossover cable detection, pair identification
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use solvents.
Safety	Do not expose to moisture or extreme temperatures. Remove the battery if not used for an extended period.
Spare parts and repairability	Battery replacement by the user. For any other repairs, contact customer service.
Warranty	2 years (subject to the conditions stated in the manual)
Waste disposal	Do not dispose of with household waste. Deposit at an approved collection center.
General information	Manufactured by Gembird Europe B.V. Support: www.gembird.nl/support

Frequently Asked Questions - NCT1 Cablexpert

How to use the NCT1 tester?

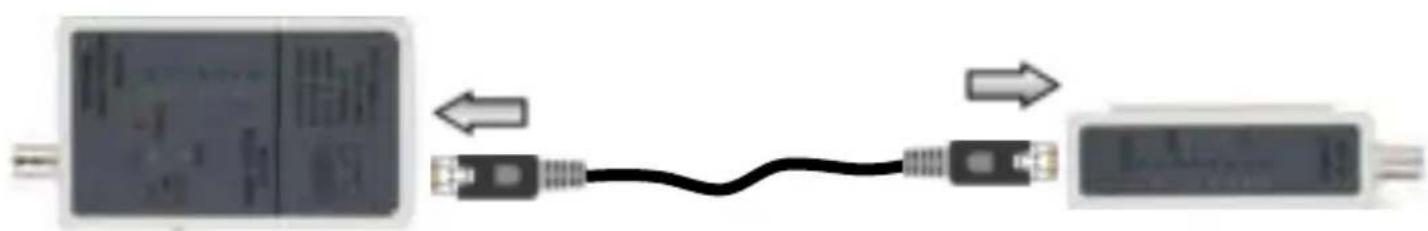

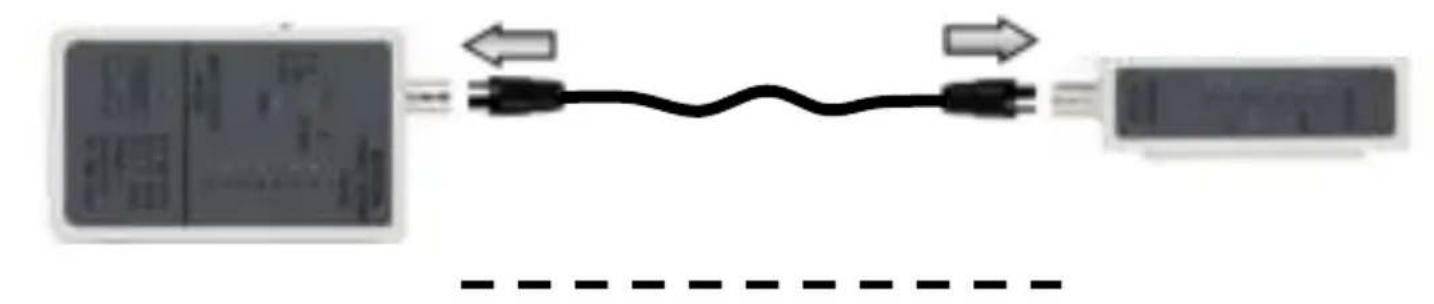

Insert a 9V battery into the compartment, connect the cable to be tested to the RJ-45 or RG-58 connectors, then turn on the device. The LEDs indicate continuity and pair order.

What does a light that does not turn on mean?

This indicates a break or poor contact in the corresponding wire. Check the connectors and wiring.

Can I test telephone cables?

No, the NCT1 is designed only for RJ-45 (network) and RG-58 (coaxial) cables.

What battery to use?

Use a 9V alkaline battery type 6LR61 or 6F22.

How to know if a cable is crossover?

The tester indicates the pair order. If pairs 1-2 and 3-6 are reversed, the cable is crossover.

The tester does not turn on, what to do?

Check if the battery is installed correctly and if it is charged. Replace it if necessary.

Is it possible to test a shielded cable (STP)?

Yes, the NCT1 can test the continuity of conductors and shielding via the appropriate connectors.

What is the maximum test distance?

The tester can check cables up to approximately 300 meters.

How to make a warranty claim?

Keep the receipt and contact customer service via www.gembird.nl/support or by phone at [phone].

Can I test an RJ-45 cable with an adapter?

No, use the built-in connectors. Using unauthorized adapters may distort the results.

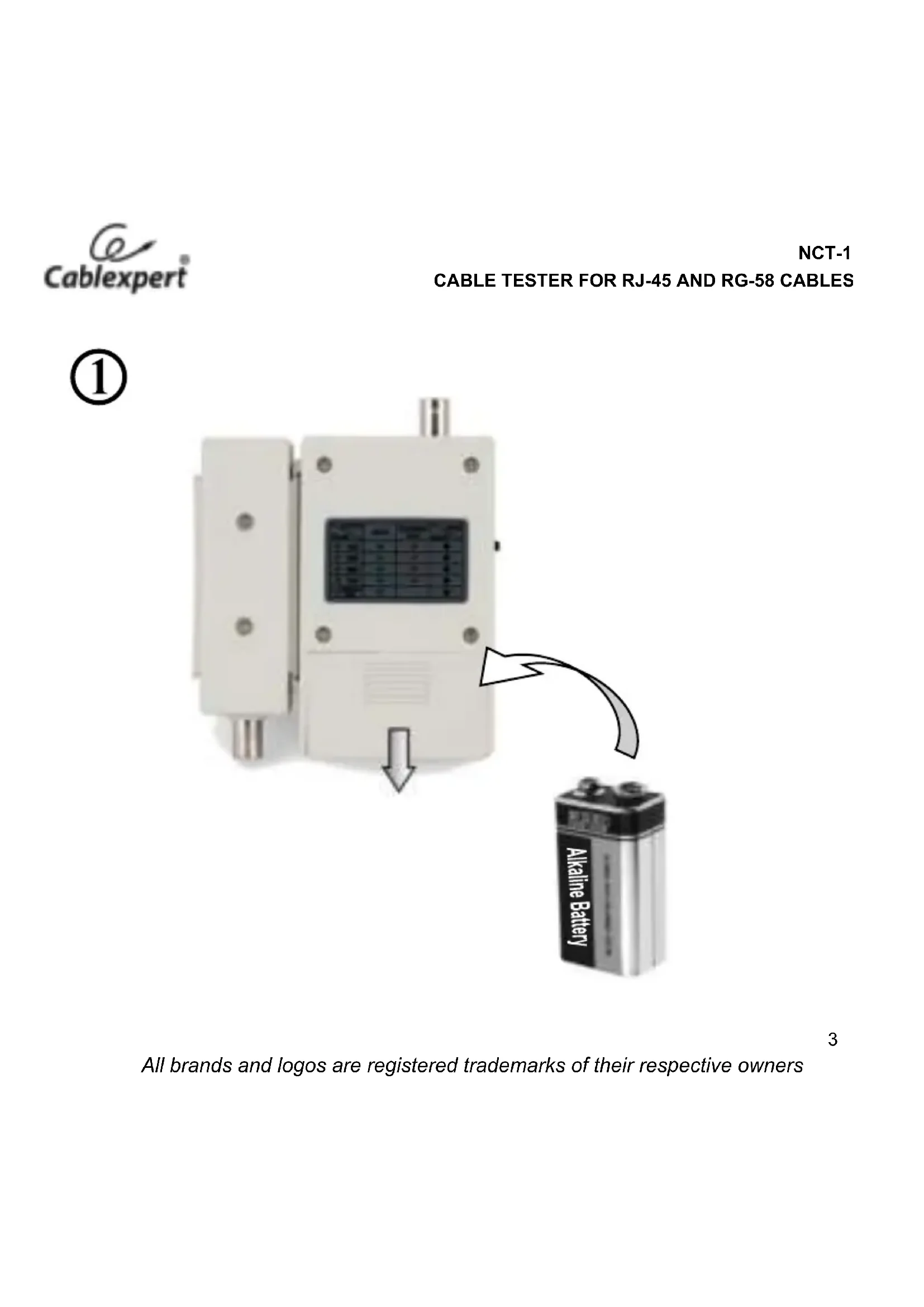

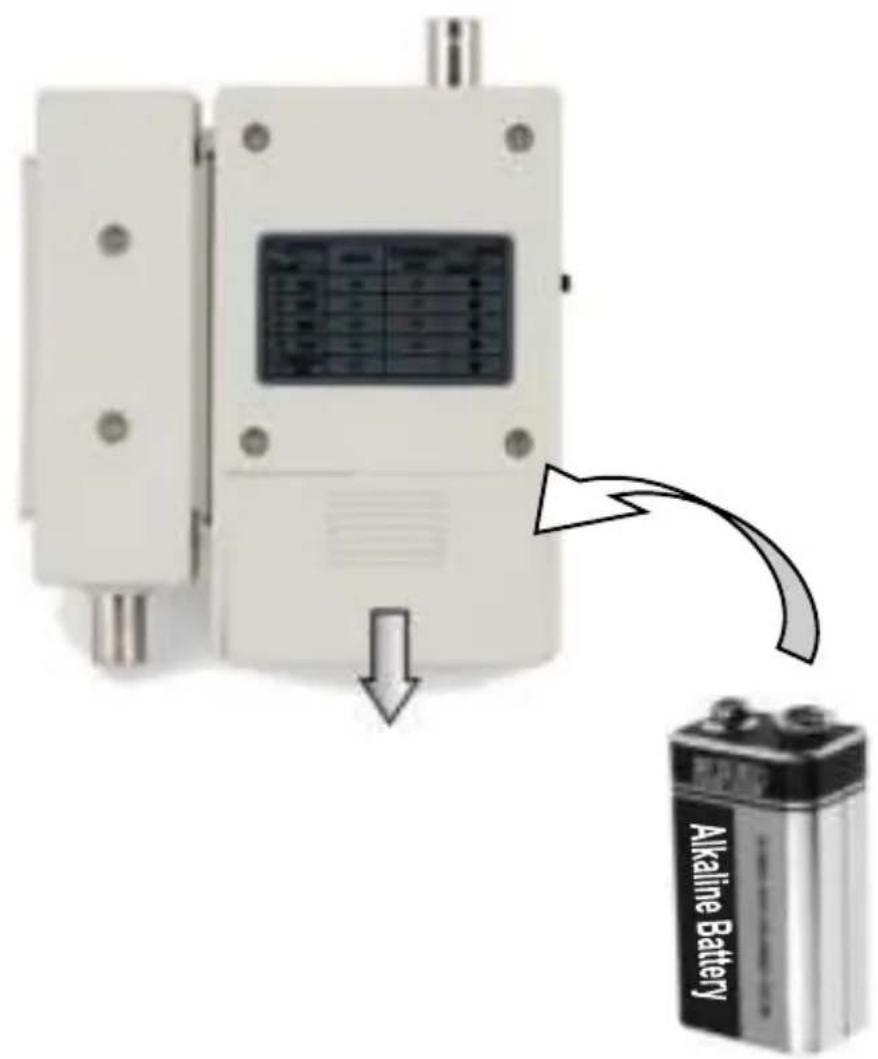

USER MANUAL NCT1 Cablexpert

Cable tester for RJ-45 and RG-58 cables

• Tests cables quickly and easily
• For UTP, STP, and coaxial cables

Specifications

Supported cables:
EIA/TIA 568A/568B RJ45 twisted pair cable
- BNC coaxial (10Base-T) cable
- 100Base-TX, 1000Base-TX twisted pair cables
- Token Ring, AT&T 258A, Coaxial cable
- Battery: 9 V DC (not included)
Net weight: 0.16kg

(2)

3

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners
