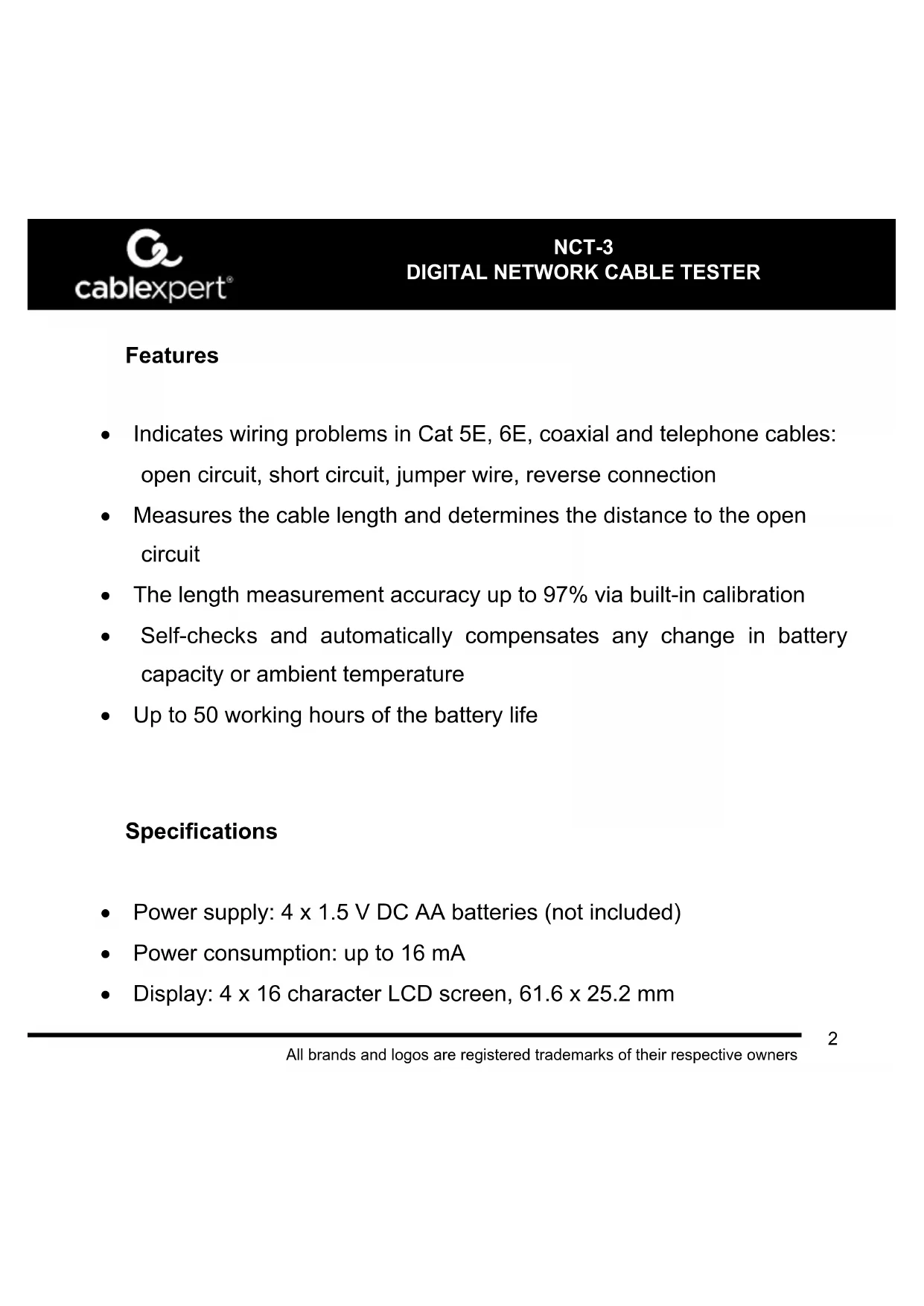

All brands and logos are registered trademarks of their respective owners Features Indicates wiring problems in Cat 5E, 6E, coaxial and telephone cables: open circuit, short circuit, jumper wire, reverse connection Measures the cable length and determines the distance to the open circuit The length measurement accuracy up to 97% via built-in calibration Self-checks and automatically compensates any change in battery capacity or ambient temperature Up to 50 working hours of the battery life Specifications Power supply: 4 x 1.5 V DC AA batteries (not included) Power consumption: up to 16 mA Display: 4 x 16 character LCD screen, 61.6 x 25.2 mm3 NCT-3

DIGITAL NETWORK CABLE TESTER

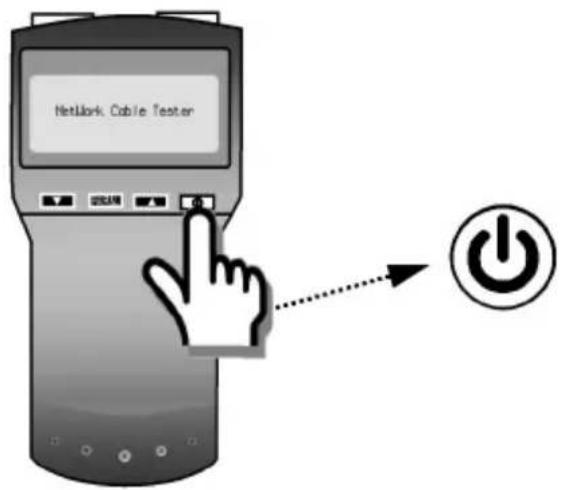

All brands and logos are registered trademarks of their respective owners Designed for: STP/UTP twin twisted, coaxial & telephone cable Working ambient temperature: -10 ... + 60°C Tester port: tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R) Max cable length: up to 1350 m Calibration accuracy: 3% (+/- 0.5 m) Calibration cable length: > 5 m Cable problems detected: open circuit, short circuit, reverse connection, crossover or cross-talk interference Automatic shut-down: after 30 minutes Dimensions: 180 x 80 x 40 mm Net weight: 0.25 kg4 NCT-3

DIGITAL NETWORK CABLE TESTER

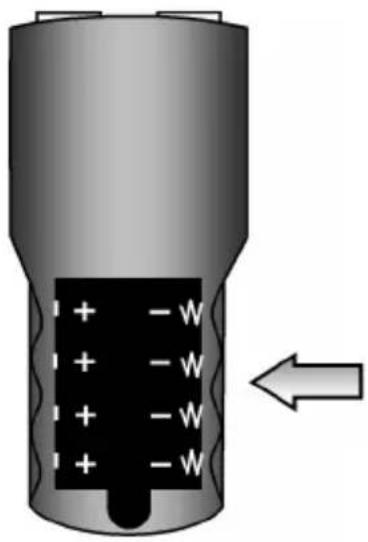

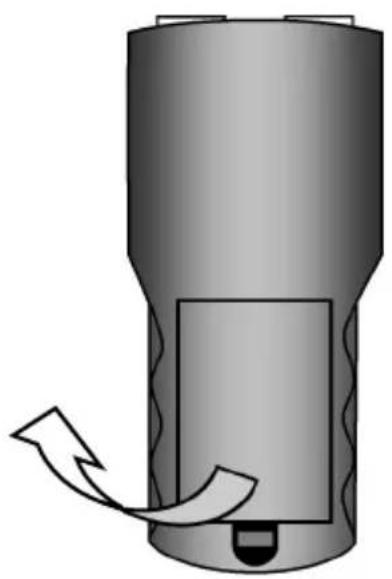

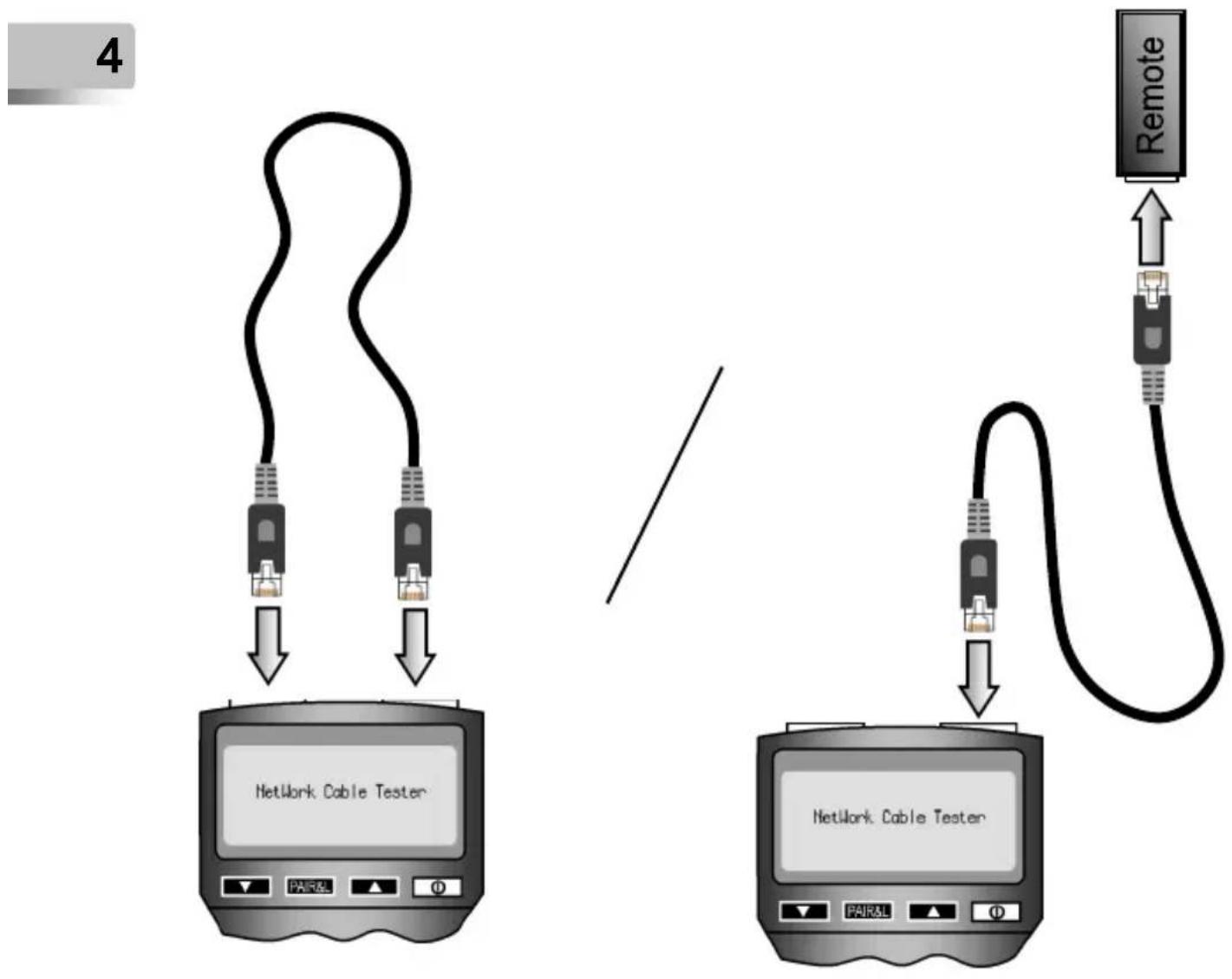

All brands and logos are registered trademarks of their respective owners

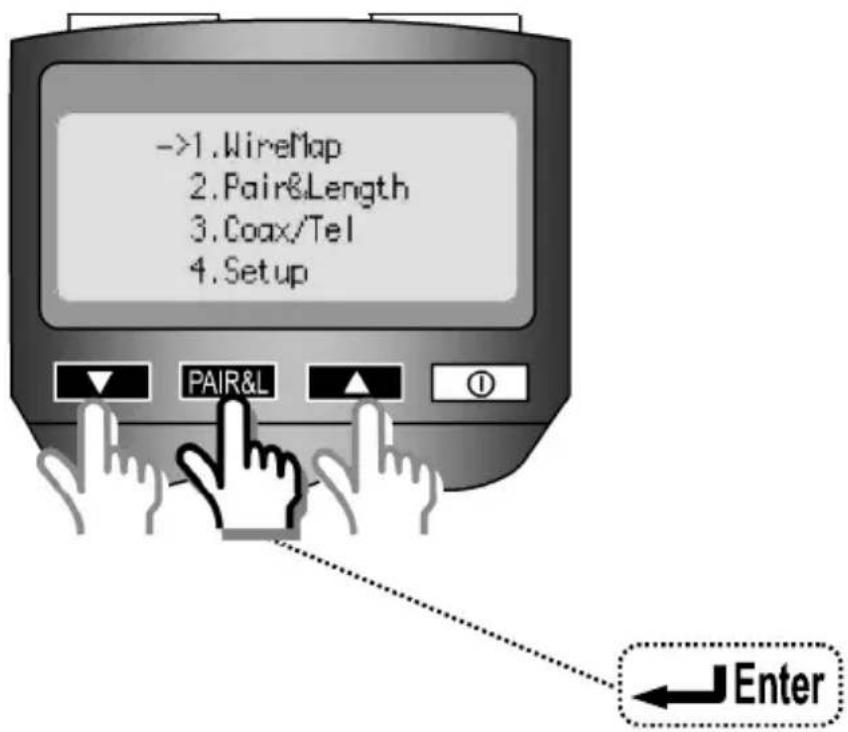

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

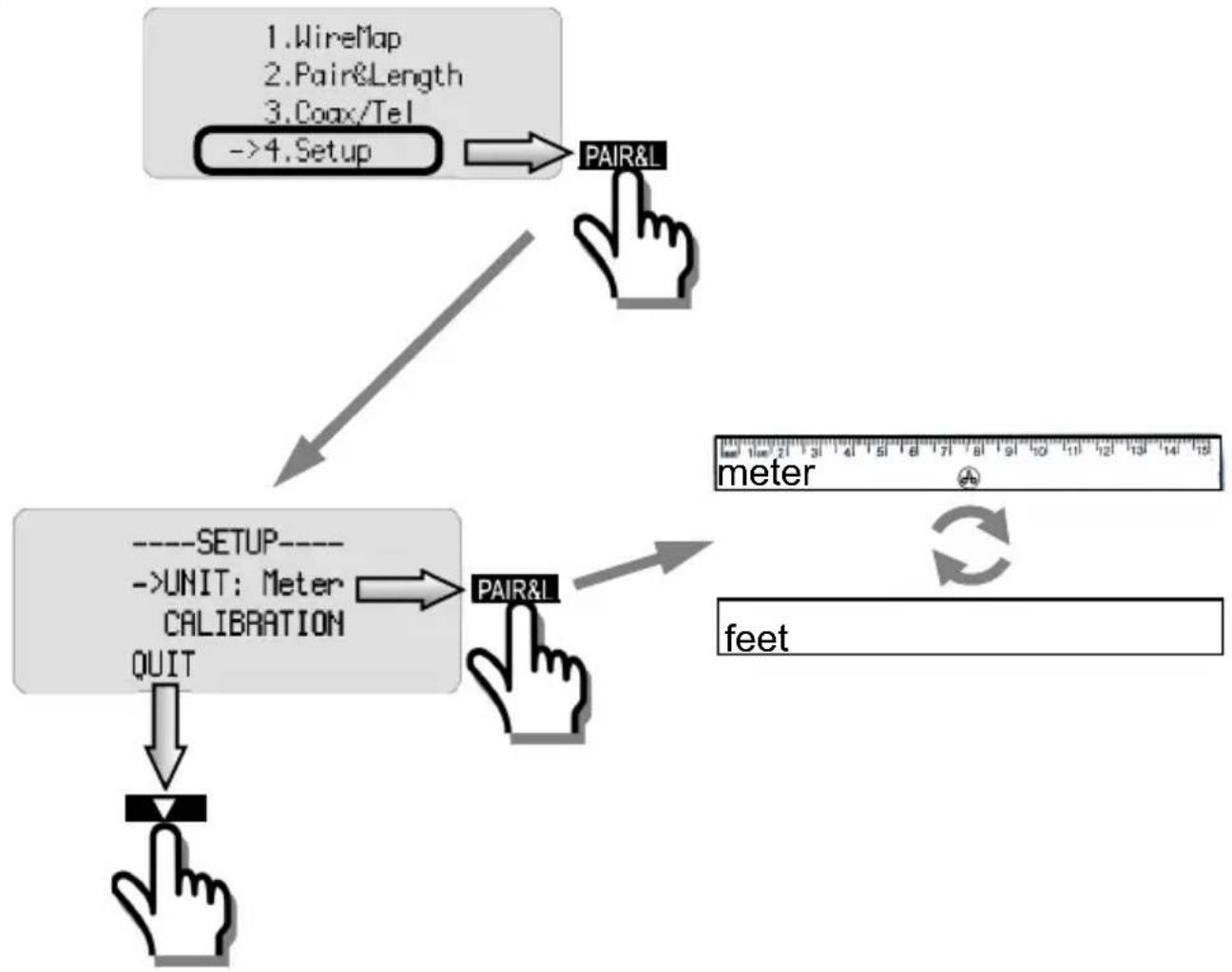

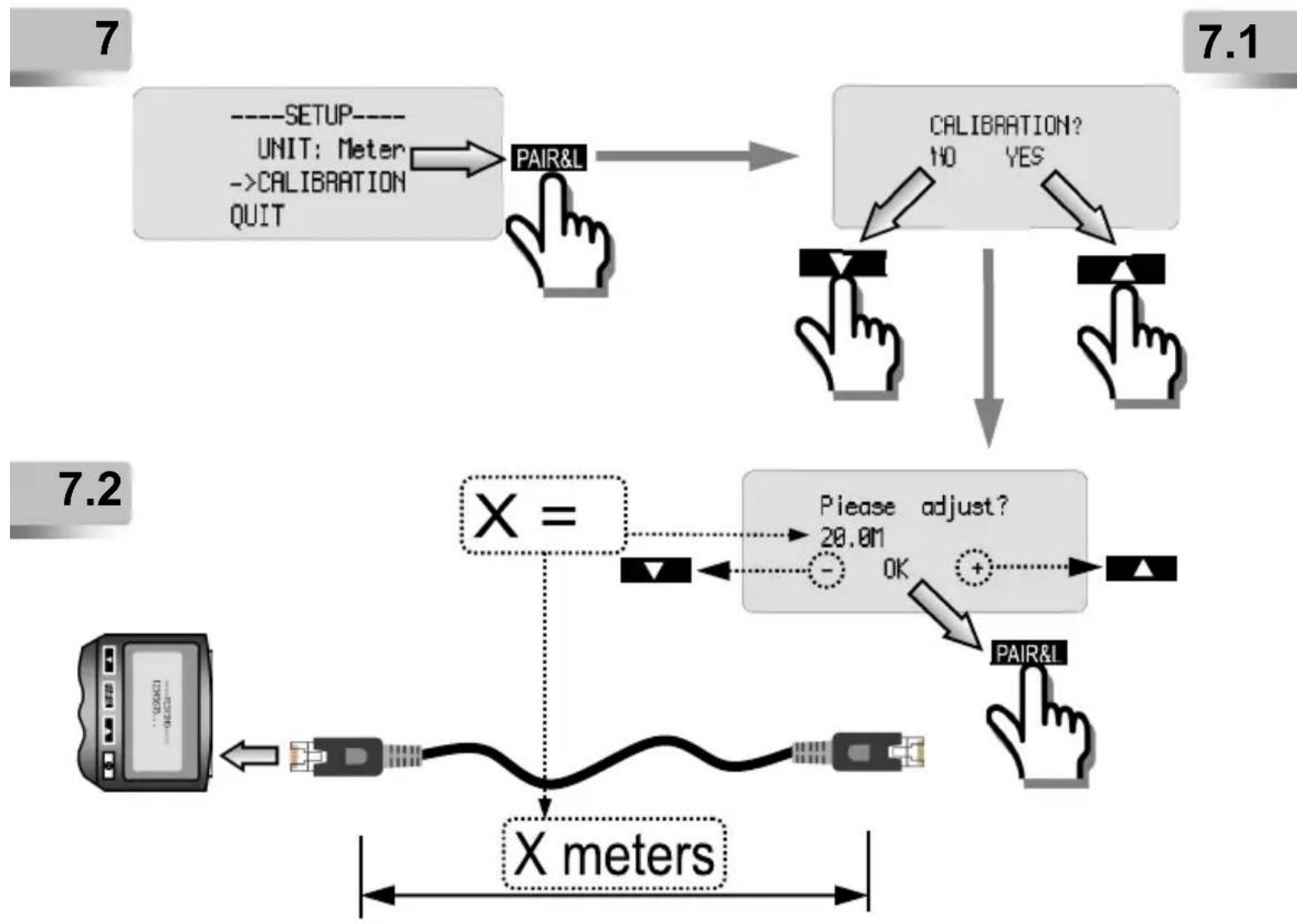

All brands and logos are registered trademarks of their respective owners feet meter

All brands and logos are registered trademarks of their respective owners

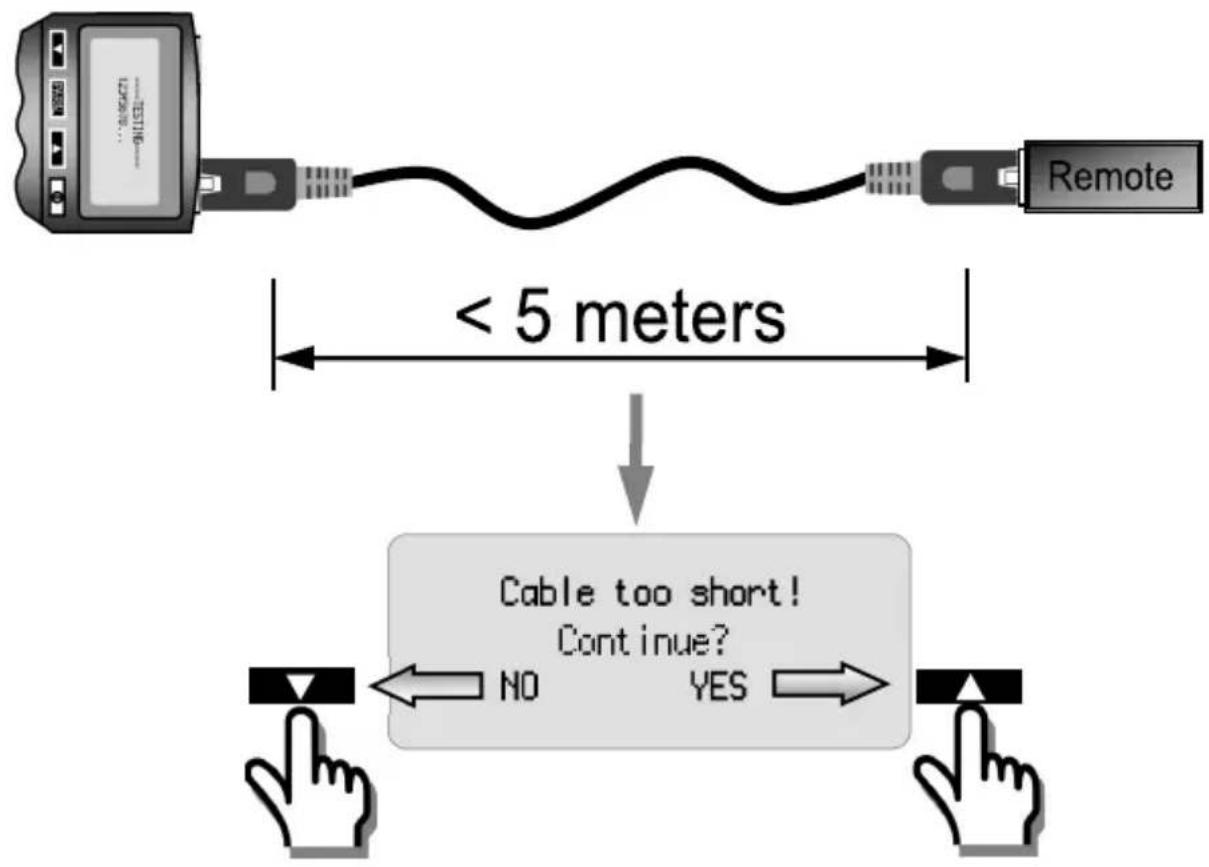

All brands and logos are registered trademarks of their respective owners10 NCT-3

DIGITAL NETWORK CABLE TESTER

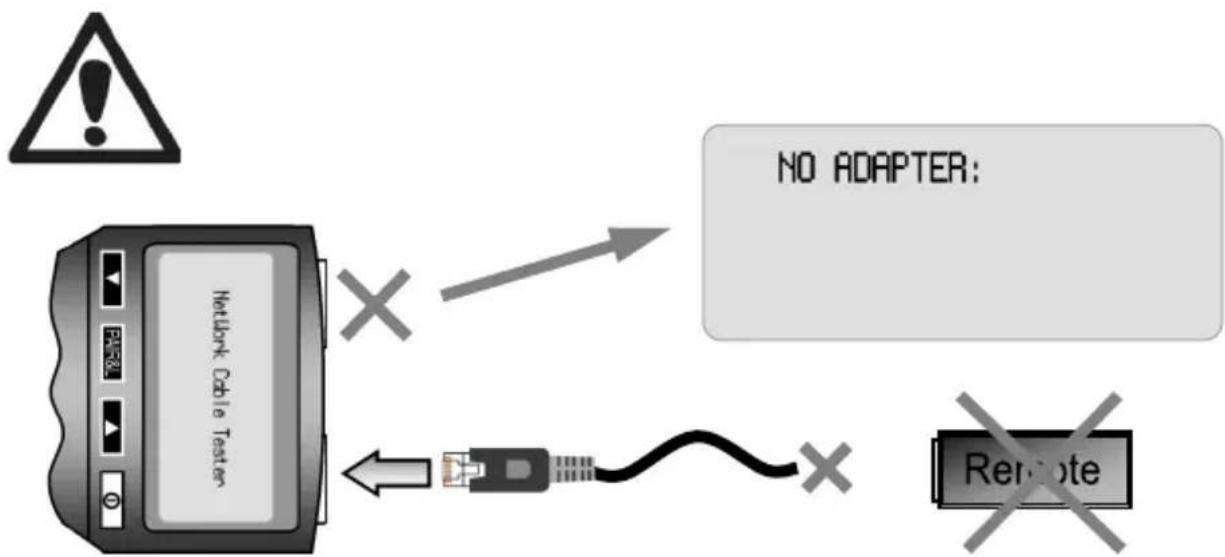

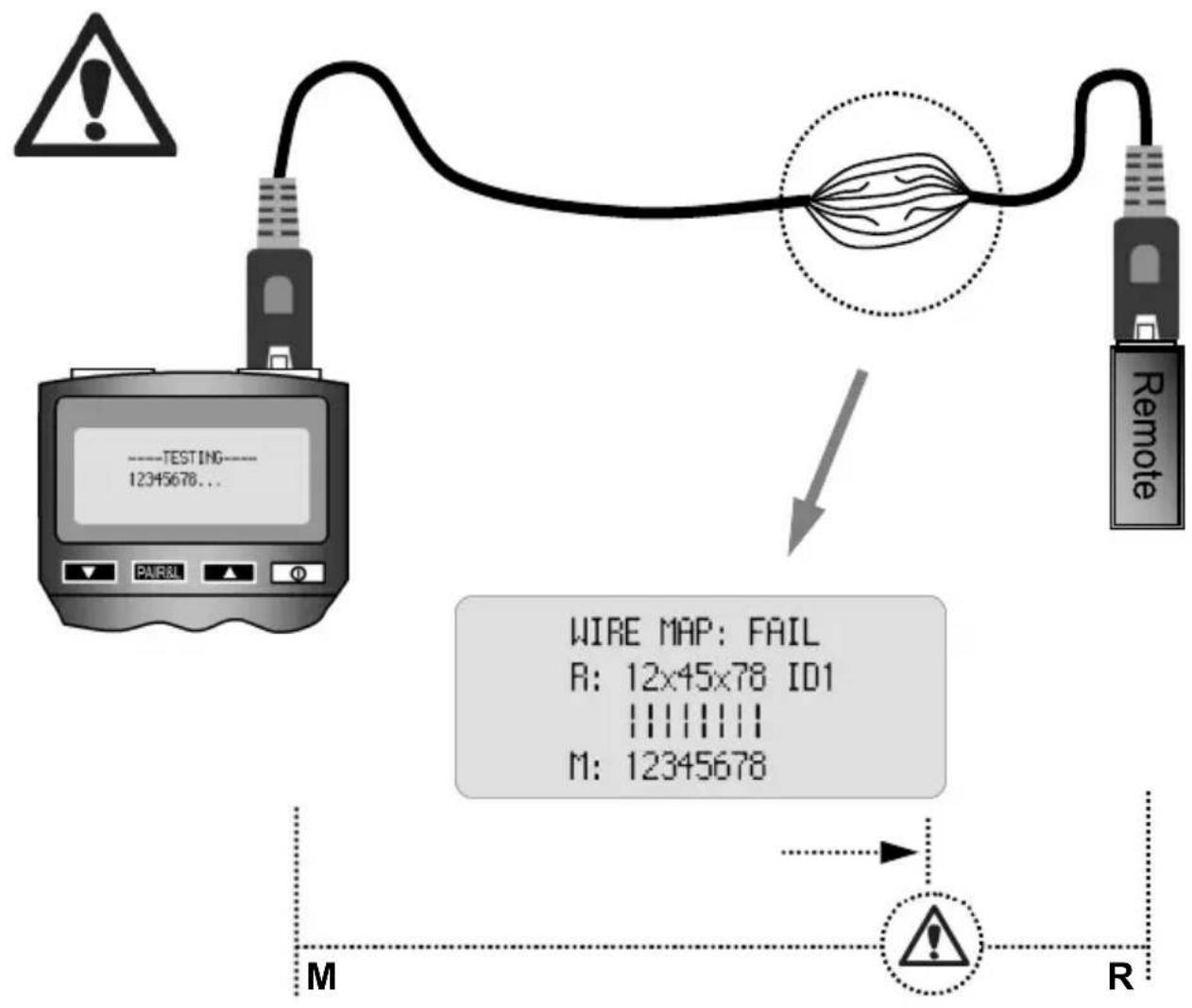

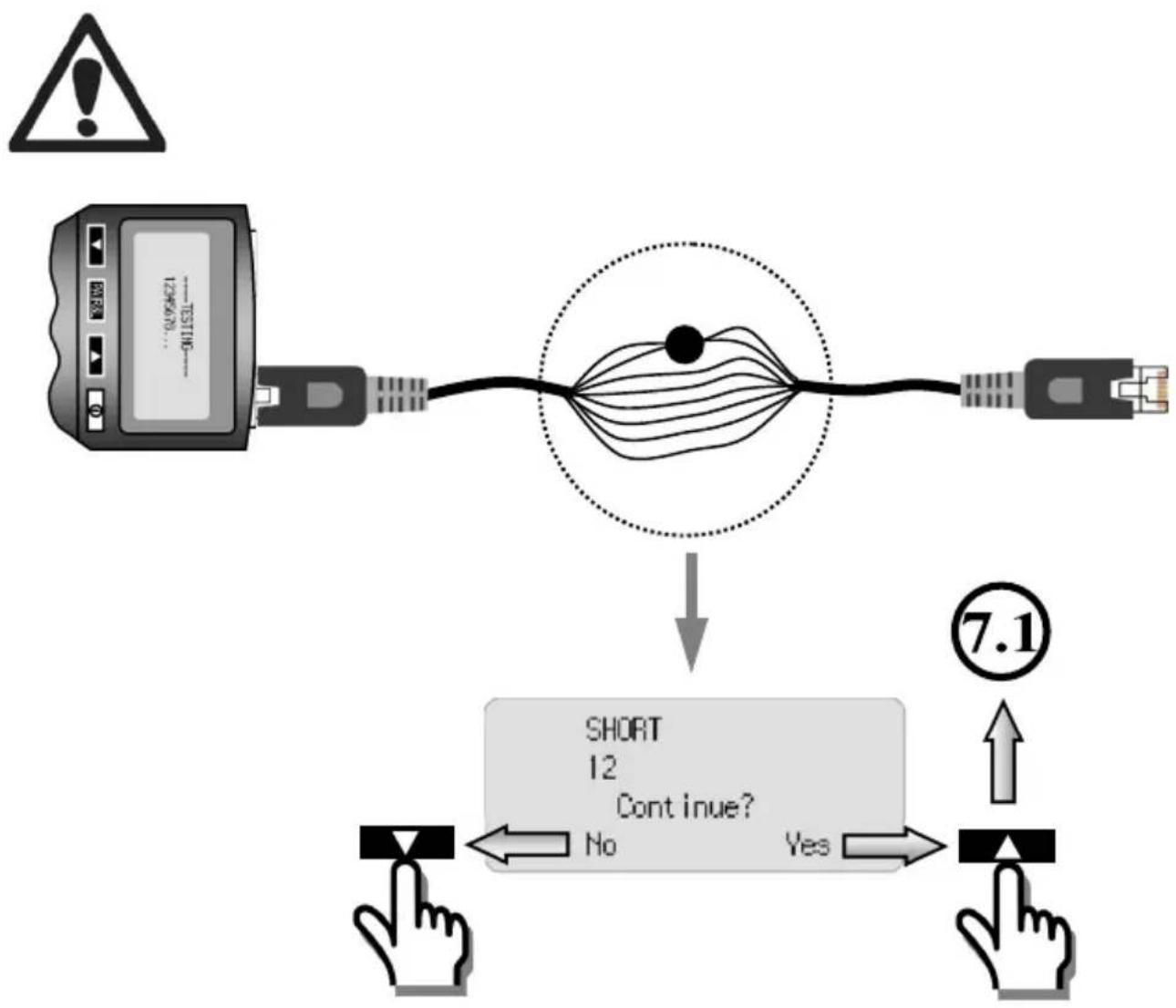

All brands and logos are registered trademarks of their respective owners11 NCT-3

DIGITAL NETWORK CABLE TESTER

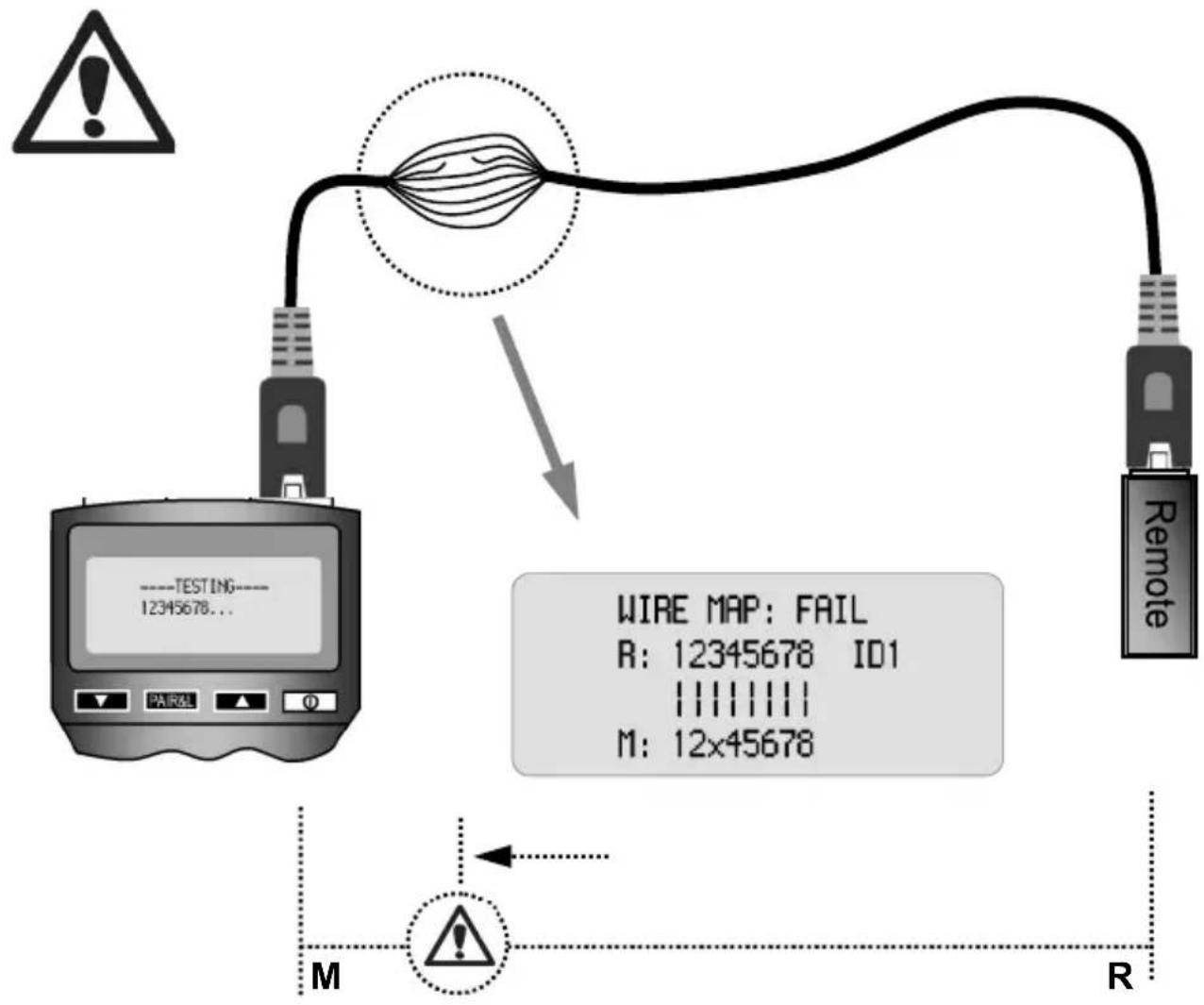

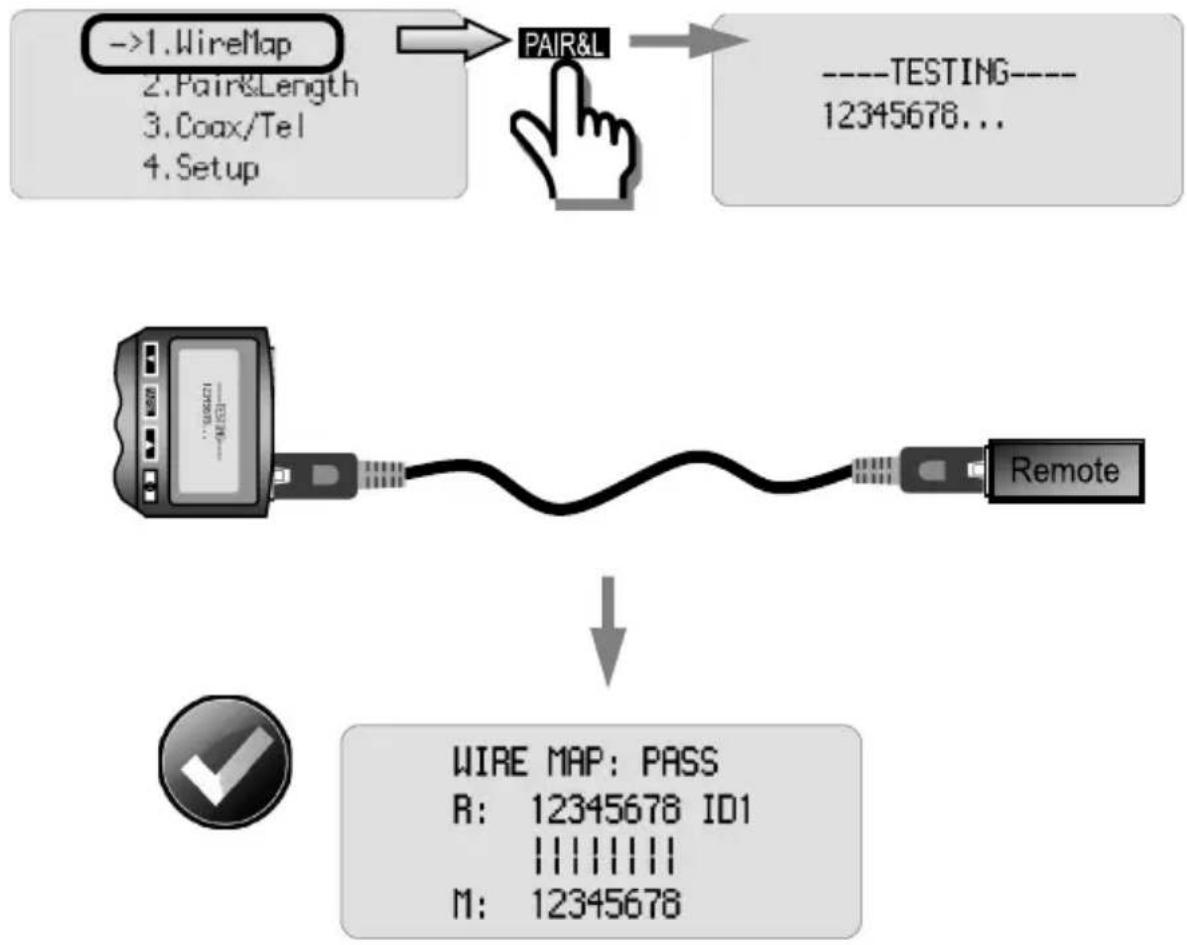

All brands and logos are registered trademarks of their respective owners

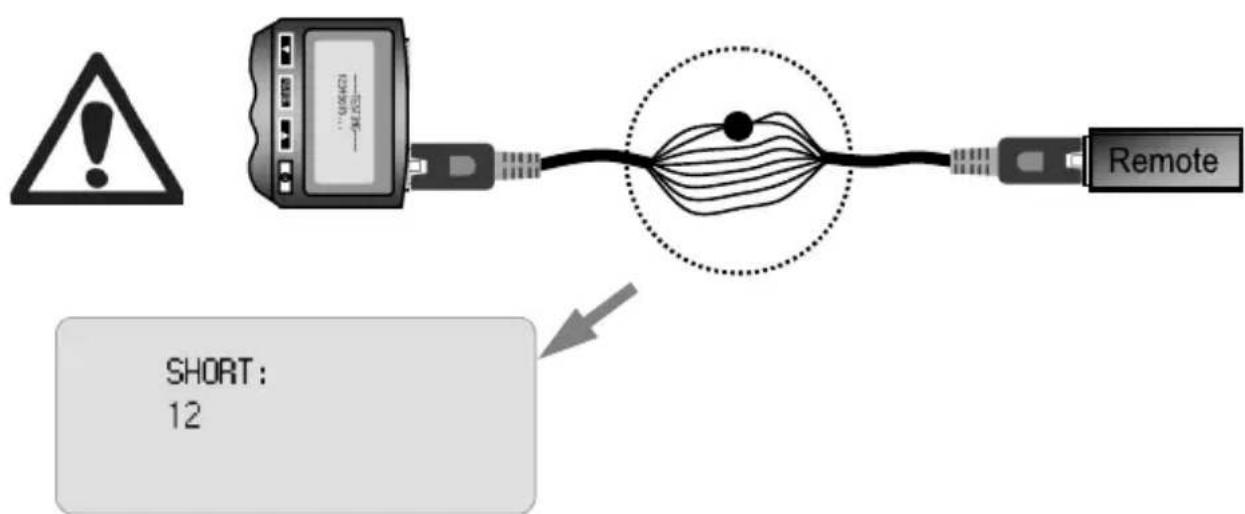

All brands and logos are registered trademarks of their respective owners13 NCT-3

DIGITAL NETWORK CABLE TESTER

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

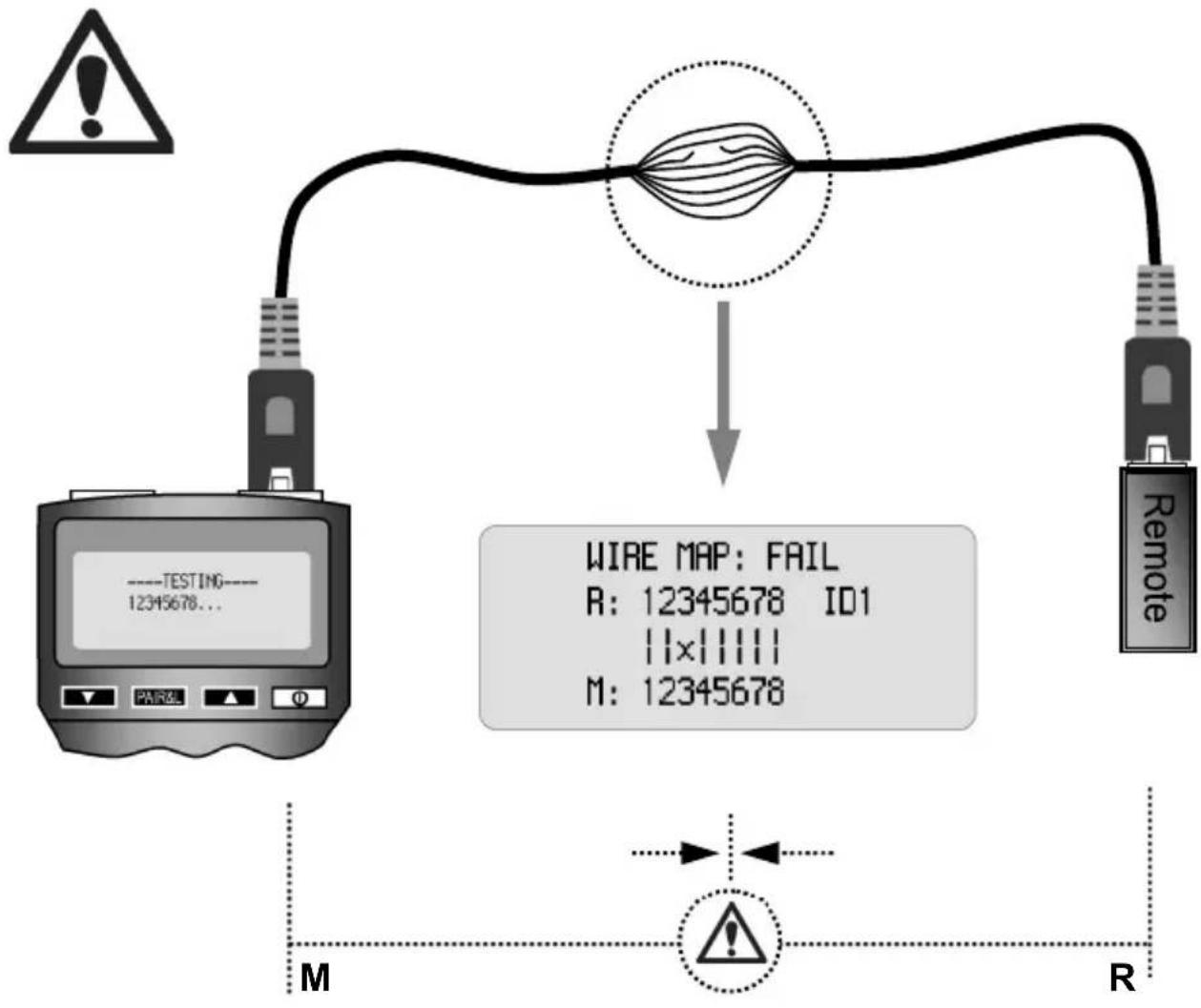

All brands and logos are registered trademarks of their respective owners

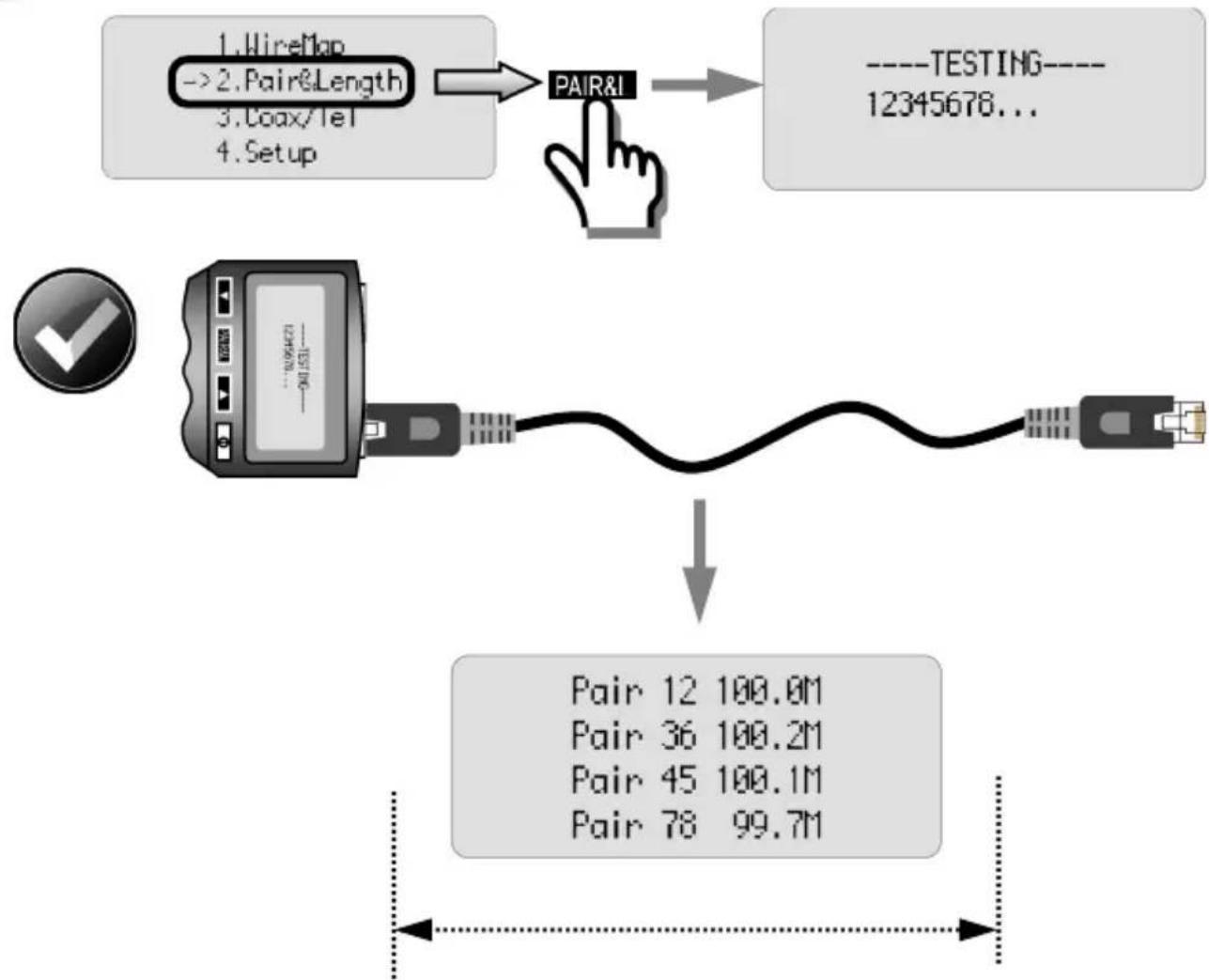

All brands and logos are registered trademarks of their respective owners18 NCT-3

DIGITAL NETWORK CABLE TESTER

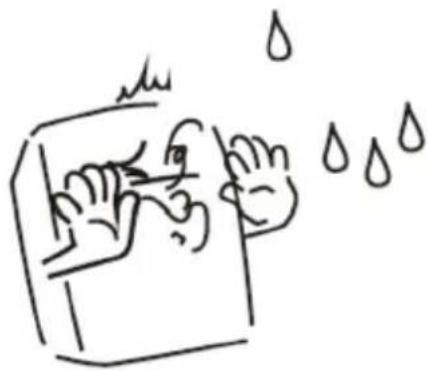

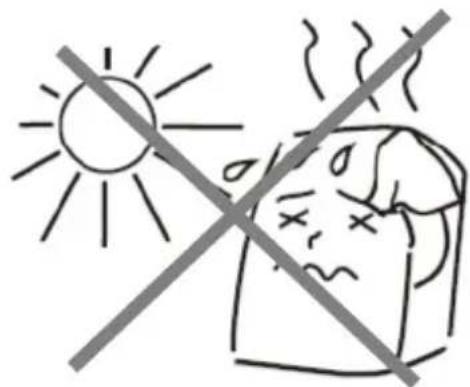

All brands and logos are registered trademarks of their respective owners19 NCT-3

DIGITAL NETWORK CABLE TESTER

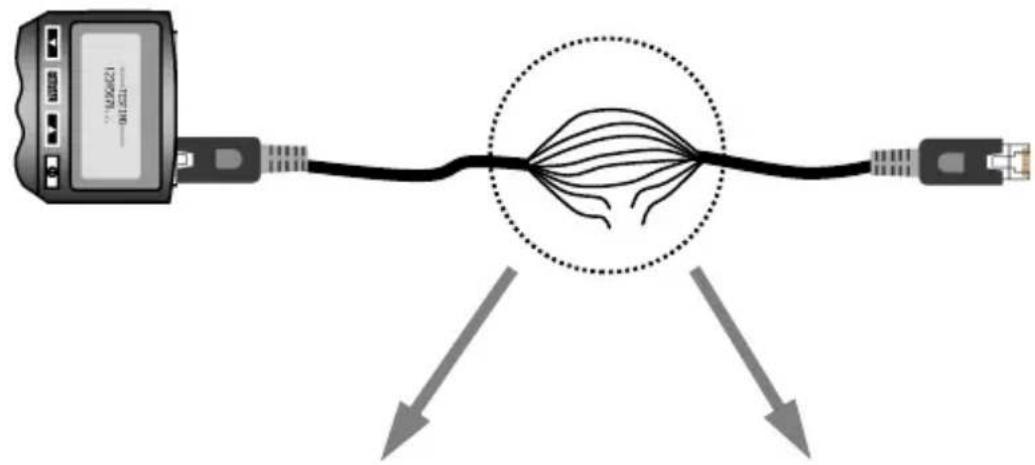

All brands and logos are registered trademarks of their respective owners

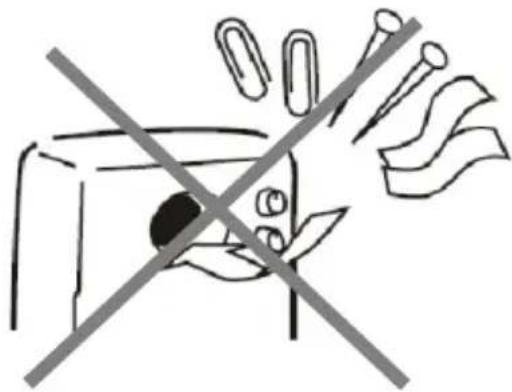

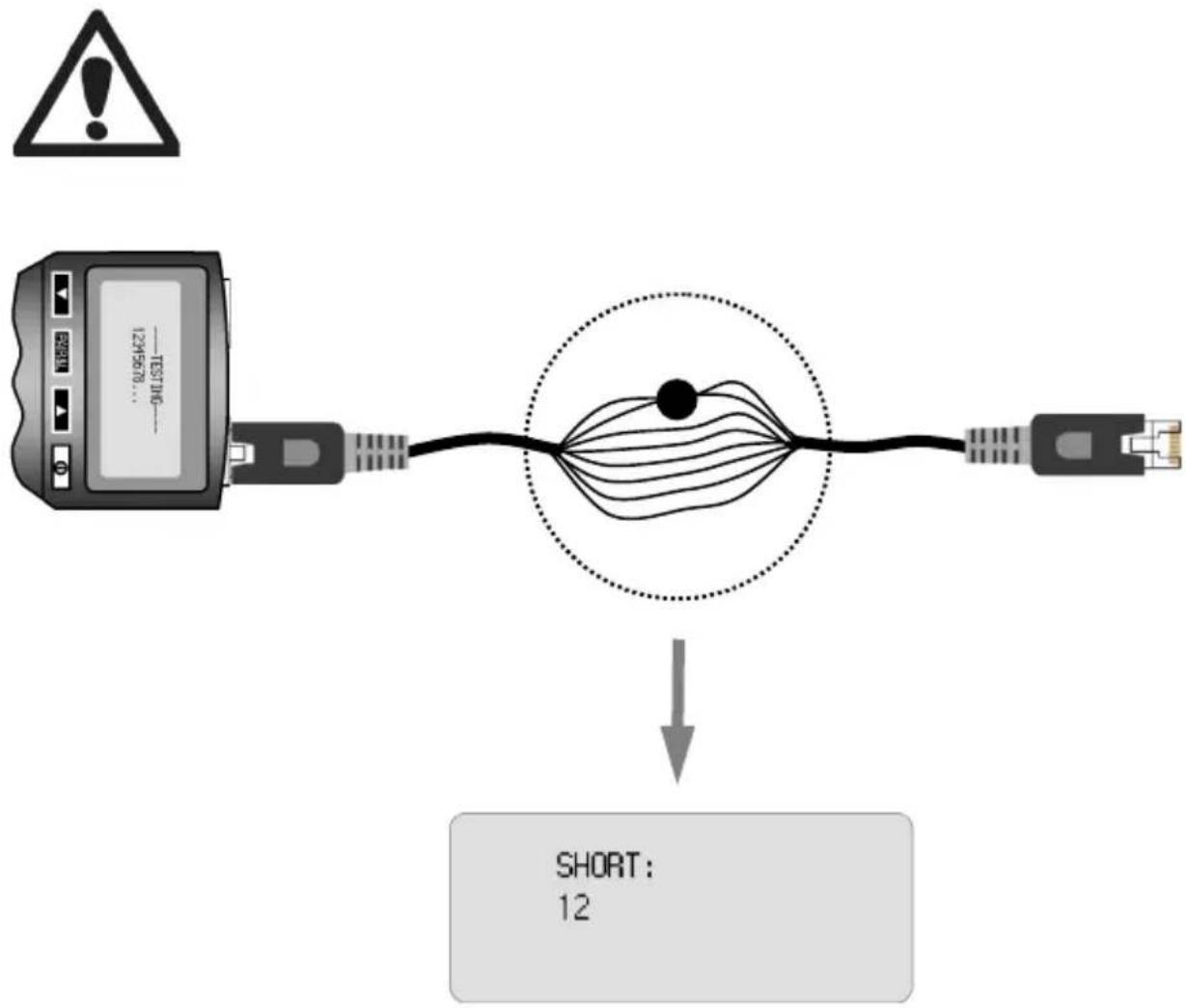

All brands and logos are registered trademarks of their respective owners21 NCT-3

DIGITAL NETWORK CABLE TESTER

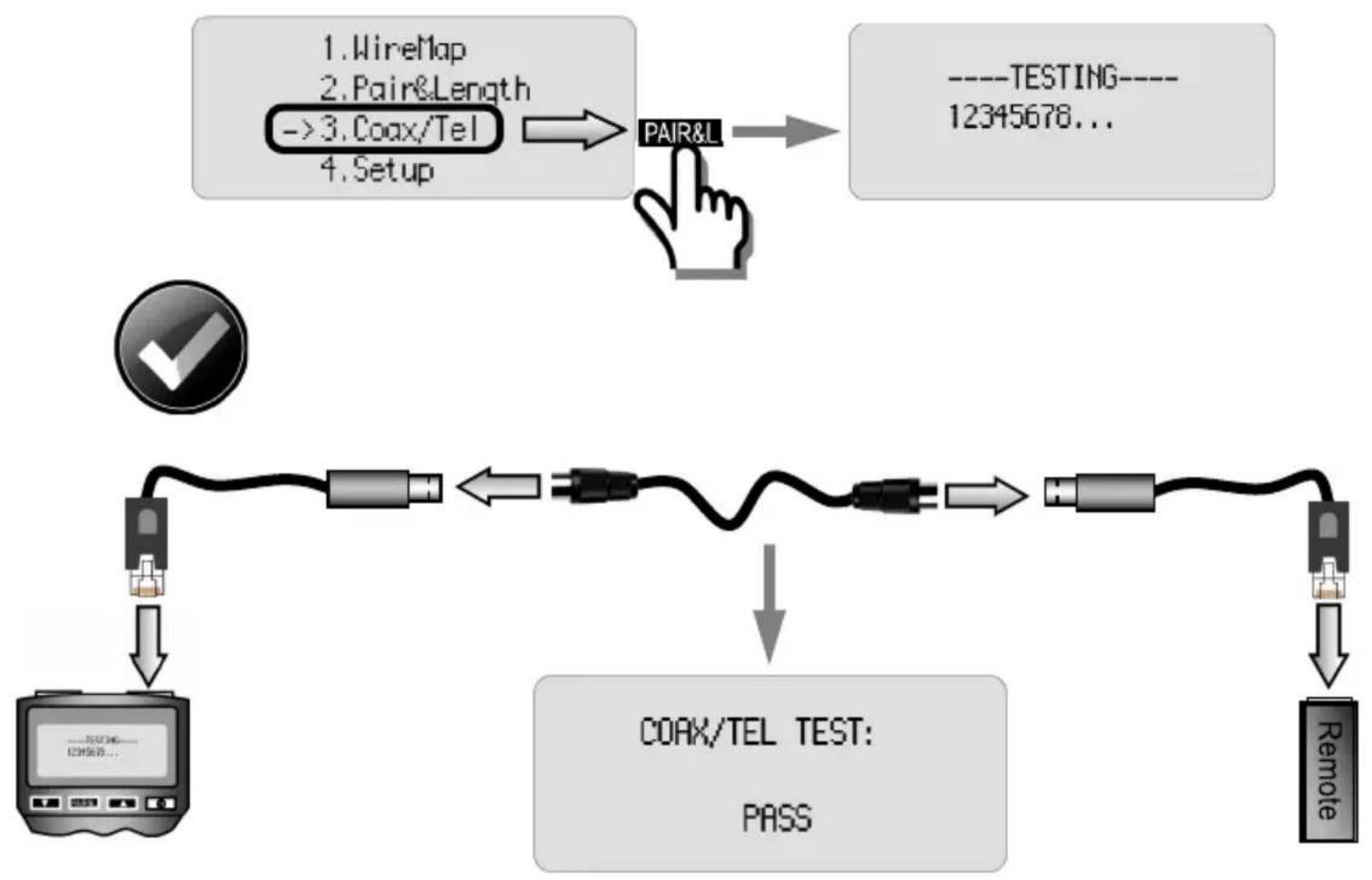

All brands and logos are registered trademarks of their respective owners22 NCT-3

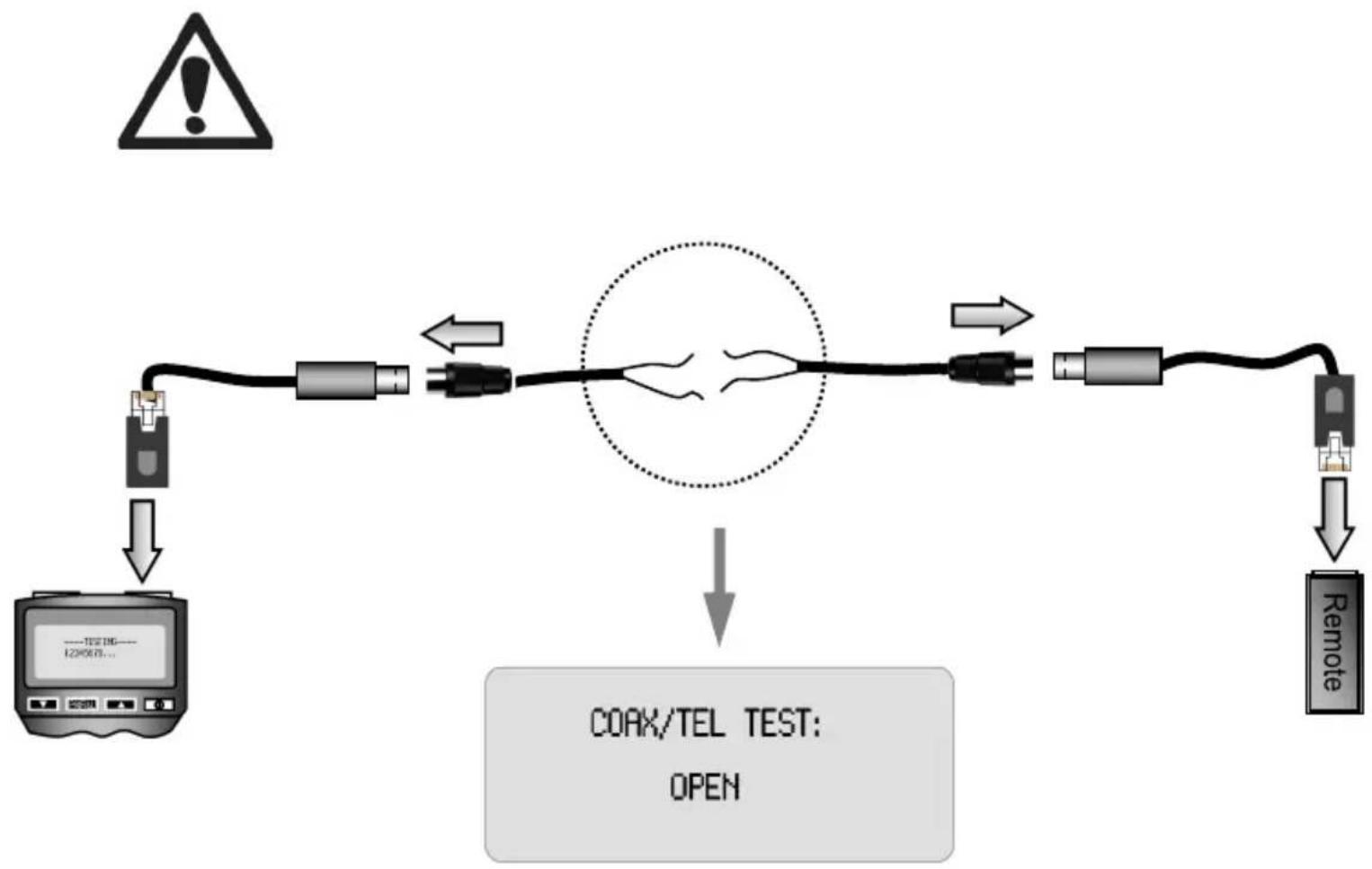

All brands and logos are registered trademarks of their respective owners
