Product type	32-inch LED TV with integrated digital tuner
Brand	Telefunken
Model	C32H440A
Screen diagonal	32 inches (81 cm)
Dimensions with stand (W x H x D)	735 x 495 x 191 mm
Dimensions without stand (W x H x D)	735 x 438 x 78/90 mm
Weight	Approximately 5.5 kg (estimate)
Power supply	220-240 V AC, 50 Hz
Power consumption (max)	65 W
TV reception	DVB-T2/C/S2 (terrestrial, cable, satellite)
Analog standards	PAL B/G, D/K, I/I', SECAM L/L'
Number of preset channels	10,000
Connectivity	HDMI (x2), USB (x1), SCART, VGA, YPbPr, digital audio output (coaxial SPDIF), headphone jack
Main features	Teletext, EPG, parental control, sleep timer, game mode, USB recording, CEC, ARC
Supported USB file formats	Video: MPEG1/2/4, H.264, H.265, Xvid, VC-1, AVI, MKV, MP4, FLV; Audio: MP3, AC3, AAC, LPCM; Image: JPEG, BMP
Audio power	2 x 6 W (RMS)
Operating temperature	0 °C to 40 °C
Maintenance and cleaning	Disconnect before cleaning; use a soft, dry cloth; do not use liquids or abrasive products
Safety	Do not open the casing, risk of electric shock; do not expose to moisture or open flames; use secure wall mounting
Included accessories	Remote control, AAA batteries (x2), instruction manual, table stand
Warranty	2 years (depending on conditions)

Frequently Asked Questions - C32H440A TELEFUNKEN

How do I connect my Telefunken C32H440A TV to an antenna?

Connect the antenna cable to the ANT jack (antenna input) or the satellite cable to the LNB jack on the back of the TV. Make sure the connection is tight for optimal reception.

How do I perform the initial setup?

Turn on the TV, the language selection menu appears. Choose your language and follow the on-screen instructions to set preferences (country, network, broadcast type). The TV will automatically scan for available channels.

What to do if the image is blurry or of poor quality?

Check that the antenna is properly connected and the signal is sufficient. Go to the Picture menu to adjust sharpness, contrast, and noise reduction. Also make sure the input source is correct.

How do I connect a USB device?

Plug your USB stick or hard drive into one of the USB ports on the side of the TV. Press the Source button on the remote and select USB. Use the Media Browser menu to play your video, audio or photo files.

The remote control no longer works, what should I do?

First check the batteries: replace them if necessary. Make sure no obstacle blocks the TV's infrared sensor. If the problem persists, use the control button on the side of the TV for basic functions.

How do I activate parental control?

Go to System > Settings > Parental control. Enter the PIN code (default 0000 or 1234). You can then lock certain channels, limit access to menus or enable child lock to restrict remote control use.

My TV does not receive satellite channels, how to configure?

During initial setup, select Satellite as broadcast type. Choose the antenna type (Direct, Single satellite cable or DiSEqC). Ensure your dish is correctly aligned and the LNB cable is connected.

How do I update the TV software?

Go to System > Settings > Others > Software update. Select Check for update. If an update is available, it will be downloaded and installed. Do not unplug the TV during the process.

No sound, what to check?

Check that the TV is not in Mute mode (Mute button on remote). Increase the volume. In the Sound menu, make sure AVL is not enabled and the balance is centered. If you are using headphones, check the audio output.

How do I reset the TV to factory settings?

In the Installation menu, select Initial installation. This will delete all channels and custom settings. Confirm the operation when prompted. The TV will restart and you will need to redo the initial setup.

USER MANUAL C32H440A TELEFUNKEN

Safety Information 24
Markings on the Product 24
Environmental Information 25
Features 26
Accessories Included 26
Standby Notifications 26
TV Control Switch & Operation 26
Inserting the Batteries into the Remote 27
Connect Power 27
Antenna Connection 27
Notification 27
Specification 28
Remote Control 29
Connections 30
Switching On/Off 31
First Time Installation 31
Using SatcoDX Feature 31
MediaPlayback via USB Input 32
Media Browser Menu 32
CEC and CEC RC Passthrough 32
TV Menu Contents. 33
General TV Operation 37
Using the Channel List 37
Configuring Parental Settings 37
ElectronicProgramme Guide (EPG) 37
Teletext Services 38
Software Upgrade 38
Troubleshooting & Tips 38
PC Input Typical Display Modes. 39
AV and HDMI Signal Compatibility 39
Supported File Formats for USB Mode 40
Supported DVI Resolutions 41

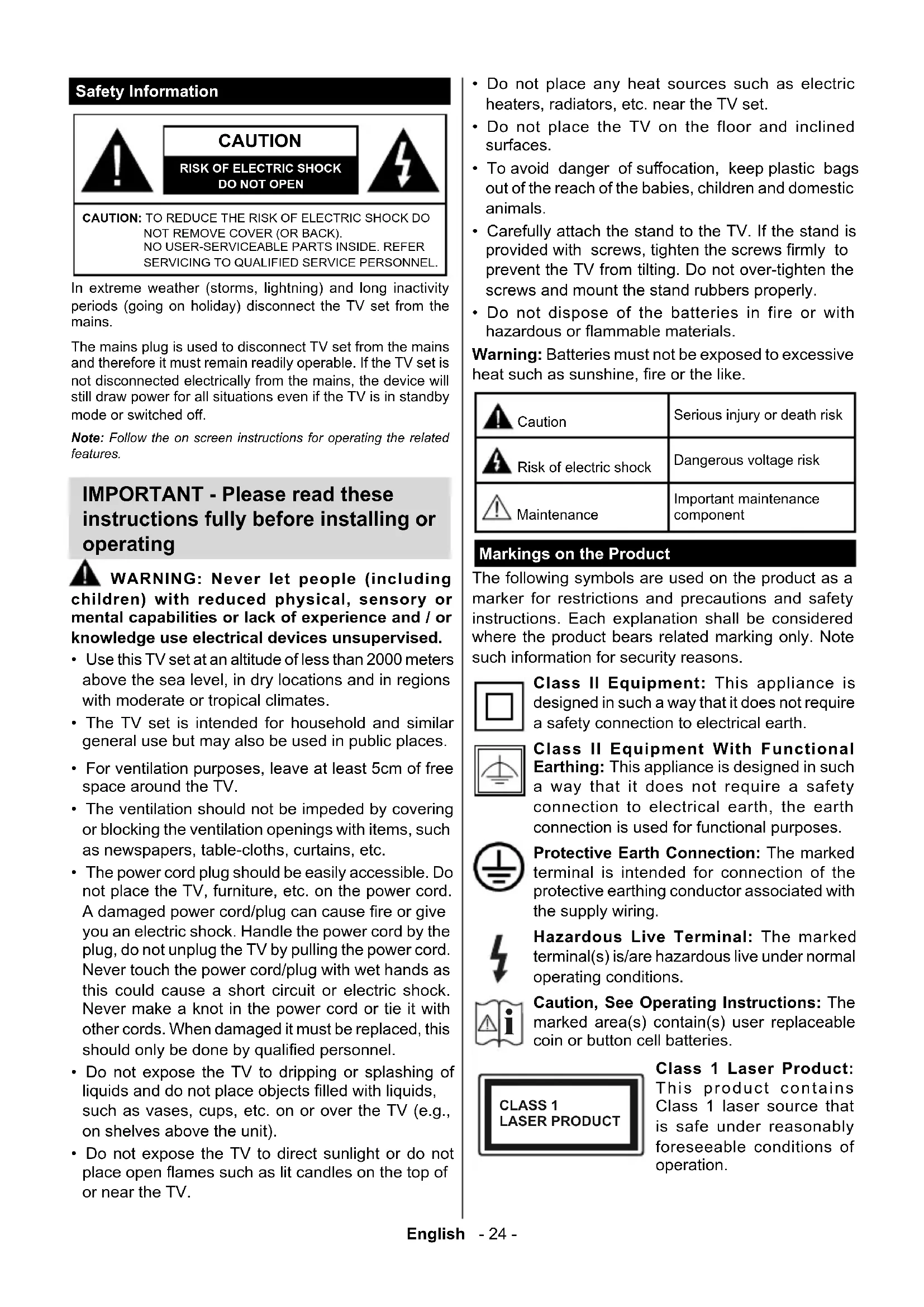

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.
• The TV set is intended for household and similar general use but may also be used in public places.
• For ventilation purposes, leave at least 5cm of free space around the TV.
• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.

• Do not place the TV on the floor and inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.
• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
• Do not dispose of the batteries in fire or with hazardous or flammable materials.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical earth, the earth connection is used for functional purposes.

Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with the supply wiring.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING

Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as;

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not standing the television set on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

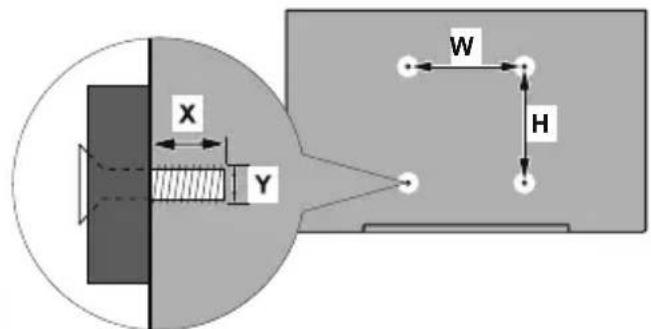

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

WARNING

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing - and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard.

Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu.

The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.

If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Features

• Remote controlled colour TV
• Fully integrated digital terrestrial/cable/satellite TV (DVB-T2/C/S2)
• HDMI inputs to connect other devices with HDMI sockets
• USB input
• OSD menu system
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system
• Teletext
• Headphone connection
  Automatic programming system
• Manual tuning
  Automatic power down after up to eight hours.
• Sleep timer
  Child lock
  Automatic sound mute when no transmission.
• NTSC playback
  AVL (Automatic Volume Limiting)
• PLL (Frequency Search)
  PC input
  Game Mode (Optional)
• Picture off function

Accessories Included

Remote Control
- Batteries: 2 x AAA
- Instruction Book

Standby Notifications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.

If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

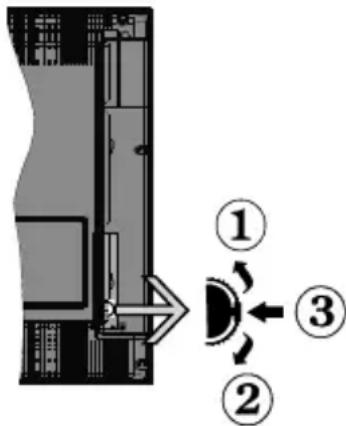

TV Control Switch & Operation

1. Up direction
2. Down direction
3. Volume / Info / Sources List selection and Standby-On switch

The Control button allows you to control the Volume/Programme/Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button in, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button in twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button in and hold it down for a few seconds, the TV will turn into standby mode.

To turn on the TV: Press the middle of the button in, the TV will turn on.

Notes:

• If you turn the TV off, this circle starts again beginning with the volume setting.
• Main menu OSD cannot be displayed via control buttons.

Operation with the Remote Control

Press Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back button or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

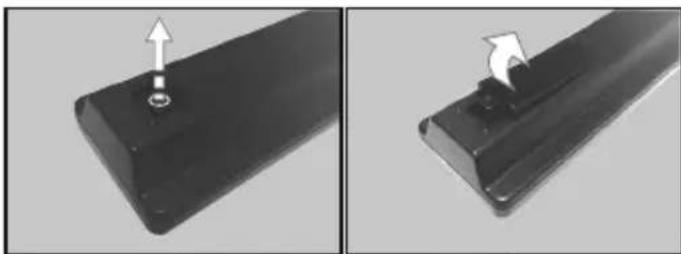

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

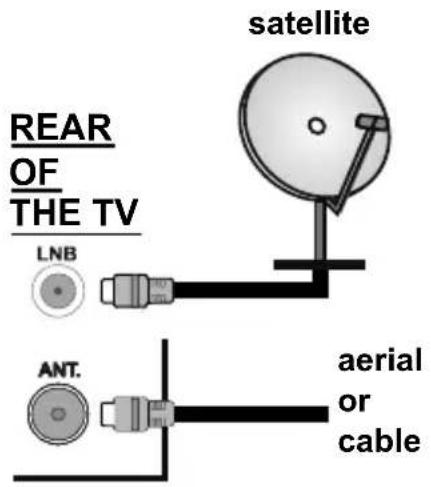

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket or satellite plug to the SATELLITE INPUT (LNB) socket located on the back of the TV.

Notification

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

You should look for appropriate recycling facilities and systems for the disposal of these products.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Specification

TV Broadcasting PAL B/G	D/K K I/I'
Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Digital Reception	Fully integrated digital terrestrial-cable-satellite TV(DVB-T-C-S) (DVB-T2, DVB-S2 compliant)
Number of Preset Channels	10 000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 6 W
Power Consumption (W) 65 W
TV Dimensions DxLxH (with foot) (mm)	191 x 735 x 495 mm
TV Dimensions DxLxH (without foot) (mm)	78/90 x 735 x 438 mm
Display 32"
Operation temperature and operation humidity	0°C up to 40°C, 85% humidity max

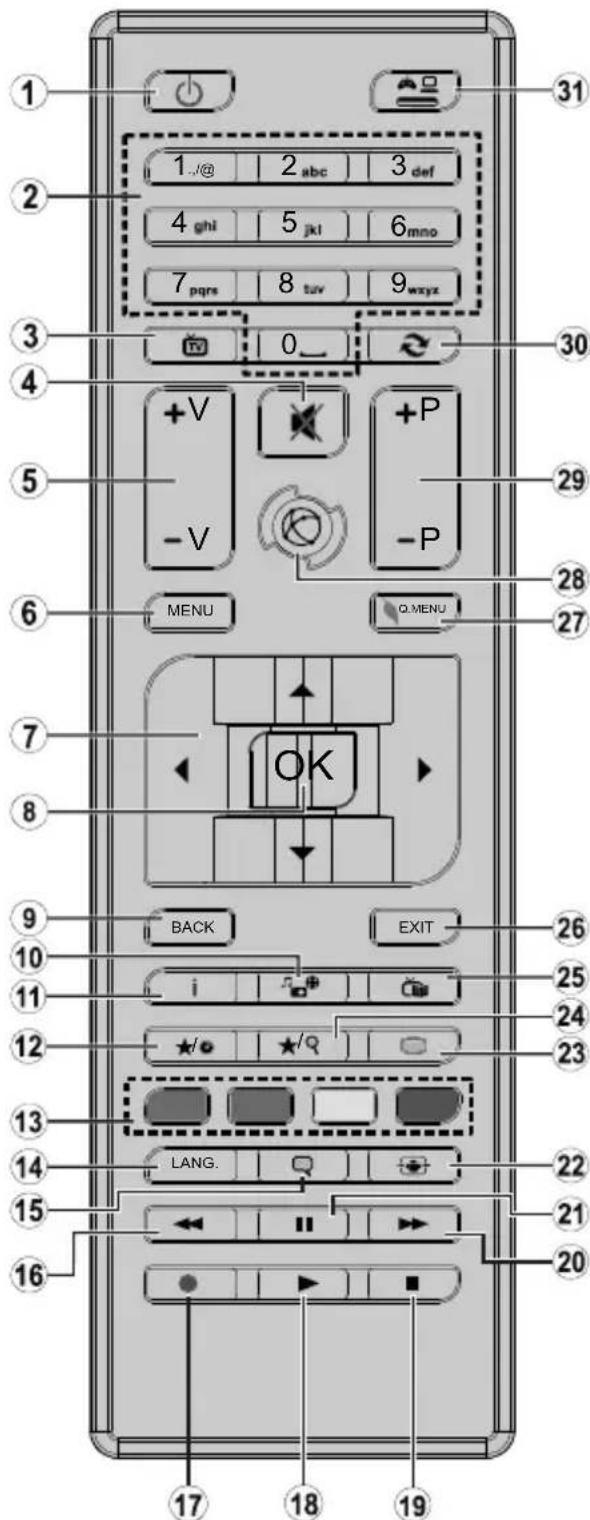

Remote Control

(*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY BUTTON 1&2 will return to their default function.

1. Standby: Switches On / Off the TV
2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
3. TV: Switches to TV Source
4. Mute: Completely turns off the volume of the TV
5. Volume +/-
6. Menu: Displays TV menu
7. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left
8. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)
9. Back/Return: Returns to previous screen, opens index page (in TXT mode)
10. Media browser: Opens the media browsing screen
11. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)
12. My button 1 (*)
13. Coloured Buttons: Follow the on-screen instructions for coloured button functions
14. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)
15. Subtitles: Turns subtitles on and off (where available)
16. Rapid reverse: Moves frames backwards in media such as movies
17. No function
18. Play: Starts to play selected media
19. Stop: Stops the media being played
20. Rapid advance: Moves frames forward in media such as movies
21. Pause: Pauses the media being played
22. Screen: Changes the aspect ratio of the screen
23. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
24. My button 2 (*)
25. EPG (Electronic programme guide): Displays the electronic programme guide
26. Exit: Closes and exits from displayed menus or returns to previous screen
27. Quick Menu: Displays a list of menus for quick access
28. No function
29. Programme +/-
30. Swap: Quickly cycles between previous and current channels or sources
31. Source: Shows all available broadcast and content sources

Connections

Connector Type	Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable
	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	AV Cable
HEADPHONE	Headphone Connection (side)
PC to YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)

You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. You cannot use VGA and YPbPr at the same time. To enable PC/YPbPr audio, you will need to use the side audio inputs with a YPbPr/PC audio cable for audio connection. If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. When using the wall mounting kit (available from third party in the market, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. The/Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. By connecting an HDMI cable to your TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a numeric button on the remote control.
• Press the side function switch on the TV until the TV comes on from standby.

To Switch the TV Off

Press the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

On the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast Type

Digital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.

Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.

Note: Searching duration will change depending on the selected Search Step.

Satellite: If Satellite broadcast search option is turned on, the TV will search for digital satellite broadcasts after other initial settings are completed. Before satellite search is performed some settings should be made. Antenna Type menu will be displayed first. You can select Antenna Type as Direct, Single Satellite Cable or DiSEqC switch by using " 一 ^ or " buttons.

• Direct: If you have a single receiver and a direct satellite dish, select this antenna type. Press OK to continue. Select an available satellite on the next screen and press OK to scan for services.
• Single Satellite Cable: If you have multiple receivers and a single satellite cable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the next screen. Press OK to scan for services.
• DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. Press OK to continue. You can set four DiSEqC options (if available) on the next screen. Press OK button to scan the first satellite in the list.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.

Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When finished, press OK to continue.

You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.

Press OK button on the remote control to continue. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN^(*) . Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Using SatcoDX Feature

You can perform SatcoDX operations using the Installation>Satellite Settings menu. In the SatcoDX menu, there are two options regarding to the SatcoDx.

You can download or upload SatcoDX data. In order to perform these functions a USB device must be connected to the TV.

You can upload current services and related satellites & transponders in TV, to a USB device.

Additionally you can download one of the SatcoDx files stored in USB device, to the TV.

When you select one of these files, all services and related satellites and transponders in the selected file will be stored in the TV. If there are any installed terrestrial, cable and/or analog services, they will be kept and only satellite services will be removed.

Afterwards, check your antenna settings and make changes if necessary. An error message stating "No Signal" may be displayed if the antenna settings are not configured properly.

MediaPlayback viaUSB Input

You can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss.

Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.

Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.

You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order

Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI11 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

TV Menu Contents
System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast Adjusts the light and dark values on the screen.
Brightness Adjusts the brightness values on the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off. Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other than Custom.
Advanced Settings
Dynamic Contrast You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
RGB Gain (Optional)	You can configure the colour temperature values using the RGB Gain feature.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position	Appears only when the input source is set to VGA/PC.
Autoposition Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Reset the picture settings to factory default settings (except Game Mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
System - Sound Menu Contents
Volume Adjusts the volume	level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance Adjusts whether the	sound comes from the left or right speaker.
Headphone	Sets headphone volume.Pleasesure ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode You can select	a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.
System - Settings Menu Contents
Conditional Access Controls	Is conditional access modules when available.
Language You may set a different language depending on the broadcaster and the country.
Parental	Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options. Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN (is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Accessibility Displays accessibility options of the TV.
Hard of Hearing Enables any special feature sent from the broadcaster.
Audio Description	A norration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.
More Displays other setting options of the TV.
Menu Timeout Changes timeout duration for menu screens.
Standby LED If set as Off, the standby LED will not light up when the TV is in standby mode.
Software Upgrade Ensures that your TV has the latest firmware. Press OK to see the menu options.
Application Version Displays current software version.
Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
OSS	Displays Open Source Software license information.
Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogues channels are stored.
Satellite Settings	Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite antenna settings and/or start a satellite scan. SatcoDX: You can upload or download SatcoDX data using the related options.
Installation Settings (Optional)	Displays installation settings menu. Standby Search(*) : Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*) : If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.

Configuring Parental Settings

The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.

To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

Set PIN: Defines a new PIN number.

Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the country selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.

There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.

Timeline Schedule

Zoom (Yellow button): Press the Yellow button to see events in a wider time interval.

Filter (Blue button): Views filtering options.

Highlight Genre (Subtitles button): Displays Highlight Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Search (Text button): Displays Guide Search menu. Now (Source button): Displays current event of the highlighted channel.

List Schedule\*

(*) In this layout option, only the events of the highlighted channel will be listed.

Prev. Time Slice (Red button): Displays the events of previous time slice.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Event Details (Info button): Displays detailed information about selected events.

Filter (Text button): Views filtering options.

Next Time Slice (Green button): Displays the events of next time slice.

Options (OK button): Displays event options.

Now/Next Schedule

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Filter (Blue button): Views filtering options.

Event Options

Use the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.

Select Channel: Using this option, you can switch to the selected channel.

Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the

OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events.

To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.

Notes: You cannot switch to any other channel or source while there is an active timer on the current channel. It is not possible to set timer for two or more individual events at the same time interval.

Teletext Services

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Software Upgrade

Your TV is capable of finding and updating the firmware automatically via the broadcast signal.

Software upgrade search via user interface

On the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal. If a new software is found and downloaded successfully, it will be installed at the next power on.

Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

Poor picture

• Check if you have selected the correct TV system.
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• This means your TV is not receiving any transmission.
  Make sure the correct source has been selected.
• Is the antenna connected properly?
• Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.

No sound

• Check if the TV is muted. Press the Mute button or increase the volume to check.
  Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation

• The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. If not;
• Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index Resolution Frequency
1	480 60 Hz
2	600 56 Hz
3	600 60 Hz
4	x768 60 Hz
5	24x768 66 Hz
6	x768 60 Hz
7	x960 60 Hz
8	x1024 60 Hz
9	x768 60 Hz
10	0x1050 60 Hz
11	0x1200 60 Hz
12	0x1080 60 Hz

AV and HDMI Signal Compatibility

Source Supported Signals Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50		O
	RGB 60		O
Side AV	PAL 50/60 O
	NTSC 60 O
PC/YPbPr	480I, 480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P 50Hz,60Hz O
HDMI	480I 60Hz	O
	480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode
Media Extension Format Notes
Video	g, .mpeg	MPEG1-2 MPEG1:	768x576 @ 30P, MPEG2:1920x1080 @ 30P
	.vob MPEG2		1920x1080 @ 30P
	.mp4 MPEG4, Xvid, H.264
	.mkv H.264, MPEG4,VC-1
	.avi MPEG2	MPEG4, Xvid, H.264
	.flv H.264/VP6/ Sorenson	H.264/VP6: 1920x1080 @ 30P Sorenson: 352x288 @ 30P
	.mp4, .mov, .3gpp, .3gp, MPEG transport stream, .ts, .trp, .tp, .mkv	HEVC/H.265 1080P	@60fps - 50Mbps
	.3gp MPEG4, H.264 1920x1080 @ 30P
Audio	3 MPEG1 Layer	2/3	Layer2: 32Kbps ~ 448Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz (Sampling rate) Layer3: 32Kbps ~ 320Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz, 8kHz, 11.025kHz, 12kHz (Sampling rate)
	works only with video files)	AC3 32Kbps ~ 640	Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		AAC	16Kbps ~ 576Kbps (Bit rate) / 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz (Sampling rate)
		EAC3	32Kbps ~ 6Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		LPCM	Unsigned 8bit PCM, Signed/Unsigned 16bit PCM (big / little endian), 24bit PCM (big endian), DVD LPCM 16/20/24bit (Bit rate) / 6kHz, 8kHz, 11.025kHz, 12kHz, 16kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (Sampling rate)
		IMA-ADPCM/MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		LBR 32Kbps ~ 96k	Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 17000x10000
		Progressive	Resolution(WxH): 4000x4000
	.bmp	-	Resolution(WxH): 5760x4096
Subtitle	.sub, .srt	-	-

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz	60Hz	66Hz	70Hz	72Hz	75Hz
640x400				☑
640x480		☑ ☑	☑ ☑
800x600	☑ ☑	☑ ☑ ☑
832x624						☑
1024x768		☑ ☑	☑ ☑ ☑
1152x864		☑ ☑	☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

Table des matieres

CEC and CEC RC Passthrough

A	Product Fiche
B	Commercial Brand:TELEFUNKEN
C	Product No.	10120772
D	Model No.	C32H440A
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches	81 cm
G	On mode average power consumption(Watt)	31,0
H	Annual energy consumption (kWh/annum) (*)	45
I	Standby power consumption (Watt)	0,50
J	Off mode power consumption (Watt)	N/A
K	Display resolution (px)	1366x768

	A	B	C	D	E	F
English Product	Fiche Commercial Brand	Product No. Model No.	Energy efficiency class	Visible screen	size		(diagonal, aprox.) (inch/cm)
Deutsch	Produkt-Datenblatt Markenzehen Produkt-Nr. Model-Nr.	Nen Produkt-Nr.	Ner. Energieeffizienzklasse	Sichbare Bilanzschirmgroße	Schirmgroße	diag onalca) (Zoll /cm)
Булгарский	Бларочen Лост сTekнескite дддд	Тьровская мarksa	П Brockт №	Мodel №	Клас на eнергийсяфektivноct	Видим разимр на ekрANA Дамоганл по indи./ finда /см
Čeština	Produktovy list	Zнackа vyrobce	Cislo produktu	Model c.	Energetická frida	Viditelna velikost obrazovky Uhlod fichtka fibl.lvo alco / cm
Dansk	Produktoplysningsskema	Varemaerkle	Produktnr.	Model nr.	Energieffektivitetsklasse	Synig skærmsternelse (diagonl,ca.)
Suomi	Tuote fiche	Kaufallenin merkki	Tuole nro.	Malli nro.	Virran tehokkusluokka	NKvyan kuvarudun koko diaoonaalin.n.(tuumaa/cm)
Frankaïs	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visible (diagonale,approx.)
Hrvatski	SAZETAK PROIZVDOTA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske užinkovitosti	Vidljiva věžična ekrana dīaonalona,criblžnol (inca/cm)
Nederlands	Productfiche	Commercial merk.	Productnr.	Modelnr.	Energie efficientie klasse	Zichtbare schemgrotte dīaonalona, y (inches/cm)
Espanol	Ficha del Producto	Marca Comercial	N° de Produktо	N° de Modelo	Clasificación Energética	famaño de pantalla visible dīaonalap rox. lvo uladas/cm
Svenska	Produktspecifikation	Varumärke	Produktnr.	Modelnrl.	Energiklass	Synig skästmorcek (diag onalung efärlig) (tum/cm)
Italienano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensión visibili dello schemo diag onalecircia) (p olici/cm)
Polski	KARTA PRODUKTU	Marka produktu	Nr produktu	Nr modelu	Klasa efektwinošci energetycznéj	Widoczny obraz ekrani przek na okolo (cali/cm)
Magyar	Termékismertő adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahátekonyásagi osztály	Lathato keptartomány (diagonalis,kb.)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Model nr.	Energiefektivitet klasse	Synig skjermstørrelse (diagonal, ca.)
Portugues	Ficha do produits	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energetica	Tamanho ecra visível (diagonal, aprox.)
Româna	Figs à produus	Marca comercială	Nr. Produus	Nr. Model	Clase de eficientă energetica	Dimensiunea ecranului vizibil dīaonalalap rox. (inch/cm)
Pусккій	Спразочький писток Текнескix ддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳	Iproobray MAPKA	Homep nozzlm	Homep nozzlm	Klacc zhepronotpebnehy	Bddimь разимр ekrana (no dúaroganhi, Okono) (duimmoi/cm)
Беларczak	Спразочький писток Текнескix ддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳	Iproobray MAPKA	Homep nozzlm	Homep nozlm	Klacc zhepronotpebnehy	Bddimь разимр ekrana (no dúaroganhi, Okono) (duimmoi/cm)
Makédoncký	Тechинický podatoцni	Korneцциална мarkska	Ipoizbodsp.	Modell sp.	Klaca ha ehepretska epikhacost	Одемпна на видпв ekран dújarогана, okony) (sinch/cm)
ук pairchькý	Тechинichi dani	Korpeuzhna мarkska	Aptrukу	Modellb.	Klasc eheprostrózhbanha	Вddimь розмир ekрana (diagonaib, Tp ibsonho (d loimria/cm)
Srpski	Technicke odilike	Komerçialna marka	Proizvod br.	Modelbr.	Klasa energetske etikashostvi	Veličina vidjižov ekrana (dijagonaia, tokom) (inca/cm)
Slovenscina	Produktovy list	Znacka vyrobu	Cislo produktu	Model c.	Energeticka trieda	Videtela velkost obrazovky Uhlod riečka zhruba) (dalcov/cm
Slovenscina	Opis izdelka	Komerçialna znamka	St. Izdeika	St. Modela	Razred energetske učinkovitosti	Videtela velkost zastona (diagonala, pribl. ) (dalcev/cm)
Ельникova	Дулlio пистоця	Ельорiko obizu	Ap. Iproiovtoç	Ap. Movičlou	Katryyopriva evépyeikovics atrobooycn	Odofo lybeboz obvovics (diayuyvoc, trup) (livroc/cm)
Bosanski	Technicki podaci	Komerçialna marka	Produktbr.	Modelbr.	Klasa energetske etikashostvi	Vidjiva vělcina ekrana (diagonala, priblizno. X inca/cm)
Льота	Сыхота chingni	Чьогш�у chingni	Chingni	Bai't'	Bil'	(Vil'viv'k)(viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'k), (viv'kn)
Türkce	Urun fişi	Ticari Marka	Urun No.	Model No.	Enerji verimiligi smfi	Görulden ekran boyutu (capraz, yaksık.)
Shqip	Te chénat e produktit	Marka treglare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencés se energjisè	Madhesia e ekranit te dukhshem diag onal afersish) (inc/cm
Lietuvli	Gamnio etikété	Gamintojas	Gamnio Nr.	Modello Nr.	Energetinio efektyvumo klasé	Matomas ekran dydis (jstrzainé, approx) (col) /cm
Latviešu	Produktapraktsts	Marka	Produktur.	Modelja nr.	Energoefektivitates klase	Ekranza Izmer (pa diognali, aprcam)
Eesti	TOOTEKIRJELDUS	Tootja firma	Toote nr.	Mudell nr.	Energiaklass	Vaadatava ekraani suurus (diagonala, umbes (tolli/cm)

	G	H	I	J	K
English On mode	average	Annual energy consumption(KWh/annum)	Standby power consumption(Watt)	Off mode power consumption(Watt)	Display resolution(px)
	power consumption (Watt)
Deutsch	Durchschnittlicher Stromverbrauch iminglegeschalttem Zustand (Watt)	Jährlicher Energieverbrauch(kWh/Jahr)	Standby-Stromverbrauch (Watt) Stromverbrauch im ausgeschalttem Zustand (Watt)		Display-Auflosung (px)
	(aq)1.2.2017 1.2.2018 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019	(aq)1.2.2017 1.2.2018 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2	(aq)1.2.2017 1.2.2018 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2		(1.2.2)1.2.2017 1.2.2018 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019
Блгарский	Среда Кonsумача наэн'tяктоорець въь въьючесьстория (Watt)	Т糗ни сонсусян haener'tхлорець въь въьючесьстория (Watt)	Консусян haener'tхлорець въьючесьстория (Watt)	Консусян haener'tхлорець въьючесьстория (Watt)	Раделенга побостот haquнney(Rikkele)
Častina	Prümета spotebraе elektriké energie vzipnutуз reizmu (Watt)	Rotni spotebraе energie(kWh/Roin)	Spotebre elektriké energie vzipnutovsin reizmu (Watt)	Spotebre elektriké energie vezipnutu reizmu (Watt)	Rozileni dispieje (px)
Dansk	Gennensnitzigt strømforbrug i tendt tilstand (Watt)	Arligt enerforbrug (kWh/Arligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skaermoplésning (px)
Suomi	Paillà-tian keskimääräinenvirrankulutus (Wattia)	Vuosittainen sähkönkulutu(kWh/Vuosittainen)	Vakivirran kalutus (Wattia) Pois-tian virrankulutus (Wattia) Näytön erotteluky	Virrankulutus (Wattia) Näytön erotteluky	(pikselia)
Français	Consommation énergétique moyenne en mode "marce"(Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode 'tarre"(Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrožnéla. energete kada je noizvod ukl'ücnj (Watt)	Godsinja potrožnéla. energete (kWh/Godisnai)	Potrosinja el. energèe u moduopravnosti (Watt)	Potrosinja el. energèe kada je proizvod skl'ücnj (Watt)	Rezolucija zaslona (pikselia)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarliks energierbrug (kWh/Jaarliks)	Stand-by stroomverbruik (Watt) Ult-modus	Ust stroomverbruik (Watt) Schermresolutie (px)	(ix)
Espanol	Consumo electrico medio, enfunacionmente (Watt)	Consumo electrico anual (kWh/annual)	Consumo en modulo en espéra (Vatio)	Consumo electrico medio apagado (Vato)	Resoluccion de pantaila (px)
Svenska	Strömkonsumption i PA-lage (Watt) Energiaemia em mode medio (Watt)	consumption per ar(kWh/Arg)	Strömkonsumption i viloiäge (Watt) Strömkonsumption i AV-lage (Watt) Strömkonsumption i AV-lage (Watt) Sörming (pixlar)	consumption i AV-lage (Watt) Skärmpuppsing (piksel)	olsutionne del display (px)
Italienano	Consumo di corrente medio da accessa (Watt)	Consumo annuale di energia (kWh/annuel)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	soluzione del display (px)
Polski	Srednie zuzycie energii w trybie wólczycyom (Watt)	Rozne zuzycie energii (kWh/Rozne)	Srednie zuzycie energii w trybie oczekiwania (Watt)	Zuzycie energii w trybie wólczycnym (Watt)	Rozdzielczość obrazu (pikselei)
Magyar	Energiafogásztás békapcsolva hagyott lizemmodbár (Watt)	Eves energiafogásztás (kWh/Eves)	Energiafogásztás standby (lizemmodbár (Watt)	Energiafogásztás kikapsolt (lizemmodbár (Watt)	Képermyőfölntás (px)
Norsk	Pamodus gennomsnittig strømforbrug (Watt)	Arlig strømforbrug (kWh/Arlig) Hvlem	Xlus strømforbrug (Watt) Av-modus strømforbrug (Watt)	Xlus strømforbrug (Watt) Skjermopplieshing (piksel)	Sotrug (px)
Portugues	Consumo energia em mode medio (Watt)	Consumo annual energia (kWh/annual)	Consumo energia em standby (Watt)	Consumo energia em modulo alimentação (Watt)	Resoluccion do visor (pixel)
România	Consum electric mediu in modul poini (Watt)	Consum unal de energia (kWh/annuel)	Consum electric in stare de repaus (Watt)	Consum electric in modul oprit (Watt)	Rezolujia ecranului (pixell)
Russkii	Среда расход зэрпи в ржиме paşobotу (Вт)	Exzeidnyй пасход зэрпи (kBryu/Togd)	Pashko zhaneyngа в ржиме oksdajnaya (Вт)	Pashdo zhaneyngа в винлочenvnom poхшиме (Вт)	Раразшених л�рана (nichtсени)
Bénapуckаг	Среда расход зэрпи в ржиме binkolyн�у (Ват)	Exzeidnyй пасход зэрпи (kWh/Ran, Абоe)	Pashko zhaneyngа в ржиме oksdajnaya (Ват)	Pashdo zhaneyngа в ржиме poхшиме binkolyн�у (Ват)	Раразшених л�рана (nichtсени)
Makdoğonskii	Поссану поочувача kora e bукун (Went)	Todniuna noptouya-bayka na hyн".ru"ua	Todniuna noptouya-bayka na hyн".ru"ua	Todniuna noptouya-bayka na hyн".ru"ua	Pezonyujsa na ekpan (nichtсени)
Ук pair'ský	Cerechina coprosbána hotnykhchestу yobochom v v'yekimi (Вт)	Cerechina coprosbána hotnykhchestу nov'.xhnci (kWh/Prihne)	Cerechina coprosbána hotnykhchestу yewkimi ohykabany (Вт)	Cerechina coprosbána hotnykhchestу v bvykhenomyu strani (Вт)	Pozidniha zadthicty ekpana (nichtсени)
Srpski	Prosca na potrožnénda kada je ukljuceni (Vaf)	Godsinja potrožnénda energije (kWh/Godisnai)	Potrosinja tokom mirovanja (Vati)	Potrosinja kada je iskijuceni (Vati)	Rezolucija dispeja (pixi)
Slovenčina	Piremela spoteba elektrické energija v zanunutom reizime (Watt)	Rotna spoleba energija (kWh/Rošnai)	Spoleba elektrické energija v zanunutom reizime (Watt)	Spoleba elektrické energija v zanunutom reizime (Watt)	Rozilisenie dispeja (pixi)
Slovensčina	Poraba elektřé energija v povrčnud naci (Watt)	Letna poraba energija (kWh/Letna)	Poraba energija v stanji pravlíjnosti (Watt)	Poraba energija naticniz izklopa (Watt)	Resoluacja zaslona (pixi)
Ельникovi	Mezi katayduzov paskutacr oksуцу (Aotouy ioc (Watt)	Erjedka katayduzov paskutacr evépydici (kWh/En, ād)	Kotvovskonov paskutacr στην avapovni (Watt)	Kotvovskonov paskutacr στην avapovni (Watt)	Avóluon odovn(r.l.)
Bosanski	Prosječna potrožnénda kada je ukljucen (Watt)	Godsinja potrožnénda energije (kWh/Godisnai)	Potrosinja tokom mirovanja (Watt)	Potrosinja kada je iskijuceni (Watt)	Rezolucija ekrana (pixi)
nach	(ox)1.2.2017 1.2.2018 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019	(nach)1.2.2017 1.2.2018 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019 1.2.2019
Türkç	Açık moddaki ortalama guç tuketim (Watt)	Yllik erjut tuketim (kWh/Yllik)	Beklme du rumunda energia tuketim (Watt)	Kapali moddaki脘 tuketim (Watt) oztolnjanı (piksei)	Çozünurlugu (pixi)
Shiqip	Konsumi mesatar i energjisë s i ndurzur (Watt)	Konsumi vjetor i energjisë (kWh/ventor)	Konsumi i energjisë s i ne gatifshmeni (Watt)	Konsumi i energjisë s i fikur (Watt) Rezoljcni i ekrant (piksei)	ucioni i ekrant (piksei)
Lietuviu	Vidutinié energijos sānzauodos jungus (Vatah)	Motinés energijos sānzados budęjimo reizmu (kWh/Metins)	Energios sānzados budęjimo reizmu (Vatah)	Energios sānzados tsjungus (Vatah)	Ekrano skriamoji goba (pikseli)
Latvlešu	Energiljas palérìns reiklva režimä (Vati)	Gada energijas palérìns (kWh/n ada)	Energijas palérìns gaidífasanas režimä (Vati)	Energijas palérìns izslégåt slavoklif (Vati)	Displeja rezolúcia (pikselem)
Eesti	Keskmine energiakulu tõreziimil (Vati)	Aastane energiakulu (kWh/aastane)	Eneriakulu ootereziimil (Vati)	Eneriakulu valjalutatud olekus (Vati)	Erikaani resolutioon (pikseil)

() English Energy consumption kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
() Deutsch Energieverbrauch kWh/Jahr, auf der Grundlage eines tajflich vierstündigen Betriebs des Fennesgerätes an 365 Tagen. Der tatsächliche Energieverbrauch hängt von der Art der Nutzung des Fennesgerätes ab.
() SchutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzschutzSchutzschutzschutzschutzschutzSchutzschutzSchutzschutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchutzSchZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZCHZ CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2 CH2
(1) Genapcyckaa 3BbApnAaBnHbKtYrTgDpIbOaIaIa3paNlkiy CnAcbBnHnEepri TaeIeIaPam npI npai 4raaHbYdAnhHa IpaIpaRy 365 aH. AekTHHae cnaBbHne ankPepri 6dy3e Zanekaab ad taro, kX
*MaekDOKnK 10
(^) ykpaibcbkn 3hAeHnHeproocNbHNBnEiRdRnA hpi6aeyctba nnotyXoCTi, cnoKbHa0I TebeIopom, uO npae opoTAR 4doHN HnDHe BnpoBxK 356 dH. KaTHnHE cnoXbBAHn enetpOeHnri 3aneKHTb BID CNOcOBy BMIOPCNTAHN TEBOIOpa.
() Srpski Pota snj strje od kWh na goijsnem nivou zasnovana je na potrosnji televizora koj ie ukiuken 4 sata dnevno 365 dana godisnje. Svama potrosnja strjuze zavisic o naica koriiscenja televizora.
(S) Slovencina Spotreba enerie kWh za rak na zaklade spotreby elektrickej enerie televizora, ktor y je v cinnosti 4 hodyn danna poces 365 din. Skutozne spotreba enerie zavisi od loho, ak o sa televizor pouziva.
() Slovenscina Poraberaengije jkWh na leto, gleda na napajalno engire televizorjia,ki deluje 4 ure na dan v vseh 365 dneh. Dejanska porabera enegije odvisna od nacina uporabe televizorjia.
() EAnyivka Kxavawon evpyiic kwh avc toc, ie bao nty kavavawon ixvoc oia ty mkepaan vi teipawon kainoupyla ov npa e 365 npes. H poyatikn katovalwn cvtpyeic ecaprata oto tv panto
() Bosanski Energetska potrosnja je XYZ kWh na godijsnem nivou, na osnovu potrosnje TV-a koj radi 4 h dnevno, 365 dana. Stvarna energetska potrosnja zavisi od toga kolko e TV koristi.
(1)nnn nn nnnnnnnnnnnnne 365 nee 4 mnnnne nee nnne nee
(1) Türkç 365 gün boyunca gunde 4 saat cali san televizyonun tuketigi Güç referans alinarak ylda kWh enerji tuketimi. Guncel ereneri tuketimi televizyonn实事求是 kullanildigina bagl olacakir.
() Shqip Konsumi enerjise kWh ne vit, bazuar ne konsumin e enerjise s televizorit kur punon per 4 ore n de tper 365 dit. Konsumi aktual i enerjise varet nga menyra e perdorimitte televizorit.
*Lietuvi knaedjogos suaudojmas per metus nurodomas ats2velgus i tai, kiek energios sundaodjama tevdziori veikiant 4 valandas per diena 365 dienis illes. Faktin energios sundaodjima lems tai, kiek laiko bus naudojamas tevdizorius.
() Latviesu Enerjias patarirkwh gada, nemot vara televizora elektroenerjias patariu, darbojlotes 365 dienas, cetras stundas diena. Faktiskalis enerjias patarig bus atkarigs no ta, ka televizors tikis izmantots.
(E) Eestl Energiatarbimine kWh aaslas, ealdusal televisor totab neli fundi paevas ja 365 paea aaslas. Tegalik energiatarbimine oleneb televisori kasutusvist

y 4 kWh

(1)

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		200	75
C	Screw Sizes
D	Length (X)	min. (mm)	5
		max. (mm)	8
E	Thread (Y)	M4

	ABCDE
English	VESA WALL MOUNT MEASUREMENTS	Hole Pattern Sizes (mm) Screw Sizes Length (X) Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE	Lochmustergroßen (mm)	Schraubengrößen	Länge (X) Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensons des vis	Longueur (X) Filetage (Y)
Italieno	Misurazioni installazione a parete VESA	Dimensioni schema foro (mm)	Dimensioni vite	Lunghezza (X) Filettatura (Y)
Portugués	MEDICÔES DE MONTAGEM MURAL VESA	Dimensões do molde de furação (mm)	Tamanhos do parafuso	Comprimento (X) Rosca (Y)
Espanol	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujierto (mm)	Tamaños de tornillo	Longitud (X) Rosca (Y)
Türkce	VESA DUVARA MONTAJ APARATI ÖLÇULERİ	Açilacak Delik Ölçuleri (mm)	Vida Ölçuleri	Uzunluk (X) Yüsey (Y)
Ελλυκ	ΔΙΑΣΤΑΕΙ ΒΑΒΗ ΜΟΥ ΚΙΧΟΥ VESA	Meyéθη αχίματος onów (mm)	Meyéθη βιδύν	Мнкос (X) Enelpúma (Y)
Polski	WYMIARY DO MONAZU NÁCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Dlugosc (X) Gwint (Y)
čěstina	ROZΜÉRY DRŽAKU NA ZED VESA	Rozměry velikosti dér (mm)	Rozměry šroubů	Délka (X) Závit (Y)
Magyar	VESA FALI TARTÜ MÉRETEK	Lyukak mérétények nagyságá (mm)	Csavar mérét	Hossz (X) Menet (Y)
Română	MÁSURÁTORI SUPORT PERETE VESA	Dimensiani tipar gaurá (mm)	Dimensiani surbururi	Lungime (X) Filet (Y)
Svenska	VESA VAGGMONTERINGSMÄTT	Håmlösterstorlear (mm)	Skruvstorlekar	Längd (X) Tràd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X) Draad (Y)
Suomi	VESA-SEINÁASENNUKEN MITAT	Reikakuvion koot (mm)	Ruuvinkoot	Pituus (x) Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmänster størrelser (mm)	Skruestørrelser	Lengde (x) Tràd (Y)
Dansk	VESA VLEGMONTERINGS-MÄL	Hulmenstr-størrelser (mm)	Skruestørrelser	Længdc(X) Tràd (Y)
Pyccskii	РAZMEРы HACTEHNOZO KPEΠΕΝΗ VESA	Размeper сис themselves OТberстун	Размeper bintrob	Длина(X) Peşба (Y)
Белар Caucasian	ПАМЕРы HACUCEHARA MAÇAUBAHΗ VESA	Памерсь сicut themselves Aдтулін	Памерсь bintroy	Далжьня (X) Paşьба (Y)
Mačekонскп	МЕРК 3A MOHTIPAÎBE HA SÍD 3A „BECA"	Шема на говетими на дулкову (mm)	Говетими на урафот	Должьня (X) Hanoj (Y)
Уркайсьka	РОЗМIPи HACTIHHOFO KPIΠΕΝΗ VESA	Вidостав мік кріпільникі мітоворамі, мі	Розмieren витгь	Дobожина (X)Дiamert рíбби (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSAÇA	Dimenzijë šablona za buşenje	Dimenzijë zavrtnejeva	Džinza (X) Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery vefkosti dier (mm)	Rozmery skrutiek	Džka (X) Zavit (Y)
Slovenšćina	MERE STENSKEGA NOSILCA VESA	Veliokosti vžorca lukenj (mm)	Veliokosti vijakov	Džinza (X) Navoj (Y)
Hrvatski	VESA MIJE RE ZIDNOG DRŽAÇA	Veličine uzorka otrva (mm)	Veličine vijka	Džinza (X) Navoj (Y)
Bosanskis	DIMENZIJE VESA ZIDNOG NOSAÇA	Dimenzijë šablona za buşenje	Dimenzijë vijka	Džinza (X) Navoj (Y)
Бъларский	РAZMEРи 3A KOMПЛЕKT 3A MOHTAJK HA CTeHA VESA	Размeper на овтора (mm)	Размeper на овлты	Дылочиат (X) Peşба (Y)
Lietuviç	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dydis (mm)	Väržtu dydis	Iglis (X) Srigis (Y)
Latvišeu	VESA SIENAS STIPRINÁJUMA IzMÈRi	Caurumu šablona izmërs (mm)	Skrūvju izmēr	Garums (X) Vitne (Y)
Eesti	VESA SEINALE KINKITAMISE MÖÖDUD	Kruvi suuruse mõdt (mm)	Kruvi suurus	Körgus(x) Keere (Y)
Shqlp	PERMASAI E NJÉSISE SÉ MONTIMIT NÉ MUR VESA	Madhésitê modele tê vrimave (mm)	Madhésitê evidhave	Gjatësia (X) Filetimi (Y)
Б拱у	Ф�ИЗСЕОВ LIGОВ LIGОВ LIGОВ LIGОВ LIGОВ LIGОВ LIGO	(о) ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") (о) ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") "") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("")("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") (“") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") "") (") (о) ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("")("") ("") (о) ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") (о) ("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("") "")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")('")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")("")="")	(о) ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") (о) ('") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") (о) ('') ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") (о) ('') ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") ("") (о) ('') ("") ("") ("") ("") ("") ("") ("") (о) ('') ("") ("") ("") ("") (о) ('') ("") ("") (о) ('') ("") (о) ('') ("") (о) ('') ("") (о) ('') ("") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (о) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ('') (") (0) ("") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (") (0) (")"

TR: Isbu belgede; VESTEL Elektronik Sanayi ve Ticaret A.Ş., telsiz ekipmani tipi TFT IDTV 'nin 2014/53/AB sayil direktife uygun olduğunu bylan eder. AB uygünlik bayanın tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG:C HactoToVESTEL Elektronik Sanayi ve Ticaret A.S. DeKnappa, ye To3n Tn pAnocbOpBXeHne TFT IDTV e B CbotBcTCTBne C DnpeKtNa 2014/53/EC. LJIIOCTHnT TeKT Ha EC DeKnapaCnIyTa 3a CbotBcTCTBne MOKe da Ce HamepHa CneDnHn INHTepHet aIpec: doc.vosshub.com
CZ: Timto VESTEL Elektronik Sanayi ve Ticaret A.Ş., prohlăşuje,Že typ rádoviho zařizení TFT IDTV je v souladu se směrnici 2014/53/EU. Üplné znéni EU prohlášeni o shodě je k dispozici na teto internetové adrese: doc.vosshub.com
DA: Hermed erklærer VESTEL Elektronik Sanayi ve Ticaret A.S., at radioudstyristypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklart VESTEL Elektronik Sanayi ve Ticaret A.Ş., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Me tvapouo a/o VESTEL Elektronik Sanayi ve Ticaret A.S., 8nawve oTI o paioeonlaoTFT IDTV nI npoi tv odnyia 2014/53/EE. To nInpes keiEvo TcS dnwong sUmuoppwongc EE diatietai otnv akolouoIIOOeIIDA oTo diaiktuoc.doc.vosshub.com
ES: Por la presente, VESTEL Elektronik Sanayi ve Ticaret A.S., declar que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El textoplete do la declaración UE de conformidad está disponible en la dirección Internet信箱: doc.vosshub.com
ET: Käesolevaga deklareerib VESTEL Elektronik Sanayi ve Ticaret A.S., et käesolev raadoseadme tuup TFT IDTV vastab direktivi 2014/53/EL nouetele. ELi vastavusdeklaratsiooni täielik tekst on kattesaadav jargmisel internetiaaddressil: doc.vosshub.com
FI: VESTEL Elektronik Sanayi ve Ticaret A.S., vakuuttaa, etta radiolaitetyppi TFT IDTV on direktiivin 2014/53/EU mukainen. EU-vaatimustemmukaisuusvakuutuksen tāysimittainen teksti on staativla seuraavassa internetosoitteessa: doc.vosshub.com
FR: Le soussigné, VESTEL Elektronik Sanayi ve Ticaret A.Ş., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: VESTEL Elektronik Sanayi ve Ticaret A.S., ovime izjavljube da je radijska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: doc.vosshub.com

HU: VESTEL Elektronik Sanayi ve Ticaret A.S., igazolja, hogy a TFT IDTV tipusu radioberendezes megfelel a 2014/53/EU iranyelvnek. Az EU-megfeleloségí nyilatkozat teljes szövege elerheto a kovetkezo internetes cimen: doc.vosshub.com
IT: Il fabbricante, VESTEL Elektronik Sanayi ve Ticaret A.S., dichiara che il tipo di apparecchiatura radio TFT IDTV è conforme alla direttiva 2014/53/UE. Il testo Completo della dichiarazione di conformità UE è disponibile al segmente indirizzo Internet: doc.vosshub.com
LT: A§, VESTEL Elektronik Sanayi ve Ticaret A.§, patvirtinu, kad radijo jrenginiu tipas TFT IDTV atitinka Direktyva 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: doc.vosshub.com
LV: Ar šo VESTELElektronik Sanayi ve TicaretA.Ş., deklare, ka radioiekárta TFT IDTV atbilst Direktivai 2014/53/ES. Pilns ES atbilstibas deklarácijas teksts ir pieejams šādā interneta vietne: doc.vosshub.com
MT: B'dan, VESTEL Elektronik Sanayi ve Ticaret A.Ş., niddikjara li dan it-tip ta' taghmir tar-radju TFT IDTV huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformita tal-UE huwa disponibbli f'dan I-indirizz tal-Internet li gej: doc.vosshub.com
NL: Hierbij verklaar ik, VESTEL Elektronik Sanayi ve Ticaret A.S., dat het type radioapparatuur TFT IDTV conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: doc.vosshub.com
PL: VESTEL Elektronik Sanayi ve Ticaret A.S., niniejszym oswiadcza, ze typ urzadzenia radiowego TFT IDTV jest zgodny z dyrektywa 2014/53/UE. Pelny tekst deklaracja zgodnosci UE jest dostepny pod nastepujacym adresem internetwym: doc.vosshub.com
PT: O(a) abaixo assinado(a) VESTEL Elektronik Sanayi ve Ticaret A.S., declara que o presente tipo de equipoamento de radio TFT IDTV está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponible no segunte endereço de Internet: doc.vosshub.com
RO: Prin preventa, VESTEL Elektronik Sanayi ve Ticaret A.S., declară că tipul de echipamente radio TFT IDTV este în conformitate cu Direcita 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la urmâtoarea adresă internet: doc.vosshub.com
SK: VESTEL Elektronik Sanayi ve Ticaret A.Ş., tymto vyhlasuje,Že radióve zariadenie typu TFT IDTV je v súlade so smernicou 2014/53/EU. Uplné EU vyhlasenie o zhode je k dispozicii na tejto internetovej adrese: doc.vosshub.com
SL: VESTEL Elektronik Sanayi ve Ticaret A.Ş., potruje, da je tip radijske opreme TFT IDTV skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: doc.vosshub.com
SV: Harmed forsakrar VESTEL Elektronik Sanayi ve Ticaret A.Ş., attenna typ av radioutrustning TFT IDTV overensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-forsakran om overensstammelse finns på foljande webbadress: doc.vosshub.com

Herstellergarantie

D

TELEFUNKEN licensed by:

TELEFUNKEN Licenses GmbH

Imported by: Vestel Germany GmbH,

D-85748 Garching/Munich
