USER MANUAL CPDI482SB BEST

; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770 REGISTER YOUR PRODUCT ON LINE AT: www.BestRangeHoods.com/register For additional information - visit www.BestRangeHoods.com INSTALLATION INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

CPD SERIES Suitable for use in damp locations when installed in a GFCI protected branch circuit. Intended for outdoor covered patio or lanai area.- 2 - WARNING WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at

service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done

by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not

damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any solid-state speed control

8. To reduce the risk of fire, use only metal ductwork.

9. This unit is not designed for use with a charcoal grille.

10. This unit must be grounded and protected by a GFCI

(Ground Fault Circuit Interrupter).

11. When applicable local regulations comprise more

restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.

12. Suitable for use in damp locations only when installed

in a GFCI protected branch circuit. TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn power pack ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie

3. DO NOT USE WATER, including wet dishcloths or

towels — This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it. B. The fire is small and contained in the area where it started. C. The fire department has been called. D. You can fight the fire with your back to an exit.

• Based on “Kitchen Fire Safety Tips” published by NFPA. CAUTION

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. To avoid motor bearing damage and noisy and/or

unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

3. Your insert motor has a thermal overload which will

automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the power pack serviced.

4. The minimum power pack distance above cooktop must

not be less than 36”.

5. Two installers are recommended because of the large

size and weight of this unit.

6. To reduce the risk of fire and to properly exhaust air,

be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.

7. This product is equipped with a thermostat which may

start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.

8. Because of the high exhausting capacity of this unit,

you should make sure enough air is entering the house to replace exhausted air by opening a window close to or in the kitchen.

9. To reduce the risk of fire and electrical shock, the Best

models CPD Series should only be installed with built-in blowers. Other blowers cannot be substituted.

10. Please read specification label on product for further

information and requirements. VQ0009

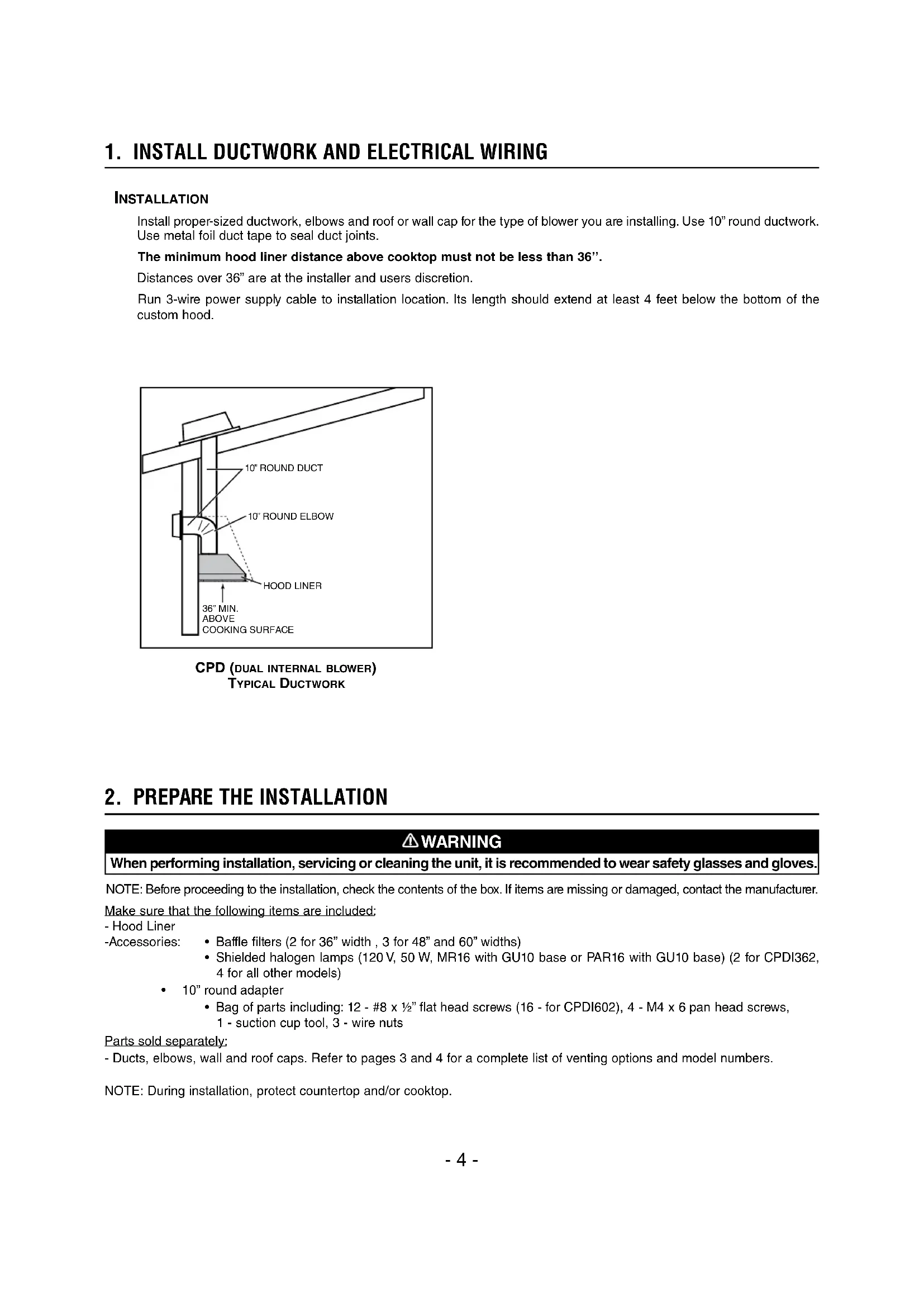

INSTALLATION Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. Use 10” round ductwork. Use metal foil duct tape to seal duct joints. The minimum hood liner distance above cooktop must not be less than 36’’. Distances over 36” are at the installer and users discretion. Run 3-wire power supply cable to installation location. Its length should extend at least 4 feet below the bottom of the custom hood.

2. PREPARE THE INSTALLATION

WARNING When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves. Make sure that the following items are included: - Hood Liner - Accessories: • Bafflefilters(2for36’’width,3for48”and60”widths)

• Bagofpartsincluding:12-#8x½”flatheadscrews(16-forCPDI602),4-M4x6panheadscrews,

1 - suction cup tool, 3 - wire nuts

Parts sold separately: - Ducts, elbows, wall and roof caps. Refer to pages 3 and 4 for a complete list of venting options and model numbers. NOTE: During installation, protect countertop and/or cooktop. VQ0010

NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.- 5 -

3. CUSTOM HOOD PREPARATION

WARNING When building a custom hood, always follow all applicable construction codes and standards. VQ0010

The custom hood must be constructed to fit the size and shape of the CPD hood liner. See chart and illustration for details.* Dimensions A and B include rivets head.

REAR FRONT To minimize the gap around the hood liner, take actual width and depth measurements of hood liner and add 1/16” to get D and E measurements. Cut the hole in the bottom of the cabinet according to dimensions. See chart and illustration for details.

Since the CPD hood liner mounting holes are located in front and rear sides (see illustration at right), plan to install wood frame at front and sides for support. The CPD hood liner is supported by the custom hood internal framework with (12) #8 x ½” flat-head screws (16 screws for CPDI602) provided in parts bag. WARNING The wood hood must be positively secured to wall studs or other wooden framework behind the drywall. Make sure it is capable of supporting its own weight and the weight of the CPD. Failure to do so may cause personal injury or damage to countertop or cooktop. VQ0010 !- 6 -

7. REMOVE THE BOTTOM PANEL

Using a Phillips screwdriver, remove both bottom filter filler panels. Disassemble bottom panel, lift up and out, and set aside.

A. Lift grease drip rail to disengage it from the bottom panel. (Blower shown is for reference only and does not represent actual blower in this product.)

Remove tape on filters. Remove filters from power pack and set aside. It is recommended to start with the center filters.

8. REMOVE THE KNOCK-OUT OPENING

From inside the hood liner, remove the wiring cover and set aside. Punch out the electrical knockout hole on top of the hood. Install the wire clamp (included in parts bag). HR0027- 7 -

9. INSTALL THE 10” ADAPTER

Using (4) no. M4 x 6 screws from parts bag, assemble the adapter on the top of the hood liner. Seal all joints with metal foil duct tape to eliminate air leaks. HJ0026

MOUNTING SCREW LOCATION

INTERNAL BLOWERS: Insert the house wiring cable through the wire clamp previously installed in step 8. Tighten the wire clamp to secure the cable. Connect cable into wiring box using wire connectors. Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw. DO NOT FORGET TO CONNECT THE GROUND. Reinstall wiring cover.

10. CONNECT THE WIRING

WARNING Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. VQ0010

HE0059 Position the hood liner below the installed custom hood.

11. INSTALL THE POWER PACK

Using provided screws, install the hood liner inside the custom hood. Start with 2 screws on front corners, then use 4 screws for sides and use the remaining screws to finalize securing the front hood liner. (See figure at right for mounting screw specific locations.) Make sure the adapter/damper (or the adapter) enters the ducting. When there is access to the top of the hood liner, seal connections with metal foil duct tape. CAUTION Take care not to kink ducting when installing the power pack.- 8 -

13. REINSTALL GREASE DRIP RAIL

A. Center the grease drip rail over the bottom panel edge and drop it in place. (Blower shown is for reference only and does not represent actual blower in this product.)

Lift the bottom panel and engage the hood liner metal tabs in bottom panel slots. Secure the bottom panel to the hood liner using its screws. Re-install filter filler panels as shown. RETAINING SCREW LOCATIONSBOTTOM VIEWBOTTOM VIEWRETAINING SCREW LOCATIONS NOTE: It is recommended to install side filters first and finish with center filter(s).

1. Insert one end of baffle filter into

the front channel of the hood.

2. Raise the other end toward the

inside of hood liner and insert in the grease drip rail of the hood liner. Replacement filters are available from your dealer. See label inside hood liner for size and part number.

14. REINSTALL BAFFLE FILTERS

CAUTION Remove protective plastic film covering baffle filters before installing them. 1 2- 9 -

This power pack must use shielded halogen lamps (120 V, 50 W PAR16 with GU10 base, 2 for CPDI362 and 4 for the CPDI482 & CPDI602), included. NOTE: Before using lamps, remove shipping tape on them (if present).

1. Install the lamps by placing the bulb leads into their grooves in the socket.

2. Gently push upwards and turn clockwise until secure.

To remove lamps, gently push upwards and turn counterclockwise to disengage bulb leads from their grooves. NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb; or use suction cup tool available from BEST

to ease removal of the bulbs. Contact BEST

Technical Support at 1-800-637-1453 to order suction cup tool, part number 99526707. VQ0010

WARNING In order to prevent the risk of personal injury, do not install a lamp not suitable for use in enclosed fixtures.

WARNING In order to prevent the risk of personal injury, do not install a lamp not suitable for use in enclosed fixtures. Hood Liner Cleaning Stainless steel cleaning: Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.

• Always clean in the direction of original polish lines.

• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.

• You may also use a specialized household stainless steel cleaner Don’t:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.

• Use any harsh or abrasive cleansers.

• Allow dirt to accumulate.

• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the power pack to make sure no dust sticks to stainless steel surface. Avoid when choosing a detergent: - Any cleaners that contain bleach will attack stainless steel. - Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly. - Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

Baffle Filters The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Remove baffle filters by pushing them towards the front of hood liner and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them. Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty. Grease Drip Rail The grease drip rail should be cleaned frequently. Remove it from the hood liner (see step 6 on page 6) and use a warm detergent solution. As with the baffle filters, wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it. Interior Blowers Cleaning Remove the filters in order to access the blowers. Vacuum blowers to clean. Do not immerse in water.- 10 -

Always turn your hood liner on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter. COOKTOP LIGHTING (HALOGEN) The halogen lighting is controlled by the dial.

• Use 120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (included). BLOWER The blower is controlled by the dial.

• HEAT SENTRY™ This hood liner is equipped with a Heat Sentry™ thermostat. This thermostat is a device that will start or speed up the blower if it senses excessive heat above the cooking surface.1) If blower is OFF - it turns blower ON to HIGH speed.2) If blower is ON at a lower speed setting – it turns the blower up to HIGH speed.When the temperature level drops to normal, the blower will return to its original setting. The HEAT SENTRY can start the blower during a range top fire or other excessive heat situations even if the hood is turned off. In this case, it is impossible to turn the blower OFF with blower switch. If you must stop the blower, do it from the main electrical panel. WARNING VQ0010 !- 11 - WARRANTY
