USER MANUAL CP57IQT489SB BEST

READ AND SAVE THESE INSTRUCTIONS

BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711 BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770 To register your product online or for additional information visit www.BestRangeHoods.com SV21422 rev. 03 ! !2 TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If

you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel

and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by qualified

personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of

gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any solid-state speed control device.

8. To reduce the risk of fire, use only metal ductwork.

9. This unit must be grounded.

10. When applicable local regulations comprise more restrictive

installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses. TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn power pack ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts. d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power unit.

4. Your power pack motor has a thermal overload which will

automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the power pack serviced.

5. The minimum hood distance above cooktop must not be less than

24”. A maximum of 30” above cooktop is recommended for best capture of cooking impurities.

6. Two installers are recommended because of the large size and

weight of this unit.

7. To reduce the risk of fire and to properly exhaust air, be sure to

duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.

8. This product is equipped with a thermostat which may start blower

automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.

9. Because of the high exhausting capacity of this unit, you should

make sure enough air is entering the house to replace exhausted air by opening a window close to or in the kitchen.

10. To reduce the risk of fire and electrical shock, the Best CP55IQ

& CP57IQT Series models should only be installed with their own built-in blowers, and the Best CP57E Series models must only be installed with Best exterior blower models EB6, EB9, EB12 or EB15; or Best in-line blowers models ILB3, ILB6, ILB9, ILB11. Other blowers cannot be substituted.

11. Please read specification label on product for further information

12. This power pack is equipped with a RF receiver (optional remote

control sold separately). Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this product. The remote control has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and the Canadian ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The remote control generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected WARNING

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal

tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN — You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels — This

could cause a violent steam explosion.

4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it. B. The fire is small and contained in the area where it started. C. The fire department has been called. D. You can fight the fire with your back to an exit.

• Based on “Kitchen Fire Safety Tips” published by NFPA. WARNING

(SUPPLIED WITH DUAL BLOWER

ODEL ILB9 (800 CFM) OR ILB11 (1100 CFM) IN-LINE BLOWER

(INCLUDES TWO 8” X 12” TO

(INCLUDED WITH EB6, EB9, EB12, EB15, ILB3, ILB6, ILB9 AND ILB11 BLOWERS.) CP57E POWER PACK MODEL ILB3 (280 CFM) IN-LINE BLOWER

(INCLUDES ONE 8” TO 10”

ROUND TRANSITION) MODEL ILB6 (600 CFM) IN-LINE BLOWER

(INCLUDES TWO 4½” X 18½”

CP55IQ Series power packs may be non-ducted. ANKCP55 non-duct kit must be installed (sold separately).

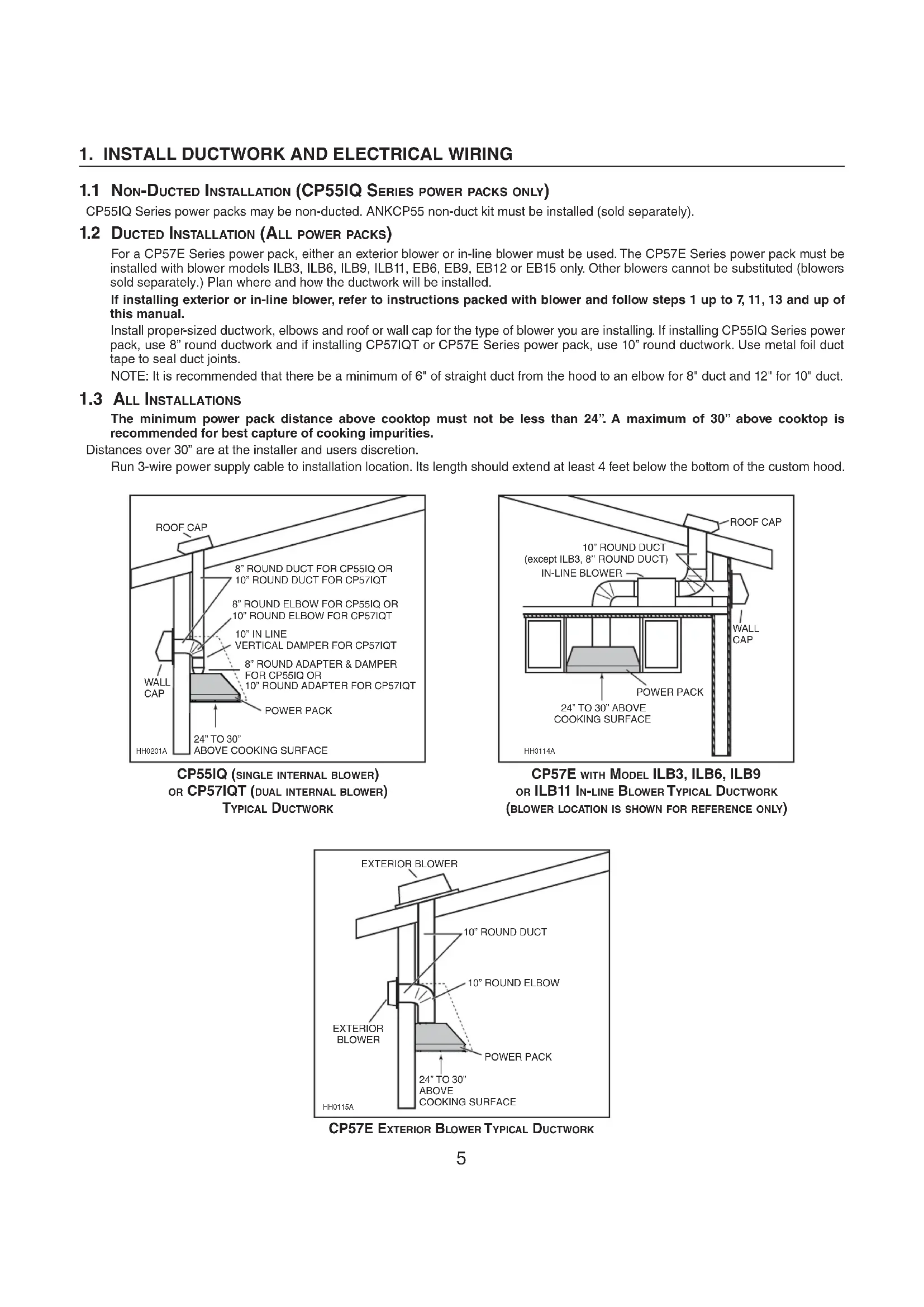

1.2 DUCTED INSTALLATION (ALL POWER PACKS)

For a CP57E Series power pack, either an exterior blower or in-line blower must be used. The CP57E Series power pack must be installed with blower models ILB3, ILB6, ILB9, ILB11, EB6, EB9, EB12 or EB15 only. Other blowers cannot be substituted (blowers sold separately.) Plan where and how the ductwork will be installed. If installing exterior or in-line blower, refer to instructions packed with blower and follow steps 1 up to 7, 11, 13 and up of this manual. Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. If installing CP55IQ Series power pack, use 8” round ductwork and if installing CP57IQT or CP57E Series power pack, use 10” round ductwork. Use metal foil duct tape to seal duct joints. NOTE: It is recommended that there be a minimum of 6" of straight duct from the hood to an elbow for 8" duct and 12" for 10" duct.

1.3 ALL INSTALLATIONS

The minimum power pack distance above cooktop must not be less than 24’’. A maximum of 30” above cooktop is recommended for best capture of cooking impurities. Distances over 30” are at the installer and users discretion. Run 3-wire power supply cable to installation location. Its length should extend at least 4 feet below the bottom of the custom hood.

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves. NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer. Make sure that the following items are included: - Power Pack - Accessories • Hybrid baffle filters with handles (3 for 36’’ width power pack, 4 for 42’’ width power pack and 5 for 48” to 66” width power packs)

• 8” round adapter and damper (included with CP55IQ power pack series)

• 10” round in-line vertical damper (included with CP57IQT power pack series)

• 10” round adapter (included with CP57IQT power pack series)

• Bag of parts including: 1 wire clamp, 2 wire connectors, 4 no. 8 x 3/8” screws, 9 no. 8 x 1/2” chrome plated screws, 10 no. 8-32 x 1/4” screws (not used with this product, please discard). Parts sold separately:

• ACR2 remote control kit

• In-line blower assembly model ILB3, ILB6, ILB9 or ILB11.

• Exterior blower assembly model EB6, EB9, EB12 or EB15.

• Ducts, elbows, wall and roof caps. Refer to page 3 and 4 for a complete list of venting options and model numbers.

• Non-duct kit ANKCP55 Series, mandatory for non-ducted installation. NOTE: During installation, protect countertop and/or cooktop.

When building a custom hood, always follow all applicable construction codes and standards. The custom hood must be constructed to fit the size and shape of the CP55IQ, CP57IQT or the CP57E power pack. See chart and illustration for details.

• Dimensions A and B include rivets head. To minimize the gap around the power pack, take actual width and depth measurements of power pack and add 1/16” to get D and E measurements. Cut the hole in the bottom of the cabinet according to dimensions. See chart and illustration for details.

Remove tape on filters. Remove filters from power pack and set aside. It is recommended to start with the center one(s). HH0102AHD0521 WARNING

The wood hood must be positively secured to wall studs or other wooden framework behind the drywall. Make sure it is capable of supporting its own weight and the weight of the CP55IQ, CP57IQT or CP57E. Failure to do so may cause personal injury or damage to countertop or cooktop. The CP55IQ, CP57IQT and CP57E power pack is supported by the custom hood internal framework with screws provided in parts bag. Since the CP55IQ, CP57IQT and CP57E power pack mounting holes are located in front and rear sides (see illustration at right), plan to install wood frame at front and sides for support.

6. REMOVE GREASE DRIP RAIL

A. Lift grease drip rail to disengage it from the bottom panel. B. Slide grease rail all the way to the left or right () and lift the opposite end to disengage the other end from the bottom panel (). Remove it from the power pack and set aside for later use.

7. REMOVE BOTTOM PANEL

Using a Phillips screwdriver, remove both bottom panel retaining screws and set aside. Disassemble bottom panel from power pack and set aside.

From inside the power pack, remove the wiring box cover by removing 2 retaining screws and set aside. Punch out the electrical knockout hole on top of the power pack. Install the wire clamp (included in parts bag).

9. INSTALL THE 8” ADAPTER/DAMPER (CP55IQ SERIES ONLY)

Using 4 no. 8 x 3/8” screws from parts bag, assemble the adapter/damper on the top of the power pack. To ensure proper opening of the dampers, remove shipping tape if present. Seal all joints with metal foil duct tape to eliminate air leaks. HR0027HJ0016

MOUNTING SCREW LOCATIONS

10. INSTALL THE 10” ADAPTER (CP57IQT SERIES ONLY)

Using 2 no. 8 x 3/8” screws from parts bag, assemble the adapter on the top of the power pack. Seal all joints with metal foil duct tape to eliminate air leaks. NOTE: For a non-ducted installation, do not install the 10” in-line damper. Install 10” in-line damper inside the vertical ductwork that will be attached to power pack. Do not install in a horizontal ductwork or it will not open and close properly. Remove shipping tape if present. Secure the damper to the duct with 3 no. 8 sheet metal screws (not provided). Ensure damper opens and closes freely. Seal all joints with metal foil duct tape to eliminate air leaks. 10" min. recommended HJ0073A

Position the power pack below the installed custom hood. WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. INTERNAL BLOWERS: Insert the house wiring cable through the wire clamp previously installed in step 8. Tighten the wire clamp to secure the cable. Connect cable into wiring box using wire connectors. Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw. DO NOT FORGET TO CONNECT THE GROUND. Reinstall wiring box cover.IN-LINE OR EXTERIOR BLOWERS: See instructions included with blower.HE0059Refer to the instructions included with the selected blower/rough-in kit (sold separately) for details on installing the rough-in plate. Install the rough-in plate so that the wiring box is located on the right side when facing the hood, as specified on the blower housing label.

HD0522WIRING BOX COVERLOCK NUTS

CAUTION Take care not to kink ducting when installing the power pack. Using provided no. 8 x 1/2” chrome plated screws, install the power pack inside the custom hood. Start with 2 screws on front corners, then use 4 screws for sides and use the remaining screws to finalize securing the front power pack. (See figure at right for mounting screw specific locations.)Make sure the adapter/damper (or the adapter) enters the ducting. When there is access to the top of the power pack, seal connections with metal foil duct tape.HH0102A MODEL CP55IQ ONLY: If the model CP55IQ is to be installed with a non-duct kit, install a 8” to 7” reducer (included in non-duct kit) prior to install the power pack in its custom hood.10

16. REINSTALL BOTTOM PANEL

Lift the bottom panel and engage the power pack metal tabs in bottom panel slots, as shown in details A and B below.Secure the bottom panel to the power pack using its screws previously removed in step 7.HO0224RETAINING SCREW LOCATIONSHO0121 SIDE VIEW

17. REINSTALL GREASE DRIP RAIL

A. Insert one end of grease rail in power pack side () while lifting the other end over the bottom panel edge ().B. Center the grease drip rail over the bottom panel edge and flip it to snap in place.

15. PERFORM THE EXTERNAL BLOWER CONNECTIONS (CP57E SERIES ONLY)

To install the blower see instructions included with the blower.Plug the 3-prong plug cord from rough-in plate to the 3-prong male connector inside the power pack (A) and the 2-prong male connector cord from rough-in plate to the 2-prong plug inside the power pack (B). WARNING Do not plug the two cords together.

CAUTION Remove protective plastic film covering hybrid baffle filters before installing them. It is recommended to install side filters first and finish with center one(s).1. Insert one end of hybrid baffle filter into the front channel of the power pack.2. Raise the other end toward the inside of power pack and insert in the grease drip rail of the power pack. HD0526

NOTE: Calibration is for ducted installations only. Do not calibrate non-ducted installations.After the power pack is installed and wired, engage the calibration process (our Guaranteed Performance System Technology to ensure full-rated airflow is being delivered). Prior to calibration, ensure that all filters and duct system are installed.CALIBRATION PROCESSHold the calibration button for 3 seconds; calibration button will light up and stay on for up to 13 minutes. The blower will start and begin the calibration process. When calibration is complete, one of two things will occur:A. The blower turns off and calibration button light turns off = Successful calibration.B. The blower turns off and calibration button light blinks continuously = Too much restriction in the ductwork is preventing the IQ Blower System™ from achieving the rated airflow. The blower is automatically set to maximum intensity.NOTE: Common items that cause restrictions: restricted damper flap (backdraft damper, wall cap, roof cap), too many elbows, duct size less than 80% of hood outlet, poor transition, use of flex ducting and/or crushed ducting.Two options are available: 1. Press the calibration button to accept airflow as is. The IQ Blower System™ is now configured to its highest possible setting. The blinking calibration light goes out.2. Correct duct restriction and repeat the calibration process. a. To clear the original calibration data, hold calibration button for 10 seconds. The light will blink 3 times to confirm and the blower configuration will go back to default settings. b. Repeat calibration process.HC0071CALIBRATION BUTTONCALIBRATION LIGHT12

Hybrid Baffle Filters The hybrid baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Remove hybrid baffle filters by pushing them towards the back of power pack and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them in the power pack. Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty. Grease Drip Rail The grease drip rail should be cleaned frequently. Remove it from the power pack (see step 6 on page 7) and use a warm detergent solution. As with the baffle filters, wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it in the power pack. Interior Blower(s) Cleaning Remove the filters in order to access the blower(s). Vacuum blower(s) to clean. Do not immerse in water. Power pack cleaning Stainless steel cleaning: Avoid when choosing a detergent: - Any cleaners that contain bleach will attack stainless steel. - Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly. - Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range. Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.

• Always clean in the direction of original polish lines.

• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.

• You may also use a specialized household stainless steel cleaner. Don’t:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.

• Use any harsh or abrasive cleansers.

• Allow dirt to accumulate.

• Let plaster dust or any other construction residues reach the power pack. During construction/renovation, cover the power pack to make sure no dust sticks to stainless steel surface.

This power pack is equipped with LED lamps which require no maintenance. WARNING

Do not touch lamps during or soon after operation. Burns may occur.13

Always turn your blower on before you begin cooking to establish an airflow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. HC0016SPEED 1 2 3 4 BA C D E A. BLOWER DELAY-OFF BUTTON: When blower is on, press the delay-off button to activate the delay-off function. The corresponding speed indicator LED will start flashing to indicate this function is activated. The fan will continue to operate for 10 minutes and will stop automatically. To cancel the delay-off function, press the blower delay-off button once again; the blower will then work in normal mode. NOTE: The blower speed can be increased—or decreased—during delay-off mode without starting another 10-minute cycle. B. ON BLOWER/SPEED CONTROL BUTTON: Press this button to turn on the blower at the last selected speed. To change the blower speed, press the button again until the desired speed is obtained. Press and hold this button for 2 seconds to decrease the speed level down by one increment. Possible decreases are then: 4 to 3; 3 to 2; 2 to 1 and 1 to OFF. NOTES: 1. Each time you press the speed control button, the speed changes by increments of 1 (e.g.: speed 1 to speed 2, to speed 3, and then speed 4). From the fourth speed, the speed goes down to level 1. 2. The last speed used is kept in memory so that when the unit is turned on, it will return to the last setting except the fourth, the next time the blower will be turned on, it will return to speed 3. The memorized speed level is also synced with the optional remote control. HEAT SENTRY™ The power pack is equipped with a protective device that activates when excessive heat is detected inside the power pack. During the Heat Sentry activation, this device takes control of the blower and set it on speed 4; the speed 4 button LED will flash. The blower will remain on speed 4 until the heat is back to normal, it then returns to the speed previously selected. C. OFF BLOWER/FILTER MAINTENANCE BUTTON: Press this button to turn off the blower. Pressing this button also cancels the delay-off function (if activated). NOTE: After 30 hours of operation, the 4 blower speed lights will flash 30 seconds to indicate the filters need to be cleaned in order to maintain efficient power pack operation. Pressing this button will reset the code to indicate that maintenance has been completed. D. OFF LIGHTING: Press this button to turn the lamps off. E. ON LIGHTING: Press this button to turn the lamps on; all 3 control LED will light on. NOTE: There is only one light setting. WARNING

The HEAT SENTRY can start the blower during a range top fire or other excessive heat situations even if the power pack is turned off. In this case, it is impossible to turn the blower OFF with blower button. If you must stop the blower on CP55IQ/CP57IQT series models: set the main power switch located behind the baffle filters in OFF position, if it is possible to do safely (see illustration below). For CP57E series models: do it from the main electrical panel. A) Blower delay-off button B) ON blower/Speed control button C) OFF blower/ Filter maintenance button D) OFF lighting E) ON lighting

22. OPERATION (CONT’D)

REMOTE CONTROL:The power pack can also be operated using the optional ACR2 remote control.When a button is pressed on the remote control, it sends a coded signal to the receiver (factory installed on the power pack), indicating which function to activate. ¤ : Activates/deactivates delay-off. - : Decreases blower motor speed until turned OFF (4 to 3, 3 to 2, 2 to 1 and 1 to OFF).+ : Turns blower motor ON and increases speed (OFF to 1, 1 to 2, 2 to 3, 3 to 4). : Turns ON/OFF the lamps.1 : LED indicator (lights up blue when signal is transmitted to power pack).NOTE: For more information, refer to the instructions included with the remote control.Install the battery.Before it can be used, the remote control has to be linked to the power pack following the procedure below. INKING PROCEDURE (to a specific power pack):1- Turn lights and blower off.2- Press and hold the remote control button for 3 seconds (the LED indicator lights up). 3- Press and hold power pack button A for 3 seconds to confirm link. Lighting LED indicators 1 and 3 will then blink 3 times as a completion feedback. Linking procedure needs to be confirmed within 30 seconds, otherwise it will be cancelled. NOTES: 1. Pressing power pack button A for 3 seconds will not enter the linking mode. The linking mode can only be activated from the remote control button.

2. Since the code is randomly assigned, it may be necessary to repeat the procedure in apartments or condos where many

products controlled by a remote control are close to each other. NLINKING PROCEDURE:1- Turn lights and blower off. 2- Press and hold power pack button E for 10 seconds. Lighting LED indicator 2 will then blink 3 times as a completion feedback. HC0070

MAIN SWITCH WHT WHT WHT BLK BLK BLU ORG

Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. Best CP55IQ Series (single blower)16

MAIN SWITCH WHT WHT WHT BLK BLK BLU ORG

Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. Best CP57IQT Series (dual blower)17

BLK BLK BLK WHT WHT BLK BRN GRY

Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. Best CP57E Series18

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone genuine replacement parts only. Broan-NuTone genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone recommends to contact a certified service depot for all replacement parts and repairs. KEY NO.

Best CP57E Series HL0212

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone genuine replacement parts only. Broan-NuTone genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone recommends to contact a certified service depot for all replacement parts and repairs.KEY NO.

Broan-NuTone LLC (“Broan-NuTone”) warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions. The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to another. Any modification performed on this product without the authorization of Broan-NuTone will void this warranty. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. Best
