CONTENTS

EN

Safety and important precautions 20

Installation 23

Unpacking 23

Building in 23

Connection 23

Use 24

Control panel glossary 24

Power management. 25

Choice of cookware 25

Burner selection. 25

Switching on and off 26

Power setting. 26

Horizone / Duozone 26

Setting the timer. 27

Elapsed time key 27

Locking the controls 27

Clean lock function 28

ICS function 28

Recall function 28

Switch function 28

Boil function 28

Safety devices and recommendations. 29

Care 31

Problems 32

Environment 33

Customer service department 34

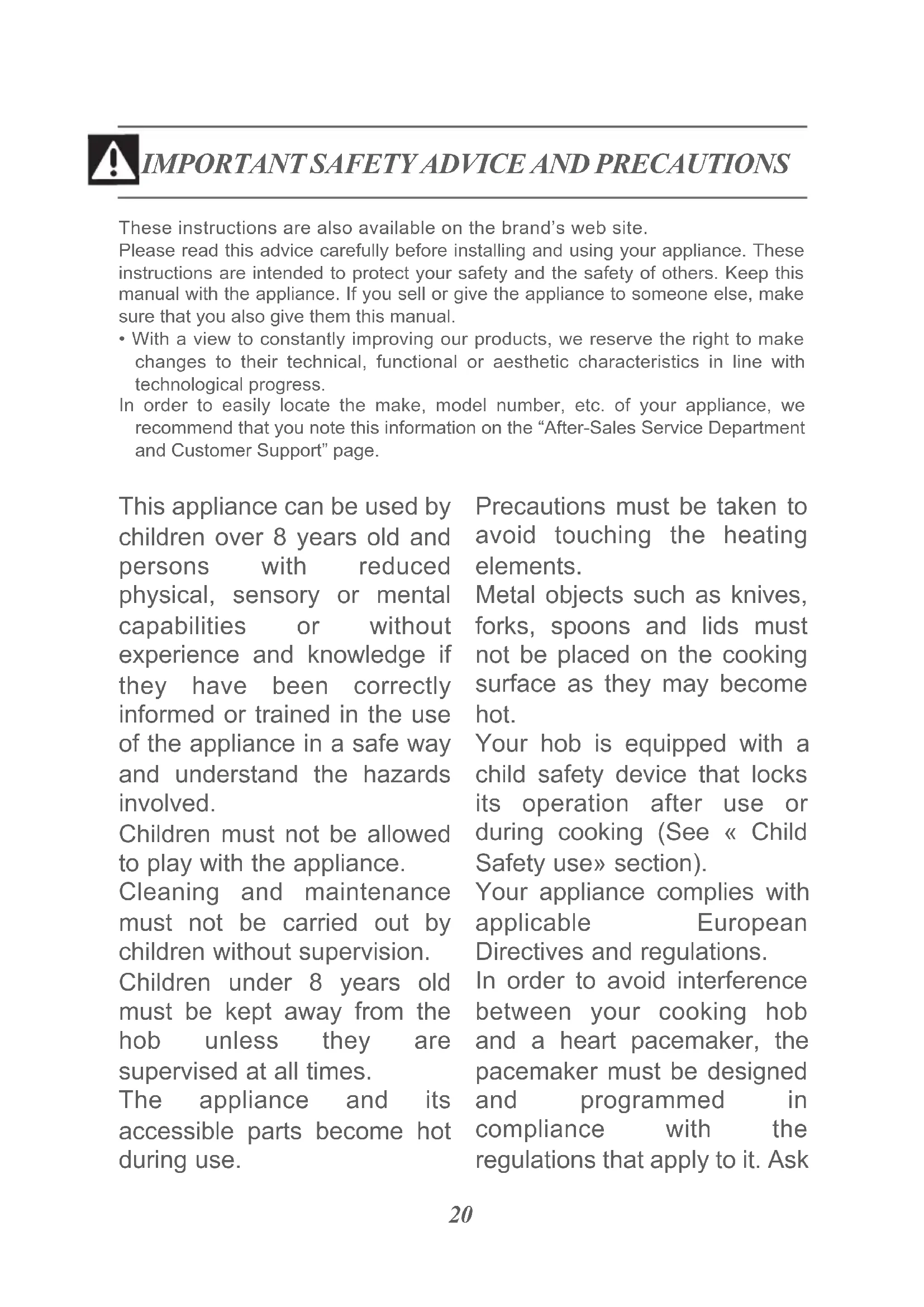

IMPORTANT SAFETY ADVICE AND PRECAUTIONS

These instructions are also available on the brand's web site.

Please read this advice carefully before installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with the appliance. If you sell or give the appliance to someone else, make sure that you also give them this manual.

• With a view to constantly improving our products, we reserve the right to make changes to their technical, functional or aesthetic characteristics in line with technological progress.

In order to easily locate the make, model number, etc. of your appliance, we recommend that you note this information on the "After-Sales Service Department and Customer Support" page.

This appliance can be used by children over 8 years old and persons with reduced physical, sensory or mental capabilities or without experience and knowledge if they have been correctly informed or trained in the use of the appliance in a safe way and understand the hazards involved.

Children must not be allowed to play with the appliance.

Cleaning and maintenance must not be carried out by children without supervision.

Children under 8 years old must be kept away from the hob unless they are supervised at all times.

The appliance and its accessible parts become hot during use.

Precautions must be taken to avoid touching the heating elements.

Metal objects such as knives, forks, spoons and lids must not be placed on the cooking surface as they may become hot.

Your hob is equipped with a child safety device that locks its operation after use or during cooking (See « Child Safety use» section).

Your appliance complies with applicable European Directives and regulations.

In order to avoid interference between your cooking hob and a heart pacemaker, the pacemaker must be designed and programmed in compliance with the regulations that apply to it. Ask

the pacemaker manufacturer or your GP.

Leaving oil or fat to cook unattended on a hob can be dangerous and lead to fire. NEVER attempt to extinguish a fire with water. Instead, switch off the appliance, then cover the flame with a lid or fire blanket.

CAUTION: cooking must be monitored. Short cooking requires constant surveillance. Danger of fire: do not store objects in the cooking zones. If the surface is cracked, turn off the appliance to avoid the risk of electric shock.

Do not use your hob until you have replaced the glass top. Avoid hard shocks from cookware: although the vitroceramic glass worktop is very sturdy, it is not unbreakable.

Do not place hot lids flat on your cooking hob. A suction effect may damage the vitroceramic surface. Avoid dragging cookware across the

surface, which could damage the decorative finish on the vitroceramic top in the long term.

Never use aluminium foil for cooking. Never place items wrapped in aluminium foil or packaged in aluminium dishes on your cooking hob. The aluminium will melt and permanently damage your appliance.

Do not store cleaning products or inflammable products in the cabinet underneath the hob.

If the power cable is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.

Ensure that the power cables of any electrical appliances plugged in close to the hob are not in contact with the cooking zones.

Never use a steam cleaner to clean your cooking hob.

The appliance is not designed

IMPORTANT SAFETY ADVICE AND PRECAUTIONS

to be switched on using an external timer or separate remote control system.

After use, turn off the hob using its control device and do not rely on the pan detector.

WARNING: Only use hob protectors designed by the manufacturer of the cooking appliance or listed as suitable in the user guide, or included with the appliance. The use of unsuitable protectors could cause accidents.

1 INSTALLATION

1.1 UNPACKING

Remove all the protective packing pieces. Check and respect the appliance's characteristics that appear on the nameplate (1.1.1).

Note the service and standard references shown on this plate in the boxes below for future reference.

Service:

Type:

1.2 BUILDING INTO A BASE UNIT

Check that the air intakes and outlets are free of obstruction (1.2.1). Comply with the information concerning the fitting dimensions (in millimetres) of the base unit intended to receive the hob.

• Fitting into the worktop See diagram (1.2.2.)

• Flush fitting into the worktop See diagram (1.2.3).

Check that air circulates correctly between the front and the back of your hob.

If you are installing the hob above a drawer (1.2.3) or above a built-in oven (1.2.4), comply with the dimensions provided on the illustrations to ensure a sufficient air outlet at the front. Glue the sealing joint to the entire surround of the hob (1.2.5), before fitting.

Fit the hob into the base unit (1.2.6).

If your hob is located above your oven, the hob's thermal safety devices can impede the simultaneous use of the hob and the oven's pyrolysis programme. Your hob is equipped with an overheating prevention safety system. This safety device can trigger, for example, when the hob is installed

over an oven that is not sufficiently insulated. The code «F7» then appears in the control zone. In such circumstances we recommend that you increase the hob's ventilation by creating an opening in the side of the cabinet (8 x 5 cm).

1.3 ELECTRICAL CONNECTIONS

These hobs must be connected to the mains via an all-pole cutoff device that complies with current installation regulations. A disconnection device must be incorporated into the fixed wiring. Identify the type of cable of your hob according to the number of wires and colours:

• 5-wire cable (1.3.1 and 1.3.2):

a) green/yellow, b) blue, c) brown, d) black, e) grey.

When power is first supplied to your hob, or after an extended power cut, a light code will appear on the control panel. Wait approximately 30 seconds or press any key on the control panel to make the information disappear and use your hob (this display is normal and is reserved for use by After-Sales Service, where applicable). In all cases, it should be disregarded.

2USE

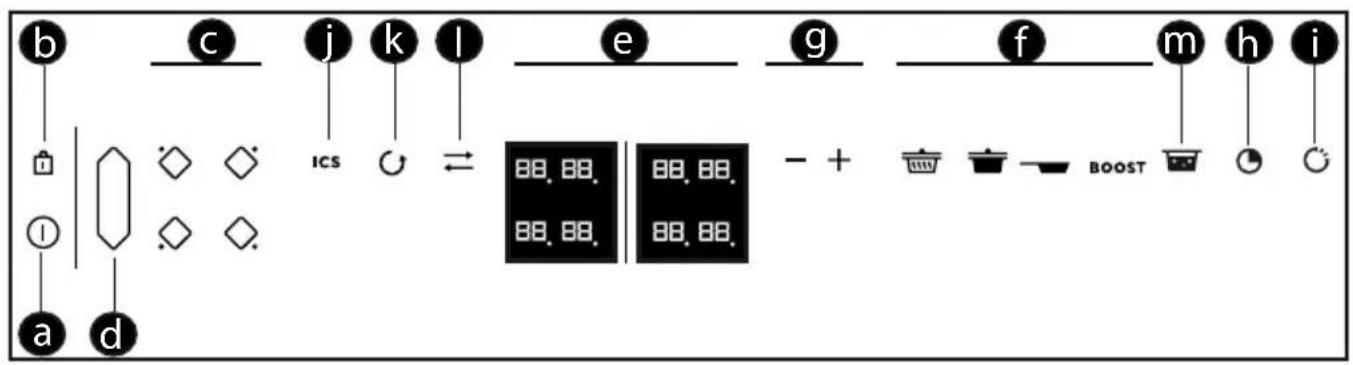

Control panel glossary

a switch on and off
Locking / Clean Lock
Choice of cooking zone
d DuoZone ou Horizone
eDisplay
Pre-selection
Power / time setting
himer
Elapsed time function
JCS function
Recall function
Switch function
Boil function

2.1 POWER MANAGEMENT

Power Management

Model 04

The total power consumed by your hob must be consistent with the power of your electrical installation.

By default, the hob's power is set to its highest level.

To increase or reduce the power level: - When applying power for the first time (within 30 seconds) press any key and the maximum power level will be displayed (2.1.1).

To reduce the power, press the - key (2.1.2) until the desired power setting is reached

To confirm, give a short press on the BOOST and buttons together

• At any other time, if your hob is in standby (with or without residual heat), press and hold the buttons together to change the power. Available power levels:

hob power in kW	Fuses / Circuit breaker (A)
7,4 32
4,6 20
3,6 13
3	13

Ensure that the power selected is ble for the hob's fuses.

Depending on the power level selected, the division of power between the cooking zones will be affected.

2.2 CHOICE OF COOKWARE

Most cookware is compatible with induction. Only glass, terracotta, aluminium without a special base, copper and some non-magnetic stainless steels do not work with induction cooking.

We suggest that you choose cookware with a thick, flat bottom. The heat will be distributed better and cooking will be more uniform. Never leave an empty pan to heat unattended.

Avoid putting cookware on the vol panel.

2.3.109OKING ZONE SELECTION

There are several cooking zones available. Select one which is suitable, based on the size of the pan. If the base of the cookware is too small, the power indicator will start to flash and the cooking zone will not work, even if the cookware's material is recommended for induction. Take care not to use pans which are smaller in diameter than the cooking zone (see table)

Diameter of cooking zone cm	Max. power of cooking zone (Watt)	Power	Diameter of bottom of cookware cm
16 2000	2400 10 - 18
18 2800	11 - 22
23 3100	3700 12 - 24
28 3700	15 - 32
Horizone	3700	3700	18 - oval - fish kettles
Duozone	3700		18 - ovale - fish kettles
1/2 zone	2800	2800 11	22

Model only

Available power levels:

Hob power in kW	Cooking zone 16 cm	Cooking zone 18 cm	Cooking zone 23 cm
7,4 2000	W 2800 W	3100 W
4,6 2000	W 2550 W	2800 W
3,6 2000	W 2400 W	2600 W
3 2000	W 2100 W	2200 W

When several cooking zones are set at the same time, the hob manages power distribution, so as not to exceed total power.

When you use maximum power (Boost) on several cooking zones at the same time, position pans to achieve the best positioning and avoid arrangements (2.3.1 - 2.3.2 - 2.3.3)

2.4 SWITCHING ON/OFF

Press the On/Off touchkey a

A "0" flashes in each zone for 8 seconds (2.4.1). If no pan is detected, select a zone (2.4.2). If a pan is detected, the «0» flashes with a dot. You can then set the power level. The cooking area heats up automatically.

Switching off a zone on the hob

Press and hold the key for zone ca long beep sounds and the display goes off or an "H" appears (residual heat).

Press the On/Off key to switch the hob off completely.

2.5 SETTING THE POWER

Press the + or - key (2.5.1) to adjust your power level between 1 and 19 or 1

and 14 (model

When switching on, you can go directly to maximum power (apart from boost) by pressing the "--" key for zone C.

Power pre-sets

There are four keys available that provide direct access to pre-set power levels:

= power 2 - Keep warm
= power 10 - Simmer
= power 19 - Sear

BOOST = maximum power (2.5.2)

These power values can be modified, except for BOOST.

Proceed as follows:

The hob must be switched off.

• Press and hold or

to select it.

• Set the new power setting by pressing on the + or - button.
• A beep will confirm your action after a few moments.

Note: Power levels must be between

1 and 3 for

4 and 11 for

12 and 19 for

For model the pre-set power levels are:

= power 2 - Keep warm
= power 8 - Simmer
= power 14 - Sear

2.6 HORIZONE / DUOZONE

Horizone Tech Duozone

The free zone is selected with touchkey

(2.6.1). The power and timer are adjusted as for a normal cooking zone.

To switch the zone off, press and hold

2USE

key a long beep sounds and the displays go off or the "H" symbol appears.

Pressing the touchkey in front of or behind the zone deactivates the function and transfers the settings to the selected zone.

2.7 SETTING THE TIMER

Each cooking zone has a dedicated timer. It can be used as soon as the cooking zone is turned on.

To switch it on or change it, press the timer h touchkey (2.7.1), and then

To make setting a very long time easier, you can go straight to 99 minutes by pressing the - touchkey.

At the end of cooking, the display indicates 0 and a warning beep sounds. To cancel this information, press any button for the particular cooking zone being used. Otherwise, they will switch off after a few seconds.

To stop the timer during cooking, press the + and - keys at the same time or return to 0 using the - key.

Independent timer

This function allows you to time an event, without cooking.

• Select a cooking zone you are not using (2.7.3).

• Press the

• Set the time with touchpad 9A "t" flashes in the display (2.7.4).

• At the end of your adjustment "t" becomes becomes fixed and the count begins.

Note:

You can stop a count in progress by keeping your finger on the touchpad of the selection on the display.

2.8 ELAPSED TIME key

This function displays the time since the power setting was last changed for a selected cooking zone.

To use this function, press the key. The elapsed time flashes in the selected zone's timer display (2.8.1).

If you want cooking to end within a

specific time, press the key and then, within 5 seconds, press + on the timer to increase the desired cooking time. The elapsed time is displayed fixed for 3 seconds and then the remaining time is displayed. A beep sounds to confirm your choice.

This function is available with or without the timer function.

Note: if the timer is showing a time, it is not possible to change it within 5

seconds of pressing After 5 seconds, the cooking time can be changed.

2.9 LOCKING THE CONTROLS

Child safety lock

Your hob has a child safety device which locks the controls when the hob is not in use or during cooking (to maintain the current settings). For safety reasons, only the stop key and the zone selection keys are still active and allow the hob or a cooking zone to be switched off.

Locking

Press key until the "bloc" locking symbol appears in one of the displays and a beep confirms the operation (2.9.1).

2USE

Table locked in operation

The display of cooking zones in operation alternately indicates power and the locking symbol.

When you press the power or timer keys for the zones which are «on»:

«bloc» appears for 2 seconds and then switches off.

Unlocking

Press key until the "bloc" locking symbol disappears from the display and a beep confirms the operation.

CLEAN LOCK function

This function locks the hob off while it is being cleaned.

To activate Clean lock:

Give a short press on key padlock).

A beep sounds and the "bloc" symbol flashes in the display.

After a predefined time, the lock will automatically disengage. Two beeps

Lock at any moment by pressing and

holding touchkey

2.10 ICS FUNCTION

Intelligent Cooking System

This function optimises the choice of cooking zone for the diameter of cookware used.

Proceed as follows:

Place the pan on the cooking zone, e.g. 28 cm dia.)

Select Boost power and possibly a cooking time.

Press the key. The "ICS" symbol appears in the display (2.10.1)

• either the zone chosen is the best one for the pan and «ICS» disappears leaving the initial cooking parameters in the display.

• or the zone chosen is not the best one for the pan and the display then indicates which zone should be used and the settings are transferred to it automatically (2.10.2).

N.B.: The hob must be cold to use this function.

2.11 RECALL FUNCTION

This function lets you display the last «power and timer» settings for all the burners which were switched off less than 3 minutes previously.

To use this function, the hob must be unlocked. Press the On/Off key and then

give a short press on key (2.11). k

When the hob is operating, the function lets you see the power and timer settings for the burner(s) which have been switched off for less than 30 seconds.

2.12 SWITCH FUNCTION

This function allows a pan to be moved from one zone to another while retaining the original settings (power and time).

Give a short press on the, key; = = = = symbols scroll through the display. Select the zone to which you wish to move the pan. The settings will be transferred to the selected zone and you can now move the pan.

2.13 BOIL FUNCTION

With this function you can boil and simmer water to cook pasta, for example.

Select a zone and give a short press on the «Boil» (2.13.1) m

The default quantity of water displayed is 2 litres, but you can change it using the +

or-(2913.2).

Set the quantity of water required (from 0.5 to 6 litres).

Confirm by pressing the Boil symbol or wait a few seconds for automatic confirmation.

Cooking starts.

A beep sounds when the water is boiling and the "Boil" symbol scrolls through the display (2.13.3).

You can then add the pasta and confirm by pressing the «Boil» key.

By default, the display shows the power and a cooking time of 8 minutes.

You can still adjust the power and the cooking time suggested.

A beep sounds out when cooking is finished.

NOTE: It is important that water is at ambient temperature at the start of cooking or the final result will be distorted.

Do not use a cast iron pan with this function.

You can also use this function to cook any food that needs to be cooked in boiling water.

Advice on how to save energy

Cooking with the correctly sized lid saves energy. If you use a glass lid, you can control your cooking perfectly.

2.14 SAFETY DEVICES AND RECOMMENDATIONS

Residual heat

After intensive use, the cooking area you have just used will remain hot for several minutes.

An "H" is displayed during this time (2.14.1).

So, avoid touching the zones concerned.

Temperature limiter

Each cooking area is fitted with a safety sensor that continuously monitors the temperature of the bottom of the pan. In the event that an empty pan is left on a zone that is switched on, the sensor automatically adapts the power delivered by the hob and limits the risk of damaging the cookware or the hob.

Spillage protection

The hob may be switched off in the following three cases:

• A spillage in the touchkey area (2.14.2)

• Damp cloth placed over the touchkeys.

• A metal object placed on the touchkeys (2.14.3).

Remove the object or clean and dry the touchkeys and then continue cooking.

In these cases, the symbol -is displayed accompanied by an audible signal.

«Auto-Stop» system

If you forget to switch off a pan, your hotplate has an "Auto-Stop" safety function that automatically switches off the forgotten cooking zone after a preset time (between 1 and 10 hours based on the power level setting).

If the safety system is triggered, the cooking zone is shown as cut off with "AS" displayed on the control panel and a beep sounds for about 2 minutes. To stop it, simply press any of the control buttons.

Sounds similar to the ticking of a clock may be heard.

These sounds occur when the hob is in operation and disappear or decrease according to the heating configuration.

2USE

Low whistling or humming may also occur depending on the model and on the quality of your pan. These noises are a normal part of induction technology and do not indicate a fault.

We do not recommend using any

hob protection mechanisms.

3 CARE

For light soiling, use a kitchen sponge. Use hot water to wet the area to be cleaned and then wipe dry.

For burnt on food deposits, sugary spills, melted plastic, use a scouring sponge and/or a special glass cleaning scraper. Use hot water to wet the area to be cleaned, use a special glass cleaning scraper to remove the dirt, finish off with a scouring sponge and then wipe dry.

For rings and limescale marks, apply warm white vinegar to the dirt, leave to work and then wipe dry using a soft clean cloth.

To keep metal shining brightly and for weekly cleaning, use a special glass and ceramic hob cleaning product. Apply the special product (which contains silicone and has a naturally protective effect) to the vitroceramic hob.

Important note: Do not use power or abrasive sponges. Use cleaning creams and special gentle washing up sponges.

When using for the first time

You notice that something appears in the display. This is normal. It will disappear after 30 seconds.

The circuit breaker trips/blows a fuse or only one side of the hob works. The hob has been wired incorrectly. Check the wiring (see connections section).

The hob gives off a smell during the first few uses. The appliance is new. Heat each zone for half an hour with a pan full of water.

When switching on

The hob does not operate and the lights on the panel remain off.

There is no power to the hob. The power supply or connection is faulty. Inspect the fuses and the circuit-breaker.

The hob does not operate and another message is displayed. The electronic circuit does not operate properly. Call the After-Sales Service Department.

The hob does not work, the "bloc" information is displayed. Unlock the child safety lock.

Fault code F9: voltage is below 170 V.

Fault code F0: temperature is below 5^

During use:

The hob does not operate. The panel displays and a beep can be heard.

There was a spillage or an object obstructing the control panel. Clean or remove the object and continue cooking.

Code F7 is displayed.

The electronic circuits have overheated (see 'building in' section).

During the operation of a cooking area, the illuminated symbols of the control panel are still flashing.

The pan being used is not suitable.

The cookware makes a noise and your hob clicks during cooking (see section on "Safety devices and recommendations").

This is normal. With certain types of pan, heat passing from the hob to the pan causes this clicking.

The ventilation continues to operate after the hob is switched off.

This is normal. It helps cool the electronics. In the event of a persistent malfunction. Switch off the hob for one minute. If the problem persists, contact the After-Sales Department.

CARE FOR THE ENVIRONMENT

This appliance's packaging can be recycled. Recycle is and so contribute to protecting the environment, by placing it in containers provided for the purpose by local authorities.

Your appliance also contains lots of

recyclable material. This logo indicates that used appliances should not be mixed with other waste.

The recycling of appliances organised by your manufacturer is carried out under the best conditions, in accordance with European Directive 2002/96/EC on the disposal of waste electronic and electrical equipment.

Contact your local authority or retailer for information on used appliance collection points close to your home.

Thank you for helping to protect the environment.

6CUSTOMER SERVICE

Any repairs made to your appliance must be carried out by a qualified professional authorised to work on the brand. When making contact, mention the complete reference of your appliance (model, type, serial number). This information appears on the manufacturer's nameplate attached to your equipment (1.1.1).

ES

ESTIMADO/A CLIENTE/A

FunciOn Clean lock 45

FunciOn ICS 45

FunciOn Recall 45

Funcion Switch 46

FunciOn Boil 46

Funcao "Clean Lock" 62

Funcao "ICS" 62

Funcao"Recall 62

Funcao "Switch" 63

Funcao "Boil" 63

Segurarca e recomendaoes 63

Manutenção 65

Avarias 66

Meio ambiente 67
