USER MANUAL RFRNGRFSE Rockford Fosgate

1230-59187-01-G2 Dear Customer, Congratulations on your purchase of the world’s finest brand of audio products. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve. For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fos- gate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use. Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connec- tors. Insist on it! After all, your new system deserves nothing but the best. To add the finishing touch to your new Rockford Fosgate image, order your Rockford accessories, which include everything from T-shirts to hats. Visit our web site for the latest information on all Rockford products; www.rockfordfosgate.com or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone]. Table of Contents If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call. Safety This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death. This symbol with “CAUTION” is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage. To prevent injury and damage to the unit, please read and follow the instruc- tions in this manual. We want you to enjoy this system, not get a headache. If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician. Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide more reasonable protection against harmful interference in a residential installation. Operation is subjected to the following two conditions: (1) This device may not cause harmful interference, and (2) the device must accept any interfer- ence received, including interference that may cause undesired operation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaran- tee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help Introduction

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound. 2 Introduction 3 Specifications 4 Design Features 5 Wiring 6 Installation/Mounting 7-10 Operation Settings Tuner (AM/FM/WB) USB-iPod AUX (Auxiliary Input) Bluetooth

11 Troubleshooting 12-31 French, Spanish, German and Italian 32 Limited Warranty Information ©2015 Rockford Corporation. All Rights Reserved. PUNCH® and associated logos where applicable, are registered trademarks of Rockford Corporation in the United States and/ or other countries. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Rockford Corporation is under license. All other trademarks are the property of their respective owners. Specifications subject to change without notice. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission. Pandora is only available in certain countries. Please visit http://www.pandora.com/legal for more information.3 Specifications Model PMX-2 Operating Voltage 10.5V - 16V Fuse Rating 20A Power Output 25 W X 4 @ 4 Ohms RMS 50 W x 4 @ 2 Ohms Peak Max. RCA Output Voltage 4V Output Impedance 500Ω Frequency Response 20 - 20kHz FM Frequency Range 87.5MHz - 107.9MHz AM Frequency Range 530kHz - 1710kHz WB Frequency Range

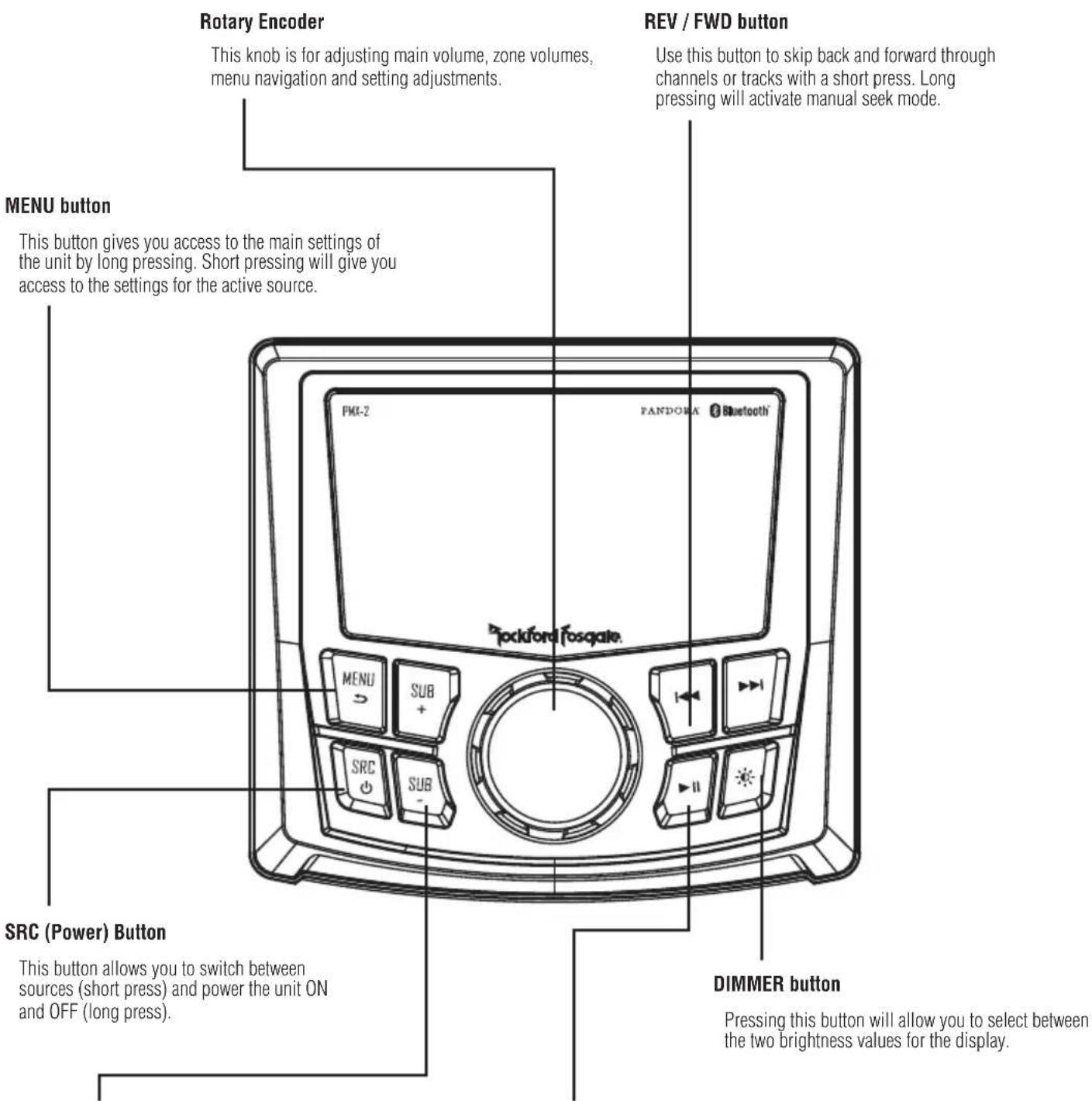

(3 Remote Limit, 100 ft Total Wired Distance) CEA 2006 Power ratings on Rockford Fosgate source units conform to CEA-2006 industry standards. These guide- lines mean your source unit’s output power ratings are REAL POWER numbers, not inflated marketing ratings.4 Design Features Rotary Encoder This knob is for adjusting main volume, zone volumes, menu navigation and setting adjustments. REV / FWD button Use this button to skip back and forward through channels or tracks with a short press. Long pressing will activate manual seek mode. MENU button This button gives you access to the main settings of the unit by long pressing. Short pressing will give you access to the settings for the active source. DIMMER button Pressing this button will allow you to select between the two brightness values for the display. PLAY / PAUSE button Press this button to play or pause your music. This button also acts as a MUTE when the source is in AUX & TUNER mode. SRC (Power) Button This button allows you to switch between sources (short press) and power the unit ON and OFF (long press). SUB Buttons These buttons allow you to adjust the subwoofer output or rear line out UP or DOWN (0-20). Fig. 15 Wiring Diagram USB RADIO ANTENNA WIRED REMOTE BLACKBLACKBLACK GREY RED BLACK RED (REAR LINE OUT RIGHT OR SUB-W OUT) WHITE (REAR LINE OUT LEFT OR SUB-W OUT) RED (FRONT LINE OUT RIGHT) WHITE (FRONT LINE OUT LEFT) RED (AUX IN RIGHT) WHITE (AUX IN LEFT) 13DIN FEMALE

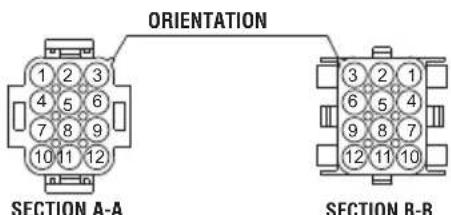

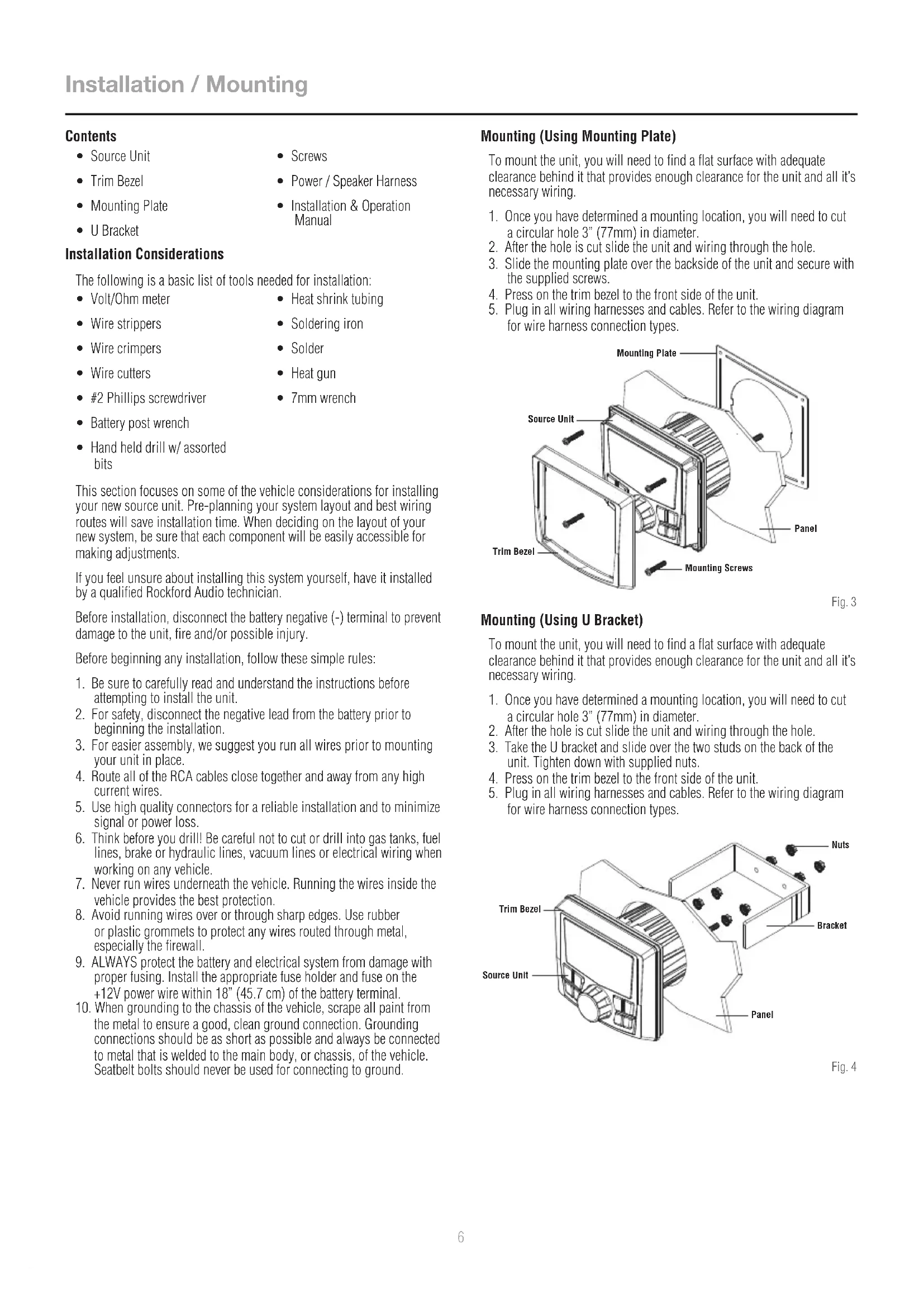

FILTER & FUSE BOX Fig. 26 Installation / Mounting Contents Installation Considerations The following is a basic list of tools needed for installation: This section focuses on some of the vehicle considerations for installing your new source unit. Pre-planning your system layout and best wiring routes will save installation time. When deciding on the layout of your new system, be sure that each component will be easily accessible for making adjustments. If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Audio technician. Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before

attempting to install the unit.

2. For safety, disconnect the negative lead from the battery prior to

beginning the installation.

3. For easier assembly, we suggest you run all wires prior to mounting

4. Route all of the RCA cables close together and away from any high

5. Use high quality connectors for a reliable installation and to minimize

signal or power loss.

6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel

lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.

7. Never run wires underneath the vehicle. Running the wires inside the

vehicle provides the best protection.

8. Avoid running wires over or through sharp edges. Use rubber

or plastic grommets to protect any wires routed through metal, especially the firewall.

9. ALWAYS protect the battery and electrical system from damage with

proper fusing. Install the appropriate fuse holder and fuse on the +12V power wire within 18” (45.7 cm) of the battery terminal.

10. When grounding to the chassis of the vehicle, scrape all paint from

the metal to ensure a good, clean ground connection. Grounding connections should be as short as possible and always be connected to metal that is welded to the main body, or chassis, of the vehicle. Seatbelt bolts should never be used for connecting to ground.

• #2 Phillips screwdriver

• Hand held drill w/ assorted bits

• Power / Speaker Harness

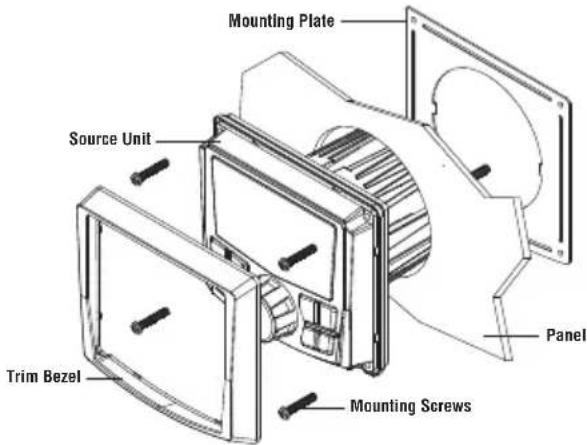

• Installation & Operation Manual Mounting (Using Mounting Plate) To mount the unit, you will need to find a flat surface with adequate clearance behind it that provides enough clearance for the unit and all it’s necessary wiring.

1. Once you have determined a mounting location, you will need to cut

a circular hole 3” (77mm) in diameter.

2. After the hole is cut slide the unit and wiring through the hole.

3. Slide the mounting plate over the backside of the unit and secure with

the supplied screws.

4. Press on the trim bezel to the front side of the unit.

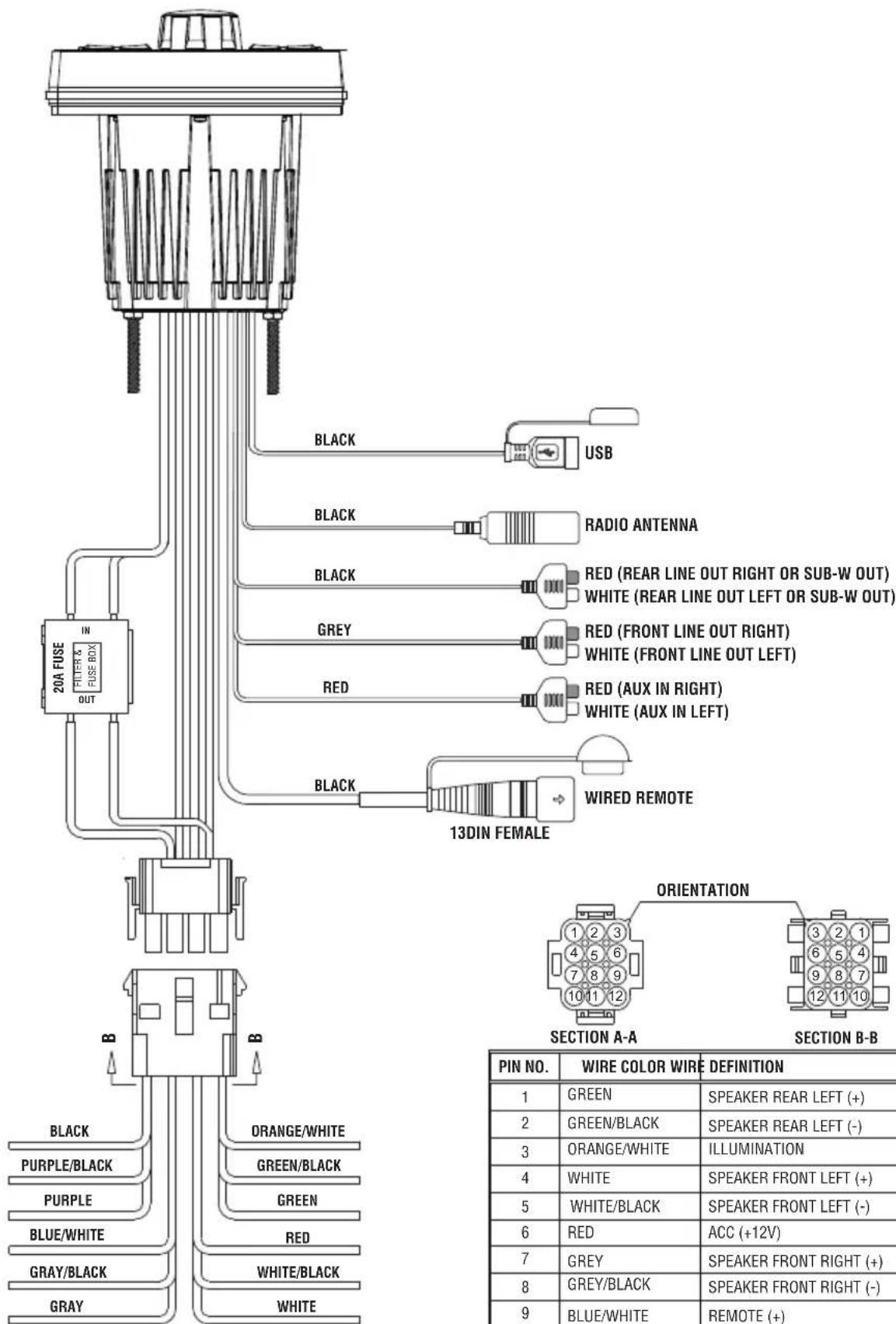

5. Plug in all wiring harnesses and cables. Refer to the wiring diagram

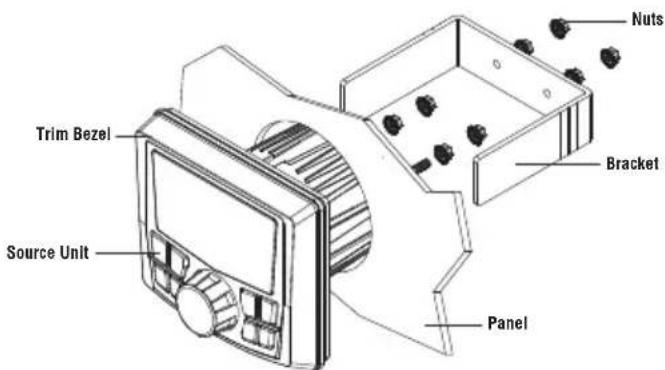

for wire harness connection types. Mounting (Using U Bracket) To mount the unit, you will need to find a flat surface with adequate clearance behind it that provides enough clearance for the unit and all it’s necessary wiring.

1. Once you have determined a mounting location, you will need to cut

a circular hole 3” (77mm) in diameter.

2. After the hole is cut slide the unit and wiring through the hole.

3. Take the U bracket and slide over the two studs on the back of the

unit. Tighten down with supplied nuts.

4. Press on the trim bezel to the front side of the unit.

5. Plug in all wiring harnesses and cables. Refer to the wiring diagram

for wire harness connection types. Trim Bezel Panel Bracket Mounting Screws Mounting Plate Source Unit Source Unit Nuts Panel Trim Bezel Trim Bezel Panel Bracket Mounting Screws Mounting Plate Source Unit Source Unit Nuts Panel Trim Bezel Fig. 4 Fig. 37 Settings Source Unit Settings To access the source unit’s settings, long press the MENU button until the options appear. Rotate the encoder to scroll through the list of settings and short press the encoder button to select the setting you wish to change. (BALANCE>FADER>AUDIO>VOLTAGE GAUGE>BT PAIRING>BEEP>TUNER REGION>SOFTWARE>FACTORY DEFAULT) This source unit has a zero current draw when turned off. All of your settings and presets will be saved along with your boat’s battery during storage. BALANCE Short press the encoder button to access BALANCE adjustment settings. Rotate the encoder button to set output BALANCE. FADER Short press the encoder button to access FADER adjustment settings. Rotate the encoder button to set output FADER. AUDIO To access the AUDIO settings, short press the AUDIO option from the MENU screen. Rotate the encoder to scroll through the list of settings and short press the encoder button to select the setting you wish to change. (7 BAND EQ>CROSSOVER>PEQ>REAR RCA>AUX INPUT>SOURCE GAIN>INTERNAL AMPLIFIER) 7 BAND EQ Short press the encoder button to access the 7 BAND EQ settings. Use the rotary encoder to scroll through the EQ settings. (FLAT > ROCK

> CLASSIC > ACOUSTIC > DANCE > ELECTRONIC > HIP-HOP >

CUSTOM) When setting up the CUSTOM EQ, short press the encoder button to set the first frequency. Once active, rotate the encoder to adjust the frequency settings. Short press encoder button again to access the next frequency. Repeat until all EQ settings are complete. Short press the MENU button to exit and go back up one level. CROSSOVER Short press to access the CROSSOVER settings. Use the rotary encoder to select the crossover zone options (FRONT>REAR>SUB). Short press the encoder to adjust the frequency of the crossover (60Hz>80Hz>120Hz>APF). Short press MENU to exit and go back up one level. REAR RCA Short press to access the REAR RCA options. Use the rotary encoder to select options (LINE OUT>SUBWOOFER). PUNCH EQ Short press to access the PUNCH EQ settings. Use the rotary encoder to adjust the gain output (0-12). Short press MENU to exit and go back up one level. Punch EQ is an onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12.5kHz AUX INPUT RENAME – To rename AUX, short press the encoder button to set the first letter of the new name. Once active, rotate encoder to adjust letters. Short press the encoder button again to set the next letter. Repeat until AUX has been renamed. Short press MENU to exit and go back up one level. ENABLE - Short press the encoder button to access options. Rotate the encoder button to select if unit is discoverable. (ENABLE > DISABLE) SOURCE GAIN To adjust the level of device input gain, scroll through the inputs (FM TUNER>AM TUNER>WB TUNER>USB>AUX>BLUETOOTH>PANDORA) to the device you want to adjust, short press the encoder button to access the gain settings. Rotate the encoder button to set the level of gain. (-3dB > -2dB > -1dB > 0dB > +1dB > +2dB > +3dB) INTERNAL AMPLIFIER Short press to access the INTERNAL AMPLIFIER options. Use the rotary encoder to select options (ON>OFF). When using an amplifier to power your speakers, select OFF. If you are powering your speakers directly from the source unit, select the INTERNAL AMPLIFIER to ON. VOLTAGE GAUGE To display the vehicle voltage, short press the encoder button on the VOLTAGE GAUGE option.

Short press the encoder button to access options. Rotate the encoder button to select if unit is discoverable for pairing. (ENABLE > DISABLE) Once enabled, the source unit is now discoverable and ready for pairing to your device. Open the Bluetooth settings on your device to find the source unit labeled “Rockford PMX” and select. BEEP Short press the encoder button to access the BEEP options. Rotate the encoder button to turn system beep ON/ OFF. TUNER REGION To adjust, short press the encoder button to access. Rotate the encoder button to select the TUNER REGION of your preference. (EUROPE > USA > RUSSIA > LATIN > ASIA > JAPAN > MIDEAST > AUSTRALIA) SOFTWARE VERSION - Short press the encoder button to display the current firmware version of the unit. UPDATE - Short press the encoder button to update the firmware. Follow the instructions on the screen when updating. FACTORY DEFAULT AUDIO – Short press the encoder button to access. Rotate the encoder button to select YES/NO. Selecting YES will reset your unit back to factory default settings. SYSTEM - Short press the encoder button to access. Rotate the encoder button to select YES/NO. Selecting YES will reset your unit back to factory default settings. Basic Operation

ADJUSTING THE VOLUME

Rotate encoder knob left or right to desired volume level (0-40). The current volume level will be displayed during adjustment.8 Settings

ADJUSTING THE SUBWOOFER OUTPUT

Short press the SCREEN BRIGHTNESS button to adjust the brightness level. There are two brightness levels.

SELECTING A SOURCE TO PLAY

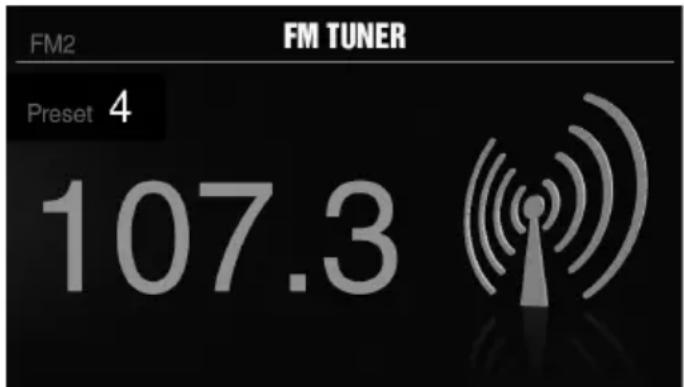

Short press the SRC button to show the different source options (FM TUNER>AM TUNER>WB TUNER>USB>AUX>BLUETOOTH>PANDORA>S IRIUSXM). Use the rotary encoder or short press the SRC button to scroll through sources. Tuner Operation (FM/AM/WB) To operate, use the rotary encoder to select the tuner source you want to listen to (FM>AM>WB). To AUTO SEEK stations, short press the FWD and REV buttons. To MANUAL SEEK stations, long press the FWD and REV buttons to tune to the desired frequency. To MUTE the TUNER, short press the PLAY/PAUSE button.

To access the FM BAND SETTINGS, short press the MENU when using the FM TUNER source. This will give you access to the settings specific to the FM TUNER (FM>PRESETS>ADD PRESETS>REMOVE PRESETS>AUTO STORE>LOCAL). PRESETS Short press the encoder button to access the PRESETS list. Using this feature allows you to see what PRESETS are saved on the unit. ADD PRESETS Short press the encoder button on the ADD PRESETS option. You will need to be on both the station and PRESET group you want to add first (FM1>FM2>FM3). Using this feature allows you to save stations to the unit. Once selected, use the rotary encoder to select the PRESET number (1-6) you want the station saved to. REMOVE PRESETS Short press the encoder button on the REMOVE PRESETS option. You will need to be under the PRESET group you want to adjust first (FM1>FM2>FM3). Using this feature allows you to remove saved stations on the unit. Once selected, use the rotary encoder to select the PRESET number (1-6) of the station you want removed.

Short press the encoder button to access the FM PRESET options (FM1>FM2>FM3). Using this feature allows you to have separate tuner preset groups to choose from. Use the rotary encoder button to scroll through the TUNER groups and short press to select the group. AUTO STORE Short press the encoder button to access the AUTO STORE function. You will need to be under the PRESET group you want to adjust first (FM1>FM2>FM3). This feature automatically stores presets on the unit. It will stop when presets 1-6 are set. Select the next PRESET group and repeat to fill next set. LOCAL Short press the encoder button to access the LOCAL options. Once selected, use the rotary encoder to select ON or OFF. The local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to distance tuning enables the unit to tune in to more distant stations. Distance tuning is the default.

To access the AM BAND SETTINGS, short press the MENU when using the AM TUNER source. This will give you access to the settings specific to the AM TUNER (AM>PRESETS>ADD PRESETS>REMOVE PRESETS>AUTO STORE>LOCAL). PRESETS Short press the encoder button to access the PRESETS list. Using this feature allows you to see what PRESETS are saved on the unit. ADD PRESETS Short press the encoder button on the ADD PRESETS option. You will need to be on both the station and PRESET group you want to add first (AM1>AM2). Using this feature allows you to save stations to the unit. Once selected, use the rotary encoder to select the PRESET number (1-6) you want the station saved to. REMOVE PRESETS Short press the encoder button on the REMOVE PRESETS option. You will need to be under the PRESET group you want to adjust first (AM1>AM2). Using this feature allows you to remove saved stations on the unit. Once selected, use the rotary encoder to select the PRESET number (1-6) of the station you want removed.

Short press the encoder button to access the FM PRESET options (AM1>AM2). Using this feature allows you to have separate tuner preset groups to choose from. Use the rotary encoder button to scroll through the TUNER groups and short press to select the group. AUTO STORE Short press the encoder button to access the AUTO STORE function. You will need to be under the PRESET group you want to adjust first (AM1>AM2). This feature automatically stores presets on the unit. It will stop when presets 1-6 are set. Select the next PRESET group and repeat to fill next set. LOCAL Short press the encoder button to access the LOCAL options. Once selected, use the rotary encoder to select ON or OFF. The local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to distance tuning enables the unit to tune in to more distant stations. Distance tuning is the default.

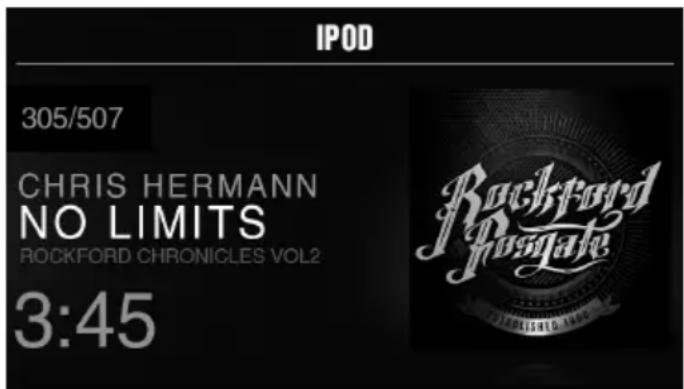

To access the WB BAND SETTINGS, short press the MENU when using the WB TUNER source. This will give you access to the settings specific to the WB TUNER (PRESETS>ADD PRESETS>REMOVE PRESETS).9 PRESETS Short press the encoder button to access the PRESETS list. Using this feature allows you to see what PRESETS are saved on the unit. ADD PRESETS Short press the encoder button on the ADD PRESETS option. You will need to be on both the station you want to add first. Using this feature allows you to save stations to the unit. Once selected, use the rotary encoder to select the PRESET number (1-6) you want the station saved to. REMOVE PRESETS Short press the encoder button on the REMOVE PRESETS option. You will need to be under the PRESET group you want to adjust first (AM1>AM2). Using this feature allows you to remove saved stations on the unit. Once selected, use the rotary encoder to select the PRESET number (1-6) of the station you want removed. USB (iPod) Operation After your device is connected to the source unit, this feature allows you to control playback from your device directly from the unit. Select the USB source option on the source unit. To play or pause a song, short press the PLAY/PAUSE button. To skip a track forward, short press the FWD button. To skip a track backwards, short press the REV button. To access USB specific settings, short press the MENU button for the list of settings (BROWSER>REPEAT>SHUFFLE). Use the encoder to select the option to change. BROWSER Short press the encoder button to access the BROWSER options (PLAY LISTS>ARTISTS>ALBUMS>GENRES>SONGS>COMPOSERS>AUDIOBO OKS>PODCASTS). Using this feature allows you to search for tracks or songs by different types of categories. REPEAT Short press the encoder button to access the REPEAT feature options (OFF>ONE>ALL). SHUFFLE Short press the encoder button to access the SHUFFLE feature options (OFF>ALL). This feature allows you to set your preference on shuffling tracks or songs. AUX Operation After your device is plugged into the source unit, this feature allows you to play music from your device. Select the AUX source option on the source unit and use your plugged in device to control song/track selection, PLAY/PAUSE and track skip FWD/REV. Bluetooth

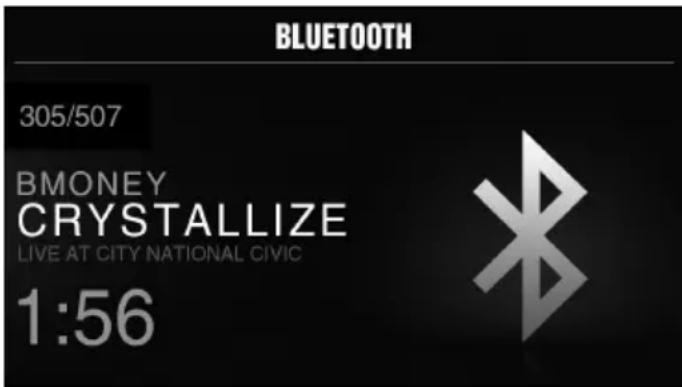

Operation After your device is paired to the source unit, this feature allows you to control playback from your device directly from the unit. Select the BLUETOOTH source option on the source unit. To play or pause a song, short press the PLAY/PAUSE button. To skip a track forward, short press the FWD button. To skip a track backwards, short press the REV button. To access BLUETOOTH specific settings, short press the MENU button for the list of settings (BROWSER>REPEAT>SHUFFLE). Use the encoder to select the option to change. BROWSER Short press the encoder button to access the BROWSER options (PLAY LISTS>ARTISTS>ALBUMS>GENRES>SONGS>COMPOSERS>AUDIOBO OKS>PODCASTS). Using this feature allows you to search for tracks or songs by different types of categories. REPEAT Short press the encoder button to access the REPEAT feature options (OFF>ONE>ALL). This feature allows you to set your preference on the amount of times a track or song will repeat. SHUFFLE Short press the encoder button to access the SHUFFLE feature options (OFF>ALL). This feature allows you to set your preference on shuffling tracks or songs. Operation10 Operation Pandora

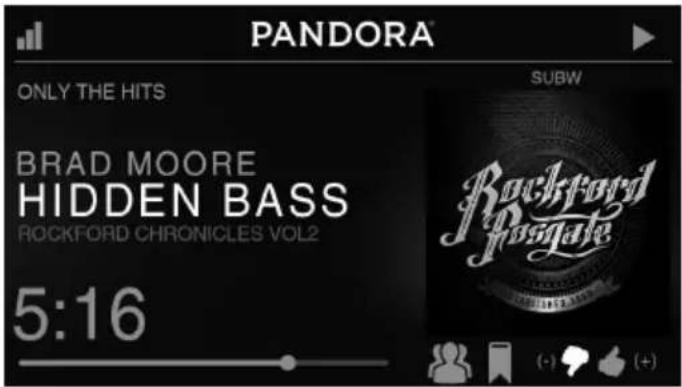

This feature allows you to control the Pandora

app from the source unit directly (Android users will have to use Bluetooth only, iOS users can use both USB and Bluetooth). You will need to start the Pandora

app on your device first, then select the Pandora

Direct Fit Speakers – 2 Years Source Units – 1 Year All other products – 1 Year Any Factory Refurbished Product – 90 days (receipt required) What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distribu- tor and not by Rockford Corporation. Who is Covered This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford’s discretion. What is Not Covered

1. Damage caused by accident, abuse, improper operations,water, theft, shipping.

2. Any cost or expense related to the removal or reinstallation of product.

3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center.

4. Any product which has had the serial number defaced, altered, or removed.

5. Subsequent damage to other components.

6. Any product purchased outside the U.S.

7. Any product not purchased from an Authorized Rockford Fosgate Dealer.

Limit on Implied Warranties Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product. How to Obtain Service Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford. EU Warranty This product meets the current EU warranty requirements, see your Authorized dealer for details. Warranty
