This section focuses on some considerations for installing your Can-Am Maverick X3 amplifier installation kit. This kit is designed to work in conjunction with Rockford's other X3 specific audio kits and parts. If you feel unsure about installing this system yourself, have it installed by a qualified technician.

When drilling holes, make sure what is on the other side. Be sure that any electrical, fuel lines or any other important components are free and clear from the area.

WARNING

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CAUTION

Before beginning any installation, follow these simple rules:

CAUTION

Be sure to carefully read and understand the instructions before attempting to install this wiring kit.

• Consult your UTV's service manual for model specific information. Models may differ from year to year depending on factory options and aftermarket accessories added.
• This amplifier installation kit is specifically designed to work with Rockford Fosgate's compact chassis amplifiers.
• With the addition of an amplifier or source unit, be sure that your current charging system is in proper working order.
• Visit rockfordfosgate.com for more comprehensive product information.
• Visit our YouTube channel for comprehensive installation videos demonstrating complete installation guides and install tips.

NEED HELP WITH YOUR INSTALLATION?

YOUTUBE VISIT OUR CHANNEL FOR A COMPLETE INSTALLATION VIDEO AND OTHER TIPS WWW.YOUTUBE.COM/USER/ROCKFORDFOSGATE

Applicable Models:

Can-Am Maverick X3 (2 & 4 seat models)

This amplifier installation kit is designed to work with Rockford Fosgate's Maverick X3 specific enclosures and dash kits. The amp kit can be installed in both 2 and 4 models under the dash to the left the steering column.

Step 1. Remove the driver side top dash panel using your Torx tool.

Step 2. Next the fuse cover will need to be removed. Simply lift up on the front of the panel.

Step 3. Remove the seat(s) on the passenger side of the vehicle using a ratchet and socket.

NOTE: On 4 seat models, both passenger side seats will need removed.

Step 4. Remove the access panels on the passenger side of the center console.

NOTE: 2 seat models will have 3 panels to remove and the 4 seat models will have 4.

Step 5. Mount the amplifier bracket to the vehicle's chassis tube just below the A-pillar area under the dash that is left of the power steering unit. The bracket will be secured with the supplied clamp system.

Step 6. Mount the amplifier to the bracket once the bracket is secured to the vehicle.

Technical diagram of a mechanical device with labeled components and assembly details

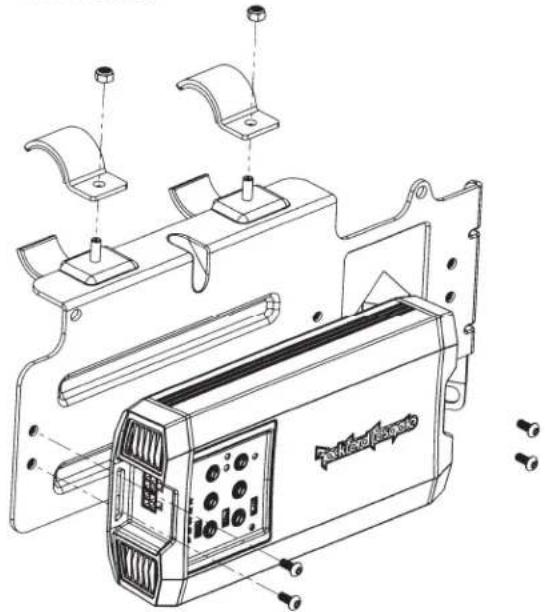

TM400X4ad mounting shown above.

Technical line drawing of a refrigerant air conditioner unit with mounting brackets and internal components (no text or symbols)

TM1000X5ad mounting shown above.

Step 7. Connect the power and ground to the battery terminals and route the wire harness down the center console toward the front of the vehicle.

NOTE: The connectors for the radio input will get routed through the fuse cover opening while the power and amplifier harness gets routed toward the drivers side. Be sure to secure all wiring with the supplied plastic wire ties.

Step 8. Plug the power/ground and input/output harnesses into the amplifier.

Step 9. Connect input connector(s) from the radio.

Step 10. Once all connections have been made, be sure to test the system and reassemble vehicle.
