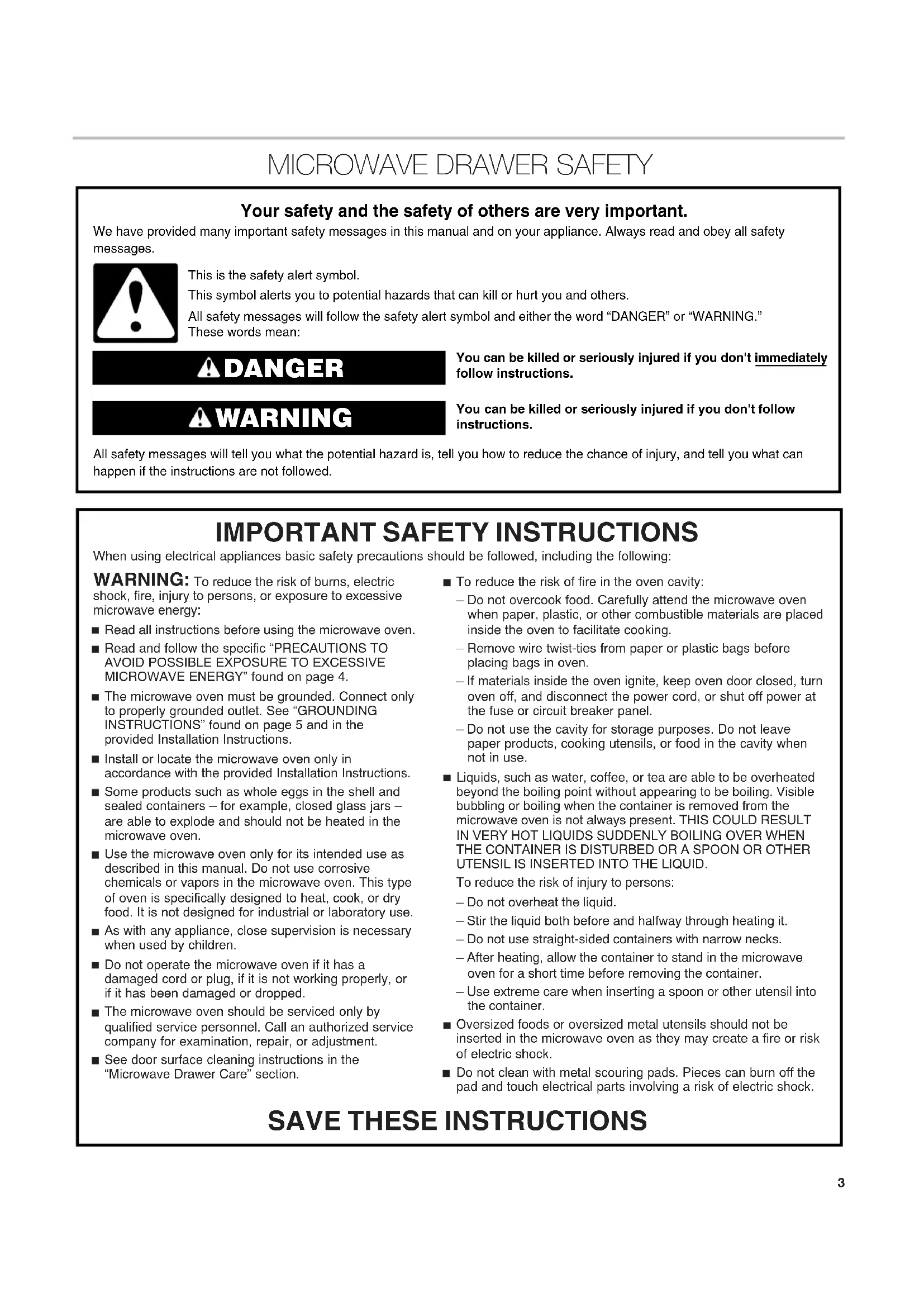

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:To reduce the risk of fire in the oven cavity:– Do not overcook food. Carefully attend the microwave ovenwhen paper, plastic, or other combustible materials are placedinside the oven to facilitate cooking.– Remove wire twist-ties from paper or plastic bags beforeplacing bags in oven.– If materials inside the oven ignite, keep oven door closed, turnoven off, and disconnect the power cord, or shut off power atthe fuse or circuit breaker panel.– Do not use the cavity for storage purposes. Do not leavepaper products, cooking utensils, or food in the cavity whennot in use.Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.To reduce the risk of injury to persons:– Do not overheat the liquid.– Stir the liquid both before and halfway through heating it.– Do not use straight-sided containers with narrow necks.– After heating, allow the container to stand in the microwaveoven for a short time before removing the container.– Use extreme care when inserting a spoon or other utensil intothe container.Oversized foods or oversized metal utensils should not be inserted in the microwave oven as they may create a fire or risk of electric shock.Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.Read all instructions before using the microwave oven.Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 4.The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 5 and in the provided Installation Instructions.Install or locate the microwave oven only in accordance with the provided Installation Instructions. Some products such as whole eggs in the shell and sealed containers – for example, closed glass jars – are able to explode and should not be heated in the microwave oven.Use the microwave oven only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.As with any appliance, close supervision is necessary when used by children.Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment.See door surface cleaning instructions in the “Microwave Drawer Care” section. You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING4

IMPORTANT SAFETY INSTRUCTIONS

Do not store any materials, other than manufacturer’s recommended accessories, in this oven when not in use. Do not store anything directly on top of the microwave oven when the microwave oven is in operation. Do not cover or block any openings on the microwave oven. Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, or similar locations. Do not immerse cord or plug in water. Keep cord away from heated surfaces. Do not let cord hang over edge of table or counter. Do not mount over a sink. Do not cover any part of the oven with metal foil. This will cause overheating of the oven.

SAVE THESE INSTRUCTIONS

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualied service personnel.5 Electrical Requirements Observe all governing codes and ordinances. Required: ■ A 120 V, 60 Hz, AC-only, 15 A or 20 A electrical supply with a fuse or circuit breaker. Recommended: ■ A time-delay fuse or time-delay circuit breaker ■ A separate circuit serving only this microwave drawer

This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The appearance of your particular model may differ slightly from the illustrations in this manual. GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For all cord connected appliances: The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can

result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. This device complies with Part 18 of the FCC Rules. This device complies with Industry Canada ICES-001.

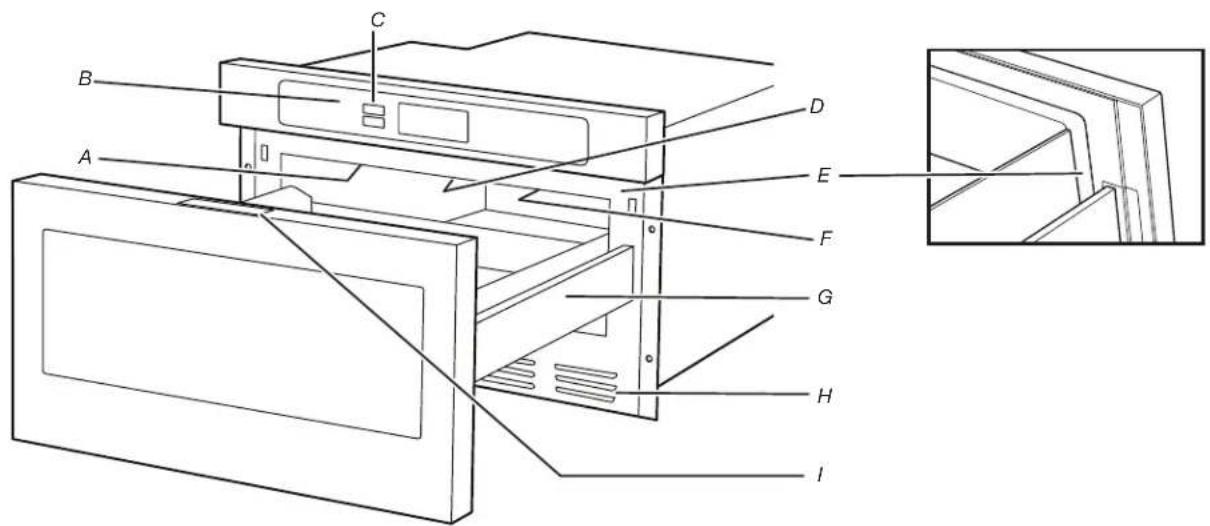

A. Microwave inlet cover — DO NOT REMOVEB. Control PanelC. OPEN and CLOSE controlsD. Name plate: open the microwave drawer fully. The label is beyond the back wall of the microwave cavity facing up from the at surface.E. Microwave drawer sealing surfacesF. Microwave drawer lightG. Microwave drawer guidesH. VentI. Cooking Guide label6

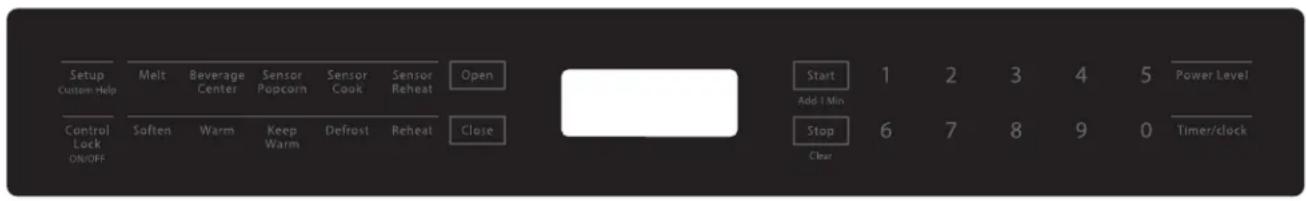

MICROWAVE DRAWER CONTROLS

This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The appearance of your particular model may differ slightly from the illustrations in this manual. Display When the microwave drawer is in use, the display shows cooking power, quantities, weights, and/or prompts. When it is not in use, the display shows the time of day. Standby Mode This microwave will go into standby mode after a period of inactivity. The backlight of the display will automatically dim after 3 minutes if the unit has not been in operation. If the display is in standby mode, simply touch the control panel or open/close the door to return the backlight to maximum brightness. Before First Use When the microwave drawer is rst plugged in, the message “Enjoy your microwave touch clear and touch clock” will scroll in the display. You will need to clear the message to set the clock. Clear display:

1. Touch Stop/Clear.

If the prompt “Enjoy your microwave touch clear and touch clock” appears at any other time, a power failure has occurred. Clear the display, and reset the clock. NOTE: The microwave drawer can be programmed with the drawer open except when using Start/Add 1 Min. Clock This is a standard 12-hour clock (12:00-11:59). To Set Clock:

1. Touch Timer/clock, then number pad 2.

2. Enter time in hours and minutes.

3. Touch Timer/clock again to complete the setting.

Start The Start control (Start/Add 1 Min) begins any cooking function. If cooking is interrupted, touching Start will resume the preset non-sensor function. NOTE: To avoid unintentional operation of the microwave drawer, the Start control will work only if a cooking cycle has ended, the drawer has been closed or Stop has been touched within the last 3 minutes. Add 1 Min The Add 1 Min control (Start/Add 1 Min) starts the microwave drawer at 100% power for 1 minute. Each additional touch of the control will Add 1 Minute of cook time. Cook time may be added in 1-minute increments to a cooking cycle at the current power level by touching Add 1 Min during the cycle. The Add 1 Min function cannot be used during Reheat, Defrost, or any sensor cycles. NOTE: To avoid unintentional operation of the microwave drawer, the Add 1 Min control will work only if a cooking cycle has ended, the drawer has been closed, or Stop has been touched within the past 3 minutes. Stop/Clear The Stop control (Stop/Clear) clears any incorrect command, pauses cooking, and cancels most functions with one touch of the control. Touch Stop twice to cancel a running cooking cycle. The microwave drawer will also turn off when the drawer is opened. Close the drawer, and touch Start to resume the non-sensor cycle. Open/Close Touch the Open or Close pad on the control panel to open or close the drawer. When opening or closing the drawer quickly, food in the microwave drawer may be spilled. To clean, refer to the “General Cleaning” section in “Microwave Drawer Care”. Timer The Timer can be set in minutes and seconds, and counts down the set time. NOTE: The Timer does not start or stop the microwave drawer. To Set Timer:

1. Touch Timer/clock, then number pad 1.

2. Enter time in minutes and seconds.

3. Touch Timer/clock again to start Timer.

Timer may be canceled at any time by touching Stop/Clear. Control Lock The Control Lock shuts down the control panel pads to avoid unintended operation of the microwave drawer. When the control is locked, only the Control Lock control will function. To Lock/Unlock Control: Touch and hold Control Lock for 3 seconds. The display will indicate the lock status. Setup The Setup control (Setup/Custom Help) provides access to the following settings: ■ Tones: Sound off or on. See the “Tones” section. ■ Reminder tones: Reminder signal off or on. See the “Tones” section. ■ Auto start: See the “Auto Start” section. ■ Demo Mode: Demo Mode on or off. See the “Demo Mode” section.7 Tones End of Cycle Tones Tones sound at the end of any cooking cycle unless turned off. To Turn Off/On Sound: Touch Setup twice, then touch Start. Reminder Tones Tones sound every 10 seconds for 1 minute, then every three minutes up to 1 hour. Touch Stop to stop the tones. To Turn Off/On Reminder: Touch Setup three times, then touch Start. Demo Mode The Demo Mode is ideal for learning how to use the microwave drawer. When Demo Mode is active, functions can be entered, with real displays and tones, without actually turning on the microwave generator (magnetron). While functions are operating in Demo Mode, the light comes on, and the display counts down the time quickly. To activate Demo Mode: Touch Setup ve times, then touch and hold Start for 3 seconds. To deactivate Demo Mode: Touch Setup ve times, then touch Start. Help Tips are available for all automatic functions. To view tips, touch Setup/Custom Help while “HELP” is lit in the display.

MICROWAVE DRAWER USE

A magnetron in the microwave drawer produces microwaves which reect off the metal oor, walls, and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar, and water molecules in the food, causing them to move, producing friction and heat, which cooks the food. ■ To avoid damage to the microwave drawer, do not lean on or allow children to swing on the microwave drawer door. ■ To avoid damage to the microwave drawer, do not operate microwave drawer when it is empty. ■ Clothes, owers, fruit, herbs, wood, gourds, paper, including brown paper bags and newspaper, should not be dried in microwave drawer. ■ The vent under the drawer must not be blocked. During microwaving, steam may come out of the right side of the vent. ■ It is normal for the exterior of the microwave drawer to be warm to the touch when cooking or reheating. ■ Parafn wax will not melt in the microwave drawer because it does not absorb microwaves. ■ Use oven mitts or pot holders when removing containers from microwave drawer. ■ Keep the microwave inlet cover clean: food residue can cause arcing and/or res (see the “Microwave Drawer Cavity” section in “Microwave Drawer Care”). ■ Baby bottles and baby food jars should not be heated in microwave drawer. Transfer baby food to a small microwave- safe dish and heat, stirring often. ■ Pierce skins of potatoes, apples, squash, hot dogs, and sausages so that steam escapes while cooking. ■ Do not overcook potatoes. At the end of the recommended cook time, potatoes should be slightly rm. Let potatoes stand for 5 minutes to nish cooking. ■ Do not cook or reheat whole eggs inside the shell. Steam buildup in whole eggs may cause them to burst, requiring signicant cleanup of microwave drawer. Cover poached eggs and allow a standing time. Food Characteristics When microwave cooking, the amount, size and shape, starting temperature, composition and density of the food affect cooking results. Amount of Food The more food heated at once, the longer the cook time needed. Check for doneness and add small increments of time if necessary. Size and Shape Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food. Starting Temperature Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods. Composition and Density Foods high in fat and sugar will reach a higher temperature, and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cooking time than the same size of a light, porous food, such as cake.8 Cooking Guidelines Cooking Time Monitor the cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite. To test for doneness, insert a thermometer in a thick or dense area away from fat or bone. Do not leave the thermometer in the food during cooking, unless it is approved for microwave use. Use the following chart when checking for doneness: FOOD RECOMMENDED TEMPERATURE Fish 145°F (63°C) Pork Ground beef/veal/lamb Egg dishes 160°F (71°C) Leftovers Refrigerated deli and carry-out “fresh” food Whole, pieces, and ground turkey/chicken/duck 165°F (74°C) Covering Covering food helps retain moisture, shorten cook time, and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels, or plastic wrap approved for microwave drawers may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking. Stirring and Turning Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top. Arranging If heating irregularly shaped or different sized foods, arrange the thinner parts and smaller sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty. Piercing Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent. Shielding Use small, at pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips and sh tail. See the “Aluminum Foil and Metal” section rst. Standing Time Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food. Cookware and Dinnerware Cookware and dinnerware must t on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using. MATERIAL RECOMMENDATIONS Aluminum Foil, Metal See “Aluminum Foil and Metal” section. Browning Dish Bottom must be at least 3/16" (5 mm) above the turntable. Follow manufacturer’s recommendations. Ceramic Glass, Glass Acceptable for use. China, Earthenware Follow manufacturer’s recommendations. Melamine Follow manufacturer’s recommendations. Paper: Towels, Dinnerware, Napkins Use nonrecycled and those approved by the manufacturer for microwave drawer use. Plastic: Wraps, Bags, Covers, Dinnerware, Containers Use those approved by the manufacturer for microwave drawer use. Pottery and Clay Follow manufacturer’s recommendations. Silicone Bakeware Follow manufacturer’s recommendations. Straw, Wicker, Wooden Containers Do not use in microwave drawer. Wax Paper Acceptable for use. To Test Cookware or Dinnerware for Microwave Use:

1. Place cookware or dinnerware in microwave drawer with

1 cup (250 mL) of water beside it.

2. Cook at 100% cooking power for 1 minute.

Do not use cookware or dinnerware if it becomes hot and the water stays cool. Aluminum Foil and Metal Always use oven mitts or pot holders when removing dishes from the microwave drawer. Aluminum foil and some metal can be used in the microwave drawer. If not used properly, arcing (a blue ash of light) can occur and cause damage to the microwave drawer. When using aluminum foil, only use small, at pieces placed smoothly on the food. Foil should not come closer than one inch to any surface of the microwave drawer. OK for Use Racks and bakeware supplied with the microwave drawer (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines: ■ To avoid damage to the microwave drawer, do not allow aluminum foil or metal to touch the inside cavity walls, ceiling, or oor. ■ To avoid damage to the microwave drawer, do not allow contact with another metal object during microwave cooking.9 Do Not Use ■ Metal cookware and bakeware ■ Gold, silver, and pewter ■ Nonapproved meat thermometers ■ Skewers ■ Twist ties ■ Oil liners such as sandwich wrappers ■ Staples ■ Objects with gold or silver trim or a metallic glaze ■ Non-heat-resistant glass ■ Plastics that are not microwave safe, such as margarine tubs ■ Recycled paper products and brown paper bags. Microwave Cooking Power Many recipes for microwave cooking specify which cooking power to use by percent, name, or number. For example, 70%=Medium-High. When using the microwave drawer at power levels below 100%, you may hear the magnetron cycling on and off: this is normal microwave operation. Use the following chart as a general guide for the suggested cooking power of specic foods. PERCENT/ NAME POWER LEVEL PAD TOUCH USE 100%, High (default setting) Once Quick-heating convenience of foods with high water content, such as soups, beverages and most vegetables. 90% Twice Cooking small tender pieces of meat, ground meat, poultry pieces, and sh llets. Heating cream soups. 80% Three times Heating rice, pasta, or stirrable casseroles. Cooking and heating foods that need a cook power lower than high. For example, whole sh and meatloaf. 70%, Medium- High Four times Reheating a single serving of food. 60% Five times Cooking sensitive foods such as cheese and egg dishes, pudding, and custards. Cooking non-stirrable casseroles, such as lasagna. 50%, Medium Six times Cooking ham, whole poultry, and pot roasts. Simmering stews. 40% Seven times Melting chocolate. Heating bread, rolls, and pastries. 30%, Medium- Low, Defrost Eight times Defrosting bread, sh, meats, poultry, and precooked foods. 20% Nine times Softening butter, cheese, and ice cream. 10%, Low Ten times Taking chill out of fruit. 0% Eleven times Sensor operation; no cook power. Manual Cooking To Use:

1. Place food in the microwave drawer, and close the drawer.

2. Enter the cook time in minutes and seconds. If cooking with

100% power, skip Step 3.

3. Touch Power Level repeatedly to set the desired cooking

power. See “Microwave Cooking Power”.

When the cycle ends, “END” will appear in the display, and the end-of-cycle tones will sound, followed by reminder tones.

5. Touch Stop or open the drawer to clear the display.

Cook time may be added in 1-minute increments during the cycle by touching Add 1 Min. Cooking in Stages The microwave drawer can be set to cook at different cooking powers for various lengths of time, up to four stages. To Cook in Stages:

1. Place food in the microwave drawer, and close the drawer.

2. Enter the length of time to cook during the rst stage.

3. Touch Power Level repeatedly to set the desired cooking

power for the 1st stage. See “Microwave Cooking Power”.

4. Repeat steps 2 and 3 for additional stages.

When the cycle ends, “END” will appear in the display, and end-of-cycle tones will sound, followed by reminder tones.

6. Touch STOP or open the drawer to clear the display.

NOTES: ■ Cook time may be added in 1-minute increments during the cycle by touching Add 1 Min. ■ To see the cook power during operation, touch Power Level. ■ Keep Warm can be added even if four stages have been set. Auto Start The Auto Start function allows you to program a cook cycle to start at a set time. To Use Auto Start:

1. Place food in the microwave drawer, and close the drawer.

2. Touch Setup/Custom Help four times.

4. Enter the cooking start time in hours and minutes.

5. Touch Timer/Clock.

6. Enter length of time to cook in minutes and seconds.

7. Touch Power Level repeatedly to set the desired cooking

power. See the “Microwave Cooking Power” section.

When the cycle ends, “END” will appear in the display, and end-of-cycle tones will sound, followed by reminder tones.

9. Touch Stop or open the drawer to clear the display.

WARNING Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness.10 Doneness Adjustment Doneness may be adjusted for every cooking program except Keep Warm. During programming, touch Power Level after food and quantity selections are made. Touch Power Level once for “MORE”, or twice for “LESS”. Reheat (non-sensor) Times and cooking power have been preset for reheating specic food types. Use the following chart as a guide.

FOOD NO. QUANTITY/INSTRUCTIONS

Fresh Rolls/ Mufns 1 1-8 pieces, 2 oz (57 g) each*. Place on paper towel. Frozen Rolls/ Mufns 2 1-8 pieces, 2 oz (57 g) each*. Place on paper towel. *For smaller rolls, two rolls may be counted as one piece. For larger or refrigerated rolls, one roll may be counted as 2 pieces. To Use Reheat:

1. Place food in the microwave drawer, and close the drawer.

3. Select food item by entering its number (see chart and/or

cooking guide label).

4. Enter quantity. Doneness may be adjusted at this time by

touching Power Level.

When the cycle ends, “END” will appear in the display, and end-of-cycle tones will sound, followed by reminder tones.

6. Touch Stop or open the drawer to clear the display.

Beverage Center Beverage Center enables you to reheat coffee or tea to restore it to a more suitable drinking temperature, or to make instant coffee or tea.

FOOD NO. QUANTITY/INSTRUCTIONS

Reheat beverage 1 0.5-2 cups (125-500 mL). Choose cook time by touching number 1 for each 0.5 cup. For example, for 1 cup of coffee, you would touch 1 twice. Hot water 2 1-6 cups (250-1500 mL). Use this setting for heating cold tap water to a temperature below the boiling point to make instant coffee or tea. Choose cook time by touching number 2 for each 1 cup of water. For example, 2 cups of water, you would touch 2 twice. To Use Beverage Center:

1. Place container with beverage or water in the microwave

drawer, and close the drawer.

2. Touch Beverage Center.

3. Touch 1 for reheating your cooled beverage, or 2 for heating

water for coffee or tea.

4. Select quantity by re-touching 1 or 2 (depending on selection)

until the correct quantity is reached. Doneness may be adjusted at this time by touching Power Level.

Defrost The automatic defrost function can be used, or the microwave drawer can be manually set to defrost. ■ Unwrap foods and remove lids (for example, from fruit juice containers) before defrosting. ■ Shallow packages will defrost more quickly than deep blocks. ■ Separate food pieces as soon as possible during or at the end of cycle for more even defrosting. ■ When using plastic containers from the freezer, defrost only long enough to remove the food from the plastic in order to place it in a microwave-safe dish. ■ Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips and sh tails. See the “Aluminum Foil and Metal” section rst. The automatic defrost function should not be used for food left outside the freezer for more than 20 minutes and frozen ready-made food. Times and cooking power have been preset for defrosting certain food types. Use the following chart as a guide.

FOOD NO. QUANTITY/INSTRUCTIONS

Ground meat 1 0.5-2.0 lbs (227-907 g). Remove wrap and place in microwave-safe baking dish. Do not cover. Steaks/ Chops 2 0.5-3.0 lbs (227 g-1.4 kg). Remove wrap and place in microwave-safe baking dish. Do not cover. Boneless poultry 3 0.5-2.0 lbs (227-907 g). Remove wrap and place in microwave-safe baking dish. Do not cover. Bone-in poultry 4 0.5-3.0 lbs (227 g-1.4 kg). Remove wrap and place breast side up in microwave-safe baking dish. Do not cover. Roast 5 2.0-4.0 lbs (907 g-1.8 kg). Remove wrap and place fat side down in microwave-safe baking dish. After each stage, turn roast over and shield the warm portions with aluminum foil. Let stand, covered, for 30 to 60 minutes. Casserole/ Soup 6 1-6 cups (250 mL-1.5 L). Remove wrap and place in microwave-safe baking dish. Do not cover. To Use the Defrost Control:

1. Place food, uncovered, in the microwave drawer, and close

3. Select food item by entering its number (see chart and/or

cooking guide label).

4. Enter the weight in tenths of a pound for Meat or Poultry,

or enter volume in cups for Casserole/Soup. See chart for quantity limits. Doneness may be adjusted at this time by touching Power Level.

5. Touch Start. The display will count down the defrost time.

During defrosting, tones will sound to indicate it is time to check, turn, rearrange or separate food. Open drawer, turn food if necessary, close door and touch Start to resume defrosting. When the cycle ends, “LET STAND COVERED” will appear in the display, and end-of-cycle tones will sound, followed by reminder tones.

6. Touch Stop or open the drawer to clear the display.

To Defrost Manually: Follow directions in the “Manual Cooking” section, and use 30% cooking power. See the “Microwave Cooking Power” chart.11 Keep Warm Hot cooked food can be kept warm in the microwave drawer. Keep Warm can be used by itself, or it can be programmed to follow a manual cooking cycle. ■ Cover plates of food and foods that were covered while being cooked. ■ For best results, do not cover baked goods such as pastries, pies, turnovers, etc. ■ Keep Warm cannot be used with Sensor Popcorn, Sensor Reheat, Sensor Cook, Defrost, or Reheat. To Use:

1. Place hot cooked food in the microwave drawer and close the

3. Enter warm time in minutes and seconds, up to 30 minutes.

4. Touch Start. The display will count down the warm time.

“KEEP WARM” will appear in the display intermittently during countdown. When the cycle ends, “END” will appear in the display, and end-of-cycle tones will sound, followed by reminder tones.

5. Touch Stop or open the drawer to clear the display.

To add to end of cooking cycle: Touch Keep Warm while setting a manual cooking cycle before touching Start. Melt/Soften/Warm Melt, Soften, and Warm automatically determine the correct heating time and microwave power level for melting, softening, and warming the foods shown in the chart below.

FOOD NO. QUANTITY/INSTRUCTIONS

Melt Place butter in a microwave-safe dish and cover with plastic wrap. Butter 1 2 tbsp-1/2 cup (30-125 mL). After touching MELT, touch 1 twice for 2 tbsp (30 mL), or three times for 1/2 cup (125 mL). Chocolate 2 1 cup (250 mL) chips or 1 square. After touching MELT, touch 2 twice for 1 cup (250 mL) chips, or three times for 1 square. Soften Do not cover. Ice cream 1 1 pint or 1/2 gallon (0.5-2 L). After touching SOFTEN, touch 1 twice for 1 pint (0.5 L), or three times for 1/2 gallon (2 L). Cream cheese 2 3-8 oz (85-225 g). After touching SOFTEN, touch 2 twice for 3 oz (85 g), or three times for 8 oz (225 g). Warm Place food in a microwave-safe dish. Do not cover. Syrup 1 1/4-1/2 cup (63-125 mL). After touching WARM, touch 1 twice for 1/4 cup (63 mL), or three times for 1/2 cup (125 mL). Dessert toppings 2 1/4-1/2 cup (63-125 mL). After touching WARM, touch 2 twice for 1/4 cup (63 mL), or three times for 1/2 cup (125 mL). To Use Melt, Soften, or Warm:

1. Place food in the microwave drawer and close the drawer.

2. Select Melt, Soften, or Warm, depending on the food item.

3. Select food item by entering its number (see chart below).

4. Select quantity by re-touching 1 or 2 (depending on selection)

until the correct quantity is reached. Doneness may be adjusted at this time by touching Power Level.

WARNING Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness.12 Sensor Cooking Information A sensor in the microwave drawer detects humidity released from the food as it heats and adjusts the cook time accordingly. Many sensor cycles require the covering of foods. Microwave-safe containers or steamers with loose-tting lids are recommended. The loose-tting lid allows enough steam to escape to be detected by the sensor. When covering foods with plastic wrap, be sure to leave a large enough vent opening to allow the steam to escape. Sensor cooking options include Sensor Popcorn, Sensor Cook, and Sensor Reheat. NOTES: ■ The microwave drawer should be plugged in for at least 3 minutes before using any sensor setting. ■ The microwave drawer cavity and the exterior of the cooking container should be dry. ■ The room temperature should not exceed 95°F (35°C). ■ Once the sensor cycle begins, the food name will appear on the display. If the drawer is opened during this time, sensing will stop and the program will be canceled. When sensing is complete, a remaining time will appear on the display. Once the time is displayed, you may open the drawer to stir or season food, if desired. ■ Check food temperature after cycle is complete. If additional time is needed, continue to cook using the manual settings. ■ Except when using Sensor Popcorn, if the sensor does not detect humidity properly, “ERROR” will be displayed, and the microwave drawer will turn off. ■ The sensor works with foods at normal storage temperature. If your food is frozen, it will need to be defrosted before using a sensor cycle. Sensor Reheat The sensor in the microwave drawer determines the reheating time based on the weight of the food being heated. Sensor Reheat will detect humidity and reheat food items from 4 to 36 oz (113-1020 g). To Use Sensor Reheat:

1. Place food, loosely covered, in the microwave drawer, and

When the cycle ends, “LET STAND COVERED” will appear in the display, and end-of-cycle tones will sound, followed by reminder tones.

4. Touch Stop or open the drawer to clear the display.

Sensor Popcorn The sensor in the microwave drawer determines the appropriate popping time of commercially packaged microwavable popcorn. This function is programmed to detect popping times for 3.5-oz (99 g), 3.0-oz (85 g) and 1.75-oz (50 g) bags. NOTE: During Popcorn function, as with all microwave cooking functions, the microwave drawer should be attended at all times. Listen for popping to slow to one pop every 1 or 2 seconds, then stop the cycle. ■ To avoid damage to the microwave drawer, do not use regular paper bags or glassware. ■ Pop only one package of popcorn at a time. ■ Follow manufacturer’s instructions when using a microwave popcorn popper. ■ For best cooking results, do not try to pop unpopped kernels. ■ Use fresh bags of popcorn for optimal results. ■ Cooking results may vary by brand and fat content. For bag sizes not listed in this section, follow directions on the package. ■ Cooking results may vary based on location of bag on the oor of the microwave drawer. Try changing bag location to achieve best results. To Use Sensor Popcorn:

1. Place popcorn bag in the microwave drawer, and close the

2. Touch SENSOR POPCORN once for Regular (2.85-3.5 oz

[81-99 g]), or twice for Snack (1.2-1.6 oz [34-45 g]). Doneness may be adjusted at this time by touching Power Level.

When the cycle ends, “END” will appear in the display, and end-of-cycle tones will sound, followed by reminder tones.

4. Touch Stop or open the drawer to clear the display.13

Sensor Cook The sensor in the microwave drawer detects humidity released from the food and automatically sets a cooking time based on the selected food category. NOTE: When covering foods, make sure the vent opening is large enough for moisture to escape. This will allow the sensor to accurately determine cooking time. Use the following chart as a guide for Sensor Cooking.

FOOD NO. AMOUNT INSTRUCTIONS

Fresh vegetables: quick 1 0.25-2.0 lbs (113-907 g) Rinse and place in microwave-safe container. Cover with lid for tender vegetables. Cover with plastic wrap and vent for tender-crisp vegetables. Stir and let stand, covered, 2-5 minutes after cooking. Fresh vegetables: longer 2 0.25-1.5 lbs (113-680 g) Place in microwave-safe container and add 1-4 tbs (30-60 mL) water. Cover with lid for tender vegetables. Cover with plastic wrap and vent for tender-crisp vegetables. Stir and let stand, covered, 2-5 minutes after cooking. Frozen vegetables 3 0.25-1.25 lbs (113-567 g) Remove from package. Place in microwave-safe container. Do not add water. Cover with lid or plastic wrap, and vent. Stir and let stand, covered, 2-3 minutes after cooking. Frozen entrées 4 6-17 oz (170-482 g) Remove from outer package and follow package directions for covering. If entrée is not in microwave-safe container, place on plate, cover with plastic wrap, and vent. Baked potatoes Sweet potatoes

1-6 medium, 10-13 oz (283-369 g) each Pierce each one several times with a fork. Place on paper towel, at least 1" (2.5 cm) apart. After cooking, remove from microwave drawer, wrap in foil, and let stand 5-10 minutes. Ground meat 7 0.25-2.0 lbs (113-907 g) Crumble meat into a microwave-safe container. Cover with plastic wrap, and vent. Microwave drawer will stop midway through cooking; stir, re-cover, and touch Start to resume cooking. After cooking, stir and let stand, covered, for 2-3 minutes. Place patties on microwave-safe rack, and cover with wax paper. Microwave drawer will stop midway through cooking; turn patties over, re-cover, and touch Start to resume cooking. Let stand 2-3 minutes, covered, after cooking. Fish/ Seafood 8 0.25-2.0 lbs (113-907 g) Thin llets and shrimp: Place in microwave-safe plate or dish with low sides. Cover with plastic wrap, and vent. Thick llets and steak: place in microwave-safe casserole dish. Cover with plastic wrap, and vent. Adjust doneness to “MORE”. White rice Brown rice

0.5-2 cups (125-500 mL) dry medium or long grain rice Follow measurements on package for ingredient amounts. Place rice and liquid (see chart below) in a deep microwave-safe bowl or casserole. Cover with loose-tting lid or plastic wrap. Let stand 5 minutes after cooking, or until liquid is absorbed. Stir. To Use Sensor Cook:

1. Place food, loosely covered, in the microwave drawer, and

3. Select food item by entering its number (see chart or cooking

guide label). See chart for quantity limits. Doneness may be adjusted at this time by touching Power Level.

The cycle may pause for turning or stirring of food. Stir or turn food, then touch Start to resume cooking. When the cycle ends, the end-of-cycle tones will sound, followed by reminder tones.

5. Touch Stop or open the drawer to clear the display.14

MICROWAVE DRAWER CARE

General Cleaning IMPORTANT: Before cleaning, make sure all controls are off and the microwave drawer is cool. Always follow label instructions on cleaning products. Soap, water, and a soft cloth or sponge are suggested unless otherwise noted. Microwave Drawer Cavity To avoid damage to the microwave drawer cavity, do not use soap-lled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths or some recycled paper towels. To avoid damage to stainless steel models, rub in direction of grain. The area where the microwave drawer and frame touch when closed should be kept clean. Average soil ■ Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth. Heavy soil ■ Mild, nonabrasive soaps and detergents: Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave drawer. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth. Odors ■ Lemon juice or vinegar: Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in microwave drawer. Microwave Inlet Cover To avoid arcing and microwave drawer damage, the microwave inlet cover (see “Parts and Features”) should be kept clean. ■ Wipe with wet cloth. Microwave Drawer Exterior The area where the microwave drawer and frame touch when closed should be kept clean. ■ Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth. ■ Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass cleaner to towel, not directly to surface. Stainless Steel (on some models) To avoid damage to microwave drawer and exterior, do not use soap-lled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths or some paper towels. Rub in direction of grain. ■ Stainless Steel Cleaner and Polish (not included): See “Assistance or Service” section to order. ■ Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth. ■ Vinegar for hard water spots. Control Panel ■ Sponge or soft cloth and water: Dampen sponge with water and wipe panel. Dry with soft cloth. ■ To avoid damage to the control panel, do not use chemical or abrasive cleansers. Microwave Drawer Guides To keep drawer opening and closing smoothly, remove crumbs from guides, and clean often. ■ Dry, soft cloth15 TROUBLESHOOTING First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual or visit https://producthelp.jennair.com. In Canada, visit http://www.jennair.ca. Contact us by mail with any questions or concerns at the address below. In the U.S.A.: JennAir Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. Problem Possible Causes and/or Solutions Nothing will operate A household fuse has blown, or a circuit breaker has tripped: Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Microwave drawer will not operate The magnetron is not working properly: Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, try the steps below. If microwave drawer still does not operate, call for service. See “Assistance or Service” section. The electronic microwave drawer control is not set correctly: See the “Microwave Drawer Control” section. The Control Lock is on (on some models): See “Control Lock” section. The Demo Mode is active (on some models): See “Demo Mode” section. Microwave drawer makes a humming noise This is normal and occurs when the power supply switches the magnetron on and off. Microwave drawer front looks wavy This is normal and will not affect performance. Display is showing “ERROR” during sensor cooking The sensor is not detecting humidity. Check the food and the cover, then start the program again. See the “Sensor Cooking” section. Fan is running slower than usual The microwave drawer has been stored in a cold area: The fan will run slower until the microwave drawer warms up to normal room temperature. Cooking times seem too long Cooking power not set properly: See “Microwave Cooking Power” section. Large amounts of food being heated: Larger amounts of food need longer cooking times. Radio, TV or cordless phone interference The radio or TV receiver is near the microwave drawer: Move the receiver away from the microwave drawer, or adjust the radio or TV antenna. The microwave drawer door and sealing surfaces are dirty: Make sure these areas are clean. The cordless phone frequency is 2.4 GHz: Some 2.4 GHz-based cordless phones and home wireless networks may experience static or noise while the microwave drawer is on. Use a corded phone, a different frequency cordless phone, or avoid using these items during microwave drawer operation. In Canada: JennAir Brand Home Appliances Customer eXperience Centre

If you need service Please refer to the warranty page in this manual. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specied parts. These factory specied parts will t right and work right because they are made with the same precision used to build every new JennAir

appliance. To locate factory specied parts in your area, call us or your nearest JennAir designated service center. In the U.S.A. Call the Customer eXperience Center toll-free: 1-800-JENNAIR (1-800-536-6247). Our consultants provide assistance with: ■ Features and specications on our full line of appliances. ■ Installation information. ■ Use and maintenance procedures. ■ Repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors and service companies. JennAir designated service technicians are trained to fulll the product warranty and provide after- warranty service anywhere in the United States. To locate the JennAir designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write with any questions or concerns at: JennAir Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the JennAir Canada LP Customer eXperience Centre toll-free: 1-800-JENNAIR (1-800-536-6247). Our consultants provide assistance with: ■ Use and maintenance procedures. ■ Repair parts sales. ■ Referrals to local dealers, repair parts distributors and service companies. JennAir designated service technicians are trained to fulll the product warranty and provide after- warranty service anywhere in Canada. For further assistance If you need further assistance, you can write with any questions or concerns at: JennAir Brand Home Appliances Customer eXperience Centre
