Brand	JENN-AIR
Model	W10469903
Product Type	Built-in Microwave Oven
Product Width (27" model)	26⅝" (67.9 cm)
Product Width (30" model)	29⅞" (75.6 cm)
Cutout Dimensions (27" model)	W 27" x H 19½" x D 21⅞" (68.6 x 49.5 x 55.5 cm)
Cutout Dimensions (30" model)	W 30" x H 19½" x D 21⅞" (76.2 x 49.5 x 55.5 cm)
Maximum Support Weight	90 lb (41 kg)
Power Supply	120 V, 60 Hz, 15 A (standard estimate)
Microwave Power	1000 W (estimate)
Frequency	60 Hz
Cavity Material	Stainless Steel
Controls	Electronic push-button
Main Functions	Cooking, reheating, defrosting
Lighting	Interior light
Care and Cleaning	Clean with a damp cloth and mild detergent; avoid abrasives
Safety	Child safety lock; automatic shut-off; complies with UL and CSA standards
Included Parts	Spacer bars (2), lower vent (1), 3/8" washer screws (4), 3/4" button head screws (4)
Repairability	Replacement parts available through Jenn-Air after-sales service
Warranty	Refer to manual for warranty details

Frequently Asked Questions - W10469903 JENN-AIR

What are the cutout dimensions for the 27-inch model?

Recommended cutout dimensions are: width 27'' (68.6 cm), height 19 1/2'' (49.5 cm), and depth 21 7/8'' (55.5 cm).

What is the weight capacity of the support?

The support surface must be able to support a weight of 90 lb (41 kg).

Is the microwave oven designed for built-in installation?

Yes, this model is designed for built-in installation. A spacer kit is included to ensure proper ventilation and support.

What tools are needed for installation?

Required tools include a Phillips screwdriver, a level, a 1/4'' hex key, a drill, a 1/8'' drill bit, and a tape measure.

Can I install the oven above another oven?

Yes, installation above a single lower oven is possible, respecting the minimum clearance distances specified in the manual.

How to clean the microwave interior?

Clean with a damp cloth and mild detergent. Avoid abrasive cleaners that could scratch the surface.

Is there a child safety lock?

Yes, this oven is equipped with a child safety lock to prevent unsupervised use.

What is the microwave power?

The microwave power is approximately 1000 W (standard estimate for this type of appliance). Refer to the rating plate for the exact value.

How to obtain replacement parts?

Replacement parts are available through Jenn-Air after-sales service or an authorized dealer.

Can the interior light bulb be replaced?

Yes, but it is recommended to call a qualified technician for replacement to avoid any electrical risk.

USER MANUAL W10469903 JENN-AIR

INSTALLATION INSTRUCTIONS ELECTRIC BUILT-IN MICROWAVE OVEN SPACER KIT

INSTRUCTIONS D'INSTALLATION TROUSSE D'ENTRETOISE POUR FOUR À MICRO-ONDES ÉLECTRIQUE ENCASTRÉ

Built-In Spacer Kit Trousse d'entretoise pour four encastré	Size and Color Dimensions et couleur	UL Listed for Model Numbers Homologation UL pour les modèles numéro
W10469901 27" (68.6 cm), stainless steel	27" (68,6 cm), acier inoxydable	KMBP107ESS
W10842584 27" (68.6 cm), limited edition	27" (68,6 cm), edition limitee en noir	KMBP107EBS
W10469903 30" (76.2 cm), stainless steel	30" (76,2 cm), acier inoxydable	KMBP100ESS
W10842586 30" (76.2 cm), limited edition	30" (76,2 cm), édition limitee en noir	KMBP100EBS

Table of Contents/Table des matieres

BUILT-IN MICROWAVE OVEN SAFETY 1

INSTALLATION REQUIREMENTS 2

Tools and Parts 2

Location Requirements 2

INSTALLATION INSTRUCTIONS 3

Assemble Spacer Kit 3

Install Spacer Kit 3

Install Microwave Oven 3

Complete Installation 4

SECURITE DU FOUR A MICRO-ONDES ENCASTRE 5

EXIGENCES D'INSTALLATION 6

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

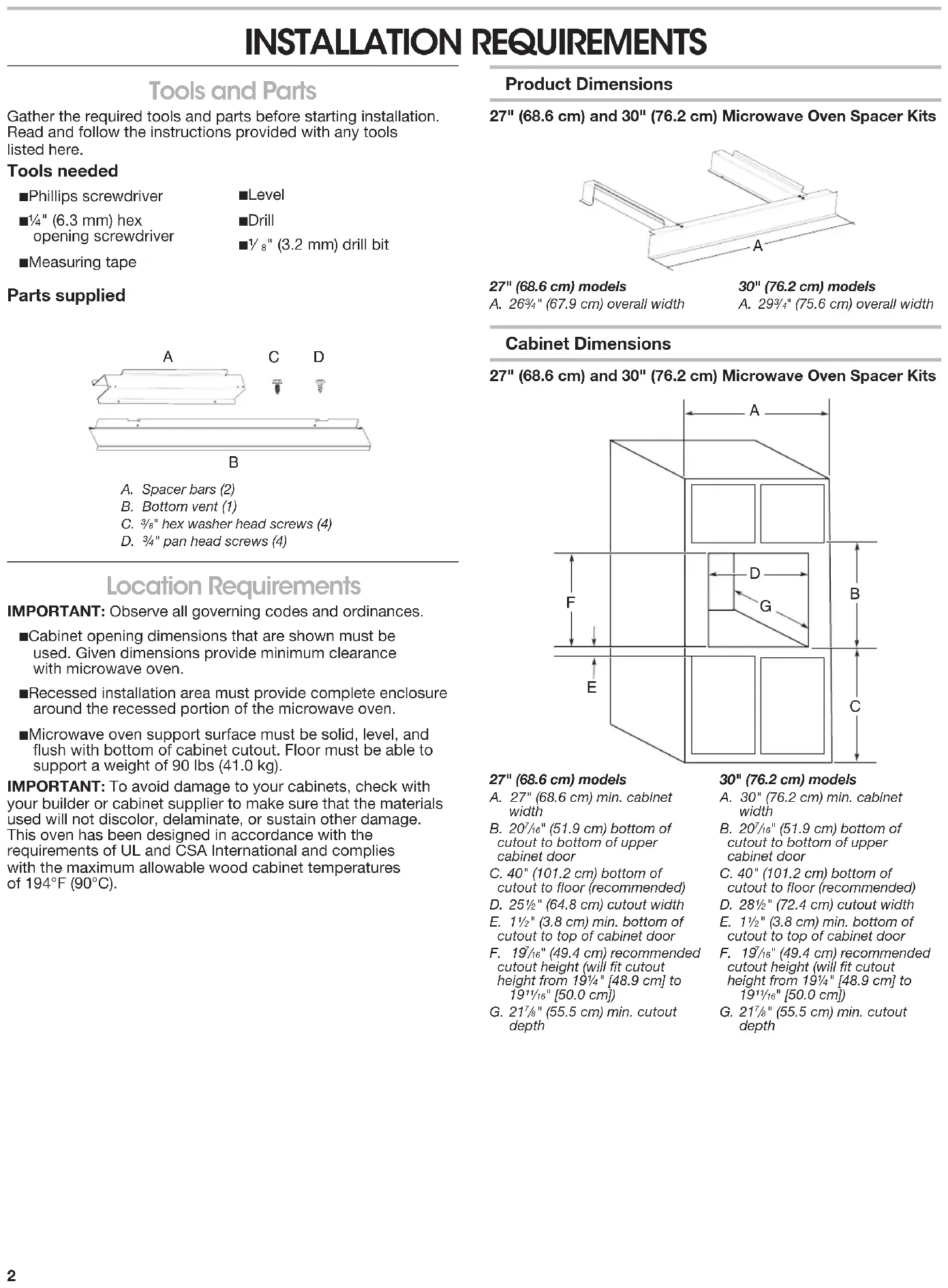

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Phillips screwdriver

Level

14" (6.3 mm) hex opening screwdriver
■Drill
1/8" (3.2 mm) drill bit

Measuring tape

Parts supplied

A. Spacer bars (2)
B. Bottom vent (1)
C. 3 / 8'' hex washer head screws (4)
D. 3 / 4 pan head screws (4)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance with microwave oven.
- Recessed installation area must provide complete enclosure around the recessed portion of the microwave oven.
Microwave oven support surface must be solid, level, and flush with bottom of cabinet cutout. Floor must be able to support a weight of 90 lbs (41.0 kg).

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate, or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ (90^) .

Product Dimensions

27" (68.6 cm) and 30" (76.2 cm) Microwave Oven Spacer Kits

27^ (68.6 cm) models

A. 26% (67.9 cm) overall width

30^ (76.2cm) models

A. 29 14 (75.6 cm) overall width

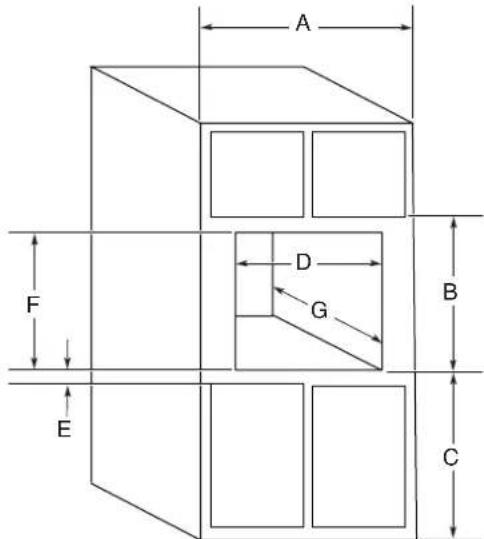

Cabinet Dimensions

27" (68.6 cm) and 30" (76.2 cm) Microwave Oven Spacer Kits

27" (68.6 cm) models

A. 27'' (68.6 cm) min. cabinet width
B. 20^7 / 6^n (51.9 cm) bottom of cutout to bottom of upper cabinet door
C. 40^ (101.2cm) bottom of cutout to floor (recommended) D. 25% 64.8 cmcutout width
E. 1 12 (3.8 cm) min. bottom of cutout to top of cabinet door
F. 19 / 16 (49.4 cm) recommended cutout height (will fit cutout height from 19 12 [48.9 cm] to 19 116 [50.0 cm])
G. 217 / 8 (55.5 cm) min. cutout depth

30^th (76.2 cm) models

A. 30'' (76.2 cm) min. cabinet width
B. 20^7 / 16 " (51.9 cm) bottom of cutout to bottom of upper cabinet door
C. 40^ (101.2 cm) bottom of cutout to floor (recommended) D. 2812'' (72.4 cm) cutout width
E. 112 (3.8 cm) min. bottom of cutout to top of cabinet door
F. 19 / 6'' (49.4 cm) recommended cutout height (will fit cutout height from 19 12'' [48.9 cm] to 19 116'' [50.0 cm])
G. 21^7 / 8 (55.5 cm) min. cutout depth

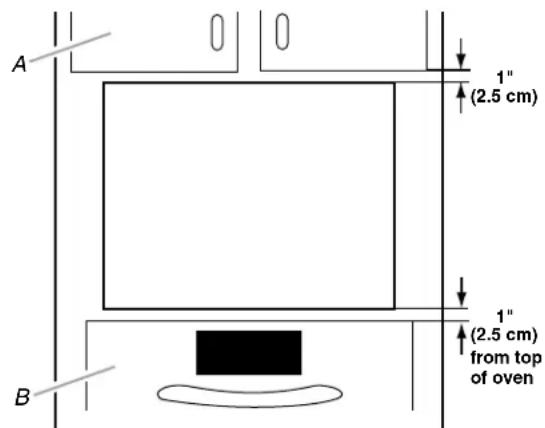

Minimum Installation Clearances

For proper installation, the following minimum clearances must exist above and below the cabinet opening.

Installation Above Single Built-In Oven

A. Upper cabinet
B. Lower single oven

INSTALLATION INSTRUCTIONS

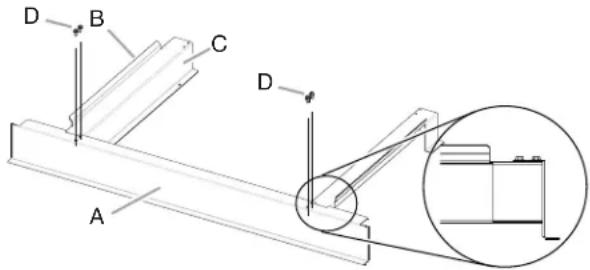

Assemble Spacer Kit

1. Attach bottom vent to spacer bars using four 3/8'' hex washer head screws.

NOTE: Spacer bar flanges should be facing out.

A. Bottom vent
B. Spacer bar flange
C. Spacer bars
D. 3 % hex washer head screws

Install Spacer Kit

1. Center assembled microwave oven spacer kit against lower, front edge of the cabinet cutout.
2. Using an 1/8'' (3.2 mm) drill bit, drill through the mounting holes in the spacer bars to create pilot holes.
3. Attach the assembled spacer kit to the cabinet using four 34 pan head screws provided. Do not overtighten screws.

A. 3 / 4 pan head screws
B. Spacer kit assembly

Install Microwave Oven

Follow the instructions below along with the instructions in the Electric Built-In Microwave Oven Installation Instructions.

Read the "Electrical Requirements" and "Electrical Connection" sections along with all other sections of the Installation Instructions before installing the microwave oven.

WARNING

Excessive Weight Hazard

Use two or more people to move and install microwave oven.

Failure to do so can result in back or other injury.

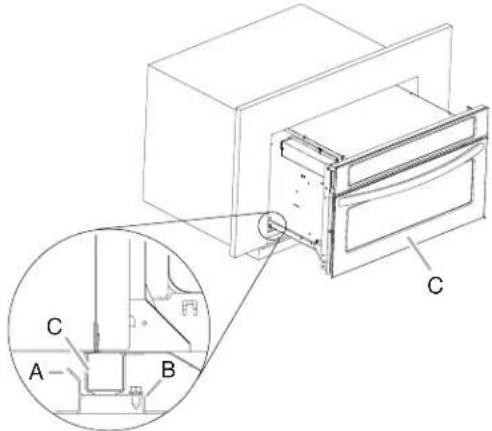

1. Using 2 or more people, lift microwave oven partially into cabinet cutout above spacer kit and place microwave oven in between spacer bar flanges.

NOTE: Open microwave oven door and push against seal area of microwave oven front frame when pushing microwave oven into cabinet. Do not push against outside edges.

1. Push against the front frame of the microwave oven to push oven into cabinet. Push microwave oven completely into cabinet and center in cabinet cutout.

A. Spacer bar flange
B. Spacer bar
C. Microwave oven

Complete Installation

1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.

If you need Assistance or Service:

Please reference the "Assistance or Service" section of the Use and Care Guide, or contact the dealer from whom you purchased your built-in microwave oven spacer kit.
