Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Technical diagram of a mechanical or electronic component with internal channels and directional arrows (no text or symbols)

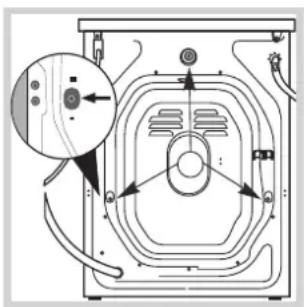

1. Remove the 3 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^ .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

1. Connect the supply pipe by screwing it to a cold water tab using a 34 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

Diagram of a pipe valve with directional arrow indicating flow or movement (no text or symbols)

1. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical details table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

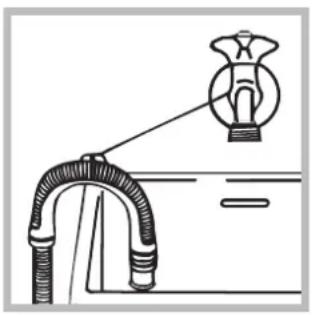

Diagram of a pipe connection with a hanging object (no text or symbols)

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

Technical data
Model	IWD 6103
Dimensions	width 59.5 cmheight 85 cmdepth 52,5 cm
Capacity	from 1 to 6 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 46 litres
Spin speed	up to 1000 rotations per minute
Energy rated programmes according to regulationEN 60456	programme 2; temperature 60°C; using a load of 6 kg.
	This appliance conforms to the following EC Directives:- 89/336/EEC dated 03/05/89(Electromagnetic Compatibility) and subsequent modifications- 2002/96/EC- 2006/95/EC Low Voltage)

Description of the washing machine and starting a wash cycle

Control panel

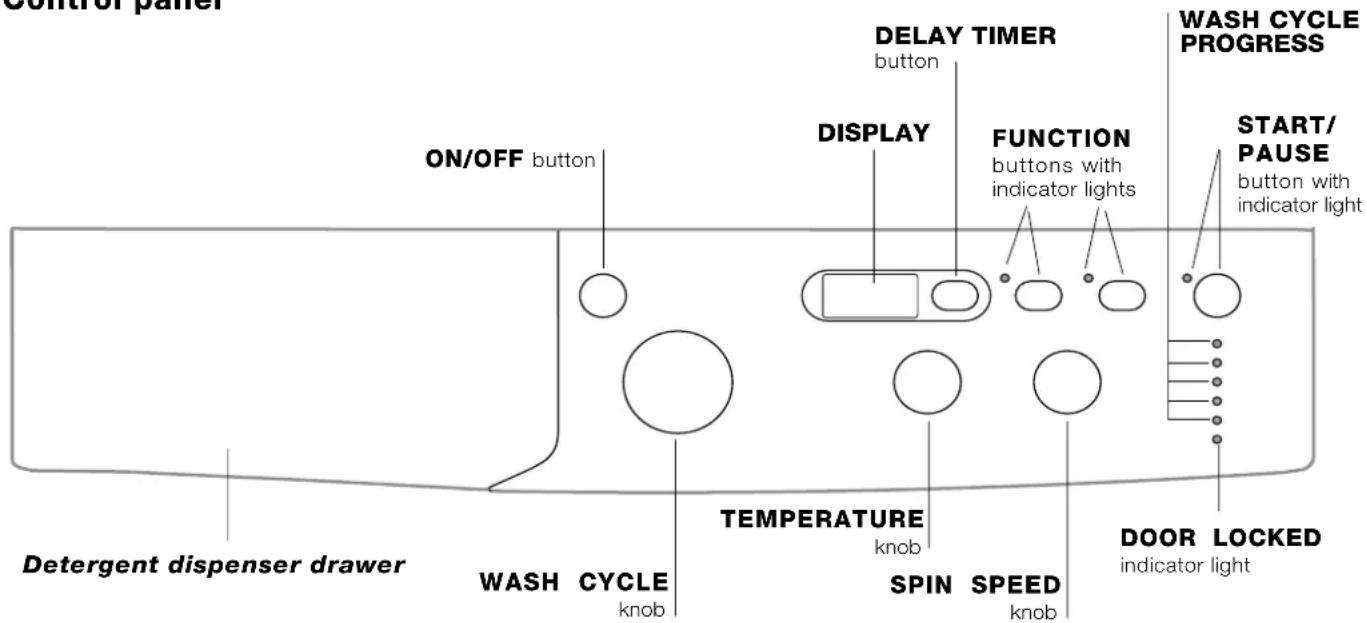

Control panel ON/OFF button DELAY TIMER button DISPLAY FUNCTION buttons with indicator lights WASH CYCLE PROGRESS START/ PAUSE button with indicator light Detergent dispenser drawer WASH CYCLE knob TEMPERATURE knob SPIN SPEED knob DOOR LOCKED indicator light

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold wash cycle (see "Personalisation").

SPIN SPEED knob: sets the spin speed or exclude the spin cycle completely (see "Personalisation").

DISPLAY: used to view the duration of the various cycles available and the remaining time of a cycle in progress; if the DELAY TIMER option has been selected, the countdown to the start of the selected cycle will appear.

DELAY TMER button ⏻: press to set a delayed start time for the selected wash cycle. The delay time will be shown on the display.

WASH CYCLE PROGRESS indicator lights: used to monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in progress.

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED 📁 indicator light is switched off, the door may be opened.

To start the wash cycle from the point at which it was interrupted, press this button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress.

Wash

Rinse

Spin

Drain

End of wash cycle

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate.

If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated. If the selected function is not compatible with another function which has been selected previously, the indicator light corresponding to the first function selected will flash and only the second function will be activated; the indicator light corresponding to the enabled option will remain lit.

Door locked indicator light

When the indicator light is on, the porthole door is locked to prevent it from being opened; make sure the indicator light is off before opening the door (wait approximately 3 minutes). To open the door during a running wash cycle, press the START/PAUSE button; the door may be opened once the DOOR LOCKED indicator light turns off.

Starting a wash cycle

1. Switch the washing machine on by pressing the ON/OFF button. All indicator lights will switch on for a few seconds, then they will switch off and the START/PAUSE indicator light will pulse.
2. Load the laundry and close the door.
3. Set the WASH CYCLE knob to the desired programme.
4. Set the washing temperature (see "Personalisation").
5. Set the spin speed (see "Personalisation").
6. Measure out the detergent and washing additives (see "Detergents and laundry").
7. Select the desired functions.
8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed manner, in green.
   To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.
9. At the end of the wash cycle the END indicator light will switch on. The door can be opened once the DOOR LOCK indicator light turns off. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

Wash cycles	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergents				Max. load (kg)		Cycle duration
				Prewash	Wash Bleach		Fabric softener	Normal	Eco Time
Daily										The duration of the wash cycles can be checked on the display.
1	Cotton with prewash:extremely soiled whites.	90°	1000	●	●	-	●	6	-
2	Cotton:extremely soiled whites.	90°	1000	-	●	●	●	6	-
2	Cotton (1):heavily soiled whites and resistant colours.	60°	1000	-	●	●	●	6	-
2	Cotton (2):heavily soiled whites and delicate colours.	40°	1000	-	●	●	●	6	-
3	Cotton:heavily soiled whites and resistant colours.	60°	1000	-	●	●	●	6	3
4	Coloured Cottons (3)lightly soiled whites and delicate colours.	40°	1000	-	●	●	●	6	3
5	Synthetics: heavily soiled resistant colours.	60°	800	-	●	●	●	2,5	2
6	Synthetics: lightly soiled resistant colours.	40°	800	-	●	●	●	2,5	2
Special
7	Wool: for wool, cashmere, etc.	40°	600	-	●	-	●	1,5	-
8	Silk/Curtains: for garments in silk and viscose, lingerie.	30°	0	-	●	-	●	1	-
9	Jeans	40°	800	-	●	-	●	3	-
10	Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800	-	●	-	●	1,5	-
Sport
11	Sport Intensive	30°	600	-	●	-	●	3	-
12	Sport Light	30°	600	-	●	-	●	3	-
13	Sport Shoes	30°	600	-	●	-	●	Max. 2 pairs	-
Partial wash cycles
	Rinse	-	1000	-	-	●	●	6	-
	Spin	-	1000	-	-	-	-	6	-
	Drain	-	0	-	-	-	-	6	-

The information contained in the table is intended as a guide only.

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 2 with a temperature of 60°C.
2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40^ C.
3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40^ C.

Specials wash cycles

Express (wash cycle 10) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (10 at 30^ C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

Sport Intensive (wash cycle 11) is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Table of wash cycles".

Sport Light (wash cycle 12) is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Table of wash cycles". We recommend using a liquid detergent and dosage suitable for a half-load.

Sport Shoes (wash cycle 13) is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash ☒.

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1000 rpm

Synthetics 800 rpm

Wool 600 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol. The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the selected wash cycle.

Delay timer

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the 🔔 symbol lights up on the display. To remove the delayed start option press the button until the text "OFF" appears on the display.

!This option is enabled with all programmes.

EcoTime

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled cotton and synthetic fabrics (refer to the "Table of wash cycles"). "Econables you to wash in less time thereby saving water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

! This function may not be used in conjunction with wash cycles 1, 2, 7, 8, 9, 10, 11, 12, 13, ∞, ⊙, ≡.

Stain removal

Bleaching cycle designed to remove the toughest stains. Please remember to pour the bleach into extra compartment 4 (see "Bleach cycle").

! This function may not be used in conjunction with wash cycles 1, 7, 8, 9, 10, 11, 12, 13, Ⓞ, ⚡.

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Do not use hand washing detergents because these create too much foam.

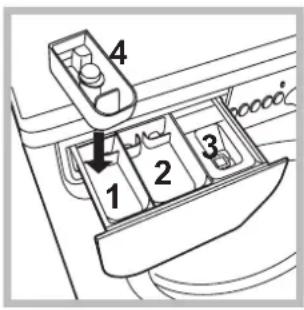

4 1 2 3

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

ompartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Bleach cycle

! Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool.

Diagram showing a device with a cylindrical component and an arrow pointing to it, likely indicating a process or annotation.

This option is particularly useful for the removal of stubborn stains. Place extra compartment 4 (supplied) into compartment 1. When pouring in the bleach, be careful not to exceed the "max" level marked on the central

pivot (see figure).

To run the bleach cycle on its own, pour the bleach into extra compartment 4, set the "Rinse" programme and activate the "Stain removal" function.

To bleach during a wash cycle, pour in the detergent and any fabric softener you wish to use, set the desired wash cycle and enable the "Stain removal" function. The use of extra compartment 4 excludes the "Pre-wash" option.

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight of the laundry when dry:
  Durable fabrics: max. 6 kg
  Synthetic fabrics: max. 2,5 kg
  Delicate fabrics: max. 2 kg
  Wool: max. 1,5 kg
  Silk: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Garments requiring special care

Wool: all wool garments can be washed using programme 7, even those carrying the "hand-wash only" 🎨 label. For best results, use special detergents and do not exceed 1,5 kg of laundry.

Silk: use special wash cycle 8 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 8.

Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 9.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The washing machine must only be used by adults, in accordance with the instructions provided in this manual.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce

the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

Diagram of a car interior with a boat and directional arrow indicating flow or movement (no text or symbols)

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

1. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the inside thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be not solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water ("H2O" will flash on the display).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The "function" indicator lights and the "start/pause" indicator light flash, while one of the "phase in progress" indicator lights and the "door locked" indicator light will remain lit in a fixed manner.

There is too much foam.

Possible causes / Solutions:

- The appliance is not plugged into the socket fully, or is not making contact. - There is no power in the house.

- The washing machine door is not closed properly. - The ON/OFF button has not been pressed. - The START/PAUSE button has not been pressed. - The water tap has not been opened. - A delayed start has been set (see "Personalisation").

- The water inlet hose is not connected to the tap. - The hose is bent. - The water tap has not been opened. - There is no water supply in the house. - The pressure is too low. - The START/PAUSE button has not been pressed.

- The drain hose is not fitted at a height between 65 and 100cm from the floor (see "Installation"). - The free end of the hose is under water (see "Installation"). - The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

- The wash cycle does not include draining: some wash cycles require the drain phase to be started manually. - The drain hose is bent (see "Installation"). - The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation"). - The washing machine is not level (see "Installation"). - The washing machine is trapped between cabinets and walls (see "Installation").

- The water inlet hose is not screwed on properly (see "Installation"). - The detergent dispenser drawer is blocked (for cleaning instructions, see "Care and maintenance"). - The drain hose is not fixed properly (see "Installation").

- Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.

- The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like). - Too much detergent was used.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

!Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).
  This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Italiano

Sommario

Technical diagram of a mechanical or electrical component with labeled parts and an inset magnified view showing a circular feature.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal nut and a flanged bolt (no text or symbols)

Diagram of a pipe valve with directional arrow indicating flow or movement (no text or symbols)

Diagram of a pipe connection with a bulb and tubing, no text or symbols present

Diagram showing a device with a cylindrical component and an arrow pointing to it, no text or symbols present.

Diagram of a car interior with compartments and a directional arrow indicating flow or movement (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical diagram of a device interior with labeled components and directional arrows indicating flow or movement.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Diagram of a mechanical valve mechanism with rotating knob (no text or symbols)

Diagram of a pipe fitting with a connector, showing no text or symbols

Coton 1000 tours/minute

Diagram showing a device with a cylindrical component and an arrow pointing to it, no text or symbols present.

Diagram of a car interior with a directional arrow indicating flow or movement (no text or symbols present)

Simple line drawing of a mechanical component with a screw and directional arrows (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Causes / Solutions possibles:

Technical diagram of a mechanical or electronic component with internal channels and directional arrows (no text or symbols)

Simple line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged knob (no text or symbols)

Diagram of a pipe valve with directional arrow indicating flow or movement (no text or symbols)

Diagram of a pipe connection with a bulb above it, no text or symbols present

Diagram showing a device with a cylindrical component and an arrow pointing to it, no text or symbols present.

Diagram of a car interior with a directional arrow indicating flow or movement (no text or symbols present)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical diagram of a refrigerator interior with labeled parts and directional arrows indicating flow or movement.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a flanged knob and handle, bottom shows a flanged screw head (no text or symbols)

Diagram of a pipe valve with directional arrow indicating flow or movement (no text or symbols)

Diagram of a pipe connection with a bulb and handle, no text or symbols present

Diagram showing a device with a cylindrical component and an arrow pointing to it, no text or symbols present.

Diagram of a car interior with a boat and directional arrow (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical diagram of a mechanical or electronic component with internal channels and directional arrows, no readable text or symbols present.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a mechanical valve or pump assembly with directional arrow (no text or symbols)

Diagram of a pipe connection with a connector, showing tubing and a valve-like component (no text or symbols)

Diagram showing a device with a cylindrical component and an arrow pointing to it, no text or symbols present.

Diagram of a car air intake system with directional arrow indicating flow (no text or labels)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Line drawing of a mechanical component with a valve and handle, no text or symbols present

Diagram of a pipe connection with a connector, showing tubing and a valve-like component (no text or symbols)

Diagram showing a device with a cylindrical component and an arrow pointing to it, no text or symbols present.

Coloque a gaveta adicional 4, fornecida, na gaveta 1.

Diagram of a car interior with a directional arrow indicating flow or movement (no text or symbols present)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols
