USER MANUAL SL40PET 011 HOOVER

HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER HOOVER

Technical diagram of a vacuum cleaner with labeled parts and corresponding exploded view images

3.25th week 10, 1987; 10th week 10, 1987;

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by HOOVER.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

GB

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

HOOVER service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

Do not position the appliance above you when cleaning the stairs.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

CE This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

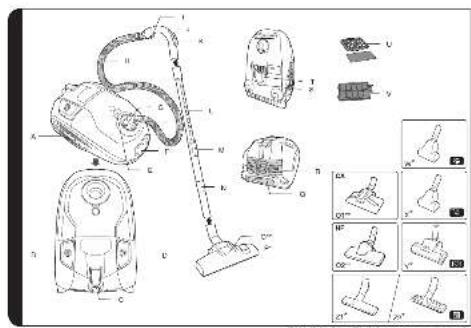

GETTING TO KNOW YOUR CLEANER

A. Cleaner Main Body
B. On/Off Pedal
C. Hose Latch for Nano Pack™ system
D. Cord Reel Pedal
E. Bag Check Indicator
F. Bag Door Release Button
G. Hose Release Button
H. Hose
I. Hose Handle Hook (For Nano Pack™ system)
J. Hose Handle
K. Suction Regulator
L. Telescopic Tube
M. Telescopic Tube Adjuster
N. Telescopic Tube Parking Hook (For Nano Pack™ system)

O. Carpet and Floor nozzle (GP)**
O1. Carpet Nozzle (CA)**
O2. Hard Floor Nozzle (HF)**
P. Floor Type Selector*
Q. 2 in 1 accessory
R. Exhaust Filter Cover Release Button
S. Nozzle Parking Slot
T. Telescopic Tube Parking Slot
U. Pre-motor Filter
V. Exhaust Filter
W. Pet Hair Remover Mini Turbo Nozzle*
X. Allergen Remover Mini Turbo Nozzle*
Y. Grand Turbo Nozzle*
Z. Parquet Nozzle*
Z1. Parquet Extra Nozzle*
Z2. Parquet Nozzle*

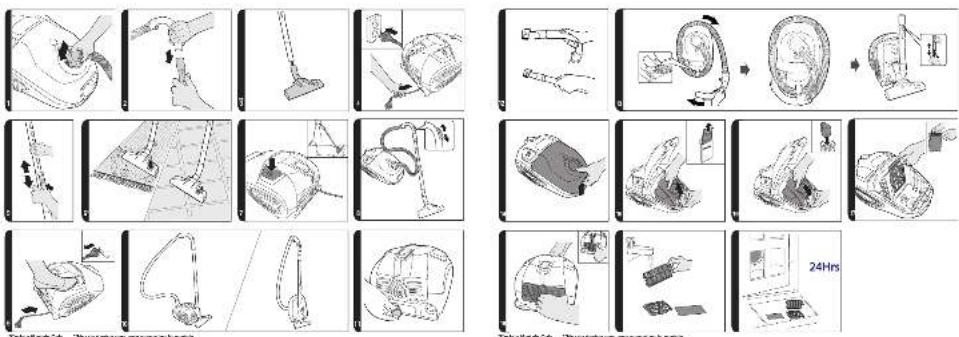

ASSEMBLYING YOUR CLEANER

Remove all components from the packaging.

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position. To release: simply press the buttons on the hose end and pull. [1]
2. Connect the hose handle to the telescopic tube upper end [2], or accessories if required.
3. Connect the telescopic tube lower end to the carpet and floor nozzle ^** [3] or accessories, if required.

USING YOUR CLEANER

1. Extract power cord and plug it into the power supply. [4] Do not pull the cord beyond the red marker.
2. Adjust the telescopic tube to the desired height by moving the telescopic tube adjuster to the most comfortable cleaning position. [5]

3. Carpet & Floor Nozzle **. Press the floor type selector* on the nozzle [6] to select the ideal cleaning mode for the floor type.
   Hard Floor – Brushes are lowered to protect the floor.
   Carpet – Brushes are raised for the deepest clean.

4. Switch the cleaner on by pressing the On/Off Pedal on the cleaner main body. [7]

5. Adjust the Suction Regulator on the hose handle to the desired level. [8]
6. Switch off at the end of use by pressing the On/Off Pedal. Unplug and press the cord reel pedal to wind the power cord back into the cleaner. [9]

PARKING AND STORAGE SECTION

The flexible hose and telescopic tube can be parked for temporary while in use [10] or in the Nano Pack™ storage position when not in use:

1. Retract the telescopic tube to its storage length. [13]

2. Remove the nozzle from the end of the telescopic tube.

3. Remove the hose handle from the telescopic tube.

4. Lift the Hose Latch at the rear of the cleaner and wrap the flexible hose around the product. [13]

5. Place the nozzle into the nozzle parking slot underneath the product. [13]

6. Place the telescopic tube into the telescopic tube parking slot underneath the product. [13]

CLEANER MAINTENANCE

Replacing the Dust Bag

If the bag check indicator is red, please check and, if necessary, replace the bag.

1. Remove the hose from the cleaner.
2. Press the Bag Door Release Button to open the bag door. [14]
3. Close the bag to avoid dust escaping by pulling the tongue and remove the bag. [15] Carefully dispose the full bag into a bin. [16]
4. Fit a new bag into the cleaner by inserting the collar into the bag holder. [16]
5. Close the Bag door.

REMEMBER: The bag check indicator may be red if an obstruction has occurred. In this case refer to 'Removing a Blockage From the System'.

Cleaning the Filter:

To maintain optimum performance of your cleaner, please wash the pre-motor filter and exhaust filter after each 5 bag changes.

To remove the pre-motor filter:

1. Open the bag door and remove the dust bag from the cleaner (see "Replacing The dust bag").
2. To remove the pre-motor filter slide the pre-motor filter frame from the cleaner. [17]
3. Remove the filter from the holder. [17]

Cleaning the exhaust filter:

1. Open the exhaust filter cover by pressing the release button. [18]

^Certain Models Only ^Nozzle design may vary according to models

1. Remove the filter pack from the recess by pressing the button. [18]

Gently tap and wash the filter packs using hand warm water [19]. Remove excess water from the filter with a dry cloth and leave to dry fully before re-using. [20] Reassemble filter packs once fully dry and refit to the cleaner.

REMEMBER: Do not use hot water or detergents. In the unlikely event of the filters becoming damaged, fit a Genuine Hoover replacement. Do not try and use the product without a dust bag or filter fitted.

Cleaning the Permanent Dust Bag\* (certain models only)

To maintain optimum performance we recommend that you wash the permanent dust bag after every 5 full bags. Empty the contents of the Bag into a bin, wash the Bag under hand warm water, remove excess water with a dry cloth and leave to dry fully before replacing.

Removing a blockage from the system

If the bag check indicator is red:

1. Check if the bag is full. If so, refer to 'Replacing The Dust Bag'.
2. If it is not full, then:

A. Do the filters need cleaning? If so, refer to 'Cleaning the Filter'.
B. Check if there is any other blockage in the system - Use a rod or a pole to remove any blockage from telescopic tube or flexible hose.
C. Check for and clear any blockage in the Nozzle.

WARNING: - The bag check indicator will turn red if the cleaner is used when full, if there is a blockage or if the filters are dirty. If the cleaner is used for a significant period of time with the bag check indicator red, a thermal cut out will switch the cleaner off to prevent overheating. The bag check indicator turn green once the cleaner has switched off to signal that the thermal cut out has been activated. If this should happen, switch the cleaner off, unplug and correct the fault. It will take about 45 minutes for the cut out to automatically reset.

ACCESSORIES AND NOZZLES

To obtain the best performance and efficiency it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA.
A nozzle type GP can be used to clean both carpet and hard floor.

A nozzle type HF is suitable for use only on hard floor.

A nozzle of type CA is suitable for use only on carpet.

The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.

Please see the model specification on the packaging label for inclusion of accessories to individual models.

All accessories can be fitted to the hose handle or the end of the telescopic tube.

• 2 in 1 accessory – For corners and hard to reach areas and bookshelves, frames, keyboards and other delicate areas [Q]. Remove the 2in1 accessory from the rear of the cleaner [11] and fit onto the end of the handle. [12]
• Parquet Nozzle ^** – For parquet floors and other delicate floors. [Z1, Z2]
• Pet Hair Remover Mini Turbo Nozzle* - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for pet hairs removal. [W]
• Allergen Remover Mini Turbo Nozzle* – Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for allergen removal. [X]
• Grand Turbo Nozzle ^A – Use the Grand Turbo Nozzle for deep cleaning on carpets. [Y]

IMPORTANT: Do not use the Grand Turbo Nozzle or Mini Turbo Nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while the brush is rotating.

USER CHECK LIST

Should you have a problem with the product, complete this simple user checklist before calling your local HOOVER service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.
• Is the dust bag over-filled? Please refer to 'Cleaner Maintenance'.
• Is the filter blocked? Please refer to 'Cleaner Maintenance'
• Is the hose or nozzle blocked? Please refer to 'Removing a blockage from the system'.
• Has the cleaner overheated? If so, it will take approximately 45 minutes for the cut out to automatically reset.

IMPORTANT INFORMATION

HOOVER spares and Consumables

Always replace parts with genuine HOOVER spares. These are available from your local HOOVER dealer or direct from Hoover. When ordering parts always quote your model number.

Quality

HOOVER's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

GB

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
