USER MANUAL PFS 710 C2 PARKSIDE

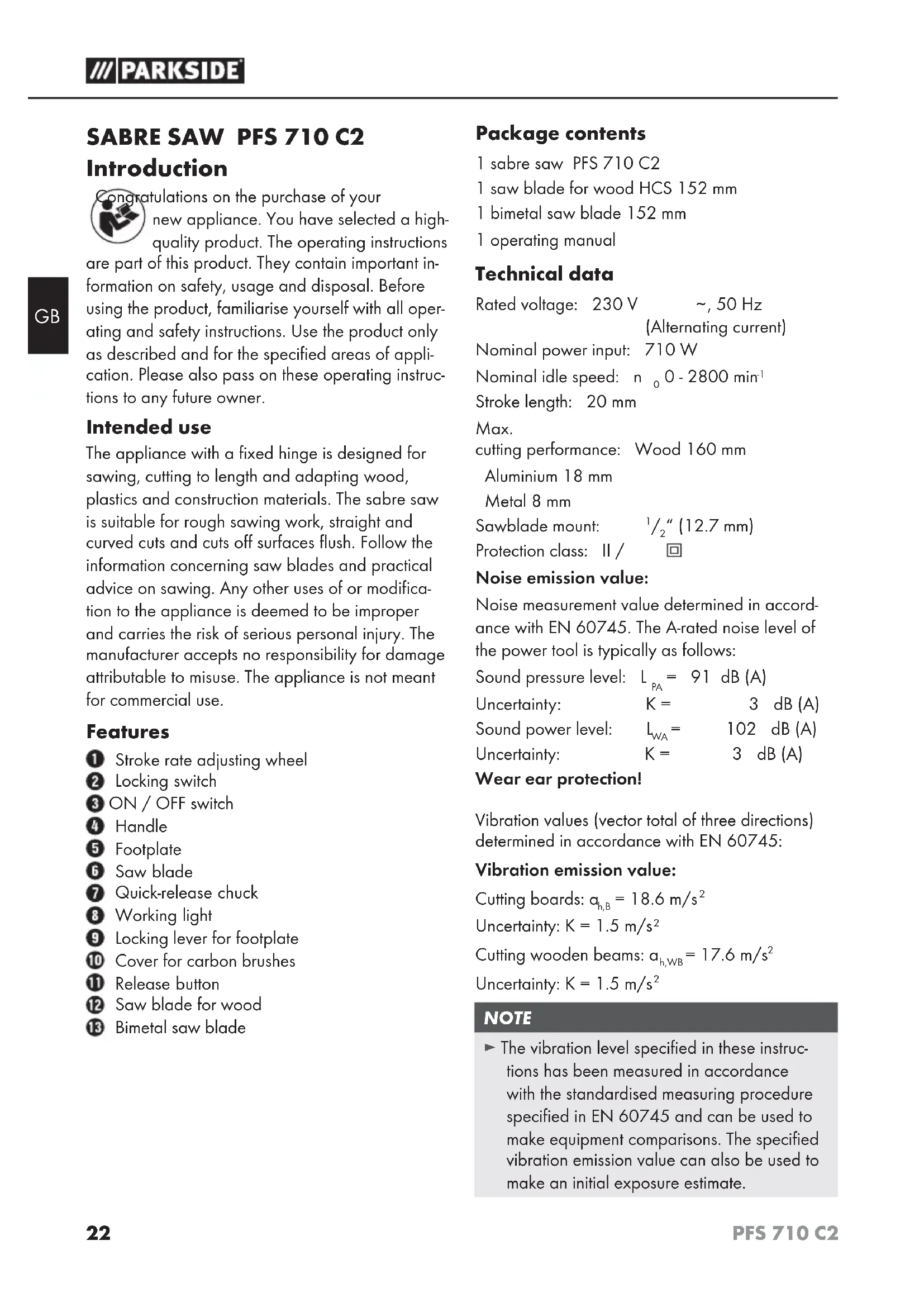

Introduction Congratulations on the purchase of your new appliance. You have selected a high- quality product. The operating instructions are part of this product. They contain important in- formation on safety, usage and disposal. Before using the product, familiarise yourself with all oper- ating and safety instructions. Use the product only as described and for the specified areas of appli- cation. Please also pass on these operating instruc- tions to any future owner. Intended use The appliance with a fixed hinge is designed for sawing, cutting to length and adapting wood, plastics and construction materials. The sabre saw is suitable for rough sawing work, straight and curved cuts and cuts off surfaces flush. Follow the information concerning saw blades and practical advice on sawing. Any other uses of or modifica- tion to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage attributable to misuse. The appliance is not meant for commercial use. Features Stroke rate adjusting wheel Locking switch ON / OFF switch Handle Footplate Saw blade Quick-release chuck Working light Locking lever for footplate Cover for carbon brushes Release button Saw blade for wood Bimetal saw blade Package contents 1 sabre saw PFS 710 C2 1 saw blade for wood HCS 152 mm 1 bimetal saw blade 152 mm 1 operating manual Technical data Rated voltage: 230 V

Stroke length: 20 mm Max. cutting performance: Wood 160 mm Aluminium 18 mm Metal 8 mm Sawblade mount:

“ (12.7 mm) Protection class: II / Noise emission value: Noise measurement value determined in accord- ance with EN60745. The A-rated noise level of the power tool is typically as follows: Sound pressure level: L

= 91 dB (A) Uncertainty: K = 3 dB (A) Sound power level: L

= 102 dB (A) Uncertainty: K = 3 dB (A) Wear ear protection! Vibration values (vector total of three directions) determined in accordance with EN 60745: Vibration emission value: Cutting boards: a h,B = 18.6 m/s

NOTE ► The vibration level specified in these instruc- tions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.23 PFS 710 C2

WARNING! ► The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestima- tion of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all the safety advice and instructions. Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid physical contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipments. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.24 PFS 710 C2

c) Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. The use of dust extraction devices can reduce dust- related hazards.

4. Power tool use and care

a) Do not overload the power tool. Use the cor- rect power tool for your intended application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch is de- fective. Any power tool that cannot be turned on or off with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing the power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dan- gerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many acci- dents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained.25 PFS 710 C2

Appliance-specific safety instructions To avoid the risk of injury or fire as well as health risks: ■ Hold the power tool by the insulated grip- ping surfaces when carrying out work during which the power tool may contact hidden power cables or the device’s mains lead. Contact with a live cable can also make metal parts of the appliance live and could result in an electric shock. ■ Wear a dust mask! ■ When working outdoors, connect the appliance via a fault current circuit breaker with a maximum tripping current of 30mA. ■ Secure the workpiece. Use clamps/vice to hold the workpiece firmly in place. This is safer than simply holding it in your hand. ■ Do not rest your hands next to or in front of the appliance and the area being worked as there is a risk of injury if you slip. ■ In case of danger, remove the power plug from the socket immediately. ■ Always route the power cord towards the rear, away from the appliance. ■ RISK OF FIRE DUE TO FLYING SPARKS! If you are sawing metal, sparks will occur. Ensure that nobody is put at risk and that no combustible materials are located in the imme- diate vicinity of your working space. WARNING! TOXIC DUSTS! ■ Working with the tool can produce harmful/ toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity. Wear safety goggles and a protective dust mask! ■ Materials containing asbestos may not be pro- cessed. Asbestos is a known carcinogen. ■ When sawing construction materials, make sure to follow the statutory regulations and recom- mendations from the manufacturers. ■ Never work on moistened materials or damp surfaces. ■ Always switch the appliance on before applying it to the material. CAUTION! ■ Avoid contact with solid objects if the appli- ance is running – risk of kickback! ■ The footplate must always make contact with the workpiece when the appliance is running. ■ Always switch the appliance off and allow it to coast before putting it down. ■ Only use sharp saw blades which are in perfect condition. Replace cracked, bent or blunt saw blades immediately. ■ The appliance must always be kept clean, dry and free from oil or grease. Original accessories/auxiliary equipment ■ Use only the accessories and additional equipment that are specified in the operat- ing instructions and are compatible with the appliance. Using attachments or acces- sory tools other than those recommended in the operating instructions can lead to a risk of injury. Information on saw blades You can use any saw blade provided it is fitted with a suitable mount - 1/2“ (12.7 mm) universal shaft. Op- timised saw blades in different lengths are available from a retail store to suit every intended purpose. NOTE ► TPI = teeth per inch = the number of teeth per

Dimensions: 152 x1.25 mm, 6 TPI Best suitability: for sawing construction wood, chip- board, panels and plywood, and also plunge cuts. Bimetal saw blade

Dimensions: 152 mm, 18 TPI Best suitability: for sawing sheet metal, profiles and pipes – flexible and break-resistant.26 PFS 710 C2

Before use Fitting/changing the saw blade WARNING! ► Always remove the plug from the power socket before working on the appliance. Otherwise, there is a risk of injury. ♦ Turn the quick-release chuck and hold it in this position. ♦ Press the required saw blade as far as it will go into the quick-release chuck

♦ Release the quick-release chuck , it must return to its initial position. The saw blade is now locked. Turning the handle RISK OF INJURY! ► Always remove the plug from the power socket before working on the appliance. The handle can be turned by 90° to the right or left. This allows the ON / OFF switch to be turned to a most suitable position depending on the working condition. ♦ Press the release button and turn the handle to the right or left. ♦ Allow the handle to engage. Adjusting the footplate RISK OF INJURY! ► Always remove the plug from the power socket before working on the appliance. ♦ Adjust the footplate according to the cutting depth. ♦ To do so, loosen the locking lever and move the footplate to the corresponding position. ♦ Lock this position by tightening the locking lever

Stroke rate selection Use the adjusting wheel to select the desired stroke rate (– = lower stroke rate, + = increased stroke rate). The stroke rate can also be changed during opera- tion. Operation Switching on and off During operation, you can choose between instan- taneous and continuous operation. Switching to instantaneous operation: ♦ Press the ON / OFF switch . The working light comes on with a slightly or fully pressed ON /OFF switch and illuminates the work- ing area in poor lighting conditions. Switching off instantaneous operation: ♦ Release the ON / OFF switch

Switching to continuous operation: ♦ Press the ON / OFF switch and lock it in this position with the locking switch . Switching off continuous operation: ♦ Press the ON / OFF switch and release it again. Guiding the sabre blade safely To adapt to the workpiece and for safe placement, the footplate can be swivelled. It must always make contact with the workpiece when the appli- ance is running. Practical advice on sawing ♦ Check the material to be worked to make sure that all foreign objects have been removed, e.g. nails, screws, etc.. ♦ Ensure that the ventilation slits are not covered.27 PFS 710 C2

♦ Switch the appliance on and only then move it towards the material to be worked. ♦ Switch the appliance off immediately if the saw blade jams. Open up the sawn gap using a suitable tool and pull out the sabre saw. ■ Adapt the saw blade and stroke rate to the material to be worked. ■ Optimised saw blades in different lengths are available from a retail store to suit every intended purpose. ■ Saw the material at a constant speed. Sawing flush: The flexible saw blades and suitable corresponding length, enable you to saw off protruding workpieces such as pipes which are close to the wall. For this, proceed as follows:

1. Place the saw blade directly against the wall.

2. Bend it by applying lateral pressure to the sabre

saw so that the footplate makes contact with the wall.

3. Switch the appliance on as described and saw

off the work piece by applying constant pressure. Plunge sawing: CAUTION! RISK OF KICKBACK! ■ Plunge cuts may only be made in soft materi- als (wood or similar). Proceed as follows:

1. Place the sabre saw with the lower edge of the

footplate onto the workpiece. Switch the appliance on.

2. Tilt the sabre saw forwards and plunge the saw

blade into the workpiece.

3. Position the sabre saw vertically and continue

sawing along the cutting line. NOTE ► The saw blade to be used should not exceed a max. length of 152 mm! Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off before carrying out any work on it. ■ Always remove the power plug from the power socket before cleaning the appliance. ■ Replace the saw blade as soon as its teeth are blunt and proper sawing is therefore no longer possible. ■ Keep the appliance and ventilation slits clean at all times. If the ventilation slits are blocked, there is the risk of overheating and / or the appliance being damaged. ■ Always clean the appliance after completion of work. ■ Never permit fluids to penetrate inside the appli- ance. Use a cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic. ■ Clean the saw blade mount, if necessary with a brush or by blowing it out with compressed air.28 PFS 710 C2

Warranty This appliance is provided with a 3-year warranty valid from the date of purchase. The appliance has been manufactured with care and inspected meticulously prior to de- livery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods. The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge. Service WARNING! ► Have the power tool repaired by the Ser- vice centre or a qualified electrician and only using original replacement parts. This will ensure that the safety of the appliance is maintained. ► If the mains power cord of the device is damaged, it must be replaced with an origi- nal wire which is available at the manufac- turer or costumer service. NOTE ► Replacement parts not listed (such as carbon brushes, switches) can be ordered via our service hotline. Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 272950 Hotline availability: Monday to Friday from 8:00 a.m. to 8:00 p.m. (CET) Importer

Disposal The packaging is made from environmen- tally friendly material and can be disposed off at your local recycling plant. Do not dispose of power tools in your normal household waste! In accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner. Take the appliance to a nearby collection facility. Your local community or municipal authorities can provide information on how to dispose of the worn- out appliance. Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, doc- uments officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following stand- ards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2004/108/EC) RoHS Directive (2011/65/EU) Applied harmonised standards: EN 60745-1:2009/A11:2010 EN 60745-2-11:2010 EN 62233:2008 EN 55014-1:2006/A2:2011 EN 55014-2:1997/A2:2008 EN 61000-3-2:2014 EN 61000-3-3:2013 Type designation of machine: Sabre saw PFS 710 C2 Year of manufacture: 10 - 2015 Serial number: IAN 272950 Bochum, 18/11/2015 Semi Uguzlu - Quality Manager - The right to effect technical changes in the context of further development is reserved.30 PFS 710 C22 IAN 272950
