Product Type	Overhead LCD Monitor for Vehicle (Car Radio Compatible)
Brand	Sony
Model	XVMR75
Screen Size	7 inches (16:9)
Display Technology	Active Matrix TFT LCD
Resolution	336,960 dots (1440 x 234)
Color Systems	PAL and NTSC
Display Modes	Normal (4:3), Full Screen, Zoom (enlarged)
Power Supply	12 V DC (negative ground)
Power Consumption	Approx. 1.5 A
Dimensions (W x H x D)	230 x 50 x 270 mm
Weight	Approx. 1.3 kg
Operating Temperature	5 °C to 45 °C
Video/Audio Inputs	3 AV input connectors (audio L/R + video)
Video/Audio Output	1 AV output
DC Output	7.5 V (max. 2 A) for game console
Headphone Jacks	2 stereo mini jacks
Wireless Headphones	Infrared compatible (optional MDR-IF5000)
Remote Control	Card RM-X123 with CR2025 lithium battery
Functions	Dim (DIMMER), manual adjustment of brightness, contrast, color, hue (NTSC)
Fuse	Replace with fuse of same amperage
Supplied Accessories	Connection box XA-117, remote control, cables, mounting plate, screws, wire ties, etc.
Options	DVD changer DVX-100

Frequently Asked Questions - XVMR75 SONY

Why is there no picture or sound?

Check that the power cable or battery is properly connected and that the fuse is not blown. Refer to the Troubleshooting section of the manual.

Picture displays but no sound

Press the VOL (+) or ATT button on the card remote control to restore volume or deactivate the attenuator.

The card remote control does not respond

The CR2025 lithium battery may be depleted. Replace it respecting polarity. The normal range is approximately 2.5 m.

How to clean the LCD screen?

Use a soft, damp cloth. Never use solvents, benzine, thinners, or antistatic cleaners.

Can I install the unit myself?

Installation requires technical knowledge. Consult a qualified technician. If you do it yourself, strictly follow the installation and connection diagrams.

The screen does not open automatically

Check that the unit is powered on (press POWER or OPEN/CLOSE). Ensure the POWER SELECT switch is set correctly (A or B depending on your vehicle).

How to adjust brightness and contrast?

Press MENU, then use the ▲/▼ buttons to adjust Picture (contrast) and Brightness (luminosity). Color and Hue (NTSC) settings are also available.

What if the fuse blows again after replacement?

This may indicate an internal failure. Consult the nearest Sony dealer. Never use a fuse with a higher amperage.

Can I use wireless headphones with this unit?

Yes, the unit is compatible with the optional MDR-IF5000 infrared headphones. Volume is adjusted directly on the headphones, not with the supplied remote control.

Fixed bright dots appear on the screen

This is normal: the LCD screen is manufactured with precision technology; less than 0.01% of pixels may be defective without affecting operation.

USER MANUAL XVMR75 SONY

Welcome! 4
Precautions 5
Location of Controls 7

Operation

Opening the Display Monitor 9
Setting the Screen Mode 10
Selecting the Input Source 11
Changing the Display settings 12
Adjusting the Volume 14

Connections

Installation diagram 15
Connection diagram 16

Additional Information

Maintenance 18
Specifications 20
Troubleshooting 21

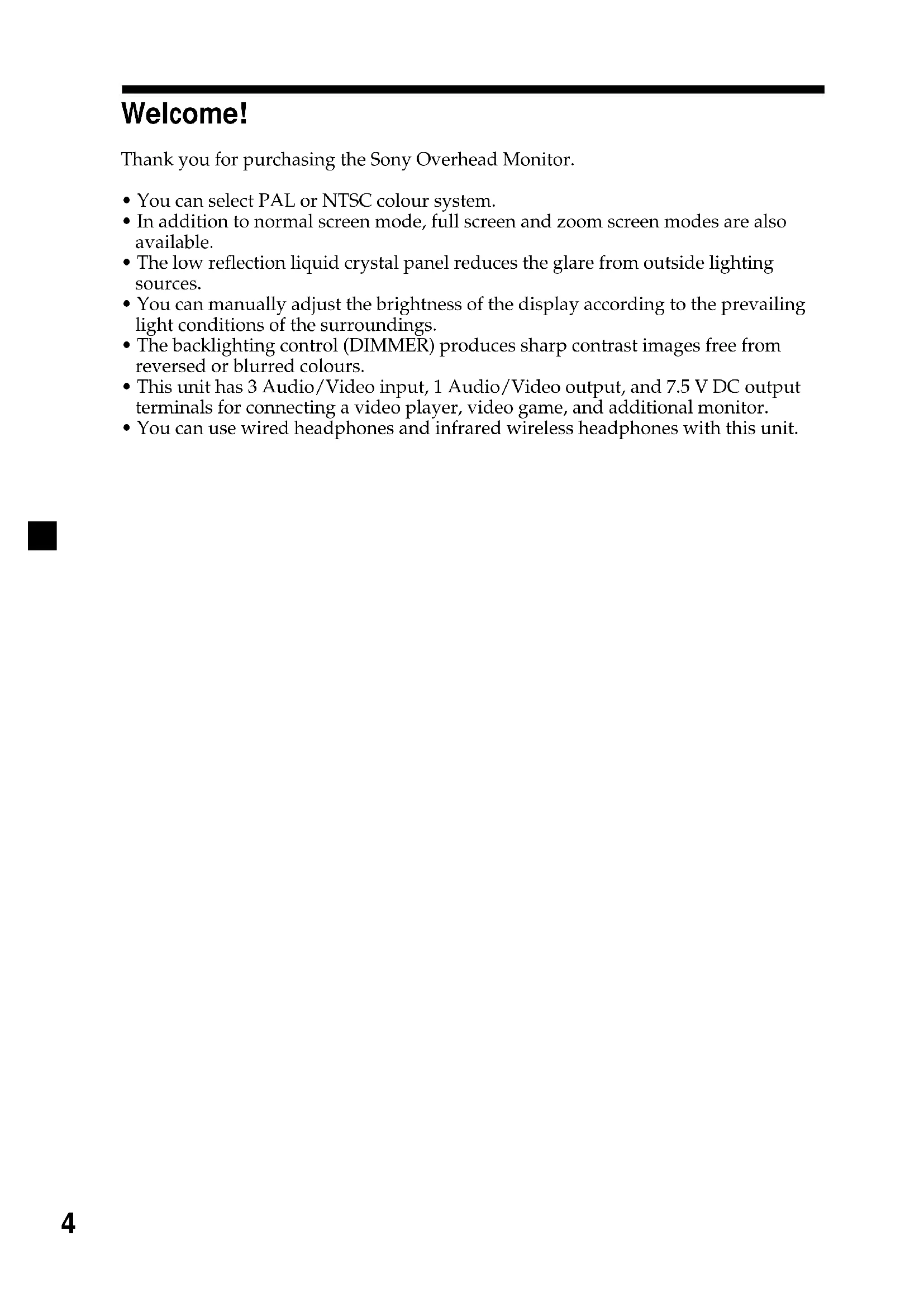

Welcome!

Thank you for purchasing the Sony Overhead Monitor.

• You can select PAL or NTSC colour system.
• In addition to normal screen mode, full screen and zoom screen modes are also available.
• The low reflection liquid crystal panel reduces the glare from outside lighting sources.
• You can manually adjust the brightness of the display according to the prevailing light conditions of the surroundings.
• The backlighting control (DIMMER) produces sharp contrast images free from reversed or blurred colours.
• This unit has 3 Audio/Video input, 1 Audio/Video output, and 7.5 V DC output terminals for connecting a video player, video game, and additional monitor.
• You can use wired headphones and infrared wireless headphones with this unit.

Precautions

To avoid the risk of serious injury or accident, read the following precautions before installing and operating the unit.

On safety

Comply with your local traffic rules and regulations.

While driving

• The driver must not watch or operate the monitor. It may lead to distraction and cause an accident.
• The driver must not use headphones. It may lead to distraction and cause an accident.

Park the car in a safe place when the driver watch and operate the monitor, or use headphones.

• When operating

• Do not hang onto the monitor.

• Do not insert your hands, fingers or foreign objects into the unit while the monitor is functioning. It may cause injury or damage to the unit.
• Take care not to bump your head against the unit when getting up from the back seat.
• Take extra care not to wind the wire of the headphones around your neck to avoid injury or suffocation in the event of a sudden movement of the vehicle.
• Keep small articles out of the reach of children.

On installation

• Installing this unit requires technical expertise. This unit should be installed by qualified technician or service personnel.
• If you try to install this unit by yourself, do it properly, referring to the installation and wiring diagrams in this operating manual. Improper installation may result in a fire or an electric shock.
• Before installation, be sure to turn the ignition switch to the OFF position or take the key out. Installing this unit with the ignition on may cause battery drain or a short circuit.
• Do not damage any pipes, tubes, the fuel tank or electric wiring when installing this unit. This can cause a fire. If you drill a hole in car panels, make sure that any hidden car parts will not be damaged.
• Do not use any nuts or bolts for safety devices such as steering linkage, fuel supply or braking systems. This can cause a fire or an accident.
• Take care to prevent the cords and wires from getting tangled or crimped in the moving portion of a seat rail.

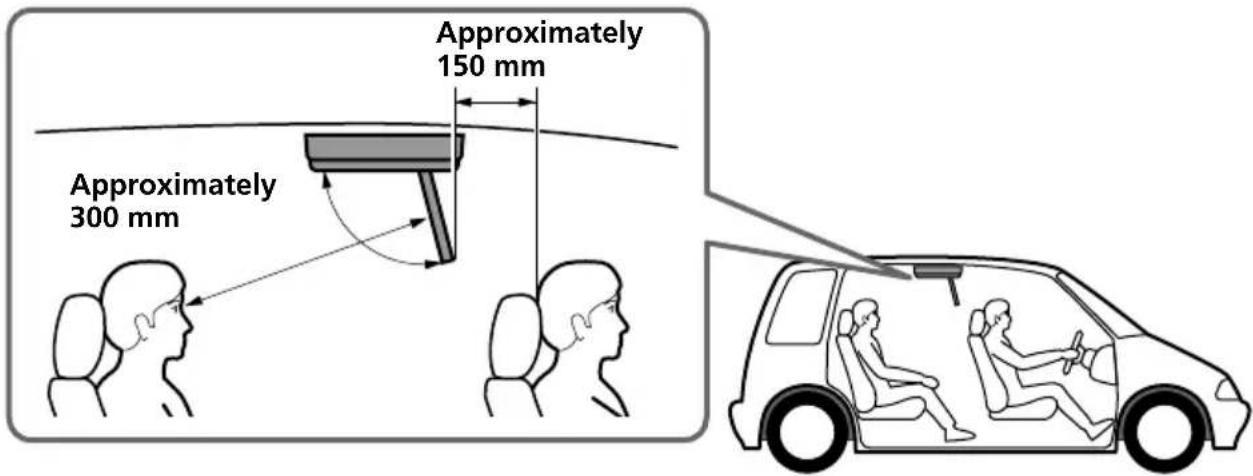

Where to install

Before installing this unit, please check your local traffic rules and regulations. Follow the diagram below to install this unit in a suitable position in your car.

Do not install this unit where:

• It will obstruct the driver's view when the monitor is in either the open or closed position.

• It will obstruct the operation of the airbag system.

• It will obstruct the operation of the vehicle, especially the steering wheel, shift lever, or brake pedal.

• A driver or passengers may injure themselves when getting into or out of the car.

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

Before installing

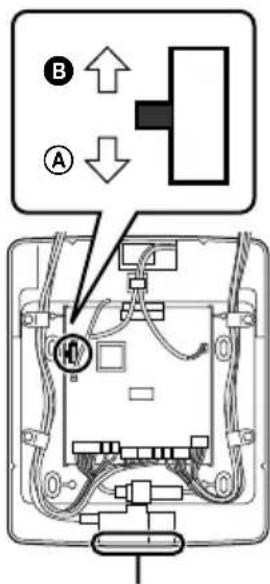

Make sure that the POWER SELECT switch is set to the correct position.

A: If your car has an accessory position on the ignition key. (It is preset to A position at the factory setting.)
B: If your car has no accessory position on the ignition key.

When the POWER SELECT switch is set to B

OPEN/CLOSE on the Overhead monitor turns the power on.

You cannot turn on the power by POWER on the card remote commander. However, when the power is already on, you can operate the unit with the card remote commander.

Note

When you get out of the car, be sure to turn off the power by (OPEN/CLOSE) on the Overhead monitor, or (POWER) on the card remote commander.

If the power is left on, it will cause battery drain.

Receptor for the card remote commander

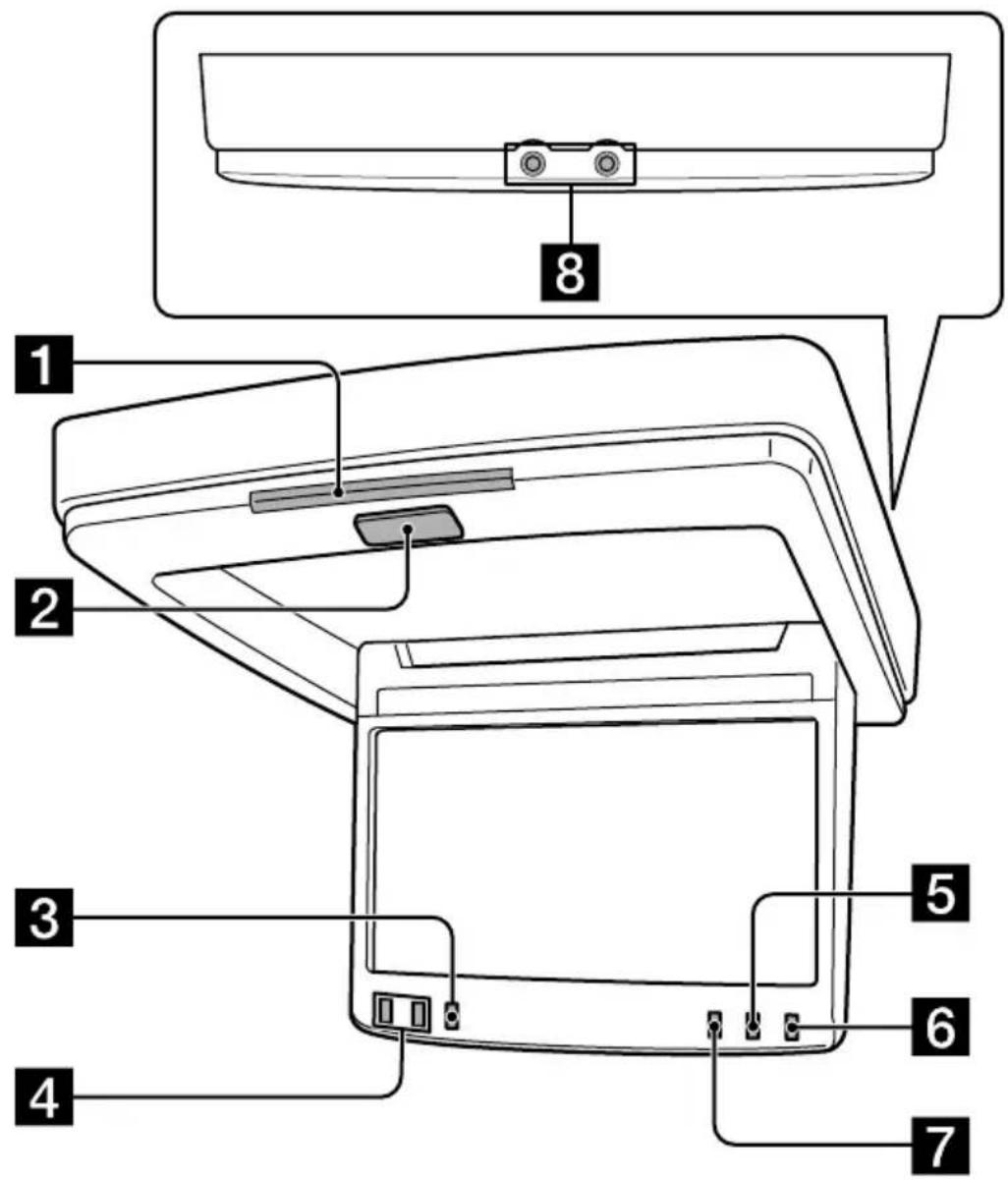

Location of Controls

Monitor

1 Receptor for the card remote commander
2 OPEN/CLOSE button 9 Press to open and close the monitor.
3 MENU button 12, 13 Press to adjust the various display settings.
4↑/↓buttons

5MODE button 10 Press to change the screen mode.
6INPUT button 11 Press to select the input source.
7 DIMMER button 12, 13 Press to set the dimmer function on and off.
8 Headphone jacks (stereo mini) 14 Connect headphones to these jacks.

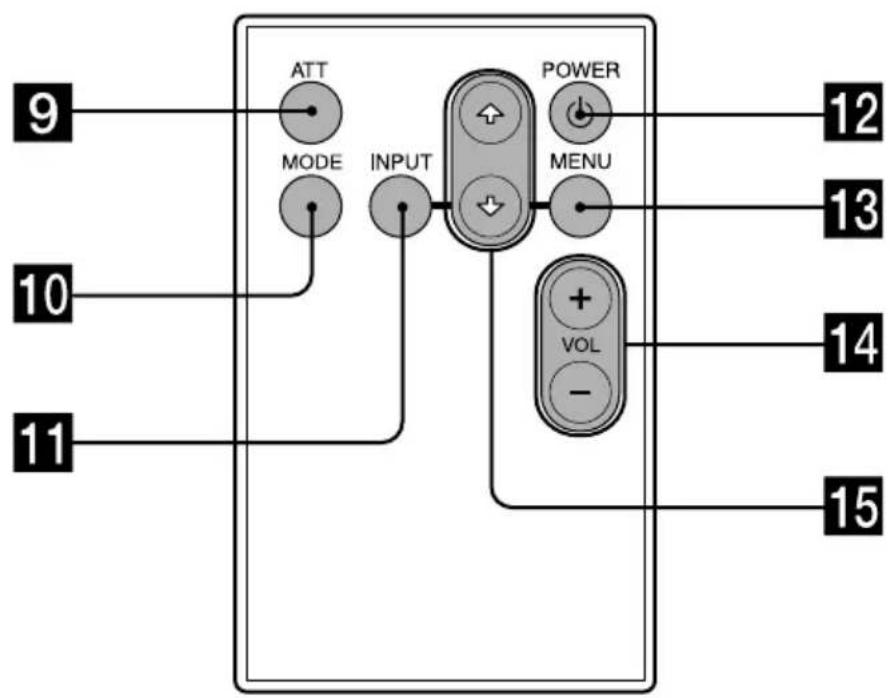

Card remote commander RM-X123

9 ATT button 14

Press to quickly attenuate the volume.

10 MODE button 10

Press to change the screen mode.

INPUT button 11

Press to select the input source.

12 POWER button 9

13 MENU button 12, 13

Press to adjust the various display settings.

14VOL (volume) +/- buttons 14

Press to adjust the volume.

15 口 /口 buttons

Tip

Refer to "Replacing the lithium battery" for details on how to replace the batteries (page 18).

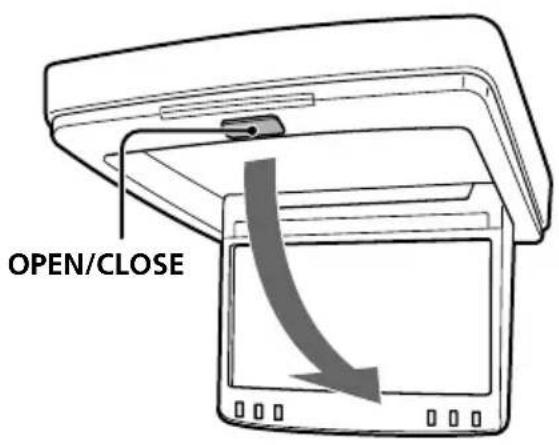

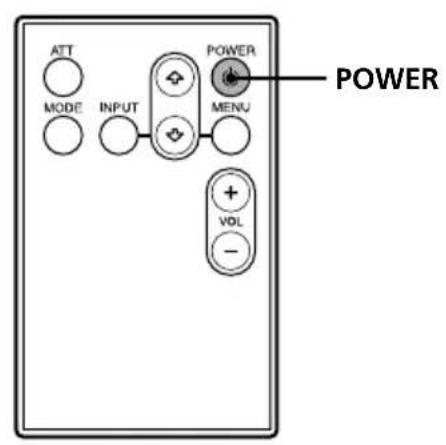

Opening the Display Monitor

Press POWER on the card remote commander.

The display monitor automatically opens and the power is turned on.

Operating with the unit

Press / CLOSE on the unit. The display monitor automatically opens and the power is turned on.

Closing the Display Monitor back in its enclosure

Press POWER on the card remote commander or OPEN/CLOSE on the unit again.

Notes

• Do not obstruct the movement of the LCD panel. It may cause damage to the driver monitor or the gear mechanism of the unit.
• If the display monitor's angle is forcibly changed due to any shock, first close the monitor by pressing (OPEN/CLOSE), then open it again.

Do not try to open or close the monitor manually as a malfunction may result.

Tip

The LCD panel closes automatically when the ignition key is turned OFF.

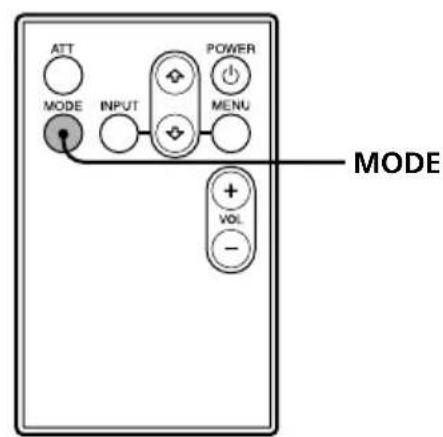

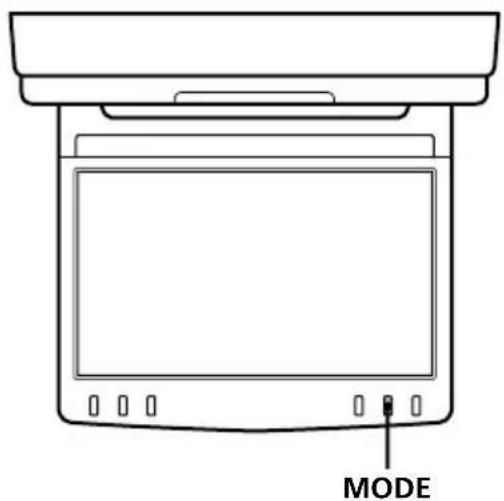

Setting the Screen Mode

In addition to normal screen mode, full screen and zoom screen modes are also available.

Press MODE repeatedly.

The current mode is displayed on the screen first.

Each time the button is pressed, the screen mode switches in the following sequence:

Normal (regular) screen

An image with an aspect ratio of 4 to 3 (regular image).

Full screen An image with an aspect ratio of 4 to 3 enlarged to the left and right edges of the screen.

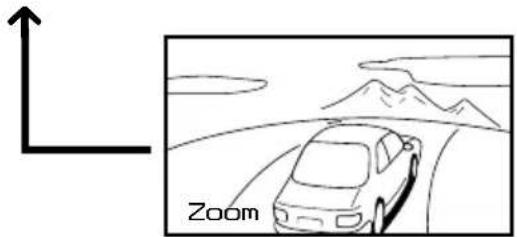

Zoom screen

An image with an aspect ratio of 4 to 3 enlarged to the left and right edges of the screen, with the overflowing parts (top and bottom) cut off to fill the screen.

The screen mode is set after 5 seconds without pressing MODE.

Tip

Images may appear coarse-grained when viewed in the zoom screen mode.

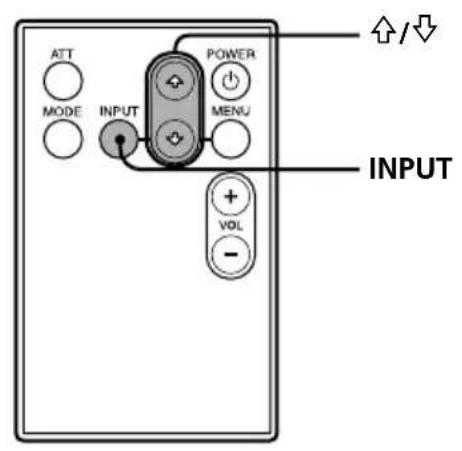

Selecting the Input Source

You can select the input source and colour system.

1 Press INPUT to select the input source,VIDEO 1,VIDEO 2 orVIDEO 3.

Each time you press INPUT, the indication changes as follows:

2 Press or to select PAL or NTSC colour system.

Press either button within 5 seconds after selecting the input source. The item will be cancelled after 5 seconds without pressing one of these buttons.

When NTSC Video is selected

When PAL Video is selected

Operating with the unit

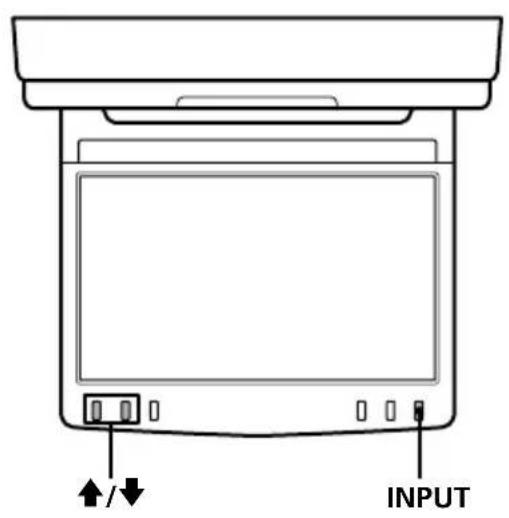

Press INPUT repeatedly on the unit to select the input source. Then press or to select PAL or NTSC.

Changing the Display settings

You can adjust the display settings manually if the display is hard to see from the position where you are seated.

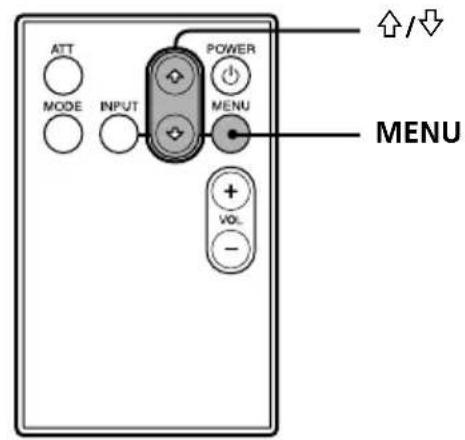

1 Press MENU.

The "Picture" screen appears.

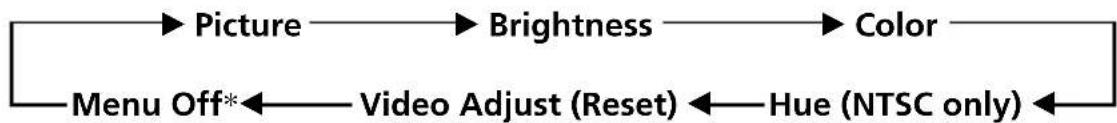

Each time you press (MENU), the setting screen changes in the following sequence:

*Returns to normal screen.

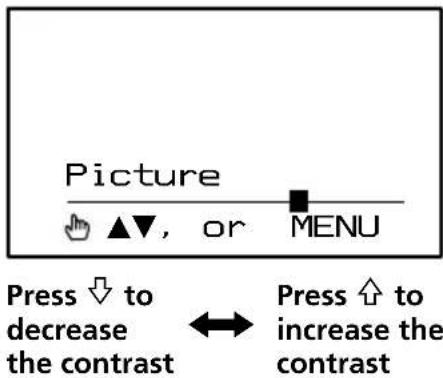

2 Press or to adjust to the desired setting.

When "Picture" is selected

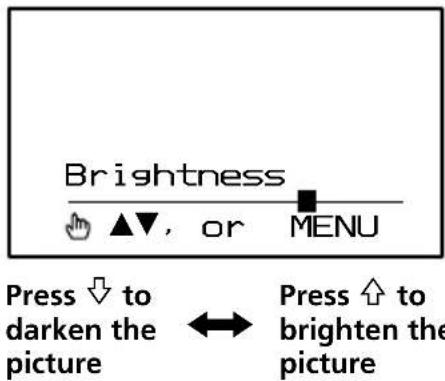

When "Brightness" is selected

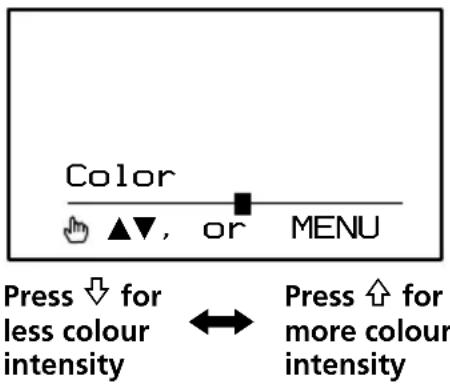

When "Color" is selected

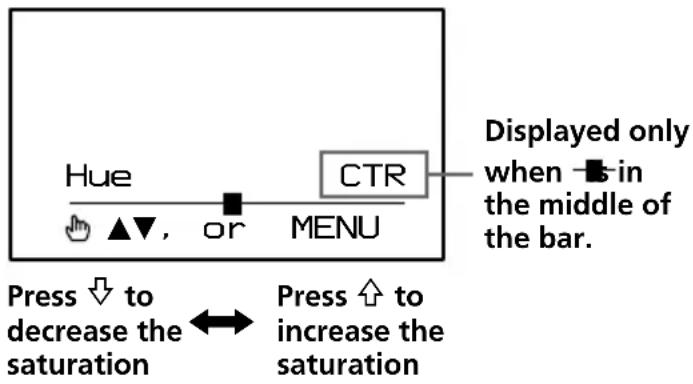

When "Hue" is selected (NTSC only)

When "Video Adjust" is selected

"Picture", "Brightness", "Color" and "Hue" settings will be reset to the factory preset level.

Operating with the unit

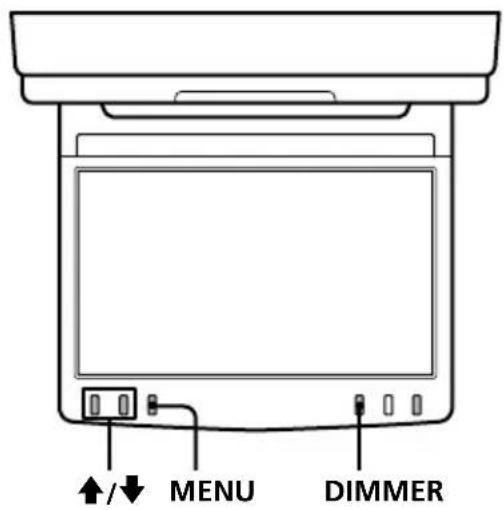

Press repeatedly on the unit to select the setting you want to change. Then press or to adjust the setting.

Setting the dimmer function on

Press DIMMER on the unit to set the dimmer function on. The brightness of the screen will be adjusted automatically.

To cancel the dimmer function

Press DIMMER again.

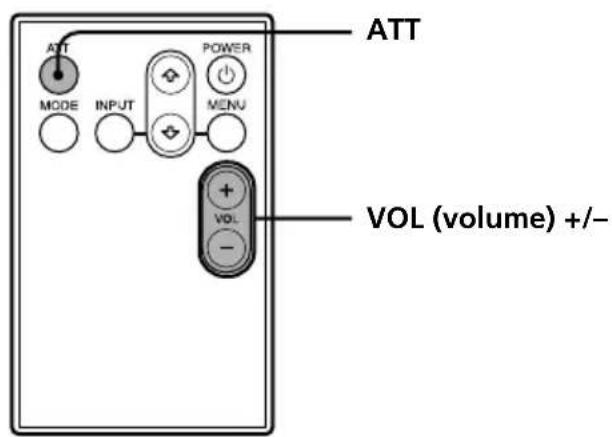

Adjusting the Volume

You can adjust the volume of the wired headphones and connected equipment with the supplied card remote commander.

Press (+) or (-) on the card remote commander.

Quickly attenuating the sound

Press ATT on the card remote commander.

To restore the previous volume level Press ATT again.

Connecting headphones

There are two output jacks (mini phono plug) for wired headphones on the unit. Adjust the volume using the (+) or (-) on the card remote commander.

Using wireless headphones

You can use infrared wireless headphones, MDR-IF5000 (optional) with the unit. Please refer to the operating instructions for MDR-IF5000.

Note

The volume of the wireless headphones cannot be adjusted with the supplied card remote commander. Use the volume control on the wireless headphones.

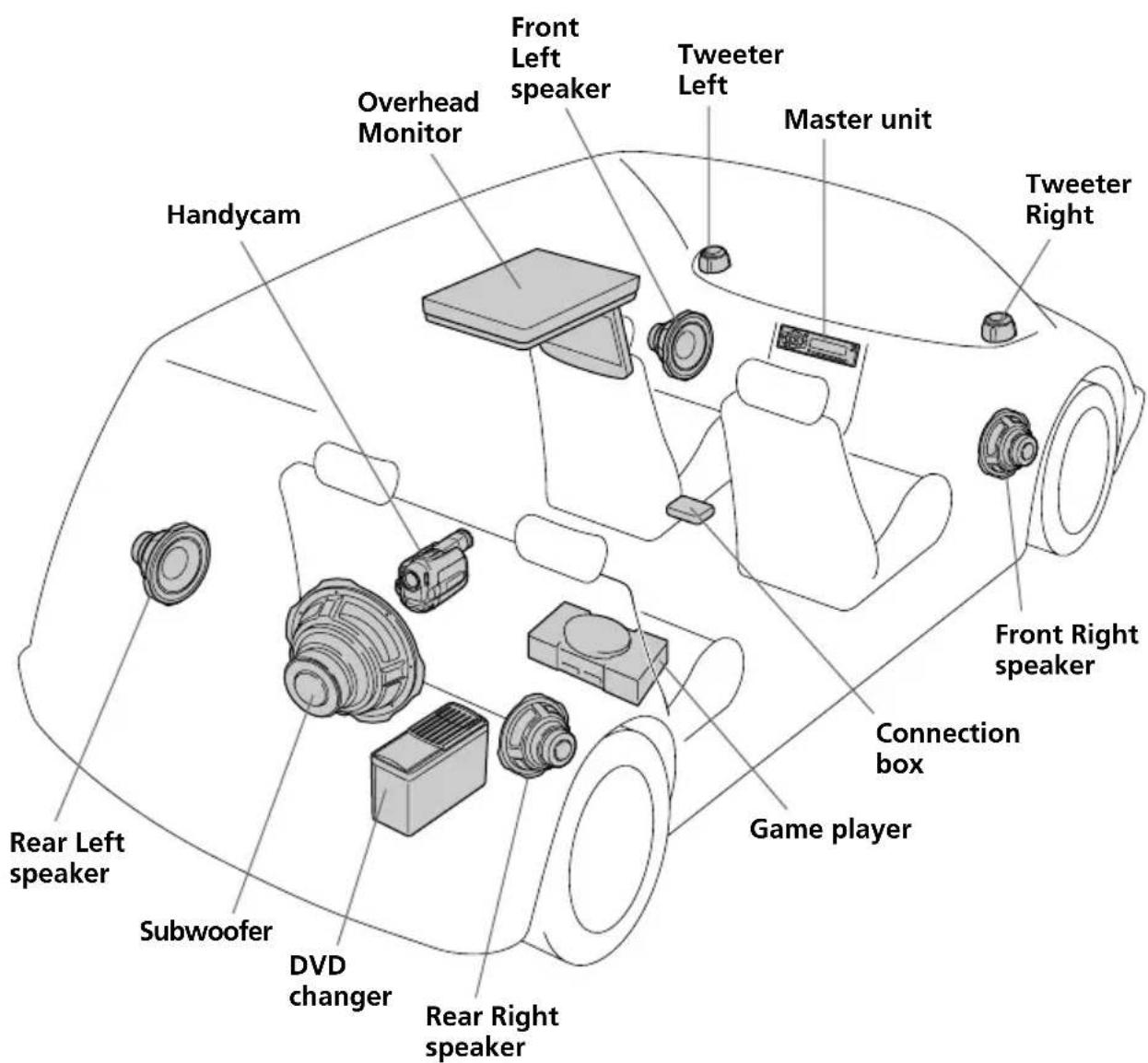

Installation diagram

Refer to the installation diagram and ask a qualified technician for the installation of the unit.

Note

All equipment other than the Overhead Monitor and Connection Box are optional.

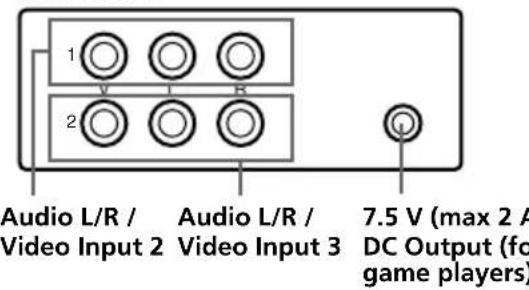

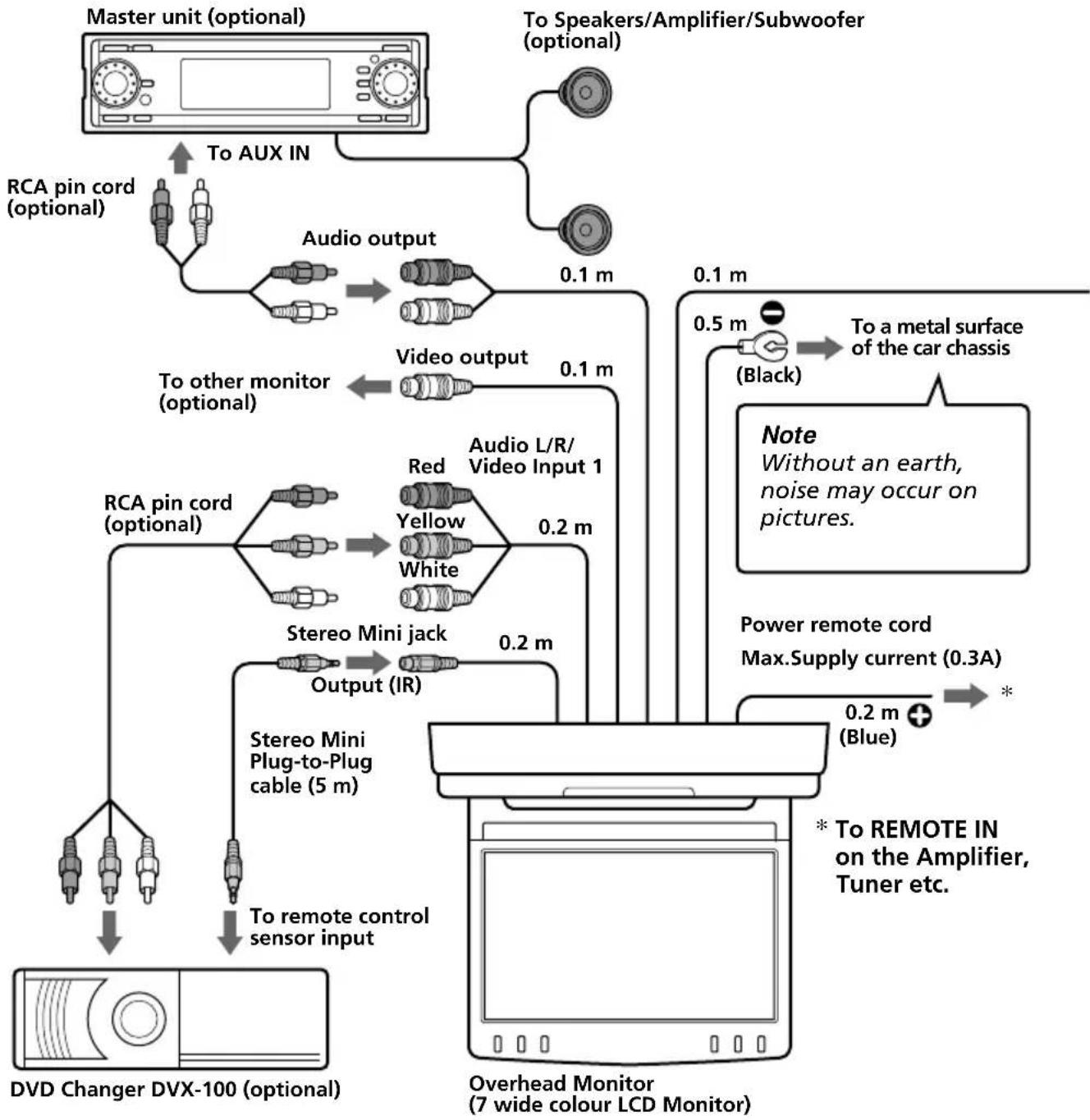

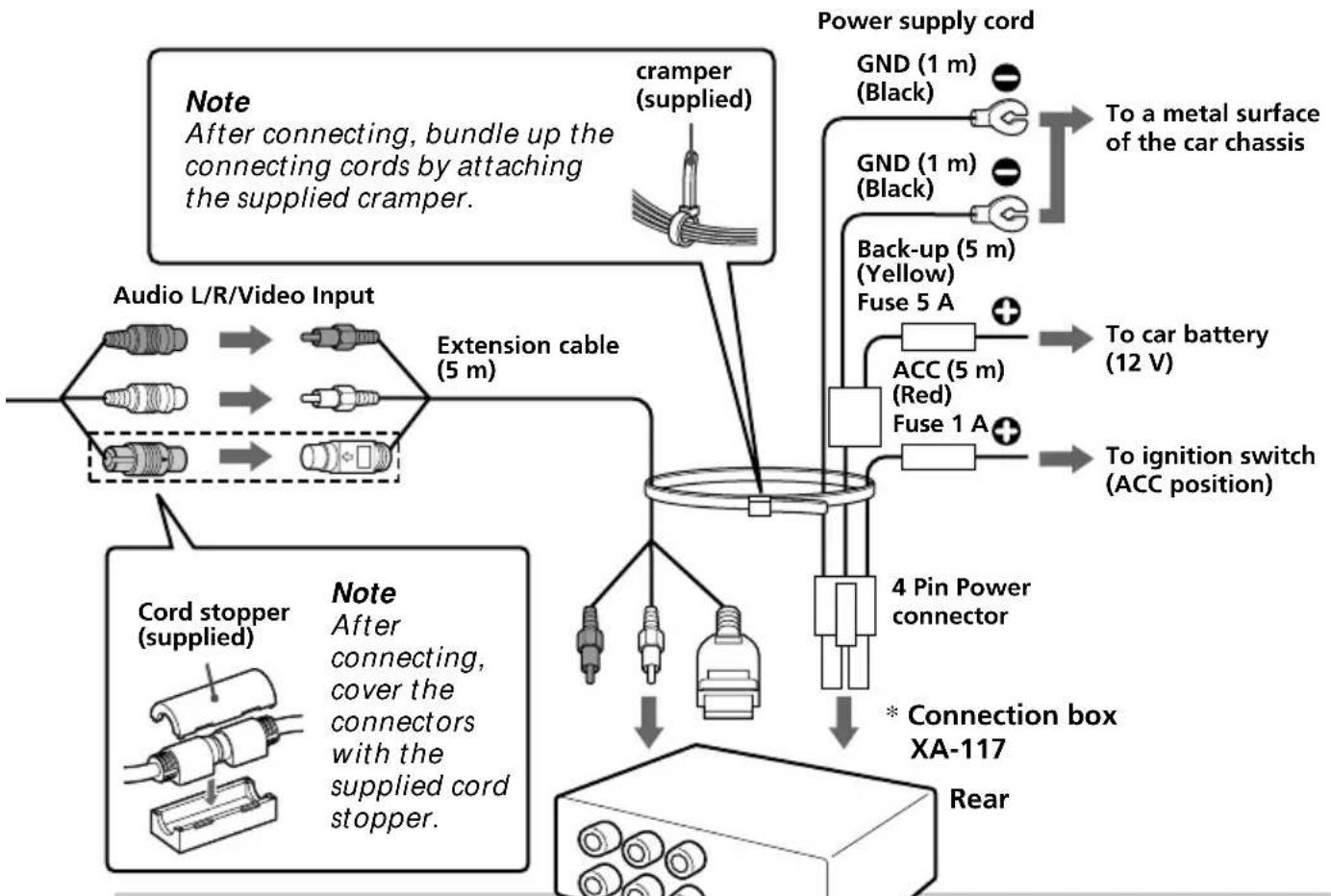

Connection diagram

Refer to the connection diagram for the proper connections.

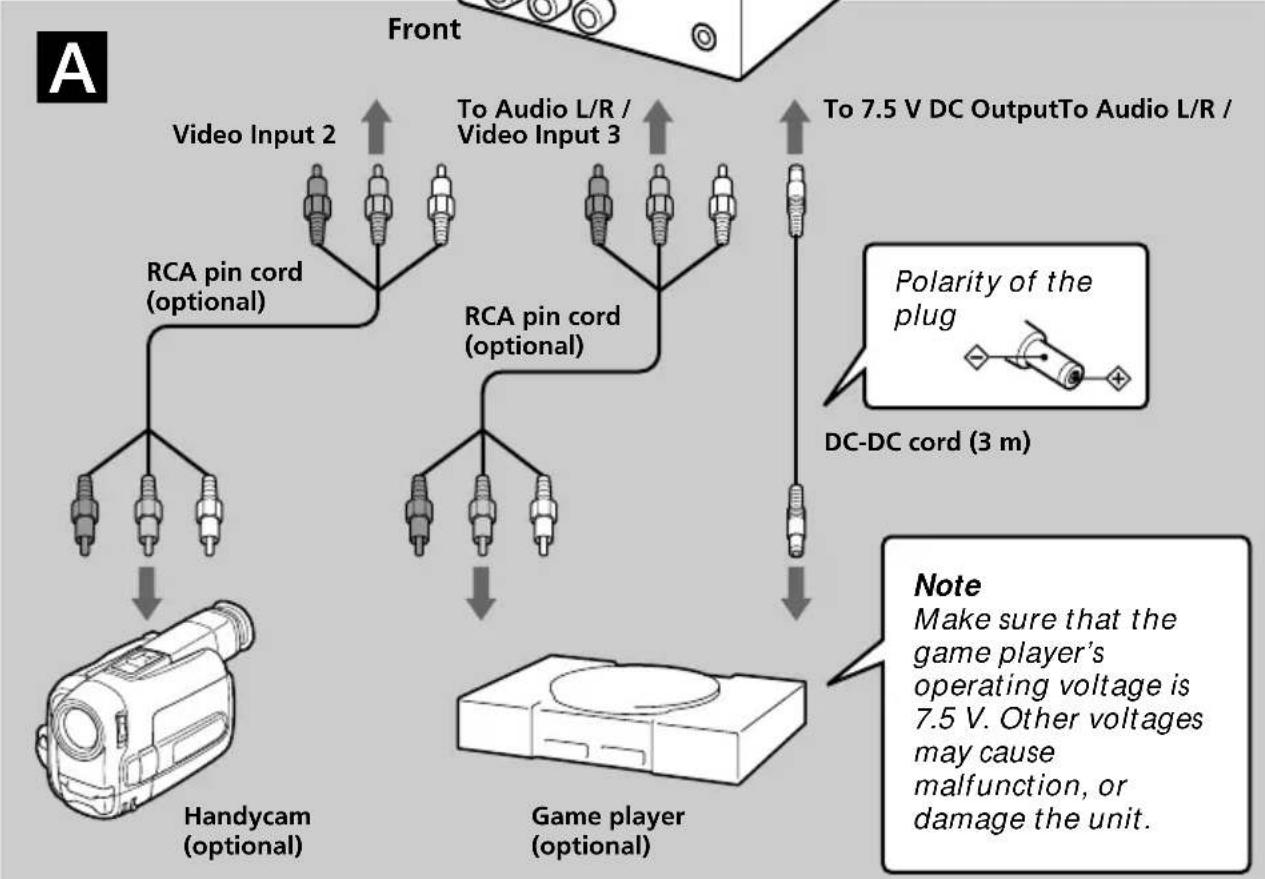

You can make connections shown in A area. Please ask a qualified technician for the other connections.

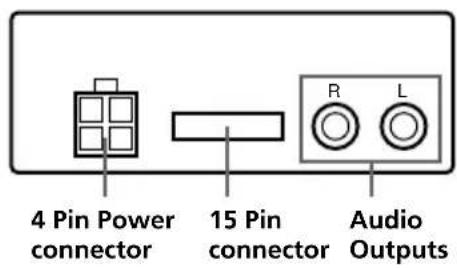

*Connection box XA-117 Front Rear

Maintenance

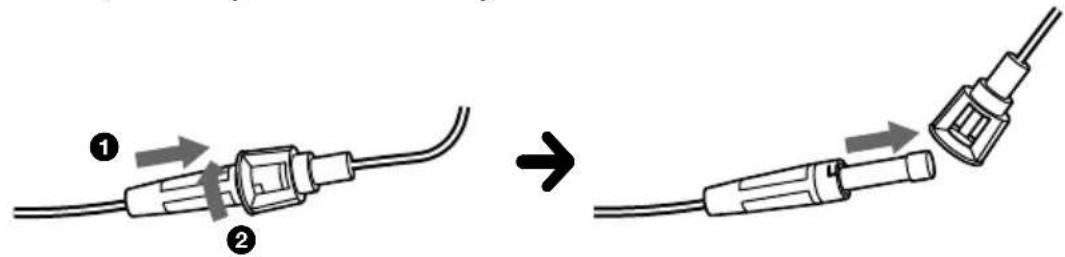

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

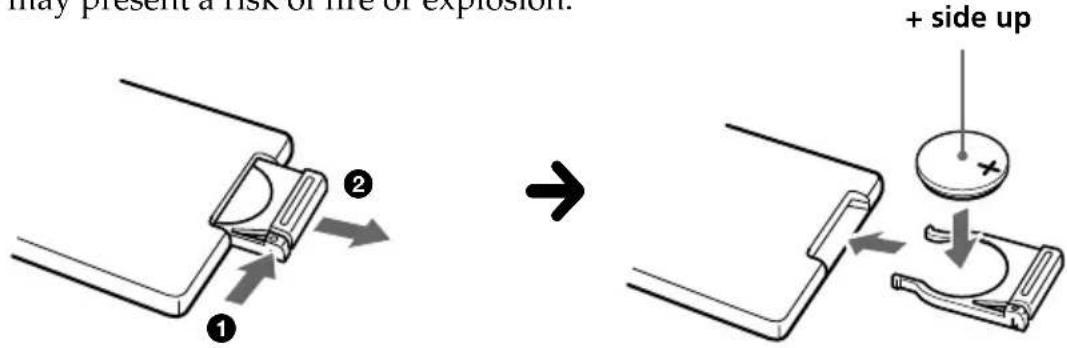

Replacing the lithium battery

Under normal conditions, batteries will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.)

When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

Notes on lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of in fire.

About the liquid crystal display (LCD) panel

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction. The picture may become unclear, or the LCD panel may be damaged.

Notes on cleaning

Clean the LCD panel with a slightly damp soft cloth.

• Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray.

• Do not use the unit in temperatures under 5^ or over 45^ .

• If your car was parked in a cold or hot place, the picture may not be clear. The monitor is not damaged. The picture will become clear after the temperature in your car becomes normal.

Some stationary blue or red dots may appear on the monitor.

These are called bright spots, and can happen with any LCD.

The LCD panel is highly sophisticated, and more than 99.99% of the segments used in the panel are flawless. However, there is a possibility that less than 0.01% of the segments are defective and may not light up properly.

Specifications

Monitor

System Liquid crystal colour display

Display Motorized flipdown panel

Drive system TFT-LCD active matrix system

Picture size 7 inches wide screen (16:9)

154·87 mm, 176 mm

(w/h, d)

Picture segment

336,960 (w 1440·h 234) dots

Power requirements

12 V DC car battery

(negative earth)

Current drain Approx. 1.5 A

Dimensions 230·50·270 mm

(w/h/d)

Operating temperature

5^ - 45^

Mass Approx. 1.3 Kg

Connection box XA-117

A/V Output

Output Impedance: less than 220

less than 100pF

Output Level: 0 dBs ±0.3 dB

(0.775 V rms)

(Vol Max)

Video: 75Ω 1Vp-p

A/V Input·3

Input Impedance: more than 10K

less than 1000pF

Input Level: ± 1.3 dBs +0 / - 0.3 dB

(0.775 V rms)

Video: 75Ω1 Vp-p

DC output 7.5V (max 2 A)

Dimensions 101·42·73 mm

(w/h/d)

Mass Approx. 150g

Card remote commander RM-X123

Power requirements

CR2025 lithium battery

Operable range

Approx. 2.5m

Dimensions 56·89·7 mm

(w/h/d)

Mass Approx. 25g

(including batteries)

Supplied accessories

Connection box XA-117 (1)

Card remote commander RM-X123

(with supplied battery) (1)

Extension cable (5 m) (1)

Power supply cord (1)

DC-DC cord (3m) 1

Stereo Mini Plug-to-Plug cable (5 m) (1)

Mounting plate (1)

Screws (4)

Tapping Screws (4)

Cord stopper (1)

Cramper (1)

Operating Instructions (1)

Optional accessory

DVD Changer DVX-100

Design and specifications are subject to change without notice.

Troubleshooting

The following checklist will help you solve problems you may encounter with your unit.

Before going through the checklist below, check the connection and operating procedures.

General

No picture, no sound	The power cord or battery has been disconnected. The fuse has blown.
Good picture, but no sound	Press the VOL (+) or ATT on the card remote commander.
Dotted lines or stripes	This may be caused by local interference such as a car engine or motorcycle. Adjust the aerials for minimum interference.
No picture, or no sound when you connect optional equipment Makes noise when the ignition key is in the ON, ACC, or OFF position.	The cord has been disconnected. Connect the cord securely.
No response when pressing the buttons on the card remote commander	The battery may be exhausted.

Inhalt

Willkommen! 4

Premere Anything to appear.

3Tasto MENU 12, 13

Premere Anything to do.

6Tasto INPUT 11

Premere Anything to do.

Tasto INPUT 11

(De fabrieksinstelling is positie A.)
