USER MANUAL BL494 NINJA

IMPORTANT SAFETY INSTRUCTIONS

For Household Use Only

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING YOUR NINJA® KITCHEN SYSTEM WITH AUTO-iQ Boost™.

POLARIZED PLUG

WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. DO NOT modify the plug in any way.

WARNING: Extension cords are not recommended for use with this product.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

1WARNING: Remove utensils prior to processing. Failure to remove may cause the jar to be damaged or to shatter which may cause personal injury.

2WARNING: The blade assemblies are sharp, not locked in place and removable, handle with care. When handling the blade assemblies, always hold by the shaft. Failure to do so will result in a risk of laceration.

3WARNING: Stacked Blade Assembly is sharp and not locked in place. If using the pour spout, ensure the lid is fully locked onto the pitcher. If pouring with the lid removed, carefully remove the Stacked Blade Assembly first, holding it by the shaft. Failure to do so will result in a risk of laceration.

4WARNING: Chopping Blade Assembly is sharp and not locked in place. Before emptying contents carefully remove lid and Chopping Blade Assembly, holding it by the shaft. Failure to do so will result in a risk of laceration.

5 CAUTION: Do not blend hot liquids, doing so may cause excessive pressure build-up, resulting in risk of the user being burned.

6 CAUTION: We do not recommend grinding in any of our Nutri Ninja® Cups.

7 CAUTION: Remove the Pro Extractor Blades® Assembly from the Nutri Ninja cup upon completion of blending. Do not store ingredients before or after blending them in the cup with the blade assembly attached. Some foods may contain active ingredients or release gases which will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury. For ingredient storage in the cup, use only Sip & Seal® Lid to cover.

8 CAUTION: DO NOT process dry ingredients without adding liquid to the cup. This product is not intended for dry blending.

9 To protect against electrical shock, do not submerge the appliance or allow the power cord to come into contact with water or any other liquid.

10 DO NOT allow the appliance to be used by children. Close supervision is necessary when used near children. This is not a toy.
11 Never leave an appliance unattended when in use.
12 Appliance accessories are not intended to be used in the microwave as it may result in damage to the accessories.
13 Turn the appliance Off and remove the power cord from the electrical outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the electrical outlet. Never pull from the power cord.
14 DO NOT abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical outlet; instead grasp the plug and pull to disconnect.
15 DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner. This appliance has no serviceable parts. Return the appliance to SharkNinja Operating LLC for examination, repair or adjustment.
16 DO NOT let the power cord hang over the edge of table or counter or touch hot surfaces such as the stove.
17 Always use appliance on a dry, level surface.
18 Keep hands, hair, clothing, as well as utensils out of container while processing to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.
19 Avoid contact with moving parts.
20 DO NOT attempt to sharpen blades.
21 DO NOT use the appliance if blade assemblies are bent or damaged.
22 To reduce risk of injury, never place the blade assemblies on the base without the pitcher or Nutri Ninja cup properly attached.

23 DO NOT operate this appliance on or near any hot surfaces (such as gas or electric burner or in a heated oven).
24 The use of attachments or accessories including canning jars, not recommended by the manufacturer may result in fire, electric shock or personal injury.
25 DO NOT remove the container from the motor base while the appliance is in operation.
26 To reduce the risk of injury, NEVER operate the appliance without the lid in place; DO NOT try to defeat the interlock mechanism; make sure that the attachment is properly installed before operating the appliance.
27 DO NOT expose containers to extreme temperature changes.
28 DO NOT overfill.
29 DO NOT operate the appliance empty.
30 To reduce the risk of burns, always allow the appliance to cool before taking off parts and before cleaning.
31 In the event that the unit overloads, the control panel lights will flash and the unit will shut down. Unplug the appliance and let it cool down for approximately 15 minutes before using again.
32 THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. Do not use this appliance for anything other than its intended use. Do not use outdoors.
33 The maximum rating is based on the Stacked Blade Assembly (pitcher) that drives the greatest power and other recommended attachments may draw significantly less power or current.

SAVE THESE INSTRUCTIONS

CONSIGNES DE SECURITÉ IMPORTANTES

THIS BOOK COVERS MODEL NUMBER:

BL494

TECHNICAL SPECIFICATIONS

Voltage: 120V 60Hz.

Power: 1200 Watts

Pitcher Capacity: 72 oz. (9 cups, 2.1 L)

Max Liquid Capacity: 64 oz. (8 cups, 1.9 L)

Bowl Capacity: 40 oz. (5 cups, 1.18 L)

Nutri Ninja® Cup Capacity: 24 oz. (3 cups, 710 mL)

CE MANUEL CONCERNE LE MODELE :

BL494

Thank you for purchasing the Ninja® Kitchen System with Auto-iQ Boost™.

Getting to Know Your Ninja® Kitchen System with Auto-iQ Boost™. 9
Before First Use 11
Assembly and Use of the Pitcher 12
Assembly and Use of the Blend & Prep Bowl. 14

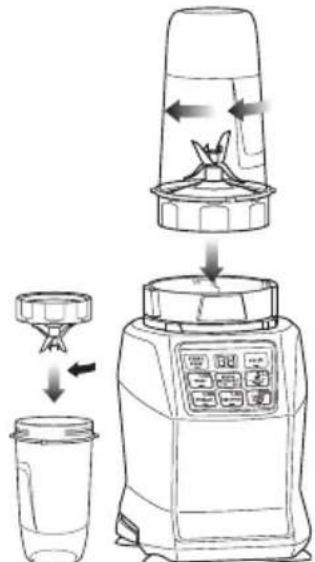

Assembly and Use of the Nutri Ninja® Cups 16
Care & Maintenance 17
Troubleshooting Guide. 18

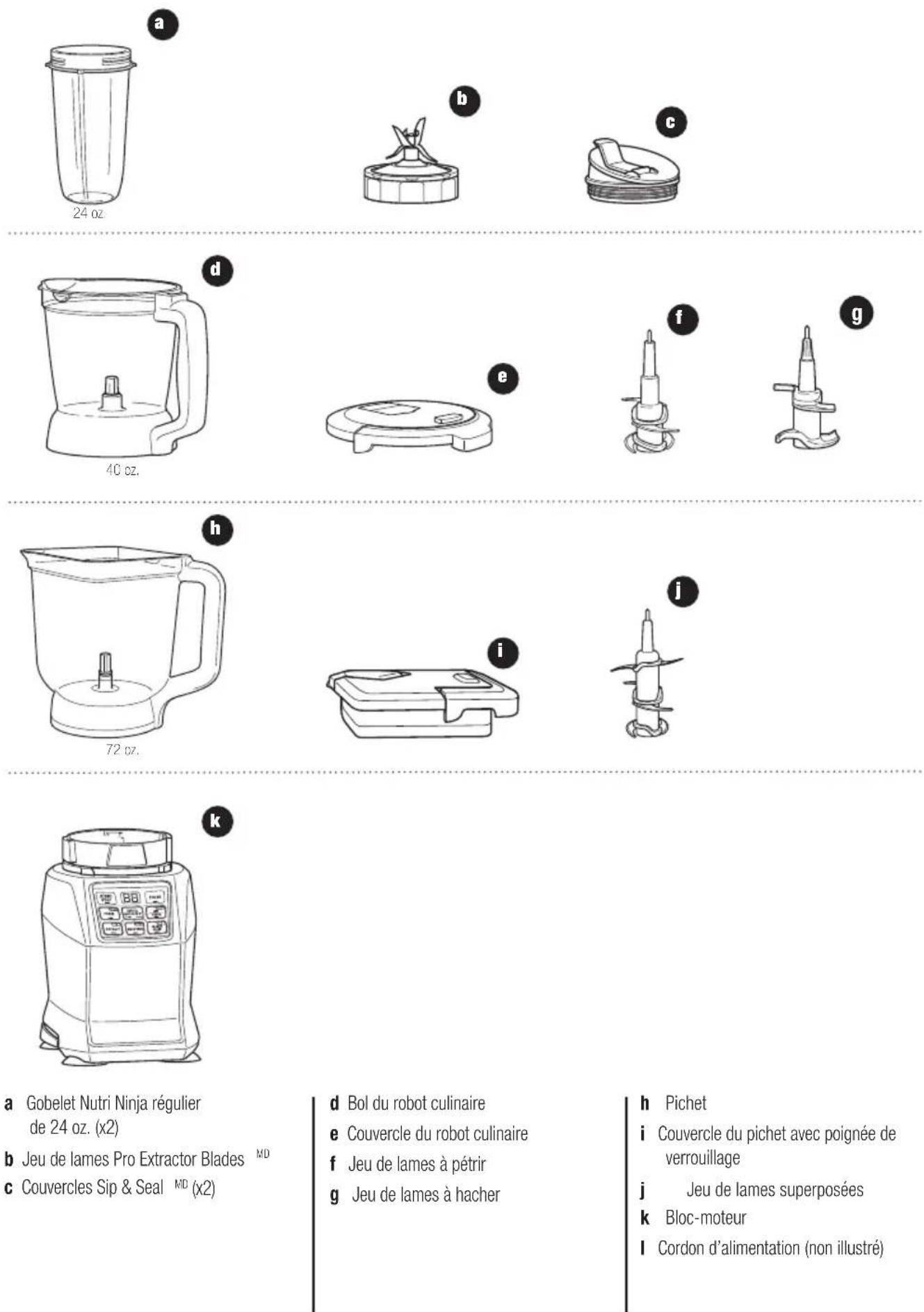

Replacement Parts. 18
Warranty & Registration. 40

Table des matieres

s

Getting To Know Your Ninja® Kitchen System with Auto-iQ Boost™

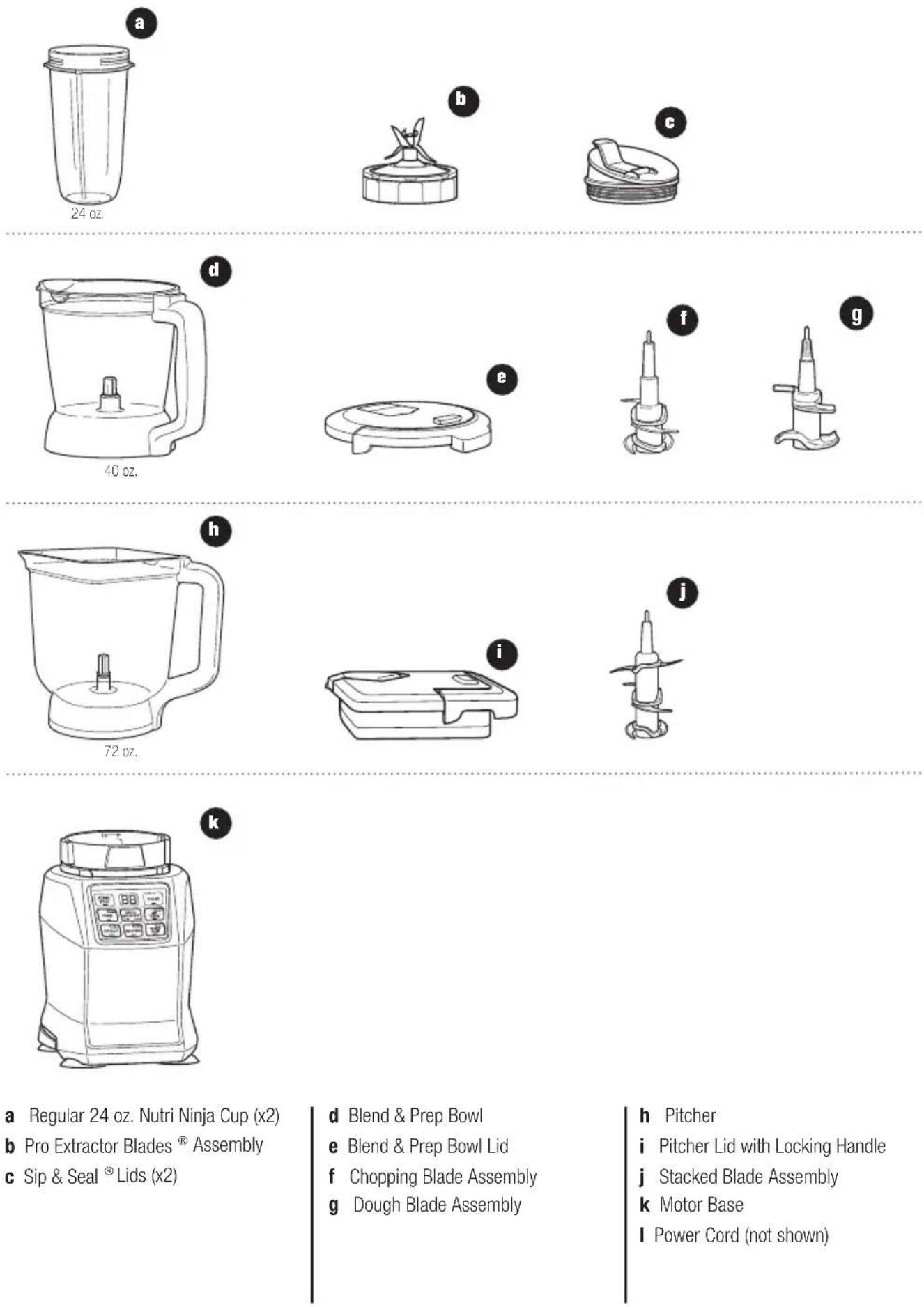

NINJA BL494 - Getting To Know Your Ninja® Kitchen System with Auto-iQ Boost™ - 1

The Ninja® Kitchen System with Auto-iQ Boost™ is a professional, high powered innovative tool with a sleek design and outstanding performance, a true asset to any kitchen. The Ninja Kitchen System with Auto-iQ Boost features intelligent programs that combine unique pulsing, blending and pausing patterns that do the work for you! Get great results every time with no guesswork required! For best results, be sure to carefully read all the instructions contained in the manual before using this appliance.

Ninja® Kitchen System with Auto-iQ Boost™ Features:

  • Ninja Blade Technology
  • BPA Free Pitcher, Nutri Ninja Cups, Blend & Prep Bowl and Lids
  • Drip-Free Pour Spout
    Total Crushing Technology
  • LED Control Panel with Timer
    Sturdy, Non-Slip Base
  • Smart Lid technology for easy release
    2 Manual Settings: Start/Stop, Pulse
  • 5 Auto-iQ Settings: Puree, Mix/Dough, Extract, Smoothie, and Frozen Drink
    Nutri Ninja Nutrient & Vitamin Extraction*

  • Extract a Drink Containing Vitamins & Nutrients From Fruits & Veggies

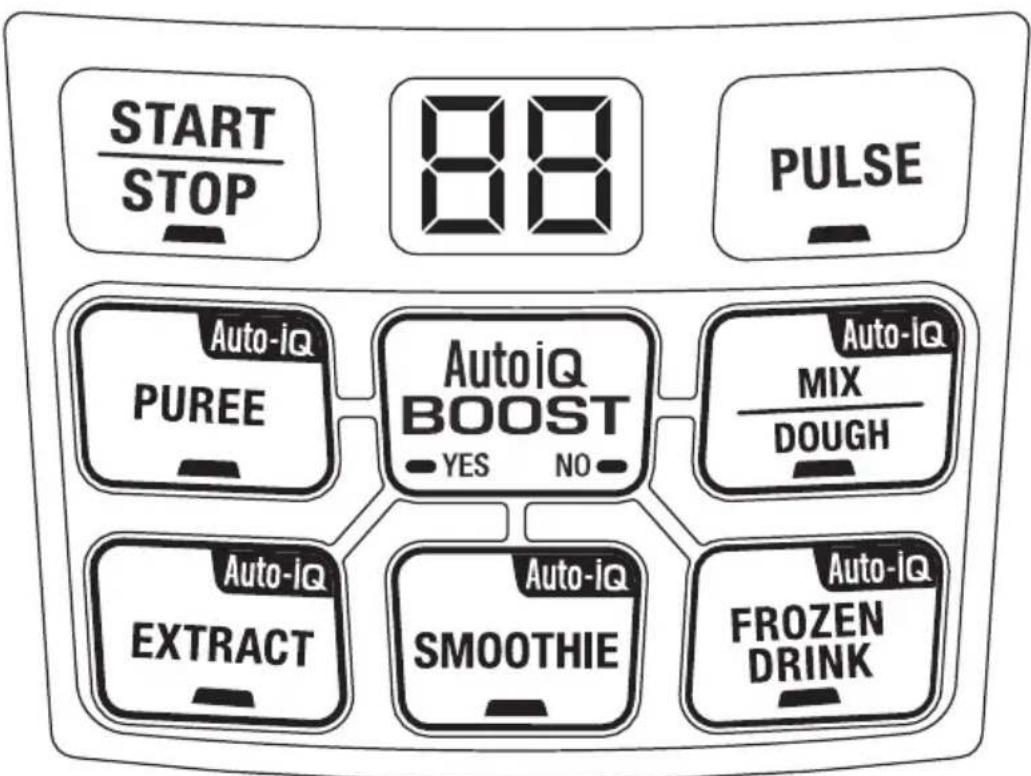

NINJA BL494 - Ninja® Kitchen System with Auto-iQ Boost™ Features: - 1

PLEASE KEEP THESE IMPORTANT SAFEGUARDS IN MIND WHEN USING THE APPLIANCE:

IMPORTANT: Make sure that the motor base is plugged in for use.

IMPORTANT: Never add ingredients into the container before placing the Blade Assembly in first.

IMPORTANT: Blade Assemblies are not interchangeable.

IMPORTANT: DO NOT attempt to operate the appliance without the lid on.

IMPORTANT: Never run the appliance empty.

IMPORTANT: Appliance accessories are not intended to be used in the microwave as it may result in damage to the accessories.

WARNING: Stacked Blade Assembly is sharp and not locked in place. If using the pour spout, ensure the lid is fully locked onto the pitcher. Failure to do so will result in a risk of laceration.

NINJA BL494 - PLEASE KEEP THESE IMPORTANT SAFEGUARDS IN MIND WHEN USING THE APPLIANCE: - 1

WARNING:

Stacked Blade

Assembly is sharp and not locked in place. If pouring with the lid removed, carefully remove the Stacked Blade

NINJA BL494 - WARNING: - 1

Assembly first, holding it by the shaft. Failure to do so will result in a risk of laceration.

WARNING: Chopping Blade Assembly is sharp and not locked in place.

Before emptying contents carefully remove lid and Chopping Blade Assembly, holding it by the shaft.

NINJA BL494 - WARNING: Chopping Blade Assembly is sharp and not locked in place. - 1

Failure to do so will result in a risk of laceration.

CAUTION: Do not immerse the motor base into water or any other liquid.

1 Remove all packaging material and labels from the appliance. Separate/remove all parts from each other.

2 Wash the lids, pitcher, bowl, Nutri Ninja cups and Blade Assemblies in warm, soapy water. When washing the blade assemblies, use a dish-washing utensil with a handle to avoid direct hand contact with blades.

CAUTION: Handle the Blade Assemblies with care when washing, as the blades are very sharp.

3 Handle blade assemblies with care to avoid contact with sharp edges. Rinse and air dry thoroughly.

4 The pitcher, bowl, Nutri Ninja cups, lids, and Blade Assemblies, are all dishwasher safe. It is recommended that the lids and blade assemblies be placed on the top rack. Ensure that the blade assemblies are removed from the containers before placing in the dishwasher.

5 Wipe the motor base clean with a damp cloth.

Assembly and Use of the Pitcher

WARNING: Handle the Stacked Blade Assembly with care, as the blades are sharp.
WARNING: Remove utensils prior to processing. Failure to remove may cause the pitcher to be damaged or to shatter, which may cause personal injury.
WARNING: Never leave the appliance unattended while in use.
CAUTION: Do not blend hot liquids, doing so may cause excessive pressure buildup, resulting in risk of the user being burned.

IMPORTANT: Make sure that the motor base is plugged in for use.

ASSEMBLY

NINJA BL494 - ASSEMBLY - 1

NINJA BL494 - ASSEMBLY - 2

NINJA BL494 - ASSEMBLY - 3

NINJA BL494 - ASSEMBLY - 4
OR

NINJA BL494 - ASSEMBLY - 5

It's best to add the liquid ingredients first and then the dry ingredients.

1 Review warning and caution statements above before proceeding to number 2.
2 Place the motor base on a clean, dry, level surface such as a counter or table top. Press down on the motor base to make sure that the Suction Cups adhere to the counter or table top.
3 Align and lower the Pitcher onto the motor base. (Fig. 1) Handle should be aligned slightly to the right of the "LOCK" symbol on the motor base.
4 Rotate the pitcher clockwise until it clicks in place. As the pitcher rotates, it will lower and the safety tabs on the bottom of the pitcher will slide under the safety tabs on the top of the motor base. (Fig. 2)
5 The pitcher can be placed on the motor base two ways; the handle can be on the front right corner or the front left corner. (Fig. 3a, Fig. 3b)
6 Holding the Stacked Blade Assembly by the top of the shaft, place it onto the drive gear inside the pitcher. Ensure that the Stacked Blade Assembly is seated properly and is standing upright. (Fig. 4)

NOTE: The Stacked Blade Assembly will fit loosely on the drive gear.

7 Add the ingredients to the pitcher, making sure that they do not exceed the highest measured marking line on the side of the pitcher.

NOTE: If you need to add additional ingredients while the appliance is processing, open the pour spout cap and pour the ingredients in through the opening.

NOTE: When blending any kind of liquids, such as mixtures of any drinks or smoothies, do not exceed the "MAX" liquid mark (64 oz.) on the Pitcher.

8 Holding the lid by the handle in the upright position, place it on top of the Pitcher aligning the triangle located on the lid with the triangle () located on the Pitcher's handle. (Fig. 5a) Press the handle down until you hear a click. The triangles on the lid and the blender handle MUST be aligned in order for the blender to turn on. (Fig. 5b)
9 Plug the power cord into the electrical outlet. The function lights will illuminate.

USE REMOVAL

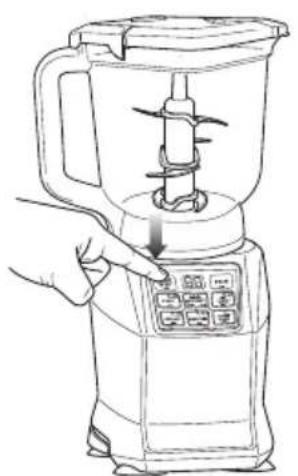

NINJA BL494 - USE REMOVAL - 1
Fig. 6

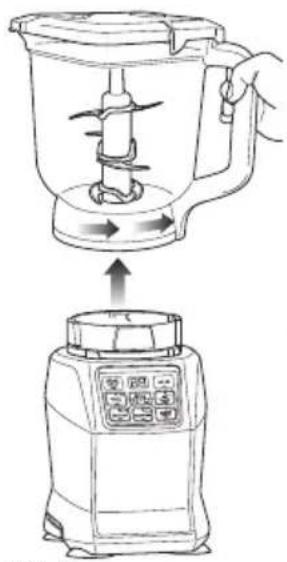

NINJA BL494 - USE REMOVAL - 2
Fig. 7

NINJA BL494 - USE REMOVAL - 3
Fig. 8

NINJA BL494 - USE REMOVAL - 4
(Fig. 9)

Fig. 9

10 Review warning and caution statements on page 12 before proceeding.
11 Select the speed or Auto-iQ program that best suits your needs. The Auto-iQ program will stop the appliance automatically at the end of the program. (Fig. 6)

NOTE: Pulse ingredients for even chopping by holding the Pulse button until your desired consistency is reached.

12 To pause the appliance, press the selected speed or Auto-iQ program a second time. When the program is paused, the light on the program button will flash until you press it again to resume the rest of the program.
13 When you have reached your desired consistency, stop the appliance by pressing the START/STOP and wait for the blade to stop turning.
14 Turn the pitcher counter clockwise to remove and then lift off the base. (Fig. 7)

WARNING: Never insert your hands in the pitcher as the Stacked Blade Assembly is sharp. Always use a spatula to dislodge food that has stuck to the sides of the pitcher.

15 Open the pour spout cap and use the spout to empty liquid contents.
16 For thicker consistencies, first remove the lid by pressing the release button and pulling the lid handle up to a 90 degree angle to lift lid off the pitcher. Then, carefully remove the Stacked Blade Assembly by the top of the shaft. Place Stacked Blade Assembly away from the work area to avoid accidental contact. Finally, empty contents from the pitcher. (Fig. 8)
17 Make sure that the unit is unplugged when not in use.
18 To release the motor base from the counter or table top, place your hands underneath both sides of the motor base and gently pull the unit up and towards you.

Assembly and Use of the Blend & Prep Bowl

WARNING: Chopping Blade Assembly is sharp and not locked in place. Before emptying contents carefully remove lid and Chopping Blade Assembly, holding it by the shaft. Failure to do will result in risk of laceration.
WARNING: Remove utensils prior to processing. Failure to remove may cause the bowl to be damaged or to shatter, which may cause personal injury.
WARNING: Never leave the appliance unattended while in use.
CAUTION: Do not blend hot liquids, doing so may cause excessive pressure buildup, resulting in risk of the user being burned.

IMPORTANT: Make sure that the motor base is plugged in for use.

ASSEMBLY

NOTE:Ninja Kitchen System with Auto-iQ Boost can sense which jar is on the motor base. The function lights will illuminate depending on which jar is placed on the motor base.

1 Review warning and caution statements above before proceeding to number 2.
2 Place the motor base on a clean, dry, level surface such as a counter or table top. Press down on the motor base to make sure that the suction cups adhere to the counter or table top.
3 Align and lower the Blend & Prep Bowl onto the motor base. (Fig. 1) Handle should be aligned slightly to the right of the "LOCK" symbol on the motor base.
4 Rotate the bowl clockwise until it locks in place, you will hear a click when the lock is engaged. (Fig. 2)
5 The bowl can be placed on the motor base two ways; the handle can be on the front right corner or the front left corner. (Fig. 3a, Fig. 3b)
6 Holding the desired blade assembly by the top of the shaft, place it onto the drive gear inside the bowl. Ensure that the blade assembly is seated properly and is standing upright. (Fig. 4)

NOTE: The blade will fit loosely on the drive gear.

7 Add the ingredients to the bowl, making sure that they do not exceed the highest measured marking line on the side of the bowl.
8 Holding the lid by the handle in the upright position, place it on top of the Blend & Prep Bowl aligning the triangle located on the lid with the triangle located on the Blend & Prep Bowl handle. (Fig. 5a) Press the handle down until you hear a click. The triangles on the lid and the Blend & Prep Bowl handle MUST be aligned in order for the blender to turn on. (Fig. 5b)

NOTE: The 64 oz. bowl is not intended for blending drinks. Do not overfill.

9 Plug the power cord into the electrical outlet. The function lights will illuminate.

Assembly and Use of the Blend & Prep Bowl - cont.

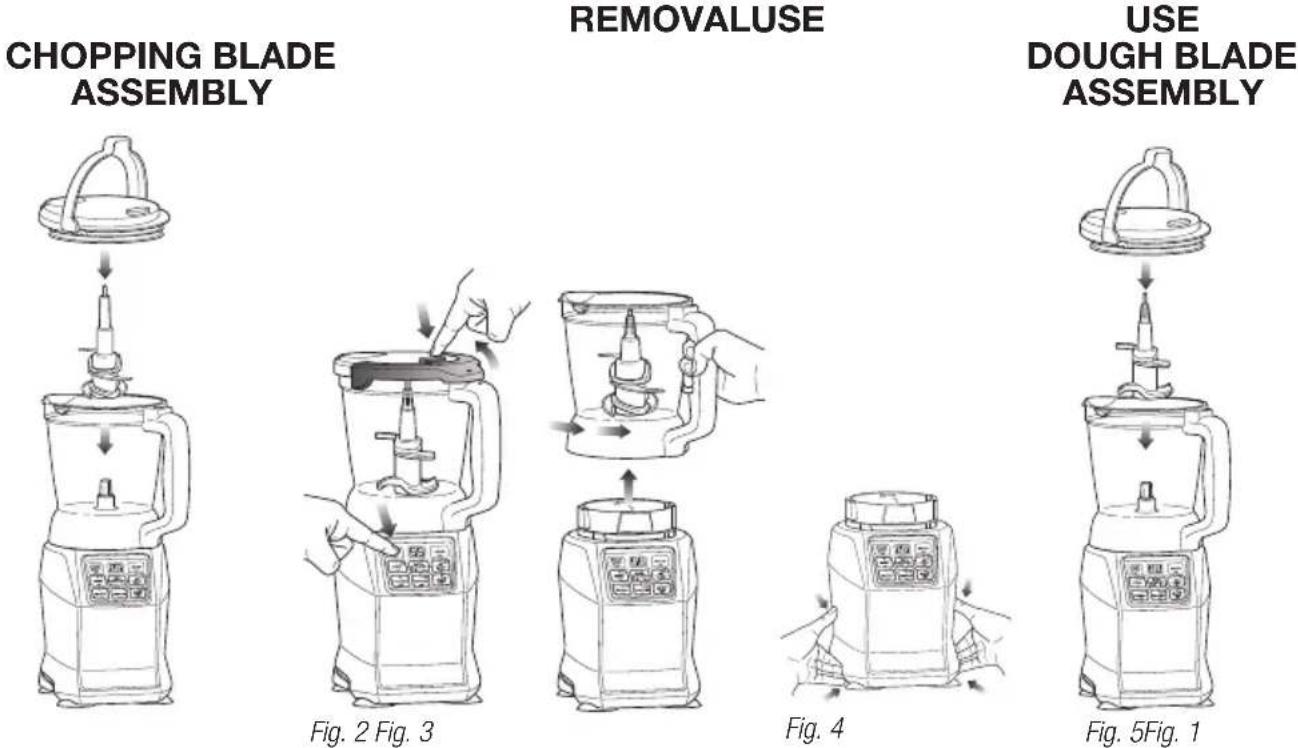

NINJA BL494 - Assembly and Use of the Blend & Prep Bowl - cont. - 1

USING THE CHOPPING BLADE ASSEMBLY

1 Review warning and caution statements on page 14 before proceeding to number 2.
2 Place the motor base on a clean, dry, level surface such as a counter or table top. Press down on the motor base to make sure that the suction cups adhere to the counter or table top.
3 Secure the bowl onto the motor base.
4 Holding the Chopping Blade Assembly by the shaft, place it onto the gear shaft inside the bowl. Ensure that the Chopping Blade Assembly fits around the gear shaft and that it is standing straight. (Fig. 1)
5 Add the ingredients and secure the bowl lid onto the bowl.
6 Plug the power cord into the electrical outlet. Once the bowl is engaged, the programs available for that attachment will illuminate. Select the speed or Auto-iQ program that best suits your needs. Pulse ingredients for even chopping by holding the Pulse button until your desired consistency is reached.

NOTE: Please refer to "Speed Settings & Uses" chart for suggested uses and speeds.

7 When you have reached your desired consistency, stop the appliance by pressing the STOP/START button. Wait for the Chopping Blade Assembly to stop turning. (Fig. 2)
8 To remove the lid, press the release button on the lid and pull the lid handle up to a 90^ angle. (Fig. 2)
9 Turn the bowl counter-clockwise and lift it to remove it from the motor base. (Fig. 3)
10 To release the motor base from the counter or table top, place your hands underneath both sides of the motor base and gently pull the unit up and towards you. (Fig. 4)

USING THE DOUGH BLADE ASSEMBLY

1 Review warning and caution statements on page 14 before proceeding to number 2.
2 Place the motor base on a clean, dry, level surface such as a counter or table top. Press down on the motor base to make sure that the suction cups adhere to the counter or table top
3 Secure the bowl onto the motor base.
4 Holding the Dough Blade Assembly by the shaft, place it onto the gear shaft inside the bowl. Ensure that the Dough Blade Assembly fits around the gear shaft and that it is standing straight. (Fig. 5)
5 Add the ingredients and secure the bowl lid onto the bowl.
6 Plug the power cord into the electrical outlet. Once the Bowl is engaged, the programs available for that attachment will illuminate. Select the MIX/DOUGH button and process until ingredients come together to form a mass.

NOTE: Please refer to "Speed Settings & Uses" chart for suggested uses and speeds.

7 Once finished making the dough, stop the appliance by pressing the STOP/START button. Wait for the Dough Blade Assembly to stop turning. (Fig. 2)
8 To remove the lid, press the release button on the lid and pull the lid handle up to a 90^ angle. (Fig. 2)
9 Turn the bowl counter-clockwise and lift it to remove it from the motor base. (Fig. 3)
10 To release the motor base from the counter or table top, place your hands underneath both sides of the motor base and gently pull the unit up and towards you. (Fig. 4)

Assembly and Use of the Nutri Ninja® Cups

WARNING: Handle the Pro Extractor Blades Assembly with care, as the blades are sharp.
WARNING: Never leave the appliance unattended while in use.
WARNING: Remove utensils prior to processing. Failure to remove may cause the bowl to be damaged or to shatter, which may cause personal injury.
CAUTION: Do not blend hot liquids, doing so may cause excessive pressure buildup, resulting in risk of the user being burned.
CAUTION: Remove the Pro Extractor Blades Assembly from the cup upon completion of blending. Do not store ingredients before or after blending in the Nutri Ninja cup with the blade assembly attached. Some foods may contain active ingredients or release gases which will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury. For storage, only use Sip & Seal Lid to cover.

IMPORTANT: Make sure that the motor base is plugged in for use.

ASSEMBLY USE REMOVAL

NINJA BL494 - ASSEMBLY USE REMOVAL - 1
Fig. 1 Fig. 2

1 Review warning and caution statements above before proceeding to number 2.
2 Place the motor base on a clean, dry, level surface such as a counter or table top. Press down on the motor base to make sure that the suction cups adhere to the counter or table top.
3 Add ingredients to the Nutri Ninja cup.
4 Place the Pro Extractor Blades onto the cup and tightly screw it on clockwise until you have a good seal. (Fig. 1)
5 Turn the Nutri Ninja cup upside down and place it onto the motor base, aligning the tabs on the cup with the motor base. Rotate the Nutri Ninja cup clockwise until it locks in place, you will hear a click when the lock is engaged. (Fig. 2)
6 Select the speed or Auto-iQ program that suits your needs. (Fig. 3) The Auto-iQ program will stop the appliance automatically at the end of the program.
7 To pause the appliance, press the selected speed or Auto-iQ program a second time. When the program is paused, the light on the program button will flash until you press it again to resume the rest of the program.

8 Turn the Nutri Ninja cup counter-clockwise and pull straight up to remove. (Fig. 4, Fig. 5)
NOTE: Do not overfill! To avoid spilling, do not add ingredients past the "Max Liquid" line.
9 Turn the cup upright and remove the Pro Extractor Blades by twisting the Pro Extractor Blades counter clockwise. (Fig. 6)
10 Do not store blended contents with the Pro Extractor Blade Assembly attached.
11 Place the Sip & Seal lid onto the Nutri Ninja cup, twist to seal and enjoy!
12 For storage, only use Sip & Seal lid to cover.
13 Be sure to store the Pro Extractor Blades Assembly attached to an empty cup when not in use.
14 Make sure that the motor base is unplugged when not in use.
15 To release the motor base from the counter or table top, place your hands underneath both sides of the motor base and gently pull the unit up and towards you.

NINJA BL494 - ASSEMBLY USE REMOVAL - 2

HOW TO CLEAN

CAUTION: Make sure that the motor base is unplugged from the power source before inserting or removing any blade assembly and before cleaning.
CAUTION: DO NOT immerse the motor base into water or any other liquid.

1 Separate/remove all parts from each other.

2 Hand Washing: Wash the lids, pitcher, bowl, Nutri Ninja cup, and blade assemblies in warm, soapy water. When washing the blade assemblies, use a dish-washing utensil with a handle to avoid direct hand contact with blades. Handle blade assemblies with care to avoid contact with sharp edges. Rinse and air dry thoroughly.

Dishwasher: The containers, lids, blade assemblies and attachments are all dishwasher safe. The lids and blade assemblies are top rack dishwasher safe. Ensure that the blade assemblies are removed from the containers before placing in the dishwasher.

WARNING: Handle the Blade Assemblies with care when washing, as the blades are sharp. Contact with the blades' edges can result in laceration.
3 Wipe the motor base clean with a damp cloth.

Please call customer service if any servicing needs to be performed on the appliance at 1-877-646-5288.

HOW TO STORE

1 Store the Ninja ⑥ Kitchen System with Auto-iQ Boost™ upright with the blade assembly inside the corresponding container with the lid secured on top. Do not place anything on top. Store the rest of the attachments in a safe place where they will not be damaged and won't cause harm. Wrap the power cord around the cord wrap on the back of the motor base.

NOTE: Do not store blended or unblended ingredients in the Nutri Ninja Cup with the blade assembly attached.

RESETTING THE MOTOR THERMOSTAT

The Ninja Kitchen System with Auto-iQ Boost features a unique safety system which prevents damage to the unit's motor and drive system should you inadvertently overload your appliance. If the appliance is being overloaded, the motor will stop. Allow the appliance to cool for approximately 15 minutes. To reset the appliance, follow the resetting procedure below:

1 Unplug the appliance from the electrical outlet.
2 Remove and empty the container and ensure that no food is jamming the Blade Assembly or attachments.
3 Allow the appliance to cool for approximately 15 minutes.
4 Re-install the container onto the base and re-plug the appliance into the electrical outlet.
5 Proceed to use the appliance as before making sure not to exceed the recommended maximum capacities.

Unit doesn't turn on:

Make sure the unit is plugged in.
- Insert and rotate cup clockwise in the base until it clicks into place. Display should turn on.

Unit doesn't turn off:

  • Remove cup from base by rotating cup counter-clockwise and lifting out. Display should turn off. Unplug the power cord from the outlet.

Lid/blade assembly hard to assemble:

  • Set the cup on a level surface. Place the lid or blade assembly on the top of the cup and align the threads so that the lid/blades sit flat on the cup. Twist clockwise so that the lid/blades evenly align to the cup until you have a tight seal.

Food is not evenly chopped:

  • For best results when chopping, make sure all ingredients are as dry as possible. Cut pieces down to even sizes, and reduce the amount of food in the cup. Use the Auto-iQ™ CHOP button for best results.

Doesn't mix well, food gets stuck:

Using the Auto-iQ programs is the easiest way to achieve great results. The pulses and pauses allow the food to settle toward the blade. If food is routinely getting stuck, adding some liquid will usually help.
- When packing the cups, start with fresh items, then add liquids, powders/dry ingredients, and finally frozen items or ice.

Unit moves on the counter while blending:

  • Make sure the surface as well as the feet of the unit are clean and dry.

Unit is difficult to remove from the counter for storage:

To release the motor base from the counter or tabletop, place your hands underneath both sides of the motor base and gently pull the unit up and toward you.

Display shows "--":

  • Unplug unit and wait 30 minutes before running any program.

Replacement Parts

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, please visit our website: www.ninjakitchen.com

or feel free to contact customer service: 1-877-646-5288.

NINJA BL494 - ORDERING REPLACEMENT PARTS - 1

SharkNinja Operating LLC warrants this product to be free from material defects and workmanship for a period of one (1) year from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions and exceptions.

The liability of SharkNinja Operating LLC is limited solely to the cost of the repair or replacement of the unit at our option. This Limited Warranty does not cover normal wear of parts and does not apply to any unit that has been tampered with or used for commercial purposes. This Limited Warranty does not cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This Limited Warranty does not cover damage or defects caused by or resulting from damages from shipping or repairs, service or alteration to the product or any of its parts, which have been performed by a repair person not authorized by SharkNinja Operating LLC.

If your appliance fails to operate properly while in use under normal household conditions within the Limited Warranty period, you may return the complete appliance and accessories with proof of purchase and date, freight prepaid. For Customer Service support, call 1-877-646-5288 or visit our website www.ninjakitchen.com.

If the appliance is found by SharkNinja Operating LLC to be defective, in SharkNinja Operating LLC's sole discretion, we will repair or replace it free of charge. Proof of purchase date and a check made payable to SharkNinja Operating LLC in the amount of $19.95 to cover the cost of return shipping and handling must be included.*

This Limited Warranty is extended to the original purchaser of the unit and excludes all other legal, implied and/or conventional warranties. The responsibility of SharkNinja Operating LLC if any, is limited to the specific obligations expressly assumed by it under the terms of this Limited Warranty. In no event is SharkNinja Operating LLC liable for incidental or consequential damages to anyone of any nature whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or from province to province.

*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date and to attach tag to item before packing with your name, complete address and phone number with a note giving purchase information, model number and what you believe is the problem with the item. We recommend you insure the package (as damage in shipping is not covered by your Limited Warranty). Mark the outside of your package "ATTENTION CUSTOMER SERVICE".

PRODUCT REGISTRATION

Please visit www.registeryourninja.com or call 1-877-646-5288 to register your new Ninja® product within ten (10) days of purchase. You will be asked to provide the store name, date of purchase and model number along with your name and address.

The registration will enable us to contact you in the unlikely event of a product safety notification. By registering you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying instructions.

Shark|Ninja

GARANTIE LIMITÉE D'UN AN

SharkNinja Operating LLC

US: Newton, MA 02459

CAN: Ville St-Laurent, QC H4S 1A7

1-877-646-5288

www.ninjakitchen.com

Copyright / Droit d'auteur / Derechos reservados © SharkNinja Operating LLC 2016

Ninja, Nutri Ninja, Pro Extractor Blades, Sip & Seal and Total Crushing are registered trademarks of SharkNinja Operating LLC.

Auto-iQ Boost is a trademarks of SharkNinja Operating LLC.

For SharkNinja U.S. Patent information visit sharkninja.com/USPatents.

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : NINJA

Model : BL494

Category : Blender
