USER MANUAL WTW8120HC WHIRLPOOL

QUICK REFERENCE GUIDE WHIRLPOOL® TOP LOADING WASHING MACHINE

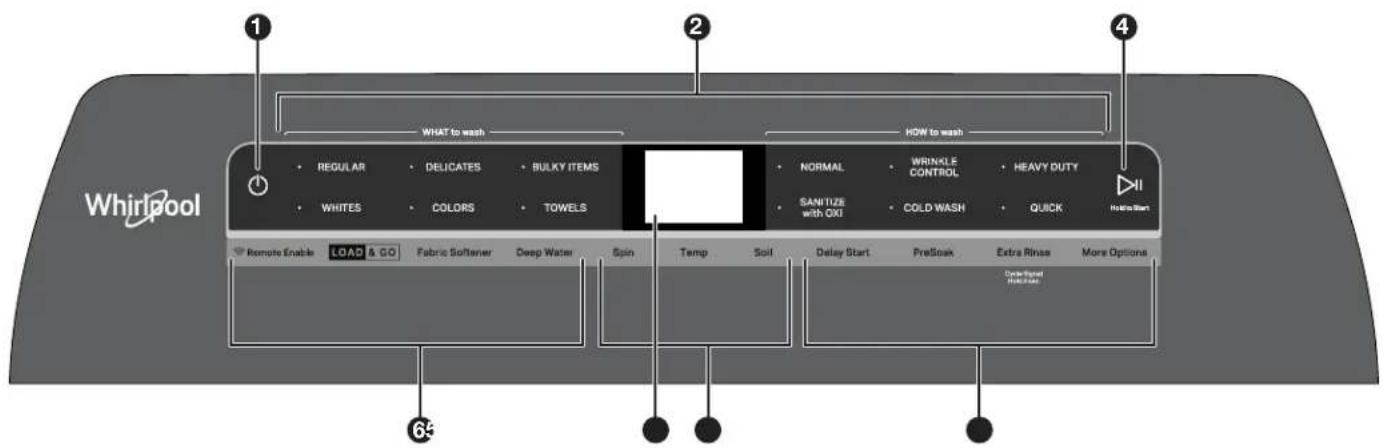

CONTROL PANEL AND FEATURE

Appearance may vary depending on model.

1 POWER

Touch to turn on/off or to stop/cancel a cycle.

WHAT TO WASH/HOW TO WASH

First select a cycle from the "What to Wash" and then select the "How to Wash" to get the best combination cycle available for the type of items you are going to wash. See "Cycle Guide" for cycle details.

3 LCD TIME/STATUS DISPLAY

The display shows the time required for the cycle to complete. Factors such as load size and water pressure may affect the time shown in the display. Tightly packed loads, unbalanced loads, or excessive suds may cause the washer to adjust the cycle time as well.

If you have set a delay start to the cycle, the display will show the delay time adjusted.

ADD GARMENT

When Add Garment is lit, you may pause the cycle, open the lid, and add items. Touch and hold the START/PAUSE button to start the cycle again.

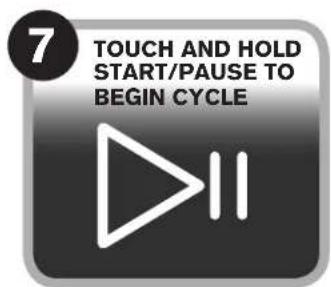

4 START/PAUSE

Touch and hold the START/PAUSE to start cycle. Touch during a cycle to pause cycle and unlock lid.

NOTE: If machine is spinning it may take longer to unlock lid.

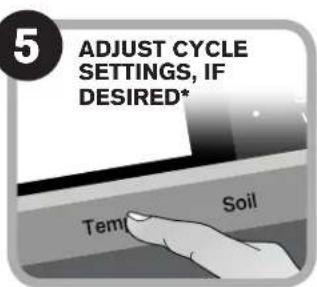

5 CYCLE MODIFIERS (Not all modifiers are available on all cycles)

SPIN

Touch to modify the cycle's available spin speeds (Off, Medium, Fast).

TEMP

Touch to modify the cycle's available water temperatures (Tap Cold, Cold, Cool, Warm, Hot).

soil

Touch to modify the cycle's available soil levels. Increase soil level for heavily soiled items and decrease soil level for lightly soiled items (Extra Light, Light, Normal, Heavy, Extra Heavy).

CYCLE OPTIONS (Not all options are available on all cycles) REMOTE ENABLE

Touch each time you want to remotely control via the Whirlpool app. Follow the instructions in the "GET THE WHIRLPOOL APP AND GET CONNECTED" section below for more details. Opening the lid cancels "remote enable".

LOAD & GO™ Bulk Dispenser

The Load & Go™ dispenser holds 1L of detergent and determines the best time and amount to add detergent to the load. See "Using the Dispensers" section for more information.

FABRIC SOFTENER

Touch to add more water to the washer from the cycle's auto sensed level (Auto, Medium, High, Max Fill).

DEEP WATER

Use this option to add the maximum amount of water to your wash cycle.

NOTE: Expect longer cycle times due to extended fill times when using the Deep Water option.

DELAY START

Touch to delay the start of the wash cycle for up to 12 hours.

PRESOAK

Touch to add a presoak period to any cycle to help loosen tough stains. The washer will fill, pause to soak, and then begin the selected cycle (15 mins, 30 mins, 60 mins, 120 mins).

EXTRA RINSE

Touch to automatically add a second rinse available on most cycles.

CYCLE SIGNAL

Touch to turn the end of cycle signal on/off and adjust the tone volume when a button is touched.

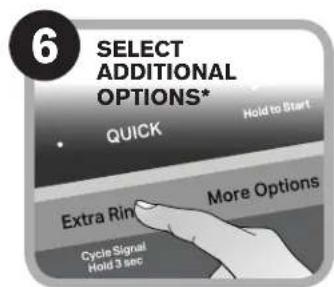

MORE OPTIONS

Drain & Spin
■Rinse & Spin
Clean Washer with affresh
■Favorite Cycle

W11197737B

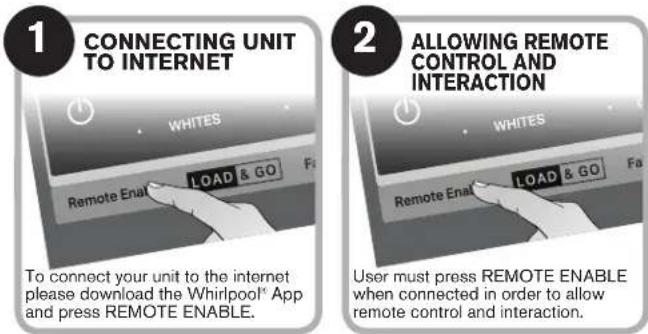

GET THE WHIRLPOOL® APP AND GET CONNECTED

With your mobile device download the Whirlpool® app. You can get subscription and connectivity instructions, terms of use, and privacy policy at www.whirlpool.com/connect or in Canada www.whirlpool.ca/connect.

Once installed, launch the app and you will be guided through the steps to subscribe and create your user account to connect to your appliance. If you have any problems or questions, call Whirlpool® Connected Appliances at 1-866-333-4591.

USING YOUR WASHER

WARNING

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Doing so can result in death, explosion, or fire.

Dispenser Drawers Remove inside tray for powder HE detergent.

Bulk Dispenser

Follow manufacturer's instructions to determine amount of laundry products to use.

*NOTE: Not all cycles, settings or options are available with all models.

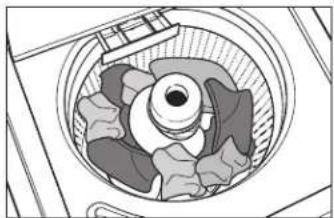

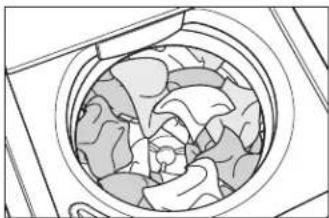

LOADING RECOMMENDATION

For best performance, it is recommended to load items in loose heaps evenly around the washplate and agitator.

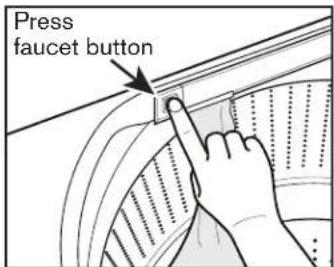

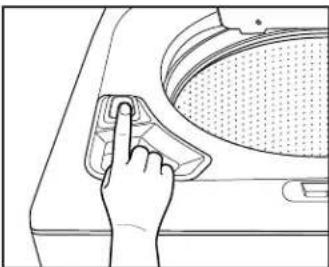

RINSING BEFORE RUNNING A WASH CYCLE

WaterFaucetOperation

Press the faucet button once to turn on and press again to turn off.
Faucet will automatically shut off after 10 minutes or when max water level is reached.
Water will automatically drain if water level becomes too high or if the lid is left open for 10 minutes.
- On Load & Go™ models when the faucet is on touch TEMP button to select water temperature or touch LOAD & GO button to manually dispense a dose of detergent.

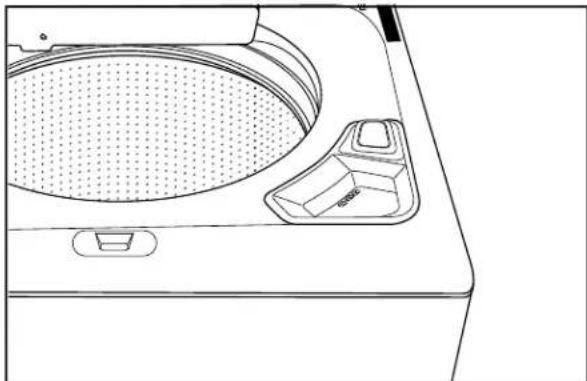

Fabric Brush

1. Turn brush from body to open.
2. Add liquid laundry detergent.
3. Turn to close.
4. To dispense detergent from fabric brush push button.

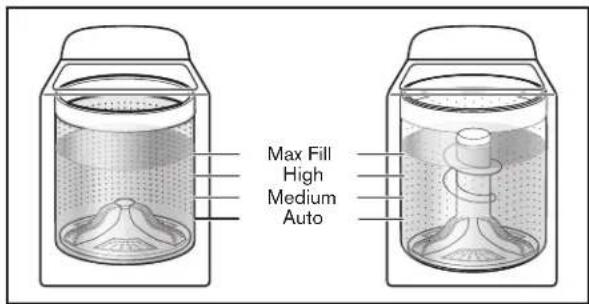

MORE WATER WHEN YOU WANT IT

Auto Sensing & Deep Water Wash

The washer will adjust the water level to the optimal amount for a High Efficiency wash of the detected load size.
Touch "DEEP WATER" to add more water to the wash load.

There are four levels of deep water "Auto", "Medium", "High", "Max Fill".
Not all levels are available on all cycles.
The washer dampens and moves the load, the level of the items will settle in the basket. This is normal, and does not indicate that more items should be added.

IMPORTANT: You will not see a washer basket full of water as with your past agitator-style washer. It is normal for some of the load to be above the water line.

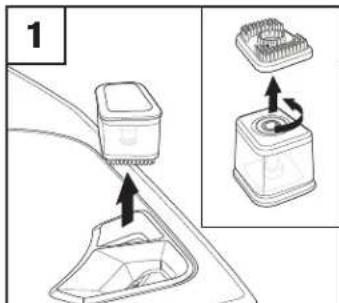

USING THE DISPENSER

Load & GoTM feature will default On for each cycle unless disabled.
Touch LOAD&GO button to view detergent dispensing options.
Hold LOAD&GO button on the control panel to choose a detergent concentration between 2X and 10X.Hold for 3 seconds.
Pull the drawer completely out for easy refilling.

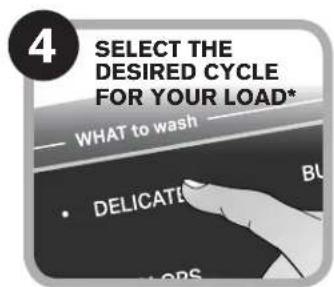

CYCLE GUIDE

Your Whirlpool® washer has a unique user interface to help you select the best cycle you need for your load. The "What to Wash", "How to Wash" layout guides you to the optimal cycle in two easy steps:

First determine what items are in the load that you are trying to wash. Use that to guide your "What to Wash" selection. Then determine how you want the washer to wash them and select the appropriate "How to Wash" selection. See chart below for more details.

For best fabric care, choose the cycle that best fits the load being washed.

R - Recommended Cycle

a - Alternate Cycle

Blank - Cycle is available but not optimal

What do you want to wash?	"What to Wash" Cycle Selection
Cottons/Linens	Regular	R a a a a a
Mixed		R a a a a a
Pajamas		R a a a a a
Sweatshirts		R a a a a a
T-Shirts		R a a a a a
Athletic Wear	Colors	R a a a a
Bright Colors		R a a a a a
Business Casual		a R a a a a
Casuals		a R a a a a
Dark Colors		R a a a a a
Dress Shirts/Pants		a R a a a a
Jeans		R a a a a a
No-Iron Fabrics		a R a a a a
Baby Clothes	Whites	R a a a
Handkerchiefs		R a a a a
Napkins		R	a a a				a
Socks		R	a a a a
Tablecloth		R	a a a a a
Undergarments		R a a a a					a
White Clothing		R a a a a
White Shirts		R a a a a
White Towels		R a a a a
White T-Shirts		R a a a a
Bras	Delicates	R a a a a a
Delicates		R a a a a a
Handwash Fabrics		R a a a a a
Lingerie		R a a a a a
Machine Wash Silks		R a a a a a
Wool		R a a a a a
Blankets	Bulky Items	R a a a a a
Coats & Jackets		R a a a a a
Comforters		R a a a a
Machine Wash Curtains		R a a a a a
Machine Wash Slip Covers		R a a a a
Non-Rubber Lined Rugs & Mats		R a a a a
Sheets		R a a a a
Sleeping Bags		R a a a a
Dish Cloths	Towels	R a a a a
Terry Cloths		R a a a a
Towels		R	a a a a

How do you want to wash?
"How to Wash" Cycle Selection
Normal W/inkle Control	Heavy Duty	Sanitize with Oxi	Cold Wash	Quick
Energy Conscious	Reduce Wrinkles	Powerful Soil Removal	Eliminate Bacteria*	Energy Saving Fast
R a a a	a a
R a a a	a a
R a a a	a a
R a a a	a a
R a a a	a
R a a a
R a a a	a a
a R a a	a a
a R a a	a a
R a a a	a a
a R a a	a a
R a a a
R a a a	a
R	a a a				a
R	a a a a
R	a a a a
R a a a					a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R a a a	a
R r a a	a
R a a a	a

*Use this cycle to eliminate 99.9% of bacteria when used in conjunction with Oxi additives. Preset cycle settings must be used to achieve proper sanitization. Be sure to add an Oxi product to the basket before starting cycle.

WASHER ICONS

Image Description Status
	Door Locked Aler	State
	Load & Go Warning	Off One Cycle
		Off Always
		Detergent Low
	Remote Enable On
	Delay Start On
	PreSoak On
	Deep Water On -	Auto
		On - Auto Medium
		On - Auto High
		On - Max Fill
	Fabric Softener On
	Extra Rinse On
	Load & Go Note: When Load & Go is on, it has less priority and could be moved.	50%
		75%
		Full

NOTE: Not all features and options are available on all models.

Image Descriiption Status
	Smartgrid, Peak rates in effect	On
		Smart Delay
		Smart Pause
	WiFi Status Indicator Note: When the WiFi is disconnected, the priority goes to the first, then as other options added, it goes to the least again.	Connected
		Disconnected
	Fabric Softener Off
	Extra Rinse Off
	PreSoak Off
	Favorite Cycle
	Download & Go Cycle
	Cycle Signal Off
	High
	Clean Washer
	Remote Enable Off
	Faucet On

ASSISTANCE OR SERVICE AND ADDITIONAL INFORMATION

For detailed installation instructions and maintenance information, winter storage and transportation, please see the INSTALLATION AND CARE INSTRUCTIONS MANUAL included with your machine. For detailed product dimensions, please see the DIMENSION GUIDE that can be found at www.whirlpool.com/owners or in Canada www.whirlpool.ca/owners.
For information on any of the following items please visit www.whirlpool.com/owners or in Canada www.whirlpool.ca/owners. This may save you the cost of a service call.
REGISTER PRODUCT	SCHEDULE SERVICE	HOW TO'S & FAQ	MANUALS & DOWNLOADS	ADD SERVICE PLAN	PARTS ACCESSORIES
		?
Model & Serial Number Tag location		To speak with a customer service representative or if you have additional questions, call us toll free at 1-866-698-2538 or in Canada call 1-800-688-2002. You can write with any questions or concerns at: Whirlpool Brand Appliances Customer eXperience Center 533 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence.
