Product type	Soundbar
Brand	Martin Logan
Model	Motion SLM X3
Frequency response	120 - 23 000 Hz ± 3 dB
Dispersion	80° × 80°
Sensitivity	93 dB at 2.83 volts/meter
Nominal impedance	4 Ohms (compatible with 4, 6 or 8 Ohms)
Crossover frequency	3,000 Hz (two-way design)
Tweeter	3 folded Motion transducers (1 x 1.4 in / 2.6 x 3.6 cm)
Woofer	6 paper cones of 4 in (10.2 cm)
Enclosure type	Sealed
Recommended amplifier power	20 - 140 watts
Connection terminals	Push-style (accepts bare wire or pins)
Weight	5.9 kg (13 lbs)
Dimensions (with wall mount)	16.2 x 122 x 9.8 cm (6.3 x 48 x 2 in)
Power supply	Mains (via external amplifier)
Break-in	72 hours at 90 dB before critical listening
Wall mounting	Wall bracket included, screws not included
Care and cleaning	Microfiber cloth or soft brush, no cleaning products
Safety	Do not expose to water or moisture; turn off amplifier before wiring
Magnetic shielding	Not shielded: keep away from CRT screens
Customer service	[phone] / [e-mail]
Warranty	90 days automatic, 5 years upon registration within 30 days

Frequently Asked Questions - Motion SLM X3 Martin Logan

How to install the Motion SLM X3 soundbar on the wall?

Use the template and wall mount provided. Mark the holes, drill 1/8 inch pilot holes, then attach the bracket with screws (not included). Hang the speaker by guiding the mounting bolt into the keyhole. Ensure the wall supports the weight.

What is the recommended break-in time for this speaker?

A break-in of about 72 hours at an average listening level of 90 dB is required before any critical listening.

How to clean the Motion SLM X3 speakers?

Use a dust-free cloth (microfiber) or a soft-bristle brush. Never spray cleaning products on the speakers.

Can I place the soundbar near my television?

Yes, but at least 60 cm (2 feet) from a CRT television, as the speaker is not magnetically shielded.

Can sunlight damage my speakers?

Yes, prolonged exposure to UV rays can deteriorate the cabinet and cones. Avoid direct sunlight, especially through glass (which partially filters UV).

What to do if no output signal is heard?

Check that the amplifier and source are on and playing. Inspect speaker cables and connections. Try different interconnect cables. If problem persists, contact customer service.

What is the warranty of the Motion SLM X3?

An automatic limited warranty of 90 days. You can get a 5-year warranty by registering the product at www.martinlogan.com within 30 days of purchase.

Where to find the serial number of my soundbar?

The serial number is located behind the speaker, under the connection terminals, and on the product packaging.

How to contact Martin Logan customer service?

Customer service is available Monday through Friday, 8am to 5pm Central Time at [phone] or by email at [e-mail].

What does the WEEE symbol on the product mean?

The WEEE symbol (crossed-out wheelie bin) indicates that this product should not be disposed of with household waste. It must be recycled through specific electronic waste channels, in accordance with EU Directive 2002/96/EC.

USER MANUAL Motion SLM X3 Martin Logan

Refer servicing to a qualified technician.
- To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.
- To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the pres

ence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equi-lateral triangle is intended to alert the user to the presence of important oper

ating and maintenance (servicing) instructions in the literature accompanying the appliance.

Connection 4

Installation. 4

Break In 4
Installing On A Wall. 4
Installing the Stands 5

Frequently Asked Questions 6

Troubleshooting 6

Contacting Customer Service 7

General Information 7

Warranty Information 7
Serial Number. 7
Service 7

Specifications 8

Dimensional Drawings. 9

Serial Number:

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

In accordance with the European Union WEEE

(Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we

would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email info@ martinlogan.com or visit the distributor locator at www. martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

x1

CONNECTION

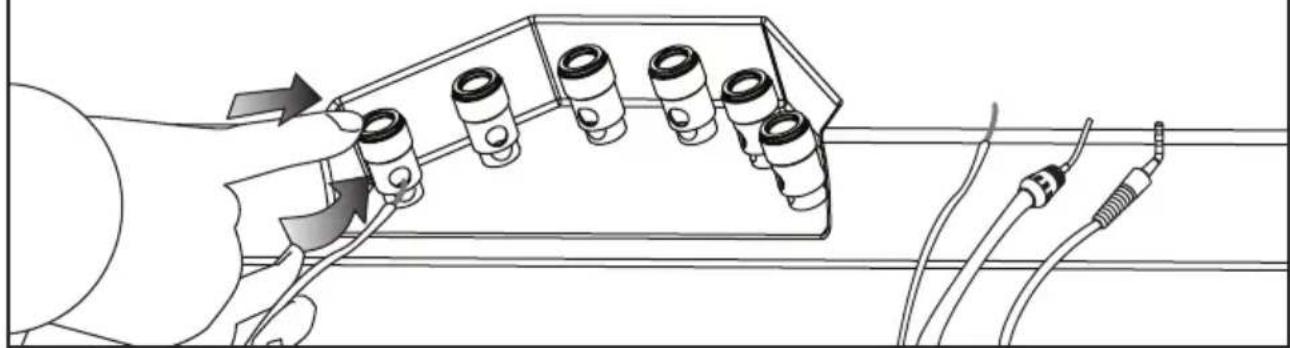

These speakers are designed with easy-to-use push-style binding posts that accept bare wire or pins (fig. 1). Assign the same color to the (+) and (-) terminals on both the speaker and the amplifier. Make certain that all connections are tight.

WARNING! Turn your amplifier off before making or breaking any signal connections!

Fig. 2Fig. 1

INSTALLATION

WARNING! Installation other than that described in the body of this document requires specific documentation from MartinLogan.

Note: This speaker is not magnetically shielded and therefore should not be placed directly beside or atop a CRT television.

BREAK IN

Allow approximately 72 hours of break-in at 90 dB (moderate listening levels) before any critical listening.

INSTALLING ON A WALL

Note: These instructions assume the mounting surface is standard wood frame and sheet rock construction. If you wish to mount to another type of surface, consult a bonded contractor.

Required tools (not included):

Ruler
Level
Electric drill and 1 / 4'' and 1 / 8'' drill bits
Phillips screwdriver

Required hardware (included):

(1) Installation template
(1) Wall bracket

Required hardware (not included):

(3) 1.5-inch Phillips screws
(3) Sheet rock anchors

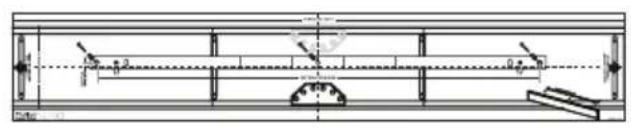

1. Locate mounting location using a level and the installation template.
   2 Mark the pilot hole locations.
   3 Drill the pilot holes using a 1/8-inch drill bit. If a pilot hole DOES NOT hit a stud, widen that

pilot hole using a 1/4-inch drill bit and install a wall anchor at that location (fig. 2).

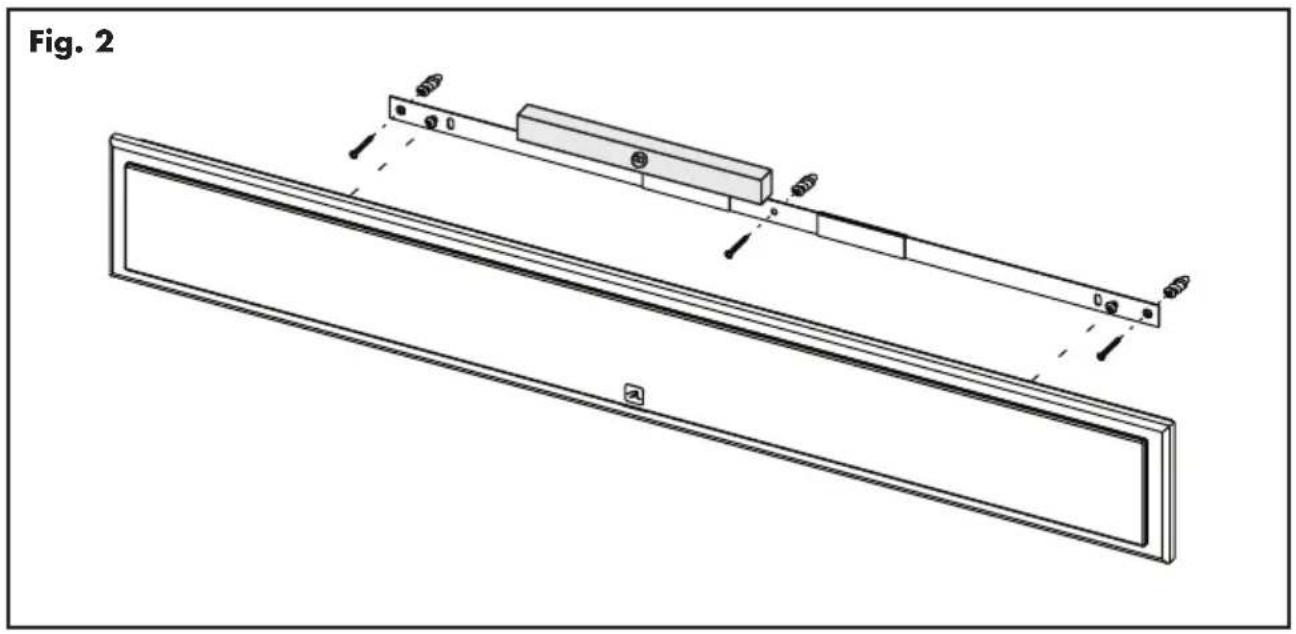

4 Using the 1.5-inch Phillips screws, mount the wall bracket(s) as shown (fig. 2).
5 Hang the speaker, guiding the wall mount bolts into the keyholes.

INSTALLING THE STANDS

Required tools (not included):

Phillips screwdriver

Required hardware (included):

(2) #8 - 3/4-inch Phillips screws
(2) Horizontal stands

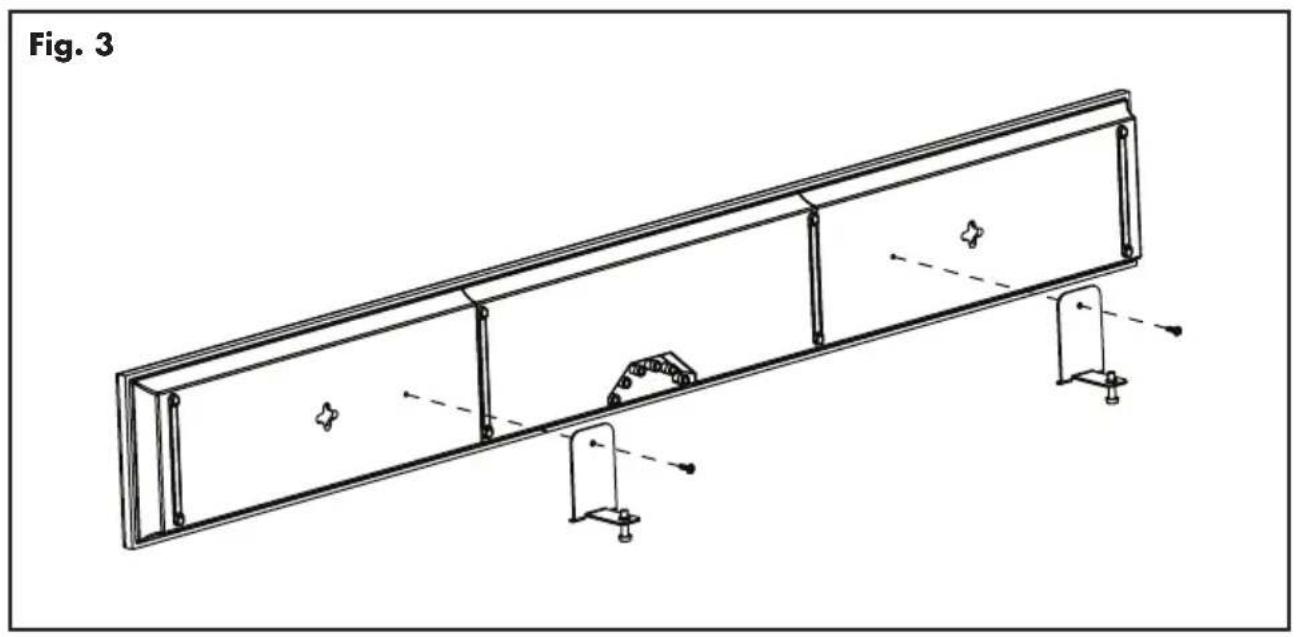

1 Using a Phillips screwdriver and a # 8× 3 / 4- inch screw, attach both horizontal stands to the back of the speaker (fig. 3).

2 Turn the bolts in the horizontal stands to level the speaker or to adjust the angle (fig 3).

Frequently Asked Questions

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes. These speakers are not shielded and should be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.
• Check speaker wires and connections.
• Check all interconnecting cables.
  If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service.

CONTACTING CUSTOMER SERVICE

MartinLogan customer service is available Monday-Friday between the hours of 8am-5pm (central time) by calling [phone] or by emailing [e-mail].

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

The serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.
2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.
3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

SPECIFICATIONS*

Frequency Response.
Dispersion
Sensitivity.
Impedance
Crossover Frequency.
High Frequency Driver

Low Frequency Drivers
Cabinet
Components.

Recommended Amplifier Power.
Binding Post Inputs
Weight.
Dimensions with wall bracket (HxWxD) . . .

MARTINLOGAN MOTION SLM X3

120-23,000 Hz ± 3 dB
80^ × 80^
93 dB @ 2.83 volts/ meter
4 Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers.
3,000 Hz (2-way design)

Three 1^ × 1.4^ (2.6cm x 3.6cm) Folded Motion Transducer with 5.25^ × 1.75^ (13.3cm x 4.4cm) diaphragm.

Six 4'' (10.2cm) paper cone.

Sealed

Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

20-140 watts
Push style
13 lbs. (5.9kg)
6.3^ × 48^ × 2^ (16.2cm× 122cm× 9.8cm)

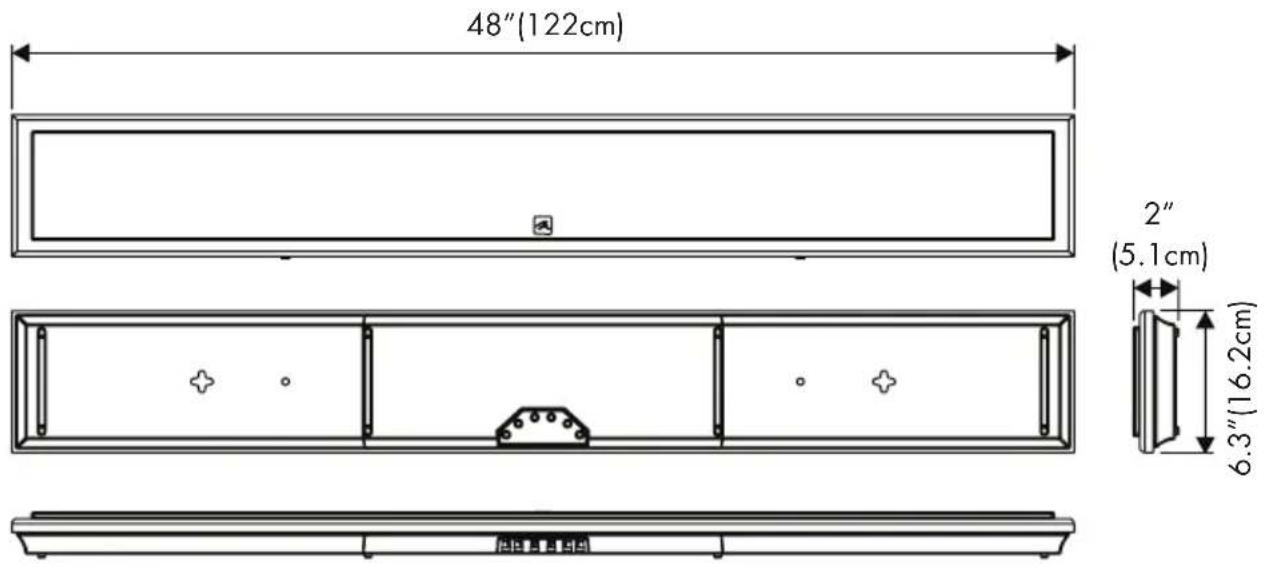

DIMENSIONAL DRAWINGS MARTINLOGAN MOTION SLM X3

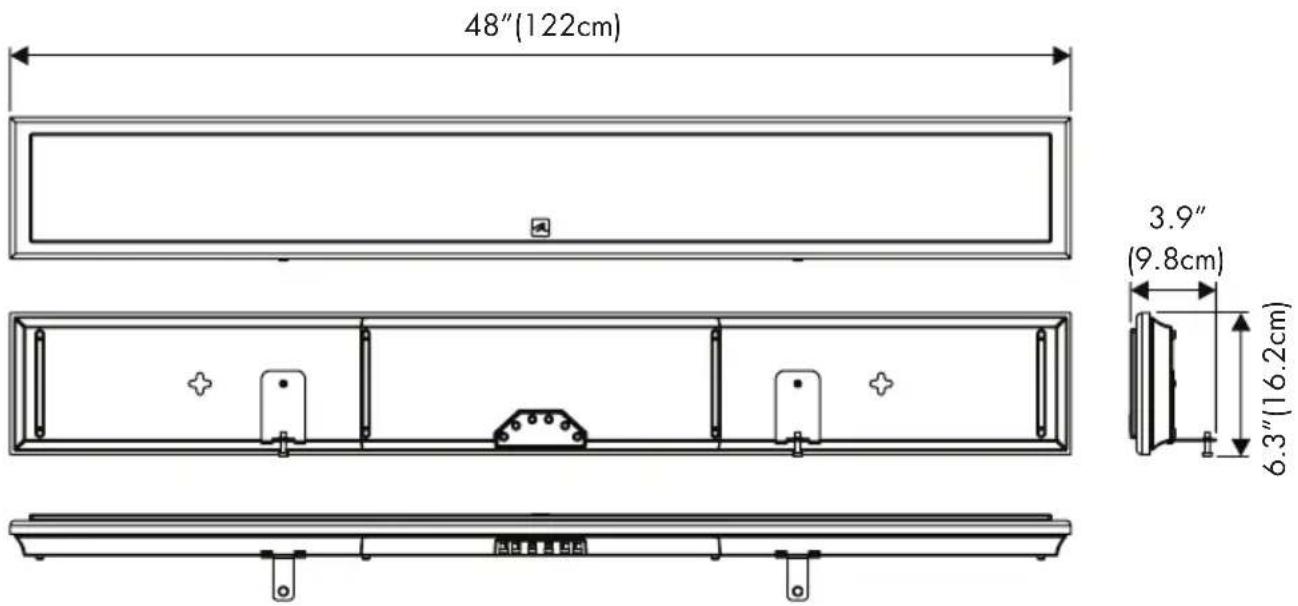

DIMENSIONAL DRAWINGS MARTINLOGAN MOTION SLM X3: WITH HORIZONTAL STAND

MARTINLOGAN

Lawrence, Kansas, USA tel [phone] fax [phone] www.martinlogan.com

Motion

MARTINLOGAN

SLMX3
