USER MANUAL TSXB72 YAMAHA

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

- Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT

Please record the serial number of this unit in the space below.

MODEL:

Serial No.:

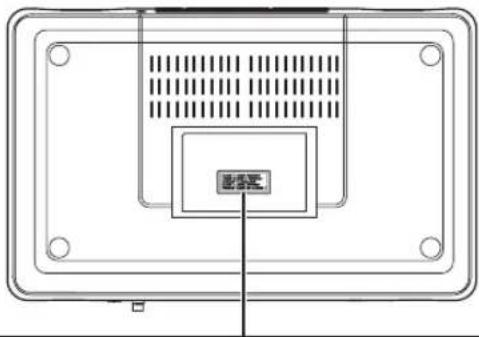

The serial number is located on the bottom of the unit. Retain this Owner's Manual in a safe place for future reference.

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

We Want You Listening For A Lifetime

Yamaha and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association's Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2 IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3 NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America A/V Division, 6600 Orangethorpe Avenue, Buena Park, CA 90620, USA.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This equipment compiles with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20 cm and more between the radiator and person's body (excluding extremities: hands, wrists, feet and ankles).

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

FCC CAUTION

Change or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide slot and fully insert.

CAN ICE-3 (B)/NMB-3 (B)

CAUTION

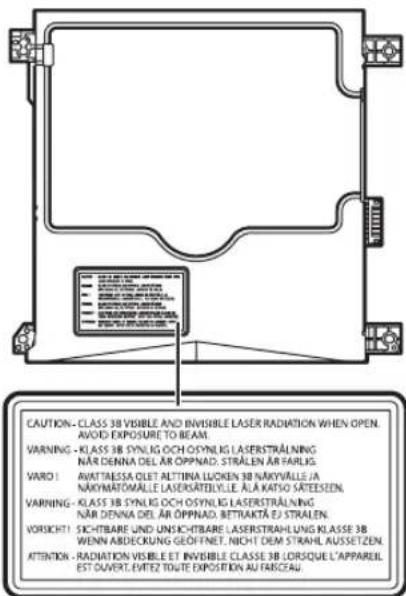

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party: Yamaha Corporation of America A/V Division Address: 6600 Orangethorpe Avenue, Buena Park,

CA 90620, USA

Telephone: [phone]

Type of Equipment: DESKTOP AUDIO SYSTEM

Model Name: TSX-B235

This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of this device.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1 To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.

2 Install this unit in a well ventilated, cool, dry, clean place - away from direct sunlight, heat sources, vibration, dust, moisture and cold. For proper ventilation, allow the following minimum clearances.

Top: 15 cm (6 in)

Rear: 10 cm (4 in)

Sides: 10 cm (4 in)

3 Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign object may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:

- Other components, as they may cause damage and/or discoloration on the surface of this unit.

- Burning objects (i.e. candles), as they may cause fire, damage to this unit, and/or personal injury.

- Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections are complete.

8 Do not operate this unit upside-down. It may overheat, possibly causing damage.

9 Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cable from the wall outlet, grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cable disconnected from a wall outlet or this unit during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time (i.e. vacation), disconnect the AC power plug from the wall outlet.

16 Be sure to read the “TROUBLESHOOTING” section on common operating errors before concluding that this unit is faulty.

17 Before moving this unit, press Ⓞ to set the unit to off, and disconnect the AC power plug from the wall outlet.

18 Condensation will form when the surrounding temperature changes suddenly. Disconnect the power cable from the outlet, then leave this unit alone.

19 When using this unit for a long time, this unit may become warm. Turn off, then leave this unit alone for cooling.

20 Install this unit near the wall outlet and where the AC power plug can be reached easily.

21 The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. When you dispose of batteries, follow your regional regulations.

- Keep the batteries in a location out of reach of children. Batteries can be dangerous if a child were to put in his or her mouth.

- If the batteries grow old, the effective operation range of the remote control decreases considerably. If this happens, replace the batteries with new one as soon as possible.

- Do not use old batteries together with new ones.

- Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.

- Exhausted batteries may leak. If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.

- If you plan not to use the unit for a long period of time, remove the batteries from the unit. Otherwise, the batteries will wear out, possibly resulting in a leakage of battery liquid that may damage the unit.

- Do not throw away batteries with general house waste. Dispose of them correctly in accordance with your local regulations.

22 Excessive sound pressure from earphones and headphones can cause hearing loss.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off by ⚙in this state, this unit is designed to consume a very small quantity of power.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

There is a chance that placing this unit too close to a CRT-based (Braun tube) TV set might impair picture color. Should this happen, move this unit away from the TV set.

CONTENTS

NAMES OF PARTS AND THEIR FUNCTIONS .....2

Top panel / Front panel....2

Front panel display....3

Rear panel....3

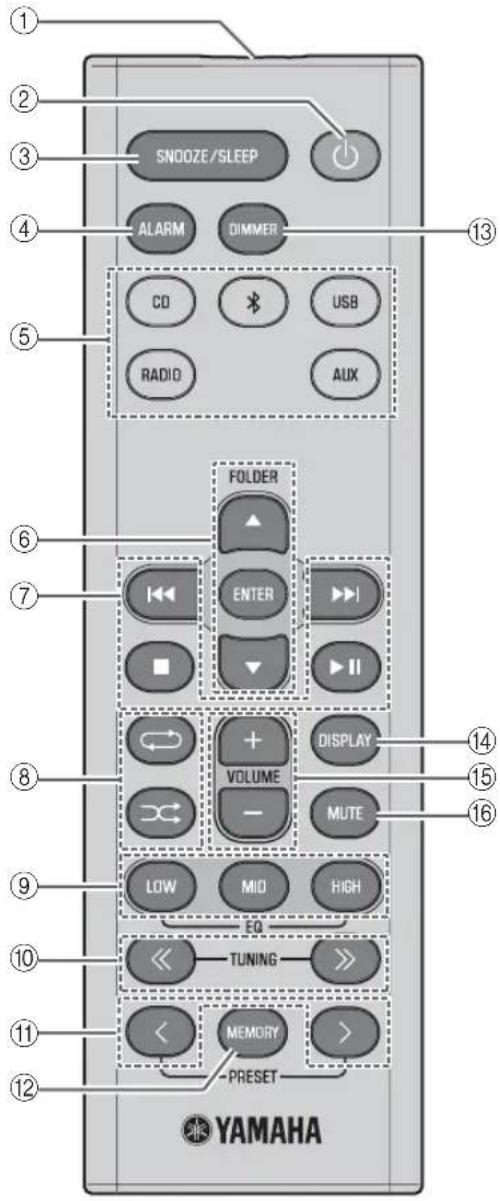

Remote control....4

TURNING THE UNIT ON....5

ADJUSTING THE CLOCK ....5

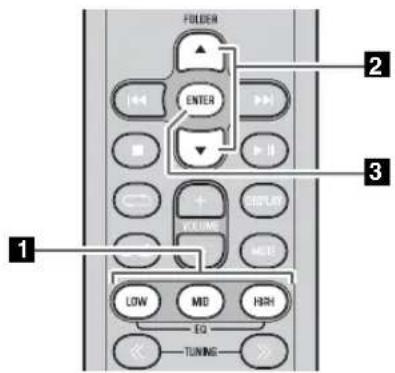

ADJUSTING THE TONE (remote control only) .....6

PANEL DISPLAY (remote control only) ......6

CHARGING WITH THE CHARGING PORT ......6

LISTENING TO CD AND USB DEVICES .....7

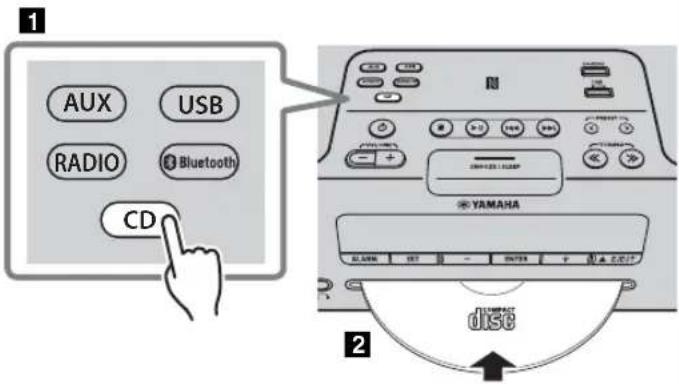

Listening to a CD....7

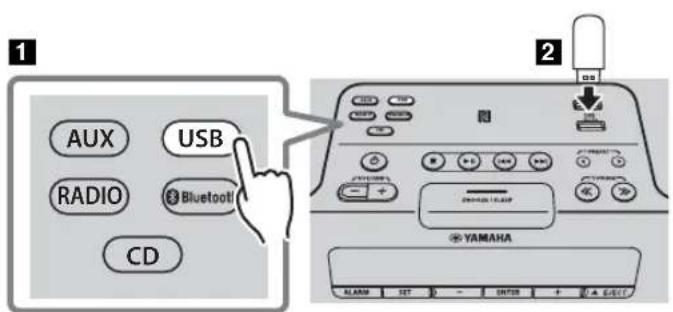

Listening to a USB device....8

Using repeat/shuffle playback (remote control only).....9

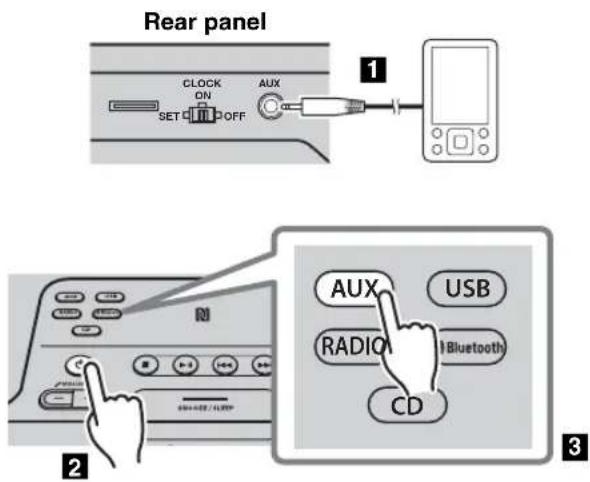

LISTENING TO EXTERNAL SOURCES....9

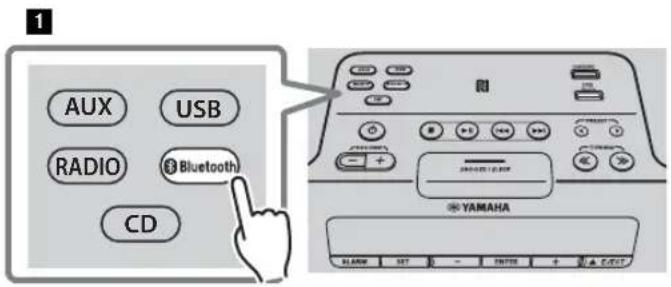

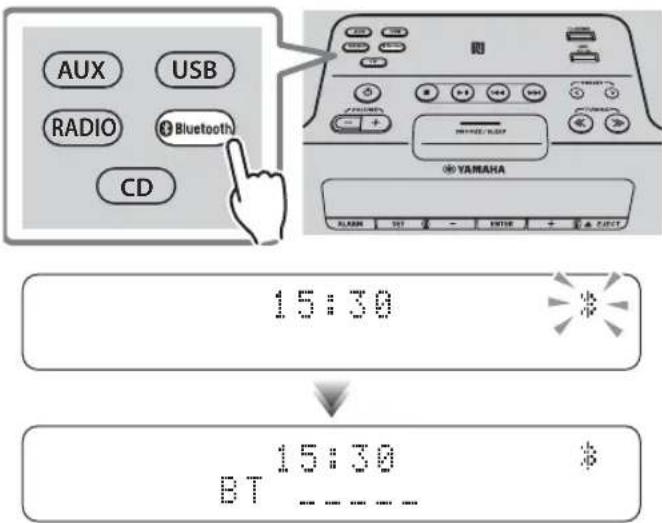

Playing back from your Bluetooth component......10

Connecting an already-paired component via Bluetooth ....11

Disconnecting a Bluetooth connection....12

LISTENING TO FM/AM STATIONS....13

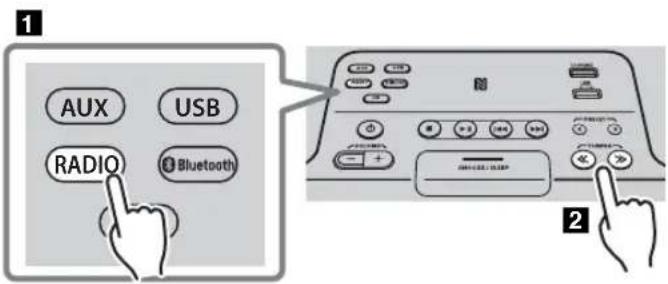

Selecting an FM/AM station 13

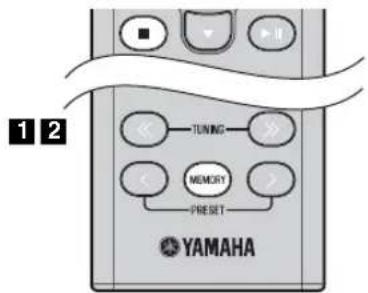

Presetting FM/AM stations (remote control only) .....14

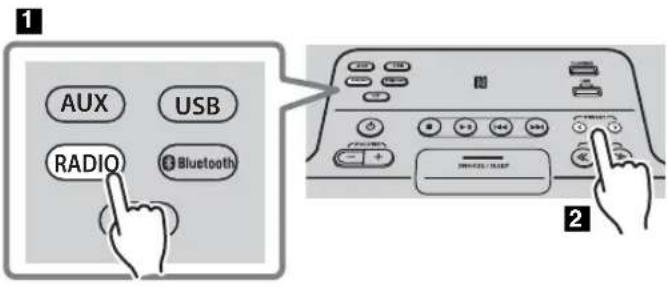

Selecting preset FM/AM stations 15

USING THE ALARM FUNCTION (IntelliAlarm).....16

Setting the alarm....17

Operations while the alarm sound is playing....18

USING THE "DTA CONTROLLER" 19

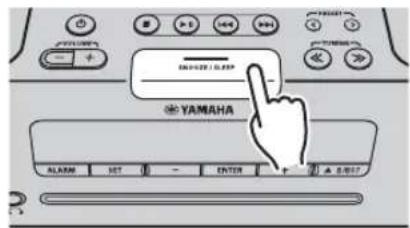

USING THE SLEEP TIMER ....19

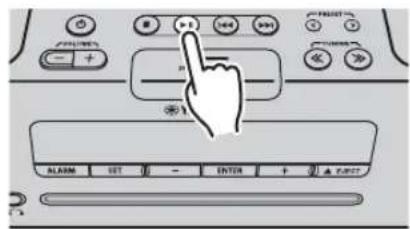

SETTING AUTO POWER STANDBY FUNCTION (main unit only)....19

TROUBLESHOOTING ....20

NOTES ON DISCS AND USB DEVICES....23

SPECIFICATIONS....24

Features

• Play back music from external devices such as your audio/data CDs, USB devices, or external devices via the AUX jack, and listen to the radio.
• By the Bluetooth technology, you can enjoy clear sound without wire connections. One touch pairing enabled by NFC technology.
• Use your favorite music or a beep tone as an alarm. When the set time arrives, the music you select is played at the volume that you specify, giving you the ideal start to your day (IntelliAlarm function).
• By using the free “DTA CONTROLLER” application for a smartphone and tablet computer, you can control this unit and take advantage of more sophisticated alarm functionality (P. 19).
• You can easily store and recall of your favorite radio stations, up to 30 FM and 30 AM stations.
• Bass, middle, and treble can be adjusted to your taste.

◆ About this manual

• References to the iPod appearing in this manual also include the iPhone and iPad.
• If an operation can be performed using either the buttons on the unit itself or from the remote control, the explanation will focus on operation using the main uint.
• AM radio is available only for North America model.
• indicates precautions for use of the unit and its feature limitations.
• indicates supplementary explanations for better use.

Supplied accessories

FM antennaRemote coAmmHUSBcap (x 2) Batteries (x 2)

(North America model only)

(AAA, R03, UM-4)

Keep the USB cap out of reach of children so as to ensure that it is not mistakenly swallowed.

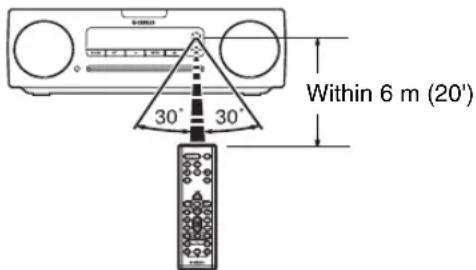

◆ How to use the remote control

Within 6 m (20')

◆ Installing batteries in the remote control

Diagram showing battery charging process with two batteries and a device inside a container (no text or symbols)

Check the “+” and “-” of the batteries and insert them the correct way around.

NAMES OF PARTS AND THEIR FUNCTIONS

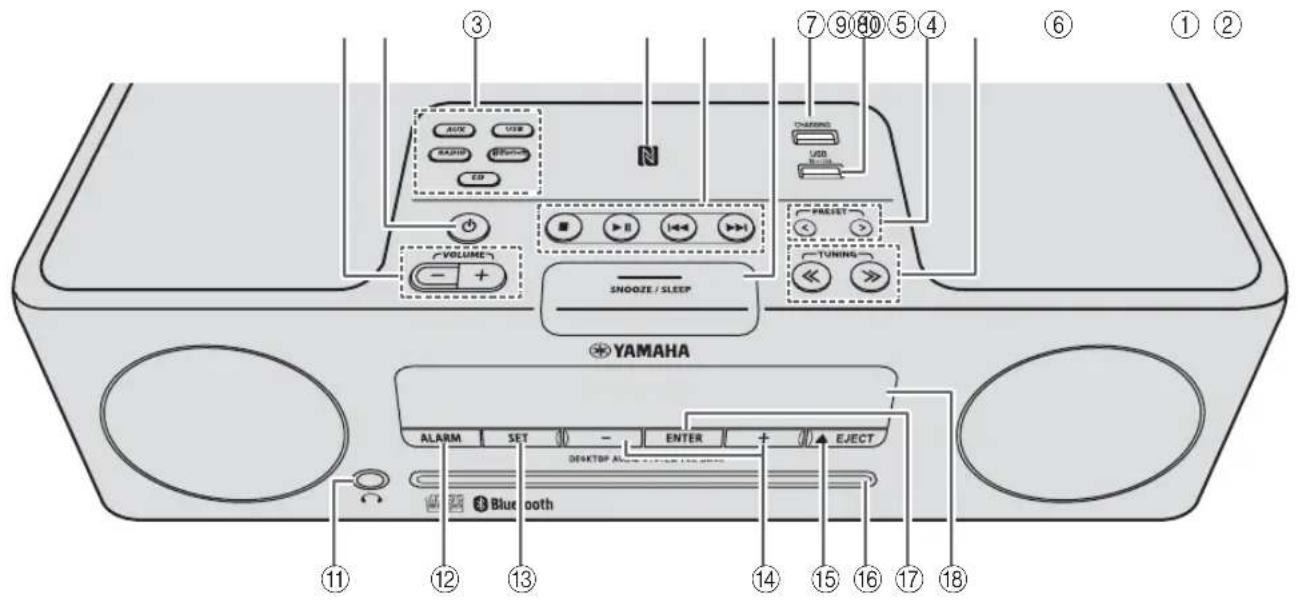

Top panel / Front panel

[AM radio is available only for North America model.]

③ ⑦ ⑨ ⑩ ⑤ ④ ⑥ ① ② VOLUME + - VOLUME / SLEEP YAMAHA ALARM SET ENTER EJECT DESKTOP ALL Bluetooth ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰

①VOLUME - / +

Adjust the volume.

② (Power)

Press to turn the unit on/off (standby).

There are two types of the standby state (P. 5).

③Source buttons

Switch the audio source to be played.

If you press one of these while the unit is in standby (except ECO standby), the unit will turn on and then switch the audio source.

Press RADIO repeatedly to switch between FM/AM.

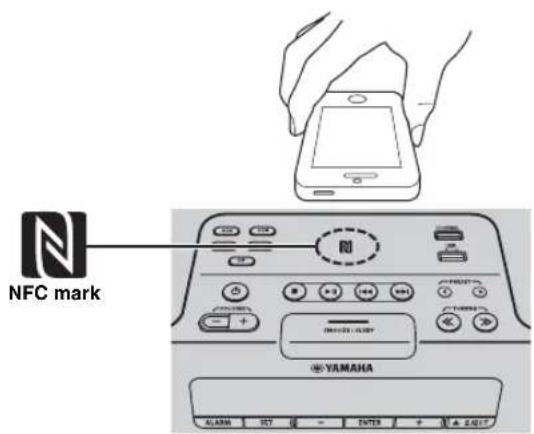

④NFC mark

Allows easy pairing with NFC technology (P. 11).

⑤Audio control buttons

Use these to operate the CD/USB device.

■: Stop

▶II: Play/Pause

|◀◀/▶▶: Skip, Search backward/forward (press and hold down)

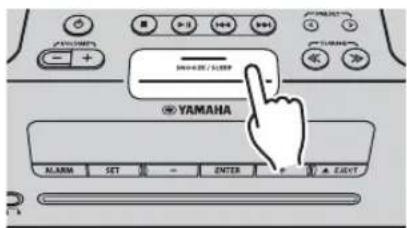

⑥SNOOZE/SLEEP

Set the sleep timer or switch the alarm to snooze mode (P. 18, 19).

⑦CHARGING port

This port is for use to charge only.

Supplies 5V/1.0A to a portable device, such as a smartphone, when it is connected with a USB cable (P. 6).

When the USB device is not in use, put the USB cap in place to protect the connector.

⑧USB port

Connect and play your USB device here (P. 8).

When the USB device is not in use, put the USB cap in place to protect the connector.

⑨PRESET</>

Select a radio station that you stored (P. 14, 15).

⑩TUNING «/»

Tune the radio (P. 13, 14).

⑪ (Headphone jack)

Connect headphones here.

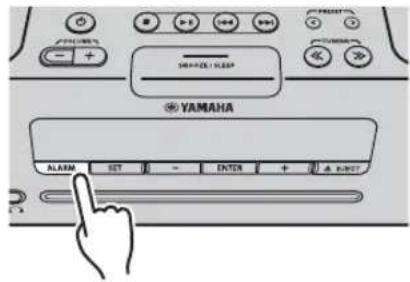

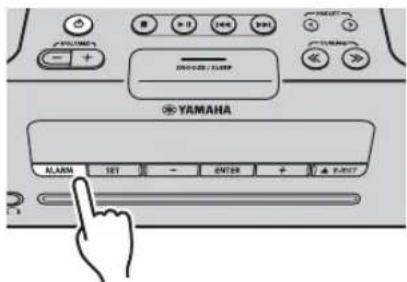

⑫ALARM

Switch the alarm on/off (P. 18).

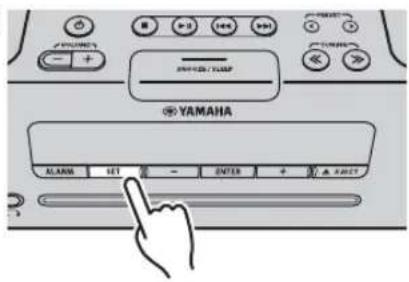

⑬SET

Set the alarm (P. 17).

⑭-/+

Select an item or value when setting the clock or the alarm.

⑮ EJECT

Eject the CD.

⑯Disc slot

Insert a CD here (P. 7).

⑰ENTER

Confirm a selected item or value.

⑱Front panel display

The clock and other information is displayed here (P. 3).

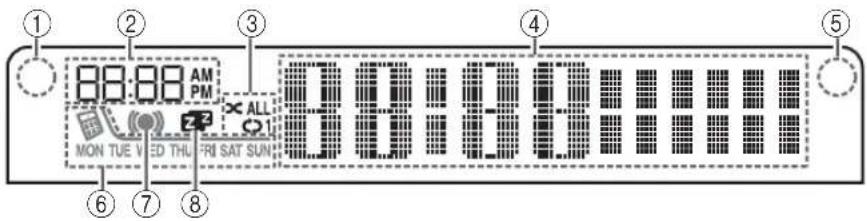

Front panel display

① ② ③ ④ ⑤ 88:88 AM PM ALL MON TUE V EED THU FRI SAT SUN ⑥ ⑦ ⑧

①Illumination sensor

Detect ambient lighting. Do not cover this sensor (P. 6).

②Alarm time

Indicates the alarm time (P. 17).

③Repeat/shuffle indicator

Displays the playback mode (P. 9).

④Multi-function indicator

Displays various information, including the clock time, information about the currently-playing track, and the frequency of the radio station.

⑤Remote control signal receiver

Make sure that this sensor is not obstructed (P. 1).

⑥ Weekly alarm indicator

Shows alarm information specified using the free "DTA CONTROLLER" application for a smartphone and tablet computer (P. 19).

⑦Alarm indicator

Turns on if the alarm has been set (P. 18).

⑧Sleep indicator

Turns on if the sleep timer has been set (P. 19).

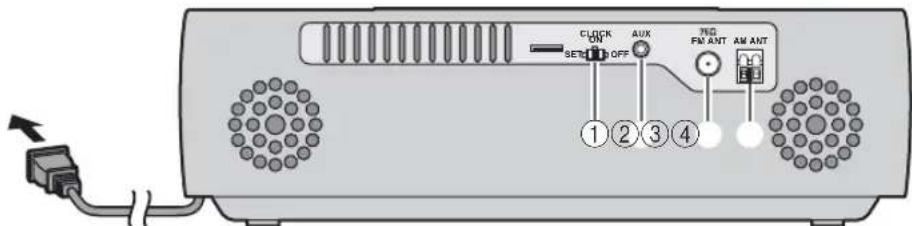

Rear panel

CLICK ON AUX FM ANT AM ANT SETM OFF ① ② ③ ④

①CLOCK switch

Sets the clock and specifies whether the clock will be displayed (P. 5).

SET: Set the clock.

ON: Even when the unit is off, the clock will be displayed and the alarm function will be available.

OFF: When the unit is off, the clock will not be displayed and the alarm function will not be available.

②AUX

Use a commercially available 3.5 mm mini-plug cable to connect your external device here (P. 9).

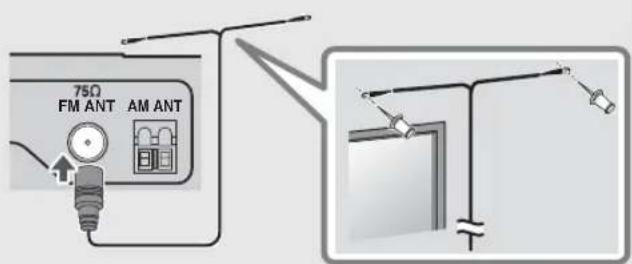

③FM antenna connector

Connect the FM antenna here.

75Ω FM ANT AM ANT

Be sure to stretch out the antenna.

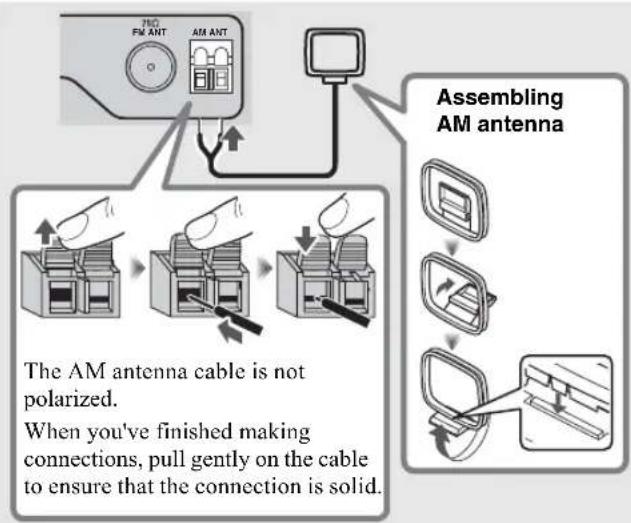

④ AM antenna connector (North America model only)

Connect the AM antenna here.

If there is a digital device near the antenna, you may experience interference.

- If reception is poor, try changing the height or direction of the antenna, or move the unit to find a location that has better reception.

- If you use a commercially available outdoor antenna instead of the supplied antenna, reception may be better.

Remote control

[AM radio is available only for North America model.]

SNOOZE/SLEEP ALARM DIMMER CD USB RADIO AUX FOLDER ENTER VOLUME DISPLAY MUTE LOW MID HIGH EQ TUNING MEMORY PRESET YAMAHA

①Remote control signal transmitter
② (Power)

Press to turn the unit on/off (standby).

There are two types of the standby state (P. 5).

③SNOOZE/SLEEP

Set the sleep timer or switch the alarm to snooze mode (P. 18, 19).

④ ALARM

Switch the alarm on/off (P. 18).

⑤Source buttons

Switch the audio source to be played. If you press one of these while the unit is in standby (except ECO standby), the unit will automatically turn on and then switch the audio source.

(North America model only) Press RADIO repeatedly to switch between FM/AM.

⑥Item selection buttons

FOLDER ▲/▼: Select items or switch the playback folder when playing music on data CDs or USB devices.

ENTER: Confirm a selected item.

⑦Audio control buttons

Use these to operate the CD/USB device.

■: Stop

▶II: Play/Pause

◀◀/▶◀ Skip, Search backward/forward (press and hold down)

⑧ (Repeat)/ (Shuffle)

Play music on a CD or USB device in repeat/shuffle mode (P. 9).

⑨EQ: LOW/MID/HIGH

Adjust the bass, middle or treble sound quality (P. 6).

⑩TUNING «/»

Tune the radio (P. 13, 14).

⑪PRESET</>

Select a radio station that you stored (P. 14, 15).

⑫MEMORY

Store a radio station (P. 14).

⑬DIMMER

Adjusts the brightness of the front panel display (P. 6).

⑭DISPLAY

Switch the information shown in the front panel display (P. 7, 8, 13).

⑮VOLUME +/-

Adjust the volume.

⑯MUTE

Mute or unmute the sound.

TURNING THE UNIT ON

Diagram of a home control panel with hand gesture pointing to 'SIN+25.1.Sleep' button

Display (24-hour) when the unit is on

15:30 CD

Display (24-hour) when the unit is off (standby*)

15:30 26 Apr

* In ECO standby, the clock display will disappear.

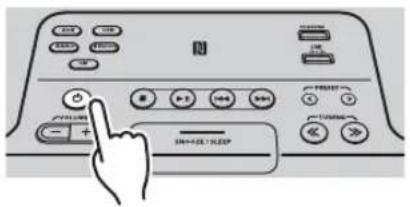

Connect the power cable to an AC outlet, and press ⏻.

The unit will turn on, and will be ready to play audio sources.

Press once again to turn the unit off (standby).

There are two types of the standby as below. The state can be set in the rear panel CLOCK switch (P. 3).

Mode Clock	switch Clock display		Bluetooth connection	Charging USB devices (USB port and CHARGING port)	Alarm setting
Standby ON	Show Enable Enable Enable
ECO standby (power saving mode)	OFF No clock display Disable Enable Disable

ADJUSTING THE CLOCK

1

Rear panel CLOCK AUX ON SET OFF

2

Front panel YAMAHA ALARM SET - ENTER + EJECT

3

Rear panel CLOCK AUX ON SET OFF

15:30 26 HPR

JanJanuary	FebFebruary	MarMarch	AprApril	MayMay	JunJune
Jul AugJuly	Sep OctAugust	September	NovOctober	DecNovember	December

1 Set the rear panel CLOCK switch to the SET position.

The display will indicate “CLOCK YEAR,” and the numerical value to be set will blink.

2 Set the date and time.

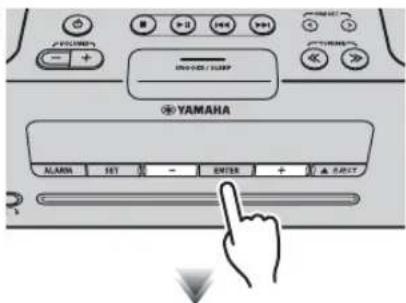

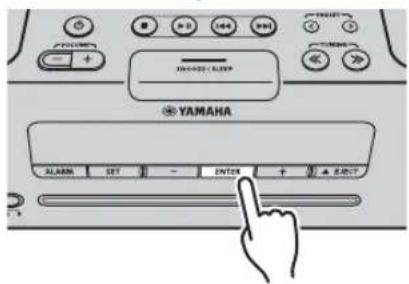

Press the front panel - / + buttons to edit the values, and then press ENTER to confirm the setting.

Set the items in the order of year -month day hour → minute.

When clock setting has finished, the display will indicate "Completed!"

On step 2y pressing SNOOZE/SLEEP you can select the time format (12-hour / 24-hour).

3 Set the CLOCK switch to the ON position.

The moment you set the switch to the ON position, the clock will start from 0 second.

The time settings will be reset if the unit remains unpowered for more than one week.

ADJUSTING THE TONE (remote control only)

FOLDER ENTER 2 3 1 LOW MOD HIGH EQ TUNING

During playback, press the LOW, MID, or HIGH EQ button on the remote control. Select the tone to be adjusted (LOW, MID, HIGH).

2 Press ▲/▼ to adjust the tone.

3 Press ENTER on the remote control to complete the operation. You can also press the EQ button that you pressed in Step 1 complete the settings. If you want to adjust another frequency band, return to step 1d press the EQ button for the frequency band that you want to adjust.

ADJUSTING THE BRIGHTNESS OF THE FRONT PANEL DISPLAY (remote control only)

ON/OFFS/LEEP AC/DC DIMMER CD LED AC/DC ALK

Press DIMMER repeatedly on the remote control.

The brightness of the front panel display will change in the order shown below.

AUTO → 1 (bright) → 2 (medium) → 3 (dim) → back to AUTO

When AUTO is set, the brightness of the front panel display is adjusted automatically with the Illumination sensor (P. 3). Ensure that the sensor is not covered.

CHARGING WITH THE CHARGING PORT

INCREASE / SLEEP PRESERVATION TOMING CHARGING

Connecting a USB device such as a smartphone or tablet computer to the CHARGING port on this unit charges the connected device (power supply of up to 5V/1.0A is supported). Charging is possible even when the unit is off.

Prepare a USB cable that is compatible with the USB device.

• Charging may not be possible depending on the USB device.
• Yamaha will not be held responsible for any damage to the USB device or data loss occurred while using this unit.

LISTENING TO CD AND USB DEVICES

The unit will operate as follows when playing back tracks/files on CD/USB devices.

• If the CD/USB device being played is stopped, the track that you listened will start playback from the beginning of the track the next time you play.
• If you press ■while playback is stopped, tracks will play as follows the next time playback begins:

– Audio CD: Play from the first track of the CD.

- Data CD*/USB device: Play from the first track of the folder contains the track you listened to last time.

• This unit automatically turns off if no operation has been performed for 20 minutes after CD/USB device playback is stopped.
  * "Data CD" is a CD that contains MP3/WMA files.

For details on playable discs and files, refer to "NOTES ON DISCS AND USB DEVICES" (P. 23).

Listening to a CD

1 AUX USB RADIO Bluetooth CD 2 YAMAHA disk

1 Press the CD source button to switch the audio source to CD.

If a CD is already inserted, playback will start.

2 Insert a CD into the disc slot.

Playback starts automatically.

Playback can be controlled with either the remote control, or the front panel on this unit (P. 2, 4).

Insert the CD with the label side facing upward.

Folders and files on a data CD are played in alphabetical order.

♦ Skipping folders (remote control only)

FOLDER ENTER

While a data CD is playing, you can use the remote control's FOLDER ▲/▼ buttons to select the folder.

◆ Display information (remote control only)

The folder number (only for a data CD) or the song/file number is shown for several seconds when starting playback or skipping tracks.

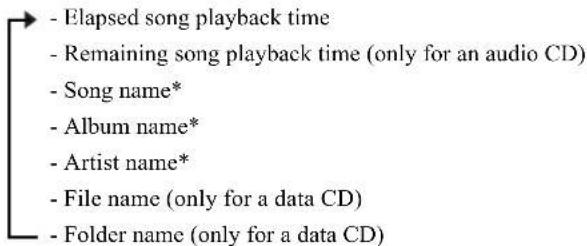

If you press DISPLAY on the remote control while a song is playing or paused, the information shown on the front panel display will be switched in the following order.

- Elapsed song playback time - Remaining song playback time (only for an audio CD) - Song name* - Album name* - Artist name* - File name (only for a data CD) - Folder name (only for a data CD)

* Shown only if this data is included in the song.

Listening to a USB device

For details on the supported USB device, refer to "NOTES ON DISCS AND USB DEVICES" (P. 23).

1 AUX USB RADIO Bluetooth CD 2 YAMAHA ALARM SET C ENTER + E/E/C

1 Press the USB source button to switch the audio source to USB.

If a USB device is already connected, playback will start.

2 Connect a USB device to the USB port.

Playback starts automatically.

Playback can be controlled using either the remote control or the front panel on this unit (P. 2, 4).

- Folders and files will play in the order in which they were written.

- A USB device is automatically charged when it is connected to the USB port (5 V/1.0 A output).

• Stop playback before disconnecting the USB device.
  • The iPod cannot be played back.
• Charging may not be possible depending on the USB device.

♦ Skipping folders (remote control only)

FOLDER

While a USB device is playing, you can use the remote control's FOLDER ▲/▼ buttons to select the folder.

◆ Display information (remote control only)

The folder/file number is shown for several seconds when starting playback or skipping tracks.

If you press DISPLAY on the remote control while a song is playing or paused, the information shown on the front panel display will be switched in the following order.

- Elapsed song playback time - Song name* - A l b u m n a m e * - Artist name* - F i l e n a m e - Folder name

* Shown only if this data is included in the song.

Using repeat/shuffle playback (remote control only)

The playback status is shown by the repeat/shuffle indicator in the front panel display (P. 3).

◆ Repeat playback

Press (repeat) repeatedly to select one of the following playback modes.

No display: Repeat mode off

1: 1 track

All tracks within the folder (data CD/USB device only)

ALL : All tracks

◆ Shuffle playback

Press ☐(shuffle) repeatedly to select one of the following playback modes.

No display: Shuffle mode off

XX: All tracks within the folder (data CD/USB device only)

ALL: All tracks

LISTENING TO EXTERNAL SOURCES

Rear panel CLOCK ON AUX SET OFF 1 2 AUX USB RADIO Bluetooth CD 3

1 Using a commercially available 3.5 mm mini-plug cable, connect your external device to the AUX jack on the rear panel of this unit.

!

• Turn the unit off before connecting the audio cable.
• Turn down the volume of the unit and your external audio device before connection.

2 Press to turn the unit on.
3 Press the AUX source button to switch the audio source to AUX.
4 Start playback on the connected external audio device.

LISTENING TO MUSIC FROM YOURBluetooth COMPONENT

This unit provides Bluetooth functionality. You can enjoy wireless music playback from your Bluetooth component (mobile phone, digital audio player, etc.). Please also refer to the owner's manual of your Bluetooth component.

Playing back from your Bluetooth component

You'll need to perform the pairing operation the first time you use your Bluetooth component with this unit, or if the pairing settings have been deleted. Pairing is an operation that registers the communicating component (subsequently called "the other component") with this unit. Once pairing has been completed, subsequent reconnection will be easy even after the Bluetooth connection is disconnected (P. 11). If pairing is not successful, refer to the item "Bluetooth" in "TROUBLESHOOTING" (P. 21).

Yamaha does not guarantee all connections between this unit and Bluetooth component.

• This unit can be paired with up to 8 other components. When pairing with the ninth component has succeeded, pairing data for the component with the oldest connection date will be deleted.
• If this unit is connected via Bluetooth to another component, hold down ✕ Bluetooth source button on this unit or ✗ on the remote control to disconnect the Bluetooth connection before you perform the pairing operation.

1 AUX USB RADIO Bluetooth CD YAMAHA

3

15:30 BT Pairing OK *

1 Press the 📄 buncel button to switch the audio source to Bluetooth.
2 Perform Bluetooth pairing on the other component.

For details refer to the owner's manual of the other component.

3 From the Bluetooth connection list of the other component, choose this unit (TSX-B235 Yamaha).

When pairing has been completed, the front panel display of this unit will indicate "BT Pairing OK".

If you are asked to enter a password, enter the numerals "0000".

4 Connect this unit and your other component via Bluetooth.
5 Play back music from your Bluetooth component.

!

Take care that the volume setting of this unit is not too high. We recommend that you adjust the volume on the other component.

• If you connect via Bluetooth from your other component and playback music while this unit is in standby (except ECO standby), this unit will automatically turn on.
• If you disconnect the Bluetooth connection from your other component while the audio source is set to Bluetooth, this unit will automatically turn off.
• If Bluetooth is selected as the audio source, this unit will automatically turn off when 20 minutes have elapsed without any Bluetooth connection nor any operation performed.

Easy pairing

For the smartphone with NFC (Near Field Communication) function, you can easily perform the pairing operation just by holding the smartphone over the NFC mark (you need to turn the unit on and turn on the NFC function of the smartphone beforehand).

NFC mark YAMAHA

1 Hold the smartphone over the NFC mark.
2 Perform the pairing operation at the smartphone (for details, please read the owner's manual of the smartphone).

This unit is indicated as "TSX-B235 Yamaha" on the smartphone.

• If you are prompted for a passkey, enter the numerals "0000".
• If the connection fails, move the smartphone slowly on the NFC mark.
• If the smartphone is equipped with a case, remove the case.

Connecting an already-paired component via Bluetooth

Once pairing has been completed, connecting a Bluetooth will be easy the next time.

◆ Connecting from this unit

AUX USB RADIO Bluetooth CD 15:30 BT 15:30 YAMAHA

Press the 📄sourceButton to switch the audio source to Bluetooth.

The Bluetooth indicator will blink in the front panel display; this unit will search for the other component that was most recently connected via Bluetooth, and will then establish a connection (You must first turn on the Bluetooth setting of the other component).

When the Bluetooth connection has been established, the Bluetooth indicator will light, and the name of the other component will be displayed.

◆ Connecting from the other component

1 In the Bluetooth settings of the other component, turn Bluetooth on.
2 From the Bluetooth connection list of the other component, choose this unit (TSX-B235 Yamaha).

The Bluetooth connection will be established, and the front panel display of this unit will indicate the name of the other component.

• Bluetooth connections cannot be established from the other component when this unit is in ECO standby (P. 5).
• When using an already-paired smartphone with the NFC function, holding it over the NFC mark establishes a Bluetooth connection.

Disconnecting a Bluetooth connection

If any of the following operations are performed while a Bluetooth connection is being used, the Bluetooth connection will be disconnected.

• Hold down 📋 Button button on this unit or on the remote control.
• Turn the unit off.
• Turn off the Bluetooth setting of the other component.
• Hold the smartphone with the NFC function over the NFC mark during Bluetooth connection.

LISTENING TO FM/AM STATIONS

Selecting an FM/AM station

Connect the antenna if you want to listen to the FM/AM (P. 3).

[AM radio is available only for North America model.]

1 AUX USB RADIO Bluetooth 2

Press the RADIO source button repeatedly to switch the audio source to FM or AM.

You can also switch the audio source by pressing RADIO on the remote control.

2 Tuning FM/AM stations.

Automatic tuning: Press and hold TUNING << / >>. Manual tuning: Press TUNING <</ >> repeatedly.

If you tune to a station manually while receiving FM, the sound will be monaural.

◆ Display information (remote control only)

If you press DISPLAY on the remote control, the information shown on the front panel display will be switched in the following order.

Preset number and frequency ↔ Reception status*

* Examples of reception status indication (the STEREO/MONO indication is not shown while receiving an AM broadcast).

TUNED/STEREO: A strong FM stereo broadcast is being received.

TUNED/MONO: A monaural FM broadcast is being received (even if the FM broadcast is stereo, reception will be monaural if the signal is weak).

Not TUNED: No broadcast is being received.

Presetting FM/AM stations (remote control only)

Use the preset function to store your favorite 30 stations.

First, press the RADIO source button to switch the audio source to FM or AM.

Auto preset

This method tunes automatically, and automatically presets only the stations that have good reception.

1 2 TUNING MEMORY PRESET YAMAHA

AUTO PRESET Press MEMORY

◆ Manual preset

PRESET MEMORY FM01 87.50MHz

◆ Deleting a stored preset

1 Press and hold down MEMORY.

"AUTO PRESET" will appear and "Press MEMORY" will blink.

2 Press MEMORY.

Auto preset will begin.

When presetting has finished, the display will indicate "Completed!".

When you perform auto preset, all stored stations are cleared and the new stations are stored.

If you want to stop auto preset before it is completed, press ■

1 Press TUNING «/» to tune a station that you want to preset.

2 Press MEMORY.

The display will indicate "PRESET MEMORY," and the preset number will blink.

3 Press PRESET to select the preset number that you want to store.

• The lowest preset number that has not been stored will be selected first.
• If you want to cancel the presetting, press
• If you select a preset number in which a station has already been stored, it will be overwritten by the new station.

4 Press MEMORY.

When presetting has finished, the display will indicate "Completed!".

1 Press MEMORY on the remote control.

The display will indicate "PRESET MEMORY", and the preset number will blink.

2 Press TUNING «/» to select the preset delete operation.

The display will indicate "PRESET DELETE".

3 Press PRESET to select the preset number that you want to delete.

If you want to cancel the deleting, press ■

4 Press MEMORY to complete the operation.

The preset will be deleted, and the display will indicate "Deleted!".

Selecting preset FM/AM stations

1 AUX USB RADIO Bluetooth 2

1 Press the RADIO source button repeatedly to switch the audio source to FM or AM.

You can also switch the audio source by pressing RADIO on the remote control.

2 Press PRESET </> to select the FM/AM station that you want to hear.

You can only select presets that have been stored.

USING THE ALARM FUNCTION (IntelliAlarm)

The unit includes an alarm function that plays back audio sources or a set of beep (internal alarm sound) at the set time using a variety of different methods. The alarm function has the following features.

◆ 3 types of alarms

Select from 3 alarm types, combining music and beep sounds.

SOURCE+BEEP	The selected audio source and the beep sound are played at the set time. Source playback begins to fade in 3 minutes before the set time and the volume gradually increases to the set volume. Then, at the set time, the beep sound is activated.
SOURCE	The selected audio source is played at the set time. The volume fades in gradually and increases to the set volume.
BEEP The beep sound is played at the set time.

◆ Various audio sources

You can choose from audio CD, data CD, USB device, or FM/AM. The following playback methods can also be selected depending on the audio source:

Source	Playback method	Function
Audio CD	Selected track The selected track is played repeatedly.
	Resume The track you listened to last time is played back.
Data CD/USB device	Folder The selected folder is played repeatedly.
	Resume The track you listened to last time is played back.
FM/AM*	Preset station The selected preset station is played.
	Resume The FM/AM* station you listened to last time is played back.

* AM radio is available only for North America model.

You can not choose Bluetooth and AUX as the audio source.

◆Snooze

The snooze function can be enabled to replay the alarm after 5 minutes (P. 18).

Setting the alarm

Setting the alarm time and alarm type

The alarm will not function when the unit is in ECO standby. To use the alarm function, set the rear panel CLOCK switch to the ON position (P. 3).

1

YAMAHA ALARM 101 - ENTER + ▲ AUTO

2

YAMAHA ALARM SET - ENTER + 3.257

YAMAHA ALARM SET - ENTER + ▲ READY

3

Alarm time 7:00 AM (●) 9:12 AM Completed! Alarm indicator

1 Press SET.

The alarm indicator (0) will blink.

2 Set the alarm.

Set items ①-⑤ described below.

Press - / + to select a numerical value, and press ENTER to confirm it.

Items Setting or range
1 ALARM SELECT	* This can be selected after you’ve used “DTA CONTROLLER” to set the alarm (P. 19). If you’re not using “DTA CONTROLLER,” proceed to item2. ONE DAY: An alarm that sounds only once at the specified time.WEEKLY: An alarm whose time can be specified for each day of the week (settable only using “DTA CONTROLLER”).If you’ve chosen WEEKLY, this completes the alarm setting.
2 ALARM TIME	Make settings in the order of hours→minutes.
3 ALARM TYPE	Select from SOURCE+BEEP, SOURCE or BEEP. For details, refer to “3 types of alarms” (P. 16).If you selected BEEP, proceed to item5.
4 ALARM SOURCE(If you selected SOURCE+BEEP or SOURCE as the alarm type)	CD: Play back music from a CD.Specify the track number (data CD: folder number) (RESUME ^*1 , 1-99).USB: Play back music from a USB device.Specify the folder number (RESUME, 1-999).FM/AM ^*2 :Play a radio station.Specify the preset number (RESUME, 1-30).!If the selected source cannot be played back at the time set for the alarm, the beep sound is played back.
5 ALARM VOLUME	Specifies the volume (5-60) of the alarm.

*1 If you choose RESUME when specifying the track/folder/preset number, the last-played track/folder/station will be played (resume playback)

*2 AM radio is available only for North America model.

3 Complete the settings.

When you set the VOLUME for item ⑤, the display will indicate "Completed!" and your settings will be confirmed.

The alarm will be turned on and the alarm indicator ( ) will light.

!

• By pressing SET during this procedure, you can confirm the alarm settings with the currently-specified values and complete the procedure.
• If you decide to cancel alarm settings mid-way through the procedure, press.

◆ Switching the alarm on/off

YAMAHA ALARM SET ENTER + ▲ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◇ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◉

Press ALARM to turn the alarm on/off.

When the alarm is on, the alarm indicator ( [v_0] light, and the alarm time will be shown.

If you press ALARM again, the alarm indicator ( [1 1] ) and the alarm will turn off.

When the unit is in ECO standby, the alarm will not function (P. 5).

Operations while the alarm sound is playing

When the set time arrives, the selected alarm sound will play. During playback, the following operations are available.

◆ To pause the alarm (Snooze)

YAMAHA YAMAHA ALARM SET ENTER EIGHT

Press SNOOZE/SLEEP.

Snooze will stop the alarm and play it again 5 minutes later.

If SOURCE + BEEP is set as the alarm type, you can press SNOOZE/SLEEP once to stop the beep sound, and twice to stop the audio source.

5 minutes after the audio source is stopped, it will start fading in again and the beep sound will resume.

◆ To turn the alarm off

YAMAHA ALARM SET ENTER + PART

Press ALARM or ⏻

- You can also stop the alarm by holding down SNOOZE/SLEEP.

- If you don't stop the alarm, it will stop automatically after 60 minutes and the unit will turn off.

- The alarm setting will be saved even if the alarm is turned off. If the alarm is turned on again by pressing ALARM, the alarm will sound with the previous alarm settings.

USING THE "DTA CONTROLLER"

Installing DTA CONTROLLER application on a mobile device, such as a smartphone or tablet computer, allows you to use a variety of additional convenient features of this unit.

Features

• Turning on or off the unit
• Adjusting volume
• Setting of the alarm function (IntelliAlarm) (P. 17)
• Playing back songs stored in a mobile device

The mobile device needs to be connected with the unit via Bluetooth connection (P. 10).

For details, search for "DTA CONTROLLER" on the App Store or Google Play™.

The front panel display shows information for the Weekly Alarm you've set.

MON TUE WED THU FRI SAT SUN

Monday

Tuesday

Wednesday

Thursday

Friday

Saturday

Sunday

USING THE SLEEP TIMER

When the specified time has elapsed, the unit will turn off automatically.

YAMAHA ALARM 10T - ENTER + 2.0/17

Press SNOOZE/SLEEP repeatedly to specify the time after which the unit will turn off.

You can specify 30, 60, 90, 120 or OFF.

When you select a time, the sleep timer is turned on, and the sleep indicator (i) is shown in the front panel display.

If you press SNOOZE/SLEEP while the sleep timer is activated, the sleep timer setting will be canceled.

SETTING AUTO POWER STANDBY FUNCTION (main unit only)

By enabling the auto power standby function, the unit will automatically turn off (standby) under the following conditions.

• No operation for 8 hours.
- No operation has been performed for 20 minutes after CD/USB device playback is stopped.

Diagram showing a hand pressing a button on an alarm panel with control buttons and status indicators

Press ▶ on the main unit for more than 3 seconds to enable/disable the auto power standby function.

When the auto power standby function has been enabled, the display will indicate "AUTO PWR STBY ON", when the auto power standby function has been disabled, the display will indicate "AUTO PWR STBY OFF".

• The default setting is enabled.

TROUBLESHOOTING

If there is a problem with the unit, check the following list first. If you cannot resolve the problem with the suggested solutions or if the problem is not listed below, turn off and unplug the unit, and consult the nearest authorized Yamaha dealer or service center.

General

Problem Cause Solution	tion
The speakers make no sound. The	volume might be set to the minimum level, or muted.	Adjust the volume level.
	The source may be incorrect. Select the correct source.
	Headphones are connected. Remove the headphones.
	The volume of a connected external device is not loud enough.	Raise the volume of the external device.
Sound suddenly turns off.	The sleep timer may be set (P. 19).	Turn the unit on and play the source again.
Sound is cracked/distorted or there is abnormal noise.	Input source volume is excessive, or volume of this unit is excessive (especially Bass).	Adjust volume with VOLUME, or adjust Bass with EQ (P. 6). If an external device is playing back, lower the volume of the external device.
The unit does not operate properly.	The unit may have received a strong electrical shock such as lightning or excessive static electricity, or power supply may have dropped.	Turn off, and disconnect the power cable. Wait about 30 seconds, reconnect the power cable, and turn on.
The unit turns on but immediately shuts off.
A digital or high-frequency equipment produces noises.	The unit may be placed too close to the digital or high-frequency equipment.	Place the unit farther away from the equipment.
The clock setting has been cleared.	The unit remained unpowered for about one week.	If the power supply is interrupted for about one week, the time setting may be reset. If this occurs, please reset the clock (P.5).
Clock flashes and the unit cannot be operated.	The CLOCK switch is in the SET position, and the clock settings are in progress.	Set the CLOCK switch to the ON or OFF position (P. 3).
Alarm does not sound. The CLOCK switch is in the OFF or SET position.		Set the CLOCK switch to the ON position (P. 3).
The front panel display indicates “ALARM not work” and can’t set the alarm.
The unit turns off unexpectedly. The auto power standby function may have operated.		This unit will turn off when 20 minutes have elapsed without any operation being performed after stopping playback of the USB device or the CD, or if the unit has been on for 8 hours or more without any operation being performed (P. 19).
Front panel display becomes dim.	The front panel display’s brightness setting is set to AUTO.	Change the brightness setting to something other than AUTO (P. 6). Alternatively, ensure that the illumination sensor (P. 3) is not obscured.

CD playback

Problem Cause Solution
Disc cannot be inserted.	Another disc is already inserted.	Unload the disc with ▲EJECT.
	You are attempting to insert a disc that cannot be used by this unit.	Use a disc supported by the unit (⇨ P. 23).
Some button operations do not work.	The disc loaded into the unit may not be compatible.	Use a disc supported by the unit (⇨ P. 23).
Playback does not start immediately after pressing ▶II (stops immediately).	The disc may be dirty.	Wipe the disc clean (⇨ P. 23).
	The disc loaded into the unit may not be compatible.	Use a disc supported by the unit (⇨ P. 23).
	If the unit was moved from a cold to warm place, condensation may have formed on the disc reading lens.	Wait for an hour or two until the unit adjusts to the room temperature, and try again.
The front panel display indicates “no operation”, and a disc cannot be inserted or unloaded.	The clock/alarm/tone settings are in progress. Alternatively, the alarm is playing.	Complete the clock/alarm/tone settings. Alternatively, stop the alarm.
When you insert a disc, the front panel display indicates “CD No Disc” or “CD Unknown.”	The disc loaded into the unit may not be compatible.	Use a disc supported by the unit (P. 23).
	The disc may be dirty, or a foreign object may have adhered to it.	Wipe the disc clean. Alternatively, remove any foreign object that has adhered to the disc (P. 23).
	The disc does not contain playable files.	Use a disc contains playable files (P. 23).
	The disc was inserted upside down. Insert the disc	with the label facing upward.

USB device playback

Problem Cause Solution
MP3/WMA file in the USB device does not play.	The USB device is not recognized. Make sure the	USB device is connected to USB port instead of CHARGING port.Turn the unit off and reconnect the USB device to the unit.If the solutions above do not resolve the problem, the USB device is not playable on the unit (P. 23).
	The USB device does not contain playable files.	Use a USB device contains playable files (P. 23).
When you connect a USB device, the front panel display indicates “USB OverCurrent,” and then the front panel display goes blank.	An incompatible USB device was connected to the unit. Alternatively, the USB device is not connect firmly to the unit.	Turn the unit off and reconnect the USB device to the unit.If it does not resolve the problem, the USB device is not playable on the unit (P. 23).

Bluetooth

Problem Cause Solution
Cannot make this unit paired with the other component.	The other component does not support A2DP. Perform pairing operations with a component which supports A2DP.
	A Bluetooth adaptor, etc. that you want to pair with this unit has a password other than “0000”.	Use a Bluetooth adaptor, etc. whose password is “0000”.
	This unit and the other component are too far apart.	Move the other component closer to this unit.
	There is a device (microwave oven, wireless LAN, etc.) outputs signals in the 2.4 GHz frequency band nearby.	Move this unit away from the device that is emitting radio-frequency signals.
Can’t establish a Bluetooth connection.	This unit is not registered on the other component’s Bluetooth connection list.	Perform pairing operations again (P. 10).
No sound is produced or the sound is interrupted during playback.	The Bluetooth connection of this unit with the other component is disconnected.	Perform Bluetooth connection operations again (P. 11).
	This unit and the other component are too far apart.	Move the other component closer to this unit.
	There is a device (microwave oven, wireless LAN, etc.) outputs signals in the 2.4 GHz frequency band nearby.	Move this unit away from the device that is emitting radio-frequency signals.
	The other component’s Bluetooth function is off.	Turn on the Bluetooth function of the other component.
	The other component is not set to send Bluetooth audio signals to this unit.	Check that the Bluetooth function of the other component is set properly.
	The pairing setting of the other component is not set to this unit.	Set the pairing setting of the other component to this unit.
	The other component’s volume is set to the minimum.	Increase the volume level.

FM/AM reception

Problem Cause Solution
Too much noise.	The antenna may be connected improperly.	Make sure the antenna is connected properly (P. 3) or use a commercially available outdoor antenna.
	The antenna is too close to the unit or to an electronic device.	Position the antenna as far away as possible from the unit or the electronic device.
Too much noise during stereo broadcast.	The radio station you selected may be far from your area, or the radio wave reception is weak in your area.	Try manual tuning to improve the signal quality (P. 13) or use a commercially available outdoor antenna.
Even with an outdoor antenna, radio wave reception is weak. (Sound is distorted.)	Multipath reflection or other radio interferences may have occurred.	Change the height, direction, or placement of the antenna (P. 3).

Remote control

Problem Cause Solution
The remote control does not work properly.	The remote control may be operated outside its operation range.	For information on the remote control operation range, refer to „How to use the remote control” (P. 1).
	The remote control signal receiver on the unit (P. 3) may be exposed to direct sunlight or lighting (inverted fluorescent lamps).	Change the lighting or orientation of the unit.
	The battery may be worn out.	Replace the battery with a new one (P. 1).
	There are obstacles between the remote control signal receiver on the unit (P. 3) and the remote control.	Remove the obstacles.

NOTES ON DISCS AND USB DEVICES

CD information

This unit is designed for use with audio CD, CD-R*, and CD-RW* with the logos followings.

* ISO 9660 format CD-R/RW

This unit can play back discs bearing any of the logo marks above. A disc logo mark is printed on the disc and the disc jacket.

• Do not load any other type of disc into this unit. Doing so may damage this unit.
• CD-R/RW cannot be played back unless finalized.
• Some discs cannot be played back depending on the disc characteristics or recording conditions.
• Do not use any non-standard shaped discs such as a heart-shaped disc.
• Do not use discs with many scratches on their surface.
• Do not load a cracked, warped, or glued disc.
• Do not use 8-cm discs.

Handling a disc

• Do not touch the surface of the disc. Hold a disc by its edge (and the center hole).
• Do not use a pencil or pointed marker to write on the disc.
• Do not put a tape, seal, glue, etc., on a disc.
• Do not use a protective cover to prevent scratches.
• Do not load more than one disc into this unit at one time. This can cause damage to both this unit and the discs.
• Do not insert any foreign objects into the disc slot.
• Do not expose a disc to direct sunlight, high temperature, high humidity, or a lot of dust.

- If a disc becomes dirty, wipe it with a clean, dry cloth from the center out to the edge. Do not use record cleaner or paint thinner.

• To avoid malfunction, do not use a commercially available lens cleaner.

Caution

Line drawing of hands holding a cloth over a plate with an arrow indicating direction (no text or symbols)

USB device information

This unit supports USB mass storage class devices (e.g., flash memories or portable audio players) using FAT16 or FAT32 format.

• Some devices may not work properly even if they meet the requirements.
• Do not connect devices other than USB mass storage class devices (such as USB chargers or USB hubs), PCs, card readers, an external HDD, etc.
• Yamaha will not be held responsible for any damage to or data loss on the USB device occurring while the device is connected to this unit.
• Playability of and power supply to all kind of USB devices are not guaranteed.
• USB devices with encryption cannot be used.

About MP3 or WMA files

• The unit can play back:

File Bitrate (kbps)	Sampling frequency (kHz)
MP3 8-320** 16-48
WMA 16-320** 22.05-48

** Both constant and variable bitrates are supported.
- The maximum numbers of files/folders that can be played on the unit are as follows.

	Data CD U	SB
Maximum total number of file 512 9999
Maximum folder number 255 999
Maximum file number per folder	511	255

• Copyright-protected files cannot be played back.

SPECIFICATIONS

◆PLAYER SECTION

CD

• Media CD, CD-R/RW
• Audio format...... Audio CD, MP3, WMA

LASER

• Type......Semiconductor laser GaAS/GaAlAs
• Wave length....790 nm
• Output Power ....7 mW

USB

- Audio format....MP3, WMA

AUX

- Input connector ....3.5 mm (1/8") STEREO mini jack

Bluetooth SECTION

• Bluetooth version .... Ver. 2.1+EDR
  • Supported profile ....A2DP
• Supported codecs .... SBC, AAC, aptX®
• Wireless output .... Bluetooth Class 2
  • Maximum communication distance..... 10 m (without obstructions)

◆AMPLIFIER SECTION

• Maximum output power ......15 W + 15 W (6 Ω 1 kHz, 10 % THD)
- Headphones ....3.5 mm (1/8 in) STEREO mini jack (Impedance 16 to 32 Ω)

◆TUNER SECTION

Tuning range

• FM [North America model] ....87.50 to 107.90 MHz [Other models] ....87.50 to 108.00 MHz
• AM (North America model only) ....530 to 1710 kHz

GENERAL

• Power supply [North America model] ....AC 120 V, 60 Hz [Asia model] ....AC 220 to 240 V, 50/60 Hz [Taiwan model] ....AC 110 to 120 V, 60 Hz
• Power consumption....30 W
- Standby consumption ....3.8 W or less (standby)/0.5 W or less (ECO standby)
- Dimensions (W × H × D) ...... 370 (14-5/8") × 110 (4-3/8") × 234 (9-1/4") mm
- Weight 3.92 kg (8.64 lbs.)

Specifications are subject to change without notice.

iPod, iPhone, iPad

“Made for iPod”, “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

Made for:

iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5,

iPhone 4s, iPhone 4, iPhone 3GS

iPad (3rd and 4th generation), iPad 2

iPod touch (4th and 5th generation)

(As of May 2015)

iPhone, iPad, iPad Air, iPad mini and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

© 2013 CSR plc and its group companies.

The aptX ^® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Bluetooth

• Bluetooth is a technology for wireless communication between devices within an area of about 10 meters (33 ft) employing the 2.4 GHz frequency band, a band which can be used without a license.
• Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement.

Handling Bluetooth communications

• The 2.4 GHz band used by Bluetooth compatible devices is a radio band shared by many types of equipment. While Bluetooth compatible devices use a technology minimizing the influence of other components using the same radio band, such influence may reduce the speed or distance of communications and in some cases interrupt communications.
• The speed of signal transfer and the distance at which communication is possible differs according to the distance between the communicating devices, the presence of obstacles, radio wave conditions and the type of equipment.
• Yamaha does not guarantee all wireless connections between this unit and devices compatible with Bluetooth function.

The name plate is located on the bottom of the unit.

欧尔瓦

For North America and Asia models

CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT PRODUIT LASER DE CLASSE 1

For Taiwan model

CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT PRODUIT LASER DE CLASSE 1 1类激光产品

CAUTION - CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. WARNING - KCLASS 3B SYN LIG OCH OSYN LIG LASER STRÄ LNING NÄR DENNA DEL ÄR OPPNAD. STRÄLEN ÄR FAR LIG. VARD 1 AVATÄESSA OLET ALT TINA LUCKEN 3B NÄKYVALLE JA NÄKYNMÖF MÄLLE LASERSÄRTIDLYLE ALÄ KATSO SÄTESEN, WARNING - KCLASS 3B SYN LIG OCH OSYN LIG LASER STRÄ LNING NÄR DENNA DEL ÄR OPPNAD. BETTRAKTÄ EJ STRÄLEN. VORSICHTI SICHTBARE UND UNSICHTBARE LASER STRAH-UNG KLASSE 3B WINN ABDECKUNG GEÖFFINET, NICHT DEM STRahl AUSETZEN, ATTENTION - RADIATION VISIBLE ET INVISIBLE CLASSE 3B LORSIQUE L'APPAREIL EST OUVERT-EVITZ TOUTE EXPOSITION AU FARSEAU.

If there should be color blotching or noise when used near a TV, move this unit away from the TV when using it.

Do not use this unit within 22 cm (9 inches) of persons with a heart pacemaker implant or defibrillator implant.

Radio waves may affect electro-medical devices. Do not use this unit near medical devices or inside medical facilities.

The user shall not reverse engineer, decompile, alter, translate or disassemble the software used in this unit, whether in part or in whole. For corporate users, employees of the corporation itself as well as its business partners shall observe the contractual bans stipulated within this clause. If the stipulations of this clause and this contract cannot be observed, the user shall immediately discontinue using the software.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

LASER SAFETY

This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

DANGER

This unit emits visible laser radiation when open. Avoid direct eye exposure to beam. When this unit is plugged into the wall outlet, do not place your eyes close to the opening of the disc slot and other openings to look into inside.

The laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

PRÉCAUTIONS CONCERNANT LA SÉCURITÉ

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION: POUR RÉDUIRE LES RISQUES

DECLARATION D'INFORMATIONS DE CONFORMITE

(DECLARATION DE PROCEDURE DE CONFORMITE)

Entité responsable: Yamaha Corporation of America A/V Division Adresse: 6600 Orangethorpe Avenue, Buena Park,

CA 90620, USA

Téléphone: 1-714-522-9011

Piles (x 2)
(AAA, R03, UM-4)

Diagram showing battery components and a device with an arrow indicating direction (no text or symbols present)

③ ⑦⑨⑧⑤④ ⑥①② AUTO USB RAGRID ED VOLUME SNOOZE / SLEEP CHAMPING USB PREFIST TUNING YAMAHA ALARM SET ENTER EJECT DEKTERF ALA Bluetooth ⑪⑫⑬⑭⑮⑯⑰⑱⑲⑳⑴⑵⑶⑷⑸⑹⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺⑺①② ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMOS ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAMO ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM0 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM1 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2 ADJAM2

①VOLUME - / +

Règle le volume.

② (Alimentation)

CLOCK ON AUX SEM OFF 1 2 3 4 TIG FM ANT AM ANT

①Sélecteur CLOCK

75Ω FM ANT AM ANT

Diagram of a digital device control panel with labeled buttons and a hand pointing to the function button.

15:30 26 Apr

MOZZLE/SLEEP AC/MS DIMMER CD LED RUN

R CHARGING

15:30 BT Pairing OK

◆ Diverses sources audio

7:00 AM (●) 9:12 AM Completed!

Indicateur d'alarme

1 Appuyez sur SET.

MON TUE WED THU FRI SAT SUN

Lundi

Mardi

Mercredi

Jeudi

Vendredi

Samedi

Dimanche

UTILISATION DE LA MINUTERIE

Diagram showing a hand pressing a button on an alarm panel with labeled buttons and status indicators

Attention

Informations relatives aux dispositifs USB

• Supports CD, CD-R/RW
- Format audio .... CD audio, MP3, WMA

LASER

- Format audio ....MP3, WMA

AUX

Top-down schematic of a device panel with ventilation grille and control buttons (no text or symbols)

CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT PRODUIT LASER DE CLASSE 1

Parte responsible: Yamaha Corporation of America A/V Division

Panel superior / Panel frontal....2

Pantalla del panel frontal....3

Panel posterior....3

Mando a distancia....4

ENCENDIDO DE LA UNIDAD......5

AJUSTE DEL RELOJ....5

Pilas (x 2) (AAA, R03, UM-4)

Diagram showing battery components and a device with labeled parts, including battery, batteries, and a switch.

③ AUTO USB RADIO CD ⑦⑨⑩⑤④ CHAMPOR USB VOLUME - + SNOOZE / SLEEP YAMAHA ALARM SET ENTER EJECT DESKTOP ALA Blue both ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱

①VOLUME - / +

Ajuste el volumen.

② (Alimentación)

CLOCK ON AUX SET OFF TEG FM ANT AM ANT ① ② ③ ④

①Conmutador CLOCK

75Ω FM ANT AM ANT

Hand interacting with a device control panel showing buttons and a finger pointing to the function button.

15:30 26 Apr

CLOCK AUX ON SET

15:30 26 HPR

Jan Feb Mar Apr May Jun

Jul Aug Sep Oct
Nov Dec

IMRIS/LEEP AC, B, R, L UMMER AC B R, L L

IN IN+02E/LEEP TOMM CHARGING

15:30 BT Pairing OK *

VOLUME DISPLAY

Hora de alarma 7:00 AM (●) 9:12 AM Completed!

Indicador de alarma

1 Pulse SET.

MON TUE WED THU FRI SAT SUN

Diagram showing a hand pointing to an alarm panel with labeled buttons and status indicators

Illustration showing hands cleaning a CD or DVD disc with a cloth cover (no text or symbols)

Top-down schematic of a device panel with ventilation grille and control buttons (no text or symbols)

CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT PRODUIT LASER DE CLASSE 1
