USER MANUAL DCS4701E D-LINK

Building Networks for People

Quick Installation Guide

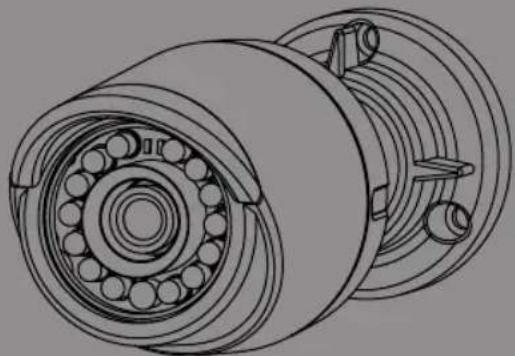

Vigilance Full HD H.265 Outdoor Bullet Camera

This document will guide you through the basic installation process for your new D-Link Network Camera.

DCS-4701E

Technical line drawing of a mechanical bearing assembly (no text or symbols)

Quick Installation Guide

Documentation also available on

CD and via the D-Link Website

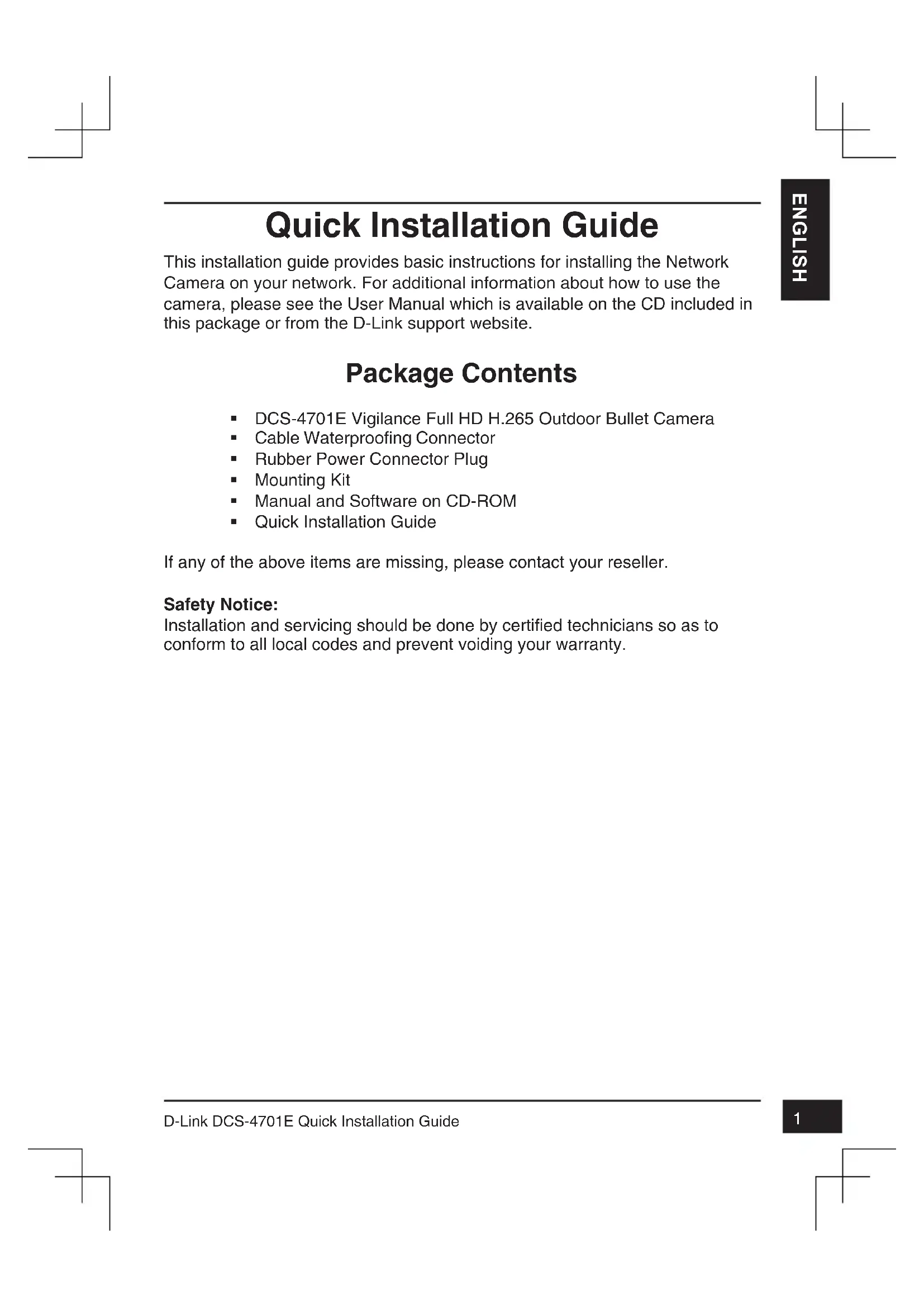

Quick Installation Guide

This installation guide provides basic instructions for installing the Network Camera on your network. For additional information about how to use the camera, please see the User Manual which is available on the CD included in this package or from the D-Link support website.

Package Contents

■ DCS-4701E Vigilance Full HD H.265 Outdoor Bullet Camera
■ Cable Waterproofing Connector
■ Rubber Power Connector Plug
■ Mounting Kit
■ Manual and Software on CD-ROM
■ Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certified technicians so as to conform to all local codes and prevent voiding your warranty.

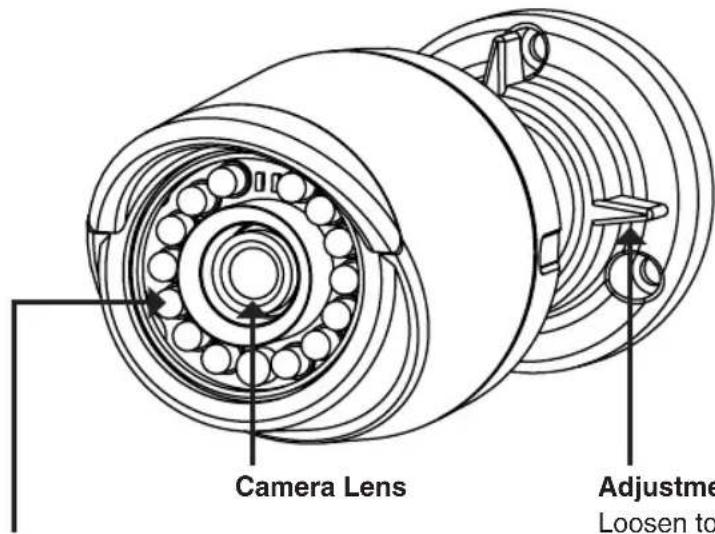

Hardware Overview

Camera Lens Adjustment Loosen to

IR LEDs
Provide illumination for low-light environments
Loosen to adjust camera angle and tighten to lock camera angle

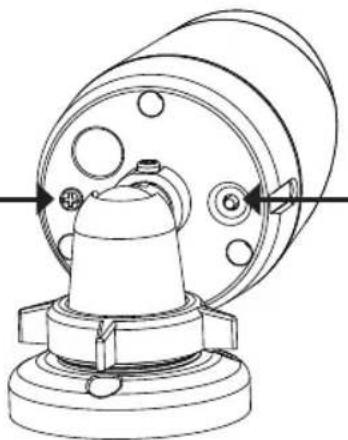

Can be attached to a grounding wire if desired

Adjustment Ring

Grounding Screw

Technical line drawing of a mechanical component with no visible text or symbols

Reset Button
Press and hold for 10 seconds to reset camera back to the factory default settings

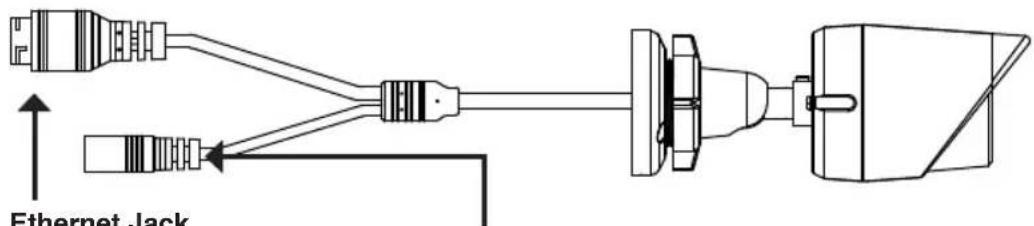

Ethernet Jack

Ethernet Jack
RJ-45 connector for Ethernet, can also be used to power the camera using Power over Ethernet (PoE)
Connects to an optional 12 V / 1.5 A power adapter (not included)

Power Connector

Configuring the Camera

Insert the DCS-4701E CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\ autorun.exe, where D: represents the drive letter of your CD-ROM drive.

Click Setup Wizard and follow the instructions to install the Setup Wizard.

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE).

The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed. If your network does not use a DHCP server, the network camera's default static IP 192.168.0.20 will be displayed.

Select your camera, then click the Wizard button to continue.

Enter the Admin ID and password. When logging in for the first time, the default Admin ID is admin with the password left blank.

Click the checkboxes if you wish to change the admin ID and password for the camera, and enter the new ID and password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address automatically from a DHCP server such as a router. Select Static IP if you want to manually enter the IP settings for the camera.

Click Next to continue.

D-Link WOLANGE FULL HD & LINE OUTDOOR WILLET CAMERA + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: None + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: More + Add: None

Create Save As Delete Add to Project Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删除 删去

D-Link SECURITY Netrightarrow Access Current Netrightarrow Close Name 地址和名称 100% 100% 安全选项

D-Link SECURIAL INTERNET Set up an Admin ID and Password to secure your camera. Click Next to continue Admin ID Change Use ID Password Change New Password Security Back Next End

D-Link SECURIC AN Network Set IP Address • DHCP • Static IP IP Address: 96.7888.1.100 Subtotal Size: 25.255.388.4 Default Drive: 96.7888.1.2 Primary DNS: 96.7888.1.3 Secondary DNS: 96.7888.1.4 Back Next Back

Take a moment to confirm your settings and click Restart.

D-Link SECURE LAN Network Address: 0396 Forward: IP Address: 142 (144.57) Other Mail: 142 (144.57) Privacy Date: 142 (144.57) Secretary (MD): 142 (144.57) The Setup Wizard has completed. Click an Back to modify your settings. Click "Readset" to save your current settings and reboot the Internet Camera. Back Access

Viewing Your Camera via Web Browser

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE).

Newuser Open Save Sheet Save Sheet 31 Save Sheet 21 Create new user file Create new user file Edit... Save Sheet Edit Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet Delete Sheet

Select the camera and click Link to access the web configuration.

The Setup Wizard will automatically open your web browser to the IP address of the camera.

D-Link SECURITY Server Name: ID:Address Cancel ID Address Record Name ID:Password No:1000000 Record Address Search Login About Exit

Enter admin as the default username and leave the password blank. Click OK to continue.

Windows Security The server: 182.168.0.10L at DCS-4701E requires a username and password. Warning: The server is requesting that your username and password be sent in an secure manner (basic authentication without a secure connection). User name: Password: Remember my credentials OK Cancel

This section displays your camera's live video. You can select your video profile and view or operate the camera. For additional information about web configuration, please refer to the user manual included on the CD-ROM or the D-Link website.

Exterior view of a modern building with glass windows and surrounding trees (no visible signage or text)

Mounting Instructions

It is highly recommended that you configure and test your camera before mounting it.

Place the mounting sticker where you want to position the camera. Make sure the camera base will be positioned so that the cable channel is on the bottom.

Use a 6 mm drill bit to make the required holes approximately 25 mm deep, then insert the wall anchors into the holes.

If you are running the camera cables through the wall, drill a hole in the center and pull the cables through the hole.

Diagram showing two types of connector or connector assemblies with labeled pins (no text or symbols present)

Use the screws provided to mount the camera to the wall.

If you are running the camera cables out the side of the camera, guide the camera cables through the cable channel on the base.

Technical line drawing of a mechanical assembly with multiple ports and housing (no text or symbols)

Connect the power and Ethernet cables, or just the Ethernet cable if you are using a PoE connection.

Diagram showing two types of electrical connectors with red arrows indicating connection points (no text or symbols present)

To adjust the camera's angle, turn the adjustment ring counterclockwise to loosen it, then move the camera to the desired position and angle. When you are finished, turn the adjustment ring clockwise to tighten it.

Mechanical assembly diagram showing a bearing housing with red directional arrows indicating rotation (no text or labels)

If you need to waterproof your installation, please continue to the next page.

Waterproofing Your Installation

To waterproof your camera installation, follow the instructions below. Round Ethernet cable, a crimping tool, and RJ-45 plugs are required for this procedure.

Place the washer around the base of the Ethernet connector as shown.

Technical line drawing of a connector with a magnified inset showing a circular component (no text or symbols)

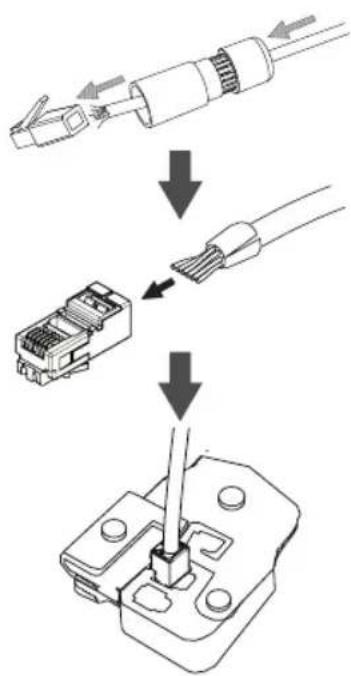

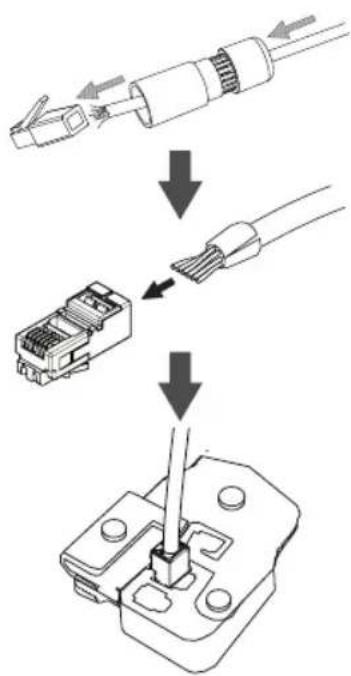

Thread bare Ethernet cable through the waterproof connector as shown, then crimp an RJ-45 plug onto the cable.

Diagram illustrating the step-by-step installation of a cable connector into a terminal block, with Chinese labels indicating component states.

Connect the RJ-45 plug into the Ethernet connector, then screw the waterproof connector to the Ethernet connector by turning it about a half-turn clockwise.

Diagram showing a cable being inserted into a connector, then being folded or reassembled (no text or symbols present)

Screw the back part of the waterproof connector clockwise until there is a tight seal around the Ethernet cable.

Pure technical line drawing of a cylindrical mechanical component with internal channels and a rotation arrow (no text or symbols)

If you are using PoE to power your camera, use the included rubber power connector plug to the power connector.

Pure electrical connector diagram showing two USB connectors and a plug (no text or symbols)

If you are using a power adapter(not included) to power your camera, wind waterproof tape around the connection in an overlapping manner to cover it.

Pure electrical connector diagram showing two connected cables with a downward arrow indicating connection (no text or symbols)

Pure electrical connector diagram without any text, numbers, or symbols

Additional Information

Additional help and product information is available online at http://www.dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty information for your region.
