USER MANUAL Handy Heater Livington

Line drawing of a portable electric heater with a digital display and ventilation grille (no text or symbols)

Instructions for Use....10

Mode d'emploi....17

This product is only suitable for well insulated spaces or occasional use.

GEBRAUCHSANLEITUNG

Prohibition sign with document icon and checkmark, commonly used to indicate no document or permission

R=3.0M Heater

Hand holding a wall-mounted device with two circular buttons, no text or symbols visible

Illustration of a device with a circular badge showing the number 30, and a hand holding a button (no text or symbols present)

Illustration of a hand holding a circular badge with the number 30, next to a stylized vehicle (no text or symbols)

Line drawing of a washing machine with a hand inserting a button (no text or symbols)

Line drawing of a washing machine with a handle and vent (no text or symbols)

12 Control Panel

Congratulations on your purchase of the Livingston Handy Heater – the wall outlet space heater! This cordless ceramic space heater provides quick and easy heat almost anywhere in your home. Just plug it in, and enjoy the extra warmth. The two-speed fan ensures you are always comfortable! The easy to read digital display lets you set any temperature between 15 °-32 °C.

IMPORTANT SAFEGUARD SAVE THESE INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Please read and understand this entire manual before attempting to operate or install the product.

DESIGNED FOR IN-WALL OUTLET USE ONLY

CAUTION: some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

WARNINGS: Do not use cord extension sets, multiple socket outlets or adaptors to avoid a risk of danger. Plug it only into wall socket outlet.

Prohibition sign with document icon and checkmark, commonly used to indicate no document or permission

WARNINGS: In order to avoid overheating, do not cover the heater.

WARNINGS: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this heater.

1. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. Use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 0.9m from the heater.
3. Ensure heater is plugged into a socket in vertical wall when use, keep at least 20cm unobstructed space to the bottom air inlet of heater to allow for ventilation to avoid a risk of danger.
4. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
5. Always unplug heater when not in use.
6. The heater must not be located immediately below a socket-outlet.
7. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
8. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Do not use the heater in the bathroom within a distance of 3.0m in all directions away from the bathtub, shower head, water tap or other water container (see below figure) and any other positions subjected to splash. Please make sure the heater can't be touched by persons who are taking a bath. Do not use the heater in laundry areas and similar indoor
   locations where splash may occur. The heater shall be in a position that, after being plugged in the socket outlet, the bottom line of the appliance kept at least 0.2m above the floor.
9. Do not run heater under carpeting. Do not cover heater with throw rugs, runners, or similar coverings.
10. Set the switch to OFF to switch off the appliance. Let the appliance fully cool down. Only then remove the connection plug from the supply.

R=3.0M Heater

1. Do not insert or allow foreign objects to enter any ventilation or opening as this may cause an electric shock or fire, or damage the heater.
2. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surface, like a bed, where openings may become blocked.
3. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
4. Use this heater only as described in this manual. Any other use not recommended by the manufacture may cause fire, electric shock, or injury to persons.
5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
6. Children of less than 3 years should be kept away unless continuously supervised.
7. Do not use outdoors.
8. This appliance is intended to be used in household and similar applications such as:

→ Staff kitchen areas in shops, offices and other working environments;

→ Farm houses;

→ By clients in hotels, motels and other residential type environments;

→ Bed and breakfast type environments.

1. SPECIAL SAFETY SWITCH-UNIT WORKS AT 90° ANGLE ONLY.

2. Save these instructions.

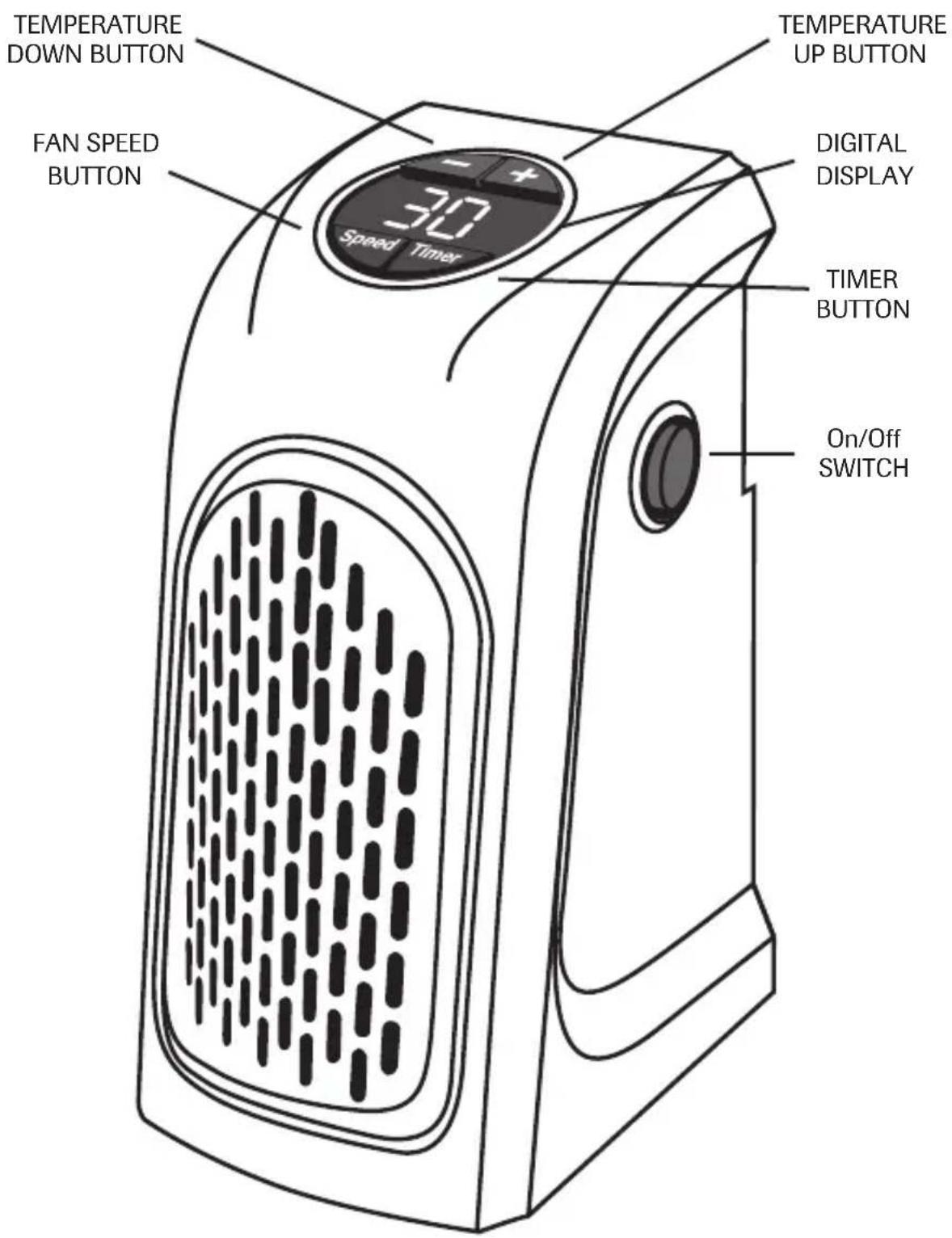

KNOW YOUR LIVINGTON HANDY HEATER

TEMPERATURE DOWN BUTTON FAN SPEED BUTTON 30 Speed Timer TEMPERATURE UP BUTTON DIGITAL DISPLAY TIMER BUTTON On/Off SWITCH

Front View

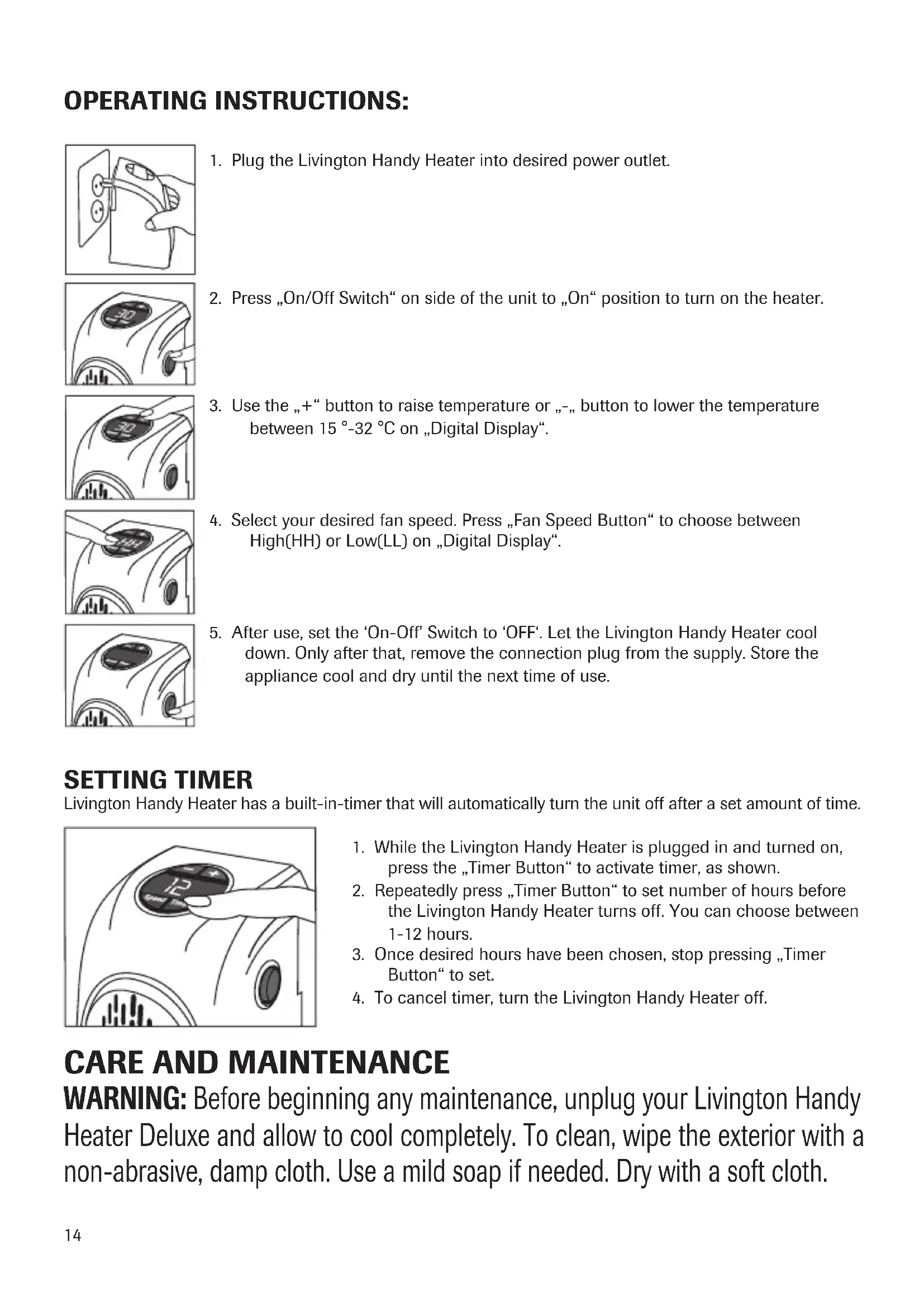

OPERATING INSTRUCTIONS:

Hand holding a wall-mounted device with two circular components, no text or symbols visible

1. Plug the Livingston Handy Heater into desired power outlet.

Illustration of a car front bumper with a circular badge showing '30' (no text or symbols on the object itself)

1. Press „On/Off Switch“ on side of the unit to „On“ position to turn on the heater.

Illustration of a hand holding a circular badge with the number 30, next to a stylized device (no text or symbols visible)

1. Use the „+“ button to raise temperature or „-, button to lower the temperature between 15 °-32 °C on „Digital Display“.

Illustration of a hand pressing down on a device with a circular button (no text or symbols visible)

1. Select your desired fan speed. Press „Fan Speed Button“ to choose between High(HH) or Low(LL) on „Digital Display“.

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

1. After use, set the 'On-Off' Switch to 'OFF'. Let the Livingston Handy Heater cool down. Only after that, remove the connection plug from the supply. Store the appliance cool and dry until the next time of use.

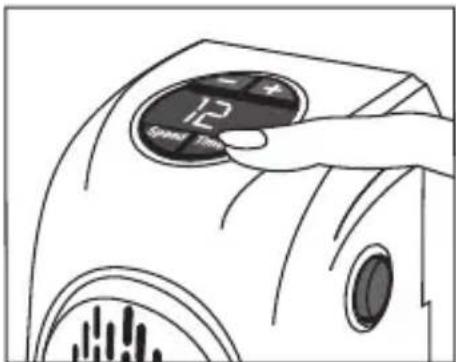

SETTING TIMER

Livington Handy Heater has a built-in-timer that will automatically turn the unit off after a set amount of time.

12 Speed Time

1. While the Livingston Handy Heater is plugged in and turned on, press the „Timer Button“ to activate timer, as shown.
2. Repeatedly press „Timer Button“ to set number of hours before the Livingston Handy Heater turns off. You can choose between 1-12 hours.
3. Once desired hours have been chosen, stop pressing „Timer Button“ to set.
4. To cancel timer, turn the Livingston Handy Heater off.

CARE AND MAINTENANCE

WARNING: Before beginning any maintenance, unplug your Livingston Handy Heater Deluxe and allow to cool completely. To clean, wipe the exterior with a non-abrasive, damp cloth. Use a mild soap if needed. Dry with a soft cloth.

CAUTION: DO NOT LET LIQUID ENTER THE HEATER

Do NOT use alcohol, gasoline, abrasive powders, furniturepolish, or rough brushes to clean the heater. This may cause damage to the casing of the heater. Do NOT immerse the Livingston Handy Heater in water. Wait until the unit is completely dry before use. Store unit in a cool dry place when not in use.

IMPORTANT SAFETY INSTRUCTIONS

1. Use on wall only.
2. Always plug heater directly into a wall outlet. Never use with an extension cord or power strip.
3. The heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9m) from any side of the heater.
4. This heater is not intended for use in wet or moist areas. Never install heater where it may fall into a bathtub or other similar locations.

For indoor use only.

ENVIRONMENTAL INSTRUCTIONS

Do not dispose this product at the end of its service life through normal domestic waste. It has to be disposed through a collection agency that recycles electric and electronic devices. This is pointed out by the symbol on the product, in the instruction manual, and on the packaging. Please inquire about local collection agencies that may be operated by your distributor or your municipal administration. By recycling, making use of the materials, or other forms of recycling old units you are making an important contribution to protecting our environment.

The packaging can be recycled. Dispose of it in an environmentally friendly manner and recycle it appropriately.

SPECIFICATION

Voltage Rating: 220-240 V \~ 50-60 Hz

Power Consumption: 500 W

Information requirements for electric local space heaters

Model identifier(s):
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only (select one)
Nominal heat output P	nom 0,5 kW	manual heat charge control, with integrated thermostat				no
Minimum heat output (indicative) P	min 0,45 kW	manual heat charge control with room and/or outdoor temperature feedback				no
Maximum continuous heat output P	max,c 0,5 kW	electronic heat charge control with room and/or outdoor temperature feedback				no
Auxiliary electricity consumption fan assisted heat output					no
At nominal heat output	elmax	0,503	kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,467	kW single stage	heat output and no room temperature control		no
In standby mode	elSB	0,001	kW Two or more	manual stages, no room temperature control		no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	EU: MediaShop Holding GmbHCH: MediaShop AG

Seasonal space heating energy efficiency

Description	Value
Seasonal space heating energy efficiency in active mode- n_s,on	40%
For electric local space heaters- n_th	100%
The electric to primary energy „conversion coefficient“-CC	2.5
correction factor accounting for a positive contribution to the seasonal space heating energy efficiency of electric storage local space heaters due to adjusted contributions for options for heat storage and output; and a negative contribution to seasonal space heating efficiency for commercial local space heaters due to adjusted contributions for options for the heat output-F (1);	0%
correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls of indoor heating comfort, the values of which are mutually exclusive, cannot be added to each other-F (2);	7.0%
correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls for indoor heating comfort the values of which can be added to each other-F (3);	0%
correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by auxiliary electricity consumption-F (4);	0%
correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by energy consumption of a permanent pilot flame-F (5);	0%
Seasonal space heating energy efficiency- _nS	37.0%
Verdict	P

MODE D'EMPLOI

Prohibition sign with document icon and diagonal line, indicating no text or document prohibition

Re3.0M Heater

Hand inserting a plastic bag into a wall socket (no text or symbols visible)

Illustration of a portable air conditioner with a circular badge showing '30' and a hand inserting a coin (no text or symbols on the device itself)

Illustration of a hand holding a digital timer with the number 30, next to a stylized device (no text or symbols visible)

Diagram of a hand pressing down on a device with a circular button labeled 'H' (no text or symbols beyond the label)

Illustration of a portable air conditioner unit with a handle and vent (no text or symbols)

Prohibition sign with no text, featuring a document and hand icon crossed out by a diagonal line

R=3.0M Heater

Hand holding a wall-mounted device with three circular buttons, no text or symbols visible

Illustration of a car hood with a circular badge and a hand holding a button (no text or symbols)

Illustration of a hand holding a circular badge with the number 30, next to a device component (no text or symbols visible)

Diagram of a car's front bumper with a hand inserting a circular component (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Three black-and-white recycling symbols: a trash bin with crossed-out lines, a solid 'RECO' symbol, and a recycling symbol.

Prohibition sign with document and checkmark symbol, indicating no text or document prohibition

Res 3.0M Heater

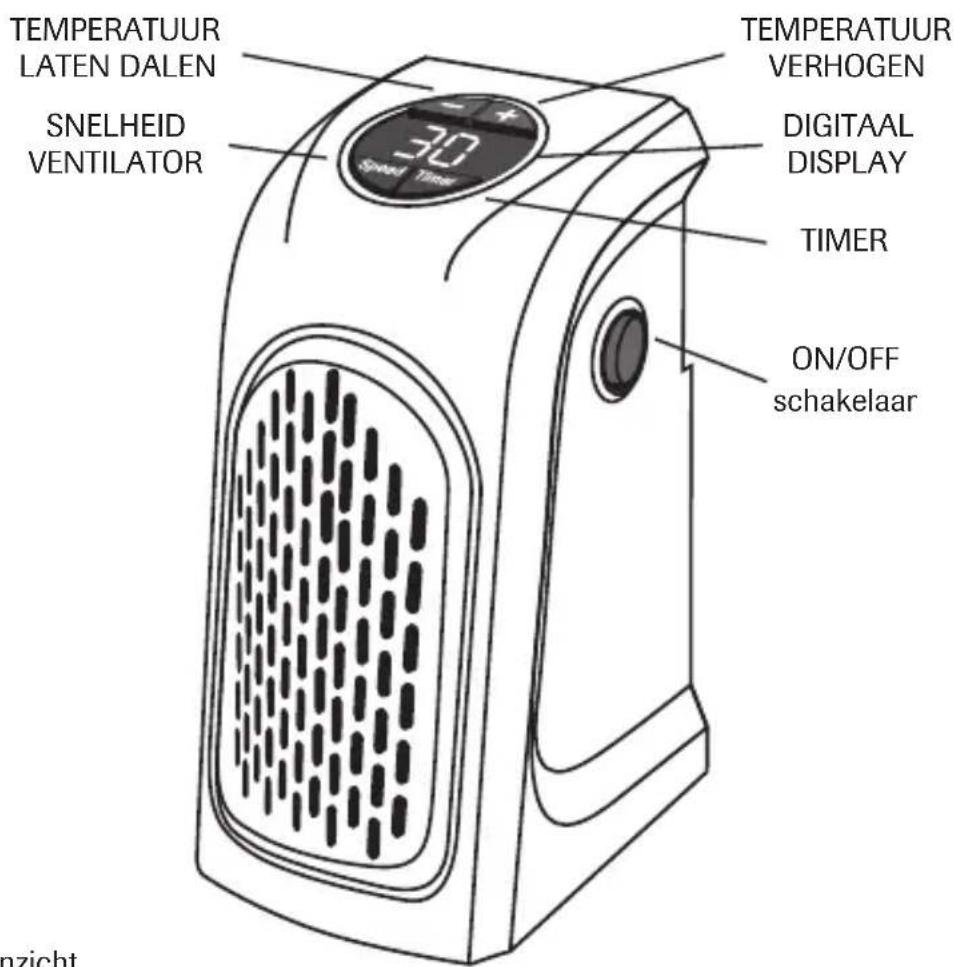

WAT U OVER UW LIVINGTON HANDY HEATER MOET WETEN

TEMPERATUUR LATEN DALEN SNELHEID VENTILATOR 30 SPR4 TIPER TEMPERATUUR VERHOGEN DIGITAAL DISPLAY TIMER ON/OFF schakelaar nzicht

Vooraanzicht

GEBRUIKSAANWIJZING

Hand holding a wall-mounted device with two circular buttons, no text or symbols visible

Illustration of a portable device with a circular badge showing '30' and a hand holding a button (no text or symbols on the device itself)

Illustration of a hand holding a circular button labeled '30' on a device (no text or symbols beyond the number)

Diagram of a device's front panel with a handle and circular button (no text or symbols)

Line drawing of a portable air conditioner unit with a handle and vent (no text or symbols)

EN. This product complies with the European directives.
