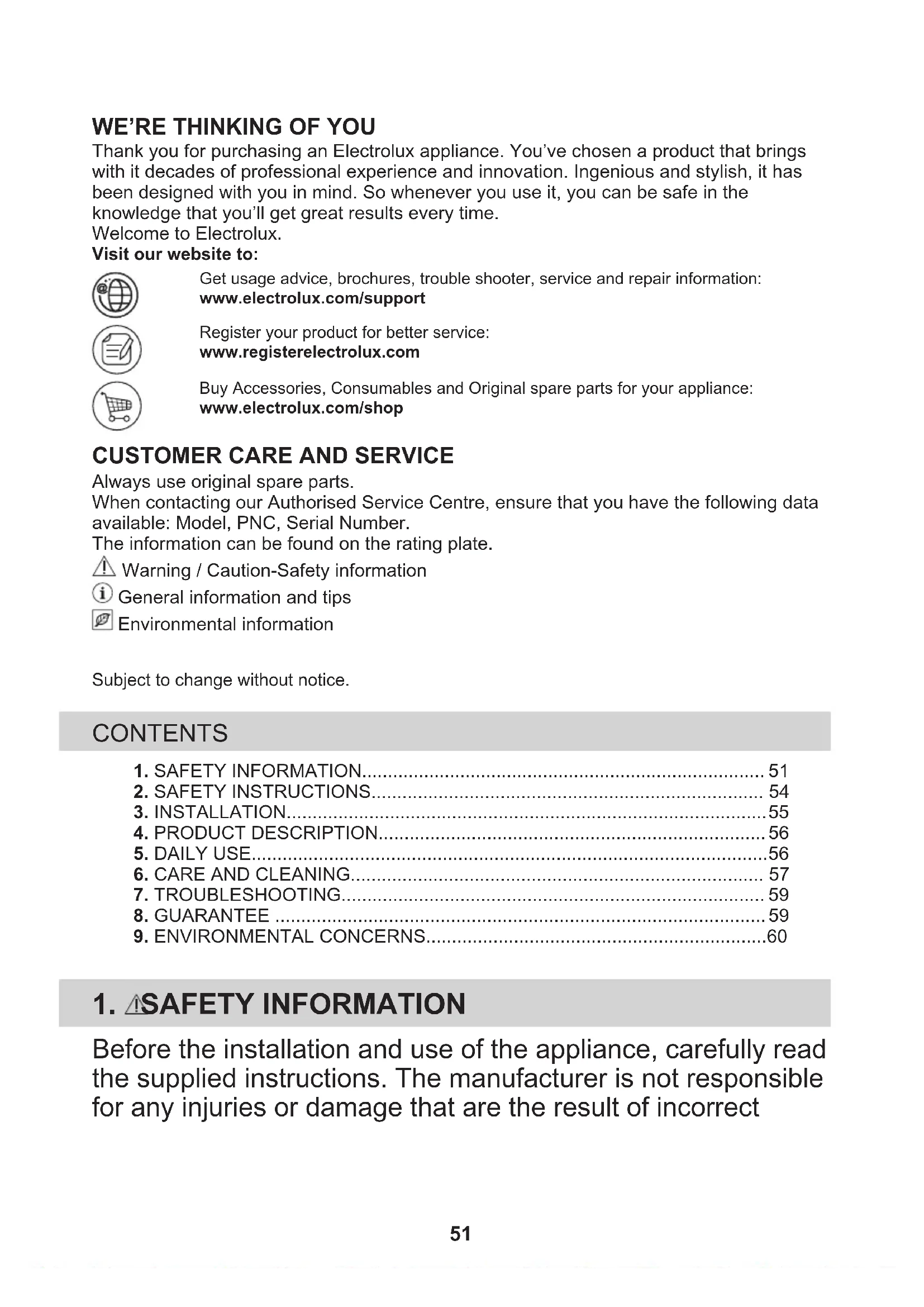

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that bringswith it decades of professional experience and innovation. Ingenious and stylish, it hasbeen designed with you in mind. So whenever you use it, you can be safe in theknowledge that you’ll get great results every time.Welcome to Electrolux.Visit our website to:Get usage advice, brochures, trouble shooter, service and repair information:www.electrolux.com/supportRegister your product for better service:www.registerelectrolux.comBuy Accessories, Consumables and Original spare parts for your appliance:www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.When contacting our Authorised Service Centre, ensure that you have the following dataavailable: Model, PNC, Serial Number.The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental informationSubject to change without notice. CONTENTS

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect 51installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• Keep children and pets away from the appliance when it operates.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.

• This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• Before carrying out any maintenance, disconnect the appliance from the power supply.

• CAUTION: Accessible parts may become hot during use with cooking appliances. 52• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.

• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use adhesives to fix the appliance.

• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.

• The discharge of air must comply with local authorities regulations.

• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water- heaters, etc.).

• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed

• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.

• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply 53with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• Do not flambé under the appliance.

• Do not use to exhaust hazardous or explosive materials and vapours.

• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.

• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.

• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.

• Use a cloth to clean the interior of the appliance.

WARNING! Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Before installing the appliance remove all the packaging, the labelling and the protective film.

• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• If the symbol ( ) is not printed on the rating plate, the appliance must be earthed.

• Do not use multi-plug adapters and extension cables.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot. 54• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

WARNING! Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.

• Do not change the specification of this appliance.

• Do not operate the appliance with wet hands or when it has contact with water.

• Use only the accessories supplied with the appliance.

• Keep flames or heated objects away from fats and oils during cooking and frying.

• Do not use uncovered electric grills.

• Do not use the appliance as a storage surface.

• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.

• Cut off the mains electrical cable close to the appliance and dispose of it.

WARNING! Refer to Safety chapters.

3.1 Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

Lamp Turns the lights on and off. First speed / Off The motor switches to first speed level. Second press turns off the ap‐pliance. Second speed The motor switches to second speed level. Third speed The motor switches to third speed level. Maximum speed The motor switches to maximum speed level. After 5 minutes appli‐ance switches to third speed. Filter notification Reminds to change or clean the charcoal filter and clean the greasefilter.

Check the recommended speed according to the table below. While heating up food, cooking with covered pots.While cooking with covered pots on multiple cooking zones orburners, gentle frying.While boiling and frying big quantities of food without a lid, cookingon multiple cooking zones or burners.While boiling and frying big quantities of food without a lid, big hu‐midity. It is recommended to leave the hood operating for approximately 15 minutes after cooking. To operate the hood:

1. Press the first speed button to switch

illuminate the cooking surface. The light is dimmable. Press again the button to change the intensity from: 56a. Maximum, b. Medium, c. Low, d. Off.

3. If needed, change the speed by pressing

the desired button. To turn off the appliance press the first speed button again.

5.2 Hob²Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob. For more information how to use the function refer to the hob user manual.

5.3 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned. Refer to cleaning the grease filter in care and cleaning chapter. Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter. To activate or deactivate function:

1. To activate function press the button

for 3 seconds. If the function is activated, the filter indicator flashes two times.

2. To deactivate function press the button

for 3 seconds. If the function is deactivated, the filter indicator flashes ones. To reset the function press the button for 3 seconds.

The appliance is supplied with a remote- control. The connection is originally enabled. To connect or disconnect remote-control:

1. Switch off the appliance.

2. Press the for 3 seconds.

The indicator on control panel flashes twice if function is enabled and once if disabled.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent. After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels. Clean stains with a mild detergent. 57Keep the hood clean Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter. Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance. Charcoal filter The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. Charcoal filter is washable, clean or regenerate the filter after approximately every two months. Refer to leaflet included in the accessory.

6.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side. To clean the filter:

1. Pull the cover to open it.

2. Press the handle of the mounting clip on

the filter panel underneath the hood (1).

3. Slightly tilt the front of the filter

downwards (2), then pull. Repeat the first two steps for all filters.

4. Clean the filters using a sponge with non

abrasive detergents or in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

5. To mount the filters back follow the first

two steps in reverse order. Repeat the steps for all filters if applicable.

6.3 Cleaning the charcoal filter

To remove the filter:

1. Remove the grease filters from the

appliance. Refer to "Cleaning the grease filter" in this chapter.

2. Hold the filter to prevent its fall and

unscrew the screw holding the charcoal filter.

3. Carefully take out the filter holding the

handles on the side.

4. Regenerate the filters.

58WARNING! Risk of burns! Refer to safety chapter in oven user manual. Clean the filters with damp cloth. Set the oven for 200°C and keep filters inside for 2 hours. Leave the filters to cool down.

5. To install the filter, perform the steps in

reverse order. The filter has to be fully dried before installing it back into appliance. Replace the filter bed every 2 years or when the cloth is damaged.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

WARNING! Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy You cannot activate the appliance. The appliance is not connected to a power supply or it is connected in‐ correctly. Check if the appliance is correctly connected to the electrical supply. You cannot activate the appliance. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician. The lamp does not operate. The lamp is defective. Replace the lamp. Refer to the "Care and Cleaning" chapter. The appliance does not absorb enough vapours. The motor speed is not adequate to the appearing vapours. Change the speed of the motor. The filter alarm indicator is on. The filter alarm is on. The grease fil‐ ter must be cleaned or the charcoal filter must be replaced or cleaned. Refer to the filter notification in "Dai‐ ly use" chapter.

GUARANTEE Customer Service Centres Point of Service Industriestrasse 10 5506 Mägenwil Le Trési 6 1028 Préverenges Via Violino 11 6928 Manno 59Point of Service Morgenstrasse 131 3018 Bern Langgasse 10 9008 St. Gallen Am Mattenhof 4a/b 6010 Kriens Schlossstrasse 1 4133 Pratteln Comercialstrasse 19 7000 Chur Spare parts service Industriestrasse 10, 5506 Mägenwil, Tel. 0848 848 111 Specialist advice/Sale Badenerstrasse 587, 8048 Zürich, Tel. 044 405 81 11 Warranty For each product we provide a two- year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof). The guarantee covers the costs of materials, labour and travel. The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

9. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. For Switzerland: Where should you take your old equipment? Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms. The list of official SENS collection points can be found at www.erecycling.ch
