USER MANUAL ACS12K01 Fuave

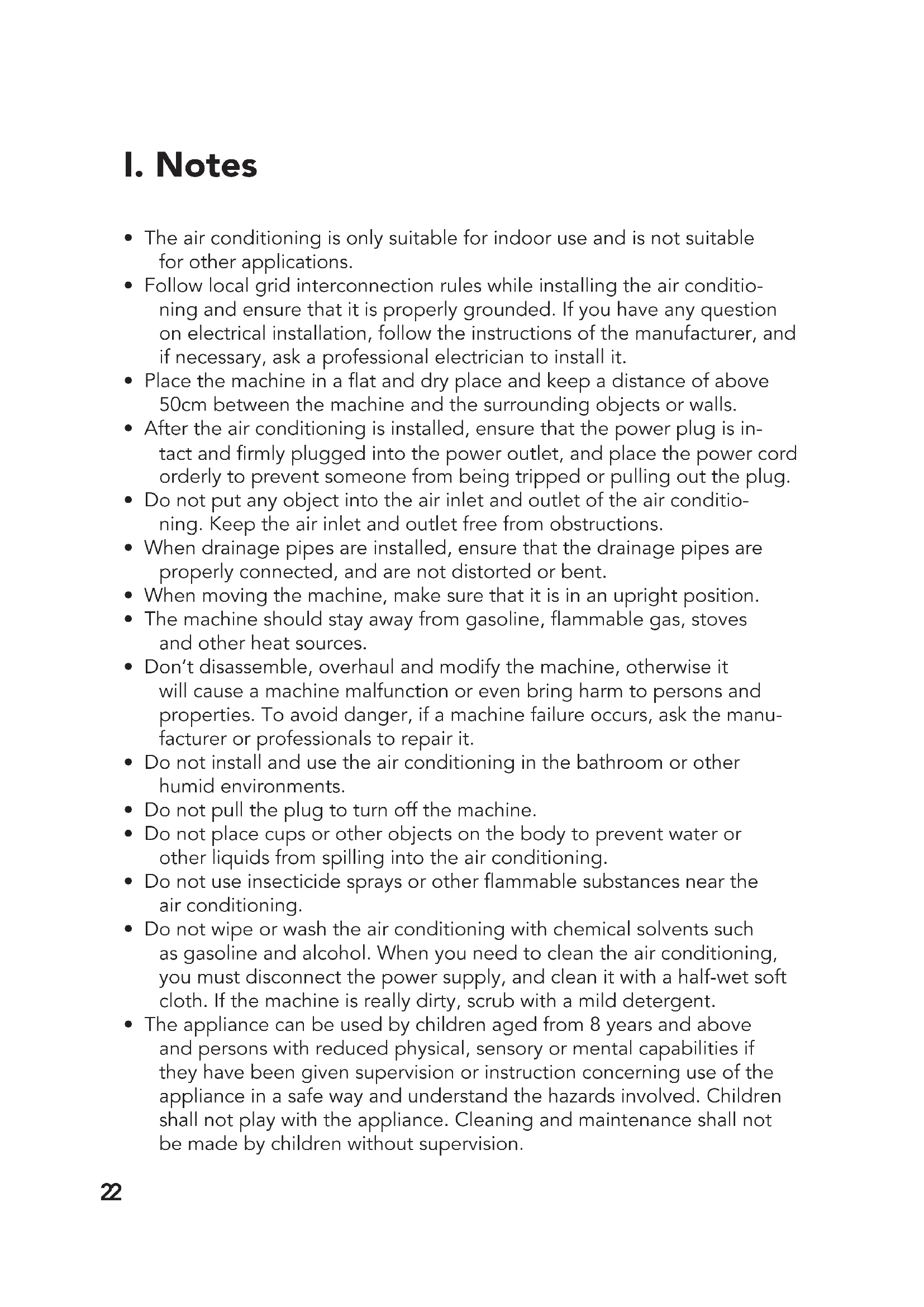

• The air conditioning is only suitable for indoor use and is not suitable for other applications.

• Follow local grid interconnection rules while installing the air conditio- ning and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it.

• Place the machine in a at and dry place and keep a distance of above 50cm between the machine and the surrounding objects or walls.

• After the air conditioning is installed, ensure that the power plug is in- tact and rmly plugged into the power outlet, and place the power cord orderly to prevent someone from being tripped or pulling out the plug.

• Do not put any object into the air inlet and outlet of the air conditio- ning. Keep the air inlet and outlet free from obstructions.

• When drainage pipes are installed, ensure that the drainage pipes are properly connected, and are not distorted or bent.

• When moving the machine, make sure that it is in an upright position.

• The machine should stay away from gasoline, ammable gas, stoves and other heat sources.

• Don’t disassemble, overhaul and modify the machine, otherwise it will cause a machine malfunction or even bring harm to persons and properties. To avoid danger, if a machine failure occurs, ask the manu- facturer or professionals to repair it.

• Do not install and use the air conditioning in the bathroom or other humid environments.

• Do not pull the plug to turn off the machine.

• Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioning.

• Do not use insecticide sprays or other ammable substances near the air conditioning.

• Do not wipe or wash the air conditioning with chemical solvents such as gasoline and alcohol. When you need to clean the air conditioning, you must disconnect the power supply, and clean it with a half-wet soft cloth. If the machine is really dirty, scrub with a mild detergent.

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.23 Remove: When the mobile air conditioner is nally and needs to be scrapped, it does not belong in the normal household waste. Bring it to a collection point set up by your municipality. Do not use any other means than those recommended by the manufacturer for the defrosting process. The appliance must be stored in a room with no continuously operating ignition sources (e.g. an open ame, a working gas appliance or a working electric heater). Do not insert objects such as pens etc. into the unit and through the grilles. Make sure not to block the fan. Never drill or burn in the unit! Please note that refrigerants may not have any odour. R290 is odourless, so you won’t smell leakage! The appliance must be installed, operated and stored in a room with a oor- area greater than X m2. If the unit is used in a non-ventilated area, it must be installed in such a way that if the ammable refrigerant leaks, it will not stagnate in a re or explo- sion. The device must be stored in such a way that no mechanical damage can occur. Mechanical damage during storage/transport must always be avoi- ded.

Warning: Always keep vents clear of obstacles and never cover them.

Battery warning: Never crush or puncture the battery or cause a short circuit. Do not expose the battery to a high temperature environment; if the battery is leaking or bulging, discontinue use. There may be a risk of explosion if the battery is replaced by an incorrect type. Keep the battery out of reach of children. Batteries may explode if exposed to open re. Never dispose of batteries in a re. Dispose of used batteries in accordance with local regulations.24

With cooling, dehumidication and fan function, Continuous Water Draina- ge Functions · Automatic swing leaf : The outlet has automatic air swing function, and the outlet can be covered when the machine is turned off to prevent dust from entering the body. Handles on both sides : So that it is easier to carry it and the body design is more humane. Cord Wrap : The power cord can be wrapped at the back making it easier for storage as well as preventing damage to the power chod when lying on the oor. Outdoor interface is set high to facility assembly and keep the smooth ow of the heat pipe. Timer Protection function of automatically restarting the compressor after three minutes, a variety of other protection functions.

Omni-directional wheel Front Housing Mask Top cover Swing leaf Rear Housing EVA lter housing Rear Housing Air vent Drainage hole Power cord Power cord plug Continuous drainage hole Handle Handle26

The air conditioning can be easily moved in the room. In the moving pro- cess, ensure that the air conditioning is in the upright position and the air conditioning should be placed on a at surface. Do not install and use the air conditioning in the bathroom or other humid environments.

1.1 Install the heat pipe assembly (as shown in Figure 1): screw the heat

pipe assembly (exhaust tting end) into the exhaust port on the rear panel (counterclockwise).

III. Installation and Adjustment

1.2 Install the window sealing plate assembly

1). Half open the window, and mount the window sealing plate assembly to the window (as shown in Figure 2 and Figure 3); the assembly can be placed in horizontal and vertical direction. 2).Pull various components of the window sealing plate assembly open, ad- just their opening distance to bring both ends of the assembly into contact with the window frame, and x various components of the assembly.27 2 Use window seal: Don’t turn on the air conditioner until after you’ve attached the window seal. This will prevent the air conditioner’s warm exhaust air from circulating around the house. This window seal isn’t suitable for tilt windows.

1. Velcro on window frame

Clean the window and window frame with soap or detergent to clear it of any dust and grease. Cut the velcro 1 to size with scissors and attach it to the window frame around the window.

Next, attach the velcro around the entire window. Note: don’t stick the velcro onto the glass

3. Seal on window frame

Attach the window seal’s narrow side 2 to the velcro on the window frame. Work outwards from the middle and fully attach the narrow side all around.

Slightly open the window and attach the window seal’s broad side 3 to the velcro on the window. Make sure to leave enough room in the corners so the window seal won’t get stuck in the window.

Open the window seal’s zipper by about 50 centimeters.

6. Attach exhaust hose

Stick the air conditioner’s exhaust hose through the hole in the window seal. Close the zipper until the exhaust hose is secured. The window seal is now ready for use. You can turn on the air conditioner.28

1.3 Install the body

1). Move the machine with installed heat pipe and ttings before the win- dow, and the distance between the body and walls or other objects shall be least 50 cm (as shown in Figure 4). 2). Elongate the heat pipe and snap the at end of the heat pipe joints into the elliptical hole of the window sealing plate assembly (as shown in Figure 5 and Figure 6) . Notes: 1. the at end of the heat pipe joints must be snapped into place.

2. The pipe cannot be distorted nor has substantial turning

(greater than 45 °). Keep the ventilation of the heat pipe unobstructed.29 Important Notice The length of the exhaust hose shall be 280~1,500mm, and this length is based on the specications of the air conditioning. Do not use extension tubes or replace it with other different hoses, or this may cause a malfuncti- on. Exhaust must be unobstructed; otherwise it may cause overheating.

I. Operating instructions:

2. SWING Key: The SWING function only can work after switching on the

unit, but you can turn it on or off.

3. TIMER Key: In the case of power on, press the key to choose timing; in

the case of power off, press the key to open timing. Press the key, when the timing symbol ashes, press up and down key to select the required timing value. Timing values can be set in 1-24 hours and the timing value is adjusted up or down by one hour.

4. FAN SPEED Key: In cooling, heating and fan mode, press this key to

select high, middle, low speed. This function is not available in SLEEP mode and DEHUMIDIFYING mode.

5. UP Key: Press this button to increase the temperature setting or set up

the timer to the required timer setting. This function is not available under FAN mode and DEHUMIDIFYING mode.

ward the time. Under cooling mode, press this key can be adjusted downward the tempe- rature. Press this button to decrease the temperature setting or set down the timer to the required timer setting. This function is not available under FAN mode and DEHUMIDIFYING mode.

8. Mode Key: In the case of power on, press this key to switch between

cooling --> dehumidifying --> fan.

9. Sleep Mode: When the power is on and In the cooling mode (or heating

mode), press ‘SLEEP’ button to start the sleep mode. Under sleep mode, the FAN speed is set to LOW speed and not adjustable. The SLEEP mode can be cancelled by pressing the button.

10. Power Key: Press this key to turn on and turn off the unit.

2. Operation instructions of remote control

1) The remote control panel is as follows:31

In cooling, dehumidication or economic power saving mode, if the tempe rature of the exhaust pipe is too low, the machine will automatically enter protection status; if the temperature of the exhaust pipe rises to a certain temperature, it can automatically revert to normal operation.

3.2 Overow Protection Function:

When water in the water pan exceeds the warning level, the machine will automatically sound an alarm. At this point, you need to move the drainage pipe connecting the machine or the water outlet to sewer or other drainage area to empty the water (details see Drainage Instructions at the end of this chapter). After the water is emptied, the machine will automatically return to the original state.

3. Protection Function of the Compressor

To increase the service life of the compressor, it has a 3-minute de lay booting protection function after the compressor is turned off.32

1) When the machine stops after the water is full, turn off the machine

power and unplug the power plug. Notes: Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the body.

2) Place the water container below the side water outlet behind the body.

3) Unplug the water plug, the water will automatically ow into the water

container. Notes: 1. Keep the drainage cover and the water plug properly.

2. During drainage, the body can be tilted slightly backwards.

3. If the water container cannot hold all the water, before the water

container is full, stuff the water outlet with the water plug as soon as possible to prevent water from owing to the oor or the carpet.

4) When the water is discharged, stuff the water plug, and tighten the

drainage cover. Notes: 1. Restart the machine after the water plug and drainage cover are installed, otherwise condensate water of the machine will ow to the oor or the carpet.33

2. Continuous drainage (only applicable to cooling and dehumidication

mode), as shown in gure:

1) Unplug the water plug.

2) Set the drainage pipe into the water outlet.

3) Connect the drainage pipe to the bucket.

Cleaning: before cleaning and maintenance, turn off the machine and unplug the plug.

1. Clean the surface

Clean with surface of machine with a wet soft cloth. Don’t use chemicals, such as benzene, alcohol, gasoline, etc.; otherwise, the surface of the air conditioning will be damaged or even the whole machine will be damaged.

2. Clean the lter screen

If the lter screen is clogged with dust, and the effectiveness of the air conditioning is reduced, be sure to clean the lter screen once every two weeks.34 2.1: Clean the upper lter screen frame

1) Clasp the wedging block of the EVA lter screen frame with hands. Force

down from the outside to remove the EVA lter screen frame. Remove the EVA lter screen (as shown in the above gure) .

2) Put the EVA lter screen into warm water with neutral detergent (about

40ºC / 104 ºC) and dry it in the shade after rinsing clean. 2.2: Clean the lower lter screen frame

1) Hold the handle of the lower lter screen frame and pull it outward

gently to remove it.

2) Put the lter screen into warm water with neutral detergent (about

40ºC/ 104 ºC) and dry it in the shade after rinsing clean.35 Postseason Storage:

• Unplug the water plug and discharge the water in the water pan into other water containers or directly tilt the body to discharge the water into other containers.

• Turn on the machine, adjust it to low-wind ventilation mode, and maintain this state until the drainage pipe becomes dry, so as to keep the inside of the body in a dry state and prevent it from mildewing.

• Turn off the machine, unplug the power plug, and wrap the power cord around the wrapping post; install the water plug and the drainage cover.

• Remove the exhaust pipe and keep it properly.

• Cover the air conditioning with a plastic bag. Put the air conditioning in a dry place, keep it out of the reach of children, and take dust control measures.

• Remove batteries of the remote control and keep them properly. Note: ensure that the body is placed in a dry place and keep all machine components properly.

VII. Troubleshooting

Do not repair or disassemble the air conditioning by yourself. Unqualied repair will lead to failure of the warranty card and may cause damage to users or their properties. If problems not listed in the table occur or recommended solutions do not work, please contact the professional service organization.36 Problems Reasons Solutions The air conditioning does not work. There is no electricity. The overow indicator displays “FL”. The ambient temperature is too low or too high. Turn it on after connec- ting it to a socket with electricity. Discharge the water inside. Recommend to use the machine in at the tempe- rature of 7-35ºC (44- 95ºC). The cooling or heating effect is not good There is direct sunlight. Doors or windows are open; there are a lot of people; or in cooling mode, there are other sources of heat. The air inlet or outlet is blocked. Pull the Curtain. Close doors and win- dows, and add new air conditioning. Clean or replace the lter screen. Big Noise The air conditioning is not placed on a at surface. Put the air conditioning on a at and hard place (to reduce noise). compressor does not work. Overheat protection starts. Wait for 3 minutes until the temperature is lowe- red, and then restart the machine. The remote control does not work. The distance between the machine and the remote control is too far. The remote control is not aligned with the direction of the remote control receiver. Let the remote control get close to the air con- ditioning, and make sure that the remote control directly faces to the direc- tion of the remote control receiver. Displays ‘E1’. The room temperature sensor is abnormal. Check the room tempe- rature sensor and related circuitry. Displays ‘E2’ The pipe temperature sensor is abnormal. Check the pipe tempe- rature sensor and related circuitry.37 Fuse Parameters Type: FSD or 50F Voltage: 250V Current: 3.15A Schematic Diagram VIII.Appendix All the technical and specic parameters, please refer to product nameplate. Due to continuous improvement, we reserve the right to change some de- sign without any notice. Treatment: Don’t put the abandoned machine with other unsorted waste together. Such waste shall be placed separately for other special use.38

Disposal In the EU, this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials that can and should be recycled to pre- vent any adverse effects to health and the environment caused by unregulated waste collection. Make sure to bring old equipment to a designated collection point or contact the company where you bought the machine. They can make sure that as many of the compo- nents as possible can be recycled.

Since the product contains battery, this symbol means that the product should not be disposed of with your other household waste. It is your responsibility to dispose of your waste equipment separately from the municipal waste stream.

This symbol means the product is highly inammable.This is due to the R290 gas used inside the product.
