USER MANUAL ACB07K01 Fuave

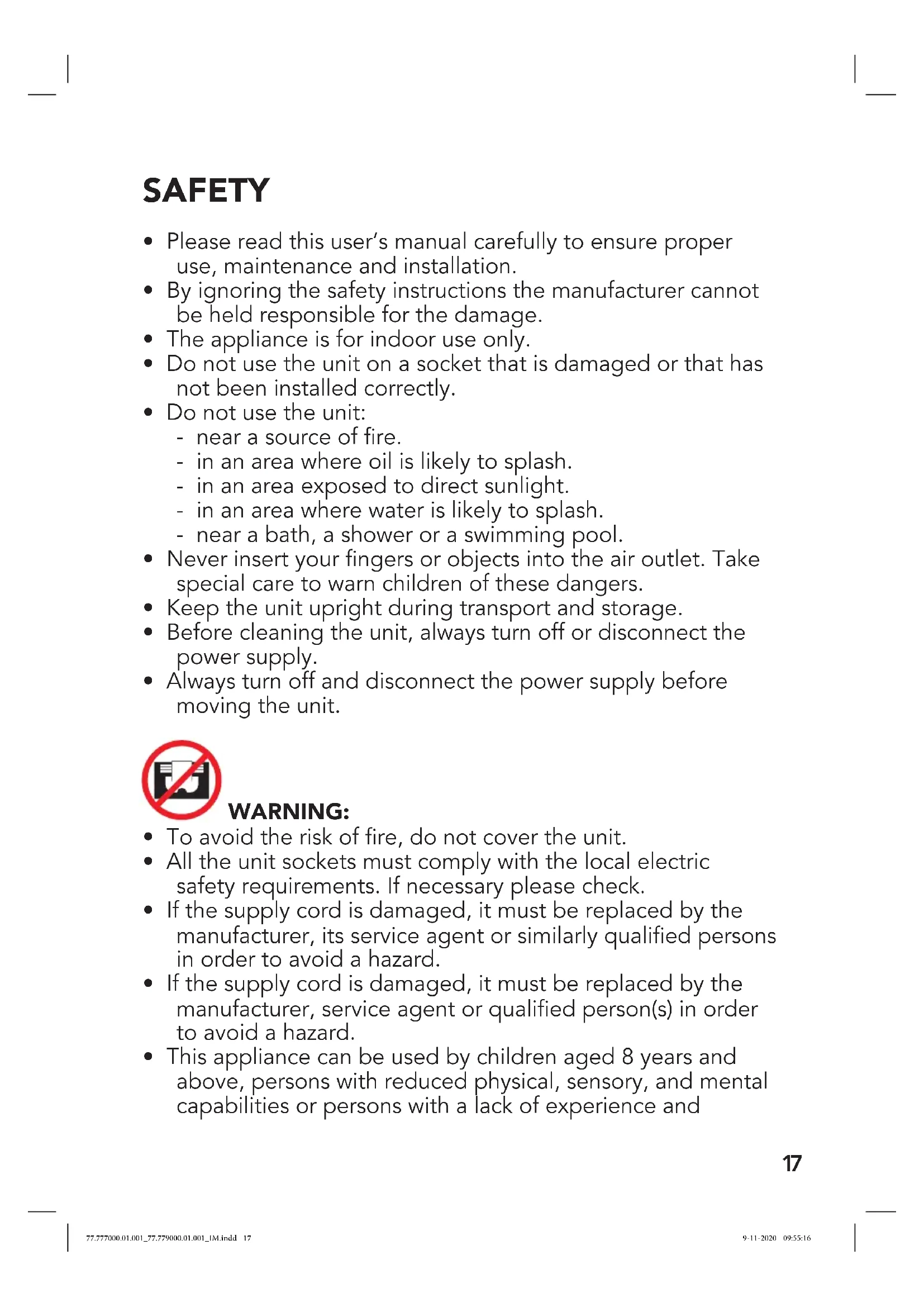

• Please read this user’s manual carefully to ensure proper use, maintenance and installation.

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.

• The appliance is for indoor use only.

• Do not use the unit on a socket that is damaged or that has not been installed correctly.

• Do not use the unit: - near a source of re. - in an area where oil is likely to splash. - in an area exposed to direct sunlight. - in an area where water is likely to splash. - near a bath, a shower or a swimming pool.

• Never insert your ngers or objects into the air outlet. Take special care to warn children of these dangers.

• Keep the unit upright during transport and storage.

• Before cleaning the unit, always turn off or disconnect the power supply.

• Always turn off and disconnect the power supply before moving the unit.

• To avoid the risk of re, do not cover the unit.

• All the unit sockets must comply with the local electric safety requirements. If necessary please check.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or qualied person(s) in order to avoid a hazard.

• This appliance can be used by children aged 8 years and above, persons with reduced physical, sensory, and mental capabilities or persons with a lack of experience and 77.777000.01.001_77.779000.01.001_IM.indd 1777.777000.01.001_77.779000.01.001_IM.indd 17 9-11-2020 09:55:169-11-2020 09:55:1618 knowledge if they have been given correct supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

• This appliance is only to be used for household purposes and only for the purpose it is made for.

• Notes: In the case of any damage, please disconnect the power supply and contact the dealer or a designated repair shop. In any case, the power cord shall be rmly grounded. To avoid the possibility of danger, if the power cord is damaged, please disconnect the power supply. It must be replaced by the dealer or a designated repair shop.

• Important: Before turning on the unit, it must be standing upright for 2 hours to stabilize the refrigerant. Warning

• Please use the recommended defrosting and cleaning process from the manufacturer only. Do not accelerate the defrosting or cleaning process in any other way.

• The appliance shall be stored in a room without continuously operating ignition sources (for example: open ames , an operating gas appliance or an operating electric heater).

• Do not pierce or burn.

• Be aware that refrigerants may not contain an odor.

• The appliance should be installed, operated and stored in a room with a oor area larger than X m2. (X=4 for 7000 Btu/u, ; X=7,7 for 9000 Btu/u)

• Only contact an authorized service technician for repair or maintenance of this unit.

• Do not pull , deform or modify the power supply cord or immerse in water . Pulling or misuse of the power supply cord could result in damage to the unit and cause an electrical shock.

• Compliance with national gas regulations should be observed.

• Keep ventilation openings clear of obstructions.

• Any person who is involved with working on or opening 77.777000.01.001_77.779000.01.001_IM.indd 1877.777000.01.001_77.779000.01.001_IM.indd 18 9-11-2020 09:55:169-11-2020 09:55:1619 a refrigerant circuit should hold a current valid certicate from an industry accredited assessment authority which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specication.

• Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of a person(s) competent in the use of ammable refrigerants.

• Do not stop the unit by pulling out the power plug whilst in operation as this may cause an electric shock or re due to heat generation unless strange sounds are heard or if strange smells or smoke appear from the unit. Specic information regarding appliances with R 290 refrigerant gas.

• Thoroughly read all of the warnings.

• When defrosting and cleaning the appliance , do not use any tools other than those recommended by the manufacturing company.

• The appliance should not be stored in a room with continuously operating ignition sources (for example: open ames , an operating gas appliance or an operating electric heater).

• Do not puncture and do not burn.

• Appliance shall be installed, operated and stored in a room with a oor area larger than X m2. (X=4 for 7000 Btu/u, ; X=7,7 for 9000 Btu/u)

• This appliance contains Y g (see rating label back of unit ) of R290 refrigerant gas.

• R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.

• If the appliance is installed, operated or stored in a non- ventilated area, the room must be designed to prevent 77.777000.01.001_77.779000.01.001_IM.indd 1977.777000.01.001_77.779000.01.001_IM.indd 19 9-11-2020 09:55:169-11-2020 09:55:1620 to the accumulation of refrigerant leaks that could result in a re risk or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.

• The appliance must be stored in such a way as to prevent mechanical failure.

• Individuals who operate or work on the refrigerant circuit must have the appropriate certication issued by an accredited organization that ensures competence in handling refrigerants according to a specic evaluation recognized by associations in the industry.

• Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualied personnel must be performed under the supervision of an individual specied in the use of ammable refrigerants. Batteries

• Do not expose the battery to high temperatures or direct sunlight. Never throw batteries into the re. There is a danger of explosion!

• Keep batteries away from children. Batteries are not a toy!

• Do not open the batteries by force.

• Avoid contact with metallic objects.(Rings, nails, screws et cetera) there is a danger of short-circuiting!

• As a result of a short-circuit batteries may heat up consider- ably or even catch re. this may result in burns.

• For your safety the battery poles should be covered with adhesive strips during transport.

• Do not touch a ruptured and/or leaking battery. If the liquid from the battery gets into your eyes, rinse your eyes as soon as possible with clean water, without rubbing your eyes. Immediately go to the hospital. If it is not treated properly, it can cause eye problems. 77.777000.01.001_77.779000.01.001_IM.indd 2077.777000.01.001_77.779000.01.001_IM.indd 20 9-11-2020 09:55:169-11-2020 09:55:1621 Refrigerant (CE) N 842/2006: This unit contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certicate make a lling or emptying. Your appliance does not have be relled with refrigerant if used properly and has an undamaged coolant circuit. GWP: R290: 3 PARTS DESCRIPTION

8. Hose connector (window end)

1. Power (on/off) button

4. Fan speed adjustment button

5. Timer (on/off) button

3. Fan speed adjustment button

4. Timer (on/off) button

5. Temperature down button

6. Power (on/off) button

Before starting operations in this section:

• Find a place where there is power supply nearby.

• Install the exhaust hose and adjust the window position well.

• The supplied small white clips must be mounted on the window kit.

• Insert the power cord into a grounded AC220~240V/50Hz socket.

• Press the power button to turn on the air-conditioner.

• Set the temperature range: 16°C-31°C.

• Check whether the exhaust hose has been mounted properly.

• When using functions on cooling and dehumidifying, allow at least 3 minutes between powering off and powering on. USE Cooling operation

• Press the “mode“ button till the “Cool“ icon appears.

• Press the or button to select a desired room temperature.

• Allow around 5 minutes for the cooling to start.

• Press the “fan speed” button to adjust airow. Dehumidifying operation

• Press the “Mode“ button until the “dehumidify indicator lamp“ blinks.

• The temperature will automatically be selected.

• The fan speed will automatically be selected. Timer operation Timer ON setting

• When the air-conditioner is OFF, press the “Timer“ button and select a desired ON time and adjust using the temperature buttons.

• The ON time can be adjusted to anytime in 0-24 hours. Timer OFF setting

• When the air-conditioner ON, press “Timer“ button and select a desired OFF time through the temperature buttons.

• The OFF time can be adjusted to anytime in 0-24 hours. Drainage

• After a lengthy operation and before storage, you will need to drain the water that has been collected. Please prepare a suitable location or tray to collect the water and remove the rubber stop from the drainage hole at the bottom of the unit. The water will then begin to drain. After this has stopped, you can insert the drain stop. 77.777000.01.001_77.779000.01.001_IM.indd 2377.777000.01.001_77.779000.01.001_IM.indd 23 9-11-2020 09:55:189-11-2020 09:55:1824 Internal Tank Water Full Alarm Function

• The inner water tank in the air-conditioner has one water level safety switch that controls the water level. When the water level reaches an anticipated height, the water full indicator lamp lights up. Follow above steps to drain the water. INSTALLATION

• The air-conditioner should be installed on a at and stable surface. Do not block the air outlet and allow at least 30cm around the unit.

• Socket wiring should be in accordance with the local electric safety requirements. 30cm 12 inch 30cm 12 inch Exhaust Hose Installation

• Twist both ends of the hot-air exhaust hose(9) into the hose connector window end(8) and the hose connector air conditioner end(10).

• Insert the hose connector air conditioned end(10) into the openings at the back of the air conditioner. 77.777000.01.001_77.779000.01.001_IM.indd 2477.777000.01.001_77.779000.01.001_IM.indd 24 9-11-2020 09:55:199-11-2020 09:55:1925

• Fix the hose connector window end(8) to the nearest windowsill. Use window seal Don’t turn on the air conditioner until after you’ve attached the window seal. This will prevent the air conditioner’s warm exhaust air from circulating around the house. This window seal isn’t suitable for tilt windows.

1. Velcro on window frame

Clean the window and window frame with soap or detergent to clear it of any dust and grease. Cut the velcro 1 to size with scissors and attach it to the window frame around the window.

Next, attach the velcro around the entire window. Note: don’t stick the velcro onto the glass

3. Seal on window frame

Attach the window seal’s narrow side 2 to the velcro on the window frame. Work outwards from the middle and fully attach the narrow side all around.

Slightly open the window and attach the window seal’s broad side 3 to the velcro on the window. Make sure to leave enough room in the corners so the window seal won’t get stuck in the window.

Open the window seal’s zipper by about 50 centimeters.

6. Attach exhaust hose

Stick the air conditioner’s exhaust hose through the hole in the window seal. Close the zipper until the exhaust hose is secured. The window seal is now ready for use. You can turn on the air conditioner. 77.777000.01.001_77.779000.01.001_IM.indd 2577.777000.01.001_77.779000.01.001_IM.indd 25 9-11-2020 09:55:199-11-2020 09:55:1926 CLEANING MAINTENANCE

• Before cleaning, disconnect the unit from any electric supply outlet.

• First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.

• Do not use gasoline or other chemicals to clean the unit.

• Do not wash the unit directly. Air lter

• The air lter should be cleaned once every two weeks.

• Open the air inlet grille and take off air lter.

• Clean the air lter with neural detergent in lukewarm 40°C and allow to dry (not in direct sunlight).

• Re-install the air lter into the inlet grille. 77.777000.01.001_77.779000.01.001_IM.indd 2677.777000.01.001_77.779000.01.001_IM.indd 26 9-11-2020 09:55:199-11-2020 09:55:1927 TROUBLESHOOTING Troubles Possible Causes Suggested Remedies The unit does not start when pressing power button.

• Water full indicator lamp blinks and water tank is full.

• Room temperature is higher than the setting temperature. (Electric heating mode)

• Room temperature is lower that the setting temperature. (Cooling mode)

• Drain the water out of the water tank.

• Adjust the temperature. The unit doesn’t cool enough.

• The doors or windows are not closed.

• There are heat sources inside the room.

• Hot air exhaust hose is not connected or blocked.

• Temperature setting is too high.

• Air inlet is blocked.

• Make sure all the windows and doors are closed.

• Remove the heat sources if possible.

• Connect or clean the hot air exhaust hose.

• Heating protection, when the temperature at the air outlet exceeds 70°C, the unit will power off automatically.

• Allow room temperature to cool before re- starting the unit. Noisy. • The ground is not level or not at enough.

• The sound comes from the owing of the refrigerant inside the air conditioner.

• Place unit on a at, level ground if possible. 77.777000.01.001_77.779000.01.001_IM.indd 2777.777000.01.001_77.779000.01.001_IM.indd 27 9-11-2020 09:55:199-11-2020 09:55:1928 E0 Code. • Room temperature sensor failed.

• Replace room temperature sensor. E2 Code. • Water tank full • Please empty the water tank. ENVIRONMENT This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection. 77.777000.01.001_77.779000.01.001_IM.indd 2877.777000.01.001_77.779000.01.001_IM.indd 28 9-11-2020 09:55:199-11-2020 09:55:1929
