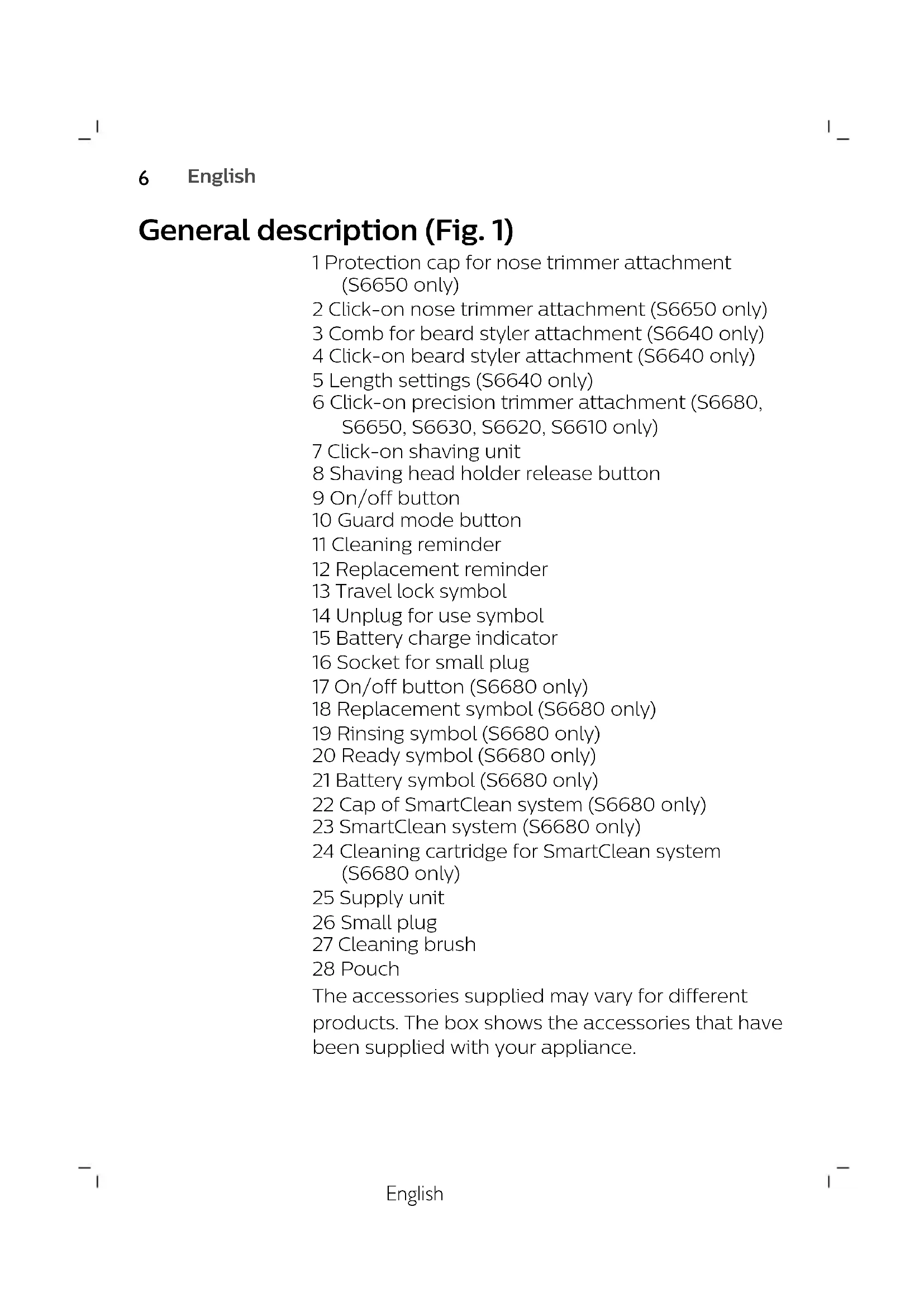

USER MANUAL Series 6000 S6650 PHILIPS

1 Protection cap for nose trimmer attachment (S6650 only)
2 Click-on nose trimmer attachment (S6650 only)
3 Comb for beard styler attachment (S6640 only)
4 Click-on beard styler attachment (S6640 only)
5 Length settings (S6640 only)
6 Click-on precision trimmer attachment (S6680, S6650, S6630, S6620, S6610 only)
7 Click-on shaving unit
8 Shaving head holder release button
9 On/off button
10 Guard mode button
11 Cleaning reminder
12 Replacement reminder
13 Travel lock symbol
14 Unplug for use symbol
15 Battery charge indicator
16 Socket for small plug
17 On/off button (S6680 only)
18 Replacement symbol (S6680 only)
19 Rinsing symbol (S6680 only)
20 Ready symbol (S6680 only)
21 Battery symbol (S6680 only)
22 Cap of SmartClean system (S6680 only)
23 SmartClean system (S6680 only)
24 Cleaning cartridge for SmartClean system (S6680 only)
25 Supply unit
26 Small plug
27 Cleaning brush
28 Pouch

The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

Danger

PHILIPS Series 6000 S6650 - Danger - 1

  • Keep the supply unit dry.

Warning

  • To charge the battery, only use the detachable supply unit (HQ8505) provided with the appliance.
  • The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  • Always unplug the shaver before you clean it under the tap.
  • Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
  • This appliance contains batteries that are non-replaceable.
  • Do not open the appliance to replace the rechargeable battery.

Caution

PHILIPS Series 6000 S6650 - Caution - 1

  • Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
  • Never use water hotter than 60^ C to rinse the shaver.
  • Only use this appliance for its intended purpose as shown in the user manual.
  • For hygienic reasons, the appliance should only be used by one person.
  • Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

  • If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).

  • Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.
  • If your cleaning system uses a cleaning cartridge, always make sure the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.
  • When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.
  • Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
  • Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

PHILIPS Series 6000 S6650 - General - 1

  • This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.

  • The supply unit is suitable for mains voltages ranging from 100 to 240 volts.

  • The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

The display

Battery charge indicator

PHILIPS Series 6000 S6650 - Battery charge indicator - 1

Quick charge: When the battery is empty and you connect the shaver to a wall socket, the lights of the battery charge indicator light up white one after the other repeatedly. When the battery contains enough energy for one shave, the bottom light of the battery charge indicator starts flashing white slowly.

As charging continues, each light flashes and then lights up continuously to indicate to what level the battery has been charged.

Battery fully charged

PHILIPS Series 6000 S6650 - Battery fully charged - 1

When the battery is fully charged, all lights of the battery charge indicator light up white continuously.

PHILIPS Series 6000 S6650 - Battery fully charged - 2

Note: When you press the on/off button while the shaver is still connected to the wall socket, the 'unplug for use' symbol lights up (see "Unplug for use' reminder').

Note: When the battery is full, the display switches off automatically after 30 minutes.

Battery low

PHILIPS Series 6000 S6650 - Battery low - 1

When the battery is almost empty, the bottom light of the battery charge indicator flashes orange. At this point there is enough energy left for one shave.

Remaining battery charge

PHILIPS Series 6000 S6650 - Remaining battery charge - 1

The remaining battery charge is indicated by the lights of the battery charge indicator that light up continuously.

'Unplug for use' reminder

PHILIPS Series 6000 S6650 - 'Unplug for use' reminder - 1

The 'unplug for use' reminder flashes to remind you to disconnect the shaver from the wall socket before you can switch it on.

Travel lock

PHILIPS Series 6000 S6650 - Travel lock - 1

When you are going to travel, you can lock the shaver to prevent it from accidentally switching on.

Replacement reminder

PHILIPS Series 6000 S6650 - Replacement reminder - 1

For maximum shaving performance, we advise you to replace the shaving heads every two years. The shaver is equipped with a replacement reminder which flashes to remind you to replace the shaving heads.

Note: After replacing the shaving heads, you should reset the replacement reminder by pressing the on/off button for 7 seconds. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves.

Cleaning reminder

PHILIPS Series 6000 S6650 - Cleaning reminder - 1

Clean the shaver after every use for optimal performance (see 'Cleaning and maintenance').

When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Guard mode

PHILIPS Series 6000 S6650 - Guard mode - 1

This setting lowers the rotation speed of the shaver (see 'Shaving with guard mode').

Charging

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging takes max. 1 hour. A fully charged shaver has a shaving time of up to 60 minutes.

Note: You cannot use the shaver while it is charging.

Quick charge

After approx. 3 minutes of charging, the shaver contains enough power for one shave. The bottom light of the battery charge indicator starts flashing white slowly when the quick charge is finished.

Charging with the supply unit

PHILIPS Series 6000 S6650 - Charging with the supply unit - 1

1 Make sure the shaver is switched off.

2 Put the small plug in the shaver and put the supply unit in the wall socket.

The display of the shaver indicates that the shaver is charging.

3 After charging, remove the supply unit from the wall socket and pull the small plug out of the shaver.

Charging in the SmartClean system (specific types only)

PHILIPS Series 6000 S6650 - Charging in the SmartClean system (specific types only) - 1

1 Put the small plug in the back of the SmartClean system.

2 Put the supply unit in the wall socket.

PHILIPS Series 6000 S6650 - Charging in the SmartClean system (specific types only) - 2

3 Press to open the SmartClean system cap, to be able to place the shaver in the holder ('click').

PHILIPS Series 6000 S6650 - Charging in the SmartClean system (specific types only) - 3

4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system holder.

PHILIPS Series 6000 S6650 - Charging in the SmartClean system (specific types only) - 4

5 Place the shaver in the holder, tilt the shaver backwards and press down the SmartClean system cap to connect the shaver ('click').

The battery symbol flashes to indicate that the appliance is charging. When the battery is fully charged, the battery symbol lights up continuously.

Using the shaver

Always check the shaver and all accessories before use. Do not use the shaver or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

  • Use this shaver for its intended household use as described in this manual.
  • For hygienic reasons, the shaver should only be used by one person.
  • Trimming is easier when the skin and hair are dry.
  • Do not place the SmartClean system near water and make sure it does not get wet.

Note: This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can only be used without cord.

Switching the shaver on and off

PHILIPS Series 6000 S6650 - Switching the shaver on and off - 1

1 To switch the shaver on or off, press the on/off button once.

The display lights up for a few seconds to show the battery status.

Shaving

PHILIPS Series 6000 S6650 - Shaving - 1

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. To allow your skin to adapt to this new appliance, we advise you to shave regularly (at least 3 times a week) and exclusively with this appliance for a period of 3 weeks.

Shaving tips

  • For the best results on skin comfort, pre-trim your beard if you have not shaved for 3 days or longer.

Guard mode

  • Activate the guard mode to reduce the rotation speed of the shaver (see 'Shaving with guard mode').

Dry shaving

1 Switch on the shaver.
2 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.

Note: Do not press too hard, as this can cause skin irritation.

3 Switch off and clean the shaver after each use (see 'Cleaning and maintenance').

Wet shaving

For a more comfortable shave, you can also use this shaver on a wet face with shaving foam or shaving gel.

PHILIPS Series 6000 S6650 - Wet shaving - 1

1 Apply some water to your skin.

PHILIPS Series 6000 S6650 - Wet shaving - 2

2 Apply shaving foam or shaving gel to your skin.

PHILIPS Series 6000 S6650 - Wet shaving - 3

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

PHILIPS Series 6000 S6650 - Wet shaving - 4

4 Switch on the shaver.
5 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.

Note: Do not press too hard, this can cause skin irritation.

Note: Rinse the shaving unit regularly to ensure that it continues to glide smoothly over your skin.

6 Switch off and clean the shaver after each use (see 'Cleaning and maintenance').
7 Dry your face.

Note: Make sure that you rinse all foam or shaving gel off the shaver.

Shaving with guard mode

1 Switch on the shaver.

PHILIPS Series 6000 S6650 - Shaving with guard mode - 1

2 Press the guard button once if you want to shave at a lower, more gentle speed.
3 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.
4 Switch off the guard mode by pressing the guard button once.

Note: The shaver automatically starts operating at normal speed when you switch it on again.

Using click-on attachments

Removing or attaching click-on attachments

PHILIPS Series 6000 S6650 - Removing or attaching click-on attachments - 1

1 Make sure the shaver is switched off.
2 Pull the attachment straight off the appliance.

PHILIPS Series 6000 S6650 - Removing or attaching click-on attachments - 2

Note: Do not twist the attachment while you pull it off the appliance.

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the precision trimmer attachment (specific types only)

You can use the precision trimmer attachment to touch up your beard, sideburns and moustache.

PHILIPS Series 6000 S6650 - Using the precision trimmer attachment (specific types only) - 1

1 Attach the attachment to the appliance ('click').
2 Switch on the appliance.

PHILIPS Series 6000 S6650 - Using the precision trimmer attachment (specific types only) - 2

3 Hold the precision trimmer perpendicular to the skin and move it downwards while exerting gentle pressure.
4 Switch off the appliance and clean the attachment after use.

Using the beard styler attachment with comb (specific types only)

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting or at different length settings. You can also use it to pre-trim any long hairs before shaving for a more comfortable shave.

The length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm (3/64 - 3/16 in).

1 Attach the attachment to the appliance ('click').

PHILIPS Series 6000 S6650 - Using the beard styler attachment with comb (specific types only) - 1

2 Slide the comb straight into the guiding grooves on both sides of the beard styler attachment ('click').

PHILIPS Series 6000 S6650 - Using the beard styler attachment with comb (specific types only) - 2

3 Press the length selector and then push it to the left or right to select the desired hair length setting.

4 Switch on the appliance.

PHILIPS Series 6000 S6650 - Using the beard styler attachment with comb (specific types only) - 3

5 Move the appliance upwards while you exert gentle pressure. Make sure the front of the comb is in full contact with the skin.

6 Clean the attachment after use.

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline at a length of 0.5mm (1/32 in).

PHILIPS Series 6000 S6650 - Using the beard styler attachment without comb - 1

1 Pull the comb off the beard styler attachment. Note: Grab the comb in the center to pull it off the beard styler attachment. Do not pull at the sides of the comb.

PHILIPS Series 6000 S6650 - Using the beard styler attachment without comb - 2

2 Switch on the appliance.

3 Hold the beard styler attachment perpendicular to the skin and move the appliance downwards while you exert gentle pressure.

4 Clean the attachment after use.

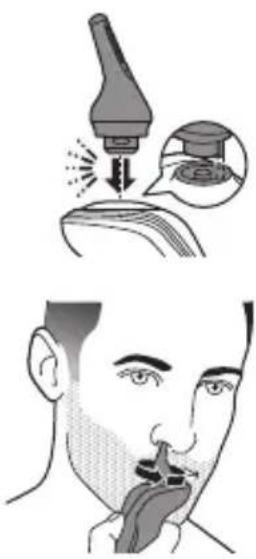

Using the nose/ear trimmer attachment (specific types only)

You can use the nose/ear trimmer attachment to trim your nose and/or ear hair.

PHILIPS Series 6000 S6650 - Using the nose/ear trimmer attachment (specific types only) - 1

PHILIPS Series 6000 S6650 - Using the nose/ear trimmer attachment (specific types only) - 2

Trimming nose hair

When trimming nose hair, make sure your nostrils are clean.

1 Attach the attachment to the appliance ('click').
2 Switch on the appliance.
3 Carefully insert the attachment into one of your nostrils.

Do not insert the attachment more than 0.5cm into your nostrils.

4 Slowly move the attachment around to remove all unwanted hairs in your nostrils.
5 Clean the attachment after use.

Trimming ear hair

When trimming ear hair, make sure your outer ear channels are clean and free from wax.

1 Attach the attachment to the appliance ('click').
2 Switch on the appliance.
3 Slowly move the attachment along the rim of the ear to remove hairs that stick out beyond the rim.
4 Insert the attachment into the outer ear channel.

Do not insert the attachment more than 0.5 cm into your ear channel, as this could damage the eardrum.

5 Slowly turn the attachment around to remove all unwanted hairs from your outer ear channel.
6 Clean the attachment after use.

Travel lock

You can lock the shaver when you are going to travel to prevent it from switching on accidentally.

Activating the travel lock

PHILIPS Series 6000 S6650 - Activating the travel lock - 1

1 Press the on/off button for 3 seconds to use the travel lock mode.

PHILIPS Series 6000 S6650 - Activating the travel lock - 2

While you activate the travel lock, the indications on the display light up briefly. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

PHILIPS Series 6000 S6650 - Deactivating the travel lock - 1

1 Press the on/off button for 3 seconds.

While you deactivate the travel lock, the indications on the display light up briefly. The shaver switches on and is now ready for use again.

Note: The shaver unlocks automatically when it is connected to a wall socket.

Cleaning and maintenance

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal performance.

Be careful with hot water. Always check if the water is not too hot, to prevent burning your hands.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

While rinsing the shaving unit, water may drip out of the base of the shaver. This is a normal occurrence.

PHILIPS Series 6000 S6650 - Cleaning the shaver under the tap - 1

1 Switch on the shaver.
2 Rinse the shaving unit under a warm tap.

You can also clean the shaving unit with the cleaning brush supplied.

PHILIPS Series 6000 S6650 - Cleaning the shaver under the tap - 2

3 Switch off the shaver. Press the release button to open the shaving unit.

PHILIPS Series 6000 S6650 - Cleaning the shaver under the tap - 3

4 Rinse the hair chamber under the tap. You can also clean the inside of the shaving unit with the cleaning brush supplied.

PHILIPS Series 6000 S6650 - Cleaning the shaver under the tap - 4

5 Rinse the shaving head holder under a warm tap.
6 Carefully shake off excess water and let the shaving head holder air-dry completely.

PHILIPS Series 6000 S6650 - Cleaning the shaver under the tap - 5

7 Close the shaving head holder ('click').

Cleaning the shaver in the SmartClean system (specific types only)

Keep cleaning cartridges out of reach of children. Do not take internally. Avoid contact with eyes. In case of eye contact, thoroughly flush with cold water. If irritation persists, get medical attention.

  • Only use the shaver, SmartClean system and cleaning cartridge provided to charge or clean the shaver.
  • For optimal cleaning results, replace the cleaning cartridge every 3 months.
  • Other Philips shavers may not work with this SmartClean system.
  • To avoid evaporation, do not expose cleaning fluid to direct sunlight.
  • The SmartClean system thoroughly cleans but does not disinfect your shaver, therefore, do not share the shaver with others.
  • Place the SmartClean system on a flat, stable and fluid-resistant surface to avoid any leakage. Be careful not to tip or move the SmartClean system when it is ready for use.
  • Use this product for its intended household use as described in this manual.

Preparing the SmartClean system for use

PHILIPS Series 6000 S6650 - Preparing the SmartClean system for use - 1

Caution: Do not tilt the SmartClean system to prevent leakage.

PHILIPS Series 6000 S6650 - Caution: Do not tilt the SmartClean system to prevent leakage. - 1

Note: Hold the SmartClean system while you prepare it for use.

PHILIPS Series 6000 S6650 - Caution: Do not tilt the SmartClean system to prevent leakage. - 2

1 Put the small plug in the back of the SmartClean system.

2 Put the supply unit in the wall socket.

3 While holding the SmartClean system with one hand, press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

4 Pull the seal off the cleaning cartridge.

PHILIPS Series 6000 S6650 - Caution: Do not tilt the SmartClean system to prevent leakage. - 3

5 Place the cleaning cartridge in the SmartClean system.

PHILIPS Series 6000 S6650 - Caution: Do not tilt the SmartClean system to prevent leakage. - 4

PHILIPS Series 6000 S6650 - Caution: Do not tilt the SmartClean system to prevent leakage. - 5

6 While holding the SmartClean system with one hand, gently push the top part of the SmartClean system back down ('click').

PHILIPS Series 6000 S6650 - Caution: Do not tilt the SmartClean system to prevent leakage. - 6

Using the SmartClean system

Note: If you use the shaver with shaving foam, shaving gel or pre-shave products, briefly rinse the shaver with warm water before you clean it in the SmartClean system.

PHILIPS Series 6000 S6650 - Using the SmartClean system - 1

Caution: Always shake excess water off the shaver before you place it in the SmartClean system.

1 Press to open the SmartClean system cap, to be able to place the shaver in the holder ('click').

PHILIPS Series 6000 S6650 - Caution: Always shake excess water off the shaver before you place it in the SmartClean system. - 1

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system holder.

PHILIPS Series 6000 S6650 - Caution: Always shake excess water off the shaver before you place it in the SmartClean system. - 2

3 Place the shaver in the holder, tilt the shaver backwards and press down the SmartClean system cap to connect the shaver ('click'). The battery symbol on the SmartClean system starts to flash, which indicates that the shaver is charging.

PHILIPS Series 6000 S6650 - Caution: Always shake excess water off the shaver before you place it in the SmartClean system. - 3

PHILIPS Series 6000 S6650 - Caution: Always shake excess water off the shaver before you place it in the SmartClean system. - 4

4 Press the on/off button on the SmartClean system to start the cleaning program.

During the cleaning phase, the cleaning symbol flashes. When the cleaning phase is done (after approx. 10 minutes), the cleaning symbol lights up continuously.

Next, the ready symbol lights up continuously.

30 minutes after the cleaning program and charging are done, the SmartClean system switches off automatically.

The battery symbol lights up continuously to indicate that the shaver is fully charged. Charging takes approx. 1 hour.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess fluid, open the shaving unit and let the shaver air-dry. Press to open the SmartClean cap, to remove the shaver from the holder ('click').

Note: Note: If you press the on/off button of the SmartClean system during the cleaning program, the program stops. In this case, the cleaning or drying symbol goes out.

Note: Note: If you disconnect the SmartClean system from its power supply, the cleaning program stops.

Thorough cleaning

1 Switch off the appliance.

PHILIPS Series 6000 S6650 - Thorough cleaning - 1

PHILIPS Series 6000 S6650 - Thorough cleaning - 2

PHILIPS Series 6000 S6650 - Thorough cleaning - 3

PHILIPS Series 6000 S6650 - Thorough cleaning - 4

PHILIPS Series 6000 S6650 - Thorough cleaning - 5

2 Press the release button to open the shaving unit.
3 Pull the shaving head holder off the bottom part of the shaving unit.
4 Turn the retaining rings counterclockwise and remove them.
5 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

6 Clean the cutter and guard under the tap.

PHILIPS Series 6000 S6650 - Thorough cleaning - 6

7 Put the cutter back into the guard.

PHILIPS Series 6000 S6650 - Thorough cleaning - 7

8 Place the shaving heads in the shaving head holder.

PHILIPS Series 6000 S6650 - Thorough cleaning - 8

Note: Make sure that the projections of the shaving heads fit exactly into the recesses of the shaving head holder.

PHILIPS Series 6000 S6650 - Thorough cleaning - 9

9 Place the retaining rings back onto the shaving head holder and turn them clockwise ('click').

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

PHILIPS Series 6000 S6650 - Thorough cleaning - 10

  • Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

PHILIPS Series 6000 S6650 - Thorough cleaning - 11

10 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder.

Cleaning the beard styler attachment

PHILIPS Series 6000 S6650 - Cleaning the beard styler attachment - 1

Clean the beard styler attachment after each use.

1 Pull the comb off the beard styler attachment.

Note: Grab the comb in the center to pull it off the beard styler attachment. Do not pull at the sides of the comb.

PHILIPS Series 6000 S6650 - Cleaning the beard styler attachment - 2

2 Rinse cut hairs off the cutting unit with lukewarm water.

3 Rinse cut hairs off the comb.

PHILIPS Series 6000 S6650 - Cleaning the beard styler attachment - 3

4 Remove the cutting unit from the beard styler attachment. By pushing the cutting unit off the beard styler attachment, you can remove any hairs that have accumulated inside the beard styler. You can also rinse the bottom of the cutting unit.

PHILIPS Series 6000 S6650 - Cleaning the beard styler attachment - 4

5 Rinse cut hairs out of the beard styler attachment.

6 Carefully shake off excess water and let the comb, cutting unit and beard styler attachment air-dry before you use them again.

PHILIPS Series 6000 S6650 - Cleaning the beard styler attachment - 5

7 When the cutting unit is dry, attach it to the beard styler attachment.

PHILIPS Series 6000 S6650 - Cleaning the beard styler attachment - 6

8 When the comb is dry, attach it to the beard styler attachment.

9 For optimal performance, lubricate the teeth of the attachment with a drop of sewing machine oil every six months.

Cleaning the precision trimmer attachment

Never dry the precision trimmer attachment with a towel or tissue, as this may damage the trimming teeth.

Clean the precision trimmer attachment after each use.

PHILIPS Series 6000 S6650 - Cleaning the precision trimmer attachment - 1

1 Switch on the appliance with the precision trimmer attachment attached.
2 Rinse the attachment under a warm tap.
3 After cleaning, switch off the appliance.
4 Carefully shake off excess water and let the attachment air-dry completely.

For optimal performance, lubricate the teeth of the attachment with a drop of sewing machine oil every six months.

Cleaning the nose trimmer attachment

Clean the nose trimmer attachment every time you have used it.

1 Make sure the appliance is switched off.

PHILIPS Series 6000 S6650 - Cleaning the nose trimmer attachment - 1

2 Rinse the cutting element with hot water.
3 Switch on the appliance and rinse the cutting element once more to remove any remaining hairs. Then switch off the appliance again.
4 Carefully shake off excess water and let the nose trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Replacement

Replacing the shaving heads

PHILIPS Series 6000 S6650 - Replacing the shaving heads - 1

For maximum shaving performance, we advise you to replace the shaving heads every two years. Replace damaged shaving heads immediately. Always replace the shaving heads with original Philips shaving heads ('Ordering accessories').

PHILIPS Series 6000 S6650 - Replacing the shaving heads - 2

Replacement reminder

The replacement reminder indicates that the shaving heads need to be replaced. The shaving unit symbol lights up when you switch off the shaver.

1 To replace the shaving heads, remove the shaving heads from the shaving head holder one by one. See 'Thorough Cleaning' for the instructions on how to remove the retaining rings and shaving heads.
2 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves.

PHILIPS Series 6000 S6650 - Replacement reminder - 1

Storage

PHILIPS Series 6000 S6650 - Storage - 1

Note: We advise you to let the appliance dry before you store it in the pouch.

Ordering accessories

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

The following accessories are available:

  • SH50 Philips shaving heads
  • RQ111 Philips beard styler
  • Precision trimmer
  • RQ575 Philips cleansing brush
    HQ8505 supply unit

Note: The availability of the accessories may differ by country.

Recycling

  • Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.
  • This product contains a built-in rechargeable battery which shall not be disposed of with normal household waste. Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

  • Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Only remove the rechargeable batteries when you discard the appliance. Before you remove the batteries, make sure that the appliance is disconnected from the wall socket and that the batteries are completely empty.

Take any necessary safety precautions when you handle tools to open the appliance and when you dispose of the rechargeable battery.

1 Check if there are screws in the back of the appliance. If so, remove them.
2 Remove the back and/or front panel of the appliance with a screwdriver. If necessary, also remove additional screws and/or parts until you see the printed circuit board with the rechargeable battery. If there are wires that need to be cut in order to reach the rechargeable battery, only cut one at a time.
3 Remove the rechargeable battery.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international warranty because they are subject to wear.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Shaver

Problem Possible cause Solution

The appliance does not work when I press the on/off button.The appliance is still attached to the wall socket. For safety reasons, the appliance can only be used without cord.Unplug the appliance and press the on/off button to switch on the appliance.
The rechargeable battery is empty.Recharge the battery.
The travel lock is activated.Press the on/off button for 3 seconds to deactivate the travel lock.
The shaving unit is soiled or damaged to such an extent that the motor cannot run.Clean the shaving heads thoroughly (see 'Thorough cleaning') or replace them.
The appliance does not shave as well as it used to.The shaving heads are damaged or worn.Replace the shaving heads.

Problem Possible cause Solution

Hairs or dirt obstruct the shaving heads.Clean the shaving heads in the regular way or clean them thoroughly (see 'Thorough cleaning').
I replaced the shaving heads, but the replacement reminder is still showing.You have not reset the replacement reminder.To reset the replacement reminder, press and hold the on/off button for more than 7 seconds.
A shaving head symbol has suddenly appeared on the display.This symbol is the replacement reminder.Replace the shaving heads.
Water is leaking from the bottom of the appliance.During cleaning, water may collect between the inner body and the outer shell of the appliance.This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the appliance.

SmartClean system

Problem Possible cause Solution

The SmartClean system does not work when I press the on/off button.The SmartClean system is not connected to the wall socket.Put the small plug in the SmartClean system and put the supply unit in the wall socket.
The cleaning cartridge is empty. The replacement symbol flashes to indicate that you have to replace the cleaning cartridge.Place a new cleaning cartridge in the SmartClean system.

Problem Possible cause Solution

The shaver is not entirely clean after I clean it with the SmartClean system.You have not placed the shaver in SmartClean system properly, so there is no electrical connection between SmartClean system and the shaver.Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
The battery of the shaver is not charged sufficiently.If the battery of the shaver is not charged sufficiently, the SmartClean system may not work properly. The shaver needs to be able to switch on briefly during the rinsing phase. Charge the shaver for a short time before you use the SmartClean system to clean your shaver.
The cleaning cartridge needs to be replaced.Replace the cleaning cartridge.
You have used another cleaning fluid than the original Philips cleaning cartridge.Only use the original Philips cleaning cartridge.
The hole of the drain of the cleaning cartridge is blocked.Remove the cartridge from the SmartClean system and push the hairs down the drain with a toothpick.

Problem Possible cause Solution

The shaver is not fully charged after I charge it in SmartClean system.You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.

Bateria completely cargada

PHILIPS Series 6000 S6650 - Bateria completely cargada - 1

<|im_start|>assistant

DIsS普LReIeMgTtJHJiEaHJHJiEaHJHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiEaHJiE

朝豆

PHILIPS Series 6000 S6650 - 朝豆 - 1

PHILIPS Series 6000 S6650 - 朝豆 - 2

囧部

2 01Bn01n01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01Bn01
3. 썸이류 히고만이 히부 히에서부드러개 히고려지목로 썸이류 히고만이 히에 히구심지오.
4. 用工具,
5. 썼이버ghetdREHJF#EADGJHJLHJ10RJU #

摺::菲部自的原在日可上如,无且为

ACKSETRI到灵月蒙肉以0.5cm01当

PHILIPS Series 6000 S6650 - 囧部 - 1

PHILIPS Series 6000 S6650 - 囧部 - 2

  1. 凶鉄呂馳尅,从,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,私,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公,公
  2. 没有后端的高阶序列,那么

挂丁 三

挂到将格拉夫的姓名,写在上面。

(2) St Mahtel'sh's the shanbubn to hre

PHILIPS Series 6000 S6650 - 挂丁 三 - 1

  1. 4.1.3.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.

PHILIPS Series 6000 S6650 - 挂丁 三 - 2

  1. [1] Maorun, Tsubalal, and Sutai, On the structure of the set of all subgroups of .

PHILIPS Series 6000 S6650 - 挂丁 三 - 3

TREI MUR of the Ns BnEe H 6

卫朝

戸伊艹他連卍

PHILIPS Series 6000 S6650 - 戸伊艹他連卍 - 1

热的,是。

PHILIPS Series 6000 S6650 - 戸伊艹他連卍 - 2

卍戸 僅

75% recycled paper

75%papierrecyclé

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PHILIPS

Model : Series 6000 S6650

Category : Shaver
