USER MANUAL Passionata Klarstein

Labeled diagram of a coffee maker with numbered parts for identification

Simple line drawing of a circular object with a vertical rod and three small icons below (no text or symbols)

Do not take apart the appliance by yourself if the cause of failure is not found, you had better contact certified serving center.

Symbol of a recycling bin with no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

CONTENTS

Technical Data 14

Safety Instructions 15

Device Description 17

Use 18

Cleaning Maintenance 21

Troubleshooting 22

Disposal Considerations 23

TECHICAL DATA

Item number 10031700	10031791 10031792 10031793
Power supply 220 -240 V~ 50 Hz
Power 1250-1470 W

SAFETY INSTRUCTIONS

• Before using the electrical appliance, the following basic precautions should always be followed
  • including the following:
• Read all instructions.
• Before using check that the voltage of wall outlet corresponds to rated voltage marked on the rating plate.
• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
• To protect against fire, electric shock and injury to persons do not immerse cord, plug in water or other liquid.
• Remove plug from wall outlet before cleaning and when not in use. Allow appliance cool down completely before taking off, attaching components or before cleaning.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
• Place appliance on flat surface or table, do not hang power cord over the edge of table or counter.
• Ensure the power cord do not touch hot surface of appliance.
• Do not place the coffee maker on hot surface or beside fire in order to avoid to be damaged.
• To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the cord.
• Do not use appliance for other than intended use and place it in a dry environment.
• Close supervision is necessary when your appliance is being used near children.
• Be careful not to get burned by the steam.
• Do not touch the hot surface of appliance (such as steam wand, and the steel mesh just boiling). Use handle or knobs.
• Do not let the coffee maker operate without water.
• Do not remove the metal funnel when appliance in brewing coffee or when steam.
• Connect plug to wall outlet before using and turn any switch off before plug is removed from wall outlet.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
  • Children shall not play with the appliance.
• Do not use outdoors.
• Save these instructions.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service

agent or a similarly qualified person in order to avoid a hazard.

• The appliance must not be immersed.
- This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments
- farm houses
- by clients in hotels, motels and other residential type environments
- bed and breakfast type environments
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- The surfaces (on removable cup shelf) are liable to get hot during use.

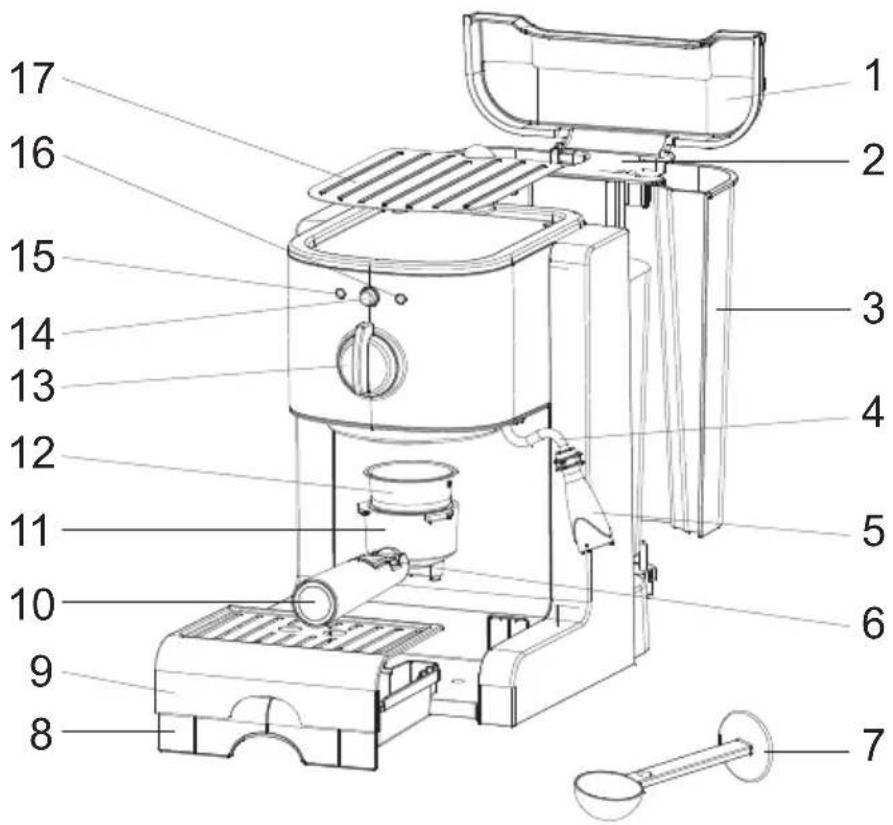

DEVICE DESCRIPTION

Labeled diagram of a coffee maker with numbered parts for identification

1 Tank cover
2 Handle
3 Detachable tank
4 Steam wand
5 Plastic sleeve
6 Press bar
7 Measuring spoon
8 Drip tray
9 Removable cup shelf
10 Funnel handle
11 Metal funnel
12 Steel mesh
13 Coffe/steam knob
14 OFF/OFF button
15 Power indicator
16 Ready indicator
17 Cup warming plate

USE

BEFORE THE FIRST USE

To ensure the first cup of coffee tastes excellent, you should rinse the coffee maker with warm water as follows:

1. Pour water into water tank, the water level should not exceed the "MAX" mark in the tank. Then close the water tank cover.

Note: the appliance is supplied with a detachable tank for easy cleaning, you can fill the tank with water firstly, and then put the tank into the appliance.

1. Set steel mesh into metal funnel (no coffee in steel mesh).
2. Place an espresso cup (your cup) on removable cup shelf. Make sure the coffee/steam knob is on the ●.
3. Connect to power source, press down the ON/OFF button to the lower position which is the ON position. The red indicator will be illuminated.
4. The appliance begins to be pre-heated until the green indicator is illuminated, it shows the pre-heating is finished. Turning the coffee/steam knob to the bposition, and water will flow out.
5. After about one minute, turn the coffee/steam knob to the. Drehen Sie den Kaffee-/Dampfknopf nach ungefähr einer Minute zurück in die Position ●, position to stop brewing, you can pour the water in container out then clean them thoroughly, now you can start brewing.

Note: There may be noise when pumping the water on the first time, it is normal, the appliance is releasing the air in the appliance. After about 20s, the noise will disappear.

Pre-Heating

To make a cup of good hot Espresso coffee, we recommend you preheating the appliance before making coffee, including the funnel, steel mesh and cup, so that the coffee flavour can not be influenced by the cold parts.

1. Remove the detachable tank and open the tank cover to fill it with desired water, the water level should not exceed the "MAX" mark in the tank. Then place the tank into the appliance properly.

INSERT LOCK

Fig.1

1. Set steel mesh into metal funnel, make sure the tube on the funnel aligns with groove in the appliance, then insert the funnel into the appliance from the "Insert" position, and you can fix them into coffee anticlockwise until it is at the lock position.(See fig

2. Place an espresso cup (your cup) on removable cup shelf.

3. Then connect the appliance to power supply source. Make sure the coffee/steam knob is on the ● position.
4. Press the ON/OFF button to the lower position which is the ON position, the red indicator will be illuminated.
5. When the green indicator is illuminated, you should turn the coffee/steam knob to the 🔒 position, there will be hot water flowing out. After about one minute, close

the coffee/steam knob by turning the coffee/steam knob again to the ● position. The pre-heating is finished.

Make Espresso Coffee

1. Remove the metal funnel by turning it in clockwise, set steel mesh into metal funnel. Add coffee powder to steel mesh with measuring spoon, a spoon coffee powder can make about a cup of top-grade coffee, then press the ground coffee powder tightly with the tamper.
2. Then insert the funnel into the appliance from the "Insert" position and release the press bar, and you can fix them into coffee maker firmly through turn it anticlockwise until it is at the lock position.(See fig. 1).
3. Pour out the hot water in the cup. Then place the hot cup (your cup) on removable cup shelf.
4. At the time, the green indicator is illuminated, once the green lamp is illuminated, you should turn the coffee/steam knob to the 🔒 position, waiting for a moment, there will be coffee flowing out.

Note: During brewing coffee or making steam, it is normal that the green indicator is likely to extinguish, it only means that the heater is heating up to keep the temperature at the standard range.

1. You should press and release the ON/OFF button to the higher position which is the "OFF" position manually when desired coffee is obtained or the colour of coffee changes weak obviously, the power indicator and ready indicator go out and the coffee maker stops working, your coffee is ready now.

Note: Do not leave the coffee maker unattended during making the coffee, as you need operate manually sometimes. manually sometimes!

1. After finishing making the coffee, you can take the metal funnel out by turning it clockwise, then pour the coffee residue out with the steel mesh pressed by press bar.

2. Let them cool down completely, then rinse under running water.

Make Cappuccino

You get a cup of cappuccino when you top up a cup of espresso with frothing milk. Note: during making steam, the metal funnel must be assembled in position.

Method:

1. Prepare espresso first with container big enough according to the part "MAKE ESPRESSO COFFEE".
2. Turn the coffee/steam knob to the “” position, waiting for until the green indicator is illuminated.
3. Fill a jug with about 100 grams of milk for each cappuccino to be prepared, you are recommended to use whole milk at refrigerator temperature (not hot!).

Note: In choosing the size of jug, it is recommended the diameter is not less than 70 ± 5 mm, and bear in mind that the milk increases in volume by 2 times, make sure the height of jug is enough.

1. Insert the plastic sleeve into the milk about two centimetre, then turn the coffee/

steam knob to the position, steam will come out from the steam outlet. Froth milk in the way moving vessel round from up to down.

Warning: Be sure to operate carefully as the steam may result in scald to person.

1. When the required purpose is reached, you can turn the coffee/steam knob to the position (see fig.2).

Note: Clean steam outlet with wet sponge immediately after steam stops generating, but care not to hurt!

1. Pour the frothed milk into the espresso prepared, now he cappuccino is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.
2. Press and release the ON/OFF button to the higher position which is the "O FF" position to cut off the power source.

Producing steam to heat liquids or froth milk singly

Simple line drawing of a circular object with a vertical rod and three small icons below (no text or symbols)

fig. 2

The steam wand can be used to froth milk singly or make hot beverages like drinking chocolate, water or tea..

Method:

1. Remove the detachable tank and fill it with desired water, the water level should not exceed the "MAX" mark in the tank. Then place the tank into the appliance properly.
2. Then connect the appliance to power supply source.
3. Press down the ON/OFF button to the lower position which is the ON position, the red indicator is illuminated.
4. Turning the coffee/steam knob to the ● position and waiting for a moment, the appliance begins to be heated until the green indicator is illuminated, it shows the heating is finished.
5. Dip the steam wand with plastic sleeve into the liquid to be heated or the intended froth milk. Turn the coffee/steam knob to the position and start making steam.
6. When the required temperature is reached or the frothing milk is obtained, you can turn the coffee/steam knob to the ● position.
7. Press and release the ON/OFF button to the higher position which is the OFF position to cut off the power source.

Automatically shut-off function

The appliance has the function of shut-off power automatically, when the power cord is plugging into the power outlet and the ON/OFF button has been pressed, if without any action within 25 minutes, the appliance will cut off power automatically and the power indicator will be extinguished, if you want to continue operating, you shall press the ON/OFF button twice (for the first pressing, make it return to higher position which is OFF position, for the second pressing, press it down to turn on power) the and the power indicator will be illuminated, the appliance can be operated.

CLEANING MAINTENCANCE

1. Cut off power source and let the coffee maker cool down completely before cleaning.
2. Clean housing of coffee maker with moisture-proof sponge often and clean water tank, drip tray and removable shelf regularly then dry them

Note: Do not clean with alcohol or solvent cleanser. Never immerse the housing in water for cleaning.

1. Detach the metal funnel by turning it clockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.
2. Clean all the attachments in the water and dry thoroughly.

Cleaning mineral deposits

1. To make sure your coffee maker operating efficiently, internal piping is cleanly and the peak flavor of coffee, you should clean away the mineral deposits left every 2-3 months.
2. Fill the tank with water and descaler to the MAX level (the scale of water and descaler is 4:1, the detail refers to the instruction of descaler. Please use "household descaler", you can use the citric acid (obtainable from chemist's or drug stores) instead of the descaler (the one hundred parts of water and three parts of citric acid).
3. According to the program of pre-heating, put the metal funnel (no coffee powder in it) and carafe (jug) in place. Brewing water per "PRE-HEATING".
4. Press down the ON/OFF button to the lower position which is the ON position, the red indicator will be illuminated, make sure the coffee/steam knob is on the ● position, and waiting for a moment, the coffee maker begins to be heated.
5. When the green indicator is illuminated, it shows the heating is finish. Turning the coffee/steam to the 🔒 position and make two cups coffee (about 2Oz). Then turn the coffee/steam knob to the ● position and wait for 5s.
6. Once the green indicator is illuminated. Make steam for 2min, then turn the coffee/steam knob to the ● position to stop making steam. Press and release the ON/OFF to the higher position which is the OFF position to stop the unit immediately, make the descalers deposit in the unit at least 15 minutes.
7. Restart the unit and repeat the steps of 4-6 at least 3 times.
8. Then turning the coffee/steam knob to the ● position, when the green lamp is illuminated, turn the coffee/steam knob to the ● position to brew until no descaler is left.
9. Then brewing coffee (no coffee powder) with tap water in the MAX level, repeat the steps of 4-6 for 3 times (it is not necessary to wait for 15 minutes in step of 6), then brewing until no water is left in the tank.
10. Repeat the step of 9 at least 3 times to make sure the piping is cleanly

TROUBLESHOOTING

Symptom Cause Corrections
Water leaks from the bottom of coffee maker.	There is much water in the drip tray.	Please clean the drip tray.
	The coffee maker is malfunction	Please contact with the authorized service facility for repairing.
Water leaks out of outer side of filter.	There is some coffee powder on filter edge	Get rid of them.
Acid (vinegar) taste exists in Espresso coffee.	No clean correctly after cleaning mineral deposits.	Clean coffee maker per the content in “before the first use” for several times.
	The coffee powder is stored in a hot, wet place for a long time. The coffee powder turns bad	Please use fresh coffee powder, or store unused coffee powder in a cool, dry place. After opening a package of coffee powder, reseal it tightly and store it in a refrigerator to maintain its freshness
The coffee maker cannot work any more.	The power outlet is not plugged well.	Plug the power cord into a walloutlet correctly, if the appliance still does not work, please contact with the authorized service facility for repairing.
The steam cannot froth.	The green indicator is not illuminated.	Only after the green indicator is illuminated, the steam can be used to froth.
	The container is too big or the shape is not fit.	Use high and narrow cup.
	You have used skimmed milk.	Use whole milk or half-skimmed milk.

Do not take apart the appliance by yourself if the cause of failure is not found, you had better contact certified serving center.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)
