Product Type	Coffee Maker
Brand	Black & Decker
Model	CM1060
Capacity	12 cups (graduations on reservoir)
Coffee Maker Type	Removable basket filter
Power Supply	120 V, 60 Hz
Power	Approximately 1000 W
Dimensions (approx.)	30 cm (L) x 20 cm (W) x 35 cm (H)
Weight (approx.)	2.5 kg
Color	White or black (depending on model)
Housing Material	Plastic
Carafe Material	Duralife™ Glass
Main Functions	Automatic brewing, delayed programming, automatic shut-off after 2h, Sneak-a-Cup™ function
Filter Type	Basket paper filter (not included)
Recommended Maintenance	Vinegar cleaning once a month
Safety	Automatic shut-off, locking lid, polarized plug
Available replacement parts	Filter basket (CM1060-01), white carafe (CM1060W-02) or black carafe (CM1060B-02)
Warranty	2-year limited (United States and Canada)
Country of Manufacture	People's Republic of China
Included Accessories	Carafe, filter basket, brew basket cover

Frequently Asked Questions - CM1060 BLACK & DECKER

How to set the clock on the coffee maker?

Plug in the appliance. The display flashes 12:00. Press HOUR to set the hour (dot on top left = PM) then MIN for the minutes. If the appliance is unplugged, the clock will need to be reset.

How to brew coffee with the CM1060?

Lift the lid, fill the reservoir with cold water to the desired mark (max 12 cups). Place a paper filter in the filter basket and add ground coffee (1 heaping tablespoon per cup). Close the lid, place the carafe on the warming plate and press ON/OFF.

How to use the Sneak-A-Cup™ function?

During brewing, remove the carafe to pour a cup. Brewing pauses automatically. Replace the carafe within 30 seconds to avoid overflow. Brewing then resumes.

How to program automatic brewing?

Press PROG, the display flashes. Use HOUR and MIN to set the desired time. Then press and hold AUTO until the indicator stops flashing. To deactivate, press ON/OFF.

How to clean the coffee maker?

Unplug and let cool. Wash the filter basket and carafe by hand or in the dishwasher (top rack). Wipe the exterior and warming plate with a damp cloth. Do not use abrasive cleaners. Never immerse the housing.

How to descale the coffee maker with vinegar?

Pour white vinegar up to the 6-cup mark and fill with water to the 10-cup mark. Start a brew cycle. Stop when the level reaches about 5 cups, let soak for 15 minutes, then finish the cycle. Rinse with a cold water cycle (11 cups). Repeat if necessary.

What to do if the coffee maker does not turn on?

Check that the plug is securely inserted into a working outlet. If the problem persists, contact customer service at 1-800-231-9786 (United States/Canada).

What to do if the coffee maker leaks?

Make sure the reservoir is not filled above the 12-cup line. Check that the carafe lid is closed and the carafe is properly placed on the warming plate.

What to do if coffee overflows from the brew basket?

When using the Sneak-A-Cup™ function, replace the carafe within 20 seconds. If the problem persists, reduce the amount of ground coffee to avoid overflow.

What is the warranty on the Black & Decker CM1060 coffee maker?

The limited warranty is 2 years from the date of purchase, valid in the United States and Canada. It covers defects in workmanship and materials. Keep your proof of purchase. For service, call 1-800-231-9786 or visit www.prodprotect.com/applica.

USER MANUAL CM1060 BLACK & DECKER

Congratulations on your purchase of the Black + Decker 12-Cup Programmable Coffeemaker. We have developed this guide to ensure optimal product performance and your complete satisfaction. Save this use and care manual and be sure to register your appliance online at www.prodprotect.com/applica.

CONTENTS

IMPORTANT SAFEGUARDS. 3
GETTING TO KNOW YOUR COFFEEMAKER. 4
GETTING STARTED 5
SETTING THE CLOCK 5
BREWING COFFEE 5
SNEAK-A-CUP TM FEATURE 6
SETTING AUTO BREW TIME 6
CARE AND CLEANING 6
TROUBLESHOOTING 7
WARRANTY AND CUSTOMER SERVICE INFORMATION 8

WARNING

RISK OF FIRE OR ELECTRIC SHOCK. DO NOT OPEN.

The lightning symbol refers to "dangerous voltage"; the exclamation symbol refers to maintenance instructions. See below.

Warning: To reduce the risk of fire or electric shock, do not remove the cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

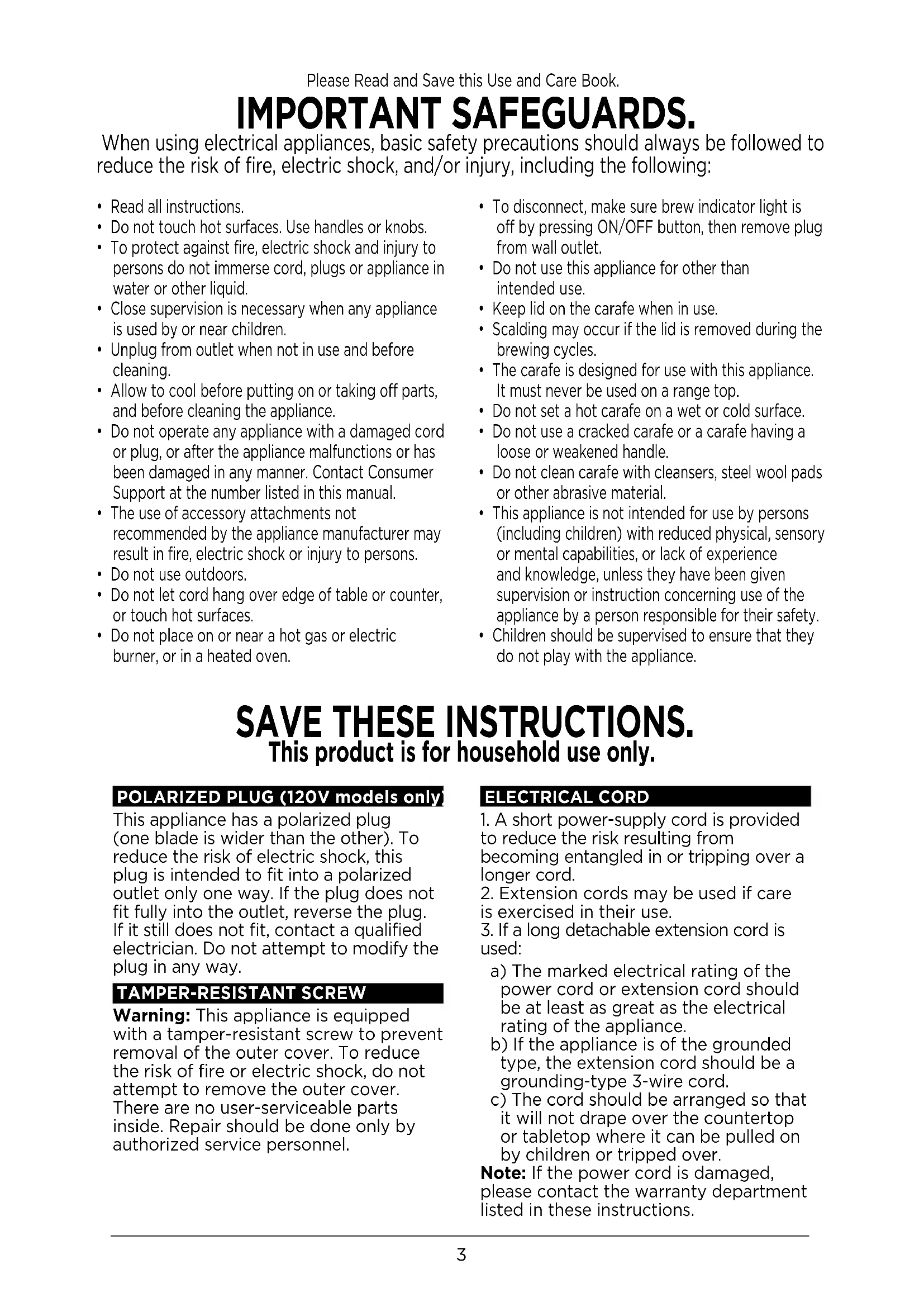

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning.
• Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact Consumer Support at the number listed in this manual.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• To disconnect, make sure brew indicator light is off by pressing ON/OFF button, then remove plug from wall outlet.

• Do not use this appliance for other than intended use.
• Keep lid on the carafe when in use.
• Scalding may occur if the lid is removed during the brewing cycles.
• The carafe is designed for use with this appliance. It must never be used on a range top.
• Do not set a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads or other abrasive material.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V models only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

1. A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2. Extension cords may be used if care is exercised in their use.
3. If a long detachable extension cord is used:

a) The marked electrical rating of the power cord or extension cord should be at least as great as the electrical rating of the appliance.
b) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.
c) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

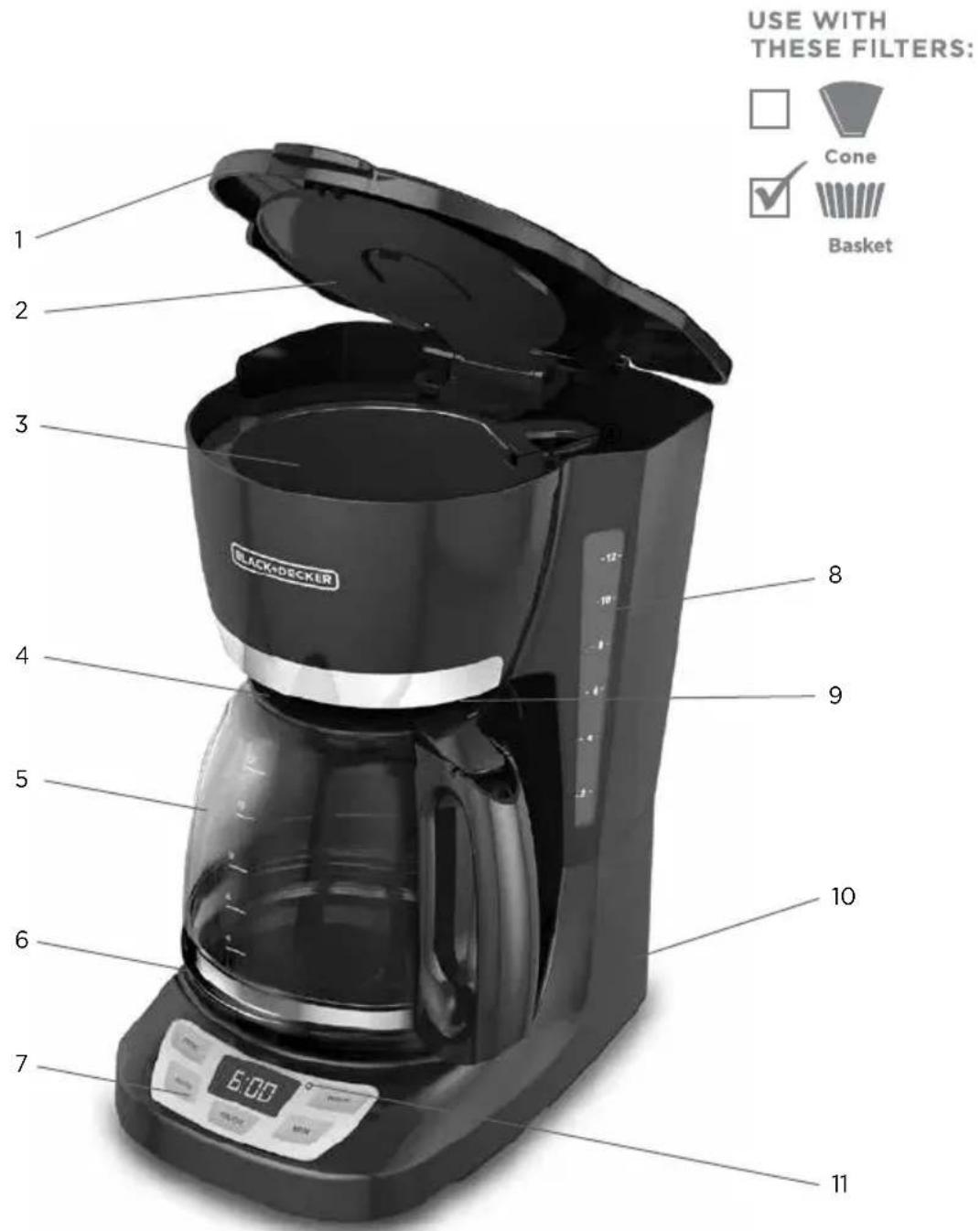

GETTING TO KNOW YOUR COFFEEMAKER

1. One-piece cover
2. Showerhead
3. Removable filter basket (Part # CM1060-01)
4. Brew-thru lid
5. Duralife™ carafe White (Part # CM1060W-02) Black (Part # CM1060B-02)

Product may vary slightly from what is illustrated.

1. "Keep Hot" carafe plate
2. Control panel
3. Water reservoir with cup level markings
4. Sneak-A-Cup™ feature
5. Cord storage (inside of unit)
6. Brew indicator light

HOW TO USE

This product is for household use only.

GETTING STARTED

• Wash removable parts as instructed in CARE AND CLEANING.
• Pour fresh cold water up to 12 MAX mark.
• Place basket-style paper filter into removable filter basket. Place basket into filter basket holder.
• Plug cord into standard electrical outlet.
• Brew water through appliance without adding coffee grounds. This removes any dust or residue that may remain in the system during the manufacturing process.
• Discard water and paper filter.
• Turn off appliance, unplug and allow to cool down.

SETTING THE CLOCK

1. Plug appliance into standard electrical outlet.
2. The digital clock display flashes 12:00 A.M.
3. To set the time: Press HOUR button until correct time appears on display. Small dot in top left corner of digital display indicates P.M.
4. Press MIN button to select minutes.

Note: If unit is unplugged or power is interrupted even momentarily, the time will need to be reset.

BREWING COFFEE

1. Open one-piece cover. Fill water reservoir with cold tap water. Use lines on side of reservoir as a guide. Do not fill with more than 12 cups of water.

Important: If too much water is added it will leak from the back of the coffeemaker.

1. Place paper filter into filter basket. Add ground coffee (we suggest 1 heaping tablespoon per cup). Place filter basket in place.
2. Close one-piece cover securely.
3. Place brew-thru lid on empty carafe, making sure it is in the down position. Then set carafe on carafe plate.

Note: Coffee may overflow if brew-thru lid is not properly aligned.

1. Plug cord into an outlet. Press ON/OFF button (indicator light to the left of the HOUR button will illuminate) and brewing begins. The "Keep Hot" carafe plate will keep the coffee warm for two hours or until the ON/Off button is pressed.
2. When coffee grounds are cool, carefully remove and discard used grounds and filter.
3. To turn off coffeemaker at any time press ON/OFF button (indicator light to the left of the HOUR button will turn off).
4. Unplug appliance when not in use.
5. Press tab on carafe lid to pour coffee.

SNEAK-A-CUP™ FEATURE

Remove the carafe and brewing is paused. The carafe must be placed back on the carafe plate in 30 seconds to prevent overflow. Brewing begins again.

SETTING AUTO BREW TIME

1. Press PROG button. The AUTO light (small dot in bottom left corner of digital display) flashes several times. Digital clock displays 12:00.
2. Quickly press HOUR button then MIN button to select the time you would like automatic brewing to begin (for example, 7:15 A.M. Make sure the P.M. light is not on.)
3. Press AUTO button, holding it down until the AUTO light stops flashing. The digital display changes to time of day.
4. To check preset auto time, press PROG button and preset auto time is displayed. Press AUTO button to reactivate the timer.
5. To cancel Auto Brew function, press the ON/OFF button.

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

Make sure your coffeemaker is unplugged and cool.

1. Remove filter basket. Discard used paper filter and coffee grounds.
2. Wash filter basket and carafe in dishwasher (top-rack) or by hand in hot, soapy water.
3. Wipe outside of coffeemaker, control panel and carafe plate with a soft, damp cloth.

Note: Do not use abrasive cleansers or scouring pads. Never immerse the coffeemaker in water.

1. To clean the inside of the cover, open the cover and leave in the open position; wipe with a damp cloth.

COFFEEMAKER PART CLEANING INSTRUCTIONS
Housing
Carafe Plate	Wipe with a soft, damp cloth.
Power Cord
Carafe Lid
Filter Basket	Wash by hand in warm soapy water, or in the dishwasher (top rack only).
Glass Carafe

CLEANING WITH VINEGAR

Note: With regular use, minerals and hard water can clog your coffeemaker. A full cleaning with vinegar is recommended once a month.

1. Pour white vinegar into water reservoir up to the 6-cup mark on the water window. Add cold water up to the 10-cup mark.
2. Put a paper filter in filter basket and close cover. Set empty carafe on the carafe plate.
3. Turn on coffeemaker. Let half the cleaning mixture brew into carafe (until level is around 5). Turn off coffeemaker and let it soak for at least 15 minutes
4. Turn on coffeemaker again and brew remaining cleaning mixture into carafe. Turn off coffeemaker; empty carafe and discard paper filter.
5. Fill reservoir with cold water to 11-cup line; replace carafe on carafe plate and then turn on coffeemaker for a complete brewing cycle to flush out remaining cleaning mixture. You may want to repeat this step to completely remove the vinegar smell/taste.
6. Wash filter basket and carafe as instructed in CLEANING.

TROUBLESHOOTING

PROBLEM POSSIBLE	CAUSE SOLUTION
Coffeemaker does not turn on.	Coffeemaker is not plugged in.	Make sure appliance is plugged into a working outlet.
Coffeemaker is leaking.	Water reservoir may be overfilled.	Make sure water reservoir has not been filled beyond the 12-cup line.
	Cover may not be correctly placed on carafe.	Make sure cover is correctly placed and tightened on carafe
	Carafe may not be correctly placed on the carafe plate.	Make sure carafe is placed securely onto the carafe plate.
The filter basket overflows.	The carafe has been removed for longer than 30 seconds when using the Sneak-A-Cup™ feature.	Make sure to replace the carafe within 30 seconds during the brewing cycle.
	Excessive amount of coffee is used.	Reduce the amount of coffee used.
Coffee sediment in brewed cup of coffee.	The paper filter and/or the filter basket are not properly placed.	Insert basket-shaped paper filter into filter basket and insert basket properly into holder.
The coffeemaker brews slowly.	The coffeemaker needs cleaning.	Follow the instructions in the “Cleaning with Vinegar” section.

If additional assistance is needed, please contact our consumer service team at 1-800-231-9786.

WARRANTY AND CUSTOMER SERVICE INFORMATION

For service, repair or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty (Applies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Spectrum Brands, Inc.'s liability will not exceed the purchase price of product.

For how long?

• Two years from the date of original purchase with proof of purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.
