Brand	Klarfit
Model	Goodvibe 10026397 / 10026398
Product type	Vibration plate
Power supply	220-240 V ~ 50 Hz
Maximum user weight	120 kg
Device weight (approx.)	Approx. 25 kg
Dimensions (approx.)	Approx. 100 x 60 x 130 cm
Training programs	Manual (HL), 3 automatic (P1, P2, P3), body fat test (1), normal (88)
Display	LED display: program, time, speed
Settings	Adjustable speed, adjustable duration (10 min default)
Main materials	Steel and plastic
Usage	Domestic, compliant with EN957
Certifications	CE, EN957, Directives 2014/30/EU, 2014/35/EU, 2011/65/EU
Included accessories	Handles, support tubes, screws, Allen keys
Assembly required	Yes, simple assembly with provided tools
Maintenance and cleaning	Wipe with a damp cloth, check fastenings regularly
Safety	Automatic stop, non-slip surface, stabilizers
Warranty	2 years (according to retailer)
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

Frequently Asked Questions - Goodvibe 10026398 Klarfit

What is the maximum weight supported by the Goodvibe vibration plate?

The maximum user weight is 120 kg. Never exceed this limit for safety reasons.

How to adjust the duration of a session?

Press the Time button to change the duration display. By default, each program lasts 10 minutes.

What are the different programs available?

Programs include: manual mode (HL), three automatic programs (P1, P2, P3), a body fat test (1) and a normal program (88). Each lasts 10 minutes.

How to use the body fat test?

Select mode 1, then use the speed buttons to choose the gender (male 1, female 2). Then adjust age, height and weight with the duration button. Press again to get the result.

Can I use the device if I have health issues?

Always consult a doctor before use if you have heart, joint, back problems, thrombosis, diabetes, epilepsy, or if you are pregnant or have a pacemaker.

How to assemble the Goodvibe vibration plate?

Follow steps P1 to P11 in the manual: attach the vertical support tube, the lower and upper tubes, then the control panel. Use the provided screws and Allen keys. Tighten all fastenings before use.

What to do if the device makes an unusual noise?

Stop exercising immediately and check that all screws and fasteners are tight. If the noise persists, do not use the device until the problem is identified and resolved.

What clothing to wear during training?

Wear appropriate clothing, neither too loose nor too tight, to avoid getting caught in the device. Sports shoes are recommended.

How to clean the vibration plate?

Clean the device with a damp cloth and mild detergent. Do not use abrasive products. Ensure the device is unplugged before cleaning.

Where can I find spare parts?

Contact Klarfit customer service or the retailer where you purchased the device. Spare parts can be ordered using the item number 10026397/10026398.

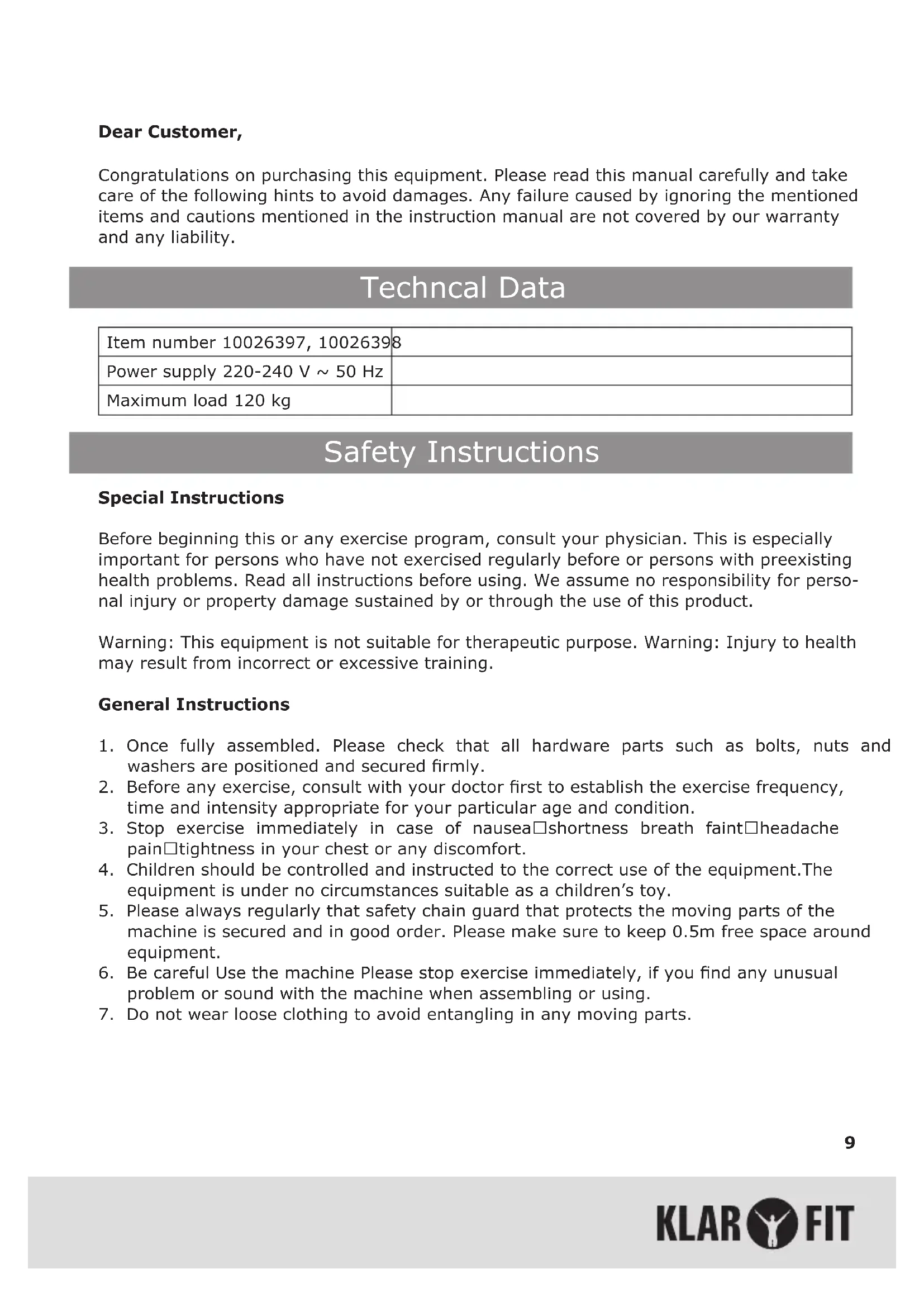

USER MANUAL Goodvibe 10026398 Klarfit

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Technical Data

Item number 10026397, 10026398

Power supply 220-240 V ~ 50 Hz

Maximum load 120 kg

Safety Instructions

Special Instructions

Before beginning this or any exercise program, consult your physician. This is especially important for persons who have not exercised regularly before or persons with preexisting health problems. Read all instructions before using. We assume no responsibility for personal injury or property damage sustained by or through the use of this product.

Warning: This equipment is not suitable for therapeutic purpose. Warning: Injury to health may result from incorrect or excessive training.

General Instructions

1. Once fully assembled. Please check that all hardware parts such as bolts, nuts and washers are positioned and secured firmly.
2. Before any exercise, consult with your doctor first to establish the exercise frequency, time and intensity appropriate for your particular age and condition.
3. Stop exercise immediately in case of nausea shortness breath faint headache pain tightness in your chest or any discomfort.
4. Children should be controlled and instructed to the correct use of the equipment. The equipment is under no circumstances suitable as a children's toy.
5. Please always regularly that safety chain guard that protects the moving parts of the machine is secured and in good order. Please make sure to keep 0.5m free space around equipment.
6. Be careful Use the machine Please stop exercise immediately, if you find any unusual problem or sound with the machine when assembling or using.

7. Do not wear loose clothing to avoid entangling in any moving parts.

8. This machine is only for indoor or family. Users' body maximum weight is 100kg . Person whose body weight exceeds this limit should not use this machine.

9. Be more careful in order to avoid unnecessary hurt when moving this machine.
10. Unsupervised children should be kept away from the equipment.
11. Equipment shall be installed on a stable base and properly levelled
12. Parents and others in charge of children should be aware of their responsibility because the natural play instruct and the fondness of experimenting of children can lead to situation and behavior for which the training equipment is not intended.
13. Class H & C, for home used only
14. WARNING: injuries to health may result from incorrect or excessive training.

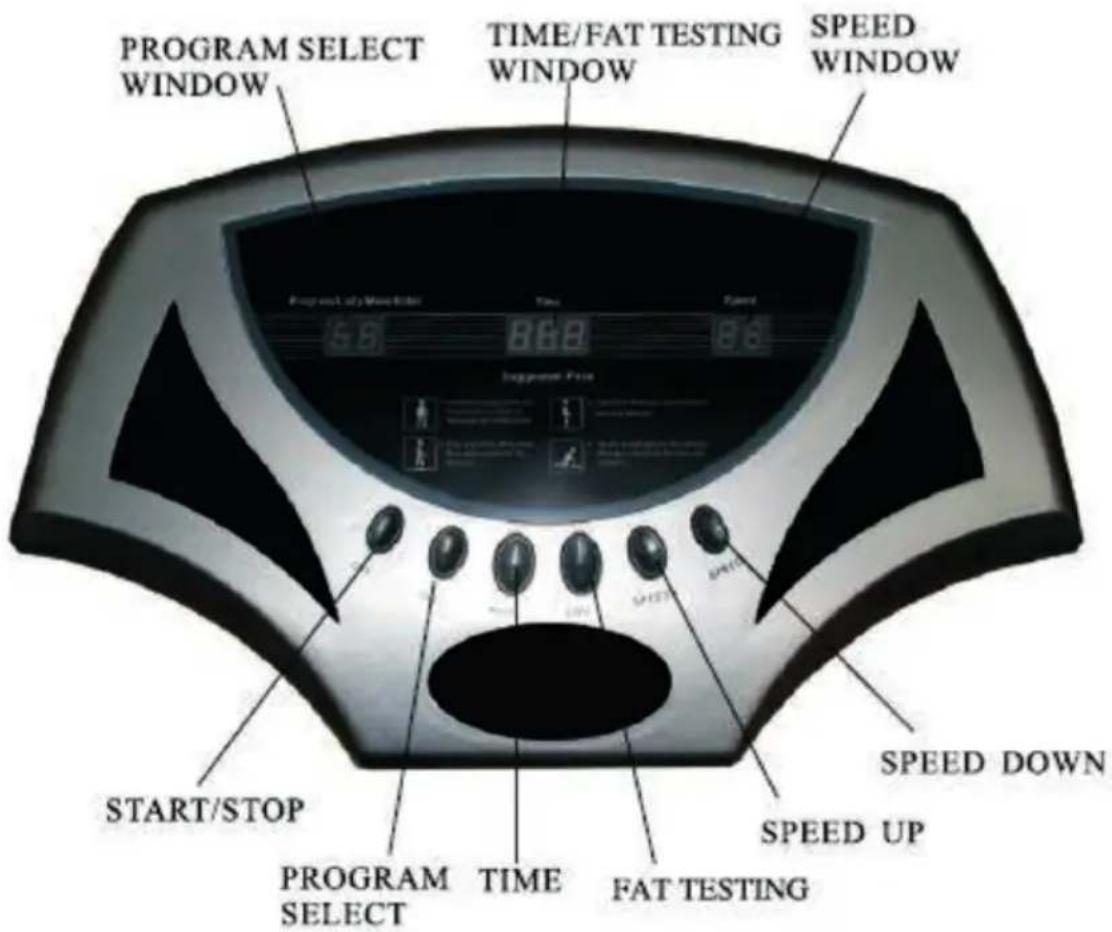

Display

Operation

1. Power on, the PROGRAM SELECT window shows "HL"; TIME window shows "O10", which means timing for 10 minutes; SPEED window shows "00".
2. In any status, press the TIME key to change the show oftime in the middle display window.
3. In the standby status, press the START/STOP key, the machine is in working status, press this key again, the machine come to the standby status again.
4. In any standby or working status, press the PROGRAM SELECT key to choose the working program. They are manual mode "HL", automatic program "P 1", automatic program "P2", automatic program "P3", fat testing program "1" and nomal program "88". Timing for every Program: 10 minutes. On the automatic program, the SPEED key is inactive.

Fat testing mode:

In the standby mode, through the AUTO key to enter the fat testing mode (.,1^ ) , time window to show sex, male 1, female 2, through the speed plus / minus keys to select gender; and then through the TIME key to enter the age of choice: 010-»120, then height selected by the TIME key to enter the (M): 0.10---2.50, then weight selection by the TIME key to enter the (KG):010---150, then press the TIME key to enter the fat testing results show.

Automatic Program Working Mode:

P1	Slowly increase your body's heart rate and vibration resistance. Every 1 minutes, the speed change from Start to 10-25-40»55-70-85-70-55-40-25 , Keep cyclic motion.
P2	Keep your heart rate in the fat burning zone. Every 1 minutes, the speed change from Start to 15-30-45-60-75-20-35-50-65 -80, Keep accelerated motion.
P3	Fartlek training for advanced athletes. Every 1 minutes, the speed changes to 20-50-20-50-90-60-90-60-30-20 Keep ac- celerated motion.

Tools

Fartlek training for advanced athletes. Every 1 minutes, the speed changes to 20-50-20-50-90-60-90-60-30-20 Keep accelerated motion.

Hexagon Screws: 8x30 4pcs

Washers: 8 4pcs

Big Screws: M8x40

Middle Screws:M6x10 7pcs

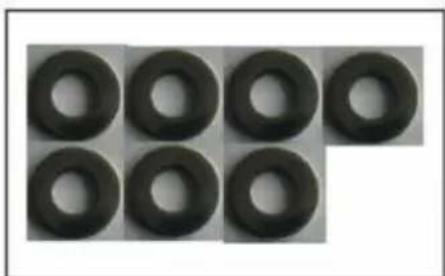

Washers: 6 7 pcs

Hexagon Die Nu:#6

Small Screws: 5X10 4pcs

exagon Die Nu:#5

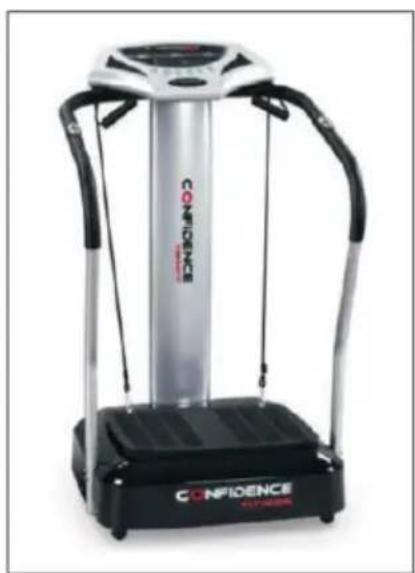

Assembly

P1

P2

P3

P4

P5

P6

P7

P8

P9

1. Lay the main ur1it(PI) on an even surface
2. Take wire (P2) pass it down the middle of the support tube. Please pay attention to have larger connector at the top. Please see the picture carefully (P2)
3. When you assemble the main support tube, make sure the wires remain connected. Than, Connect the bottom connector of wire with the wire in the main unit. Please See the picture (P3) and make sure the wires remain connected.

4. Now, slot the main support tube into the main unit, please see picture P4 Pay attention to use correct tools and screws : Hexagon screws 8x30 The picture P5 shows how the main support tube should look like when connected and assembled.

5. Take the 2 bottom support bars (P6) and place into the main unit. Please make sure the top of the bottom support bars are angled away from the main unit. Take the correct tool and use Middle screws: M6X10 and washers to secure the bottom support bars to the main unit. This should be done at the bottom of the main unit. See picture P6.

6. Take the top support bars and place on top of the bottom support bars. Pay attention that the top bars fit into the main support tube. See picture P7
7. Take the tool and use small screws: 5 × 10 to secure the top support bars to the bottom support bars. Please see Picture P8.
8. Use the correct tool and take the big screws:M8x40 and secure the top support bars to the main support unit. Please see picture P9.
9. Connect the wires of the control panel to the wires of the main support tube. Please see picture P10.
10. Place the control panel onto the main support tube and feed the wires inside the main support. Please to picture P11.
11. Finally, using screws M6X10 at the bottom side of the control panel. Then, use tool to secure the control panel to the main support tube. Make sure to secure the front screw first, than screw on two sides.

P10

P 11

P12

P13

Excersice Description

There are many exercise that you can select for your workouts depending on the area of the Body you choose to exercise, your level of fitness and your personal exercise objectives. However, We have selected a set of four core exercise (postures), which can be performed in manual mode. These four exercises are described in full as follows:

Standing Posture: Stand up straight with your feet hip Width apart. Hold the handle. Function: This will exercise the back, waist, buttocks, chest and abdomen.

Knee Bend Posture: Stand on the foodboard, hold the handle. Bend your knees at 80 degrees, knees should not be bent over your toes. Function: This will exercise the buttocks and thighs.

Tiptoed Posture: Stand up straight and rise onto your tiptoes. Function: This will exercise the calves, buttocks and thighs.

Runaway Posture: Place your hands either side of the footboard. Bend one the leg as if you were about to run and hold the position. Function: This will exercise the shoulder, back, arms and chest.

Hints on Disposal

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

EN957
