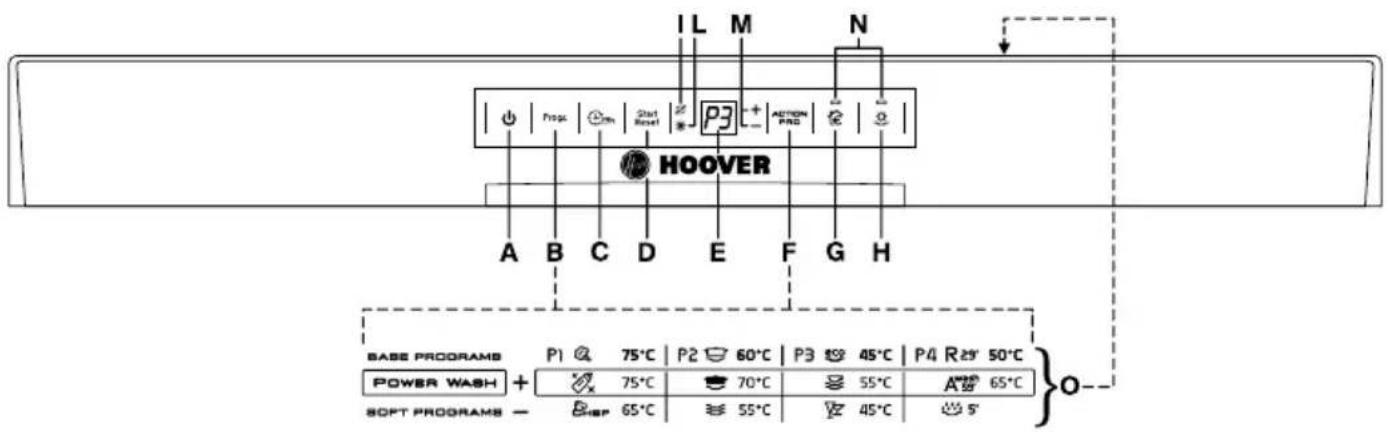

DESCRIPTION OF THE CONTROL PANEL

IL M N HOOVER A B C D E F G H BASE PROGRAMS P1 75°C P2 60°C P3 45°C P4 R29 50°C POWER WASH + SOFT PROGRAMS - 65°C 70°C 55°C 65°C O-

A "ON/OFF" button
B "PROGRAMME SELECTION" button
C "DELAY START" button
D "START"/"RESET" button (start/cancelling programme)
E Digital display
F "ACTION PRO" button
G "SUPER ECO" option button

H "EXTRA DRY" option button
I "SALT EMPTY" light
L "RINSE AID EMPTY" light
M "ACTION PRO" lights
N "OPTION SELECTION" lights
O Programme guide

DIMENSIONS
	With working top	Without working top
Width x Height x Depth (cm) 60 x 85 x 60		59,8 x 82 x 57,3
Depth with door open (cm) 120		117
TECHNICAL DATA
EN 50242 place load		15
Capacity with pans and dishes		9 persons
Water supply pressure (MPa)		Min. 0,08 - Max. 0,8
Fuse / Power input / Supply voltage		See rating plate
CONSUMPTION (main programmes)*
Programme Energy (kWh) Water (L)
STEAM	2,03	20
UNIVERSAL	1,43	14
ECO	0,94	10
RAPID 29'	0,73	9
Power consumption of the off-mode and of the left-on mode: 0,45 W / 0,45 W
*Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage).

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

"ACTION PRO" button

ACTION PRO

This button allows you to change the wash intensity, according to how dirty your dishes are, by adjusting the wash time and temperature.

The combination of the button with the 4 main wash programmes enables to have 8 additional wash cycles (achieving a total of 12 programmes of washing).

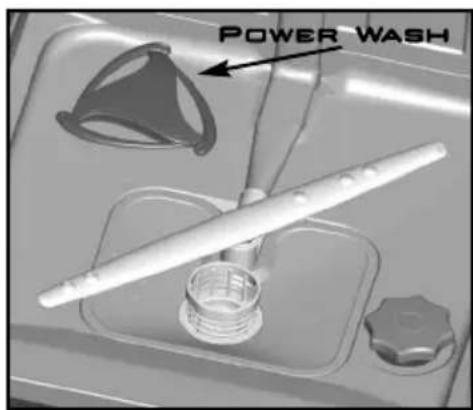

POWER WASH +

By pressing the "ACTION PRO" button once (indicator light +) the intensity of the wash cycle will be increased and will enable the wash action of the third cleaning arm, positioned at the bottom of the dishwasher ("POWER WASH").

This function allows cleaning of heavily soiled tableware or cookware, by placing them directly in the area of the basket above the "POWER WASH".

POWER WASH

SOFT PROGRAMS —

By pressing the "ACTION PRO" button twice (indicator light —) the intensity of the wash cycle will be decreased, reducing the wash length time.

IMPORTANT

When the dishwasher is switched on, the last used setting will be indicated.

Programme settings

■ Open the door and place the dirty dishes inside the appliance.

■ Press the "ON/OFF" button ⏻. The display will show two lines.

■ Choose a programme by pressing the "PROGRAMME SELECTION" button.

■ If you wish, press the "ACTION PRO" button.

■ If you wish to select an option, press the corresponding button (the indicator light will turn on).

■ Press the "START" button. The length of the program will be shown on the display alternating hours with minutes [I.e: 1 h (1 hour) / 25 (25 minutes)].

■ When the door is shut, after an audible signal has sounded, the programme will start automatically. The display will show the time remaining to the end of the cycle.

"IMPULSE" programmes

The "IMPULSE" programmes use an impulse washing technology, which reduces consumption, noise and increases performances.

IMPORTANT

The “intermittent” working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme.

Programme interruption

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off.

IMPORTANT

A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off.

WARNING!

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running program:

■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound.
■ The running programme will be cancelled. The display will show two lines.
■ At this point a new programme can be set.

WARNING!

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

Programme operations

Whilst a programme is running, the display shows the time remaining to the end of the cycle, which is automatically updated.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme end

A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended.

The display and all the indicator lights will switch off.

Option buttons

"SUPER ECO" button

This button provides an energy and time saving of 25% on average (according to the select cycle) reducing the wash water temperature and the drying time during the final rinse.

This programme is recommended for light soil washes, and for slightly wet dishes that are not fully dry, & improved drying results. We advise you to leave the door of the Dishwasher half-open at the end of the cycle, to allow for a natural circulation of air inside the dishwasher.

"EXTRA DRY" button

This option allows you to achieve the highest efficiency in drying, increasing the wash water temperature during the last phase of washing cycle.

IMPORTANT

The options "EXTRA DRY" and "SUPER ECO" are incompatible and therefore cannot be activated in the same washing cycle.

"DELAY START" button

Dishwasher start time can be set with this button, delaying start from 1 to 23 hours.

Proceed as follows to set a delayed start:

■ Press the "DELAY START" button ("00" will appear on the display).
■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23).
■ To start the countdown, press the "START" button.

The display will show the time remaining to the begin of the programme.

At the end of the countdown, the programme will automatically start and the length of the selected cycle will be shown in the display.

Proceed as follows to cancel a delayed start:

■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound.
■ The delayed start and the selected programme will be cancelled. The display will show two lines.
■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section.

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

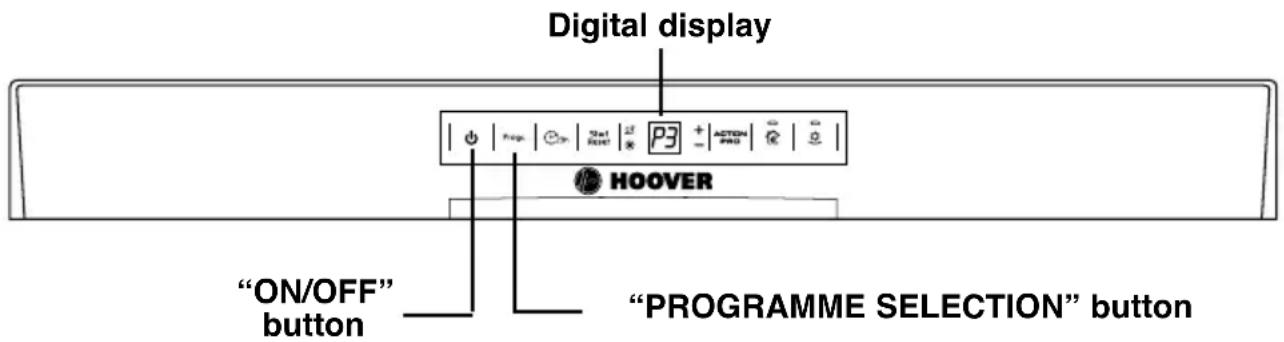

IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 15 seconds (during this time 2 audible signals will sound).
3. Release the button when the second audible signal sounds ("b1" will appear on the display to indicate that the alarm is on).
4. Press the same button again ("b0" will appear on the display to indicate that the alarm is off).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To turn the alarm on again, follow the same procedure.

Memorization of the last programme used

The last programme used can be memorized by following the below:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 30 seconds (during this time, 3 audible signals will sound).

3. Release the button when the THIRD audible signal sounds ("A0" will appear on the display to indicate that the memorization is off).

4. Press the same button again ("A1" will appear on the display to indicate that the memorization is on).

5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To disable the memorization, follow the same procedure.

IMPORTANT

This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur.

WARNING!

To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

The dishwasher is able to signal a series of faults in the display.

AUTOMATIC FAULT SIGNALS

FAULTS CAUSE SOLUTION
E2 appears on the display and the alarm sounds.	No water (inlet hose closed).	Turn off the dishwasher, open the inlet hose and reset the cycle.
E3 appears on the display and the alarm sounds.	The machine cannot drain water.	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E4 appears on the display and the alarm sounds.	Water leak	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E5,E6,E7,Ef or EL appears on the display and the alarm sounds.	Electronic control fault.	Contact Customer Service.
E8 or Ei appear on the display and the alarm sounds.	The water heating element is not working correctly or the filter plate is clogged.	Clean the filter plate.If the problem persists, contact Customer Service.

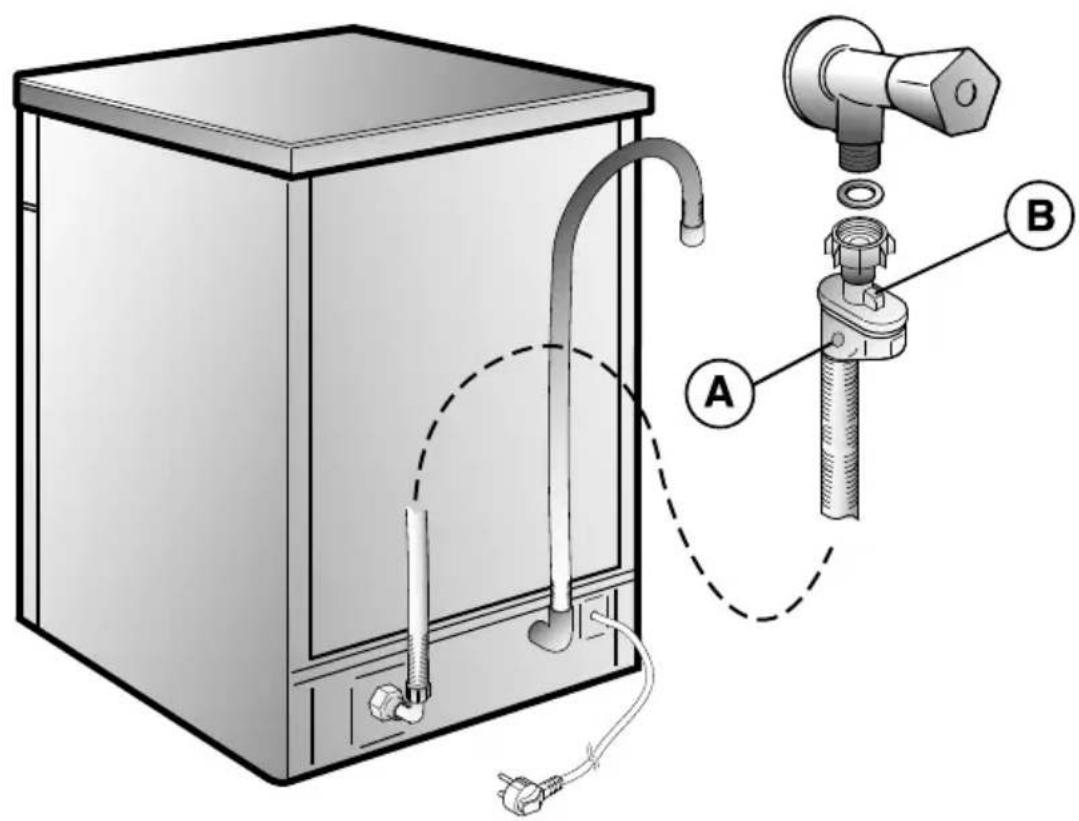

WATERCONTROL-SYSTEM

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose.

In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine.

This fault is shown by a red sector on the window Ⓐ.

Would this occur, please refer to your Service Agent.

If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent.

B Safety antitwist device (press and twist to remove the washer).

Technical diagram of a mechanical device with labeled parts A and B, showing pipe connections and internal components.

PROGRAMME GUIDE

Wash with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine.

Programme

Description

P1POWER WASH +		Hygiene+75°C	An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies' bottles etc.
P1BASE PROGRAMS		STEAM75°C	Cycle with alternated action of water jets and steam. Effective in softening and removing dried up soil and bacteria, with no need to pre-wash pots and dishes.
P1SOFT PROGRAMS —		Chef65°C	Intended for rapid washing of very dirty dishes.

P2POWER WASH +		Family70°C	Intended for everyday dishwashing. Two final rinses ensure a high level of hygiene and cleanliness.
P2BASE PROGRAMS		UNIVERSAL60°C	Once a day - for normal soiled pans and any other items that have been left all day for washing.
P2SOFT PROGRAMS —		Daily55°C	Fast cycle, for “normally” dirty dishes - intended for frequent washes and normal loads.

P3POWER WASH +		Eco Plus55°C	A medium temperature programme, intended for washing pans and dishes that are “normally” dirty, using detergents which contain enzymes.
P3BASE PROGRAMS	eco	ECO45°C	Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware).Programme standardised to EN 50242.
P3SOFT PROGRAMS —		Cristal45°C	Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.

* WITH HOT WATER THE TIME REMAINING UNTIL THE END OF THE PROGRAMME IS AUTOMATICALLY DISPLAVED WHILE THE PROGRAMME IS RUNNING.

P4POWER WASH +

Awash 59'

A Wash 59'65°C

Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load).- WASHING CLASS A-

P4BASE PROGRAMS

R29'

RAPID 29'50°C

Quick wash for dishes which are to be washed immediately after the meal. Wash load of 4/6 persons.

P4SOFT PROGRAMS —

Pre-wash

Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

Check list

Programme contents

Avarage duration in minutes

Special function buttons available

Detergent for soaking (Prewash)

Detergent for washing

Clean filter

Check rinse aid dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse with rinse aid

With cold water (15°C)*-Tolerance ± 10%-

"DELAY START" button

"SUPER ECO" button

"EXTRA DRY" button

●

●

●●

○

●

75°C

○

○

○

140

YES

YES

YES

●

●

●●

○

●

75°C

○

○

○

130

YES

YES

YES

●

●

●●

○

●

65°C

○

○

85

YES

YES

YES

●

●●

●○

70°C

○

○

○

125

YES

YES

YES

●

●●

●○

60°C

○

○

120

YES

YES

YES

●

●●

●○

55°C

○

○

80

YES

YES

YES

●

●●

●○

55°C

○

○

190

YES

YES

YES

●

●

●●

○

45°C

○

170

YES

YES

YES

●

●●

●○

45°C

○

○

85

YES

YES

YES

●

●

●●

○

●

65°C

○

59

YES

YES

N/A

●

●●

●

50°C

○

29

YES

N/A

N/A

●

○

5

YES

N/A

N/A

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener

The water softener can treat water with a hardness level of up to 90^ fH (French grading) or 50^ dH (German grading) through 8 settings.

The settings are listed in the table below:

Level	Water hardness		Use of regenerating salt	Water softener setting
	°FH (French)	°dH (German)
0	0-5	0-3	NO	d0
1	6-10	4-6	YES	d1
2	11-20	7-11	YES	d2
3	21-30	12-16	YES	d3
*4	31-40	17-22	YES	d4
5	41-50	23-27	YES	d5
6	51-60	28-33	YES	d6
7	61-90	34-50	YES	d7

* The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users.

Regulate the setting of your water softener unit according to the degree of hardness of your water as follows:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 5 seconds, UNTIL a brief audible signal sounds. The current water softener setting level will be shown on the display.
3. Press the same button again to select the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".
4. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Digital display HOOVER "ON/OFF" button "PROGRAMME SELECTION" button

Technical diagram of a mechanical assembly with labeled parts A and B, showing pipe connections and components.

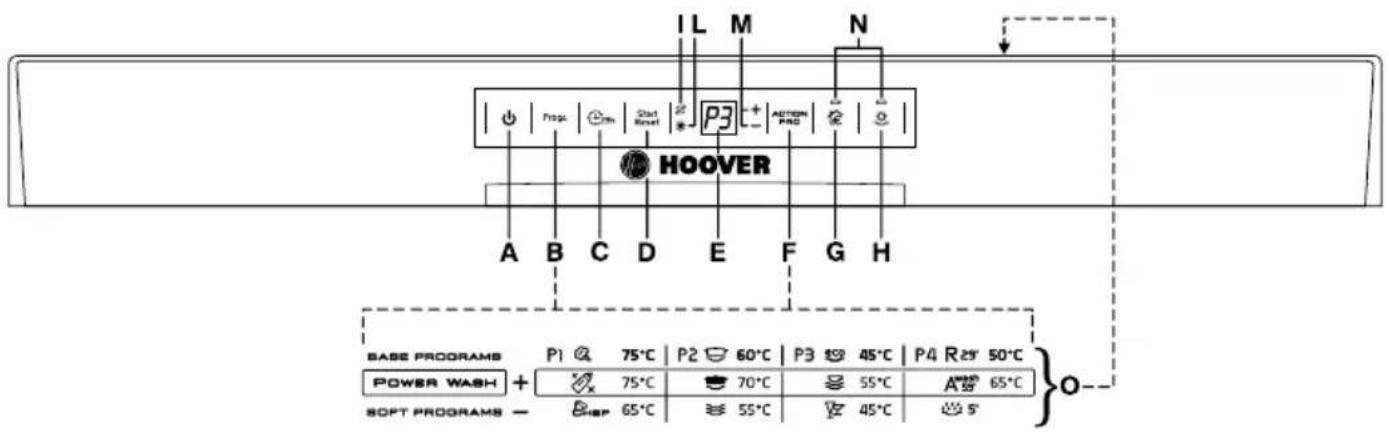

DESCRIPTION DE LA MACHINE

IL M N HOOVER A B C D E F G H BASE PROGRAMS P1 75°C P2 60°C P3 45°C P4 R25 50°C POWER WASH + SOFT PROGRAMS - 65°C 70°C 55°C 65°C Power WASH + 65°C 70°C 55°C 65°C SOFT PROGRAMS - 65°C 70°C 55°C 65°C

A Touche "MARCHE/ARRÊT"
B Touche "PROGRAMMES"
C Touche "DEPART DIFFERE"
D Touche "START"/"RESET" (départ/annulation programme)
E AFFICHEUR
F Touche "ACTION PRO"
G Touche option "SUPER ECO"

H Touche option "EXTRA DRY"
I Voyant "MANQUE DE SEL"
L Voyant "MANQUE DE PRODUIT DE RINÇAGE"
M Voyants "ACTION PRO"
N Voyants "SÉLECTION D'OPTION"
O Description des programmes

Programmes "IMPULSE"

Touche "DEPART DIFFERE"

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and connections.

LISTE DES PROGRAMMES

Programme

Description

N/A = OPTION NON DISPONIBLE

WATERCONTROL-SYSTEEM

Technical diagram of a mechanical assembly with labeled parts A and B, showing pipe connections and components.

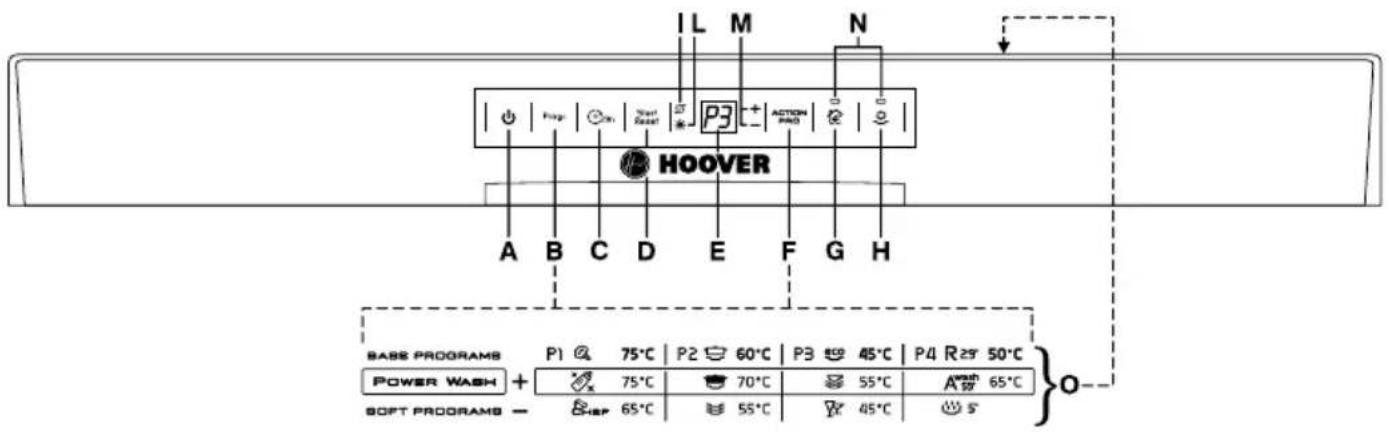

DESCRIPCION DE LOS MANDOS

IL M N HOOVER A B C D E F G H BASE PROGRAMS P1 75°C P2 60°C P3 45°C P4 R29 50°C POWER WASH + SOFT PROGRAMS - 65°C 55°C 45°C 5 O--

Technical diagram of a mechanical device with labeled parts A and B, showing connections between a housing, tubing, and a valve assembly.

RELACION DE LOS PROGRAMAS

Technical diagram of a mechanical device with labeled parts A and B, showing connections between a housing, tubing, and a valve.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
