AF112828 - Deep fryer Emerio - Free user manual and instructions

Product type	Air fryer
Brand	Emerio
Model	AF112828
Power supply	220-240 V ~ 50/60 Hz
Power	1400 W
Maximum capacity (fries)	750 g
Adjustable temperature	Yes, from 80 °C to 200 °C (via knob)
Timer	Yes, up to 60 minutes, with auto shut-off and beep
Main functions	Oil-free frying, grilling, hot air cooking
Basket material	Non-stick coated metal
Cooking grid	Removable, with silicone supports
Cleaning	Basket and grid dishwasher safe; exterior surfaces with a damp cloth
Safety	Auto shut-off by timer; hot surface indicated; do not immerse
Warranty	2 years
Customer service	Emerio Deutschland GmbH, Tel. [phone], [e-mail]
Included accessories	Basket, cooking grid

Frequently Asked Questions - AF112828 Emerio

How to use the air fryer for the first time?

Before first use, remove all packaging. Clean the basket and the cooking grid with hot water and dish soap, then dry them. Wipe the inside and outside of the appliance with a soft, damp cloth. Run the appliance empty for about 10 minutes at medium temperature (180 °C) to burn off manufacturing residues. Ensure good ventilation; a slight smoke or odor is normal.

Why won't my appliance turn on?

Check that the appliance is properly plugged into a grounded outlet. Make sure the timer knob is set to a cooking time (position other than 0). If the basket is not inserted correctly, the appliance may not work. If the problem persists, contact customer service.

How to clean the basket and grid?

Let the appliance cool down for at least 30 minutes. Remove the basket and grid. Wash them with hot water, dish soap, and a non-abrasive sponge. They are also dishwasher safe. Dry them completely before reuse. For the heating element, use a soft cleaning brush.

How many fries can I cook at once?

The recommended optimal amount is 600 grams of fries. The indicated maximum capacity is 750 g for frozen fries. Do not exceed the limit to ensure even cooking and prevent food from overflowing.

Why is white smoke coming out of the appliance?

White smoke may appear when cooking high-fat foods (e.g., fatty meat). This vapor is normal: oil or fat drips into the basket and produces smoke. Clean the basket after each use to avoid greasy residues. If the smoke turns black, turn off the appliance immediately.

Can I use aluminum foil or a baking pan in the air fryer?

Yes, you can place a mold or an oven-safe dish in the basket to cook delicate preparations like cakes or quiches. Avoid blocking air circulation. Aluminum foil can be used, but make sure not to cover the entire grid to allow proper heat circulation.

How to set the temperature and cooking time?

Use the temperature knob to select the temperature (80-200 °C) suitable for your food. Turn the timer knob to the desired time (up to 60 minutes). The appliance turns on and the heating indicator lights up. A beep sounds when cooking is finished. You can also turn it off manually by turning the timer to 0.

What to do if the food is not cooked evenly?

Some foods need to be shaken halfway through cooking. Pull the basket by the handle, shake it or turn the ingredients with a fork or tongs, then reinsert it. Use smaller quantities for better evenness. Also check that the selected temperature is appropriate.

Can the appliance be used to reheat food?

Yes, you can reheat food by setting the temperature to 150 °C and time to about 10 minutes. Note: the air fryer is not designed to reheat very fatty ingredients. For best results, shake or stir halfway.

What to do in case of malfunction or burning smell?

If you see black smoke or smell a strong burning odor, turn off the appliance immediately and unplug it. This may indicate that the food is overcooked or a component is defective. Let it cool down, clean the appliance. If the problem persists, contact Emerio customer service at [phone].

USER MANUAL AF112828 Emerio

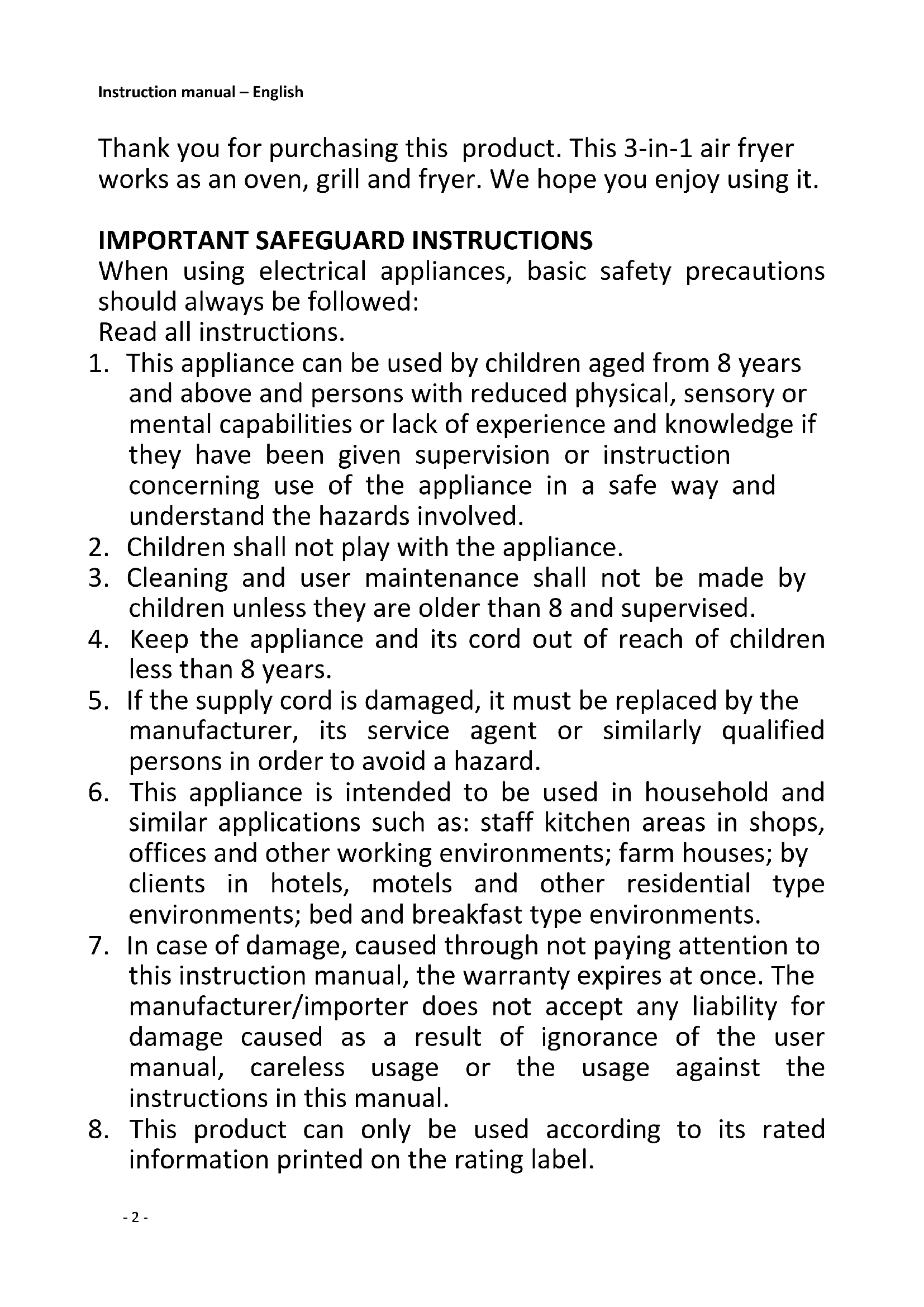

Thank you for purchasing this product. This 3-in-1 air fryer works as an oven, grill and fryer. We hope you enjoy using it.

IMPORTANT SAFEGUARD INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed:

Read all instructions.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. In case of damage, caused through not paying attention to this instruction manual, the warranty expires at once. The manufacturer/importer does not accept any liability for damage caused as a result of ignorance of the user manual, careless usage or the usage against the instructions in this manual.

8. This product can only be used according to its rated information printed on the rating label.

9. This product is for indoor use only! It is not suitable for outdoor use.

10. Please prevent the product to be exposed to excessive dirt and humidity.
11. Any other way of operating the product, except the described one, will lead to dangers such as short circuit, fire or else. It is not allowed to modify this product in any way and the housing has not to be opened, otherwise the product will not be any longer in compliance with its safety class.
12. Never connect or disconnect the plug with wet hands.
13. Never unplug the plug by pulling the power supply cord. Always pull the plug itself.
14. During installation/cleaning, please pay attention that the power supply cord will not be squeezed or damaged.
15. Always disconnect the appliance from the mains and allow the product to cool down to room temperature: before storing away the appliance; before cleaning or maintenance; after use; if you are not going to use it for a long period of time.
16. Clean the product itself with a slightly damp cloth.
17. Never replace a damaged power supply cord by yourself. In such case, or in case of malfunction, contact an authorized electrician/service centre for examination, repair or adjustment because special tools are required.
18. Make sure that the power supply cord does not come into contact with any parts, which generate excessive heat.

19. If you assume that the operating of the product without danger is not any longer possible please make sure that the product will be disconnected and not used any longer. The safe operating of this product is not any longer possible, if: the product or the power supply cord is damaged in any way; the product does not work any longer; after a longer storage under unfavourable conditions; after heavy damage through transportation.

20. Never immerse the plug or the appliance in water or other liquid.

21. Never place the appliance directly into corners and under flammable materials such as curtains, cupboards etc.
22. Never leave the appliance unattended during use.
23. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
24. This appliance is not designed for commercial use.
25. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.
26. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.
2. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

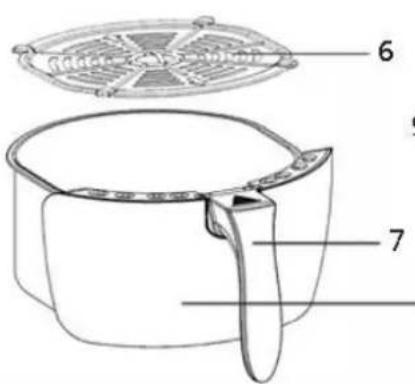

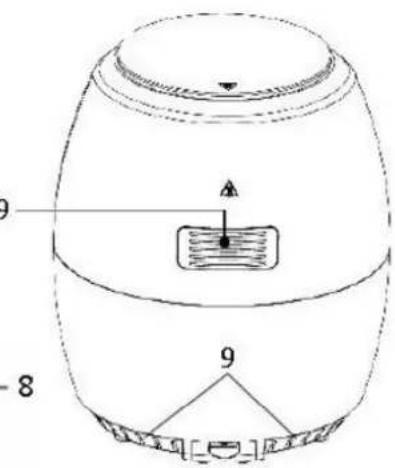

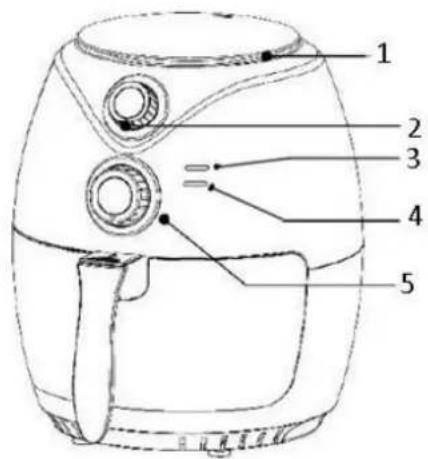

PARTS DESCRIPTION

1. Air inlet
2. Temperature control knob
3. Heating light
4. Power light

5. Timer knob

6. Frying grill

7. Basket handle
8. Basket
9. Air outlet

BEFORE USE

First read all instructions before use and retain for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the basket and frying grill. (See "cleaning and maintenance") Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil.

Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Note: Always use the frying grill with the silicone cases attached. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable surface.

2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.

3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.

4. Place the ingredients into the basket. Slide the basket into the appliance. Make sure they are placed correctly and closed completely. Otherwise the appliance will not work. Caution: Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.

5. Connect the power plug to a suitable outlet.

6. Set the temperature control knob to the required temperature setting, which is suitable for what you are frying. Consult the temperature table.

7. Turn the timer knob to choose the appropriate frying time. The appliance is switched on and both of the power and heating lights illuminate.

8. During the hot air frying process, the heating light comes on and goes out from time to time. This indicates that the heating element is switched on and off to maintain the set temperature.

9. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "0".

10. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance and set the timer to a few extra minutes.

Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance steam may escape from the pan.

1. To remove ingredients (e.g. beef, chicken, meat) with original oil and will have excess oil collected on the bottom of the basket during frying, please use tongs to pick ingredients one by one.. To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware.
2. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

FRYING TIPS

1. The optimal amount for crispy fries is 600 grams.
2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also let the appliance preheat approx. 4 minutes without any ingredients inside.
3. Some ingredients require shaking halfway through the reparation time. To shake or turn over the ingredients, pull the basket out of the appliance by the handle and shake it or turn over the ingredients by fork (or tongs). Then slide the basket back into the appliance.
4. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ for up to 10 minutes.
5. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.
6. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile ingredients.
7. Do not prepare extremely greasy ingredients such as sausages in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the oil catch pan with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.

FRYING TABLE

This table shows the food product quantities and required temperature and frying times. If the instructions on the product pack should deviate from the values shown in this table, the instructions on the pack should be followed.

Food	Min-max Amount (g)	Time (mins)	Temp (°C)	Notes
Thin frozen chips	300-750	12-16	200	Turn over if needed
Thick frozen chips	300-750	12-20	200	Turn over if needed
Home-made potato chips	300-750	18-22	180	Add 1/2 tbsp of oil, shake
Beefsteak	100-600	8-12	180	Turn over if needed
Chicken chops	100-500	10-14	180	Turn over if needed
Hamburger	100-600	7-14	180	Add 1/2 tbsp of oil, shake
Sausage rolls	100-800	13-15	200	Add 1/2 tbsp of oil, shake
Chicken drumstick	100-700	18-22	180	Add 1/2 tbsp of oil, shake
Chicken breast	100-700	10-15	180	Turn over if needed
Spring roll	100-800	8-10	200	Turn over if needed
Vegetable	100-800	10	180

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it after pull out the basket) with a cleaning brush to remove any food residues.

Note: The basket and frying grill are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Turn the timer knob to the required preparation time to switch on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is over.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The temperature is too low.	Turn the temperature control knob to the required temperature.
The ingredients are fried unevenly.	Different types of food may need to be shaken halfway.	Shake food halfway.
Basket cannot be slipped into the housing properly.	Too much food in the basket.	Put less amount of food in the basket.
White smoke comes out from the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients, oil will leak into the basket. The oil produces white smoke and the basket may heat up. This does not affect the cooking result or hurt the appliance.
	The basket still contains grease residues from previous use.	Clean the basket properly after each use.

TECHNICAL DATA

Operating voltage: 220 - 240V 50 - 60Hz

Power: 1400W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts

is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

IOJIe3HbIE COBETbI NO PnIroTOBLeHNIO:

1. Ontmalbna Macca npucn dny nprirotobneHn xpyctauee KaptooKn fpi coCTabJeT 600 rpaMm.
2. Ecn np6op do 3toro He nCnoB3oBcA, peKomeHnyem Do6aBnTb 3 MHyTb K BpeMeHn npiroTOBHeHn BaWero 6IIOda, yTo6bI DaTb np60py HarpTeBCa I 4 MHyTb, ecnn npOdykTb eue He yloKeHb B Kop3Hv.
3. HeKoTOpbIe npOdykTbI Tpe6yIOT nepNoDiuYeCKOrO BCTpXnBaHnRA BO BpeM npNroTOBHeHnRA. YTo6bl BCTpXHyTB nII nepeBepHyTB nX, BblTaUHTe KOp3nHy n3 np6opa 3a pyKy n BCTpXnHTe npOdykTbI nII nepeBepHnTe nX, nCNoJIb3yI uINuCbI nII BNlyKy. 3aTeM BCTaBBTe KOp3nHy o6paTHo B np6op.
4. Bby taKke moKeTe nCnoJIb3ObaT npI6Op IaI pa3OrpeBa paHee npIroTOBJIeHHbIX 6JIIOd. YTo6bl pa3OrpeTb 6JIIOdo, yCTaHOBtE Tempeatypy Ha 150C, a TaIMep Ha 10 MNHyT.
5. Ecnn Bbl XOTnTe, YTObI Ha BaWeM 6JIoDe nOaBnIacb XpyCTaJaa KOpOuKa, To peKOMeHdyem c6pbI3rNBaTb erO He6oJIbShm KOJInuEcTBom pAcTIteMbHorO Macna.
6. EcnB bXOTnTe npiroTOBnTb npor, npoxKhIe c 3aBapHbIM KpeMOM nn 6JIIO, Tpe6yUoee HeXHorO o6paueHnY, yCTaHOBnTe foOpMy dIy BIIneuKn B np6op.
   7.He nCnoIb3yIe np6op dI npuroToBleHnOco6eHNO XnpHbIX 6liO,I, HApPmEp, cocuK nn KoiBacok.

BHIMAHNE:

1. He norpykaite Kopnyc npnbopa B Body n He onoJaCKBaIte ero noJ KpaHOM.
   2.ИЗбагаTe nonаданнждкocTиВ np6Op BO n36жанne kopoTkoTO 3ambikaHnA.
2. FToOBbTe BCE npOdyKtBi B KOp3HHe, yTO6bl N36eKaTb Hx COnpNkoCHOBehn C HarpeBaTeJbHbIM 3JeMeHTOM.
3. He 3aKpbIbAitE OTBepCTnI DnI BxOda N BbIXoDa BO3dyxa BO BpeM pa60Tb I np6opa. Bokpyr np6opa nHaHm Heo6xoDIMO OCTaBtB MmHmym 10 cm CBO6oJHO rpoctpaHCTBa.
4. Плhoe залоннe и перелоннe Maclon Kop3nHb MoKeT npBecTu K noxapy.
5. He npikacaiTecb K BHyTpennHm qactm npnbopa BO Bpemr eropa60tbl.
   7.БудTe aKKypaThbIиИЗбeraIte KOHTaKtac rOpym napOM, KOrda BblHMaTe KoP3Hy n3 np6opa.
   8.Bo Bpempa6oTbI np60pa ropuH nap BbIXOHT uepe3 BbIXOHDoe OTBepCTne. DepeKnte pyKn IInuo Ha 6e3onachom pacctoHHn OT Hero.
6. HemeJeHHO BbIKIOHTe N OTKIOHTe np6Op OT ceTn, ecIn BBYBNDte BbIXOJaun n3 Hero TemHbI bIM. 3TO O3Haayet, YTO BaSe 6JIOc cropeNo nn np6Op cIOMaJIcR.

TASUNCA 3HAUENI INPNIROTOBJEHIN:

B 308 T6bIue yka3aHO KOJIueCTBO npOyKTA n Tpe6yeMoe Bpemn I TeMnepaTpyd ernpuroTOBHeH.N. Ecln INHOpMaunHa ynaKOBKe npOyKTA otInuayeTcR OT HOpMaunn B daHHoTb6nue, cIeDyIte INHCTpykUnn Ha yNaKOBKe.

Ha defeekbl, BO3HnKwne BCJeCTBne HnpabnIbHoro nCNoIb3OBAHn np6oPA, a TaKHe Ha HeNCpapBHOCTN, npOn30weDnne BCJeDCTBnpe pmoHTa np6oPA HecepTnΦnUnpOBaHHbIMn ceHTpaMn IIn TpeTbIMn IInaAMn, a TAKKe BCJeDCTBnne ycTaHOBKn HeOpunHaJIbHbIX DeTaleN, daHHa rapaHTnR He pacnpoctpaHReTc.

Bcerda coxpaHnTe yeK n rapaHTnHbI TaHOh. Be3 Hnx Bbl He cMOKeTe ppeTeHdoBaTb Ha KaKyIO-JIn6o fOpMy rapaHTnN.

Uuep6, BbI3BaHbI Heco6IIODeHnEM DaHHoIN HCTpyKcHn, PpNBOHT K TOMy, qTO rapaHTna Ha np6op aHHynpuYetc. Ipn3BOInTeJIb He HecET OTBeTCTBeHHOCTN 3a NoHeceHHbIe BCJeCTBnE 3TOrO paCXoDbI. Ipn3BOInTeJIb TAKKe He HecET OTBeTCTBeHHOCTN 3a MaTePnAJIbHbIy Use6 pII IN TpaBMbl, NOLyHeHHbIE BCJeCTBnE HnPaBnIbHOro NCNoIb3OBaHnI np6opa, BbI3BaHHOro OTCyTCTBnEM BHNMaHnI K daHHoIN HCtpyKcHn. Iolomka nII NobpeJdeHne akceccayapOB He O3Naaet 6ecNlathyIO zAmEHy BCero np6opa. B TAKOM Clyuae, NOJaIyIcTa, CBXInTeCb c cepBnCHbIM cHTpOM. 3aMeHa pa3bIX CTekOI nII NOBpeJdeHHbIX NNactNKobblx DeTalei Bcerda Ipn3BOInTcH Na IIaTHOH oCHObe. Iolomka paCXoIHbIX MaTePnAIOB nII DeTalei, NOBpeJcHbIX IN3Hocy, a TaKke OuncTka, TexHueeCKoe 6ClykNBaHne nII 3aMeHa yKa3AHbIX YacTeH He NOKpbIAOTc rapaHTneI n ONlaUNBAOTc OTdJIbHO.

BE3OJACHA YTNIN3AUINB OKPYXAIOLIEN CPEDE:

Ipepea60ka oTxoOob - ebponeickaj dIpeKtNbA 2012/19/EU

Данная Маркировka ob03нааeТ,чTo np6bOp He noJleKHT yTuIn3aunC dpyrHm 6bIToBbIMN OTxOdAmn. YTO6bl npedOTbpaTntb BO3MOxHbI BpeD OkpyKaIOUeN cpeDe n 3dopOBbIO JIoDeN, yTuIN3npyuTe 6bITOBbIe np6bOpbI OTBeTcTBeHNO,чTo TAKKe 6yDet cnOCo6CTBOBaT bYcTouHbOMy NOBtOPHOMY NcNoJIb3OBAHnIO MaTePnaJIbHbIX pecypcoB.ДЯ yTuIN3aUnn np6bOp,aNoXaLyNCTa, IcNoJIb3yIte CnCTeMbI BO3BpATA n c6opa 3JIeKTpOprnp6bOpB IIn6 CBJXnTEcb c npodAucm. OH

ytnn3npye npnbop npabNbHO.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Cnyk6a noDpeKKn KIneHTOB

T: [phone]

E: [e-mail]
