Product Type	Quartz chronograph wristwatch
Brand	Jaguar
Model	J853 Executive
Case Diameter	Approximately 40 mm
Case Thickness	Approximately 12 mm
Approximate Weight	100 g
Power Supply	Battery (type SR626SW or equivalent)
Display	Hands (hours, minutes, seconds) + chronograph subdials (1h, 20min, 10s)
Main Functions	Time display, date, chronograph (start/stop/reset, split time measurement, totalization)
Time Setting	By crown in position III, with hacking seconds
Quick Date Correction	By crown in position II
Chronograph Hand Reset	By pressing pusher B
Chronograph Hand Zero Adjustment	Procedure by pulling crown and simultaneously pressing pushers A and B
Care and Cleaning	Clean with a soft, dry cloth. Avoid contact with water and chemicals.
Available Spare Parts	Battery, crown, pushers (on request from the manufacturer)
Warranty	Statutory compliance warranty (see conditions at point of sale)

Frequently Asked Questions - J853 Executive JAGUAR

How to set the time on the Jaguar J853 Executive?

Pull the crown to position III to stop the seconds hand. Turn the crown until the desired time is displayed (e.g., 08:45). Push the crown back to position I. For precise second setting, pull the crown when the seconds hand is at 60.

How to quickly correct the date?

Pull the crown to position II (the watch continues running). Turn the crown until the current date appears. Push the crown back to position I. Avoid setting the date between 9 PM and 12 PM during the calendar advance phase.

How to use the chronograph (start/stop/reset)?

Press pusher A to start timing. Press A again to stop. Read the subdials (hours, minutes, seconds). Press pusher B to reset the hands to zero.

How to measure a split time?

Start timing with A. Press B to display the split time (hands stop but timing continues). Press B again to catch up to real time. End with A for the final time, then reset with B.

How to totalize times?

Start with A. Stop with A (e.g., 15 min 5 s). Restart with A (Restart). Stop again with A (e.g., an additional 13 min 5 s). The total time is the sum of the two periods (28 min 10 s). Reset with B.

What to do if the chronograph hands are not at zero position?

After a battery change, pull the crown to position III. Press A and B simultaneously for at least 2 seconds. The seconds hand rotates. Use A to adjust the seconds hand step by step or continuously, then B to move to the hours hand, then to the minutes hand. Push the crown back to position I.

How to set the time and date after a battery change?

Pull the crown to position II and set the date to the day before yesterday. Then pull to position III, set the date to the current day, then the time (respecting AM/PM). Push the crown back to position I. Follow the precise second setting procedure if needed.

Is the watch water-resistant?

The manual does not specify the water resistance level. As a precaution, avoid any contact with water and remove it for washing dishes, showering, or swimming.

How to clean the watch?

Use a soft, dry cloth to clean the case and bracelet. Do not use chemical or abrasive products. Avoid excessive humidity.

Where can I get spare parts or repairs?

Contact an authorized Jaguar dealer or the manufacturer's after-sales service. Parts like the battery, crown, or pushers can be replaced by a professional watchmaker.

USER MANUAL J853 Executive JAGUAR

• Description of the display and control buttons. 14
  -Chronograph 15
  -Setting the time 20
  -Setting the date (quick mode) 21
• Setting the date time following a battery change. 22

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of life cycle watch making

products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point.

The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

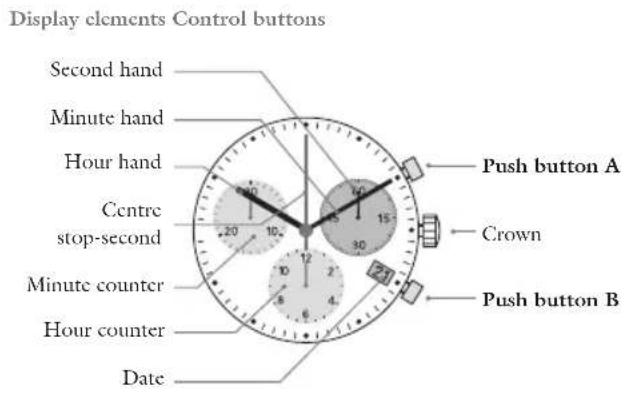

Description of the dislay and control buttons

Chronograph: Basic function

START/STOP/RESET

Example:

① Start: Press push button A.
Stop: to stop the timing, press pushbutton A once more and read the three chronograph hand: 1h / 20min / 10scc
③ Zero positioning:

Press push-button B. (The three chiorograph hands will be reset to their zero positions).

Chronograph: Accumulated timing

Minute counter

Hour counter Hour counter

Example: Example:

① Start: (start timing)
② Stop: (c.g. 15 min 5 sec following ①)
Restart: (timing is resumed)
*Stop:c.g.13 min 5 scc following 28 min 10 sec (the accumulated measured time is shown).

⑤ Reset:

The three chronograph hands are returned to their zero positions

Pushbutton B

Please note:

Following*4, the accumulation of the timing can be continued by pressing push button A (Rstart/Stop, Rstart/ Stop,...)

Chronograph Intermediate or interval timing

Start: (start timing)
Display interval: c.g. 10 minutes, 10 seconds (timing continues in the background).
Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
Stop: (Final time is displayed)
④ Reset:

The 3 chronograph hands are returned to their zero position.

Please note:

Following 6 further intervals or intermediates can be displayed by pressing push-button B (display interval/make up measured time,...)

Adjusting the chronograph hands to zero position

Minute counter Center stop-second

Example:

One or several chronograph hand are not in their correct zero positions and have to be adjusted (c.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).
2 Keep push Buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ corrective mode is activated)

Adjusting the centre stop second: Single step A1 x short Continuous
Adjusting the next hand
Adjusting the hour counter hand (position 6h)

Single step A1 x short
Continuous long
Adjusting the next hand B
Adjusting the minute counter hand (position 9h)
Single step dA short
Continuous Long
Returning the crown to position 1 Termination of the chronograph hands adjustment (can be carried out at any time)

Setting the time

Setting the date (quick mode)

① Pull out the crown to position III * (the watch stops).
② Turn the crown until you reach the correct time 8:45.
Push the crown back into position I.*

Pull out the crown to position II (the watch continues to run).
Turn the crown until the correct date 1 appears.
Push the crown back into position I.

Please note: Please note:

In order to set the time to the exact * second, ① must be pullet out when the second hand is in position "60" (I). Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

Setting the date/time

Following a battery change

Example:

Date/time on the watch:17/1:25 AM Present date/time:4/8:30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears 3.

Pull out the crown to position ^ 喜 III (the watch stops).
Turn the crown until the correct date appears.
5* Continue to turn the crown * until the correct time 8:30 PM appears.
Push the crown back into position I.

Please note:

To set your watch to the exact * second please refer to the chapter entitled "setting the time".
* Please observe the AM/PM clock * rhythm.
