12203 - Coffee machine KORONA - Free user manual and instructions

Brand	Korona
Model	12203
Product type	Filter coffee machine with integrated cup
Coffee type	Ground coffee (permanent filter included)
Water tank capacity	Approx. 0.6 L (for one cup - max level indicated)
Number of cups	1 cup
Cup included	Yes, with lockable lid
Power supply	220-240 V ~ 50 Hz, 400 W
Protection class	I (grounded plug)
Automatic shut-off	Yes, 1 minute after cycle ends
Permanent filter	Yes, removable and reusable
Filter holder	Removable
Reset button	Yes, at the back for additional cycles
Cup warming surface	No (fixed cup rest tray)
Maintenance and cleaning	Hand wash removable parts, regular descaling
Safety	Overheat protection, automatic shut-off, hot surface warning
Spare parts / repairability	Korona after-sales service (address in Germany)
Warranty	2 years
General information	Household use only, do not immerse

Frequently Asked Questions - 12203 KORONA

How to prepare my first cup of coffee?

Before first use, rinse the appliance 2-3 times with water without coffee. Then fill the water tank with cold water up to the max level, add ground coffee to the permanent filter, place the cup without lid, and turn on the appliance. After the cycle, turn off and enjoy.

Can I use very finely ground coffee?

It is recommended to use medium ground coffee. Too fine a grind can clog the permanent filter pores and slow down the brewing.

How to clean the machine?

Unplug and let cool. Clean the body with a damp cloth. Removable parts (cup, lid, filter holder, permanent filter) can be washed by hand with warm water and dish soap, then rinse and dry. Do not put in the dishwasher.

How often should I descale the appliance?

Descale regularly depending on water hardness. Use a mild descaler suitable for coffee makers, then rinse 2-3 cycles with clean water. Never use metal objects to remove limescale.

The appliance turns off by itself, is this normal?

Yes, the coffee maker has an automatic shut-off about 1 minute after the brewing cycle ends. You can also turn it off manually with the switch.

Can I brew multiple cups in a row?

Yes, after each cycle, press the reset button at the back. Allow the appliance to cool for about 5 minutes between cycles.

Is the coffee cup microwave-safe?

No, the cup and its lid should not be placed in the microwave. Only use the cup provided with the coffee maker.

What to do if water overflows?

Make sure not to exceed the max water level. If water overflows, turn off immediately, unplug, and let cool before cleaning. Check that the filter holder is properly aligned.

The appliance was dropped, can I still use it?

If the appliance is damaged or no longer works properly, unplug it and contact Korona after-sales service. Do not attempt to repair it yourself.

Where can I find spare parts?

Contact Korona customer service at: Am Steinbach 9, 59872 Meschede-Enste, Germany, or by email: [e-mail]. Use only original accessories.

USER MANUAL 12203 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

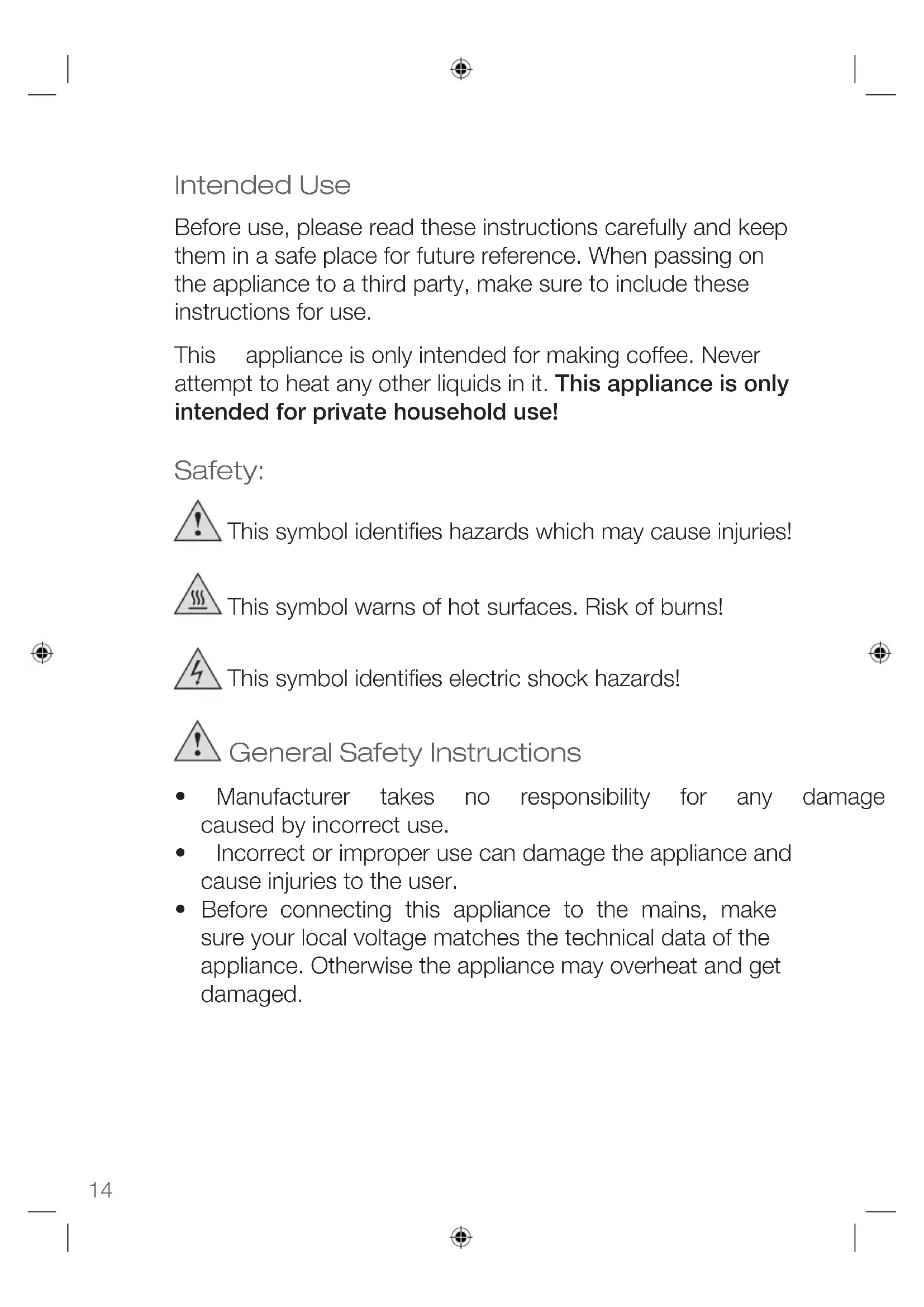

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

- Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!

- Never operate the appliance without water.

- Never exceed the Max. filling level to avoid any water from spilling. Danger of serious burns!

- Do not use the appliance if it shows any signs of damage.

- Do not move the appliance during operation.

• Do not place the appliance near any inflammable objects.
• Do not remove the coffee cup while the appliance is in operation.
• Only use the coffee cup with this coffee maker. Do not use it on top of a stove or inside a microwave/oven.
• Do not place the coffee cup into the microwave.
• Always unplug the appliance after use and let it completely cool down before cleaning.

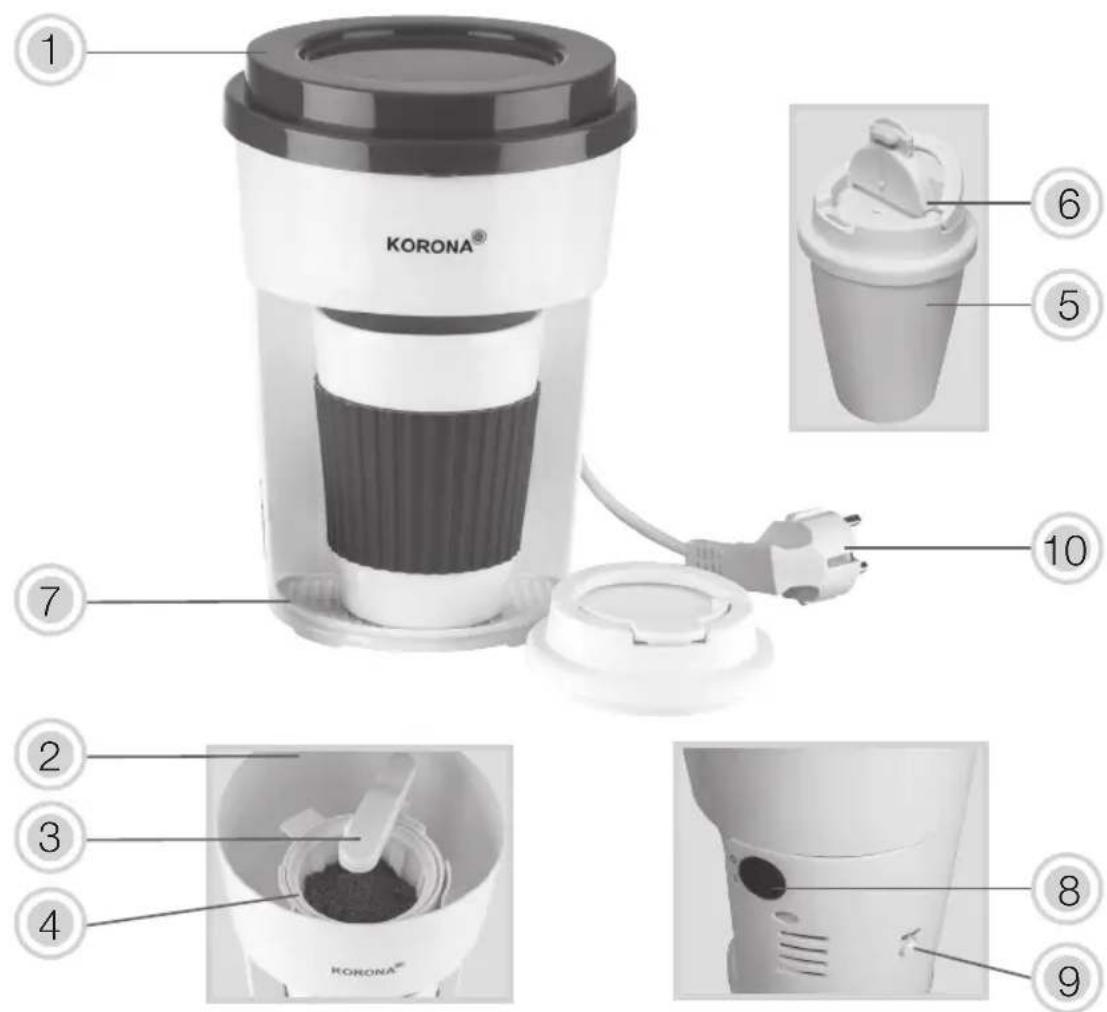

1 KORONA® 2 3 4 5 6 7 8 9 10

Product Description

1. Appliance lid
2. Water tank with water level indicator
3. Water outlet
4. Removable filter holder + permanent filter
5. Coffee cup
6. Lockable drinking lid with handle
7. Trip tray
8. On/Off switch with indicator light
9. Reset button
10. Power cord and plug

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
  • Fully unwind the power cord.
• Clean the detachable parts as described under Cleaning and Care.
• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank up to the Max. level and operate it 2-3 times without coffee powder. After that your coffee maker is ready for operation.

Note: After each rinse cycle has been completed, the appliance has to be switched off for approx.

5 minutes, in order to cool down.

In order to repeat the rinse cycle, press the reset button on the rear of the appliance.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

This coffee maker is perfect for people who love their coffee on the go. Brew, take the cup, screw on the lid and enjoy!

Brewing Coffee

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
2. Open the appliance lid and fill the water tank with the required amount of cold, fresh tap water. The marking

inside the water tank indicates the required water level.

Never exceed the Max. filling level to avoid hot v spilling from the appliance.

The amount of water used depends on your personal coffee taste.

1. Turn the water outlet sideways to insert the filter holder and permanent filter.

Make sure that the filter holder and permanent filter are properly inserted and aligned!

1. Add, according to your taste, the desired amount of grounded coffee into the filter.

For each cup of coffee, use one leveled measuring spoon of grounded coffee. For stronger or milder coffee, adjust the amount of coffee.

Make sure to use medium ground coffee. The finer coffee powder the higher the chance that the pores the filter will be clogged.

1. Place the water outlet directly over the filter holder and close the lid.

Note: Always make sure to place the water outlet by over the filter holder.

1. Make sure that the drip tray is properly attached.

2. Place the coffee cup (without lid) into the appliance. Press the On/Off switch to switch on the appliance. The integrated indicator light indicates that the appliance is in operation.

3. After the brewing cycle is completed (no more water is dripping through the filter), the indicator light goes off and the coffee cup can be removed.

4. Press the On/Off switch to switch off the appliance.

The appliance will switch off automatically, one te after the the brewing cycle has been completed f it hasn't been switched off beforehand.

Warning: The temperature of accessible surfaces gh during operation. Therefore, do not touch the during and/or immediately after operation. Never the cup or open the appliance lid during operation – could evaporate – Danger of serious burns!

If you wish to prepare more than one cup of coffee,

press the reset button on the rear of the appliance. After each brewing cycle, the appliance has to be switched off for approx.5 minutes, in order to cool down.

Always disconnect the appliance from the mains if you are not using it!

Coffee Cup

Once the brewing cycle is completed, remove the cup from the appliance and carefully screw the lid onto the cup and make sure that it is locked.

Note:

The cup nor the lid are drip or leak-proof. In order to carry the cup, just flip out its carrying handle.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

The coffee cup and lid and all other detachable parts are not dishwasher safe!

Coffee cup, lid and all detachable parts can be cleaned in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee Maker 12202/12203 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 Hz

Rated Power: 400 W

Protection Class: I

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Abstract geometric shape with curved and angular lines, no text or symbols present

Ref: 12202/12203/04-2018.12
