USER MANUAL 47041 KORONA

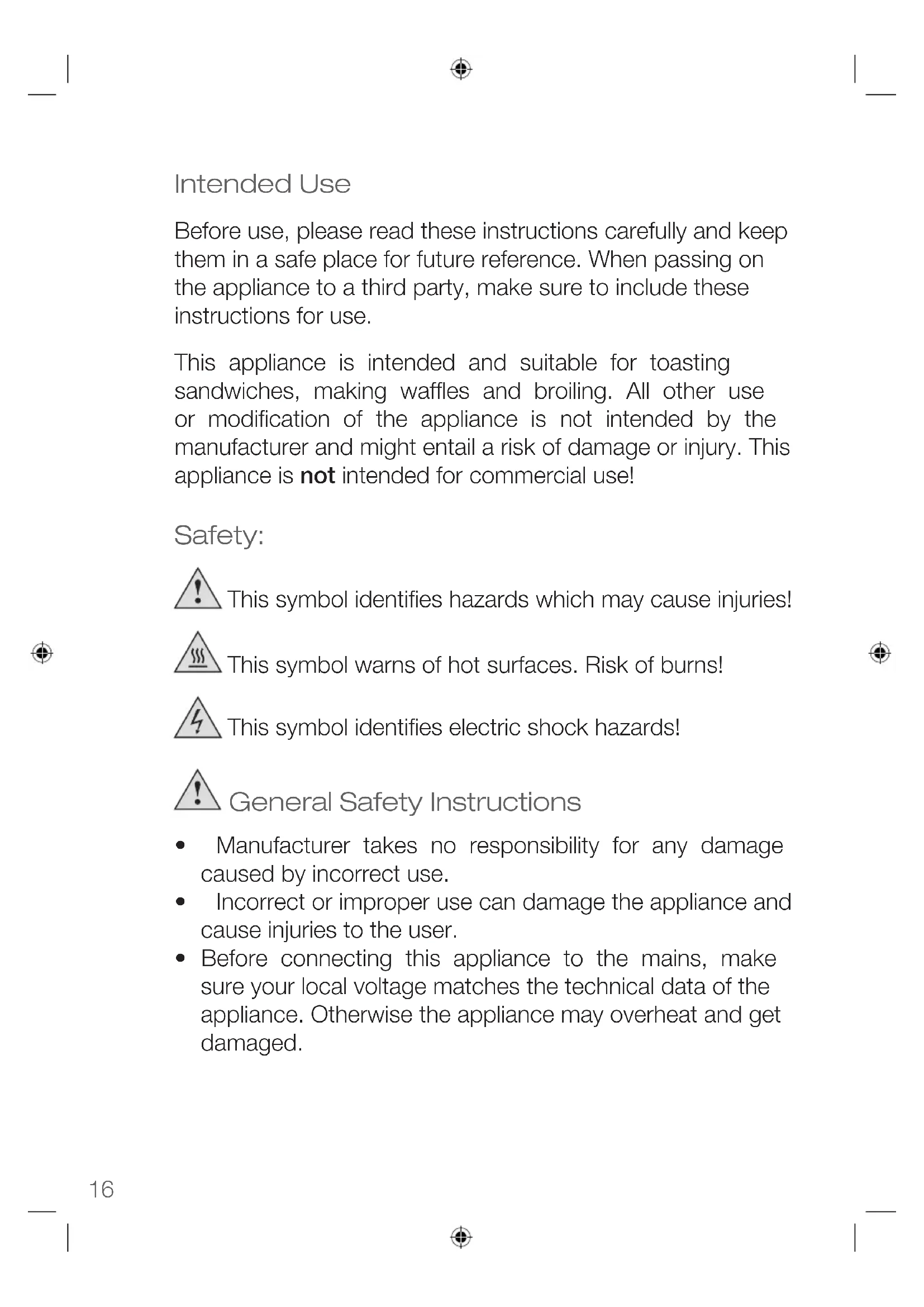

• Manufacturer takes no responsibility for any damage caused by incorrect use.

• Incorrect or improper use can damage the appliance and cause injuries to the user.

• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.Instruction Manual ENGLISH

Caution! Danger of electric shock!

• Donotusetheappliancewithwethands.

• Donotusetheapplianceoutdoors. An electric appliance is not a toy!

• Neverleavetheapplianceunattendedduringuse.

• Thisappliancecanbeusedbychildrenagedfrom8years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall notbemadebychildrenunlesstheyareolderthan8and supervised.

• Keeptheapplianceanditscordoutofreachofchildren lessthan8years.

• Always unplug your appliance when it is not in use, and before cleaning.

• Alwayspulltheplug–notthecord.

• Keeptheapplianceandthecordwellawayfromanyhot surfaces to avoid any damage to the appliance.

• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

• Donotbendthecordorwinditroundtheappliance. Do not use the appliance,

• ifthecordisdamaged.18

• incaseofmalfunction.

• iftheappliancewasdroppedorisdamagedotherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Onlyuseaccessoriesevaluatedforusewiththisappliance.

• Neverattempttodriveanyobjectsintotheappliance.

• Neverattempttoopenthehousingyourself!

• Theapplianceisnotintendedtobeoperatedbymeansof anexternaltimerorseparateremote-controlsystem. Special Safety Instructions Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose and as described in this manual.

• Placetheapplianceonanevenandheat-resistantsurface.

• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

• Donot move the appliance during operation.

• Alwaysuseaatwoodenorplasticspatulatoremovethe sandwiches,wafes,etc.Neveruseanysharpor metal objects (e.g. knife, metal spatula, etc.) as they would damagethenon-stickcoatingoftheplates.

• Adheretoasafetydistancearoundtheappliance.

• Donot use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets

• Alwaysunplugtheapplianceafteruseandletitcompletely cool down before cleaning.Instruction Manual ENGLISH

6. Release button for the plates

7. Power cord and plug

• Remove all packaging material and check whether the appliance is complete.

• Place the appliance on an even, non-slippery and heat resistant surface.

• Fullyunwindthepowercord(7)andconnecttheappliance to a properly installed wall socket. Note:Thecookingplates(5)haveaprotectivecoating.To remove the protective layers on the heating elements, heat up the cooking plates (without food) for a few minutes. This could cause a slight build-up of smoke and odour. This doesn’t cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated! After this preheating process your Sandwich Maker 3 in 1 is ready for operation. Let it completely cool down and clean it as described under Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation. Exchanging the cooking plates Always make sure that the appliance is unplugged and completely cooled down. Risk of burns!

• Toremovethecookingplates(5),pressdowntherelease button (6) and slide it forward.

• Toinsertthecookingplates(5),inserttheprongsofthe cooking plates into the drilling holes of the appliance and make sure they click into place.Instruction Manual ENGLISH

Operation Your Sandwich Maker 3 in 1 can toast sandwiches, bake Belgian Waffles or broil foods. Always make sure to insert the respective cooking plates. The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Tip: Prepare all ingredients in advance before switching on the appliance. Toasting Sandwiches

1. Connect the appliance to a properly installed wall socket.

2. Both indicator lights (red/green) (2) light up and the

heating process starts.

3. As soon as the necessary temperature is reached the

green indicator light (2) will go off and the red indicator light stays on. Your Sandwich Maker 3 in 1 is now ready for operation.

4. Open the lid (1) of the appliance by pulling the fastener (4)

at the handle (3) upwards.

5. Place your prepared sandwich into the sandwich maker.

Tip: To guarantee a even browning process grease either the toasting plates with some oil / butter or butter the outside of the resp. bread or toast slices.

6. Close the lid (1) carefully until the fastener (4) locks into

place. You will hear a click sound. Your sandwich is now being toasted. Attention: Never try to close your appliance forcefully. Remove some of the toppings in case that the appliance22 cannot be closed. The toast slices should not be bigger than the toasting plates.

7. After 4 – 5 minutes your sandwich will be ready. Open the

appliance and check whether your sandwich is toasted according to your liking. 8.To remove your sandwiches use a wooden or plastic spatulatoavoiddamagetothenon-stickcoatingofthe plates.

9. If you wish to prepare more sandwiches follow steps 3 –

10. After use, disconnect the appliance from the mains and

let it completely cool down. Baking waffles

1. Follow steps 1 – 4 as described under Toasting

Sandwiches and make sure that you have applied some butter or oil to the waffle plates (5b).

2. Fill approx. 2 – 3 table spoons of batter into the middle

of the lower waffle plate. Make sure not to put too much batter, in order to avoid overflowing.

3. Close the lid (1) carefully and do not close the fastener

(4). 4.The baking process lasts approx. 7 - 8 minutes, depending on the thickness, content of the waffle batter and of course your liking 5.Follow steps 8 – 10 as described under Toasting Sandwiches. For a better result!

• Fill batter into wafe plates quickly to produce evenly brown waffles.

• Placewafesonacakeracktokeepthemcrispy.Stacked waffles get soggy easily.Instruction Manual ENGLISH

Recipe suggestions Belgian Waffles (Gaufres de Liège) -400gwheatour -160mllukewarmmilk -2eggs -150gcoarsesugar -50gsugar -1pinchofsalt -½packetdryyeast -100gbutter,roomtemperature -1vanillabean,core Preparation: Combine the wheat flour, dry yeast, salt and sugar, properly. Add the eggs, butter and core of the vanilla bean. Stir in the lukewarm milk until the batter is smooth. In order for the dough to rise, leave it to rest for approx. 45 minutes. Before starting the baking process knead in the coarse sugar. Preheat the appliance and bake small amounts of the batter. Delicious! If you prefer them with a chocolate icing, just dip half of the waffle into melted chocolate. Yum! Classic Waffles Ingredients: -125gbutter -100gsugar -1packetVanillasugar -4eggs -250gour -1tablespoonbakingpowder -200mlmilk24 Preparation: Separate the eggs . Beat whites until moderately stiff, set aside. Mix butter with sugar, vanilla sugar and egg yolk until smooth. Alternatively add flour/baking powder and milk. Fold egg whites into the mixture. To add additional flavor, add less milk and 1 table spoon of vanilla or rum extract. However, be careful when adding liquids, as batter should not be too thin. Bake waffles following the above instructions. Dust with icing sugar before serving. Broiling Perfect for broiling steaks, chops, Panini, etc.

1. Follow steps 1 – 4 as described under Toasting

Sandwiches and make sure that you have applied some butter or oil to the grill plates (5c).

2. Place the foods to be grilled onto the grill plates (5c).

3. Close the lid (1), do not lock the fastener (4).

4.Grillthefoodstoyourlikingandfollowsteps8–10as described under Toasting Sandwiches. To turn the appliance properly off the power plug (7) must be disconnected from the mains after each use. During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the green indicator light (2) cycling on and off. Cleaning and Care Due to hygienic reasons clean your Sandwich Maker 3 in 1 best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.Instruction Manual ENGLISH

Before cleaning, always switch off the appliance, disconnect it from the mains and let it completely cool down. Never immerse the appliance in water. Danger! Electric Shock! Clean the appliance with a moistened soft cloth. Remove the cooled down cooking plates (5) as explained under “Exchange Cooking Plates” and clean them in warm water using some dishwashing detergent. Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance. Dry the entire appliance and all parts well after cleaning. Storage Disconnect the appliance from the mains and let it completely cool down. Keeptheapplianceawayfromchildrenandstoreitinaclean and dry place. Disposal Instructions Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer. Your Sandwich Maker 47041 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.26 Technical Data: Voltage: 220-240V~50/60Hz RatedPower: 650W ProtectionClass: I Subject to change without notice!Instruction Manual ENGLISH

Guarantee: This product is guaranteed against defects in materials and workmanship for a period of 2 years. Thisguaranteeisnotvalid:

• iftheappliancehasnotbeenusedinaccordancetothe instructions

• fordamagesduetowearandtear(batteries,etc.)

• fordamagesknownbycustomerattimeofpurchase
