12113 - Coffee machine KORONA - Free user manual and instructions

Product type	Filter coffee machine
Brand	Korona
Model	12113
Power supply voltage	220-240 V ~ 50/60 Hz
Water tank capacity	6 cups (max)
Display type	LCD screen
Timer function	Yes, delayed programming
Automatic shut-off	Yes, after 40 minutes
Keep warm function	Yes, via hot plate
Anti-drip system	Yes, automatic drip stop
Filter type	Paper filter 1x2 (optional permanent filter)
Housing material	Plastic
Glass carafe	Yes, with lid
Power cord length	Approx. 0.8 m
Cleaning	Removable parts washable with hot water
Descaling	Recommended regularly with mild descaler
Safety	Automatic shut-off, hot surface indicator, splash protection
Warranty	2 years
Customer service	KORONA electric GmbH, Germany
Country of manufacture	China (presumed)

Frequently Asked Questions - 12113 KORONA

How to set the time on the Korona 12113 coffee machine?

Press the Prog button (9) until CLOCK flashes on the screen. Use the Hour (10) and Min (11) buttons to set the hours and minutes. After 10 seconds, the setting is confirmed.

How to program the delayed shut-off (timer)?

Press Prog twice (9) until TIMER flashes. Set the desired time with Hour and Min. Press Prog again to confirm. A green indicator lights up. The machine will turn on automatically at the programmed time.

Why doesn't my coffee machine turn on?

Check that the power outlet works and the voltage matches (220-240 V). Make sure the water tank is filled and the carafe is properly placed. If the problem persists, contact customer service.

How to clean the Korona 12113 coffee machine?

Unplug the appliance and let it cool down. Clean the housing with a damp cloth. Removable parts (carafe, filter holder) can be washed in hot water with mild detergent. Never immerse the machine body in water.

How often should the machine be descaled?

Descaling depends on water hardness and frequency of use. Generally, it is recommended every 2 to 3 months. Use a mild descaler suitable for coffee machines and follow the manufacturer's instructions.

What to do if the carafe is damaged?

Do not use the carafe if it is cracked or broken. You can order a replacement carafe from Korona customer service or an authorized dealer.

Can I use a permanent filter instead of paper filters?

Yes, you can use a standard size permanent filter (1x2). Make sure it is clean before each use. Disposable paper filters are also compatible.

After how long does the machine automatically shut off?

The machine automatically shuts off after 40 minutes of inactivity for safety reasons. You can also turn it off manually at any time with the On/Off button.

How to avoid burns during use?

Do not touch the hot plate or housing during or just after use. Use the carafe handle. Do not open the lid during the brew cycle. Wait for the appliance to cool down before cleaning.

Where can I find the full manual?

The user manual is available on the website notice-facile.com for the Korona 12113 model. You can download it for free in PDF format in several languages.

USER MANUAL 12113 KORONA

Black and white photo of a white ceramic cup filled with coffee beans, no text or symbols visible.

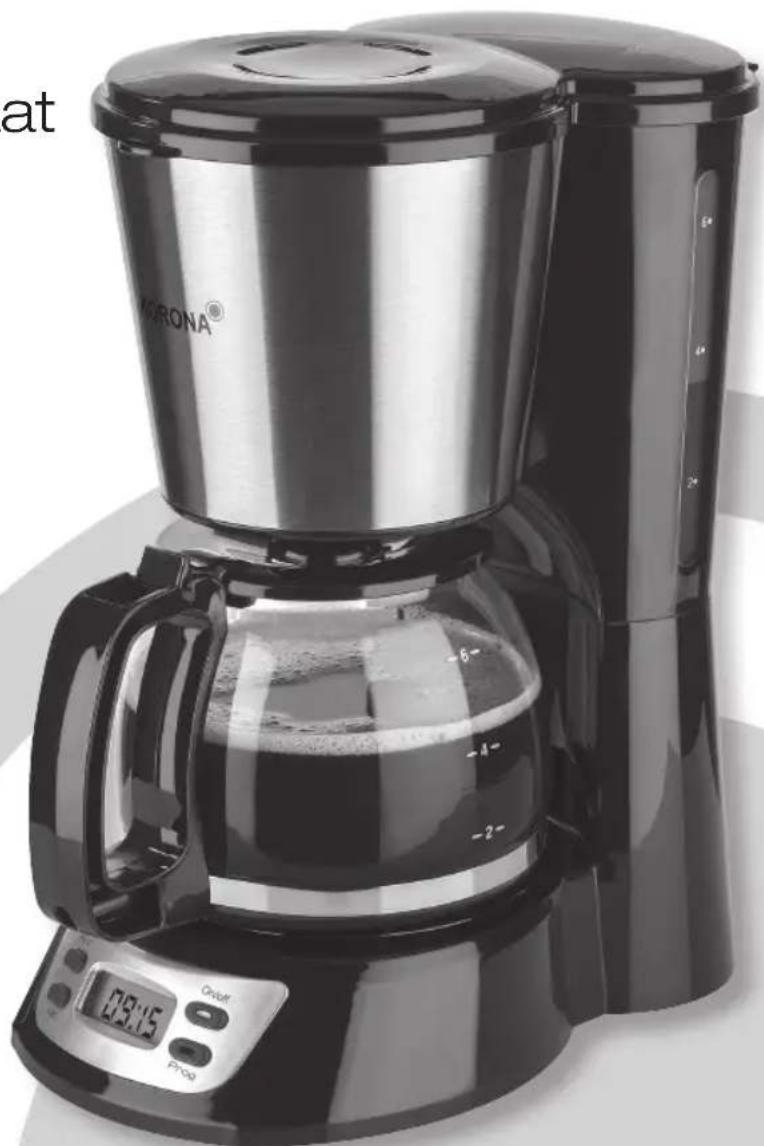

Black and white photo of a Korona coffee maker with digital display and control panel (no visible text or symbols on the device itself)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

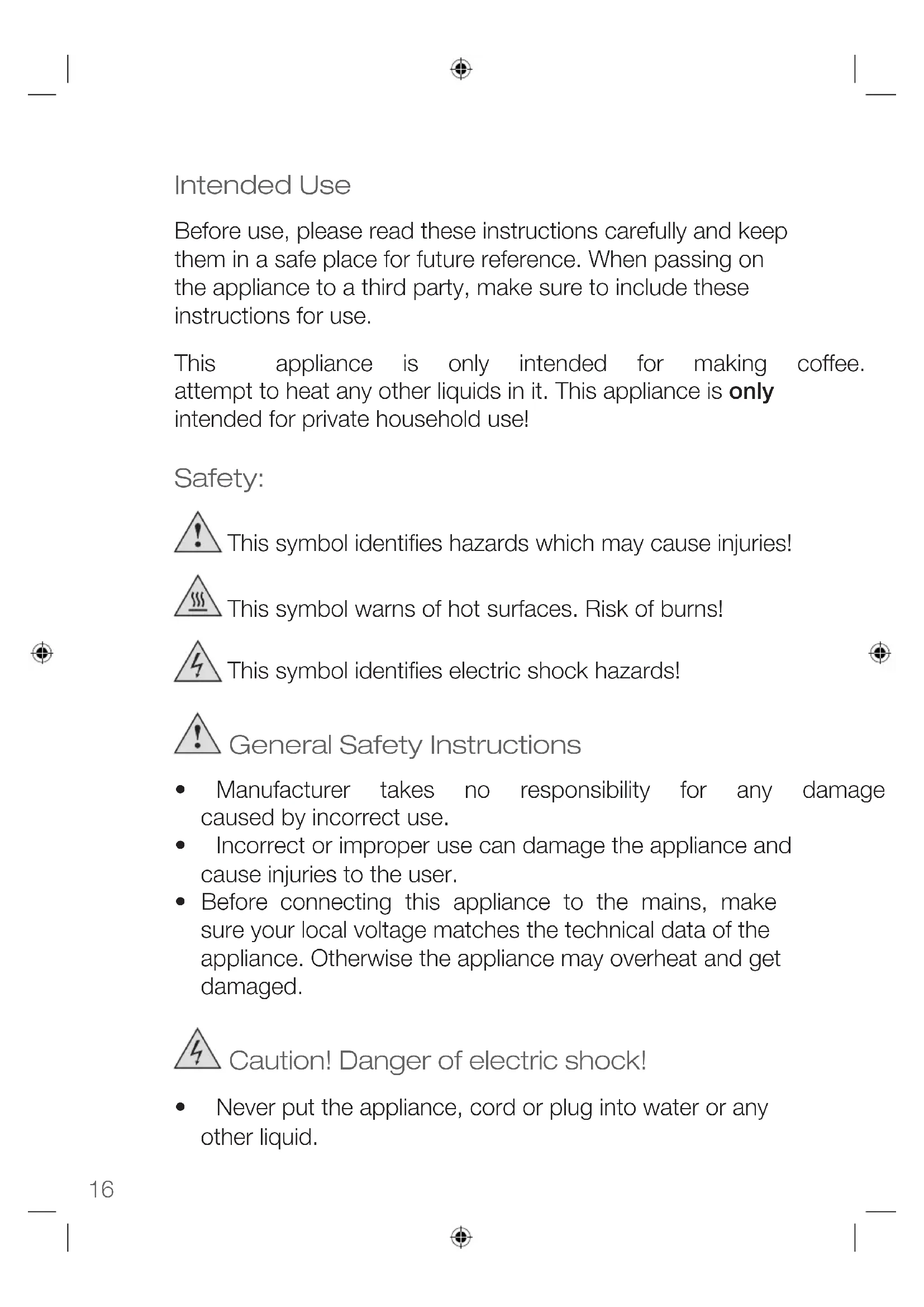

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

- Never put the appliance, cord or plug into water or any other liquid.

• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
  • Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!

- Never operate the appliance without water.

- Never exceed the Max. filling level to avoid any k water from spilling. Danger of serious burns!

- Do not leave the carafe on the hotplate.

- Do not use the carafe if it shows any damages.

- Do not move the appliance during operation.

- Do not place the appliance near any inflammable objects.

- Always unplug the appliance after use and let it completely cool down before cleaning.

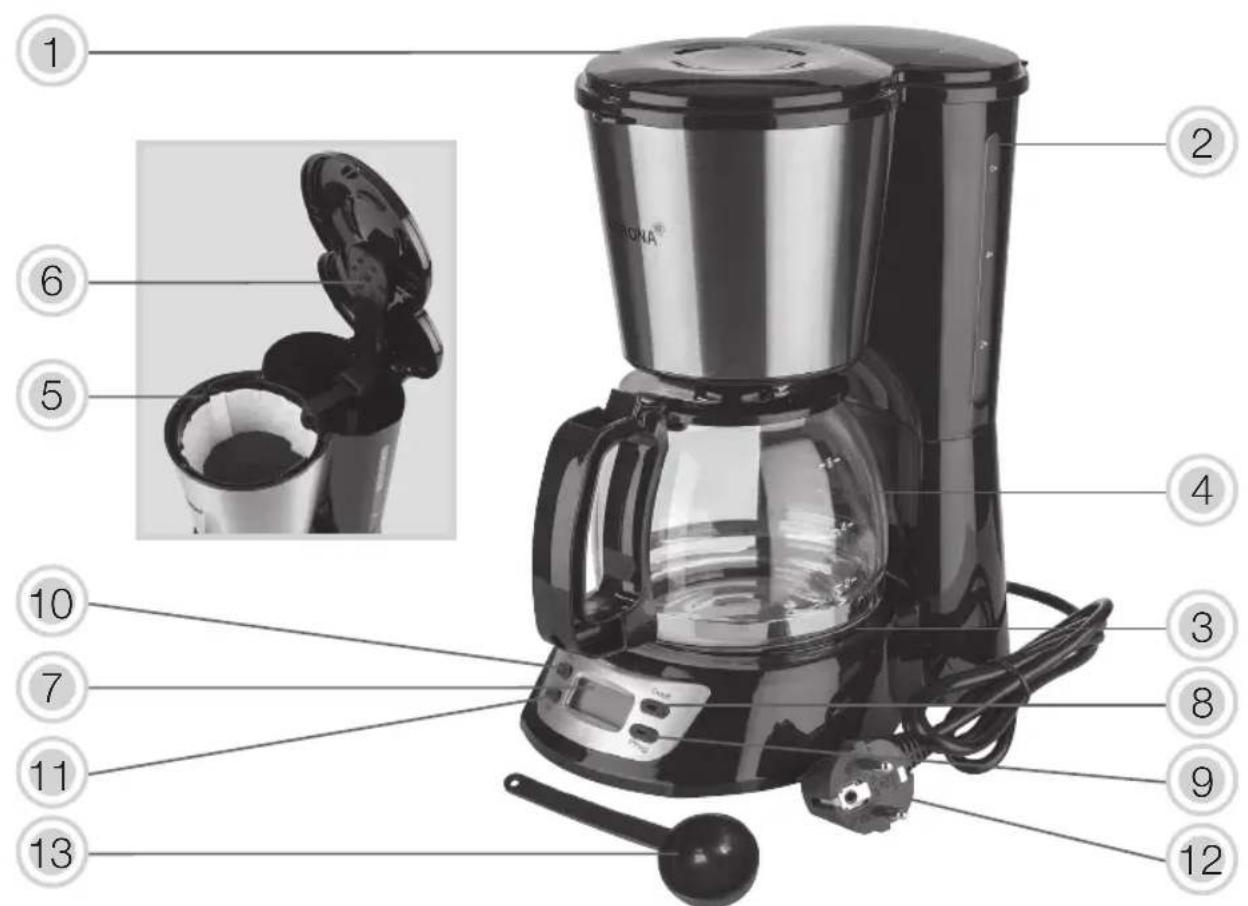

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Product Description

1. Appliance lid
2. Water tank with water level indicator
3. Hot plate
4. Carafe
5. Filter holder
6. Water outlet
7. LCD Display
8. On/Off button with indicator light
9. Program button (Prog)
10. Hour button
11. Minute button (Min)
12. Power cord and plug
13. Measuring Spoon

Before First Use

• Remove all packaging material and check whether appliance is complete.
• Fully unwind the power cord.
• Clean the detachable parts as described under Cleaning and Care.
• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. marking and operate it 2-3 times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Warning: Plastic bags are a danger to toddlers and yes, therefore keep them away to avoid suffocation.

Operation

- Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.

Setting the Time (CLOCK) :

The time can be set in 24 hour mode (00:00 - 24:00)

Once connected to the power supply the LCD display shows 12:00 (default setting). No indicator light is on and the appliance is off.

• Press the “Prog” (9) button and “CLOCK” starts flashing on the display.
• Press "Hour" (10) to adjust the hour setting.

- Press "Min" (11) to adjust the minute setting.

After approx. 10 seconds “CLOCK” stops flashing and the actual time setting is confirmed.

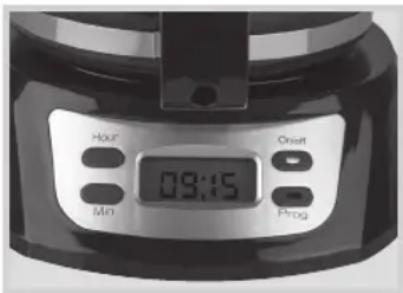

Hour 09:15 Oint Mn Prog

Note: Once disconnect from the mains, the clock g is reset to default setting!

Brewing Coffee

Note: Never open the appliance lid (1) during operation

- hot water could evaporate - Danger of serious burns!

1. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (6 cups).
2. Insert a standard paper filter 1 x 2 into the filter holder (5). Make sure to fold the edges of the paper filter and push it slightly down.
3. For each cup of coffee, use one leveled measuring spoon (13) of grounded coffee. For stronger or milder coffee, adjust the amount of coffee!

4. Close the appliance lid (1) and place the carafe (4) into the appliance. Make sure that the carafe (4) is properly placed into the appliance.

5. Press the On/Off button (8) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation.

The brewing process can be interrupted at any time by pressing the On/Off button (5). Once the unit is switched on again the appliance will continue with the brewing process.

Note: If you wish to have a cup of coffee before the brewing cycle is completed, remove the carafe (4) from the appliance. Due to the automatic drip stop, dripping will automatically cease. Put the carafe (4) back within 30 seconds, dripping process will automatically resume.

1. After the brewing cycle is completed (no more water is dripping through the filter), the carafe (4) can be removed. When serving coffee do not remove the lid in order to preserve the proper serving temperature.
2. As long as the appliance is switched on, you can keep the coffee hot, by returning the carafe (4) to the hotplate (3) after serving. The hotplate (3) will automatically cycle on and off to maintain the ideal serving temperature as long as the coffee maker is switched on.

Attention: The appliance will automatically shut-off in 40 minutes and the indicator light will go OFF as well.

Once the appliance has automatically shut-off, the keeping warm function is also deactivated.

1. To switch off the appliance before the automatic shut-off, press the On/Off button (8). The red indicator light will go off and the appliance is no longer in operation.

Note: If you wish to prepare more than one pot of e, the appliance has to be switched off for approx. 5 es, in order to cool down.

Always disconnect the appliance from the mains if you are not using it!

Setting the Timer

If you wish to enjoy your coffee at a specific time, you need to set the timer to the desired time setting.

1. Follow the steps as described under Brewing Coffee
2. Press the "Prog" (9) button twice "TIMER" starts flashing and 12:00 (default setting) will appear on the display.
3. Press "Hour" (10) to adjust the hour setting.
4. Press "Min" (11) to adjust the minute setting. If no input is made within approx. 10 seconds, the "Timer" indicator will no longer be shown on the display
5. Press the "Prog" button (9) again to confirm the setting. The green indicator light of the "Prog" button turns on.

“CLOCK” and “Timer” time setting will alternately displayed on the LCD display until the desired time has been reached.

1. Once the desired time has been reached, the green indicator light of the "Prog" button (9) turns off, the appliance switches on automatically and the brewing cycle starts. This is indicated by the red indicator light of the on/off button.

If you wish to cancel the preset time, simply press the "Prog" button (9) and the green indicator light goes off.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Before cleaning always remove the paper filter resp. the permanent filter!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

All detachable parts can be cleaned in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee maker 12113 is packed in a retail box.

Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 ~V 50 / 60 ~Hz

Rated Power: 650 W

Protection Class: I

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Abstract geometric shape with curved and angular lines, no text or symbols present

Ref: 10205/02-2017.11
