USER MANUAL MD 7x42 C MINOX

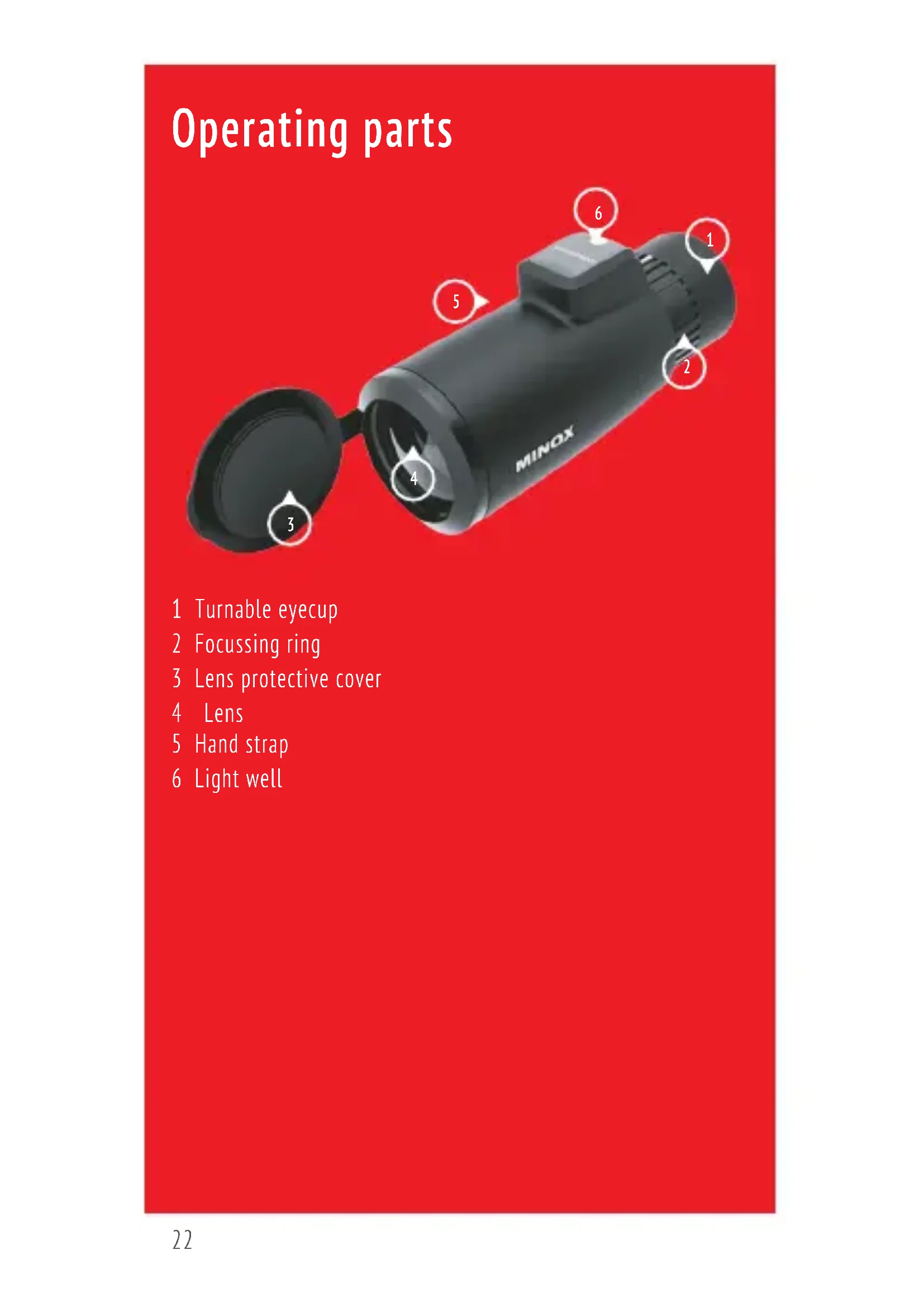

1 Turnable eyecup 2 Focussing ring 3 Lens protective cover 4 Lens 5 Hand strap 6 Light well MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 22MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 22 08.06.2021 16:11:1208.06.2021 16:11:1223 Customer Service If your monocular needs servicing, please contact our customer service at the following address: Blaser Group Wetzlar GmbH & Co. KG MINOX Service Wilhelm-Loh-Str. 1 D-35578 Wetzlar Germany Tel .: [phone] E-Mail: [e-mail] For our customers abroad: Please contact one of our authorized service shops or one of our MINOX agencies. You will find the ad-dresses of our agencies on our website www.minox.com Operating parts

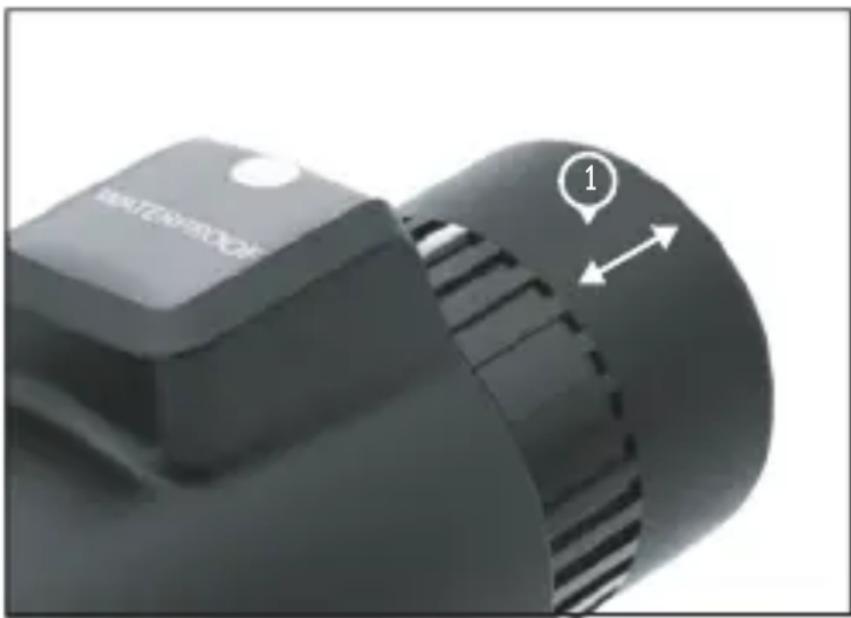

1 Turnable eyecup 2 Focussing ring 3 Lens protective cover 4 Lens 5 Hand strap 6 Light well MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 23MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 23 08.06.2021 16:11:1208.06.2021 16:11:1224 Introduction With the MINOX MD 7x42 C, you have chosen a product of the highest optical and mechanical precision quality. The monocular is available in black or in white, with different graticules. This manual should help to get familiar with the monocular and get the most pleasure and enjoyment out of it. We wish every satisfaction with your new MINOX product! Adjustments Important note for wearers of glasses For users who wear glasses while using the monocular, turn the eyecup (1) all the way to the right. Those who do not wear glasses, turn the eyecup all the way to the left. This provides for a perfect eye distance to the ocular lens, enabling a full field of view with- out vignetting.

MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 24MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 24 08.06.2021 16:11:1208.06.2021 16:11:1225 Introduction With the MINOX MD 7x42 C, you have chosen a product of the highest optical and mechanical precision quality. The monocular is available in black or in white, with different graticules. This manual should help to get familiar with the monocular and get the most pleasure and enjoyment out of it. We wish every satisfaction with your new MINOX product! Adjustments Important note for wearers of glasses For users who wear glasses while using the monocular, turn the eyecup (1) all the way to the right. Those who do not wear glasses, turn the eyecup all the way to the left. This provides for a perfect eye distance to the ocular lens, enabling a full field of view with- out vignetting.

MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 25MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 25 08.06.2021 16:11:1208.06.2021 16:11:1226 Focussing To focus on a subject with a high level of precision, it is important to set the lens of the monocular using the following steps: a) Position the eyepiece of the monocular in front of one eye and look through it. Please close the other eye. b) Get your subject in sight. c) Now turn the focussing ring (2) to the left or the right until the subject is sharp. You are now using your MINOX monocular as it should be used. Of course, if you or your subject moves, just re-focus.

Note: Make sure, that you do not cover the light well with your fingers. Distance measurement How to work the scaled graticule for rangefinding To measure distance by a simple formula when height or hength is known: Distance (in km) = Height of target object (m) Angular Elevation

of target object Distance (in km) = Length of target object (m) Azimuth

Angular Elevation = Vertical Angle

Azimuth = Horizontal Angle MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 26MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 26 08.06.2021 16:11:1208.06.2021 16:11:1227 Focussing To focus on a subject with a high level of precision, it is important to set the lens of the monocular using the following steps: a) Position the eyepiece of the monocular in front of one eye and look through it. Please close the other eye. b) Get your subject in sight. c) Now turn the focussing ring (2) to the left or the right until the subject is sharp. You are now using your MINOX monocular as it should be used. Of course, if you or your subject moves, just re-focus.

Note: Make sure, that you do not cover the light well with your fingers. Distance measurement How to work the scaled graticule for rangefinding To measure distance by a simple formula when height or hength is known: Distance (in km) = Height of target object (m) Angular Elevation

of target object Distance (in km) = Length of target object (m) Azimuth

Angular Elevation = Vertical Angle

Azimuth = Horizontal Angle MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 27MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 27 08.06.2021 16:11:1208.06.2021 16:11:1228 In practice, sizes (Height / Length) of observed objects are known with reasonable accuracy since they are often people, buildings and vehicles.

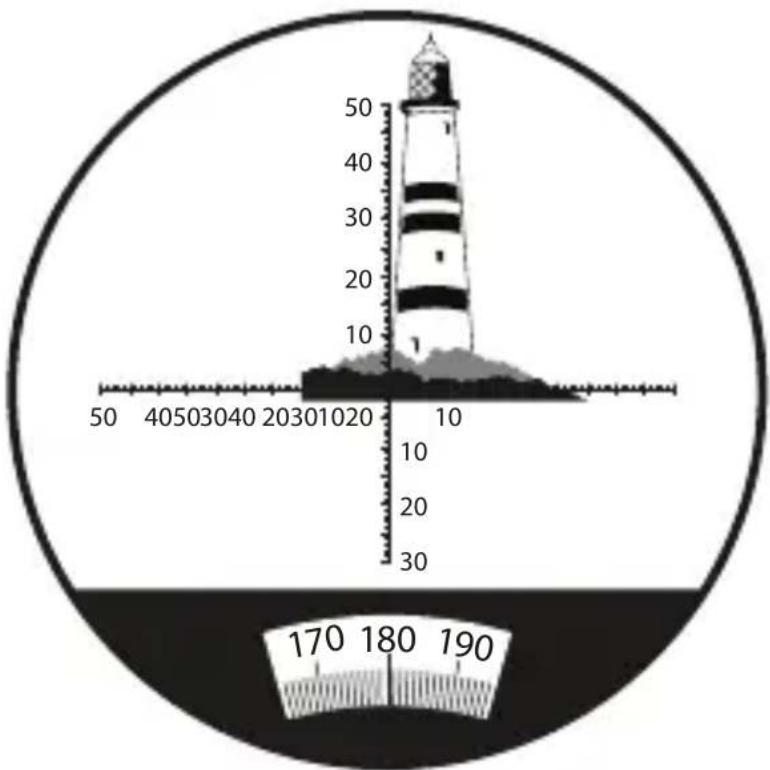

How to Measure the Angular Elevation by the Vertical Scale Value on the MIL Reticle In the case of the Angular Elevation

of the target object within the range of the vertical scale value (70 mils), as in the figure showed, first put the vertical scale Value ‚0‘ at the foot of the ligh- thouse, then we could find the Angular Elevation of the lighthouse at 60 MILs easily and directly. In the case of the Angular Elevation of the target object beyond the range of the Vertical Scale Value (70 Mils), we should deter- mine it in stages.

Angular measurement between two lines, when one of them is surface line and another is the line which connects a point on the surface to the peak of the object is know as Angular Elevation of that object with reference to the particular point on the surface. MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 28MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 28 08.06.2021 16:11:1208.06.2021 16:11:1229 In practice, sizes (Height / Length) of observed objects are known with reasonable accuracy since they are often people, buildings and vehicles.

How to Measure the Angular Elevation by the Vertical Scale Value on the MIL Reticle In the case of the Angular Elevation

of the target object within the range of the vertical scale value (70 mils), as in the figure showed, first put the vertical scale Value ‚0‘ at the foot of the ligh- thouse, then we could find the Angular Elevation of the lighthouse at 60 MILs easily and directly. In the case of the Angular Elevation of the target object beyond the range of the Vertical Scale Value (70 Mils), we should deter- mine it in stages.

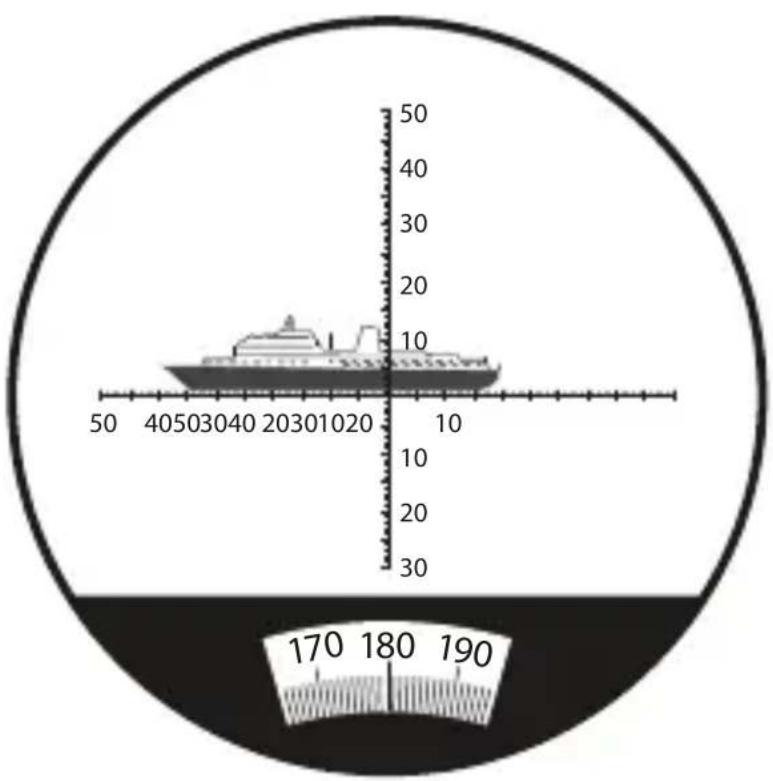

Angular measurement between two lines, when one of them is surface line and another is the line which connects a point on the surface to the peak of the object is know as Angular Elevation of that object with reference to the particular point on the surface. MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 29MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 29 08.06.2021 16:11:1208.06.2021 16:11:1230 How to Measure the azimuth by the horizontal scale value on the MIL Reticle The azimuth is the angle of horizontal deviation from the north. As in the figure showed, the azimuth of the ship at 60 MILs is determined by the horizontal scale value easily and directly same way as the angular elevation measurement. How to Measure Height or Length of a target object when the distance is known Based on the way of Angular Elevation measurement or azimuth measurement, we can determine the height or length of the target object by a simple formula as the following: Height (m) = Distance (km) x Angular Elevation respectively Length (m) = Distance (km) x Azimuth

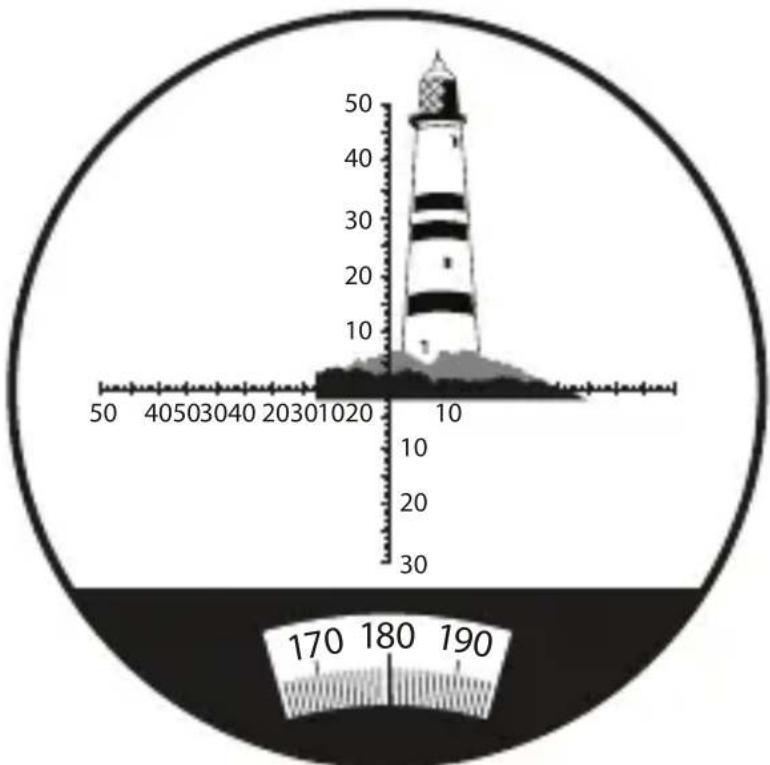

How to Work the Compass When using a compass, the direction is read in degrees. As the Figure 4 showed, north would be an azimuth of 360°, east would be an azimuth of 90°, south would be an azimuth of 180°and west would be an azimuth of 270°.

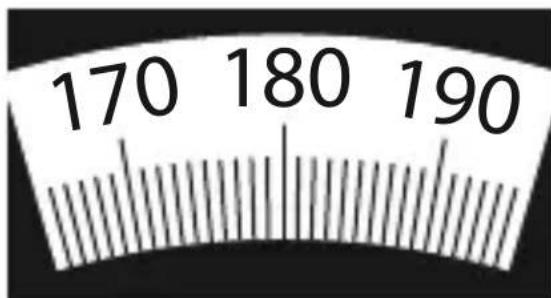

Viewing direction: The South (180°) Note: One graduation represents 1 degree. MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 30MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 30 08.06.2021 16:11:1208.06.2021 16:11:1231 How to Measure the azimuth by the horizontal scale value on the MIL Reticle The azimuth is the angle of horizontal deviation from the north. As in the figure showed, the azimuth of the ship at 60 MILs is determined by the horizontal scale value easily and directly same way as the angular elevation measurement. How to Measure Height or Length of a target object when the distance is known Based on the way of Angular Elevation measurement or azimuth measurement, we can determine the height or length of the target object by a simple formula as the following: Height (m) = Distance (km) x Angular Elevation respectively Length (m) = Distance (km) x Azimuth

How to Work the Compass When using a compass, the direction is read in degrees. As the Figure 4 showed, north would be an azimuth of 360°, east would be an azimuth of 90°, south would be an azimuth of 180°and west would be an azimuth of 270°.

Viewing direction: The South (180°) Note: One graduation represents 1 degree. MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 31MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 31 08.06.2021 16:11:1308.06.2021 16:11:1332 Tips on how to care Soiling impairs the brightness of your MINOX monocular. We th- erefore recommend always removing fingerprints, dust and other forms of soiling on the surfaces of the lens and eyepieces using a soft hair brush or a special lens cleaner. Technical data Modell MINOX MD 7x42 C Magnification 7 x Front lens diameter 1.65 inch / 42 mm Exit pupil 0.27 inch / 6 mm Field of view (at 1,000 yds / 1,000 m) 372 ft / 113.4 m / 6.5° Eye relief 0.8 inch / 20.5 mm Waterproof down to 3 ft / 1 m Height x Width x Depth

2.65 x 2.40 x 5.62 inch

65 x 61 x 143 mm Weight approx 13.05 oz / 370 g MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 32MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 32 08.06.2021 16:11:1308.06.2021 16:11:1333 Tips on how to care Soiling impairs the brightness of your MINOX monocular. We th- erefore recommend always removing fingerprints, dust and other forms of soiling on the surfaces of the lens and eyepieces using a soft hair brush or a special lens cleaner. Technical data Modell MINOX MD 7x42 C Magnification 7 x Front lens diameter 1.65 inch / 42 mm Exit pupil 0.27 inch / 6 mm Field of view (at 1,000 yds / 1,000 m) 372 ft / 113.4 m / 6.5° Eye relief 0.8 inch / 20.5 mm Waterproof down to 3 ft / 1 m Height x Width x Depth

2.65 x 2.40 x 5.62 inch

65 x 61 x 143 mm Weight approx 13.05 oz / 370 g MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 33MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 33 08.06.2021 16:11:1308.06.2021 16:11:1334 Servicing To avoid unnecessary costs and lost time, please carefully read these instructions, including the troubleshooting suggestions, be- fore sending your MINOX monocular in for repair. If you are unable to resolve the problem yourself and wish to send the product in for repair by our MINOX customer service or your local authorized MINOX dealer, please follow the instructions below:

1. Ensure to use sufficient padding material to make sure that

your monocular is not damaged during transport.

2. Send your monocular to:

In Germany: Blaser Group Wetzlar GmbH & Co. KG MINOX Service Wilhelm-Loh-Str. 1 D-35578 Wetzlar Germany Tel .: [phone] E-Mail: [e-mail] In the UK: Blaser Sporting Limited Unit 12 The Pines Broad Street Guildford Surrey GU3 3BH In the USA: Blaser USA 403 East Ramsey, Suite 301 San Antonio, Texas 78216 In all other countries, please send your MINOX monocular to your local MINOX distributor. You will find the corresponding address at: www.minox.com/service

3. Provide a detailed description of the problem together with a

copy of your original proof of purchase. MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 34MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 34 08.06.2021 16:11:1308.06.2021 16:11:1335 Servicing To avoid unnecessary costs and lost time, please carefully read these instructions, including the troubleshooting suggestions, be- fore sending your MINOX monocular in for repair. If you are unable to resolve the problem yourself and wish to send the product in for repair by our MINOX customer service or your local authorized MINOX dealer, please follow the instructions below:

1. Ensure to use sufficient padding material to make sure that

your monocular is not damaged during transport.

2. Send your monocular to:

In Germany: MINOX GmbH (Werk 2) Technischer Service Wilhelm-Loh-Straße 1 35578 Wetzlar In the UK: Blaser Sporting Limited Unit 12 The Pines Broad Street Guildford Surrey GU3 3BH In the USA: Blaser USA 403 East Ramsey, Suite 301 San Antonio, Texas 78216 In all other countries, please send your MINOX monocular to your local MINOX distributor. You will find the corresponding address at: www.minox.com/service

3. Provide a detailed description of the problem together with a

copy of your original proof of purchase. MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 35MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 35 08.06.2021 16:11:1308.06.2021 16:11:1336 The costs of sending in and returning the Product are covered by the Manufacturer. Should the responsible specialist dealer have indicated a specific freight company for sending in the Product, yet the Customer uses a different freight company instead, the Ma- nufacturer will not cover the costs of sending in the Product. This warranty is subject to the laws of the Federal Republic of Germany. MINOX GmbH Ziegelstadel 1 D-88316 Isny im Allgau Phone: [phone] / 98135 - 0 [e-mail] Service & Support Wilhelm-Loh-Straße 1 D-35578 Wetzlar Phone: [phone] e-mail: [e-mail] www.minox.com MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 36MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 36 08.06.2021 16:11:1308.06.2021 16:11:13 Conditions of warranty With the purchase of this MINOX product you have acquired a product that has been manufactured and inspected in accordance with especially high quality standards. For this product, we provide a legal warranty of 2 years in accordance with the following regulations from the day of purchase at an authorized dealer:

1. During the warranty period we shall compensate complaints based on

faulty manufacture with repair, replacement of defective parts or by replacement with an identical flawless product at our own discretion. Consequential claims, regardless of manner or legal argument in connection with this warranty, will not be accepted.

2. Claims under warranty are null and void if the defect has been

caused by improper handling – which also can include the combined use of non MINOX accessories – if the MINOX product is serviced by unauthorized persons or workshops, or if the serial number has been made unreadable.

3. Warranty claims can only be made by submission of the printed

receipt as proof of purchase from an authorized dealer.37 Product warranty MINOX GmbH („Manufacturer“ in the following) guarantees the end customer („Customer“ in the following) that the MINOX sight („Product“ in the following) supplied to the customer will be free of material and manufacturing defects for 10 years and electronic defects for five years from the date of sale (warranty period) for hunting purposes in accordance with the following provisions.This warranty only applies if the Customer registers the Product within 30 calendar days from the date of sale under www.minox.com/ registration. Moreover, the warranty only applies to the original buyer. Should the Customer sell the Product to a third party within the warranty period, this voluntarily granted warranty no longer applies. Verified defects will be remedied at the Manufacturer’s own discre- tion and expense, either through repair (material and labour time) or the supply of new or refurbished parts. Any removed defective parts become the property of the Manufacturer. To have warranty work performed, the Customer must submit the Product, including the original proof of purchase, to an authorised specialist dealer (www.minox.com –„Dealer Search“).Any claims based on this war- ranty are explicitly excluded if: the Product exhibits damage or signs of wear due to use outside the normal intended application and the specifications of the Manufacturer (as per the instruction manual), the Product exhibits signs of having been repaired or otherwise processed by a workshop not authorised by the Manufacturer, accessories not authorised by the Manufacturer have been in- stalled in the Product, the serial number has been removed or made illegible. MINOX GmbH Ziegelstadel 1 D-88316 Isny im Allgau Phone: [phone] / 98135 - 0 [e-mail] Service & Support Blaser Group Wetzlar GmbH & Co. KG MINOX Service Wilhelm-Loh-Str. 1 D-35578 Wetzlar Germany Tel .: [phone] E-Mail: [e-mail] www.minox.com MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 37MINOX_BDA_MD7x42C_65x115mm_DE_EN_FR_ES_IT_V01.indd 37 08.06.2021 16:11:1308.06.2021 16:11:13

4. When submitting claims under warranty, please return the

MINOX product together with the proof of purchase and a description of the complaint to MINOX GmbH in Germany, or the nearest MINOX dealer.

5. Tourists may, if necessary, make use of the MINOX dealer in the
