USER MANUAL Ladyshave Body Contour HP6319 PHILIPS

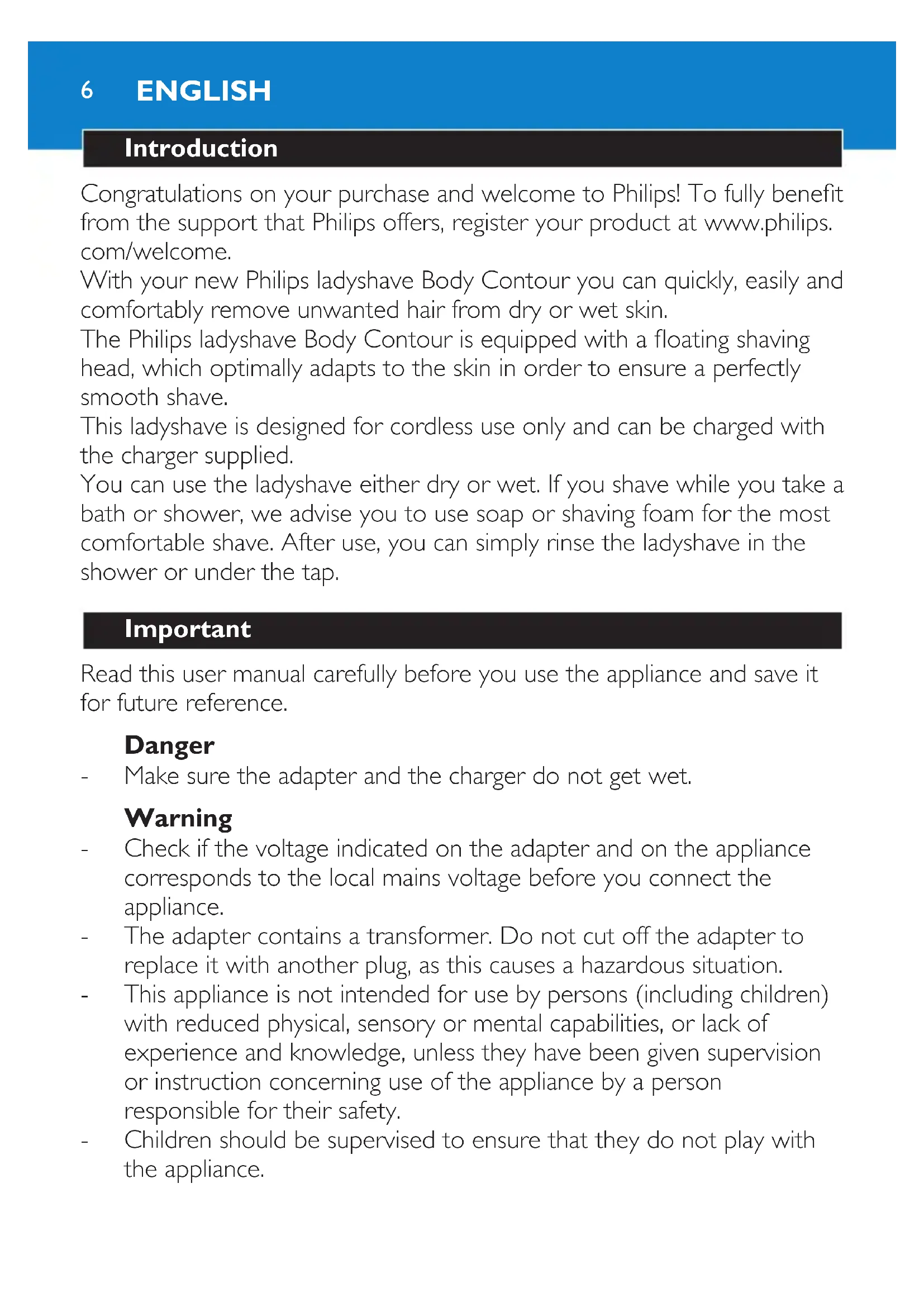

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

With your new Philips ladyshave Body Contour you can quickly, easily and comfortably remove unwanted hair from dry or wet skin.

The Philips ladyshave Body Contour is equipped with a floating shaving head, which optimally adapts to the skin in order to ensure a perfectly smooth shave.

This ladyshave is designed for cordless use only and can be charged with the charger supplied.

You can use the ladyshave either dry or wet. If you shave while you take a bath or shower, we advise you to use soap or shaving foam for the most comfortable shave. After use, you can simply rinse the ladyshave in the shower or under the tap.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Make sure the adapter and the charger do not get wet.

Warning

• Check if the voltage indicated on the adapter and on the appliance corresponds to the local mains voltage before you connect the appliance.

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not use the appliance while it is charging.

Caution

• Do not clean the appliance with water that is hotter than shower temperature.
• Only use the adapter and charger supplied.
• Do not use the appliance, the charger or the adapter if it is damaged.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• Use, charge and store the appliance at a temperature between 15^ C and 35^ C .
• Do not use the shaving foils and/or the comb attachment if they are damaged or broken, as this may cause injury.
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.
• This appliance is only intended for shaving and trimming human hair. Do not use it for another purpose.

Compliance with standards

• This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• This appliance complies with the internationally approved IEC safety regulations and can be safely used in the bath or shower and cleaned under the tap (Fig. 1).

Charging

When you charge the ladyshave for the first time or after a long period of disuse, let it charge for at least 16 hours.

Make sure your hands and the ladyshave are dry when you prepare the ladyshave for charging.

1 Make sure the ladyshave is switched off (Fig. 2).
2 Put the adapter in the wall socket.
3 Insert the small plug into the charger (Fig. 3).

ENGLISH8

Put the ladyshave on the charger (Fig. 4).

Always put the ladyshave back onto the charger after use and leave the charger connected to the mains continuously, even when you are not using it.
A fully charged appliance has a cordless shaving time of up to 20 minutes.

Using the appliance

Shaving

1 Set the Trim/Shave slide to the 'Shave' position. (Fig. 5)
2 Put the desired shaving foil on the shaving head.

Use the golden shaving foil to shave the underarms (Fig. 6).
Use the golden shaving foil to shave the bikini zone (Fig. 7).
Use the silver shaving foil to shave the legs (Fig. 8).

Do not use the silver shaving foil to shave the underarms and the bikini line to prevent injuries.

3 Switch on the ladyshave (Fig. 9).
4 Place the shaving unit gently on the skin and move the ladyshave slowly against the direction of hair growth while you press it lightly.
The angle between the skin and the ladyshave should be 70^ to get the best results. (Fig. 8)

Trimming

Put the comb attachment onto the shaving head to trim hairs to an even length (about 5mm), e.g. in the bikini zone (Fig. 10).

The comb attachment can be put onto the shaving head in different positions, depending on the area to be trimmed.

1 Set the Trim/Shave slide to the 'Trim' position. (Fig. 11)
2 To trim the bikini zone, place the comb attachment on the shaving head with the recess of the attachment on the front of the appliance (Fig. 12).

3 To trim the underarms, place the comb attachment on the shaving head with the recess of the attachment on the back of the appliance. (Fig. 13)
4 Switch on the ladyshave.
5 Move the appliance against the direction of hair growth.

Make sure the surface of the comb always stays in contact with the skin (Fig. 14).

Shaping

1 Remove the comb attachment to shape precise lines and contours, e.g. in the bikini zone (Fig. 15).
2 Lock the trimmer by setting the Trim/Shave slide to the 'Trim' position. (Fig. 11)

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Always remove the ladyshave from the charger before you clean it under the tap. Make sure the ladyshave is dry before you put it back into the charger.

Never immerse the charger in water or any other liquid. Only wipe the charger with a dry cloth.

After every use

Clean the ladyshave every time you have used it.

Switch off the ladyshave.
2 Remove the shaving foil. (Fig. 16)

Do not exert any pressure on the shaving foil to avoid damage.

3 Gently shake the shaving foil to remove hairs or clean it with the brush supplied.
4 Remove the cutter block (Fig. 17).

ENGLISH10

5 Clean the hair chamber with the brush supplied (Fig. 18).
6 For extra thorough cleaning, you can also rinse the ladyshave under the tap.
7 After cleaning, always put the comb attachment on the appliance to protect the shaving foil (Fig. 10).

Twice a year

Lubricate the shaving foil with a drop of sewing machine oil twice a year (Fig. 19).

Storage

When you are not using the ladyshave, you can store it in the shower by hanging it upside down from the shower loop.

• Attach the shower loop to the appliance as shown in the picture (Fig. 20).

Replacement

If you use the ladyshave two or more times a week, we advise you to replace the shaving foils and cutter block every one to two years.

• The silver shaving foil may only be replaced with an original Philips shaving foil (type HP6119/01).
• The golden shaving foil may only be replaced with an original Philips shaving foil (type HP6121).
• The cutter block may only be replaced with an original Philips cutter block (type HP6111).

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 21).
• The built-in rechargeable battery contains substances that may pollute the environment. Always remove the battery before you discard and hand in the appliance at an official collection point.

Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Disposal of the battery

1 Take the ladyshave off the charger.
2 Let the motor run until the battery is completely empty.
3 Pull the upper part of the ladyshave off the lower part with some force (Fig. 22).
4 Remove the battery with a screwdriver (Fig. 23).

Guarantee & service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.
