Brand	Black & Decker
Model	DCM600B
Product type	Drip coffee maker
Capacity	5 cups (25 oz / 740 ml)
Power supply	120 V, 60 Hz (120 V models only)
Power	700 W (estimated)
Dimensions (approx.)	Not specified (compact model)
Weight	Not specified
Operation	Automatic brewing with auto shut-off
Warming plate	Nonstick coated warmer
Filter type	Basket paper filter (4, 8, or 12 cups)
Water level indicator	With cup markings
Carafe material	Glass
Polarized plug	Yes (one blade wider)
Cord length	Short (to minimize hazards)
Recommended maintenance	Vinegar descaling every 3 months
Parts cleaning	Dishwasher (top rack) or hand washing
Safety	Auto shut-off, locking lid, hot surface indicator
Replacement parts	Filter basket (DCM600-01), Carafe (DCM600-02)
Warranty	1 year limited (US and Canada)
After-sales service	Authorized service center, toll-free number: 1 800 231-9786
Use	Household only

Frequently Asked Questions - DCM600B BLACK & DECKER

How to use the Black & Decker DCM600B coffee maker?

Open the lid, pour cold water to the desired level, place a paper filter in the filter basket, add ground coffee (1 tablespoon per cup), close the lid, place the empty carafe on the warming plate, plug in and press the On/Off switch. The red light turns on and brewing begins.

How much coffee should I use for optimal results?

Start with 1 tablespoon of medium-ground coffee per cup. Adjust to taste.

How do I clean the coffee maker?

Unplug and let cool. Wash the filter basket and carafe with lid in the dishwasher (top rack) or by hand in warm soapy water. Wipe the inside of the lid with a damp cloth.

How do I descale the machine?

Every 3 months, pour white vinegar up to the 2-cup mark, add water up to the 5-cup mark. Put a paper filter, brew half the solution, let it sit for 15 minutes, then finish the cycle. Rinse by brewing fresh water.

What should I do if the coffee maker doesn't work?

Check that the plug is properly inserted and the switch is in the On position. Ensure the reservoir has water and the carafe is correctly placed on the warming plate. If the problem persists, contact after-sales service.

Can I use reusable filters?

The machine is designed for basket-type paper filters (4, 8, or 12 cups). You can use a compatible reusable filter, but make sure it does not block the flow.

Is the carafe compatible with other machines?

No, the carafe (ref. DCM600-02) is specifically designed for this model. Use it only with the DCM600B.

How can I avoid burns?

Do not touch hot surfaces (warming plate, carafe). Use handles. Do not remove the lid during brewing. Wait for cooling before cleaning.

What if the coffee tastes like vinegar after descaling?

Rinse by brewing 2-3 cycles of clear water. If the smell persists, replace the filter and rinse again.

Where can I find replacement parts?

Replacement parts (filter basket DCM600-01, carafe DCM600-02) are available online or by contacting parts service at 1 800 738-0245.

USER MANUAL DCM600B BLACK & DECKER

5-CUP COFFEEMAKER CAFETERA DE 5 TAZAS CAFETIÈRE DE 5 TASSES

Register your product online at www.prodprotect.com/applica, for a chance to WIN \$100,000!

Black and white photo of a black and white coffee maker with a glass lid, no visible text or symbols on the device itself.

USA/Canada 1-800-231-9786

Mexico 01-800-714-2503

www.applicaconsumerproductsinc.com

Accessories/Parts (USA/Canada)

Please Read and Save this Use and Care Book

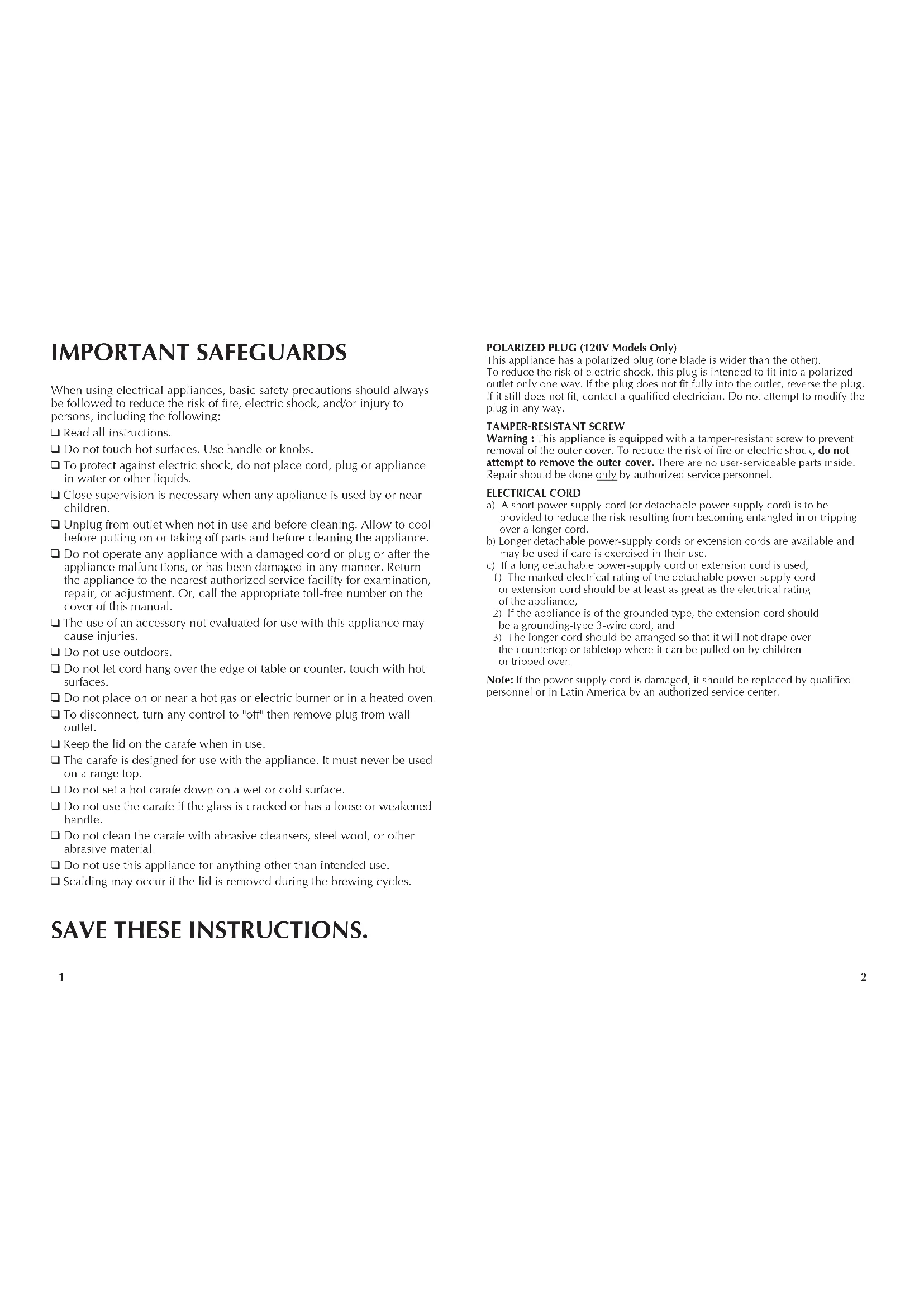

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions.
☐ Do not touch hot surfaces. Use handle or knobs.
☐ To protect against electric shock, do not place cord, plug or appliance in water or other liquids.
☐ Close supervision is necessary when any appliance is used by or near children.
☐ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
☐ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
☐ The use of an accessory not evaluated for use with this appliance may cause injuries.
Do not use outdoors.
☐ Do not let cord hang over the edge of table or counter, touch with hot surfaces.
☐ Do not place on or near a hot gas or electric burner or in a heated oven.
☐ To disconnect, turn any control to "off" then remove plug from wall outlet.
□ Keep the lid on the carafe when in use.
☐ The carafe is designed for use with the appliance. It must never be used on a range top.
☐ Do not set a hot carafe down on a wet or cold surface.
☐ Do not use the carafe if the glass is cracked or has a loose or weakened handle.
☐ Do not clean the carafe with abrasive cleansers, steel wool, or other abrasive material.
☐ Do not use this appliance for anything other than intended use.
☐ Scalding may occur if the lid is removed during the brewing cycles.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,

2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

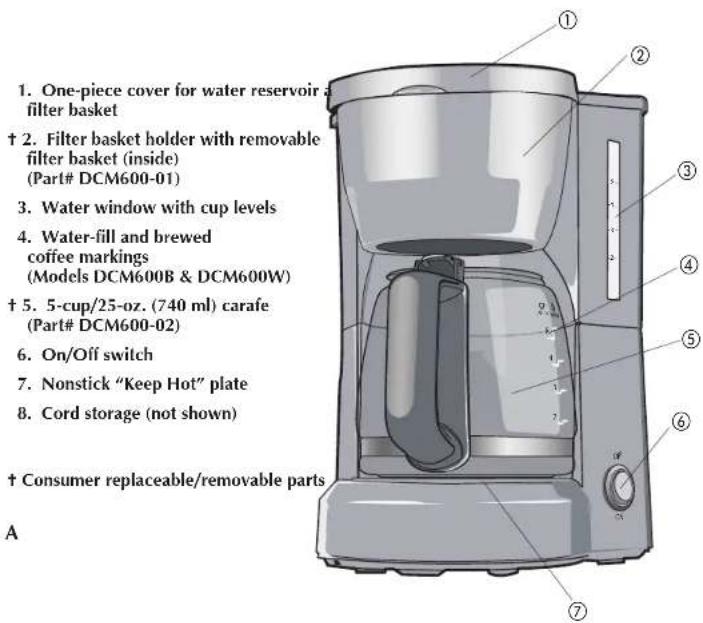

1. One-piece cover for water reservoir filter basket † 2. Filter basket holder with removable filter basket (inside) (Part# DCM600-01) 3. Water window with cup levels 4. Water-fill and brewed coffee markings (Models DCM600B & DCM600W) † 5. 5-cup/25-oz. (740 ml) carafe (Part# DCM600-02) 6. On/Off switch 7. Nonstick "Keep Hot" plate 8. Cord storage (not shown) † Consumer replaceable/removable parts A

A

How to Use

This unit is for household use only.

GETTING STARTED

• Remove all packing materials and any stickers from the product.
• Remove and save literature.
• Wash all removable parts as instructed in Care and Cleaning section of this manual.
• Open one-piece cover for water reservoir and filter basket.
• Pour fresh cold water up to 5-cup level mark into the water reservoir.
• Place empty 4-cup or 8 to 12-cup basket style paper filter into removable filter basket.
• Place basket into filter basket holder.
• Uncoil power cord and plug into standard electrical outlet.
• Brew water through appliance without adding coffee grounds. This removes any dust or residue that may remain in the system during the manufacturing process.
• Discard the water from the carafe and paper filter from filter basket.
• Turn off the appliance; unplug it and allow appliance to cool down.

BREWING COFFEE:

1. Open one-piece cover for water reservoir and filter basket.
2. Pour fresh cold water up to desired level mark into water reservoir.
3. Place empty 4-cup or 8 to 12-cup basket style paper filter into the removable filter basket.
4. Insert filter basket into filter basket holder.
5. Add desired amount of ground coffee.

Note: Not sure how much coffee to use. Begin by using 1 level tablespoon of medium grind coffee for each cup of coffee to be brewed.

1. Close lid securely.

2. Place empty carafe on the "Keep Hot" plate.

3. Plug cord into standard electrical outlet.

4. Press OFF/ON button; red light comes on and brewing begins.

5. Replace the carafe on the "Keep Hot" plate when not serving to keep coffee hot.

6. Unplug appliance when not in use.

COFFEE BREWING TIPS

• Stir coffee in carafe before serving to evenly distribute the flavor.
- For variety add a 1-inch piece of lemon or orange peel to the coffee grounds before brewing.
- Add a 2-inch piece of vanilla bean to the sugar bowl. You'll be surprised at how good it tastes.
- Keep your coffee maker very clean; you'll be pleased with the flavor.
- If coffee is left on the hot plate, be sure to remove the coffee grounds from the filter basket as soon as they have cooled slightly.

3

• Ground coffee can be stored in an airtight container in the refrigerator up to 2 weeks and still make fresh tasting coffee.
• Use cold tap water; hot tap water that has been sitting in a water heater may give your coffee a metallic taste.

Care and Cleaning

This appliance contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Be sure the unit is unplugged and cooled.
2. Open the one-piece cover, remove the filter basket (lift straight up), and discard the paper filter/grounds.
3. Discard the paper filter from the filter basket.
4. Wash the filter basket, carafe and carafe lid in the dishwasher, top-rack only or hand-wash in warm, sudsy water.
5. To clean inside of reservoir cover, open the one-piece cover allowing it to rest in the open position.

1. Pull water showerhead out from under the guide, wipe surfaces with a damp cloth, then place water spreader under guide and close the cover (B).

Mineral deposits left by hard water can clog your coffeemaker. Cleaning with vinegar is recommended every 3 months.

USING VINEGAR

1. Pour white vinegar into water reservoir up to 2-cup level on water window.
2. Add cold water up to 5-cup line.
3. Place a paper filter in the filter basket and close the cover.
4. Set empty carafe on the "Keep Hot" plate.
5. Turn on coffeemaker and let half the cleaning solution brew into carafe (till water level goes down to around "3"). Turn off coffeemaker and let it soak for at least 15 minutes to soften the deposits.
6. Turn on coffeemaker and brew remaining cleaning solution into carafe.
7. Turn off coffeemaker, empty carafe and discard soiled filter.

8. Fill reservoir with cold water to 5-cup line, replace empty carafe, then turn on coffeemaker for a complete brew cycle to flush out remaining cleaning solution. You may have to repeat this to eliminate the vinegar smell/taste.

9. Wash the brew basket and carafe as instructed in "CLEANING."

CLEANING TIPS

• Excessive steaming or a prolonged brewing cycle is a sign that a cleaning is needed.
• The frequency of flushing out deposits is determined by your usage and water hardness.
• During cleaning, more steaming occurs than when brewing coffee and there may be some spitting.

Labeled diagram of a coffee maker with numbered parts for identification

A

Utilisation

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

• One year after the date of original purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  • Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.
