Product Type	Kitchen hood
Brand	Leisure
Model	H 100 K
Width	100 mm
Depth	495 mm
Height (adjustable)	755 - 1100 mm
Net weight	14.5 kg
Power supply	220 - 240 V, 50-60 Hz
Motor power	250 W
Suction power (max)	650 m³/h
Number of speeds	3 (mechanical)
Lighting	2 x 1.5 W LED
Air outlet diameter	120 - 150 mm
Control type	Mechanical buttons
Operating modes	External extraction or recirculation
Grease filter	Metal, washable (every 2 months)
Activated charcoal filter	Replaceable (at least every 4 months)
Minimum distance above the hob	65 cm
Insulation class	Class II
Color	Black
Included accessories	Telescopic fittings, fixing screws

Frequently Asked Questions - H 100 K LEISURE

How to install the H 100 K hood?

Installation must be carried out by a qualified person. Drill holes according to the dimensions indicated (Fig. 2 in the manual), fix the hood to the wall with screws suitable for the wall type. Plan a distance of at least 65 cm between the lowest point of the hood and the cooking surface. Ensure the electrical outlet is accessible after installation.

What is the difference between extraction and recirculation modes?

In extraction mode, air is expelled outside via a duct. In recirculation mode, air is filtered through an activated charcoal filter and then returned to the room. For recirculation, additional charcoal filters are required (not supplied).

How often should I clean the grease filters?

Grease filters must be washed every 2 months by hand with a neutral detergent or in the dishwasher at low temperature and short cycle. After several washes, the color may change, but this does not affect their effectiveness.

When should I replace the activated charcoal filter?

The non-reusable activated charcoal filter must be replaced at least every 4 months. Washable filters (if supplied) must be washed every 2 months and replaced every 3 years or if damaged.

How to replace the LED lamps?

Replacement of LED lamps must be carried out only by a qualified technician. Do not touch the lamps with bare hands. Refer to Fig. 7 in the manual.

What to do if the hood no longer works or does not turn on?

First check that the hood is properly plugged in and that the fuse has not blown. If the problem persists, contact a qualified electrician. Do not attempt to repair the appliance yourself.

What is the maximum suction power?

The maximum suction power is 650 m³/h, with a 250 W motor. The hood has 3 speeds to adjust suction according to cooking.

Can I use the hood continuously for lighting?

The hood's lighting is designed for use only during cooking. Prolonged use reduces the lifespan of the LED lamps.

Is it possible to reduce the diameter of the exhaust duct?

It is not recommended to use a reducer as this decreases product performance and increases noise level. Use a pipe of the same diameter as the outlet (120-150 mm).

What are the essential safety instructions?

Never flambé food under the hood, watch over frying, and cut off the power supply before any maintenance. Ensure sufficient ventilation if the hood is used simultaneously with gas appliances.

USER MANUAL H 100 K LEISURE

Users Guide & Installation

Cooker Hood

H110K H100X

H 110X H 90K

H 100 KH 90X

LEISURE

Please read this user manual first!

Dear Customer,

Thank you for purchasing this Leisure product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Warning for hazardous situations with regard to life and property.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Technical specifications of your appliance 4-6
2 Important instructions for safety and environment 7-8

General 7

Safety precaution 7

Before connecting the model to the electricity network 7

3 Installing your appliance 8-9

Electric connection 8

Fixing to the wall. 9

Fixing the decorative telescopic flue 9

Filtering version 9

4 Operating your appliance 10-11

Replacing LED lamps 11

Commands mechanical the key symbols are explained below 11

01M-8844823600-0815-04

01M-8844833600-0815-04

01M-8844803600-0815-04

01M-8844813600-0815-04

01M-8844783600-0815-04

01M-8844783600-0815-04

1 Technical specifications of your appliance

	H 110 KH	110 X H 100 K H 100 X H 90 K H 90 X
Depth	495 mm	495 mm	495 mm	495 mm	495 mm	495 mm
Width 108 mm 108 mm 100 mm 100 mm 90 mm 90 mm
Height	755-1100
Supply voltage 220 - 240 V, 50-60 Hz
Control	3 positions
Suction power	650 m³/h
Motor power	250 W
Lamp power	2 x 1,5 W LED
Air outlet pipe	120-150 mm
Net weight	15 kg	15 kg	14.5 kg	14.5 kg	13 kg	13 kg
Gross weight	17,5 kg	17,5 kg	17 kg	17 kg	15.5 kg	15.5 kg
Colour	Black	Inox	Black	Inox	Black	Inox

1 Technical specifications of your appliance

Fig.4
Fig.5

1 Technical specifications of your appliance

Fig.7

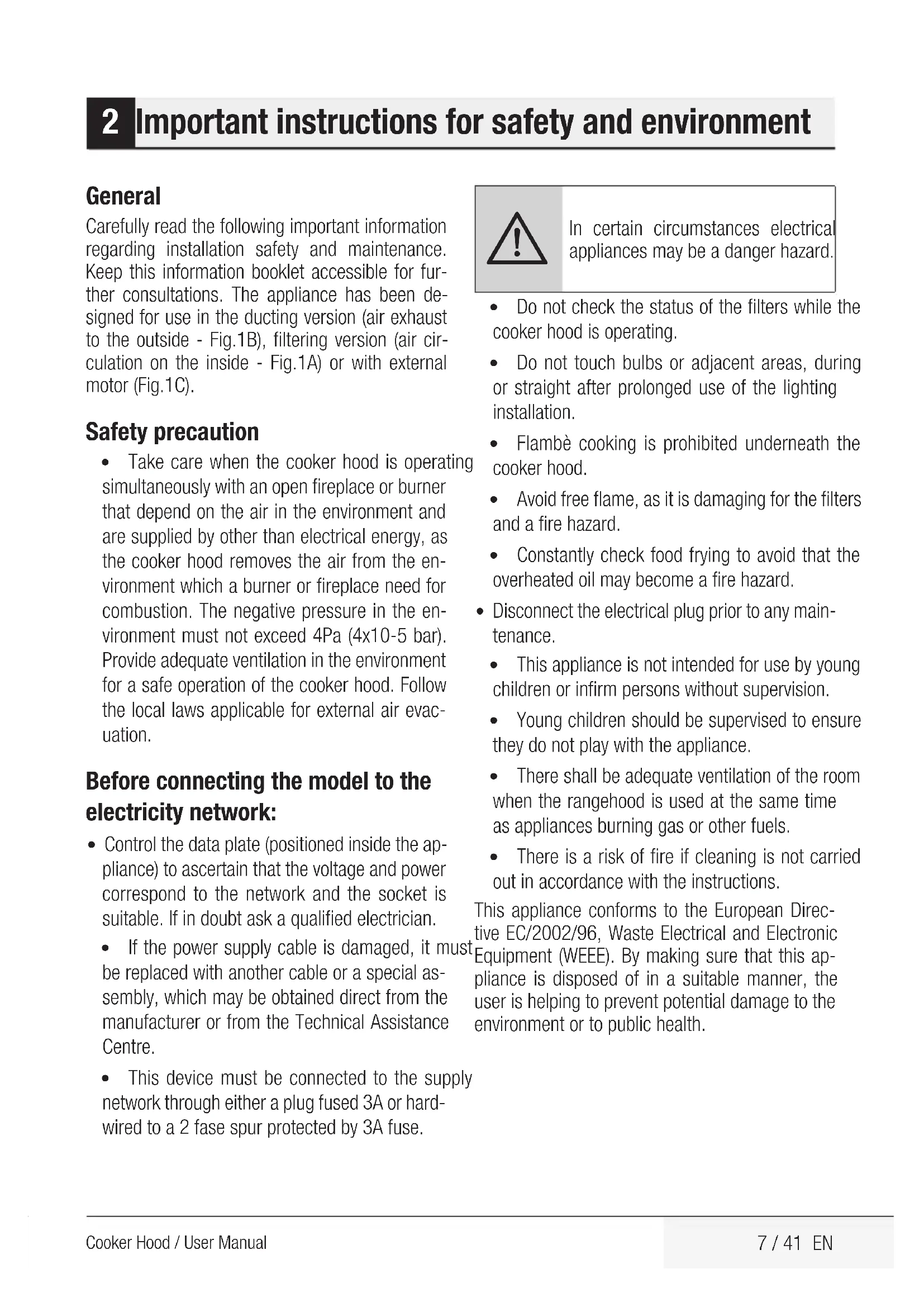

2 Important instructions for safety and environment

General

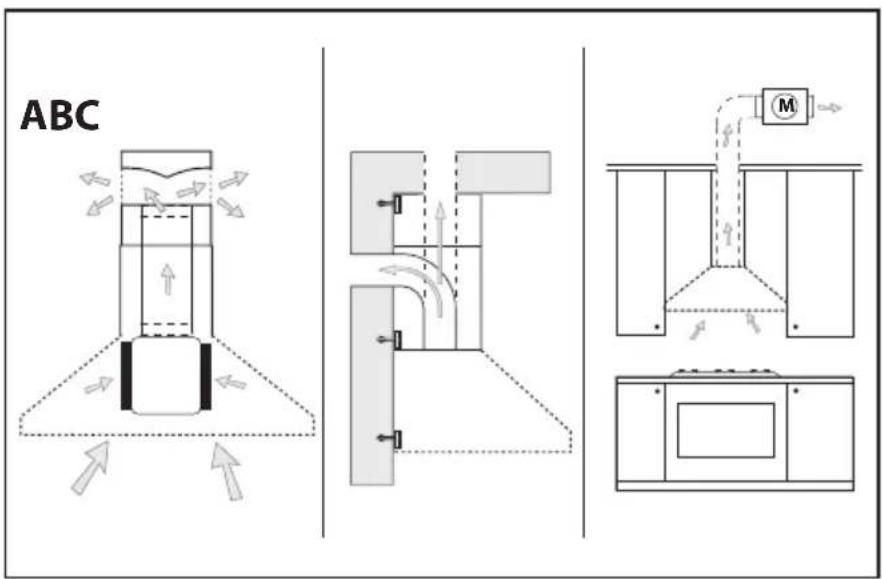

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside - Fig.1B), filtering version (air circulation on the inside - Fig.1A) or with external motor (Fig.1C).

Safety precaution

• Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

• Control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
• If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.
• This device must be connected to the supply network through either a plug fused 3A or hard-wired to a 2 fase spur protected by 3A fuse.

In certain circumstances electrical appliances may be a danger hazard.

• Do not check the status of the filters while the cooker hood is operating.
• Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
• Flambé cooking is prohibited underneath the cooker hood.
• Avoid free flame, as it is damaging for the filters and a fire hazard.

• Constantly check food frying to avoid that the overheated oil may become a fire hazard.

• Disconnect the electrical plug prior to any maintenance.

• This appliance is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure they do not play with the appliance.
• There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• There is a risk of fire if cleaning is not carried out in accordance with the instructions.

This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.

2 Important instructions for safety and environment

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic ap

pliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.

3 Installing your appliance

Assembly and electrical connections must be carried out by specialized personnel.
- Wear protective gloves before proceeding with the installation.

Electric Connection:

• The appliance has been manufactured as a class II, therefore no earth cable is necessary. The plug must be easily accessible after the installation of the appliance. If the appliance is equipped with power cord without plug, a suitably dimensioned Omni polar switch with 3mm minimum opening between contacts must be fitted between the appliance and the electricity supply in compliance with the load and current regulations.
• The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral.

• If the hob is electric, gas, or induction, the minimum distance between the same and the lower part of the hood must be at least 65cm . If a connection tube composed of two parts is used, the upper part must be placed outside the lower part.

Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.5) so that the unit is easier to handle.

• In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.
• We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

• If your appliance has been designed for use in habitations supplied with acentralised suction device perform the following operations:

• The switch controls opening and closure of a valve using a thermoelectrically device. By placing the switch in the ON position, after a minute, the valve opens rotating 90^ allowing suction of the stale air. By placing the switch in the OFF position, the valve closes after 100 seconds.

3 Installing your appliance

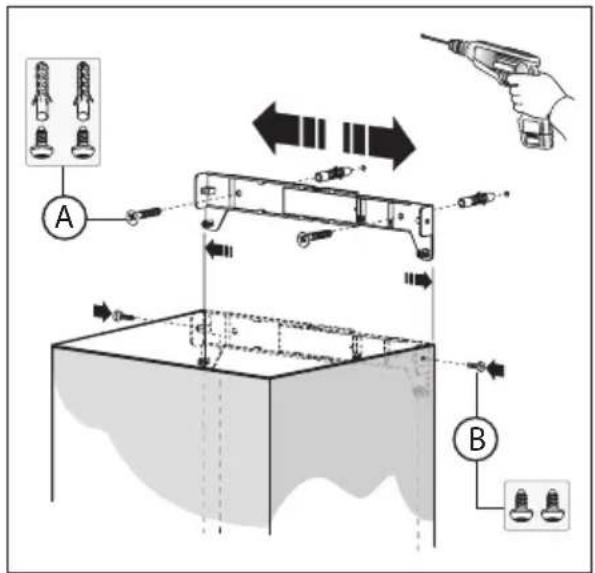

Fixing to the wall:

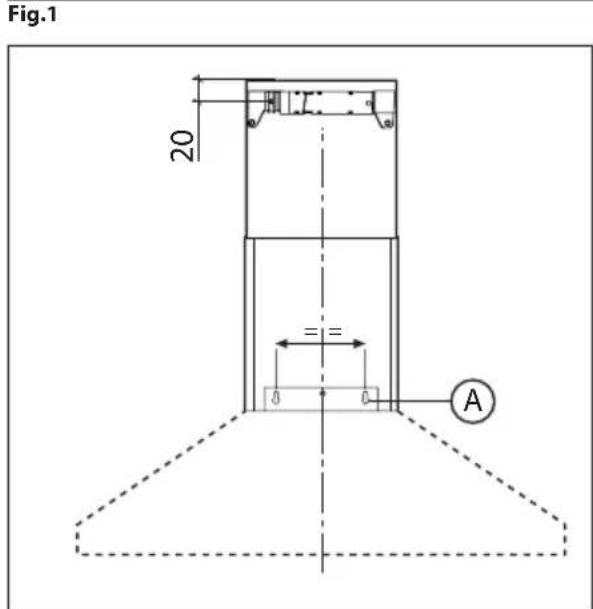

Drill the holes A respecting the distances indicated (Fig.2). Fix the appliance to the wall and align it in horizontal position to the wall units. When the appliance has been adjusted, definitely fix the hood using the screws A (Fig.4). For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed.

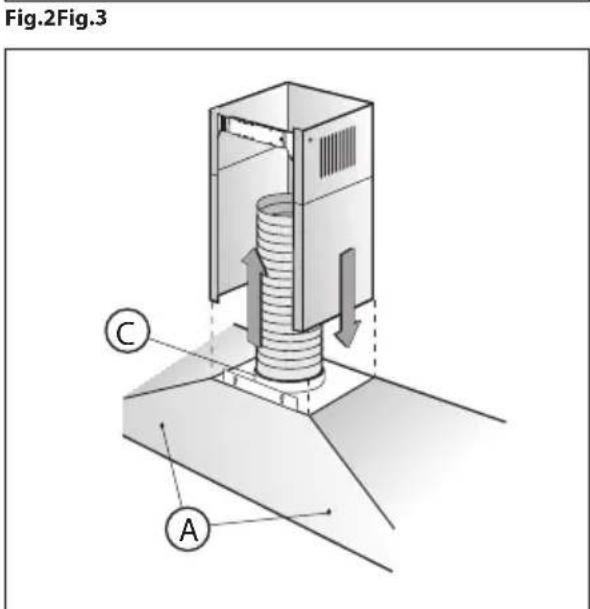

Fixing the decorative telescopic flue:

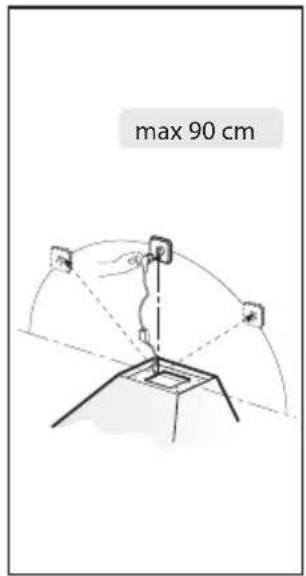

Arrange the electrical power supply within the dimensions of the decorative flue. If your appliance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Adjust the width of the support bracket of the upper flue (Fig.3). Then fix it to the ceiling using the screws A (Fig.3) in such a way that it is in line with your hood and respecting the distance from the ceiling indicated in Fig.2. Connect the flange C to the air exhaust hole using a connection pipe (Fig.4). Insert the upper flew into the lower flue and rest above the frame. Extract the upper flue up to the bracket and fix it with the screws B (Fig.3).

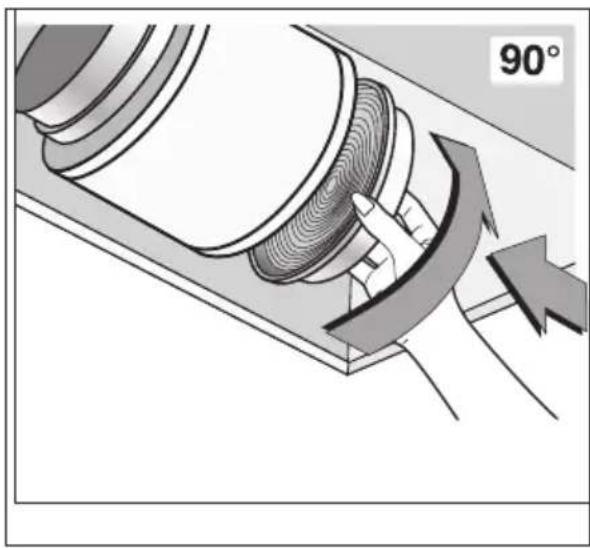

To transform the hood from a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the installation instructions.

Filtering version:

Install the hood and the two flues as described in the paragraph for installation of the hood in ducting version. To assemble the filtering flue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as accessory. The filters must be applied to the suction unit positioned inside the hood. They must be centered by turning them 90 degrees until the stop catch is tripped (Fig.6).

4 Operating your appliance

• We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the cooker hood depends on constant maintenance; the anti-grease filter and the active carbon filter both require special attention.

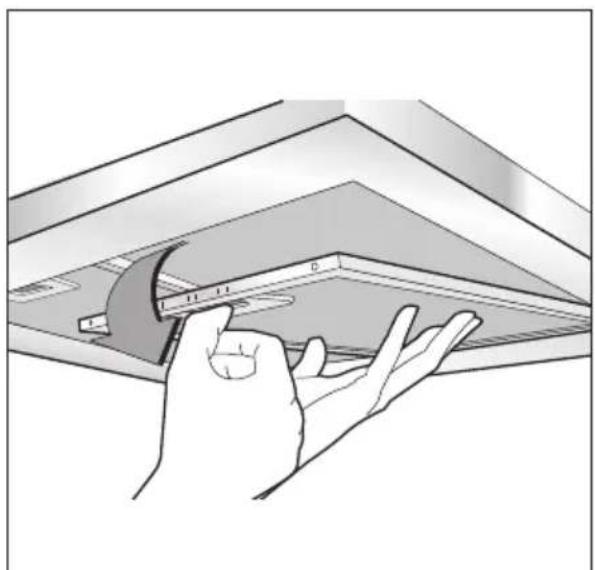

• The anti-grease filter is responsible retaining the grease particles suspended in the air, therefore it is subject to clogging with variable frequency according to the use of the appliance.

• To prevent the danger of possible fires, at least every 2 months one must wash the anti-grease filters by hand using non-abrasive neutral liquid detergents or in the dishwasher at low temperatures and on short cycles.

• After a few washes, color alterations may occur. This does not give the right to claim their replacement.

• The active carbon filters are used to purify the air that is sent back into the room and its function is to mitigate the unpleasant odours produced by cooking.

• The non-regenerable active carbon filters must be replaced at least every 4 months. The saturation of the active charcoal depends on the more or less prolonged use of the appliance, on the type of kitchen and on the frequency with which antigrease filter is cleaned.

• Regenerable active charcoal filters must be washed by hand, with non-abrasive neutral detergents, or in the dishwasher at a maximum temperature of 65^ (the washing cycle must be complete without dishware). Remove excess water without damaging the filter, remove the plastic parts, and let the mat dry in the oven for at least 15 minutes approximately at a maximum temperature of 100^ .

To keep the regenerable charcoal filter functioning efficient this operation must be repeated every 2 months. These must be replaced at least every 3 years or when the mat is damaged.

• Before remounting the anti-grease filters and the regenerable active charcoal filters it is important that they are completely dry.
• Clean the hood frequently, both internally and externally, using a cloth dampened with denatured alcohol or neutral liquid detergents that are non abrasive.
• The lighting system is designed for use during cooking and not for the prolonged general lighting of the room. The prolonged use of the lighting system significantly decreases the average duration of the bulbs.
• If the appliance is equipped with courtesy lights, it is possible to use them for general room lighting for a prolonged amount of time.

The non-compliance with the hood cleaning warnings and with the replacement and cleaning of the filters entails risk of fires. One therefore recommends keeping to the suggested instructions.

4 Operating your appliance

Replacing LED lamps (Fig.7B):

If the appliance version is with LED lamps, the intervention of a specialised technician is necessary to replace them.

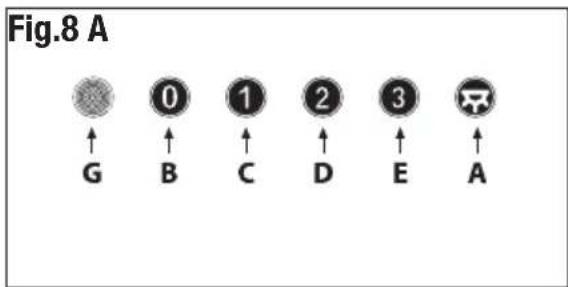

Commands mechanical (Fig.8.A.) the key symbols are explained below:

A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
G = MOTOR WORKING indicator.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
