USER MANUAL H 90 K LEISURE

Cooker Hood H 110 X H 110 K H 100 K H 90 X H 90 K H 100 XComplies with the WEEE Directive. This product was manufactured using the latest technology in environmentally friendly conditions. Please read this user manual first! Dear Customer, Thank you for purchasing this Leisure product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual. Explanation of symbols Throughout this user manual the following symbols are used:

Warning for hazardous situations with regard to life and property. Does not contain PCB3 / 41 EN Cooker Hood / User Manual

Fig.4Fig.2 Fig.3Fig.5Fig.1 1 Technical specifıcations of your applianceCooker Hood / User Manual 6 / 41 EN 1 Technical specifıcations of your appliance

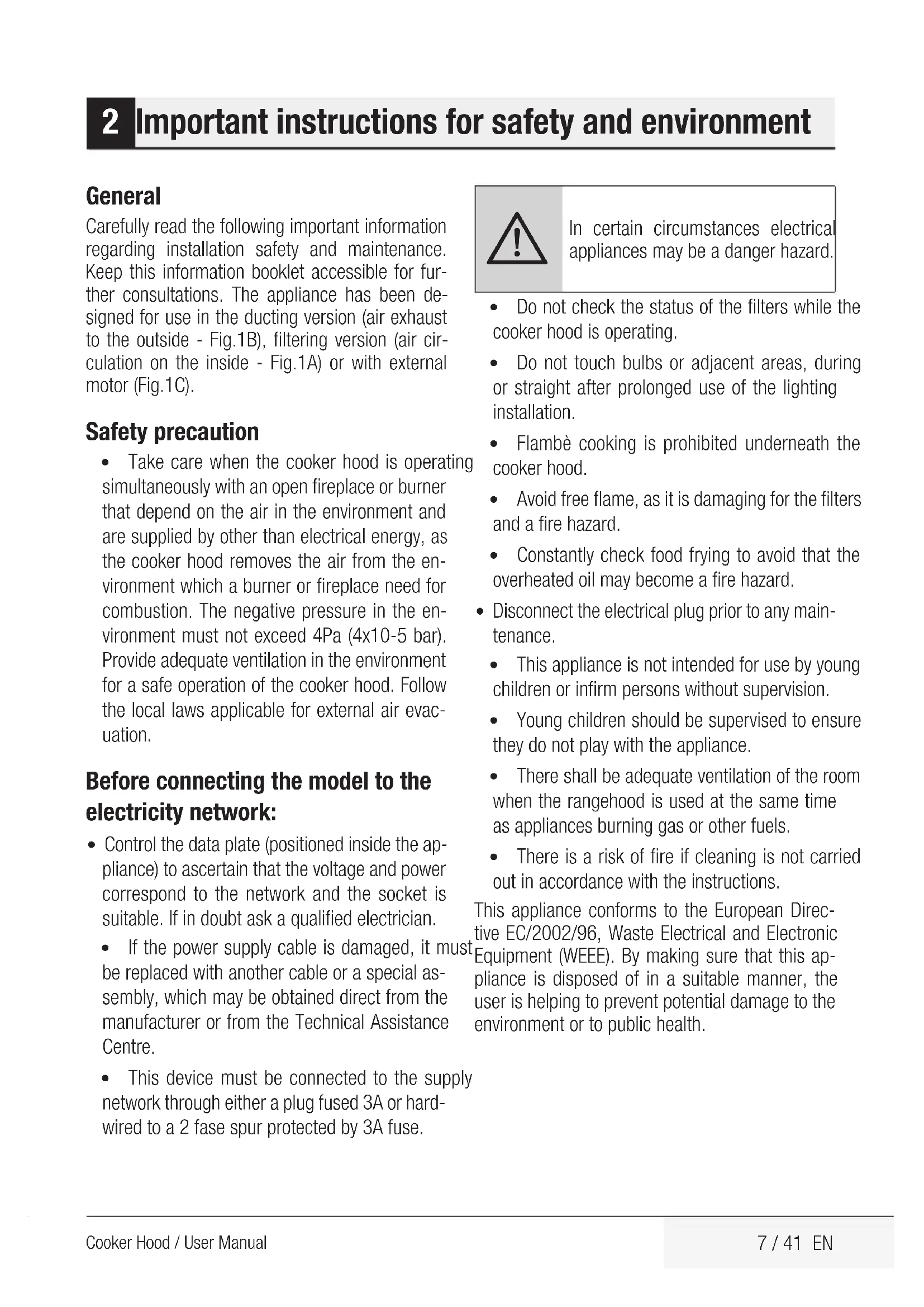

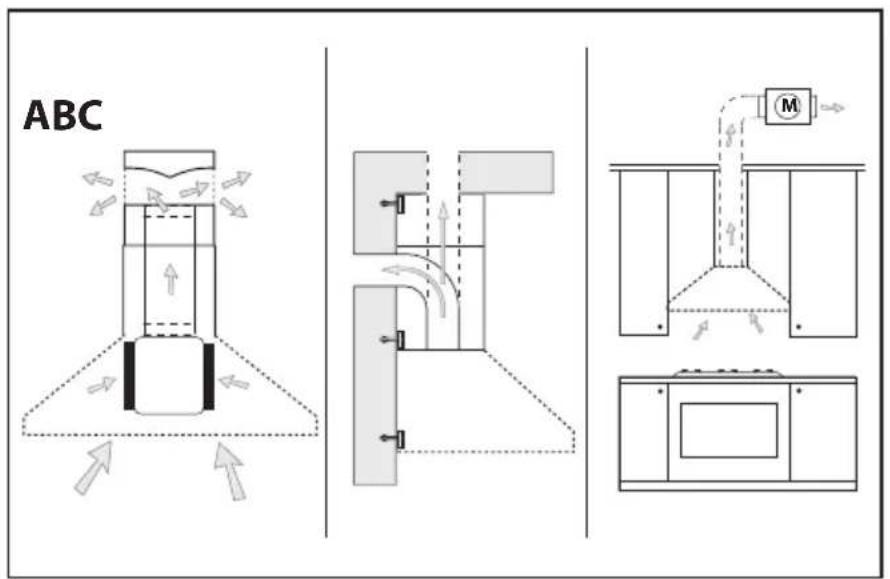

Fig.12Fig.11 Fig.8 Fig.10 Fig.9Fig.7Fig.6 Fig.12Fig.11 Fig.8 Fig.10 Fig.9Fig.7Fig.6 Fig.12Fig.11 Fig.8 Fig.10 Fig.9 Fig.7Fig.6 Fig.8 A7 / 41 EN Cooker Hood / User Manual 2 Important instructions for safety and environment General Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for fur- ther consultations. The appliance has been de- signed for use in the ducting version (air exhaust to the outside - Fig.1B), filtering version (air cir- culation on the inside - Fig.1A) or with external motor (Fig.1C). Safety precaution

• Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the en- vironment which a burner or fireplace need for combustion. The negative pressure in the en- vironment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evac- uation. Before connecting the model to the electricity network:

• Control the data plate (positioned inside the ap- pliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.

• If the power supply cable is damaged, it must be replaced with another cable or a special as- sembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.

• This device must be connected to the supply network through either a plug fused 3A or hard- wired to a 2 fase spur protected by 3A fuse.

In certain circumstances electrical appliances may be a danger hazard.

• Do not check the status of the filters while the cooker hood is operating.

• Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.

• Flambè cooking is prohibited underneath the cooker hood.

• Avoid free flame, as it is damaging for the filters and a fire hazard.

• Constantly check food frying to avoid that the overheated oil may become a fire hazard.

• Disconnect the electrical plug prior to any main- tenance.

• This appliance is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure they do not play with the appliance.

• There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.

• There is a risk of fire if cleaning is not carried out in accordance with the instructions. This appliance conforms to the European Direc- tive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this ap- pliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.Cooker Hood / User Manual 8 / 41 EN 2 Important instructions for safety and environment The symbol on the product or on the ac- companying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic ap- pliance recycling collection point. Follow local guidelines when disposing of waste. For more in- formation on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.

• Assembly and electrical connections must be carried out by specialized personnel.

• Wear protective gloves before proceeding with the installation. Electric Connection:

• The appliance has been manufactured as a class II, therefore no earth cable is necessary. The plug must be easily accessible after the installation of the appliance. If the appliance is equipped with power cord without plug, a suit- ably dimensioned Omni polar switch with 3 mm minimum opening between contacts must be fitted between the appliance and the electricity supply in compliance with the load and current regulations.

• The connection to the mains is carried out as follows: BROWN = L line BLUE = N neutral.

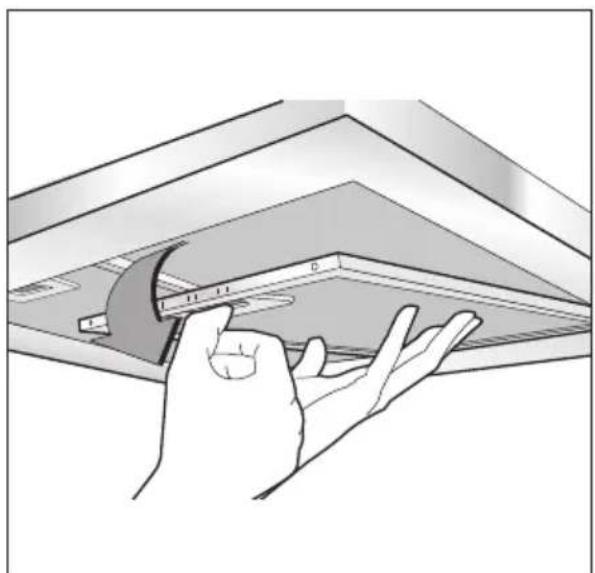

• If the hob is electric, gas, or induction, the minimum distance between the same and the lower part of the hood must be at least 65 cm. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances gener- ated by other than an electrical source. Before proceeding with the assembly operations, re- move the anti-grease filter(s) (Fig.5) so that the unit is easier to handle.

• In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

• We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

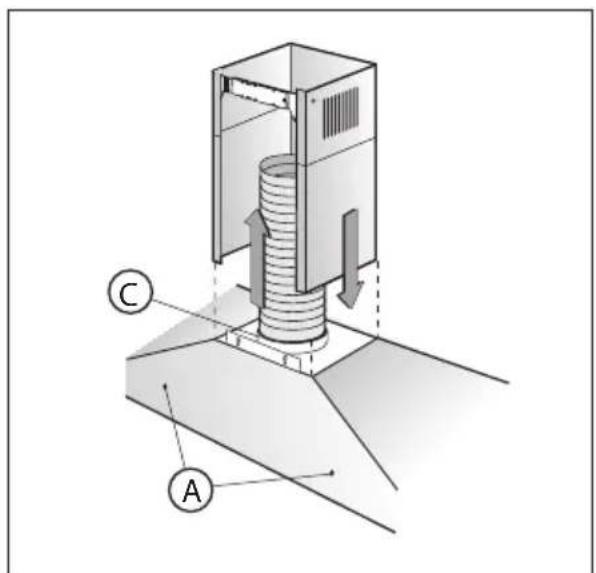

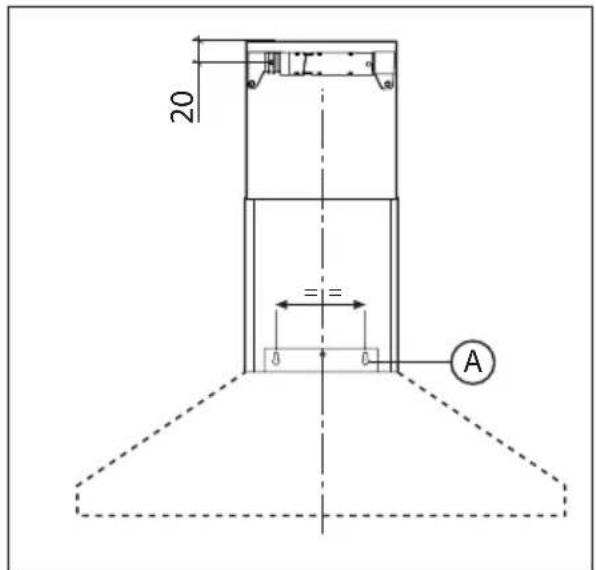

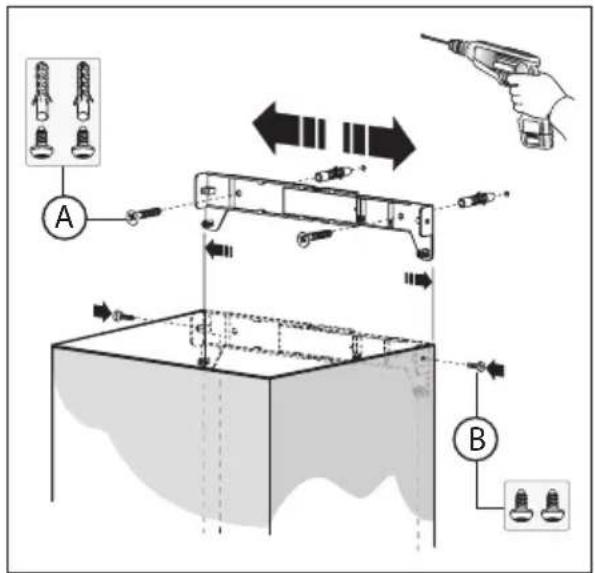

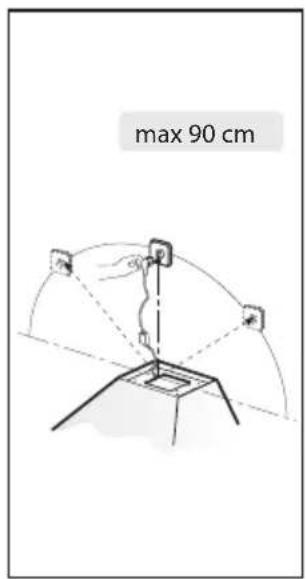

• If your appliance has been designed for use in habitations supplied with acentralised suction device perform the following operations: - The switch controls opening and closure of a valve using a thermoelectrically device. By placing the switch in the ON position, after a minute, the valve opens rotating 90° allowing suction of the stale air. By placing the switch in the OFF position, the valve closes after 100 seconds. 3 Installing your appliance9 / 41 EN Cooker Hood / User Manual 3 Installing your appliance Fixing to the wall: Drill the holes A respecting the distances indicat- ed (Fig.2). Fix the appliance to the wall and align it in horizontal position to the wall units. When the appliance has been adjusted, definitely fix the hood using the screws A (Fig.4). For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plas- terboard, etc.). If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed. Fixing the decorative telescopic flue: Arrange the electrical power supply within the dimensions of the decorative flue. If your appli- ance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Adjust the width of the support bracket of the upper flue (Fig.3). Then fix it to the ceiling using the screws A (Fig.3) in such a way that it is in line with your hood and respecting the distance from the ceiling indicated in Fig.2. Con- nect the flange C to the air exhaust hole using a connection pipe (Fig.4). Insert the upper flew into the lower flue and rest above the frame. Extract the upper flue up to the bracket and fix it with the screws B (Fig.3). To transform the hood from a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the installation instructions. Filtering version: Install the hood and the two flues as described in the paragraph for installation of the hood in duct- ing version. To assemble the filtering flue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as acces- sory. The filters must be applied to the suction unit positioned inside the hood. They must be centered by turning them 90 degrees until the stop catch is tripped (Fig.6).Cooker Hood / User Manual 10 / 41 EN 4 Operating your appliance

• We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the cooker hood depends on constant maintenance; the an- ti-grease filter and the active carbon filter both require special attention.

• The anti-grease filter is responsible retain- ing the grease particles suspended in the air, therefore it is subject to clogging with variable frequency according to the use of the appliance.

• To prevent the danger of possible fires, at least every 2 months one must wash the anti-grease filters by hand using non-abrasive neutral liquid detergents or in the dishwasher at low temper- atures and on short cycles.

• After a few washes, color alterations may occur. This does not give the right to claim their re- placement.

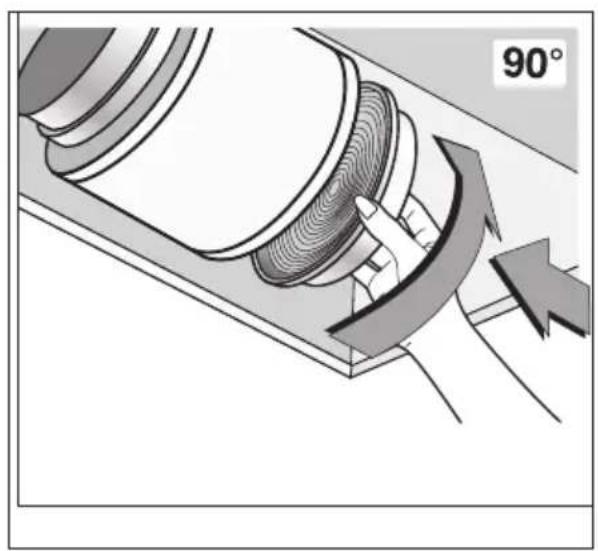

• The active carbon filters are used to purify the air that is sent back into the room and its function is to mitigate the unpleasant odours produced by cooking.

• The non-regenerable active carbon filters must be replaced at least every 4 months. The satura- tion of the active charcoal depends on the more or less prolonged use of the appliance, on the type of kitchen and on the frequency with which antigrease filter is cleaned.

• Regenerable active charcoal filters must be washed by hand, with non abrasive neutral de- tergents, or in the dishwasher at a maximum temperature of 65°C (the washing cycle must be complete without dishware). Remove excess water without damaging the filter, remove the plastic parts, and let the mat dry in the oven for at least 15 minutes approximately at a maxi- mum temperature of 100°C. To keep the regenerable charcoal filter func- tioning efficient this operation must be repeated every 2 months. These must be replaced at least every 3 years or when the mat is damaged.

• Before remounting the anti-grease filters and the regenerable active charcoal filters it is important that they are completely dry.

• Clean the hood frequently, both internally and externally, using a cloth dampened with denatured alcohol or neutral liquid detergents that are non abrasive.

• The lighting .system is designed for use during cooking and not for the prolonged general light- ing of the room. The prolonged use of the light- ing system significantly decreases the average duration of the bulbs.

• If the appliance is equipped with courtesy lights it is possible to use them for general room light- ing for a prolonged amount of time.

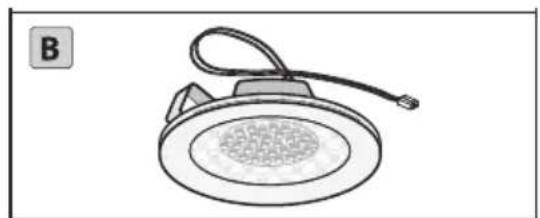

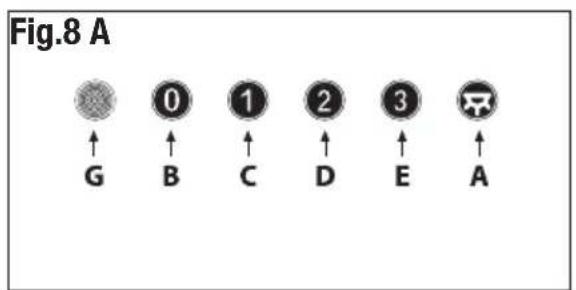

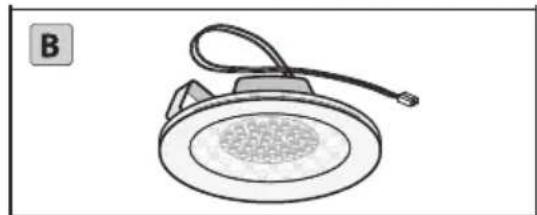

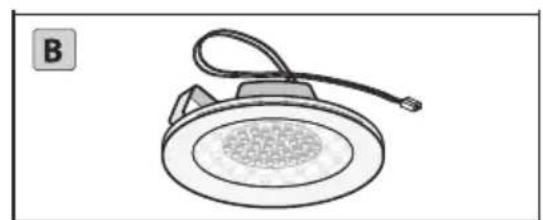

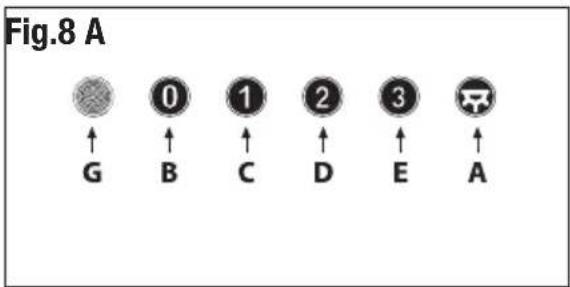

The non-compliance with the hood cleaning warnings and with the replacement and cleaning of the filters entails risk of fires. One therefore recommends keeping to the suggested instructions.11 / 41 EN Cooker Hood / User Manual 4 Operating your appliance Replacing LED lamps (Fig.7B): If the appliance version is with LED lamps, the in- tervention of a specialised technician is necessary to replace them. Commands mechanical (Fig.8.A.) the key symbols are explained below: A = LIGHT B = OFF

G = MOTOR WORKING indicator.

CAUSED BY BREACHING THE ABOVE WARN-
