FITvigo AM 1600 - Sports Watch ADE - Free user manual and instructions

Product type	Activity tracker / Sports watch
Brand	ADE
Model	FITvigo AM 1600
Power supply	Lithium-polymer battery 3.7 V / 70 mAh, recharge via USB
Battery life	≥ 7 days (full charge, 8 hours use per day)
Display	Digital display
Main functions	Step counter, distance traveled, calories burned, sleep monitoring, alarm, time
Connectivity	Bluetooth for synchronization with FITvigo app
Protection rating	IP64 (splash water resistant)
Package contents	Activity tracker with bands, user manual
Cleaning	Wipe with a slightly damp soft cloth; do not immerse
Safety	Do not let children play with it; keep out of reach of packaging; avoid shocks and dirt
Repairability	Do not modify; repair only by a specialized workshop
Warranty	3 years (material or manufacturing defects)
Distributor	Waagen-Schmitt GmbH, Hammer Steindamm 27–29, 22089 Hamburg, Germany
Compatibility	iOS and Android (free FITvigo app)
Operating temperature range	0 to 40 °C
Storage temperature range	-20 to 60 °C
Maximum humidity	≤ 90% RH (use), 10–90% RH (storage)

Frequently Asked Questions - FITvigo AM 1600 ADE

How to turn on the screen of the activity tracker?

Briefly press the command button when the screen is off. If the battery is sufficiently charged, the screen displays the current values.

How to synchronize the device with the FITvigo app?

Enable your smartphone's Bluetooth, open the FITvigo app and follow the instructions. The tracker pairs automatically after a few moments.

How to activate sleep monitoring?

Press and hold the button for about 5 seconds until a blinking moon appears on the screen and the device vibrates briefly. Sleep mode is then activated.

How to set the alarm?

Via the FITvigo app, set the desired time and save it. The tracker will vibrate at the set time. Press the button to stop the vibration.

What to do if the screen displays 'Fail!'?

This indicates a data transmission failure. Check that your smartphone's Bluetooth is enabled, the app is open, and the distance between the device and phone does not exceed 10 meters.

Is the device waterproof?

The tracker is protected against splashes of water (IP64), but it should not be worn while swimming or bathing. Remove it before any immersion.

How to clean the band and screen?

Wipe the device with a slightly damp soft cloth. Never use abrasive or harsh cleaners and do not immerse the device in water.

What to do if the battery is low?

Connect the USB plug of the tracker to a computer USB port or USB charger. The battery symbol appears. Recharge until the battery is full (full symbol).

Can I swim with this activity tracker?

No, the device is not designed for swimming. It is splash resistant but not for prolonged immersion. Remove it before swimming or bathing.

How to reset the activity tracker?

The manual does not mention a reset. In case of issues, recharge the device or contact support at [e-mail].

USER MANUAL FITvigo AM 1600 ADE

Black fitness tracker with digital display showing 1928 time (no text or symbols on the device itself)

Simple heart-shaped icon with two chevrons inside, no text or symbols present.

FITvigo

Download on the App Store GET IT ON Google Play

Bluetooth

Bedienungsanleitung

Icon of a person using a laptop inside a circle (no text or symbols)

22089 Hamburg, Germany

Hamburg, August 2016

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Garantie

You have chosen to purchase a product from the FITvigo program from ADE: Activity trackers, bathroom and body analyser scales, as well as blood pressure monitors are equipped with a Bluetooth function in order to transfer all data to the FITvigo app. FITvigo is free and, alongside clear progress monitoring, offers additional motivation and stimulation for more wellbeing. At the same time, the many years of experience of the brand ADE guarantees the high quality of the product and the app.

We hope you enjoy your FITvigo product.

Your ADE Team

General information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.

Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General information....12

Intended Use....14

Safety 14

Scope of delivery....14

At a glance....15

Possible display indicators....15

What your activity tracker has to offer 16

Start-up....16

Use....17

Show values on display....18

Cleaning....19

Fault/Remedy....19

Technical Data 20

Declaration of Conformity 20

Guarantee 21

Disposal 21

Intended Use

With the activity tracker, you can measure the number of your steps, the distance travelled and the calories consumed while doing so.

In addition, you can monitor your sleep times in the app.

The activity tracker is designed exclusively for use in the private sphere and is not suitable for medical or sports medicine use.

Persons with portable or implanted medical electronic devices such as a cardiac pacemaker should use the activity tracker only after consultation with the attending physician.

Safety

- Children must not play with the item.

DANGER for children

- Keep children away from packaging material. Risk of choking if swallowed. Also beware that children do not pull the packaging material over their heads.

BEWARE of material damage

- Protect the activity tracker from strong jolts, shocks, direct sunlight as well as dirt.

- The activity tracker is splashproof. Remove it, however, before you bathe or go swimming, for instance.

- Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

Scope of delivery

• Activity tracker with arm bands
• Operating Manual

You can download the "FITvigo" app for free from the internet, see "Install App".

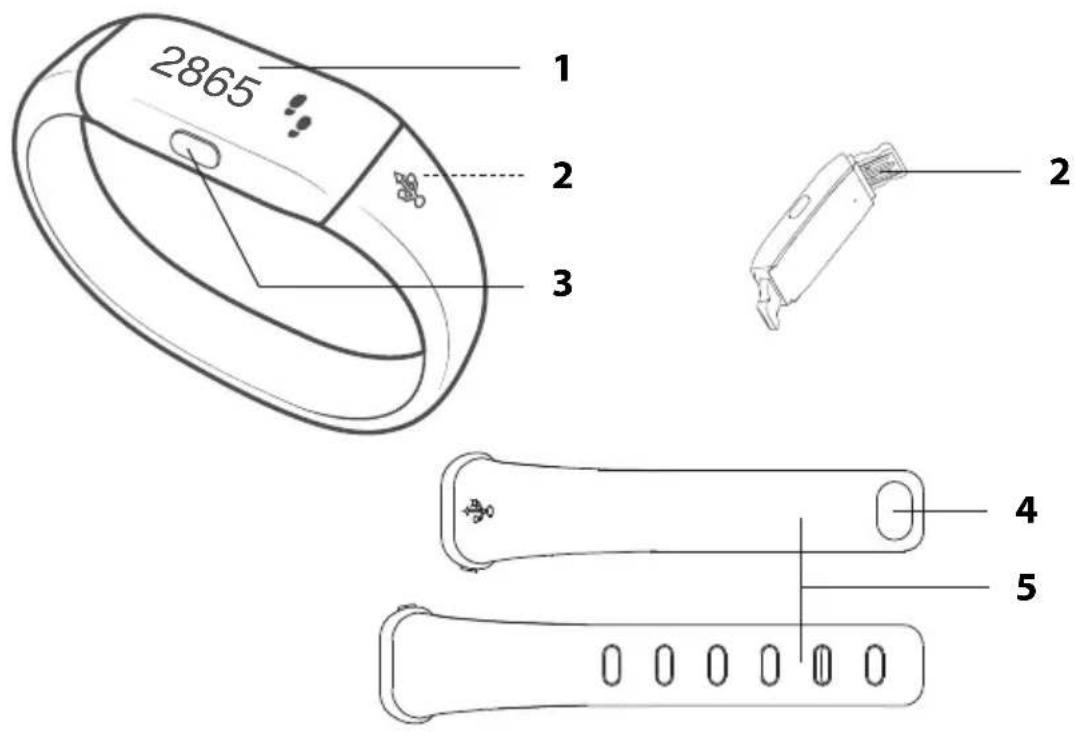

2865 1 2 3 2 4 5

1 Display 4 Clasp for armband
2 USB connector in the armband 5 Armband
3 Operating button

Possible display indicators

Steps

Current time

Calories consumed (kcal)

Distance covered

Battery is empty

Battery is charging

Battery is fully charged

An overview of the indicators:

Time
- Daily activity with the following details:
-Number of steps
-Distance covered (miles/km)
-Calories consumed (kcal)

• Data shown on the display and in the FITvigo app
• Sleep monitoring
• Alarm

Start-up

Charge battery

USB

-Connect the USB connection of the activity tracker with the USB socket of a computer (PC, Tablet, Notebook) or of a USB charging device. Observe the contacts of the USB connector and the charge indicator in the display.

As soon as the "Battery full" symbol is displayed, the activity tracker is ready to be used.

Install app

1. Make sure your smartphone is connected with the internet.
2. Download the "FITvigo" app in the app store (iOS) or Google Play store (Android).

• Depending on the settings of your smartphone, additional costs may be incurred for the internet connection or data transfer.
• We recommend downloading over a wireless network.

Connect the device with the app (pairing)

1. Activate Bluetooth on your smartphone.
2. Start the app and follow the instructions. Pay attention to the information and explanations displayed.

After a short period of time your activity tracker will be connected with the FITvigo app (display indicator "Success").

Further information on the FITvigo app can be found online at www.fitvigo.de

Do you need help or do you have additional questions?

Then please send us an email at: [e-mail]

Use

Counting steps

Once you have successfully connected your activity tracker with the FITvigo app, measurement begins as soon as you start walking. Recording and transmission of data are done automatically. Pay attention to the following:

• The activity tracker makes a permanent record of your physical activity. In doing so, all of your physical movements are interpreted in steps. As a result, the actual distance covered may differ from the indicated distance.
• The pre-set step length is an average value that cannot be changed.
• Every day at midnight, the measurement restarts at zero.

Enabling/disabling sleep monitoring

• When going to sleep, press and hold the button on the activity tracker for approx. 5 seconds until a small, blinking moon appears on the right of the display and the device vibrates briefly.
  Sleep mode is active.

- When getting up, press and hold the button again for approx. 5 seconds until the moon icon is no longer displayed and the device vibrates briefly.

The activity tracker is once again in normal daytime mode.

Using the alarm function

Via the FITvigo app you can use the activity tracker as an alarm.

1. Start the app on your smartphone.
2. Set the desired alarm time.
3. Save the set alarm time.
4. Follow the instructions that are displayed in the app.
5. Confirm the notification that the alarm time has been successfully saved.

At the set time the activity tracker begins to vibrate in intervals; furthermore, a blinking alarm symbol is shown on the display.

- Press the operating button of the activity tracker in order to switch off the alarm function.

Show values on display

Press the button on the activity monitor when the display is switched off.

If sufficient current is available, the display shows your current values.

If there is insufficient power, the battery charge status is displayed first when you press the button.

In this instance, you should soon charge the battery – see "Charge battery".

By repeatedly pressing the button on the activity monitor, the following data will also be shown in turn:

Number of steps

Time

Calorie consumption (estimated)

Distance covered

If the button is not pressed again, the display turns off after 3 seconds.

• The values relating to sleep monitoring can be accessed exclusively via the app.
• The units of measurement for the values obtained by the activity tracker can likewise be set only via the app.

NOTE on material damage

• Do not submerge the activity tracker in water or other liquids.
• Under no circumstances use hard, scratching, or abrasive cleaning agents or the like in order to clean the device. If you do, the surface could be scratched.

- As needed, wipe down the activity monitor with a soft, lightly dampened cloth.

Fault/Remedy

Fault Possible Cause/Remedy
No function/display indicator.Activity tracker switches off.	Is the battery completely charged?
Apparently incorrect measurements.Large difference between the last measurements.	The Bluetooth symbol of the activity tracker is not pointing towards your body.You have gone fewer than 10 steps.You’re sliding across the floor or are wearing slippers on your feet.
“Fail!” is shown on the display.Data transmission has failed.	Has Bluetooth been activated on your smartphone?Is the FITvigo app active?Was the distance between the activity tracker and smartphone too large?Max. distance: 10 m.

Model: Activity Tracker AM 1600/1601/1602

Battery: 3.7 V/70 mAh rechargeable lithium polymer battery

Charging via USB interface

Battery life: ≥7 days from full charge and with 8 hours of use per day

Rated current: ≤ 250 mA

Steps: 0-120,000 steps, Resolution 1 step

Calories: 0-12,000.0 kcal, Resolution 0.1 kcal

Recording duration: Max. 23 hours and 59 minutes, Resolution 1 minute

Operating conditions: Temperature: 0 to 40°C

Humidity: ≤90% rel. humidity

Air pressure: 80 kPa \~ 106kPa

Storage conditions: Temperature: -20 to 60°C

Humidity: 10% to 90% rel. humidity

Air pressure: 50 kPa \~ 106kPa

IP classification: IP 64

Distributor (no service

address):

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

This device has been manufactured in accordance with the harmonised European standards. It conforms to the provisions of the EC directives cited below:

• 2014/30/EU EMC Directive
2011/65/EU RoHS Directive

in the currently valid versions.

The declaration loses its validity if modifications have been made to the device without our approval.

Hamburg, August 2016

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Guarantee

The company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste.

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.

• Directive CEM 2014/30/EU
• Directive RoHS 2011/65/EU

22089 Hamburg, Germany

22089 Hamburg, Germany

Gwarancja
