USER MANUAL 10029428 Klarstein

Row of white icons representing kitchen appliances including blender, kettle, refrigerator, oven, and air conditioner (no text or symbols)

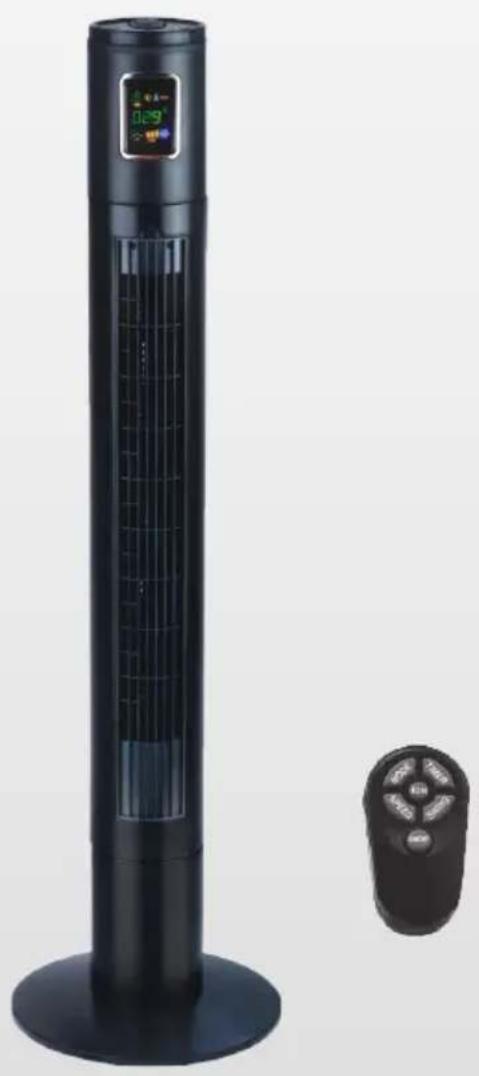

Black vertical outdoor fan with digital display and remote control (no text or symbols visible)

Turmventilator

10029428

KLARSTEIN

Safety Instructions 3

Geräteübersicht. 4

Aufstellung. 4

Bedienung 5

Diagram of a vertical air conditioner with numbered parts and an inset showing a remote control device labeled 8.

Aufstellung

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 9

Safety Instructions....10

Device 11

Installation....12

Operation 12

Cleaning and Maintenance....14

Disposal Considerations 15

Declaration of Conformity 15

Technical Data

Item number 10029428
Power supply 240 V 50 Hz
Wattage 30 W
Weight 4.2 kg
Oscillation 90 degrees

Safety Instructions

• Use this fan only as described in this manual.
• Check the voltage indicated on the rating plate. This fan is designed for a 2220 V-50 Hz electric supply. Make certain the power source conforms to these electric requirements. Make sure the room where this fan will be used has a working smoke detector.
• Do not use an electrical extension cord with this fan. Do not plug the fan into a power strip. The use of such devices may create electric and/or fire hazards.
• Do not force your fingers through the front case. Do not allow any foreign objects through the front case..
• This product is not a toy. Do not allow children to tamper with the fan.
• Be careful not to allow hair, curtains, tablecloth, clothes or other nearby objects block the airways of the fan or to enter the openings of the fan. This can cause damage and/or injuries.
• Do not use this or any fan if the cord is found to be or becomes damaged. Periodically check the electric cable of this fan. If the electric cable is damaged, it must be replaced by the manufacturer, its after-sales service or by a similar qualified person in order to avoid danger.
• Do not use this fan if it falls and/or becomes damaged in any way. If the fan becomes damaged, it must be replaced by the manufacturer, its after-sales service or by a similar qualified person in order to avoid danger.
• Do not use this fan outside, or in any commercial, industrial or agricultural setting. This fan is only for residential use. Do not use this fan with any solid state speed control devices.
• Do not use this fan in a damp area such as bathroom.
• Do not use this fan on a window, ledge, or on any unstable platform. The fan should only be used standing on its base. Never lay the fan on its side.
• Do not use this fan next to a window or anywhere where exposure to rain or moisture is possible. This may create an electrical hazard.
• Do not place the electrical cord under any objects, such as carpets, throw rugs or runners. Do not place electrical cord in areas of foot traffic where there is a risk of stumbling or tripping over it.
• The fan must always be unplugged when not in use. Before unplugging the fan, first ensure it has been turned off.
• Do not operate the fan in an area where gasoline, paint supplies or any flammable liquids or explosive chemicals are used or stored.
• Do not try to repair or disassemble this fan. Doing so will void the warranty and may result in damage and/or personal injury. There are no end-user serviceable parts.
• Remote control devices for other appliances may interfere with this fan and vice-versa. If this occurs, move the fan to another location.
• This fan is not suitable for use in agricultural facilities and hazardous locations. This fan does not meet the requirements of NEC Article 547-7 and 500 (2002).
• Keep this fan and all electrical appliances out of reach from children at all times.

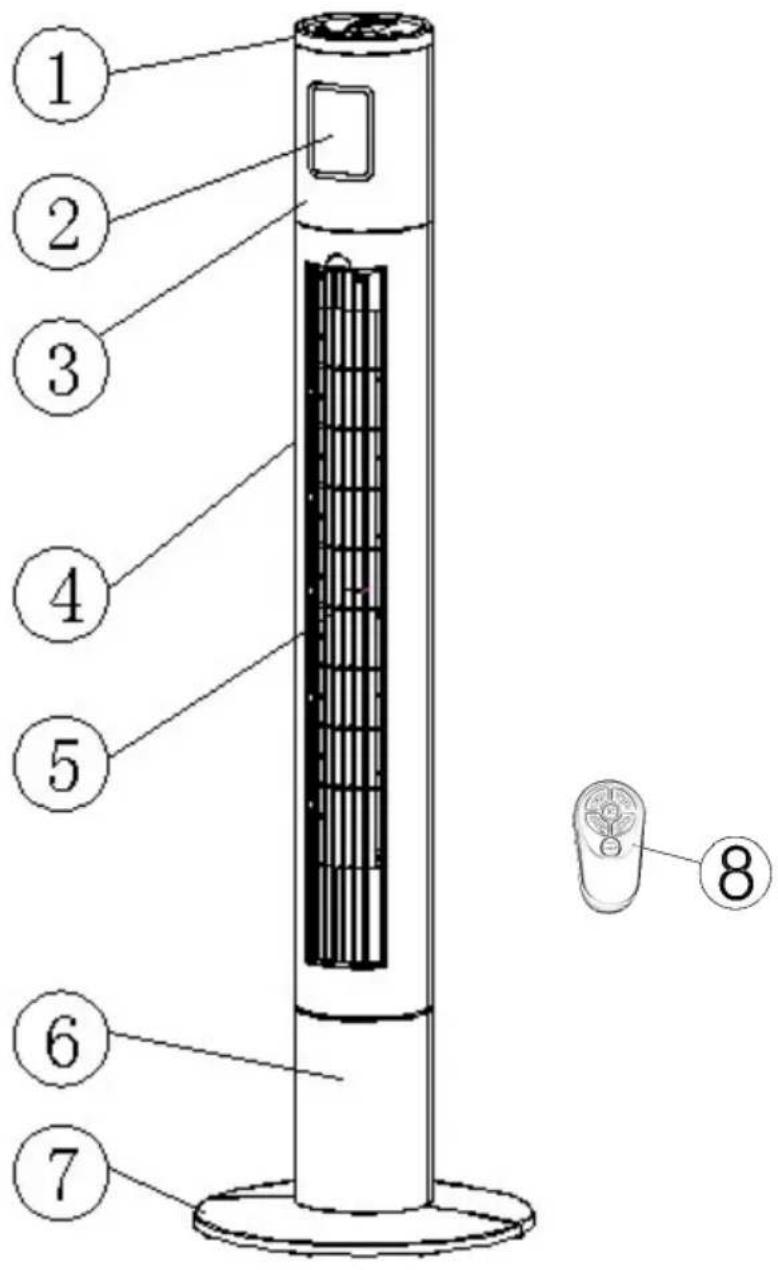

Device

1 Top control panel
2 FND Display
3 Front cover
4 Back cover
5 Grille
6 Column
7 Base
8 Remote control

Diagram of a vertical air conditioner with numbered parts and an inset showing the labeled component '8'

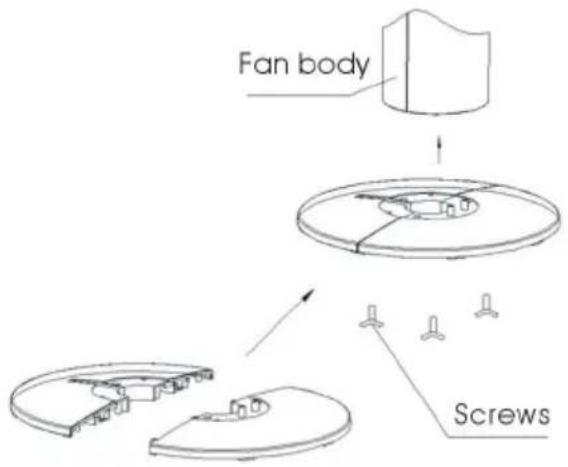

Installation

1. Remove all items of packing from the tower fan.
2. Pass the power cord through the middle of the two base pieces
3. Position base piece onto the support posts of the other base piece to create the base assembly.
4. Turn the tower body upside down position the base assembly onto the pedestal tube. Ensure that the pedestal tube is sitting flush in the base assembly.
5. Screw the base assembly onto the pedestal tube with the supplied screws.
6. Position the power cord into the provided cord track in the rear base.
7. Turn the tower fan back to upright position. It is now ready for use.

Fan body Screws

Operation

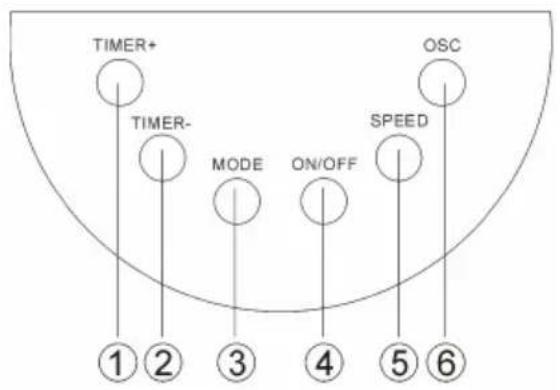

Operation via the top control panel

1 Press this button to activate the timer. Each time the button is pressed the timer will be increased by 1 hour up to a maximum of 12 hours.

2 Press this button to deactivate the timer.

3 Choose from 3 comfort settings (HIGH, MED, LOW) by pressing this button until the speed you want is indicated on the FND display.

4 Press this button to turn the fan on or off.

5 Choose from 3 different breeze patterns (Sleep, Nature, Normal) by pressing this button until the type of breeze desired is indicated on the FND display.

6 Press the oscillation button to activate the oscillation function for widespread breeze distribution. Press again to turn the oscillation function off

TIMER+ TIMER- MODE ON/OFF SPEED OSC ① ② ③ ④ ⑤ ⑥

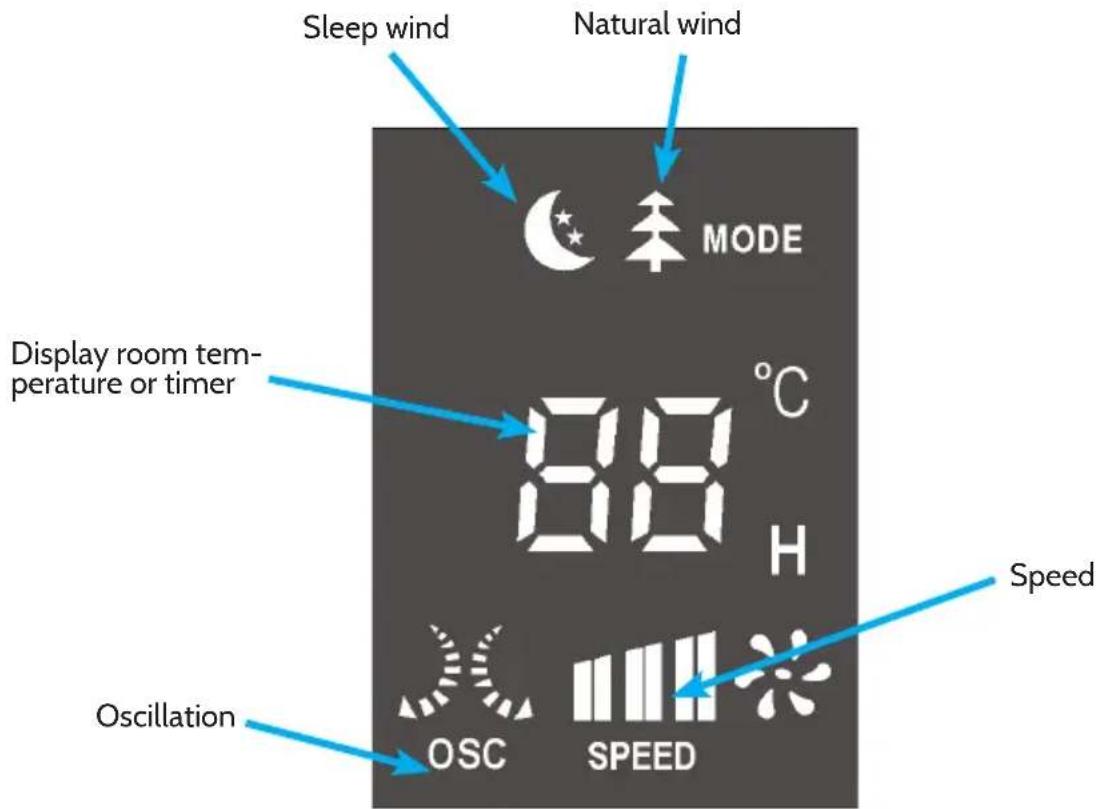

Display

Sleep wind Natural wind MODE Display room temperature or timer 88°C H Speed Oscillation OSC SPEED

Remote control

Guidelines for using the remote control

• The remote control must be pointed towards the receiver on the fan in order to work.
• The remote control may not operate in a room where heavy machine is operating.
• Do not block the line of sight between the remote control and the receiver.
• Handle the remote control with care. Do not drop the remote control on the floor or bang it against hard objects..

Guidelines for use of batteries

• If the remote control will not be used for a long period of time, remove the batteries from the battery compartment.
• The remote control uses two AAA batteries, both of which should be new and replaced at the same time when they run out.
• Clean battery contacts and also those of the device prior to battery installation
• Ensure the batteries are installed correctly with regard to polarity, matching +/- sides of the battery to corresponding indications on the remote control.
• Remove used and dead/discharged batteries promptly.

Cleaning and Maintenance

Danger: Risk of electrical shock

Do not allow water to run into the interior of the fan.

Cleaning

1. Always disconnect the cord from the electrical outlet before cleaning your fan.
2. Dust may be removed by using a vacuum cleaner along the back of the fan where the plastic grille covers the air intake, and along the front grille cover. A pipe cleaner or flexible duster may also be used.
3. Wipe the exterior surfaces of the fan occasionally with a damp cloth (not dripping wet) and dry thoroughly with a soft dry cloth before operating the fan.
4. Do not use harsh cleaners or materials to clean this unit, doing so will cause damage.

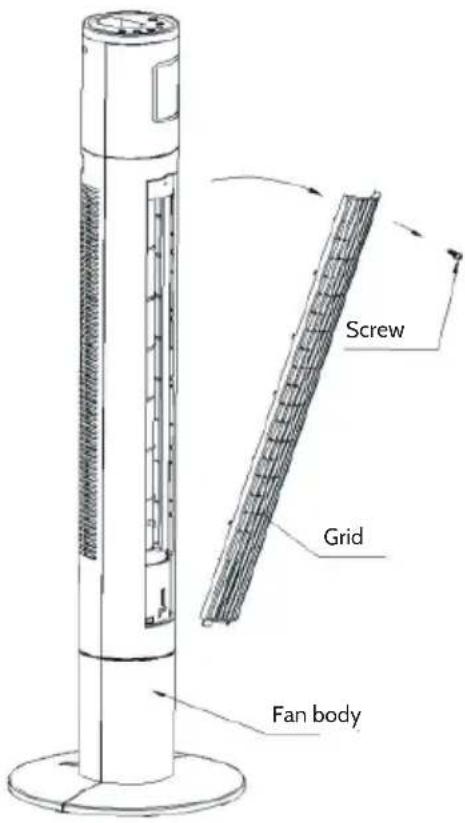

5. Unscrew the screw in front of fan grille, open the grille to clean the fan wheel softly. Please see below picture.

Storage

• Follow cleaning instructions 1-4 above.
- Retain the original packaging to store your fan.
• Always store in a dry place.
• Never store while still plugged in.
- Never wrap cord tightly around the fan or put any stress on the cord where it enters the fan as it could cause the cord to fray or break.

Fan body Grid Screw

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Declaration of Conformity

CE

This product is conform to the following European Directives:

2004/108/EC (EMC)

2006/95/EC (LVD)

2011/65/EU (RoHS)

2012/206/EU (ErP)
