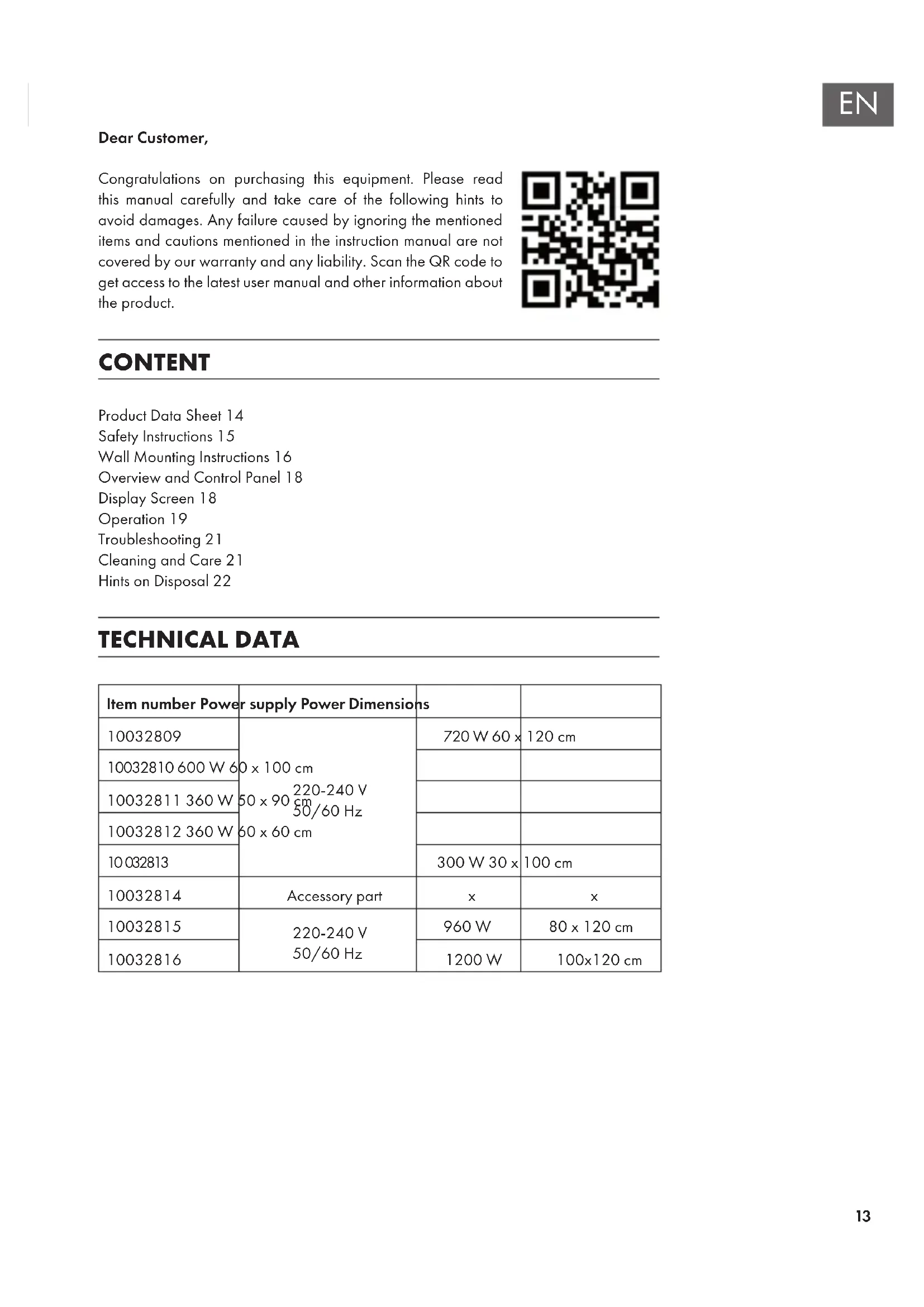

Dear Customer, Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product. CONTENT Product Data Sheet14 Safety Instructions15 Wall Mounting Instructions16 Overview and Control Panel18 Display Screen18 Operation19 Troubleshooting21 Cleaning and Care21 Hints on Disposal22 TECHNICAL DATA Item number Power supply Power Dimensions

Model identier(s): 10032809, 10032810, 10032811, 10032812, 10032813, 10032814, 10032815, 10032816 Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only Nominal heat output P nom kW manual heat charge control, with integrated thermostat N/A Minimum heat output (indicative)

min kW manual heat charge control with room and/or outdoor temperature feedback N/A Maximum continuous heat output

max,c kW electronic heat charge control with room and/or outdoor temperature feedback N/A Auxiliary electricity consumption fan assisted heat output N/A At nominal heat output (fan motor)

max N/A kW Type of heat output/room temperature control At minimum heat output (fan motor)

min N/A kW single stage heat output and no room temperature control

W Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control no electronic room temperature control plus day timer

electronic room temperature control plus week timer yes Other control options (multiple selections possible) room temperature control, with presence detection

room temperature control, with open window detection

with distance control option no with adaptive start control yes with working time limitation no with black bulb sensor no Contact details Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany15

• Do not use the appliance until it is securely xed as described in this manual.

• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

• If the supply cord is damaged, it must be replaced by a quali ed engineer in order to avoid a hazard.

• The replace heater must not be positioned directly under the power socket.

• Keep furniture, curtains and other ammable material at least 1 meter away from the appliance.

• Do not leave the appliance unattended during use.

• Do not leave the appliance unattended whilst connected to the mains supply.

• Keep out of reach of children and do not allow them to operate this appliance.

• This appliance is intended for household use only and should not be used for industrial purposes.

• Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a quali ed electrician.

• Improper repairs may place user at serious risk.

• Do not run the mains cable under carpets, rugs, etc.

• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a re risk exists if the heater is covered or positioned incorrectly.

• Never immerse the product in water or any other liquid for any reasons.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use the appliance outdoors.

• Do not use if you have wet hands.

• Never use the appliance on or near hot surfaces.

• Do not operate with a damaged cord.

• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

• Do not clean the appliance with abrasive chemicals.

• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. CAUTION Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.16

WALL MOUNTING INSTRUCTIONS

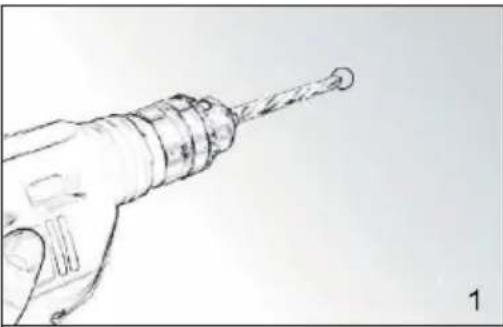

Mark the positions of the four holes to be drilled on the wall, and Drill the holes with the drill bit. Make sure the distance between each holes is same as the round holes on the brackets at back of the heater. Insert the plastic rails tting into the holes. Insert the metal screws into the plastic rails. Lift the heater and aim the four round holes on the brackets at back of the heater to the 4 screws on the wall.17

Slide the screw from Position A to Position B by moving the heater slightly. Make sure the distance between the bottom of the heater and the oor is no less than 20 cm when the heater is installed. Install the control panel holder onto the wall beside the heater. Insert the control panel into the holder.18

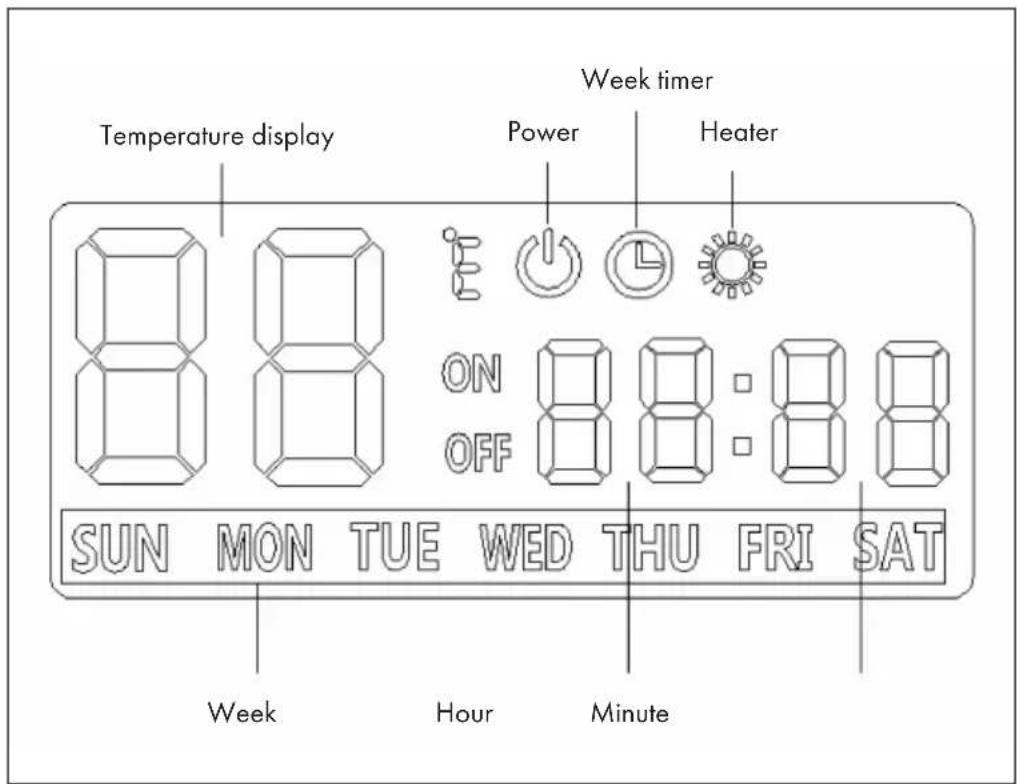

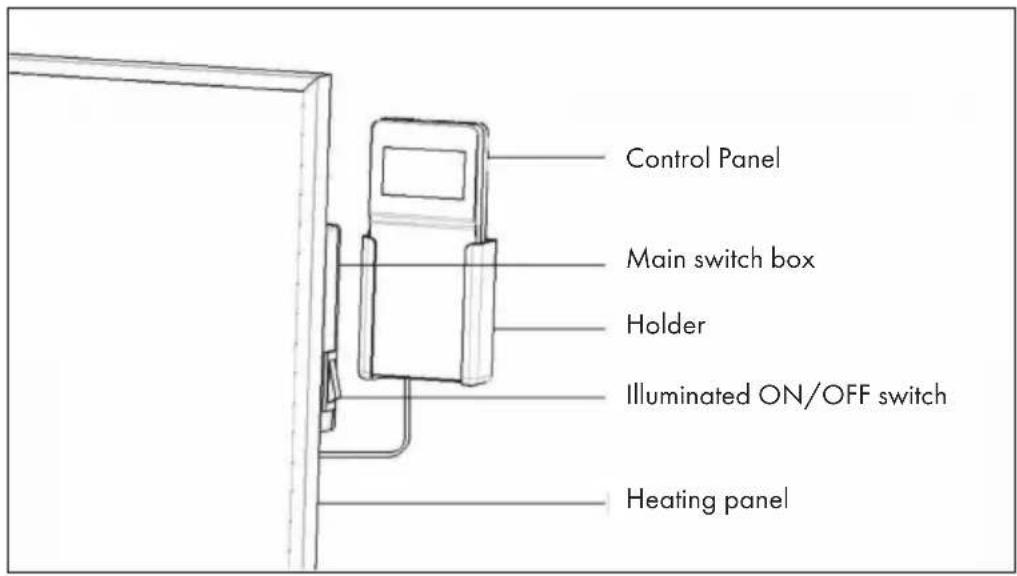

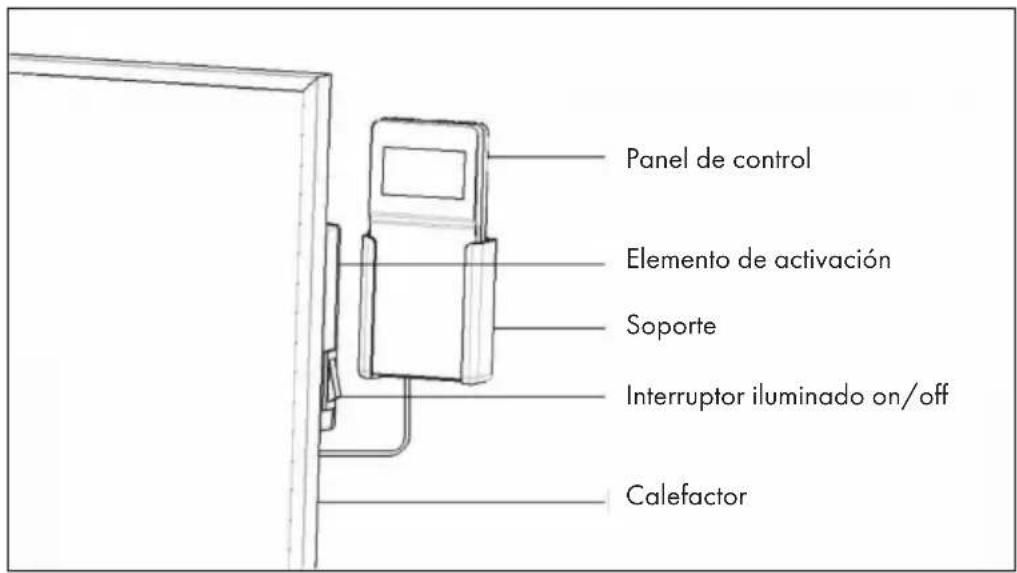

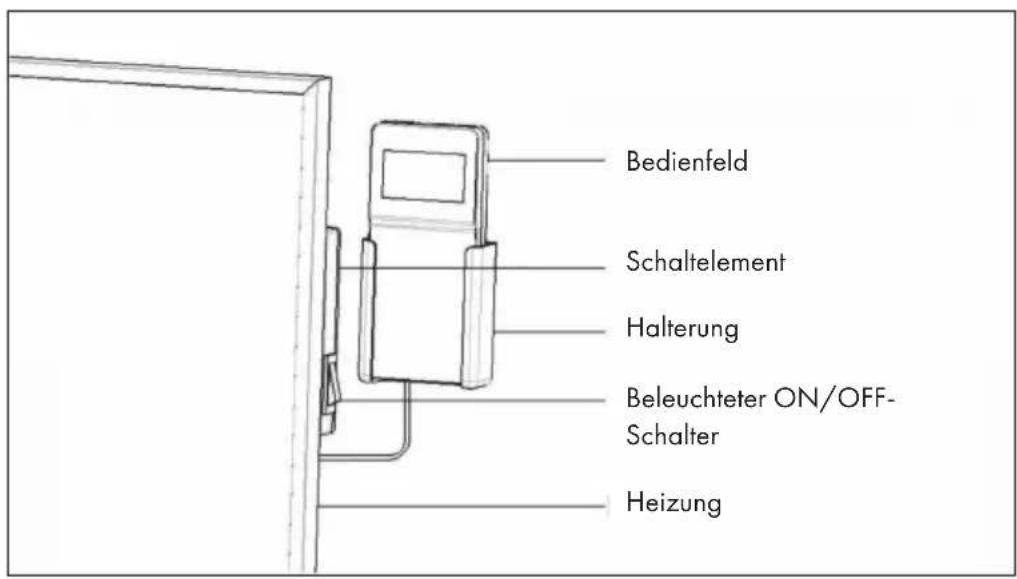

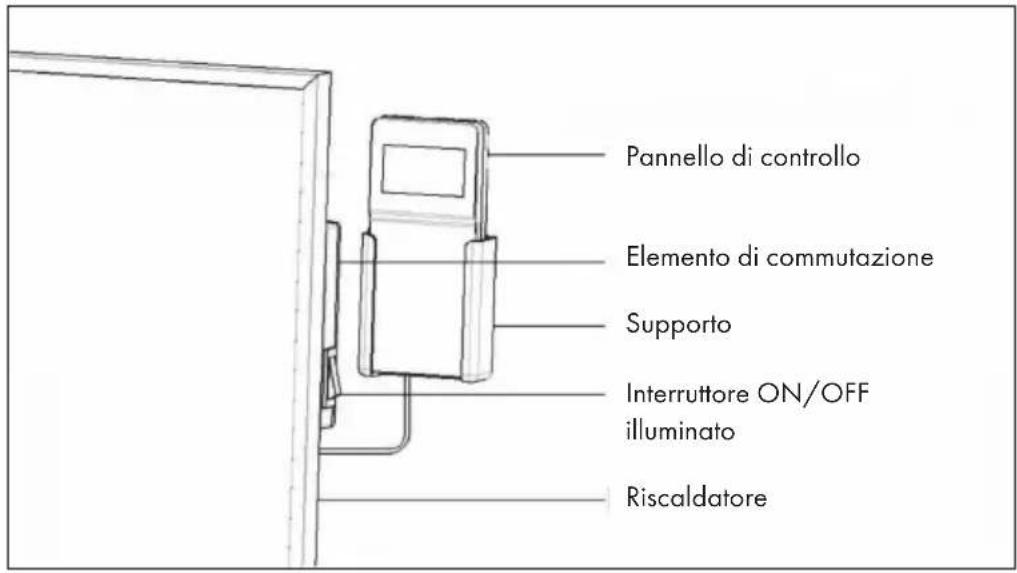

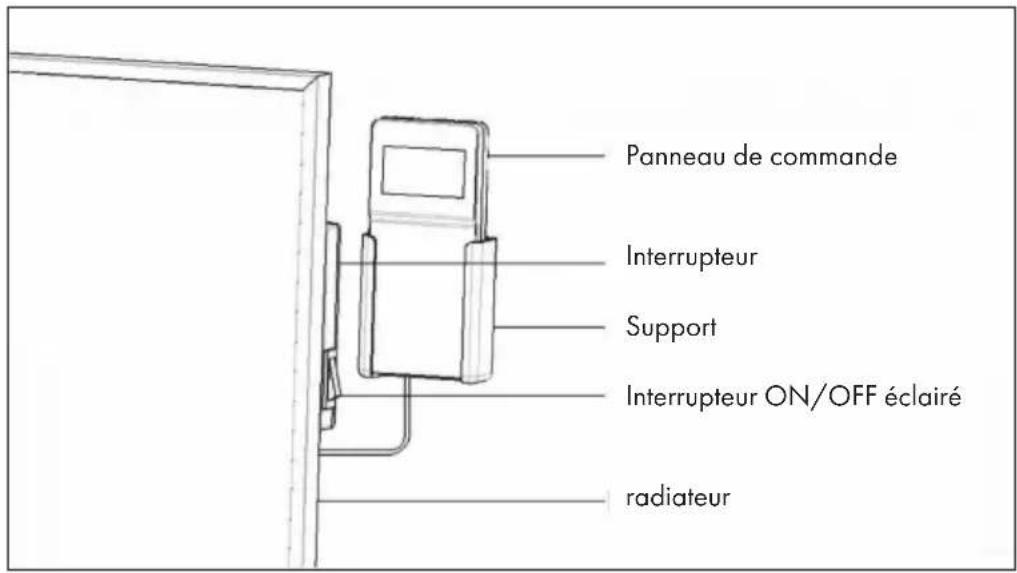

DISPLAY SCREEN Control Panel Main switch box Holder Illuminated ON/OFF switch Heating panel Temperature display Heater Week Hour Minute Power Week timer19

• Check the heater to be sure it is not damaged.

• Then, plug in it and then switch on the main illuminated ON/OFF switch on the side of the heater. There are two way to use the heater: (1) Power ON/OFF Press the on/off button on the control panel, and then the heater will start to work until your room temperature reached the set temperature. If need to power off the heater, press the on/off button again. (2) Week timer Mode Start the heater with week timer option: Press the Set button, and then press the ON/ OFF straight way. How to set the Week timer

1. Press Timer button when the heater is power off (make sure the main illuminated

2. After step 1, the WEEK symbol in the LCD display will start to ash, you can choose

the day you want to set the timer by pressing the[+] or [-] button. Press SET again.20

3. The grouping symbol in the display will start to ash, press [+] or [-] to choose the

group you want to set. You can totally set 4 groups per day from P1 to P4. Press SET again to start to set the time of power on for the selected group.

• The symbol of ON will be lighten in the display after that, and the [--] symbol for hour start to ash. Press [+] or [-] to choose the hour that you want to let the heater power on. Press SET again and the [--] symbol for minute will start to ash.

• Press [+] or [-] to choose the minute. Press SET button again to set the time you want to let the heater power off. The symbol of OFF will be lighten in the display after that, and the [--] symbol for hour start to ash

• Press [+] or [-] to choose the hour that you want to let the heater power off. Press SET again and the [--] symbol for minute will start to ash.

• Press [+] or [-] to choose the minute. After this, the rst timer group is set successfully.

• Press SET again, the WEEK symbol will start to ash, and you can set another group of timer for the same day you set as above or choose another day to set the timer. The way of operation is same as explained above.

4. After the operation of step 3, you can press the TIME button or leave it without any

operation for more than 10 seconds to nish the week timer setting. How to set the system time Press TIME button when the heater is power on, and the [--] symbol for hour will start to ash. Press [+] or [-] to set the right hour. Press SET button and the [--] symbol for minute start to ash. Use [+] or [-] to set the right minute. Press SET button and the WEEK symbol will start to ash. Press [+] or [-] to set the right week. Press SET again to quite the system time setting. How to set the temperature Press TEMP button to start the setting, and press [+] or [-] to choose the temperature you need. Press SET to nish the setting.21

Open window Detective This heater has open window detective function, which is when the heater is power on (no matter normal mode or week timer mode), it will automatically power off if the detected temperature drops 5℃°C ( or more) in 5 minutes. TROUBLESHOOTING If your heater fails to operate, please follow these instructions:

• Ensure that your circuit breaker or fuse is working properly.

• Be sure the heater is plugged in and that the electrical outlet is working properly.

• If the ON/OFF switch is not illuminated at ON position, send it to service center for reparation directly. Note: If you experience a problem with your heater, please see the warranty information for instructions. Please do not attempt to open or repair the heater yourself. Doing so may void the warranty and could cause damage or personal injury. If the problem still persists, please contact the distributor.

Before cleaning your heater, switch off the heater and allow it to cool. Disconnect the electricity supply to the appliance. The outside can be cleaned by wiping it over with a soft damp cloth and then dried. Do not use abrasive cleaning powders or furniture polish, as this can damage the surface nish. To release the heater from the wall, for cleaning or redecoration, just open the screw bolt cap and unscrew the bolts to take off from the wall. For short term storage, just plug off the heater and leave it away; for long term storage, you can dismantle from the wall or cover it with some material.22

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailled information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. This product is conform to the following European Directives: 2014/30/EU (EMC) 2014/35/EU (LVD) 2011/65/EU (RoHS) 2009/125/EC (ErP)23
