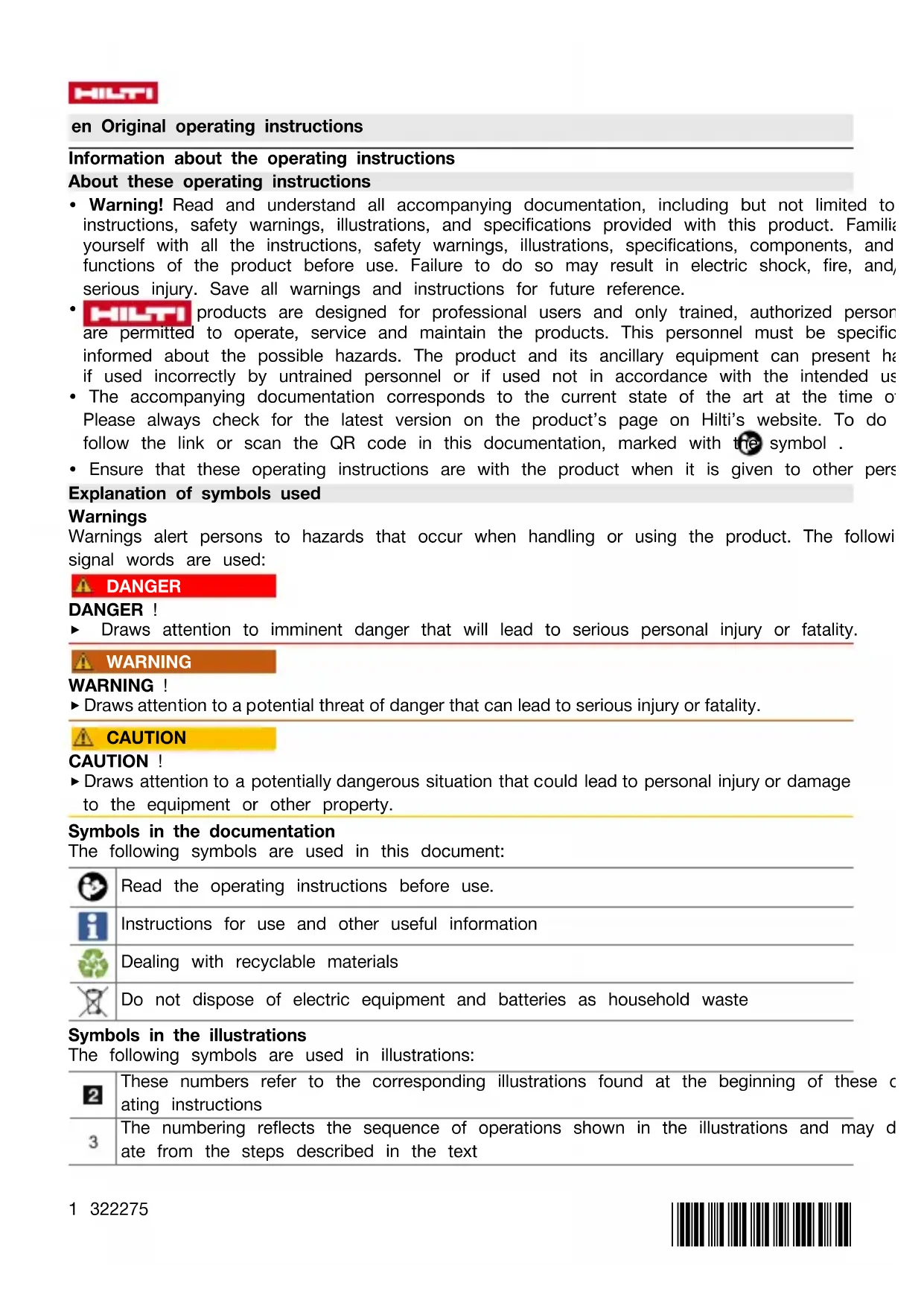

*322275* en Original operating instructions Information about the operating instructions About these operating instructions

• Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.

products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.

• The accompanying documentation corresponds to the current state of the art at the time of printing. Please always check for the latest version on the product’s page on Hilti’s website. To do this, follow the link or scan the QR code in this documentation, marked with the symbol .

• Ensure that these operating instructions are with the product when it is given to other persons. Explanation of symbols used Warnings Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used: DANGER DANGER ! ▶ Draws attention to imminent danger that will lead to serious personal injury or fatality. WARNING WARNING ! ▶ Draws attention to a potential threat of danger that can lead to serious injury or fatality. CAUTION CAUTION ! ▶ Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property. Symbols in the documentation The following symbols are used in this document: Read the operating instructions before use. Instructions for use and other useful information Dealing with recyclable materials Do not dispose of electric equipment and batteries as household waste Symbols in the illustrations The following symbols are used in illustrations: These numbers refer to the corresponding illustrations found at the beginning of these oper- ating instructions The numbering reflects the sequence of operations shown in the illustrations and may devi- ate from the steps described in the text*322275*

Item reference numbers are used in the overview illustrations and refer to the numbers used in the product overview section This symbol is intended to draw special attention to certain points when handling the prod- uct. Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use. The type designation and serial number are stated on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information 2 Product information Circular saw WSC 7.25-S Generation 01 | 02 Serial no. Declaration of conformity We declare, on our sole responsibility, that the product described here complies with the applicable directives and standards. A copy of the declaration issued by the certification department can be found at the end of this documentation. The technical documentation is filed here: Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | 86916 Kaufering, Germany Safety General power tool safety warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Work area safety ▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety ▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.3 322275 *322275* ▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety ▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ▶ Prevent unintentional starting. Ensure the switch is in the off‐position before connecting to power source, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ▶ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Power tool use and care ▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ▶ Disconnect the plug from the power source from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. ▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ▶ Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Service ▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.*322275*

Safety instructions for all saws Cutting procedures

DANGER: Keep hands away from cutting area and the blade. Keep your second hand on

auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. ▶ Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. ▶ Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece. ▶ Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control. ▶ Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock. ▶ When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. ▶ Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control. ▶ Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation. Kickback causes and related warnings

• kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;

• when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;

• if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. ▶ Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken. ▶ When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding. ▶ When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted. ▶ Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel. ▶ Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.5 322275 *322275* ▶ Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback. ▶ Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback. Lower guard function ▶ Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut. ▶ Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris. ▶ Lower guard may be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically. ▶ Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. Additional safety instructions for circular saws ▶ Bring the saw blade into contact with the workpiece only when the circular saw is switched on. ▶ The path of the saw must be free of obstructions above and below the workpiece. Do not saw into screws, nails or similar objects. ▶ Never work overhead with a circular saw. ▶ Never attempt to brake the saw blade by applying lateral pressure. ▶ Avoid overheating the tips of the saw blade teeth. ▶ Always use a saw blade that is suitable for the material you are going to saw. ▶ Use only saw blades recommended by Hilti that comply with the EN 847-1 standard. Description Product overview 1

Clamping screw for parallel guide

45° cutting line indicator

0° cutting line indicator

Pivoting guard operating lever

Cutting angle setting

LED Overview of the guide rail adapter 2

Front retaining lug*322275*

Intended use The product described is a circular saw. It is designed for cutting wood or wood-like materials, plastics, gypsum plasterboard, gypsum fiberboard and composite materials, up to a cutting depth of 70 mm (2.75 in), and for miter cuts at angles up to 56°. Possible misuse Do not use saw blades not compliant with the technical data and do not use cut-off wheels, abrasive wheels or saw blades made of highly alloyed high speed steel (HSS steel). Do not use this power tool to saw metal. Items supplied Circular saw, saw blade, hex key, rip fence, operating instructions. To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group Technical data WSC 7.25S Product generation

Weight in accordance with EPTA procedure 01

Using extension cords WARNING A damaged supply cord presents a hazard! Do not touch the supply cord or extension cord if damaged while working. Disconnect the supply cord plug from the power outlet. ▶ Check the appliance’s supply cord at regular intervals and have it replaced by a qualified specialist if found to be damaged.

• Use only extension cords of a type approved for the application and with conductors of adequate gauge (cross section). The power tool may otherwise suffer a drop in performance and the extension cord may overheat.

• Check the extension cord for damage at regular intervals.7 322275 *322275*

• Replace damaged extension cords.

• When working outdoors, use only extension cords that are approved and correspondingly marked for this application. Information on recommended minimum conductor cross-sections and cable lengths is acces- sible via a link, in the form of a QR code, at the end of this document. Operation Removing the saw blade 3 WARNING Risk of burns and cut injuries at saw blade, clamping screw and clamping flange The consequences can be burns and cut injuries. ▶ Wear protective gloves when changing saw blades. 1.Disconnect the supply cord plug from the power outlet. 2.Press the arbor lock button. 3.Turn the saw blade clamping screw with the hex key until the spindle lock button engages fully. 4.Use the hex key to slacken the clamping screw by turning it counter-clockwise. 5.Remove the clamping screw from the outer clamping flange. 6.Open the pivoting guard by swinging it clear and remove the saw blade. Fitting the saw blade CAUTION Risk of damage! Unsuitable or incorrectly fitted saw blades may damage the saw. ▶ Only use blades which are suitable for this saw. Observe the direction-of-rotation arrow on the saw blade. ▶ Use only saw blades equipped with a rated maximum permissible speed that is at least as high as the maximum speed stated on the product. 1.Disconnect the supply cord plug from the power outlet. 2.Clean the mounting flange and the clamping flange. 3.Fit the mounting flange. 4.Open the pivoting guard. 5.Fit the new saw blade. 6.Fit the outer clamping flange. 7.Secure the clamping flange with the clamping screw by turning it clockwise. At the same time, use one hand to hold down the arbor lock button. 8.Before using the power tool, check that the saw blade is correctly seated and tightened securely. Adjusting the cutting depth 4 1.Disconnect the supply cord plug from the power outlet. 2.Rest the circular saw on a flat surface. 3.Release the cutting depth adjustment clamping lever. 4.Lift the circular saw in a scissoring movement and set the cutting depth. ▶ The cutting depth is shown on the cutting depth scale. For a clean-edged cut, set cutting depth to the thickness of the material plus 2 mm. 5.Secure the cutting depth adjustment clamping lever. Setting the miter cut angle 5 1.Disconnect the supply cord plug from the power outlet. 2.Release the cutting angle adjustment clamping lever.*322275*
