Product Type	Garden Bench
Brand	Scheppach
Model	PXGB1
Dimensions (L x H x D)	122 x 80 x 60 cm
Maximum Load	160 kg
Material	Pre-treated wood with water-based stain
Use	Domestic, balcony, terrace, garden
Number of Slats	12
Armrests	2 (right and left)
Crossbars	2
Screws Provided	48 (24 for slats, 24 for crossbars)
Nuts Provided	24
Washers Provided	24
Included Tools	Crosshead screwdriver and wrench
Weight (estimated)	Approximately 15 kg
Assembly	Yes, required (2 people recommended)
Maintenance	Clean with damp cloth and mild soap solution; regular staining
Storage	Cool, dry indoor area, or outdoor with protective cover
Safety	Adult supervision, do not climb, check tightness regularly
Warranty	Legal (defective parts replaced free of charge)
Manual	20 pages, available for download

Frequently Asked Questions - PXGB1 SCHEPPACH

What are the dimensions of the Scheppach PXGB1 bench?

The bench measures approximately 122 x 80 x 60 cm (length x height x depth).

What is the maximum load capacity?

The maximum load is 160 kg, evenly distributed on the bench.

Is the bench ready to use or does it require assembly?

The bench requires assembly. All parts and tools (crosshead screwdriver and wrench) are included. It is recommended to have two people.

How to maintain the bench wood?

Clean regularly with a damp cloth and mild soap solution. Apply a wood stain once a year to protect the surface and extend its lifespan.

Can the bench stay outside all year round?

It is designed for outdoor use, but for a long lifespan, store it indoors during winter or cover it with a waterproof protective cover.

Is the bench safe for children?

The bench is not a toy. Children must be supervised by an adult and should not climb on it, as it may tip over.

What materials are used?

The bench is made of wood pre-treated with a water-based stain to withstand weather. The fasteners are metal.

What to do if a screw loosens?

Check and tighten all screws regularly, at least once a season, to maintain the bench's stability.

Is the bench covered by a warranty?

Yes, a legal warranty applies. Material or workmanship defects are covered, but labor costs for replacement are at the buyer's expense.

How to clean stubborn stains on the wood?

Use a soft brush with soapy water. If necessary, sand lightly in the direction of the grain with fine sandpaper, then apply a stain.

USER MANUAL PXGB1 SCHEPPACH

Line drawing of a simple outdoor bench with four legs and a backrest (no text or symbols)

http://www.practixx.com/de/service PRACTIXX

PX-GB-1

DE	GartenbankOriginalbetriebsanleitungWICHTIG: AUFMERKSAM LESEN, FÜR SPÄTER AUFHEBEN.	4
GB	Garden benchTranslation of original instruction manualIMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY	8
FR	Banc de jardinTraduction des instructions d'origineIMPORTANT. A CONSERVER POUR UNE CONSULTATIONULTÉRIEURE: LIRE ATTENTIVEMENT	12

1

Technical line drawing of a park bench with labeled parts 1, 2, and 3

2

12x 2 2a1 1x 1x 3 4 5 2x 1x 1x 1a 1b 1c 24x 3a 24x 24x 24x

3

1b 1c 1a

3a 3

Inhaltsverzeichnis:

Seite:

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Table of contents: Page:

1. Introduction......9
2. Product description (Fig. 1) 9
3. Scope of delivery (Fig. 2)....9
4. Proper use 9
5. General safety instructions....9
6. Technical data.... 10
7. Unpacking....10
8. Layout 10
9. Cleaning....10
10. Storage 10
11. Maintenance 10
12. Disposal and recycling.... 11

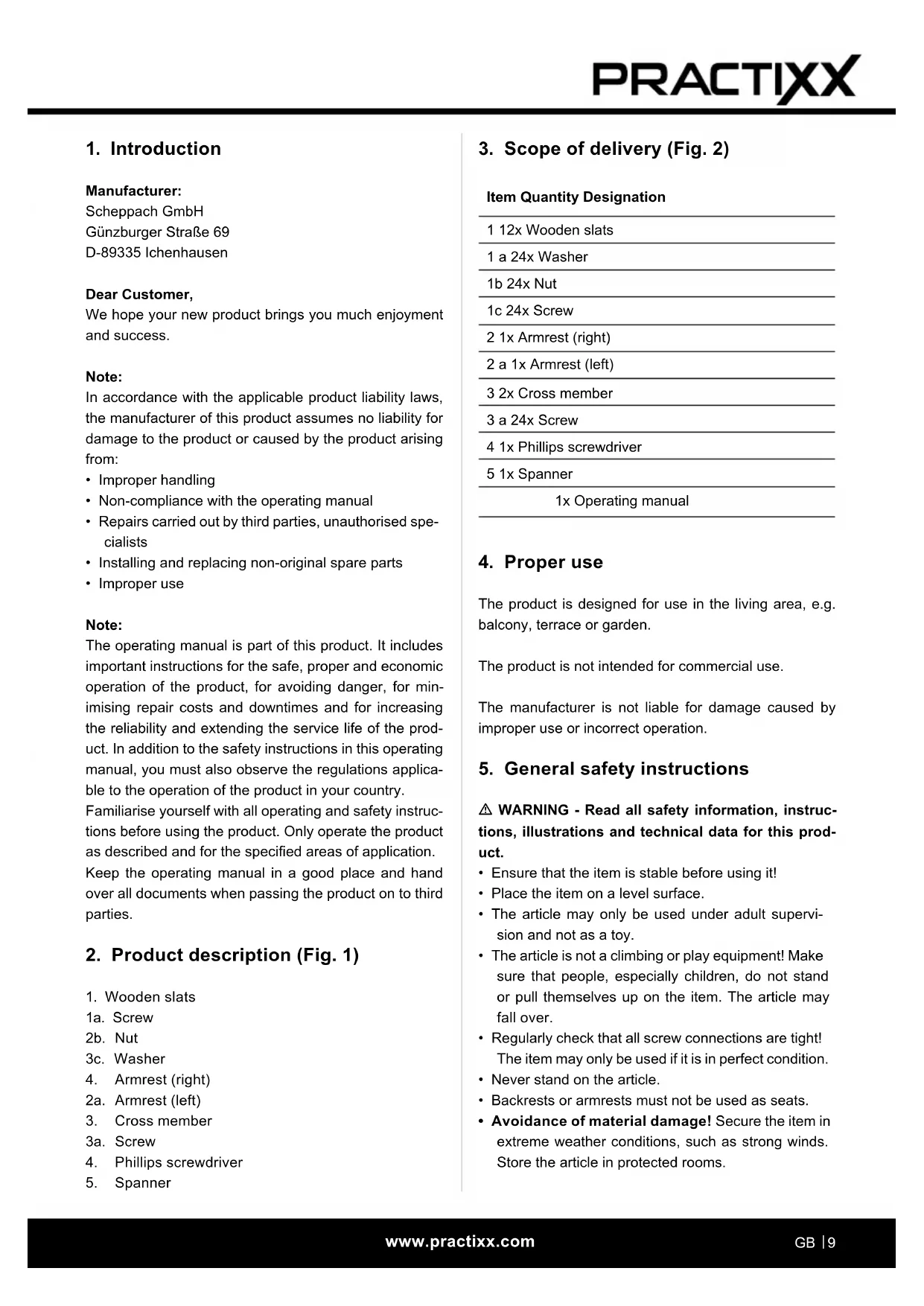

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application.

Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

2. Product description (Fig. 1)

1. Wooden slats
   1a. Screw
   2b. Nut
   3c. Washer
2. Armrest (right)
   2a. Armrest (left)
3. Cross member
   3a. Screw
4. Phillips screwdriver
5. Spanner

3. Scope of delivery (Fig. 2)

Item Quantity Designation

1 12x Wooden slats

1 a 24x Washer

1b 24x Nut

1c 24x Screw

2 1x Armrest (right)

2 a 1x Armrest (left)

3 2x Cross member

3 a 24x Screw

4 1x Phillips screwdriver

5 1x Spanner

1x Operating manual

4. Proper use

The product is designed for use in the living area, e.g. balcony, terrace or garden.

The product is not intended for commercial use.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

5. General safety instructions

⚠ WARNING - Read all safety information, instructions, illustrations and technical data for this product.

• Ensure that the item is stable before using it!
• Place the item on a level surface.
• The article may only be used under adult supervision and not as a toy.
• The article is not a climbing or play equipment! Make sure that people, especially children, do not stand or pull themselves up on the item. The article may fall over.
• Regularly check that all screw connections are tight! The item may only be used if it is in perfect condition.
• Never stand on the article.
• Backrests or armrests must not be used as seats.
• Avoidance of material damage! Secure the item in extreme weather conditions, such as strong winds. Store the article in protected rooms.

6. Technical data

• Dimensions: approx. 122 × 80 × 60 ~cm (L x H x D)
  • Maximum load: 160 kg

7. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Layout

⚠ Attention!

Always assemble the product completely before use!

It is helpful to involve a second person for the installation.

Ensure that all parts are present according to the parts list before starting assembly.

1. Lay out all parts on a flat surface.
2. Place both armrests (2 & 2a) upside down so that the holes are facing upwards as shown.
3. Align the wooden slats (1) along the holes in the armrests (2 & 2a).
4. Screw the wooden slats (1) together on both sides with a screw (1a), a washer (1c) and a nut (1b) as shown in Figure 3.
5. Use the Phillips screwdriver (4) supplied for this purpose.

6. Use the spanner (5) to tighten the nuts (1b).

7. Screw the two cross struts (3) to the armrests as shown in Figure 3.

8. Use the Phillips screwdriver (4) supplied for this purpose.
9. Make sure that all screws are tightened and the bench is stable.
10. If necessary, retighten all screws and nuts.

9. Cleaning

• This product is pre-treated with water-based wood stain to make the surface durable enough for outdoor use. To ensure a long service life, the furniture should be cleaned regularly, left unprotected outdoors for no longer than necessary and re-varnished at regular intervals.
• Clean with a damp cloth and mild soap solution. Wipe dry with a soft, clean cloth.

10. Storage

This product is pre-treated with water-based wood stain to make the surface durable enough for outdoor use. To ensure a long service life, the product should be cleaned regularly, should not be left unprotected outdoors for longer than necessary and should be reglazed at regular intervals.

Clean and dry the product carefully before storing it after the summer season. Store summer furniture indoors in a cool and dry place if possible.

If stored outdoors, stow under a roof and with a protective cover if possible. Furniture that is stored unprotected from rain or snow should be carefully protected with a water-repellent cover and, if possible, positioned at an angle to allow water to run off better.

Dry the furniture after rain or snowfall - especially the flat surfaces. Ensure air circulation to prevent moisture and mould growth.

11. Maintenance

PLEASE NOTE!

To maintain the stability of the furniture, all screws should be tightened at least once a season.

Regular treatment with wood stain - e.g. once a year - freshens up wooden summer furniture and increases its durability.

How often you need to reglaze depends on the climatic conditions and how much the furniture is exposed to sun and rain. After-treatment with wood stain protects the surface from drying out, prevents moisture from penetrating the wood and reduces the formation of drying cracks. For furniture that is left unprotected outside, it is a sure sign that it needs re-staining if rain is absorbed instead of forming drops on the surface.

11.1 Aftercare

Choose a shady spot for cleaning, painting and drying. Avoid direct sunlight.

1. If necessary, clean the furniture with a damp cloth and a mild soap solution. Wipe dry with a soft, clean cloth. Remove stubborn stains with a soft brush. If necessary, sand the surface in the direction of the grain with fine sandpaper. Do not use steel wool or metal brushes - metal particles could stick to the wood and rust, and if the wood fibres have straightened up after cleaning, they should be sanded with fine sandpaper.
2. Shake the container well and apply the glaze quickly and evenly as a thin film over the entire surface in the direction of the fibres using a brush or sponge.
3. Water-based glaze dries quickly. It is therefore essential to wipe off all excess glaze with a dry cloth immediately after application.
4. Clean brushes and hands with soap and water.

12. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.
