1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a promi- nent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified

person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufac- turer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage elec-

trical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Acceptable for use over a tub or shower when connected to a

GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).

8. This unit must be grounded.

1. For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

2. This product is designed for installation in ceilings up to a 12/12

pitch (45 degree angle). Duct connector must point up. DO NOT MOUNT THIS PRODUCT IN A WALL.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power unit.

4. Please read specification label on product for further information

THESE INSTRUCTIONS WARRANTY Installer: Leave this manual with the homeowner. OPERATION CLEANING & MAINTENANCE For quiet and efficient operation, long life, and attractive appear- ance - lower or remove grille and vacuum interior of unit with the dusting brush attachment. The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly (includes motor and impeller). Register your product online at: www.broan-nutone.com/register Use an on/off switch or speed control to operate this ventilator. See “Connect Wiring” for details. Use of speed controls other than the Broan Models 78V and 78W may cause a motor humming noise. Limited WarrantyWarranty Period and Exclusions: Broan-NuTone LLC (the “Company”) warrants to the original consumer purchaser of its product (“you”) that the product (the “Product”) will be free from material defects in the Product or its workmanship for a period of three (3) years from the date of original purchase.The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period.This warranty does not cover speed controls, fl uorescent lamp starters, tubes, halogen and in-candescent bulbs, fuses, fi lters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a)normal maintenance and service, (b)normal wear and tear, (c)any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insuffi cient maintenance, storage or repair (other than repair by the Company), (d)damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e)any Product that has been moved from its original point of installation, (f)damage caused by environmental or natural elements, (g)damage in transit, (h)natural wear of fi nish, (i)Products in commercial or nonresidential use, or (j)damage caused by fi re, fl ood or other act of God. This warranty covers only Products sold to original consumers in the United States by the Company or U.S. distributors authorized by the Company. This warranty supersedes all prior warranties and is not transferable from the original consumer purchaser. No Other Warranties: This Limited Warranty contains the Company’s sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other war-ranties, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR- POSE. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the period specifi ed for the express warranty above. Some states do not allow limitations on how long an implied warranty lasts, so the above limita-tion may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invali-dating the remainder of such provision or the other remaining provisions of the Limited Warranty. Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company fi nds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period. Exclusion of Damages: THE COMPANY’S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE COMPANY’S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY’S SOLE AND EXCLUSIVE OBLI-GATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specifi c legal rights, and you may also have other rights, which vary from state to state. This warranty covers only replacement or repair of defective Products or parts thereof at the Company’s main facility and does not include the cost of fi eld service travel and living expenses. Any assistance the Company provides to or procures for you outside the terms, limitations or exclu-sions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company’s prior written permission. How to Obtain Warranty Service: To qualify for warranty service, you must (a)notify the Company at the address or telephone number stated below within seven (7)days of discovering the covered defect, (b)give the model number and part identifi cation and (c)describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company’s most current written limited warranty for your particular product will control.The most current limited written warranties for the Company’s products can be found www.broan.com .Broan-NuTone LLC 926 West State Street, Hartford, WI 53027www.nutone.com 888-336-6151Page 2

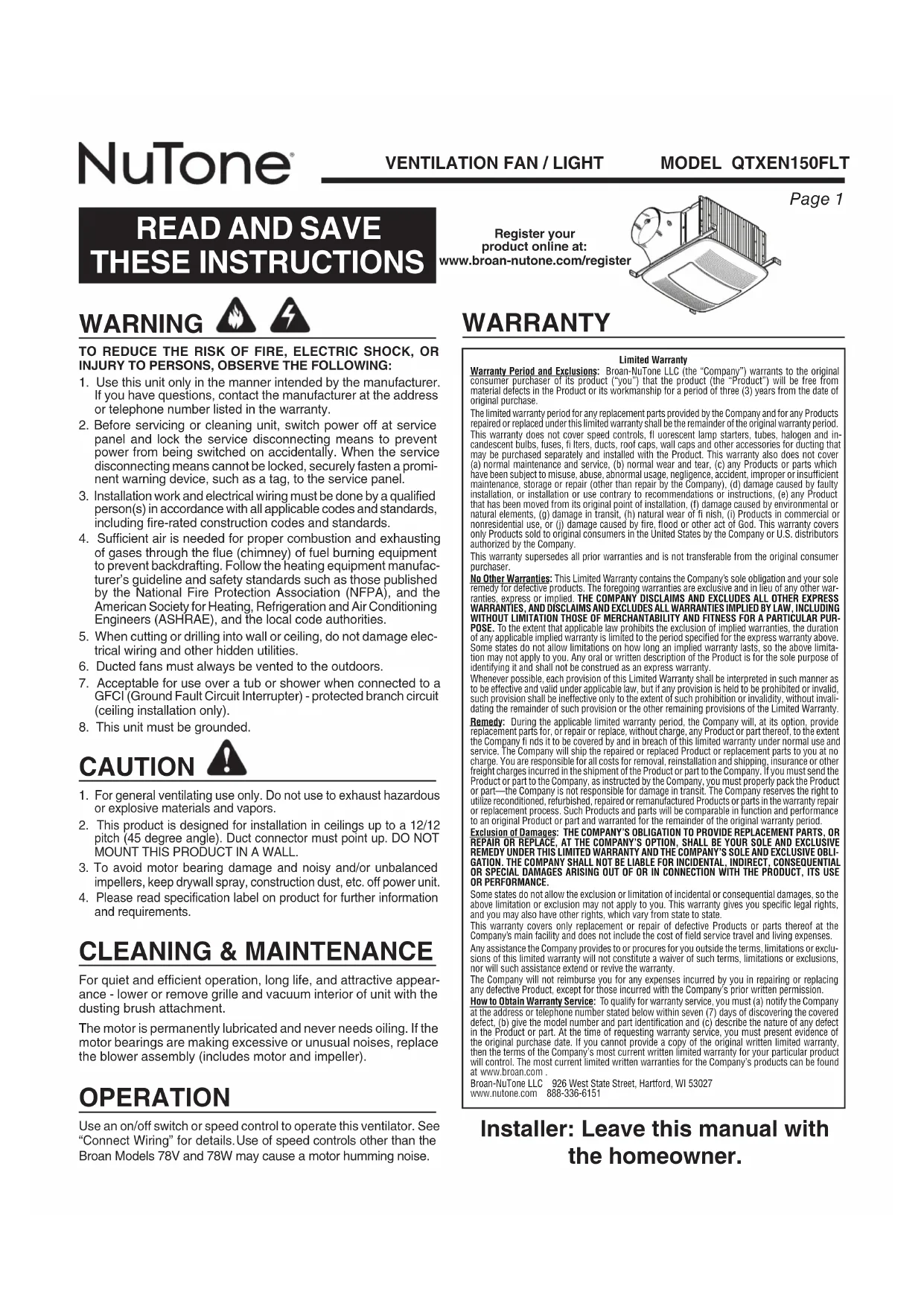

VENTILATION FAN / LIGHT MODEL QTXEN150FLT

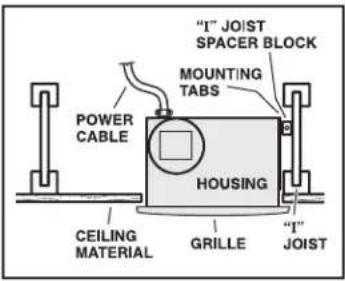

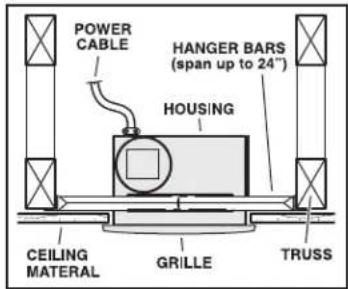

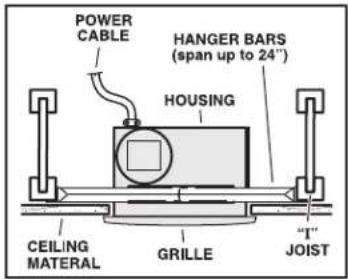

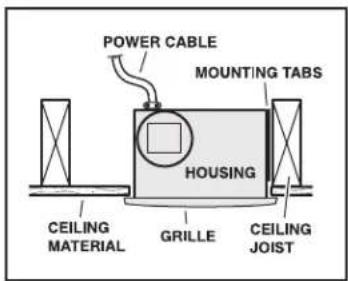

TYPICAL INSTALLATIONS Housing mounted to I-joists. Use I-joist spacer block (provided). Housing mounted anywhere between trusses using hanger bars. Housing mounted anywhere between I-joists using hanger bars. Housing mounted to joists. Housing mounted anywhere between joists using hanger bars. Housing mounted to truss.

PLAN THE INSTALLATION

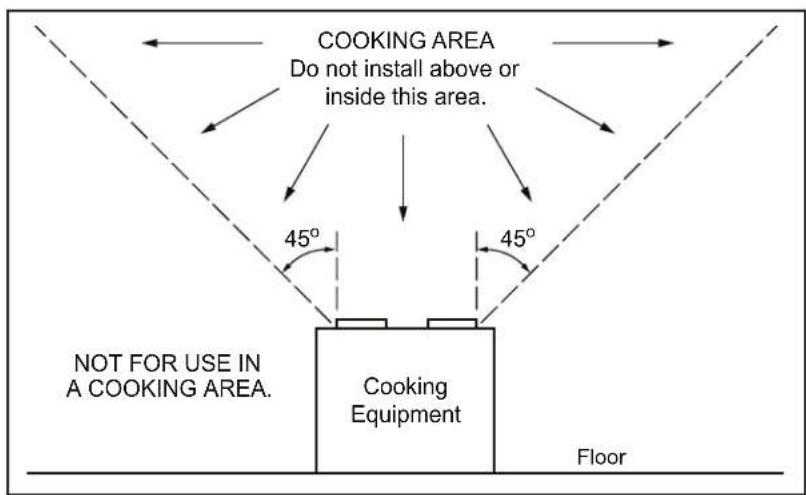

Cooking Equipment Floor COOKING AREA Do not install above or inside this area.

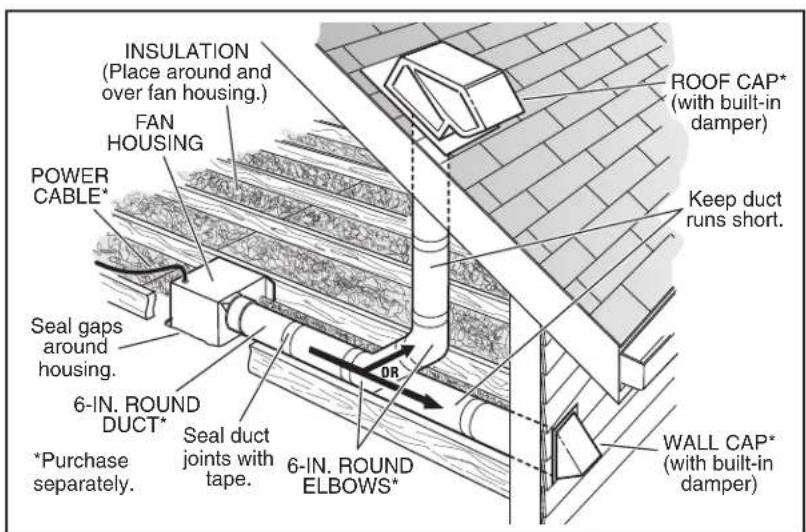

A COOKING AREA. ROOF CAP*(with built-indamper)WALL CAP*(with built-indamper)6-IN. ROUNDELBOWS*6-IN. ROUNDDUCT* FAN HOUSINGSeal gapsaroundhousing.Seal ductjoints withtape.Keep ductruns short.INSULATION(Place around andover fan housing.)POWERCABLE**Purchaseseparately.

The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow.Page 3

VENTILATION FAN / LIGHT MODEL QTXEN150FLT

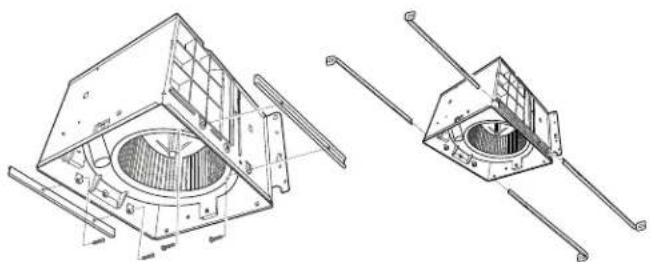

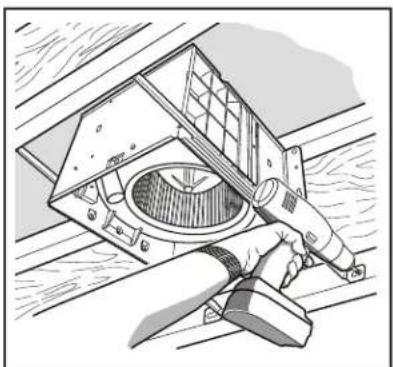

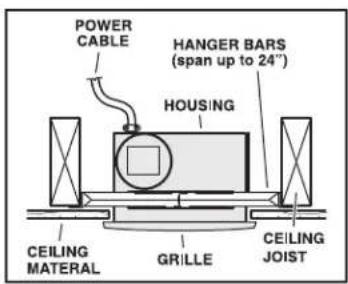

1b. Mount housing anywhere between trusses, joists, or I-joists using hanger bars. Sliding hanger bars are provided to allow for accurate positioning of housing anywhere between framing. They can be used on all types of framing (I-joist, standard joist, and truss construction) and span up to 24”. Attach the MOUNTING CHANNELS to the housing using the SCREWS supplied. Extend HANGER BARS to the width of the framing. Hold housing in place so that bottom edge of housing will be flush with finished surface of ceiling. For 1/2” thick ceiling material, position bottom of each mounting flange flush with bottom of joist.

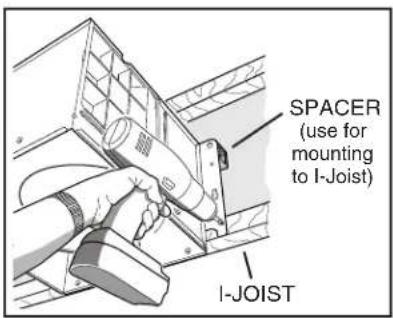

INSTALLATION 1a. Mount housing to joist. Hold housing in place so that bottom edge of housing will be flush with finished surface of ceiling. For 1/2” thick ceiling material, position bottom of each mounting flange flush with the bottom of joist. The housing mounts with four (4) screws or nails. Screw or nail housing to joist through low- est holes in each mounting flange, then through highest holes. NOTE: Mounting to I-JOIST (shown) requires use of SPACERS (included) between the highest hole of each mounting flange and the I-joist.

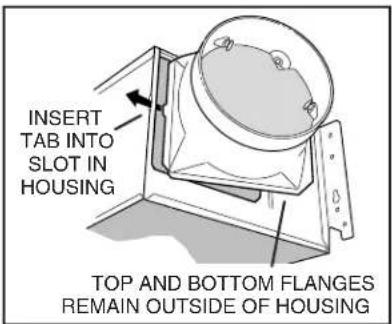

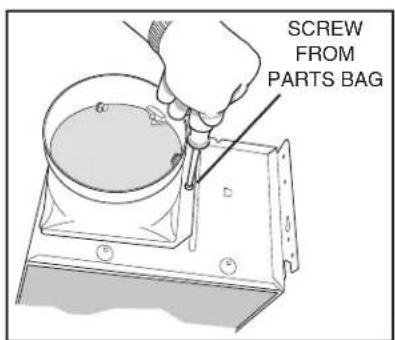

damper/duct connector.

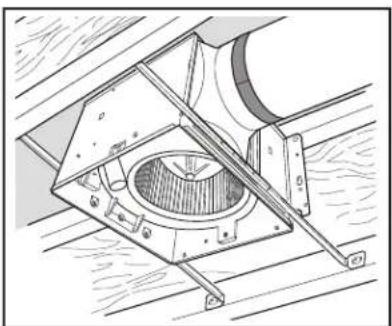

6-inch round ductwork. Connect 6-inch round ductwork to damper / duct connector. Run ductwork to a roof cap or wall cap. Tape all ductwork connections to make them secure and air tight. SPACER (use formountingto I-Joist)

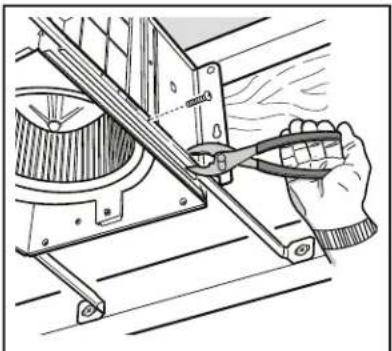

I-JOIST SCREW FROM PARTS BAG INSERT TAB INTO SLOT IN HOUSING To ensure a noise-free mount: Secure hang- ing bars together with SCREWS and use a pliers to crimp mount- ing channels tightly around hanger bars.Page 4

VENTILATION FAN / LIGHT MODEL QTXEN150FLT

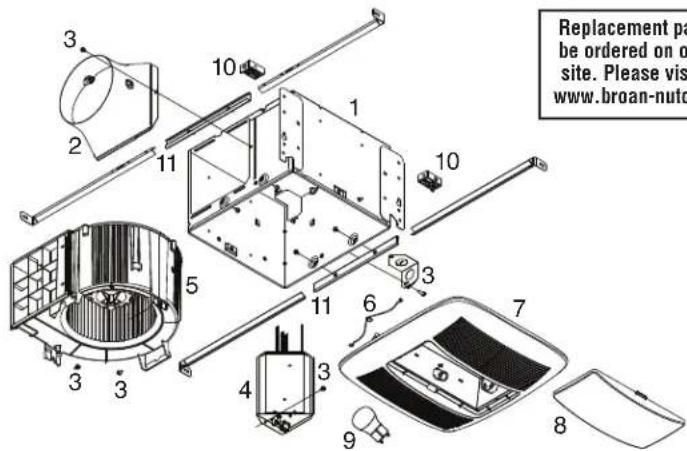

1106648A Order service parts by “Part No.” - not by “Key No.” Replacement parts can be ordered on our web- site. Please visit us at www.broan-nutone.com SERVICE PARTS

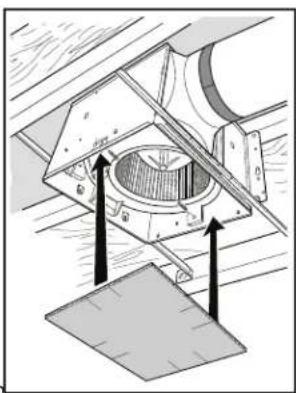

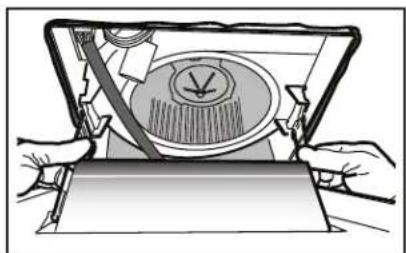

mask and finish ceiling. Tape mask into housing. Mask protects unit during construction. Remove be- fore installing grille. Install ceiling material. Cut out around housing.

4. Connect electrical wiring.

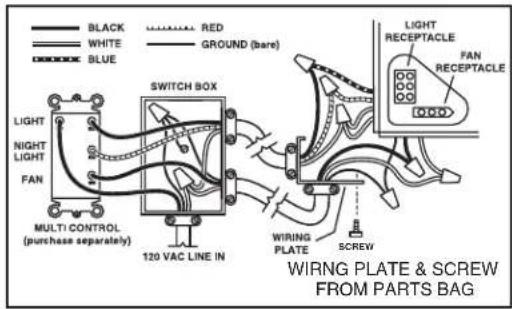

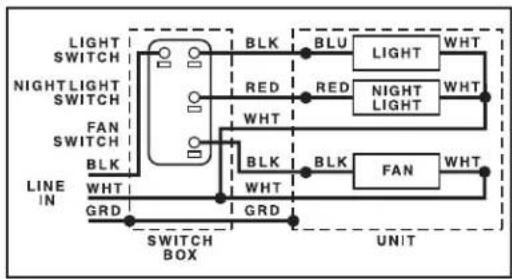

Run 120 VAC house wiring to installation lo- cation. Use proper UL approved connector to secure house wiring to wiring plate. Connect wires as shown in wiring diagrams.

WIRNG PLATE & SCREW FROM PARTS BAG

6. Attach grille to housing.

Plug light into receptacle. Squeeze grille springs and insert them into tabs on each side of housing.

8. Remove light lens.

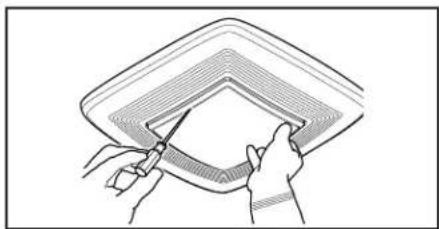

Carefully insert a small flat-blade screwdriver between grille and lens. Pry lens out.

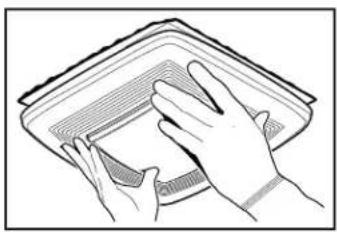

7. Push grille against

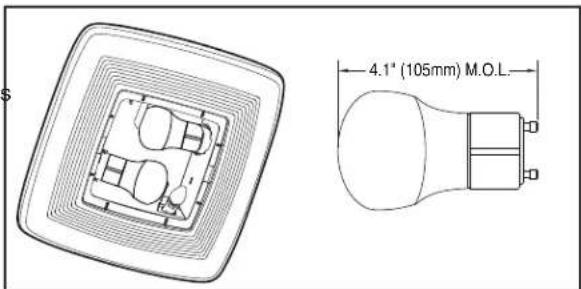

bulbs. Product includes (2) 10W (max.), type GU24 LED bulbs with M.O.L. (maximum overall length) of 4.1” (105mm). Purchase a 4W incandescent night light bulb. Insert bulbs into their sockets. Replace lens. 4.1" (105mm) M.O.L. Key No. Part No. Description 1 97020009 Housing 2 97018331 Duct Connector 3 97018721 Parts Bags (includes wiring plate & all screws) 4 97018448 Wire Panel/Harness Assembly 5 97020012 Blower Assembly 6 99140208 Grille Spring (2 req’d) 7 97018533 Grille Assembly (includes key nos. 6 & 8) 8 99111400 Lens 9 1106470 Bulb, GU24, 10W LED, suitable for enclosures (2 req’d) 10 97018014 Spacer (2 supplied) 11 97020013 Hanger Bar Kit
