Brand	NuTone
Model	Flex AN110
Product Type	Ceiling / Wall Fan
Power Supply	120 VAC / 60 Hz
Airflow	Selectable: 50, 80 or 110 CFM (depending on model)
Installation	Ceiling or wall (min. height 2.4 m)
Cutout Opening (renovation)	24.8 x 26.7 cm (9.75 x 10.5 in)
Duct	10 cm (4 in) round – outdoor exhaust required
Protection	GFCI recommended above bathtub/shower
Grounding	Required
Motor	Permanent lubrication – no oil needed
Maintenance	Clean interior with vacuum and brush
Spare Parts	Fan assembly (motor + wheel) available
Warranty	See Broan-NuTone website
Country of Origin	United States (brand)

Frequently Asked Questions - Flex AN110 NuTone

How to install the NuTone Flex AN110 fan in an existing ceiling?

For a renovation installation, enlarge the opening to 24.8 cm x 26.7 cm. Attach the housing to the framing, connect the 10 cm duct, wire the 120 V according to the diagram, then install the fan and spring-loaded grille.

What type of duct should be used for this fan?

Use a 10 cm (4 in) round duct. For optimal performance, prefer short and straight ducts, and insulate them to reduce energy loss and mold.

How to select the airflow (CFM) on the Flex AN110?

Some models allow selection between 50, 80 or 110 CFM via a selector on the fan housing. Adjust the flow to the room size.

Can the fan be installed above a shower or bathtub?

Yes, provided it is installed in the ceiling and connected to a circuit protected by a ground fault circuit interrupter (GFCI).

How to clean the NuTone Flex AN110 fan?

Lower or remove the grille, then use a vacuum with a dusting brush to clean the interior. The motor is lifetime lubricated and does not require oiling.

What to do if the fan makes an abnormal noise?

Check that the blades are clean and balanced. If the noise comes from the motor bearings, replace the entire fan assembly (motor + fan wheel).

What safety precautions should I take before installing or servicing the unit?

Turn off power at the electrical panel and lock the main switch. If not possible, attach a warning label. Follow local codes and manufacturer instructions.

Can I install this fan in a wall?

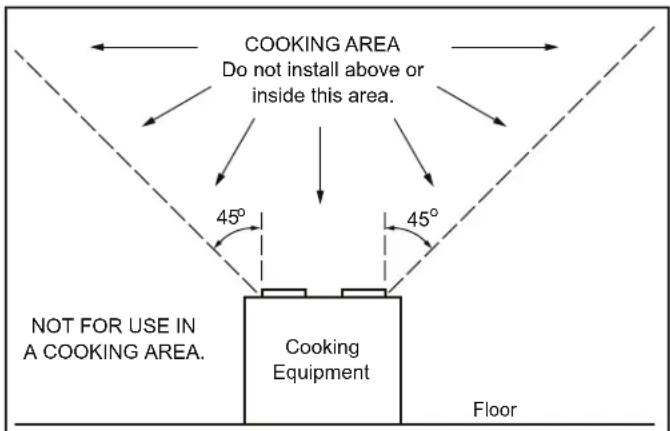

Yes, provided it is mounted at least 2.4 m (8 ft) above the floor, and observe cooking areas (do not install above a stove).

Where to find spare parts or warranty?

Visit Broan-NuTone.com or call 800-558-1711 (USA) / 800-567-3855 (Canada). For warranty, register your product online.

Must the fan always exhaust air outside?

Yes, ducted fans must exhaust air outside. Do not use to exhaust hazardous or explosive vapors.

USER MANUAL Flex AN110 NuTone

Roomside / Flex™ Series Fan READ AND SAVE THESE INSTRUCTIONS

For Warranty Statement, Service Parts, Technical Support, or to Register your product, please visit our website or call: In the United States - Broan-NuTone.com 800-558-1711. In Canada - Broan-NuTone.ca 800-567-3855.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fi re-rated construction codes and standards.
4. Suffi cient air is needed for proper combustion and exhausting of gases through the fl ue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product can be installed in a wall if mounted 8-ft. or more above the floor.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly (includes motor and impeller).

OPERATION

Use an on/off switch to operate the fan.

Refer to Broan's catalog for a complete line of accessories/controls to effectively adapt these fans to your requirements.

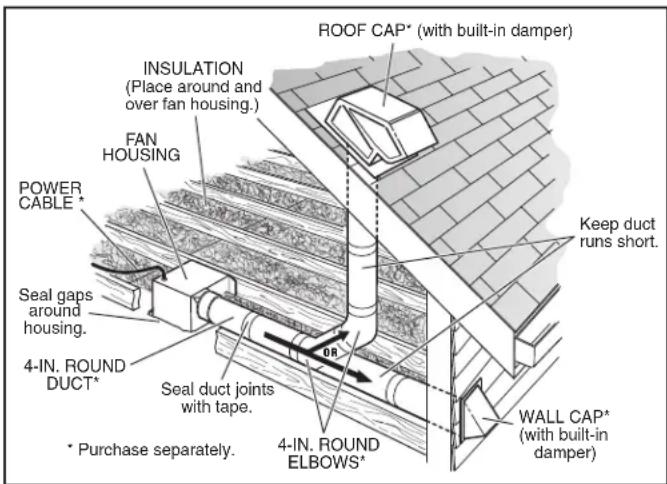

IMPORTANT - The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow.

OPTION - To mount housing anywhere between ceiling framing: Use optional Hanger Bar Kit (sold separately from local distributors or website). Follow mounting instructions included with kit.

ALL INSTALLATIONS

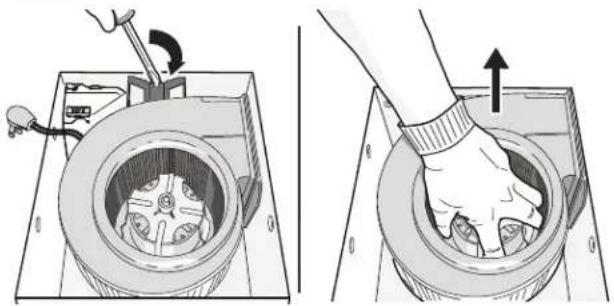

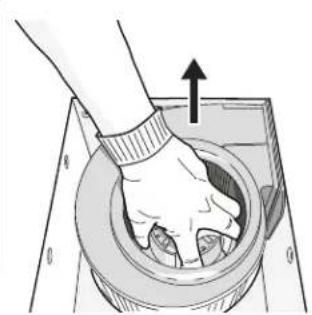

1 Remove all packing material, unplug and remove blower from fan housing.

2 Remove wiring panel from fan housing (if already installed).

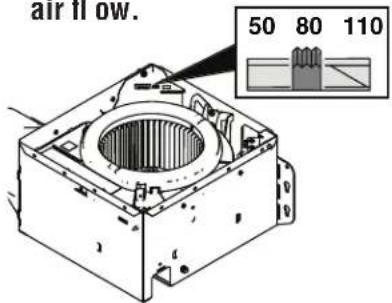

Some models only: Select 50, 80 or 110 CFM based on your room size and desired air flow.

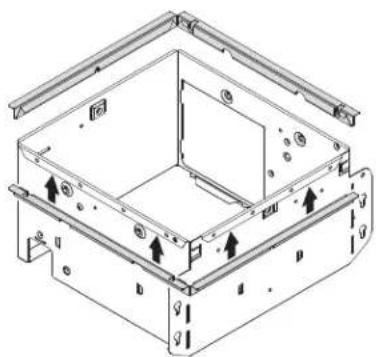

4 Some models only: A pair of fl anges may be attached to housing if desired or required.

Snap both fl ange pieces under rolled-over edge of housing (all four sides).

For Retrofi t Installation - Skip to Page 3.

NEW INSTALLATION

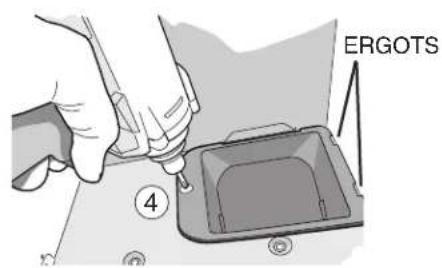

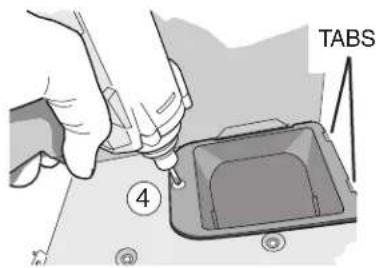

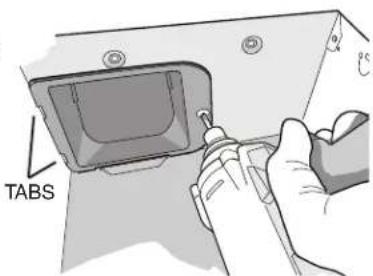

5 Attach damper/duct connector to fan housing.

Push connector through opening from inside of housing.

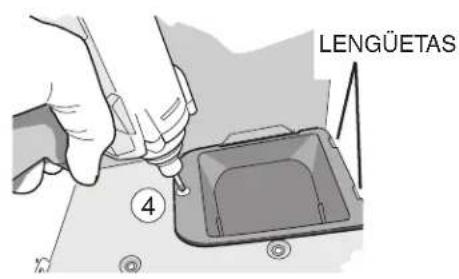

Engage tabs and secure with screw from parts bag.

6 Mount housing to ceiling structure.

Make sure bottom of housing will be fl ush with fi nished ceiling.

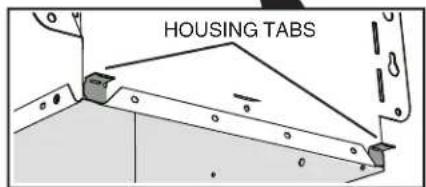

For proper location using 1/2" ceiling material: Bend out housing tabs (on outside of housing) to fit against bottom of joist.

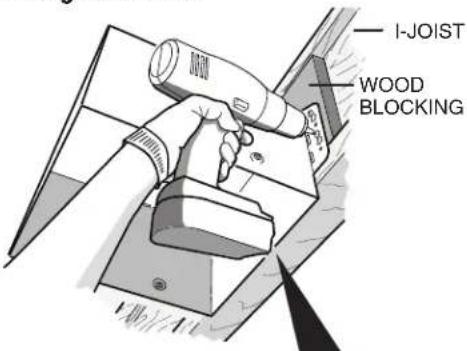

Secure housing through mounting ears with appropriate fasteners. If mounting housing to I-joist, use wood blocking as shown.

7 Connect 4-in. round duct.

A 4 to 6-inch duct expander is provided with select models.

8

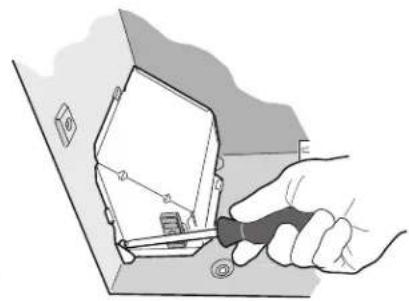

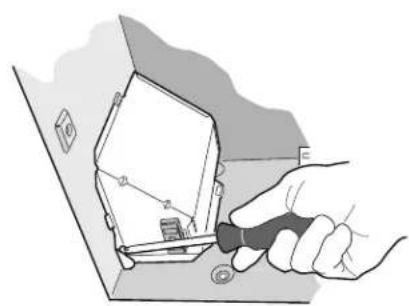

Connect wiring.

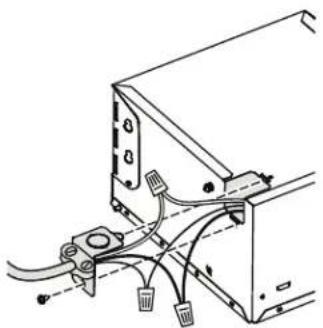

Connect power cable to wiring plate (from parts bag) using UL approved connector.

Connect house wiring to fan wiring. Refer to wiring diagram for connection

details. Use screw (from parts bag) to secure wiring plate to fan housing. Re-install wiring panel and secure with screw from parts bag.

9

Finish ceiling.

Then continue with Step 10.

RETROFIT INSTALLATION

5

Remove old fan and prepare ceiling.

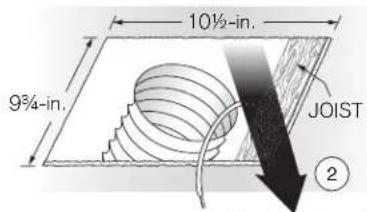

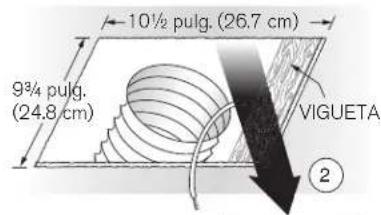

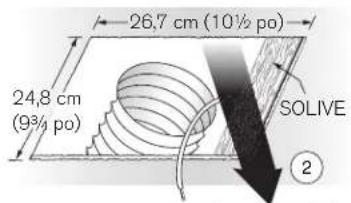

Enlarge ceiling opening (if necessary) to 9 ^3/4 " parallel to joist) by 10 ^1/2 " (perpendicular to joist). (Some models have a cut-out template on side of carton or on grille packaging materials.)

6

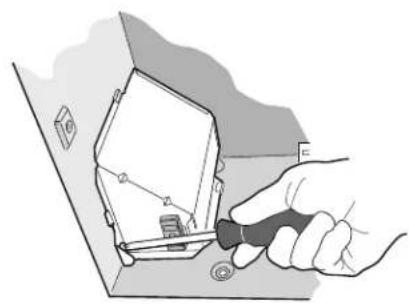

Fold mounting ears fl at against housing.

Existing fan housings are typically attached to the structure:

• with screws, nails, or staples, which must be removed.
• with hangers or rails which are fastened to joists and must be removed along with housing.

A pry bar may be needed to remove the old housing.

Leave ductwork and wiring in place.

7

Connect wiring.

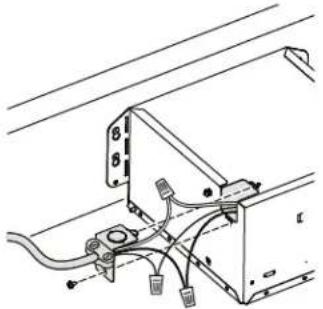

Connect power cable to wiring plate (from parts bag) using UL approved connector. Connect house wiring to fan wiring. Refer to wiring diagram for connection details. Use screw (from parts bag) to secure wiring plate to fan housing. Re-install wiring panel and secure with screw from parts bag.

8

Mount fan to ceiling structure.

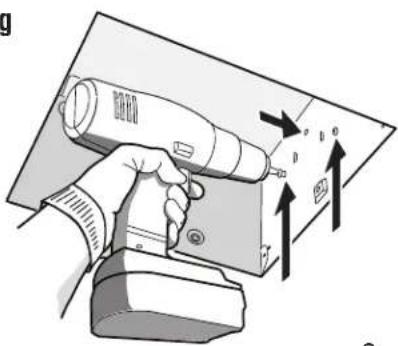

Mount housing to ceiling structure with appropriate fasteners in locations shown.

9

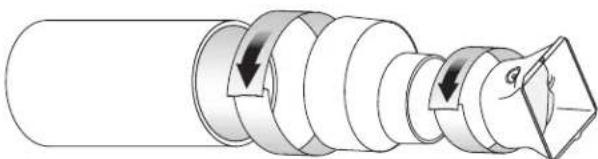

Connect 4-in. round duct.

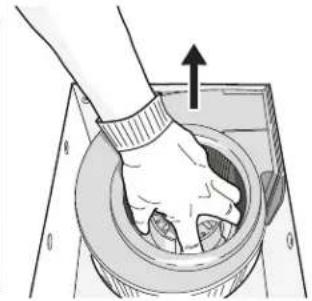

①Pull existing ducting through housing discharge opening and ②tape ducting to duct connector. ③ Push connector/ducting back through opening. Engage tabs and ④ secure with screw from parts bag.

Continue with Step 10.

ALL INSTALLATIONS

10

Install blower.

Re-install blower removed in Step 1. Secure blower with 2 screws from parts bag. Plug blower into black receptacle.

Flex™ Series Fan ONLY: Plug 5-wire plug into controller module.

Flex™ Series Fan ONLY

11

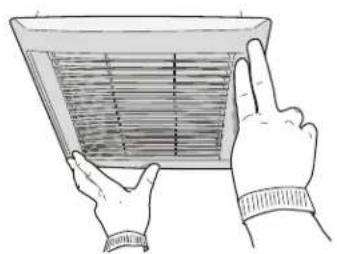

Install grille.

Squeeze grille springs and insert into slots in blower. Push grille up against ceiling.

If grille spring becomes dislodged from grille - snap it back into place as shown.

Depending upon model - your grille may look different.

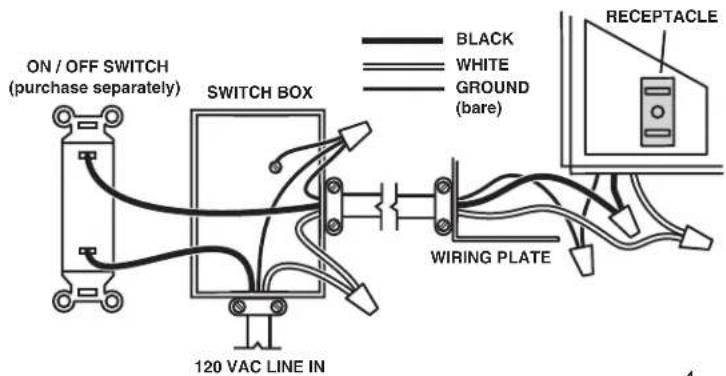

WIRING DIAGRAM

1103134C

2

8

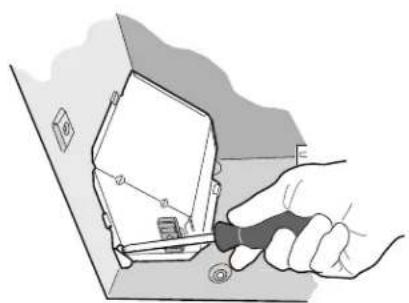

Branchez les fi Is.

6

8

9

Raccordez un conduit rond de 10 cm (4 po).

2

3

8

9

6

8

9

Ventilador Serie Flex™ SOLAMENTE

11

Instale la rejilla.
